JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owners Manual

Track Mode SRT Indicator Light
Green TelltaleLight What It Means
Track Mode SRT Indicator Light
This light will turn on when Track Mode SRT is active. Refer to “Selec-Track” in “Starting
And Operating” for further information.
Tow Mode SRT Indicator Light
Green Telltale
Light What It Means
Tow Mode SRT Indicator Light
This light will turn on when Tow Mode SRT is active. Refer to “Selec-Track” in “Starting
And Operating” for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 319

Snow Mode SRT Indicator Light
Green TelltaleLight What It Means
Snow Mode SRT Indicator Light
This light will turn on when Snow Mode SRT is active. Refer to “Selec-Track” in “Starting
And Operating” for further information.
Blue Telltale Indicator Lights
High Beam Indicator Light
Blue Telltale
Light What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam. Pull the lever toward you for a temporary high
beam on,
flash to pass scenario.
320 UNDERSTANDING YOUR INSTRUMENT PANEL

White Telltale Indicator Lights
Electronic Speed Control ON Indicator Light
White TelltaleLight What It Means
Electronic Speed Control ON Indicator Light
This light will turn on when the electronic speed control is ON, but not set.
Adaptive Cruise Control (ACC) On Light — If Equipped
White Telltale
Light What It Means
Adaptive Cruise Control (ACC) On Light — If Equipped
This light will turn on when the Adaptive Cruise Control is ON, but not set. Refer to
“Adaptive Cruise Control (ACC)” in “Understanding The Features Of Your Vehicle” for fur-
ther information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 321

Speed Warning Light — If Equipped
White TelltaleLight What It Means
Speed Warning Light
Each time the set speed is exceeded, an audible chime will sound for up to 10 seconds or
until the speed is no longer exceeded, the telltale will change from white to yellow (on color
displays), the telltale will flash in sync with the chime, and a pop up message of
Speed
Warning Exceeded occurs in the DID screen.
NOTE: The vehicle user can select the desired speed at which to be notified.
NOTE: The number “120” is only an example of a speed that can be set.
322 UNDERSTANDING YOUR INSTRUMENT PANEL

DRIVER INFORMATION DISPLAY (DID)
The Driver Information Display (DID) features a driver-
interactive display that is located in the instrument
cluster.
The DID Menu items consists of the following:•
Speedometer Main Gauge
• Vehicle Info
• SRT Performance Pages
• Terrain — If Equipped
• Driver Assist
• Fuel Economy
• Trip
• Audio
• Navigation — If Equipped
• Stored Messages
• Screen Setup
• Diagnostic Codes
• Speed Warning — If Equipped
Driver Information Display (DID) Location
4
UNDERSTANDING YOUR INSTRUMENT PANEL 323

The system allows the driver to select information by
pressing the following buttons mounted on the steering
wheel:•
UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu and
submenus.
• DOWN Arrow Button
Push and release the DOWNarrow button to
scroll downward through the main menu and
submenus.
• RIGHT Arrow Button
Push and release the RIGHTarrow button to
access the information screens or submenu
screens of a main menu item.
• BACK Arrow Button
Push the LEFTarrow button to return to the
main menu from an info screen or submenu
item.
DID Controls
324 UNDERSTANDING YOUR INSTRUMENT PANEL

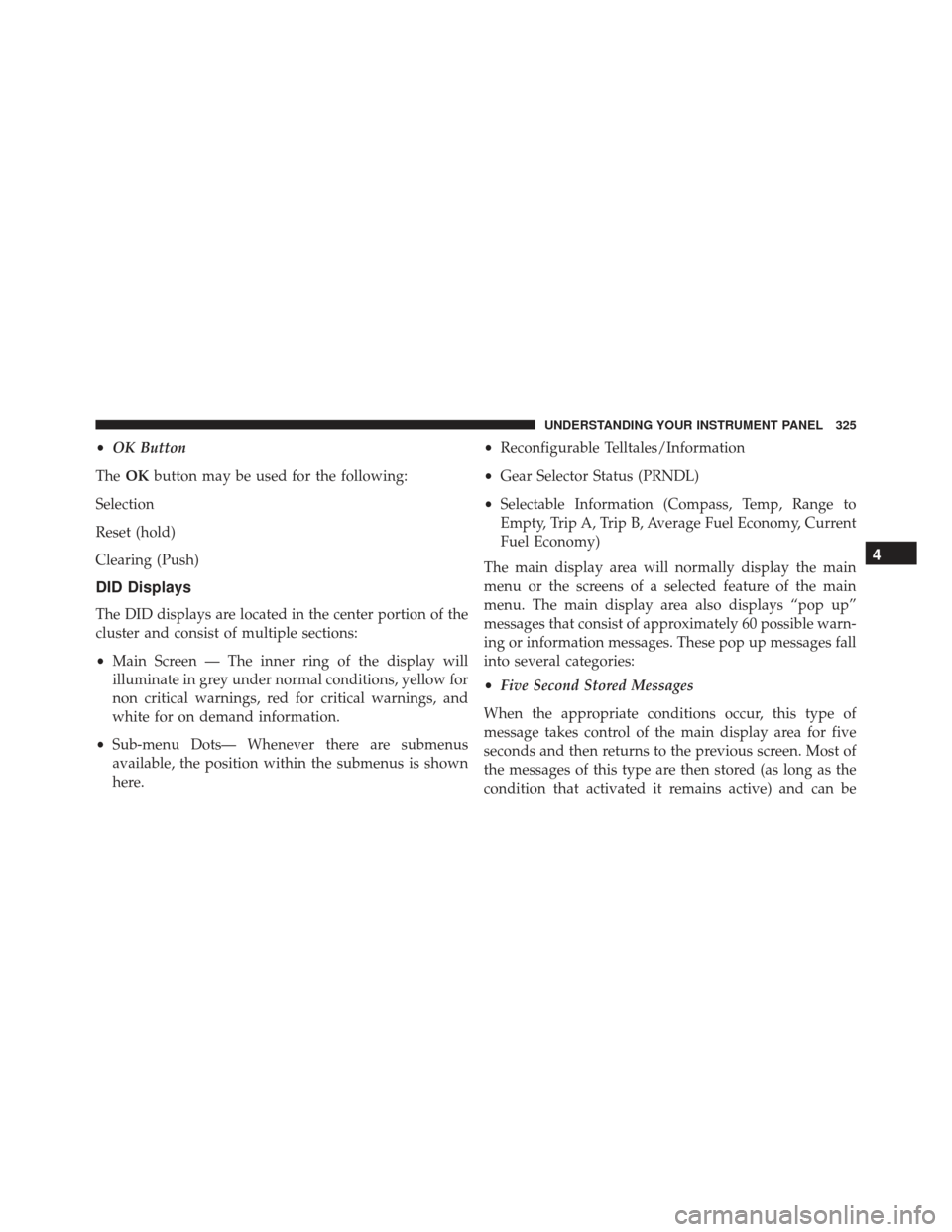

•OK Button
The OKbutton may be used for the following:
Selection
Reset (hold)
Clearing (Push)
DID Displays
The DID displays are located in the center portion of the
cluster and consist of multiple sections:
• Main Screen — The inner ring of the display will
illuminate in grey under normal conditions, yellow for
non critical warnings, red for critical warnings, and
white for on demand information.
• Sub-menu Dots— Whenever there are submenus
available, the position within the submenus is shown
here. •
Reconfigurable Telltales/Information
• Gear Selector Status (PRNDL)
• Selectable Information (Compass, Temp, Range to
Empty, Trip A, Trip B, Average Fuel Economy, Current
Fuel Economy)
The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays “pop up”
messages that consist of approximately 60 possible warn-
ing or information messages. These pop up messages fall
into several categories:
• Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Most of
the messages of this type are then stored (as long as the
condition that activated it remains active) and can be
4
UNDERSTANDING YOUR INSTRUMENT PANEL 325

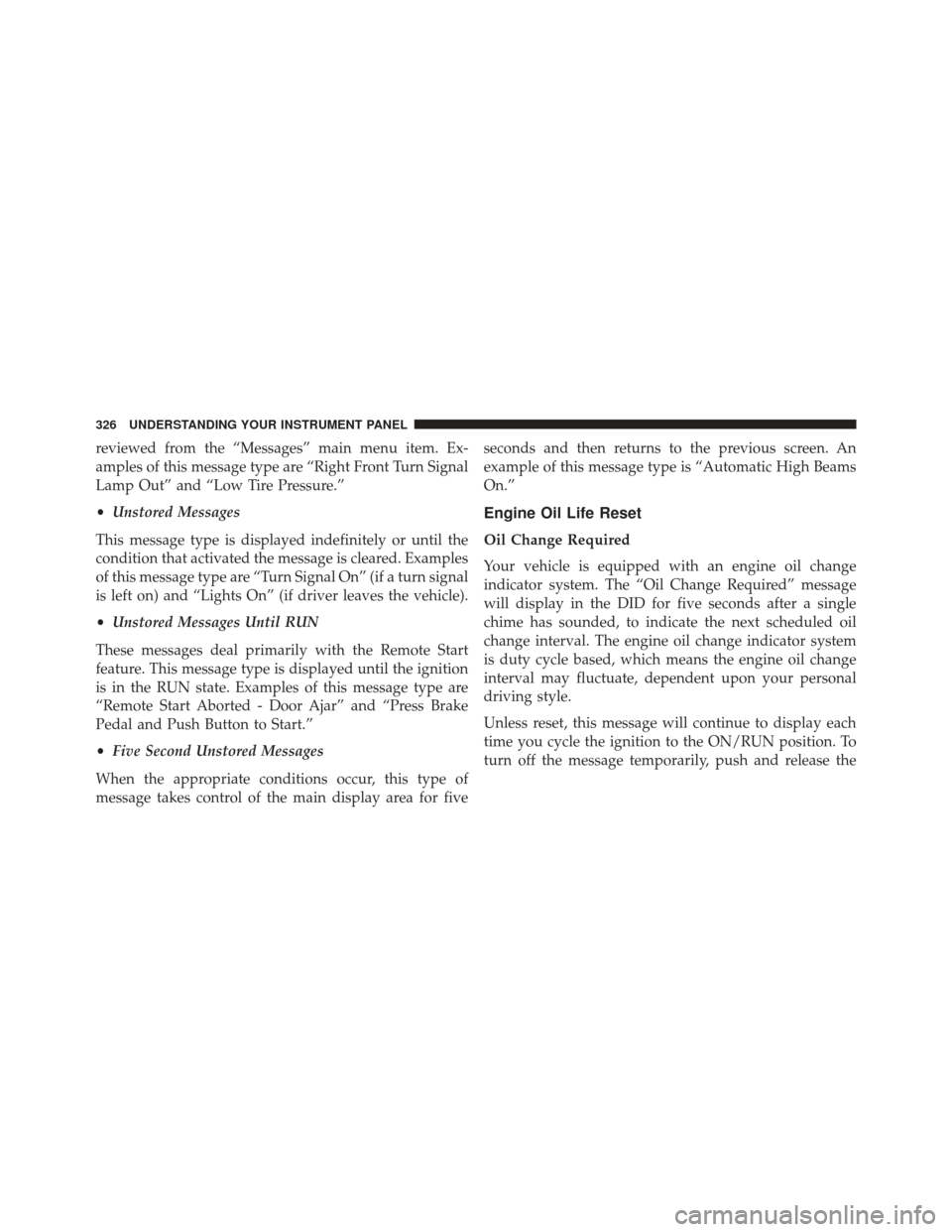

reviewed from the “Messages” main menu item. Ex-
amples of this message type are “Right Front Turn Signal
Lamp Out” and “Low Tire Pressure.”
•Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are “Turn Signal On” (if a turn signal
is left on) and “Lights On” (if driver leaves the vehicle).
• Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition
is in the RUN state. Examples of this message type are
“Remote Start Aborted - Door Ajar” and “Press Brake
Pedal and Push Button to Start.”
• Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five seconds and then returns to the previous screen. An
example of this message type is “Automatic High Beams
On.”
Engine Oil Life Reset
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will display in the DID for five seconds after a single
chime has sounded, to indicate the next scheduled oil
change interval. The engine oil change indicator system
is duty cycle based, which means the engine oil change
interval may fluctuate, dependent upon your personal
driving style.
Unless reset, this message will continue to display each
time you cycle the ignition to the ON/RUN position. To
turn off the message temporarily, push and release the
326 UNDERSTANDING YOUR INSTRUMENT PANEL

OKbutton. To reset the oil change indicator system (after
performing the scheduled maintenance), refer to the
following procedure.
Oil Change Reset Procedure
1. Without pushing the brake pedal, push and release the ENGINE START/STOP button and place the ignition
to the ON/RUN position (do not start the engine).
2. Fully push the accelerator pedal, slowly, three times within 10 seconds.
3. Without pushing the brake pedal, push and release the ENGINE START/STOP button once to return the
ignition to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure. Secondary Method For Oil Change Reset
1. Without depressing the brake pedal, push and release
the ENGINE START/STOP button and place the igni-
tion to the ON/RUN position (do not start the engine).
2. Navigate to Oil Lifesubmenu in Vehicle Info on
DID.
3. Push and Hold the OKbutton until the gauge resets to
100%.
Performance Shift Indicator (PSI) – If Equipped
The Performance Shift Indicator (PSI) is enabled on
vehicles with manual transmission, or when a vehicle
with automatic transmission is in Auto-Stick mode. The
PSI provides the driver with a visual indication within
the cluster information display when the driver config-
ured gear shift point has been reached and the driver is
still accelerating. This indication notifies the driver to
change gear corresponding to the configured RPMs in the
4
UNDERSTANDING YOUR INSTRUMENT PANEL 327

head unit. When the shift up indicator is shown on the
display, the PSI is advising the driver to engage a higher
gear.
NOTE:The PSI is configured and turned on or off in the
head unit “Shift Light: Set Up” page.
The PSI indicator in the cluster information display
remains illuminated until the driver changes gear, or the
driving conditions return to a situation where changing
gear is not required, corresponding to the configured
RPMs in the head unit.
NOTE: Refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information on en-
abling, disabling, and configuring the Performance Shift
Indicator.
DID Messages
Includes the following, but not limited to:
• Front Seatbelts Unbuckled •
Driver Seat Belt Unbuckled
• Passenger Seat Belt Unbuckled
• Traction Control Off
• Washer Fluid Low
• Oil Pressure Low
• Oil Change Due
• Fuel Low
• Service Anti-lock Brake System
• Service Electronic Throttle Control
• Service Power Steering
• Cruise Off
• Cruise Ready
• ACC Override
328 UNDERSTANDING YOUR INSTRUMENT PANEL
