JEEP GRAND CHEROKEE 2016 WK2 / 4.G SRT Owner's Manual

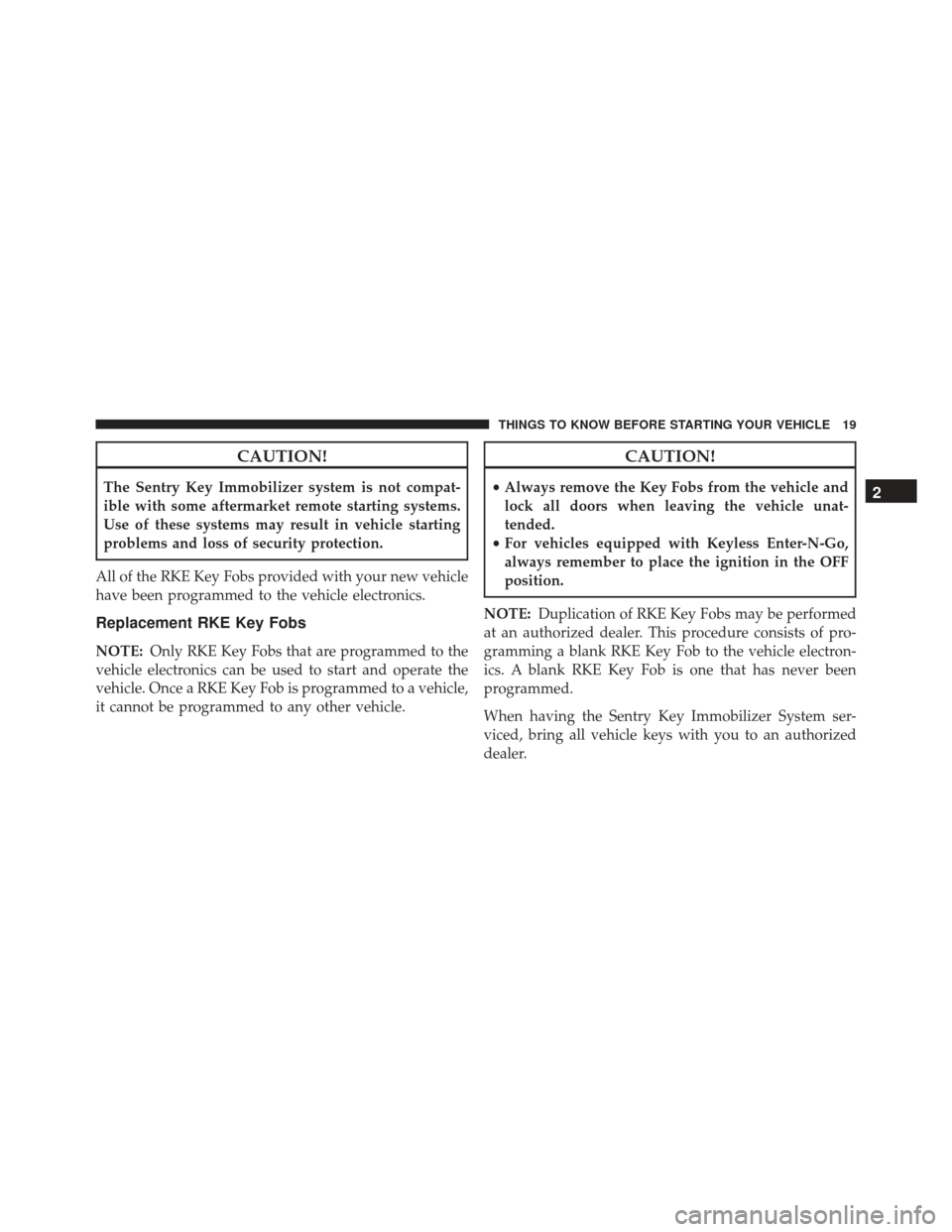

CAUTION!
The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the RKE Key Fobs provided with your new vehicle
have been programmed to the vehicle electronics.
Replacement RKE Key Fobs
NOTE: Only RKE Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a RKE Key Fob is programmed to a vehicle,
it cannot be programmed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go,
always remember to place the ignition in the OFF
position.
NOTE: Duplication of RKE Key Fobs may be performed
at an authorized dealer. This procedure consists of pro-
gramming a blank RKE Key Fob to the vehicle electron-
ics. A blank RKE Key Fob is one that has never been
programmed.
When having the Sentry Key Immobilizer System ser-
viced, bring all vehicle keys with you to an authorized
dealer.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

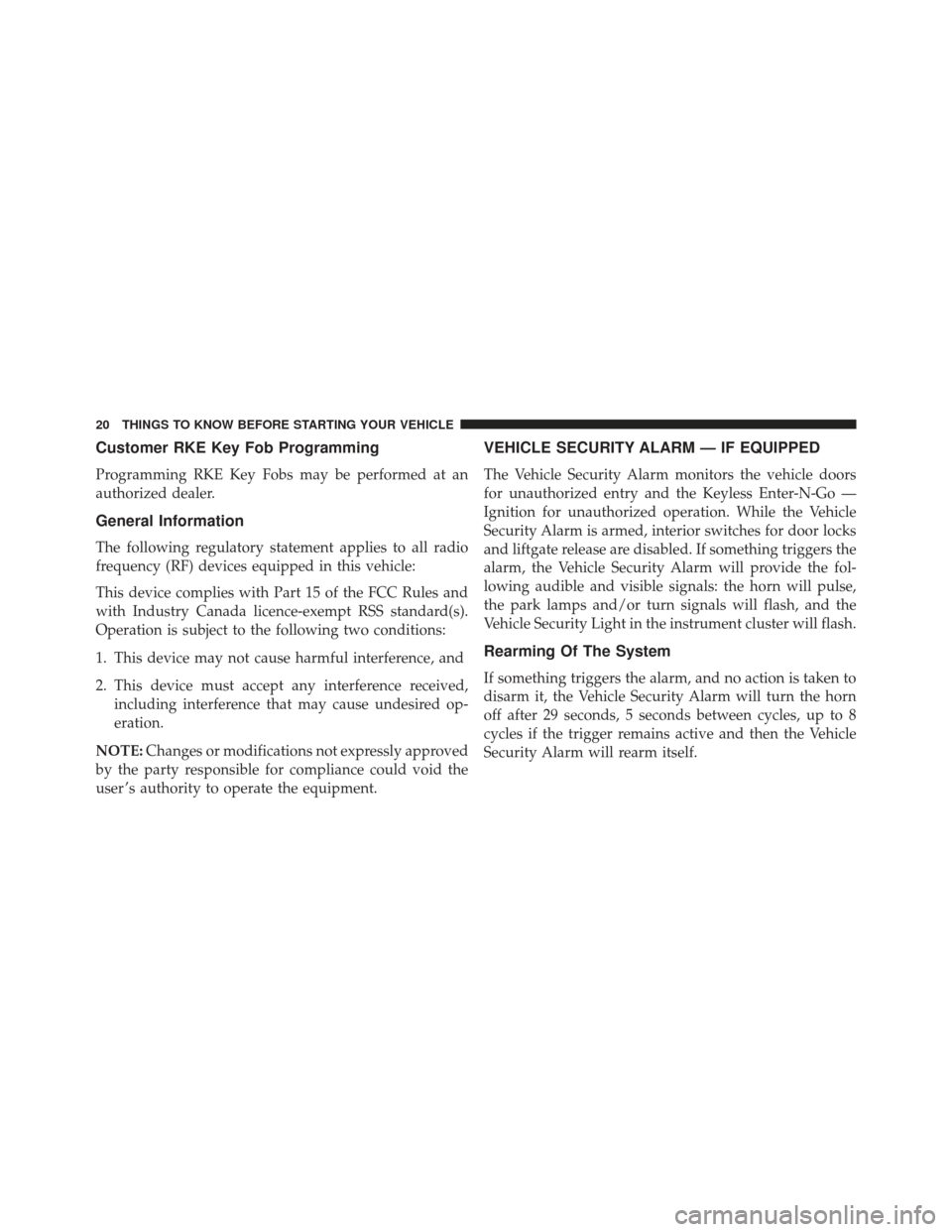

Customer RKE Key Fob Programming
Programming RKE Key Fobs may be performed at an
authorized dealer.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and the Keyless Enter-N-Go —
Ignition for unauthorized operation. While the Vehicle
Security Alarm is armed, interior switches for door locks
and liftgate release are disabled. If something triggers the
alarm, the Vehicle Security Alarm will provide the fol-
lowing audible and visible signals: the horn will pulse,
the park lamps and/or turn signals will flash, and the
Vehicle Security Light in the instrument cluster will flash.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn the horn
off after 29 seconds, 5 seconds between cycles, up to 8
cycles if the trigger remains active and then the Vehicle
Security Alarm will rearm itself.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

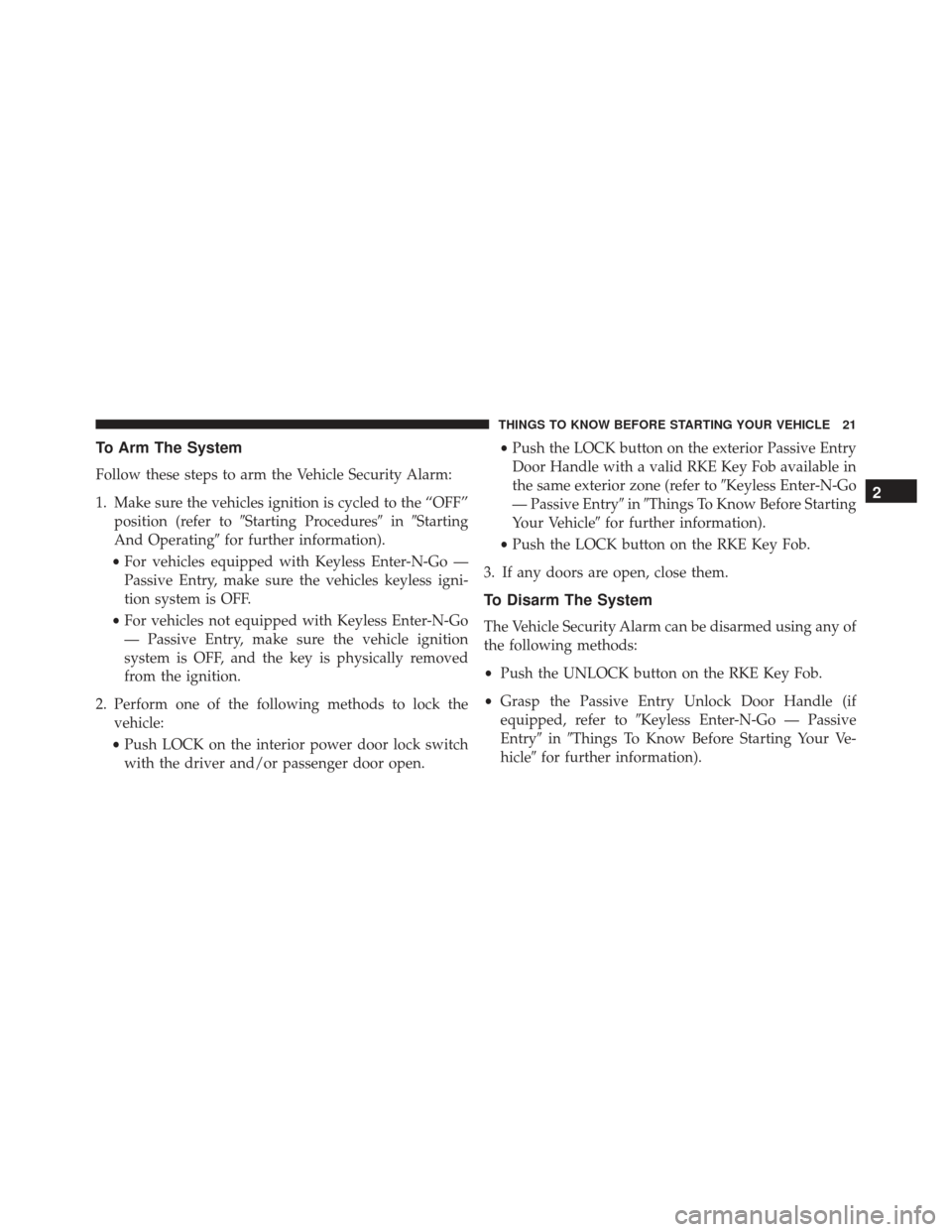

To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Make sure the vehicles ignition is cycled to the “OFF”position (refer to Starting Procedures inStarting
And Operating for further information).
• For vehicles equipped with Keyless Enter-N-Go —
Passive Entry, make sure the vehicles keyless igni-
tion system is OFF.
• For vehicles not equipped with Keyless Enter-N-Go
— Passive Entry, make sure the vehicle ignition
system is OFF, and the key is physically removed
from the ignition.
2. Perform one of the following methods to lock the vehicle:
• Push LOCK on the interior power door lock switch
with the driver and/or passenger door open. •
Push the LOCK button on the exterior Passive Entry
Door Handle with a valid RKE Key Fob available in
the same exterior zone (refer to Keyless Enter-N-Go
— Passive Entry inThings To Know Before Starting
Your Vehicle for further information).
• Push the LOCK button on the RKE Key Fob.
3. If any doors are open, close them.
To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
• Push the UNLOCK button on the RKE Key Fob.
• Grasp the Passive Entry Unlock Door Handle (if
equipped, refer to Keyless Enter-N-Go — Passive
Entry inThings To Know Before Starting Your Ve-
hicle for further information).
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

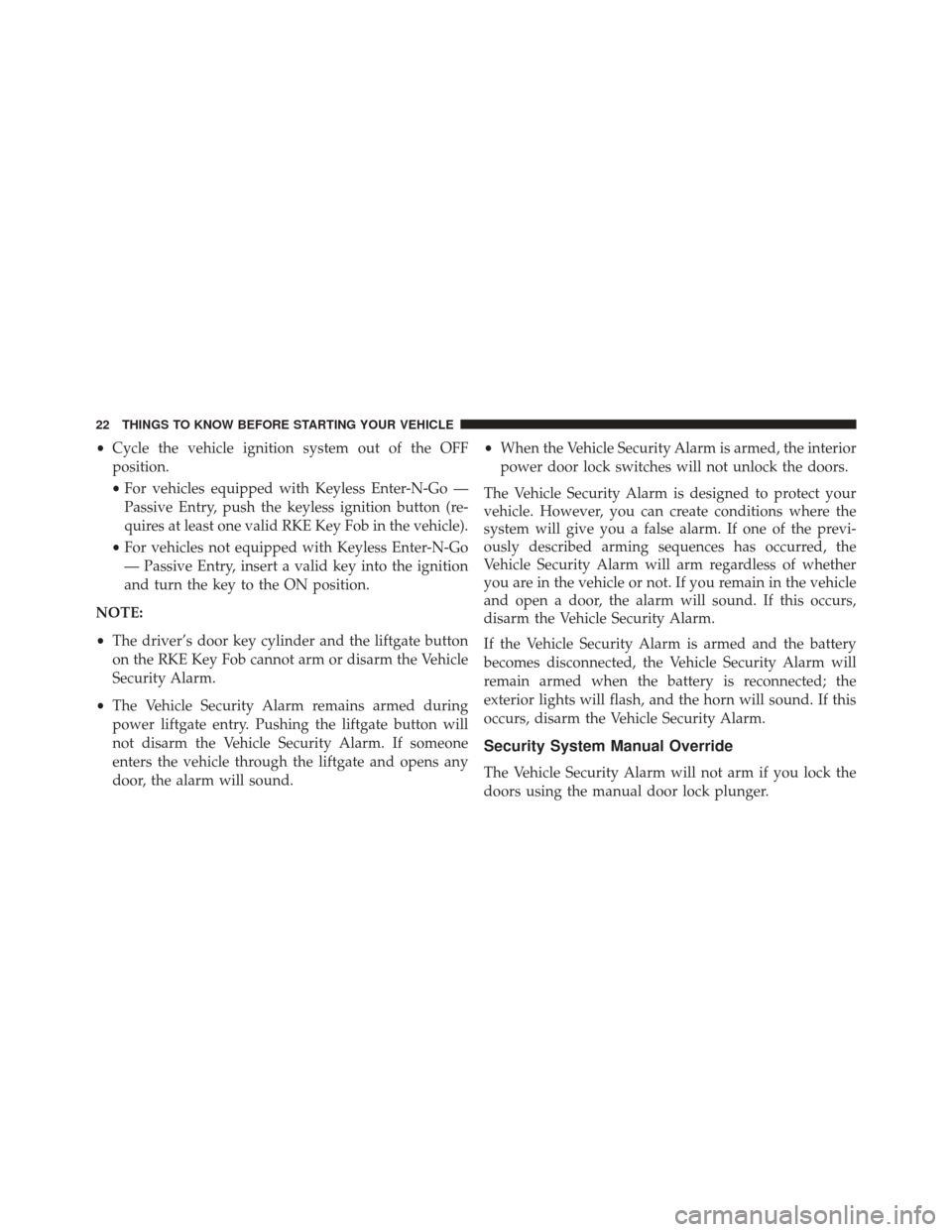

•Cycle the vehicle ignition system out of the OFF
position.
• For vehicles equipped with Keyless Enter-N-Go —
Passive Entry, push the keyless ignition button (re-
quires at least one valid RKE Key Fob in the vehicle).
• For vehicles not equipped with Keyless Enter-N-Go
— Passive Entry, insert a valid key into the ignition
and turn the key to the ON position.
NOTE:
• The driver’s door key cylinder and the liftgate button
on the RKE Key Fob cannot arm or disarm the Vehicle
Security Alarm.
• The Vehicle Security Alarm remains armed during
power liftgate entry. Pushing the liftgate button will
not disarm the Vehicle Security Alarm. If someone
enters the vehicle through the liftgate and opens any
door, the alarm will sound. •
When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected; the
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Security System Manual Override
The Vehicle Security Alarm will not arm if you lock the
doors using the manual door lock plunger.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

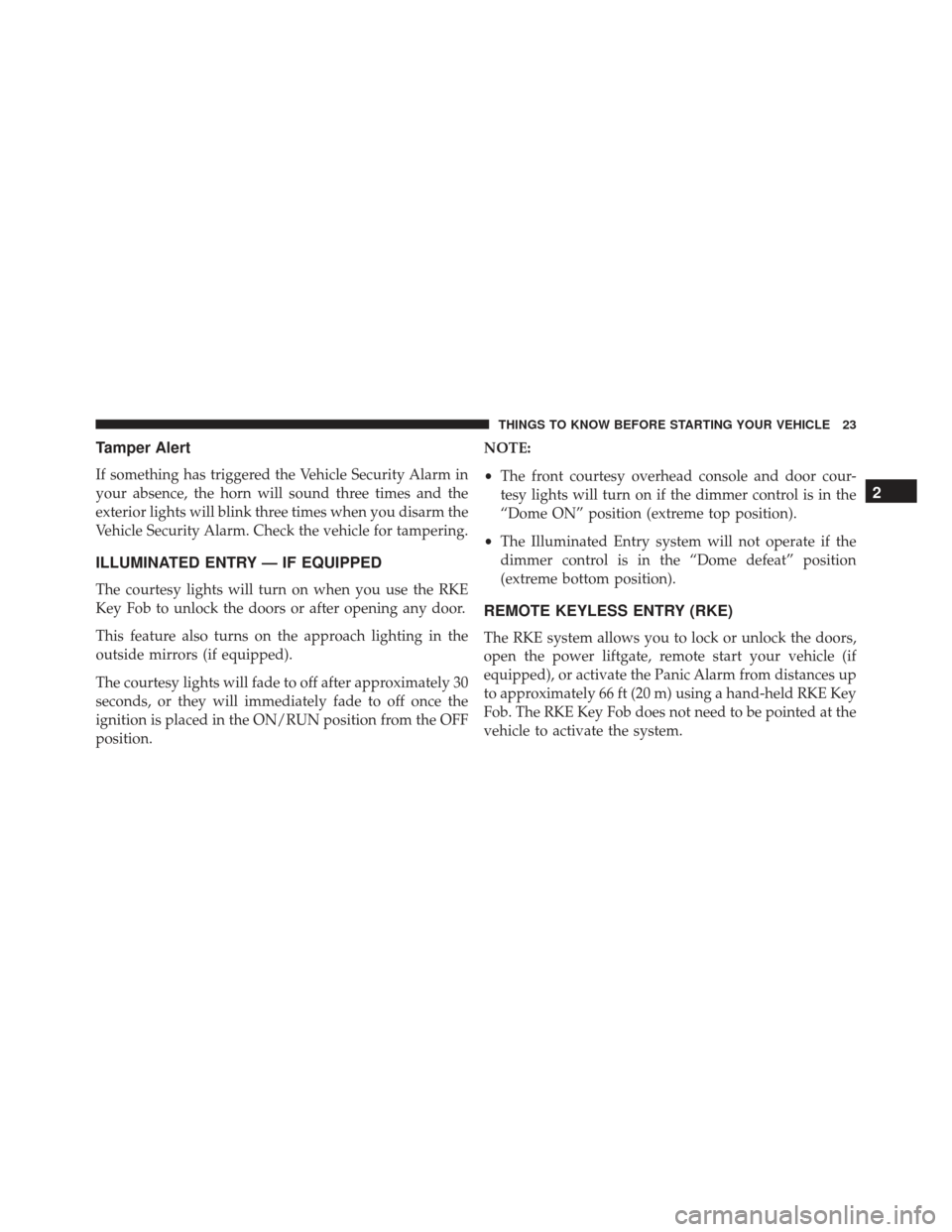

Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times and the
exterior lights will blink three times when you disarm the
Vehicle Security Alarm. Check the vehicle for tampering.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you use the RKE
Key Fob to unlock the doors or after opening any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped).
The courtesy lights will fade to off after approximately 30
seconds, or they will immediately fade to off once the
ignition is placed in the ON/RUN position from the OFF
position.NOTE:
•
The front courtesy overhead console and door cour-
tesy lights will turn on if the dimmer control is in the
“Dome ON” position (extreme top position).
• The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lock or unlock the doors,
open the power liftgate, remote start your vehicle (if
equipped), or activate the Panic Alarm from distances up
to approximately 66 ft (20 m) using a hand-held RKE Key
Fob. The RKE Key Fob does not need to be pointed at the
vehicle to activate the system.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

NOTE:Driving at speeds 5 MPH (8 km/h) and above
disables the system from responding to all RKE Key Fob
buttons for all RKE Key Fobs.To Unlock The Doors And Liftgate
Push and release the UNLOCK button on the RKE Key
Fob once to unlock the driver’s door or twice within five
seconds to unlock all doors and liftgate. The turn signal
lights will flash to acknowledge the unlock signal. The
illuminated entry system will also turn on.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” in “Things To
Know Before Starting Your Vehicle” for further informa-
tion.
1st Press Of RKE Key Fob Unlocks
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
UNLOCK button on the RKE Key Fob. To change the
current setting, refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
RKE Key Fob
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

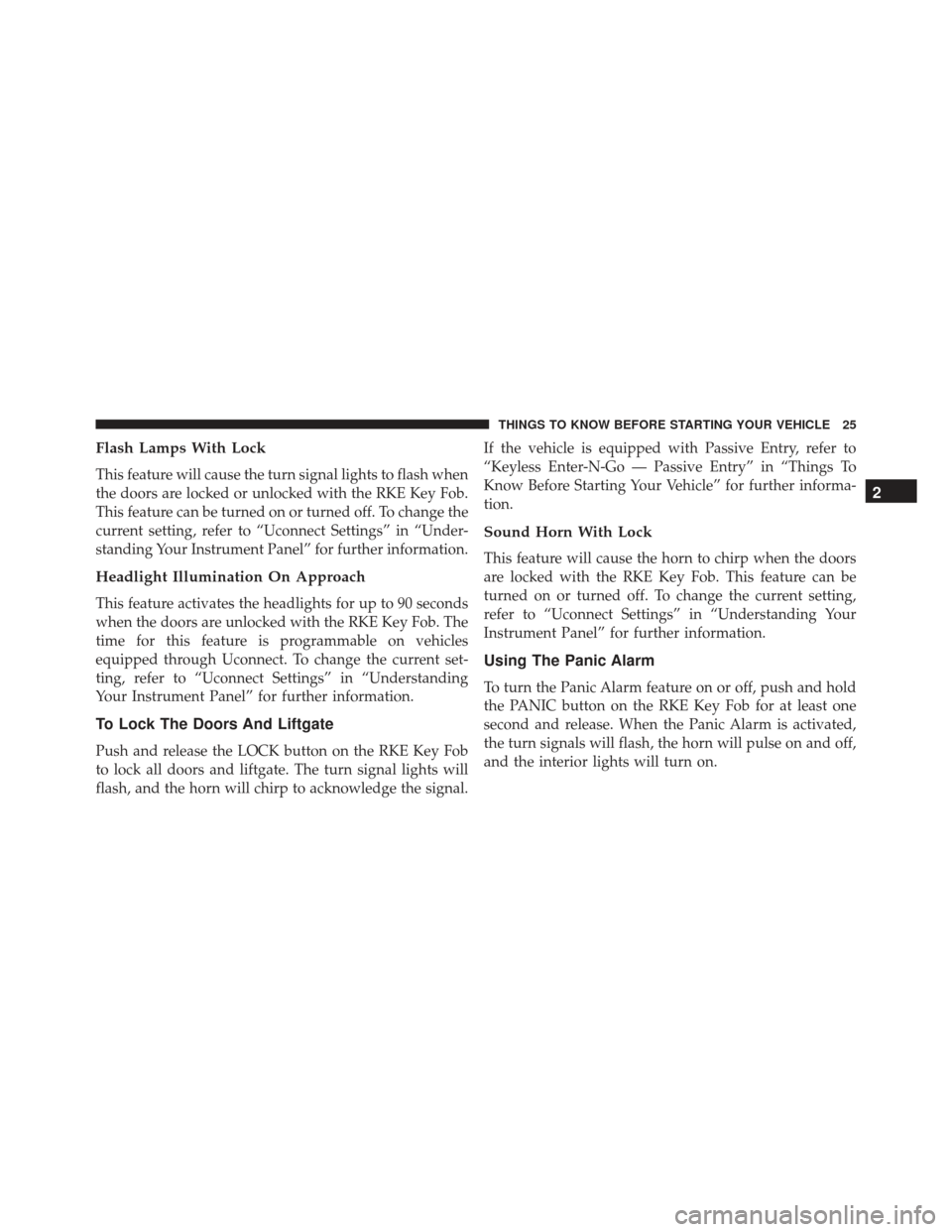

Flash Lamps With Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE Key Fob.
This feature can be turned on or turned off. To change the
current setting, refer to “Uconnect Settings” in “Under-
standing Your Instrument Panel” for further information.
Headlight Illumination On Approach
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE Key Fob. The
time for this feature is programmable on vehicles
equipped through Uconnect. To change the current set-
ting, refer to “Uconnect Settings” in “Understanding
Your Instrument Panel” for further information.
To Lock The Doors And Liftgate
Push and release the LOCK button on the RKE Key Fob
to lock all doors and liftgate. The turn signal lights will
flash, and the horn will chirp to acknowledge the signal.If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” in “Things To
Know Before Starting Your Vehicle” for further informa-
tion.
Sound Horn With Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE Key Fob. This feature can be
turned on or turned off. To change the current setting,
refer to “Uconnect Settings” in “Understanding Your
Instrument Panel” for further information.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, push and hold
the PANIC button on the RKE Key Fob for at least one
second and release. When the Panic Alarm is activated,
the turn signals will flash, the horn will pulse on and off,
and the interior lights will turn on.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

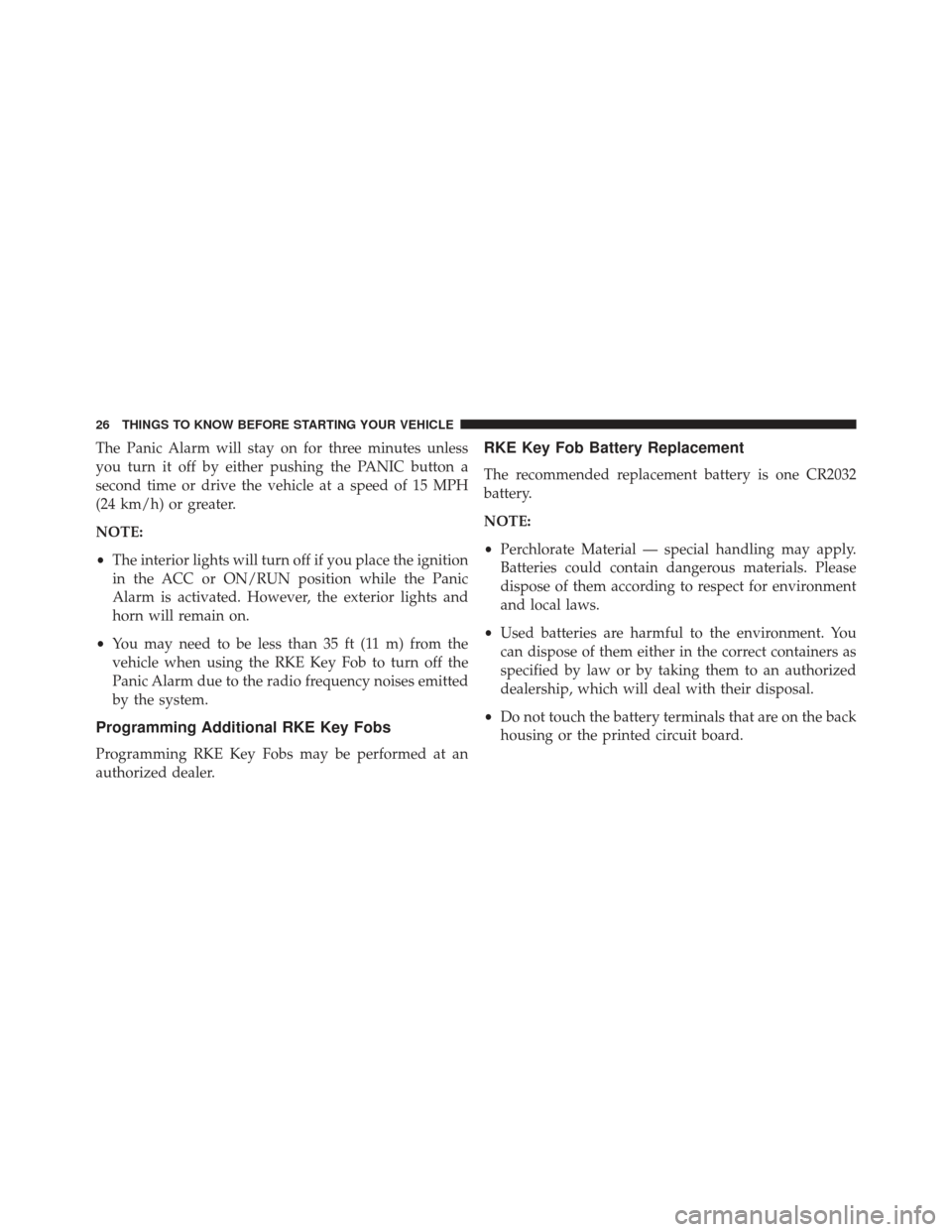

The Panic Alarm will stay on for three minutes unless
you turn it off by either pushing the PANIC button a
second time or drive the vehicle at a speed of 15 MPH
(24 km/h) or greater.
NOTE:
•The interior lights will turn off if you place the ignition
in the ACC or ON/RUN position while the Panic
Alarm is activated. However, the exterior lights and
horn will remain on.
• You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE Key Fob to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional RKE Key Fobs
Programming RKE Key Fobs may be performed at an
authorized dealer.
RKE Key Fob Battery Replacement
The recommended replacement battery is one CR2032
battery.
NOTE:
• Perchlorate Material — special handling may apply.
Batteries could contain dangerous materials. Please
dispose of them according to respect for environment
and local laws.
• Used batteries are harmful to the environment. You
can dispose of them either in the correct containers as
specified by law or by taking them to an authorized
dealership, which will deal with their disposal.
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

1. Remove the emergency key by sliding the mechanicallatch on the back of the RKE Key Fob sideways with
your thumb and then pull the key out with your other
hand.
2. Insert the tip of the emergency key or a #2 flat blade screwdriver into the slot and gently pry the two halves
of the RKE Key Fob apart. Make sure not to damage
the seal during removal.
3. Remove the battery by turning the back cover over(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar, then replace the
battery.
4. Fit a new battery in place of the depleted battery. When replacing the battery, match the + sign on the
Separating RKE Key Fob Case
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

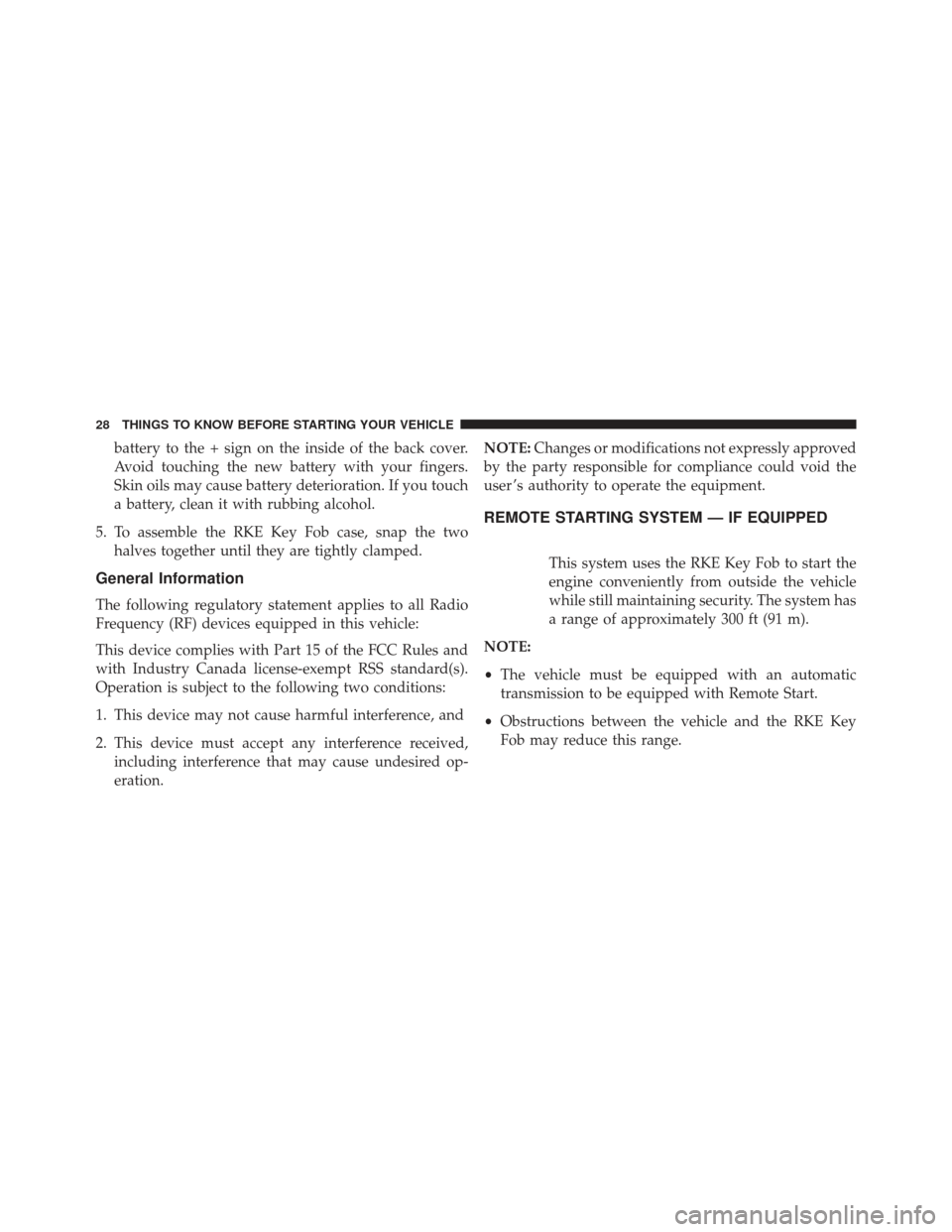

battery to the + sign on the inside of the back cover.
Avoid touching the new battery with your fingers.
Skin oils may cause battery deterioration. If you touch
a battery, clean it with rubbing alcohol.
5. To assemble the RKE Key Fob case, snap the two halves together until they are tightly clamped.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration. NOTE:
Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the RKE Key Fob to start the
engine conveniently from outside the vehicle
while still maintaining security. The system has
a range of approximately 300 ft (91 m).
NOTE:
• The vehicle must be equipped with an automatic
transmission to be equipped with Remote Start.
• Obstructions between the vehicle and the RKE Key
Fob may reduce this range.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
