WARNING!(Continued)
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
5
SAFETY 259

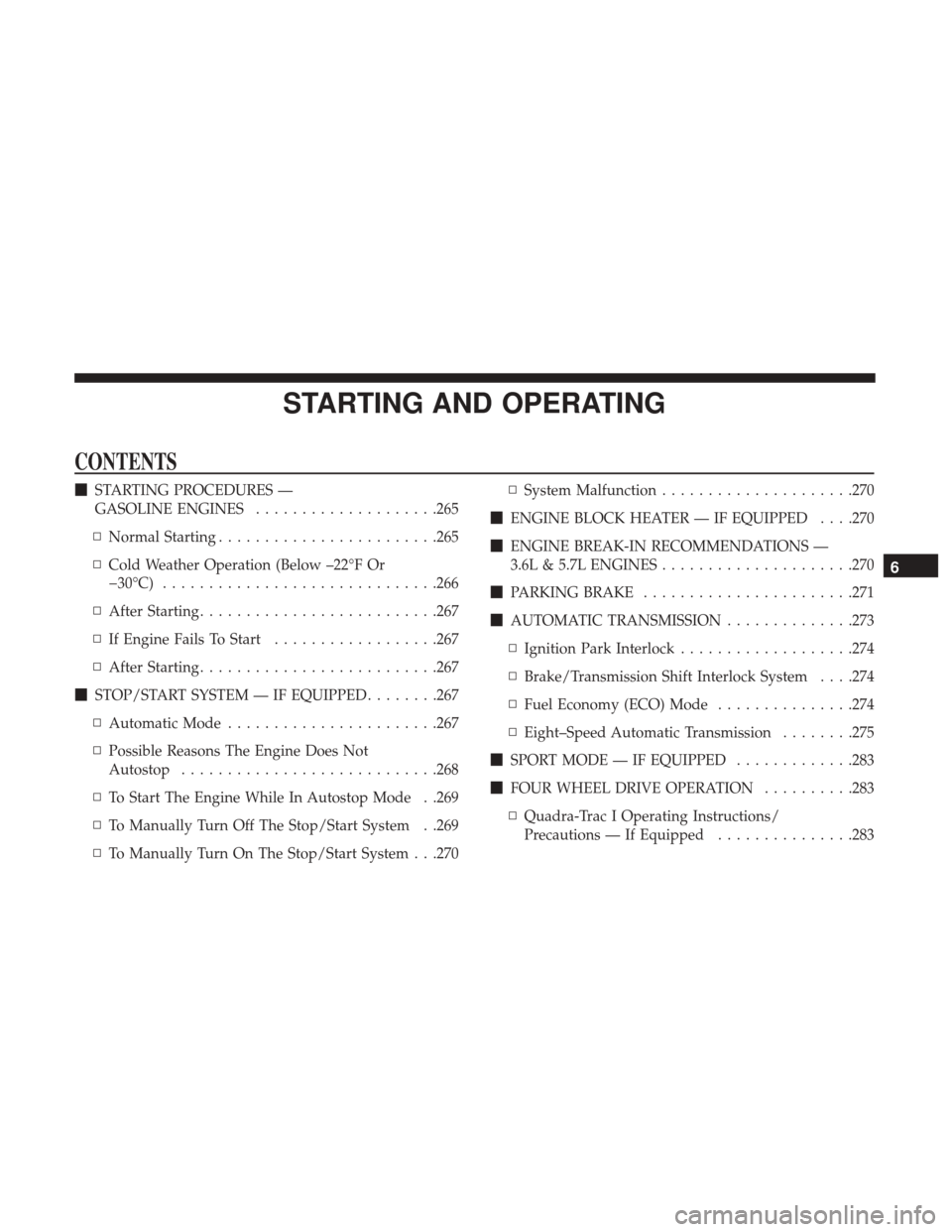

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES —
GASOLINE ENGINES ....................265
▫ Normal Starting ....................... .265
▫ Cold Weather Operation (Below –22°F Or
30°C) ............................. .266
▫ After Starting ......................... .267
▫ If Engine Fails To Start ..................267
▫ After Starting ......................... .267
 STOP/START SYSTEM — IF EQUIPPED ........267
▫ Automatic Mode ...................... .267
▫ Possible Reasons The Engine Does Not
Autostop ........................... .268
▫ To Start The Engine While In Autostop Mode . .269
▫ To Manually Turn Off The Stop/Start System . .269
▫ To Manually Turn On The Stop/Start System . . .270 ▫
System Malfunction .....................270
 ENGINE BLOCK HEATER — IF EQUIPPED . . . .270
 ENGINE BREAK-IN RECOMMENDATIONS —
3.6L & 5.7L ENGINES .....................270
 PARKING BRAKE ...................... .271
 AUTOMATIC TRANSMISSION ..............273
▫ Ignition Park Interlock ...................274
▫ Brake/Transmission Shift Interlock System . . . .274
▫ Fuel Economy (ECO) Mode ...............274
▫ Eight–Speed Automatic Transmission ........275
 SPORT MODE — IF EQUIPPED .............283
 FOUR WHEEL DRIVE OPERATION ..........283
▫ Quadra-Trac I Operating Instructions/
Precautions — If Equipped ...............283
6

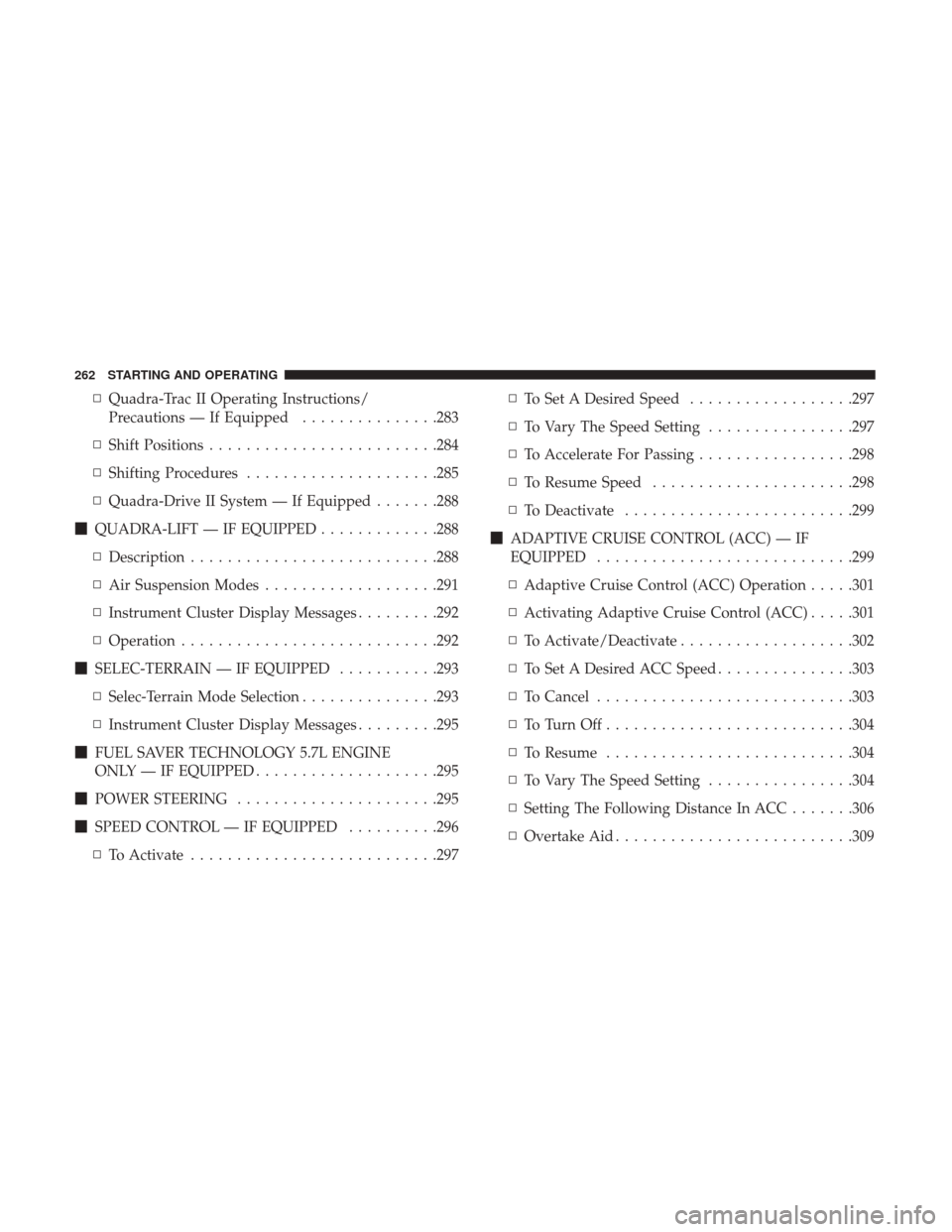

▫Quadra-Trac II Operating Instructions/
Precautions — If Equipped ...............283
▫ Shift Positions ........................ .284
▫ Shifting Procedures .....................285
▫ Quadra-Drive II System — If Equipped .......288
 QUADRA-LIFT — IF EQUIPPED .............288
▫ Description .......................... .288
▫ Air Suspension Modes ...................291
▫ Instrument Cluster Display Messages .........292
▫ Operation ........................... .292
 SELEC-TERRAIN — IF EQUIPPED ...........293
▫ Selec-Terrain Mode Selection ...............293
▫ Instrument Cluster Display Messages .........295
 FUEL SAVER TECHNOLOGY 5.7L ENGINE
ONLY — IF EQUIPPED ....................295
 POWER STEERING ..................... .295
 SPEED CONTROL — IF EQUIPPED ..........296
▫ To Activate .......................... .297▫
To Set A Desired Speed ..................297
▫ To Vary The Speed Setting ................297
▫ To Accelerate For Passing .................298
▫ To Resume Speed ..................... .298
▫ To Deactivate ........................ .299
 ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED ........................... .299
▫ Adaptive Cruise Control (ACC) Operation .....301
▫ Activating Adaptive Cruise Control (ACC) .....301
▫ To Activate/Deactivate ...................302
▫ T

o Set A Desired ACC Speed ...............303
▫ To Cancel ........................... .303
▫ ToTurnOff.......................... .304
▫ To Resume .......................... .304
▫ To Vary The Speed Setting ................304
▫ Setting The Following Distance In ACC .......306
▫ Overtake Aid ......................... .309
262 STARTING AND OPERATING

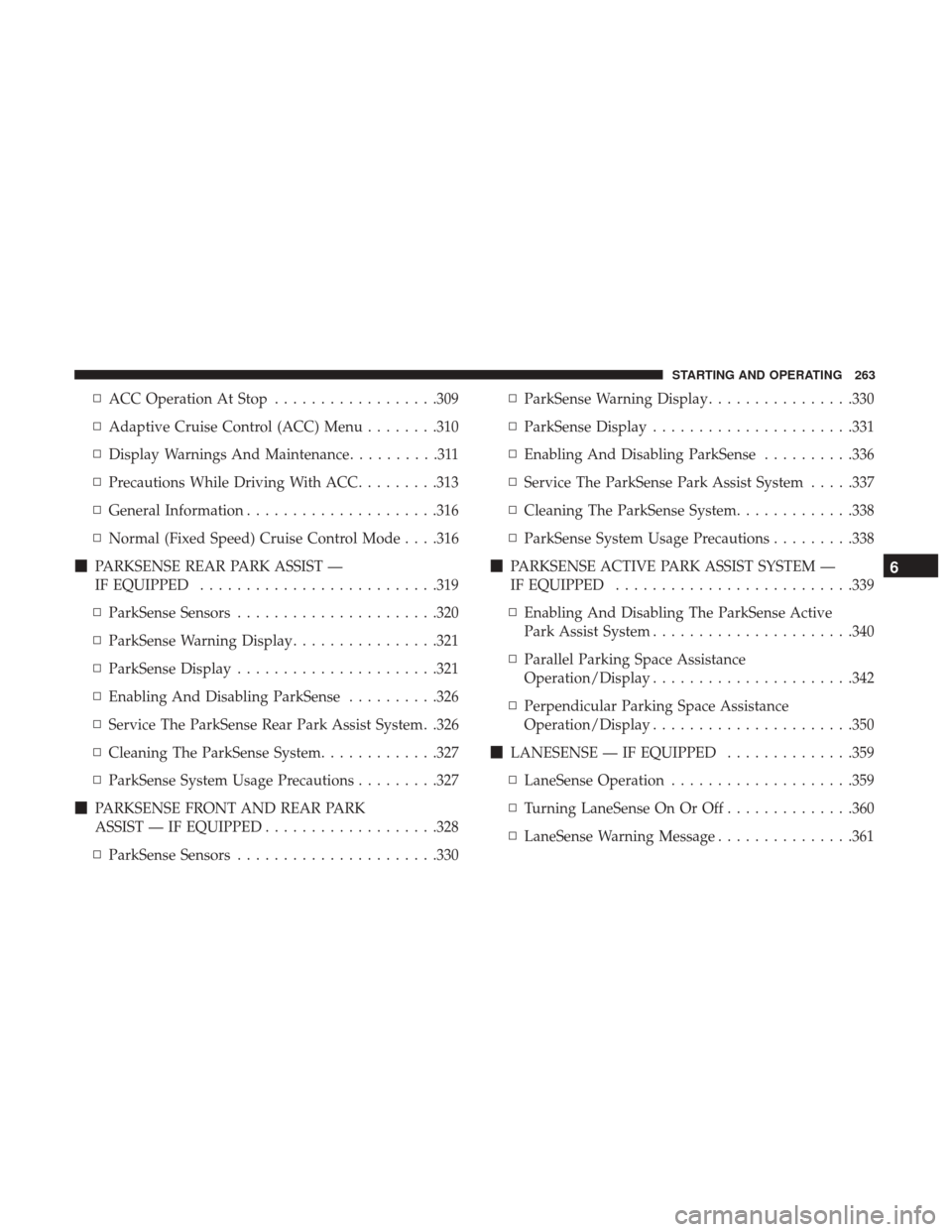

▫ACC Operation At Stop ..................309
▫ Adaptive Cruise Control (ACC) Menu ........310
▫ Display Warnings And Maintenance ..........311
▫ Precautions While Driving With ACC .........313
▫ General Information .....................316
▫ Normal (Fixed Speed) Cruise Control Mode . . . .316
 PARKSENSE REAR PARK ASSIST —
IF EQUIPPED ......................... .319
▫ ParkSense Sensors ..................... .320
▫ ParkSense Warning Display ................321
▫ ParkSense Display ..................... .321
▫ Enabling And Disabling ParkSense ..........326
▫ Service The ParkSense Rear Park Assist System. .326
▫ Cleaning The ParkSense System .............327
▫ ParkSense System Usage Precautions .........327
 PARKSENSE FRONT AND REAR PARK
ASSIST — IF EQUIPPED ...................328
▫ ParkSense Sensors ..................... .330▫
ParkSense Warning Display ................330
▫ ParkSense Display ..................... .331
▫ Enabling And Disabling ParkSense ..........336
▫ Service The ParkSense Park Assist System .....337
▫ Cleaning The ParkSense System .............338
▫ ParkSense System Usage Precautions .........338
 PARKSENSE ACTIVE PARK ASSIST SYSTEM —
IF EQUIPPED ......................... .339
▫ Enabling And Disabling The ParkSense Active
Park Assist System ..................... .340
▫ Parallel Parking Space Assistance
Operation/Display ..................... .342
▫ Perpendicular
Parking Space Assistance
Operation/Display ..................... .350
 LANESENSE — IF EQUIPPED ..............359
▫ LaneSense Operation ....................359
▫ Turning LaneSense On Or Off ..............360
▫ LaneSense Warning Message ...............361
6
STARTING AND OPERATING 263

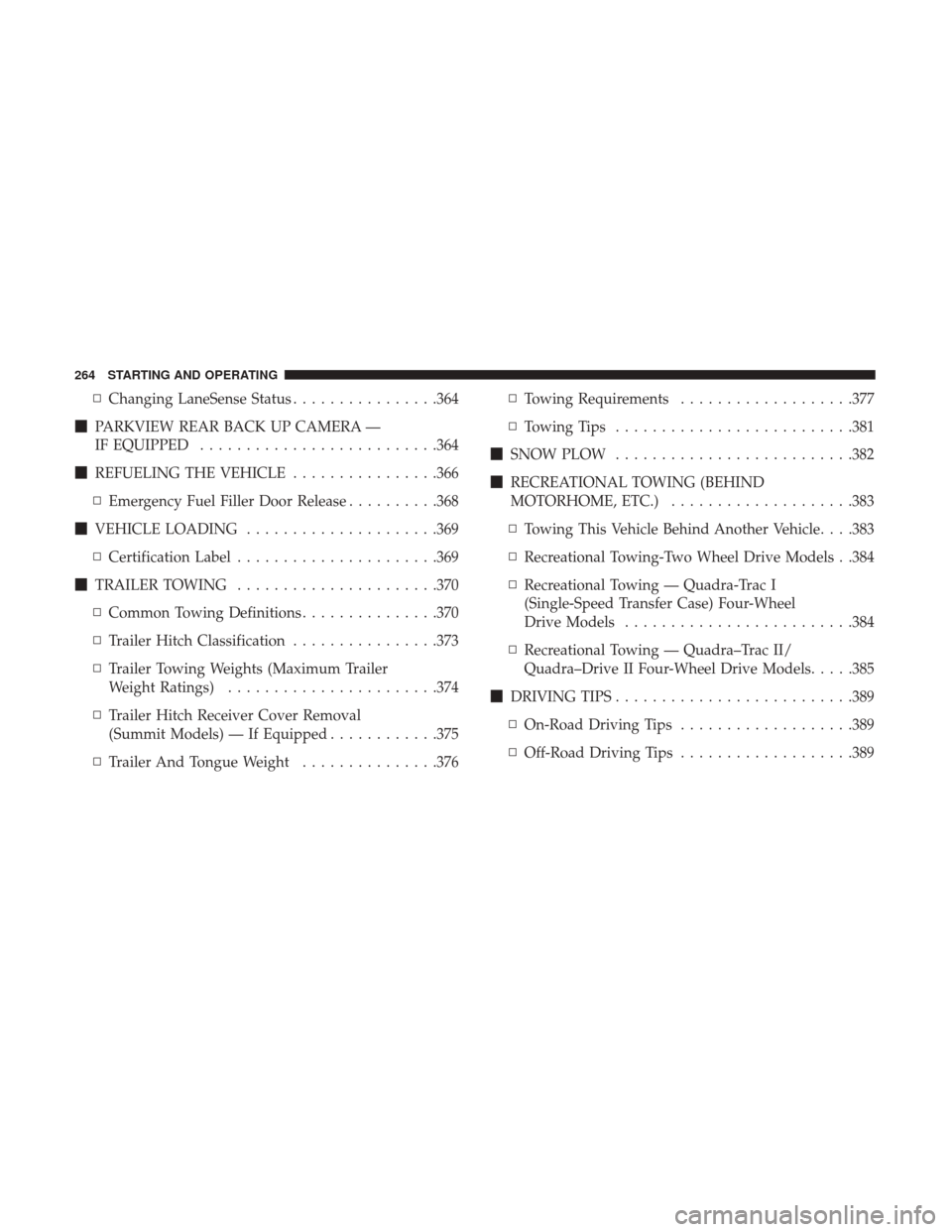

▫Changing LaneSense Status ................364
 PARKVIEW REAR BACK UP CAMERA —
IF EQUIPPED ......................... .364
 REFUELING THE VEHICLE ................366
▫ Emergency Fuel Filler Door Release ..........368
 VEHICLE LOADING .....................369
▫ Certification Label ..................... .369
 TRAILER TOWING ..................... .370
▫ Common Towing Definitions ...............370
▫ Trailer Hitch Classification ................373
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ...................... .374
▫ Trailer Hitch Receiver Cover Removal
(Summit Models) — If Equipped ............375
▫ Trailer And Tongue Weight ...............376 ▫
Towing Requirements ...................377
▫ Towing Tips ......................... .381
 SNOW PLOW ......................... .382
 RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................383
▫ Towing This Vehicle Behind Another Vehicle. . . .383
▫ Recreational Towing-Two Wheel Drive Models . .384
▫ Recreational Towing — Quadra-Trac I
(Single-Speed Transfer Case) Four-Wheel
Drive Models ........................ .384
▫ Recreational Towing — Quadra–Trac II/
Quadra–Drive II Four-Wheel Drive Models .....385
 DRIVING TIPS ......................... .389
▫ On-Road Driving Tips ...................389
▫ Off-Road Driving Tips ...................389
264 STARTING AND OPERATING

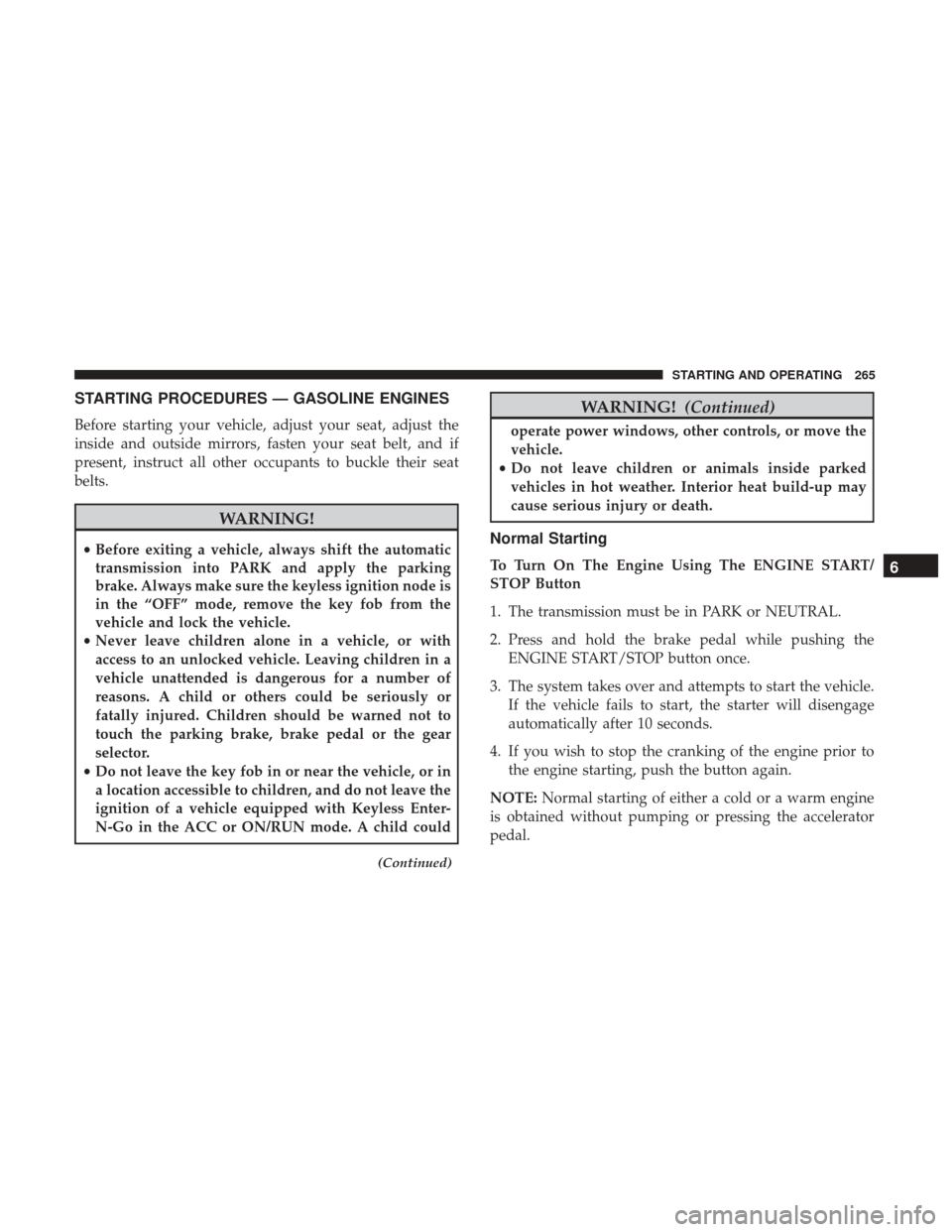

STARTING PROCEDURES — GASOLINE ENGINES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•Before exiting a vehicle, always shift the automatic
transmission into PARK and apply the parking
brake. Always make sure the keyless ignition node is
in the “OFF” mode, remove the key fob from the
vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.
• Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
(Continued)
WARNING! (Continued)
operate power windows, other controls, or move the
vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
Normal Starting
To Turn On The Engine Using The ENGINE START/
STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pushing the ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.6
STARTING AND OPERATING 265

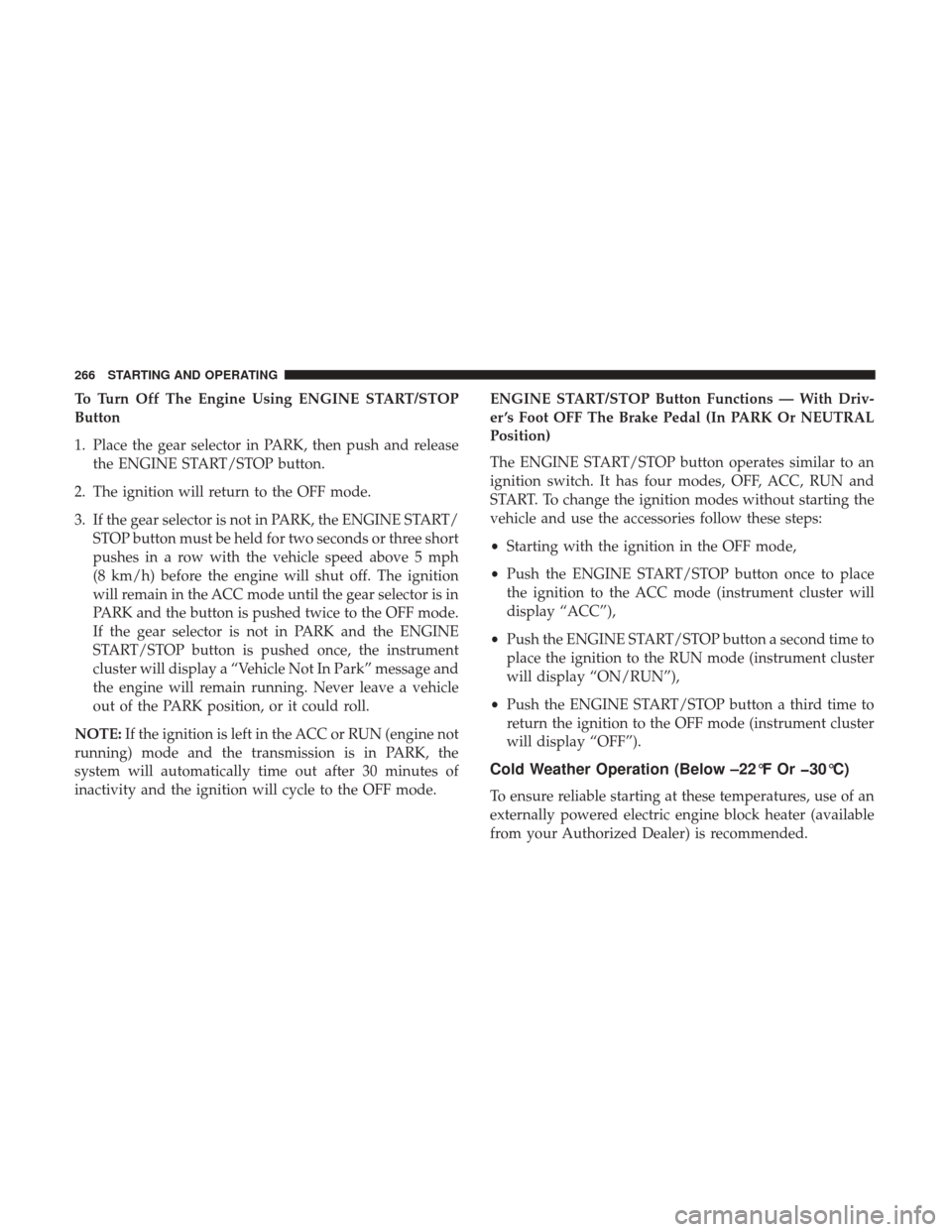

To Turn Off The Engine Using ENGINE START/STOP
Button
1. Place the gear selector in PARK, then push and releasethe ENGINE START/STOP button.
2. The ignition will return to the OFF mode.
3. If the gear selector is not in PARK, the ENGINE START/ STOP button must be held for two seconds or three short
pushes in a row with the vehicle speed above 5 mph
(8 km/h) before the engine will shut off. The ignition
will remain in the ACC mode until the gear selector is in
PARK and the button is pushed twice to the OFF mode.
If the gear selector is not in PARK and the ENGINE
START/STOP button is pushed once, the instrument
cluster will display a “Vehicle Not In Park” message and
the engine will remain running. Never leave a vehicle
out of the PARK position, or it could roll.
NOTE: If the ignition is left in the ACC or RUN (engine not
running) mode and the transmission is in PARK, the
system will automatically time out after 30 minutes of
inactivity and the ignition will cycle to the OFF mode. ENGINE START/STOP Button Functions — With Driv-
er ’s Foot OFF The Brake Pedal (In PARK Or NEUTRAL
Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has four modes, OFF, ACC, RUN and
START. To change the ignition modes without starting the
vehicle and use the accessories follow these steps:
•
Starting with the ignition in the OFF mode,
• Push the ENGINE START/STOP button once to place
the ignition to the ACC mode (instrument cluster will
display “ACC”),
• Push the ENGINE START/STOP button a second time to
place the ignition to the RUN mode (instrument cluster
will display “ON/RUN”),
• Push the ENGINE START/STOP button a third time to
return the ignition to the OFF mode (instrument cluster
will display “OFF”).
Cold Weather Operation (Below –22°F Or 30°C)
To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your Authorized Dealer) is recommended.
266 STARTING AND OPERATING

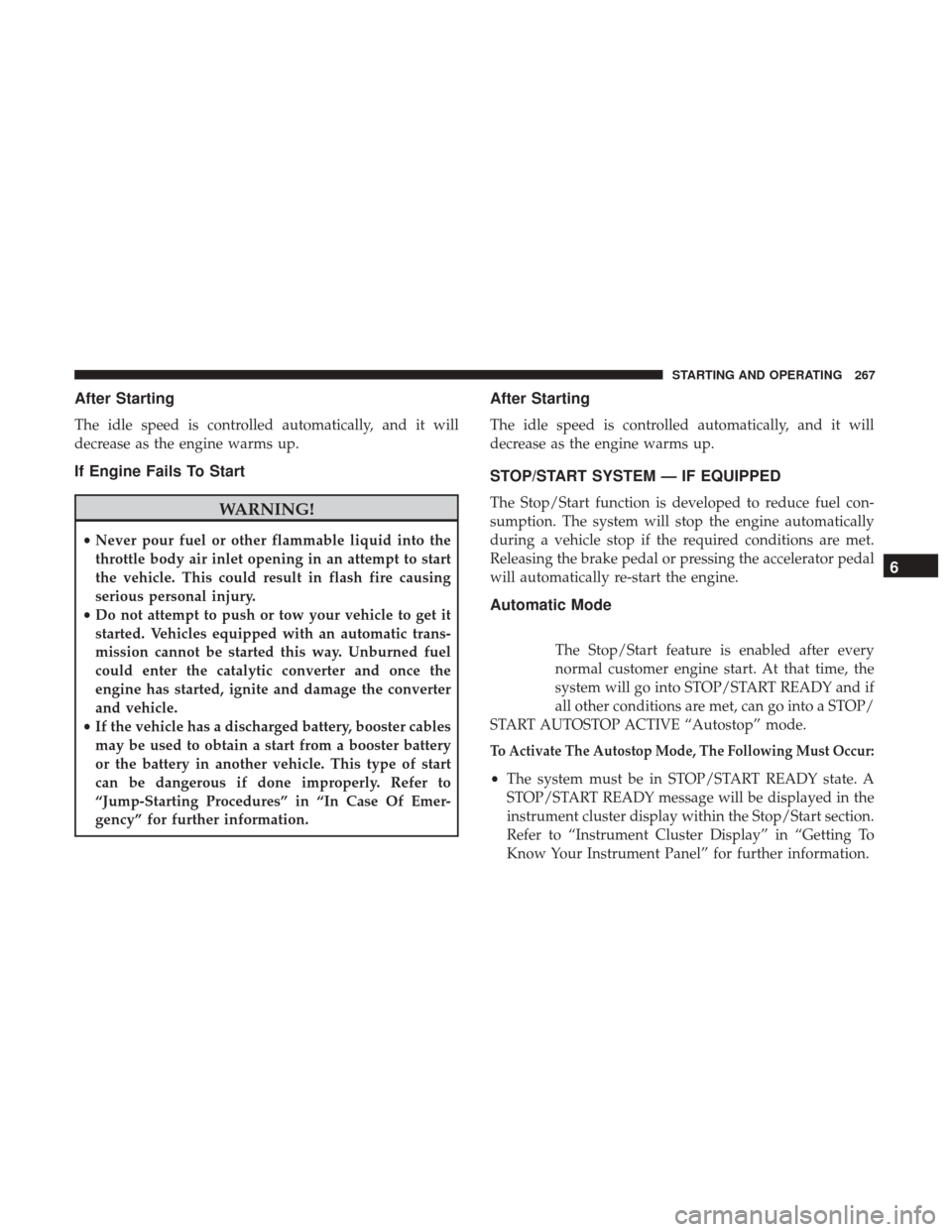

After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
• Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
• If the vehicle has a discharged battery, booster cables
may be used to obtain a start from a booster battery
or the battery in another vehicle. This type of start
can be dangerous if done improperly. Refer to
“Jump-Starting Procedures” in “In Case Of Emer-
gency” for further information.
After Starting
The idle speed is controlled automatically, and it will
decrease as the engine warms up.
STOP/START SYSTEM — IF EQUIPPED
The Stop/Start function is developed to reduce fuel con-
sumption. The system will stop the engine automatically
during a vehicle stop if the required conditions are met.
Releasing the brake pedal or pressing the accelerator pedal
will automatically re-start the engine.
Automatic Mode
The Stop/Start feature is enabled after every
normal customer engine start. At that time, the
system will go into STOP/START READY and if
all other conditions are met, can go into a STOP/
START AUTOSTOP ACTIVE “Autostop” mode.
To Activate The Autostop Mode, The Following Must Occur:
• The system must be in STOP/START READY state. A
STOP/START READY message will be displayed in the
instrument cluster display within the Stop/Start section.
Refer to “Instrument Cluster Display” in “Getting To
Know Your Instrument Panel” for further information.
6
STARTING AND OPERATING 267

•The vehicle must be completely stopped.
• The shifter must be in a forward gear and the brake
pedal depressed.
The engine will shut down, the tachometer will move to
the zero position and the Stop/Start telltale will illuminate
indicating you are in Autostop. Customer settings will be
maintained upon return to an engine running condition.
Possible Reasons The Engine Does Not Autostop
Prior to engine shut down, the system will check many
safety and comfort conditions to see if they are fulfilled.
Detailed information about the operation of the Stop/Start
system may be viewed in the instrument cluster display
Stop/Start Screen. In the following situations, the engine
will not stop:
• Driver ’s seat belt is not buckled.
• Driver ’s door is not closed.
• Battery temperature is too warm or cold.
• Battery charge is low.
• The vehicle is on a steep grade.
• Cabin heating or cooling is in process and an acceptable
cabin temperature has not been achieved. •
HVAC is set to full defrost mode at a high blower speed.
• HVAC set to MAX A/C.
• Engine has not reached normal operating temperature.
• The transmission is not in a forward gear.
• Hood is open.
• Vehicle is in 4LO transfer case mode.
• Brake pedal is not pressed with sufficient pressure.
Other Factors Which Can Inhibit Autostop Include:
• Accelerator pedal input.
• Engine temp too high.
• 5 MPH threshold not achieved from previous AU-
TOSTOP.
• Steering angle beyond threshold.
• ACC is on and speed is set.
It may be possible for the vehicle to be driven several times
without the STOP/START system going into a STOP/
START READY state under more extreme conditions of the
items listed above.
268 STARTING AND OPERATING
