JEEP GRAND CHEROKEE LIMITED 2019 Owners Manual

Setting NameSelectable Options

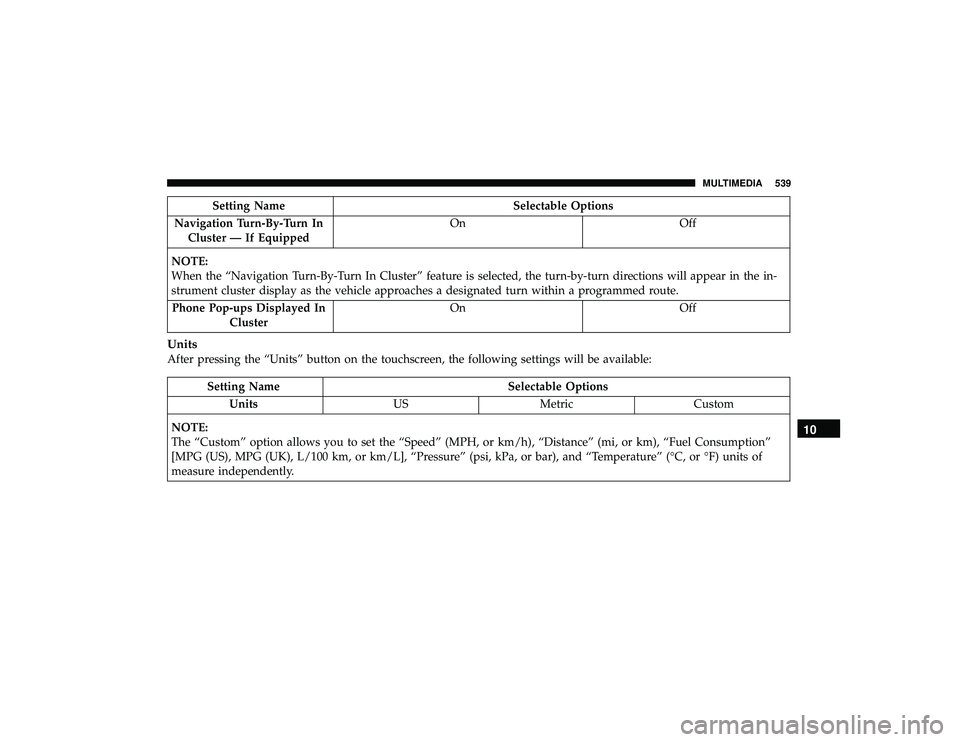

Navigation Turn-By-Turn In Cluster — If Equipped On
Off
NOTE:
When the “Navigation Turn-By-Turn In Cluster” feature is selected, the turn-by-turn directions will appear in the in-
strument cluster display as the vehicle approaches a designated turn within a programmed route. Phone Pop-ups Displayed In Cluster On
Off
Units
After pressing the “Units” button on the touchscreen, the following settings will be available:

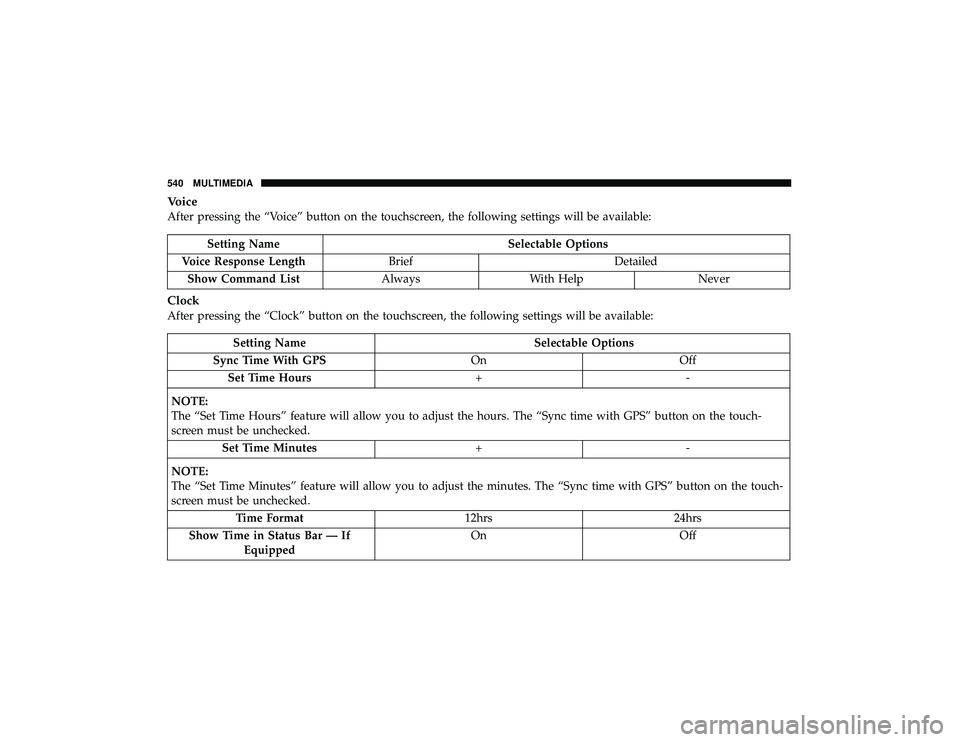

Voice
After pressing the “Voice” button on the touchscreen, the following settings will be available:

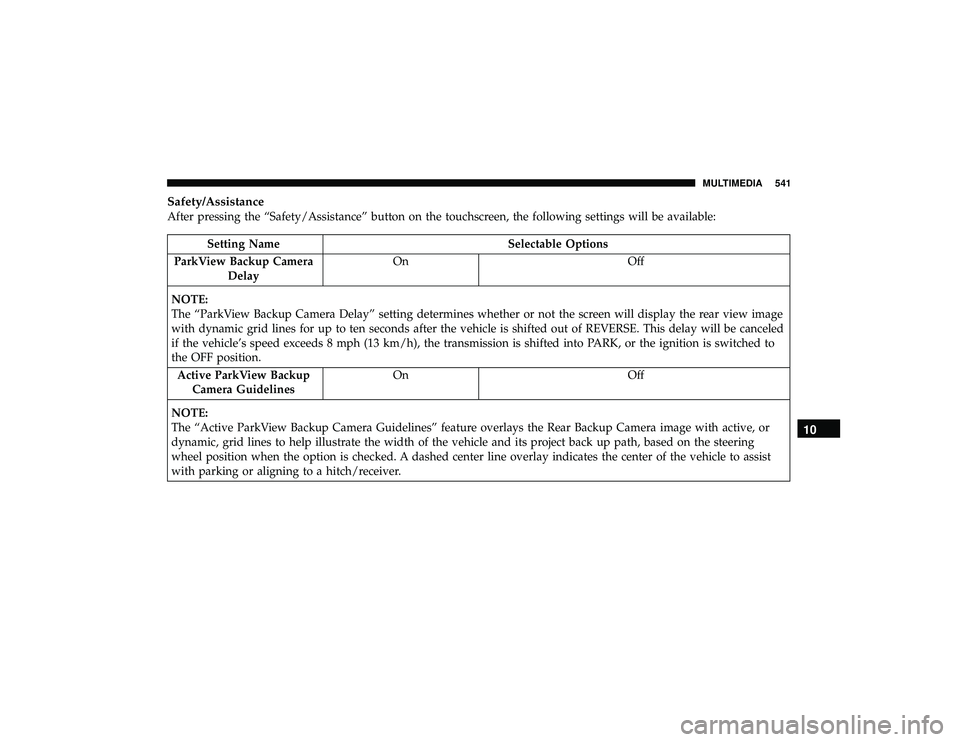

Safety/Assistance
After pressing the “Safety/Assistance” button on the touchscreen, the following settings will be available:

Setting NameSelectable Options

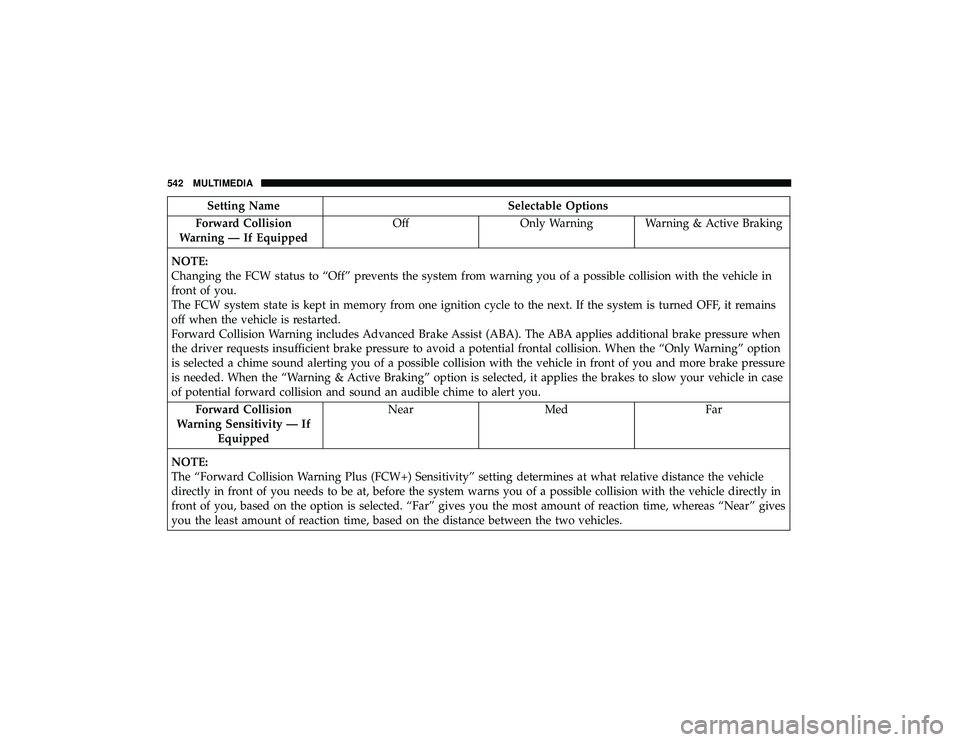

Forward Collision
Warning — If Equipped Off
Only Warning Warning & Active Braking
NOTE:
Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in
front of you.
The FCW system state is kept in memory from one ignition cycle to the next. If the system is turned OFF, it remains
off when the vehicle is restarted.
Forward Collision Warning includes Advanced Brake Assist (ABA). The ABA applies additional brake pressure when
the driver requests insufficient brake pressure to avoid a potential frontal collision. When the “Only Warning” option
is selected a chime sound alerting you of a possible collision with the vehicle in front of you and more brake pressure
is needed. When the “Warning & Active Braking” option is selected, it applies the brakes to slow your vehicle in case
of potential forward collision and sound an audible chime to alert you. Forward Collision
Warning Sensitivity — If Equipped Near
Med Far
NOTE:
The “Forward Collision Warning Plus (FCW+) Sensitivity” setting determines at what relative distance the vehicle
directly in front of you needs to be at, before the system warns you of a possible collision with the vehicle directly in
front of you, based on the option is selected. “Far” gives you the most amount of reaction time, whereas “Near” gives
you the least amount of reaction time, based on the distance between the two vehicles.
542 MULTIMEDIA

Setting NameSelectable Options

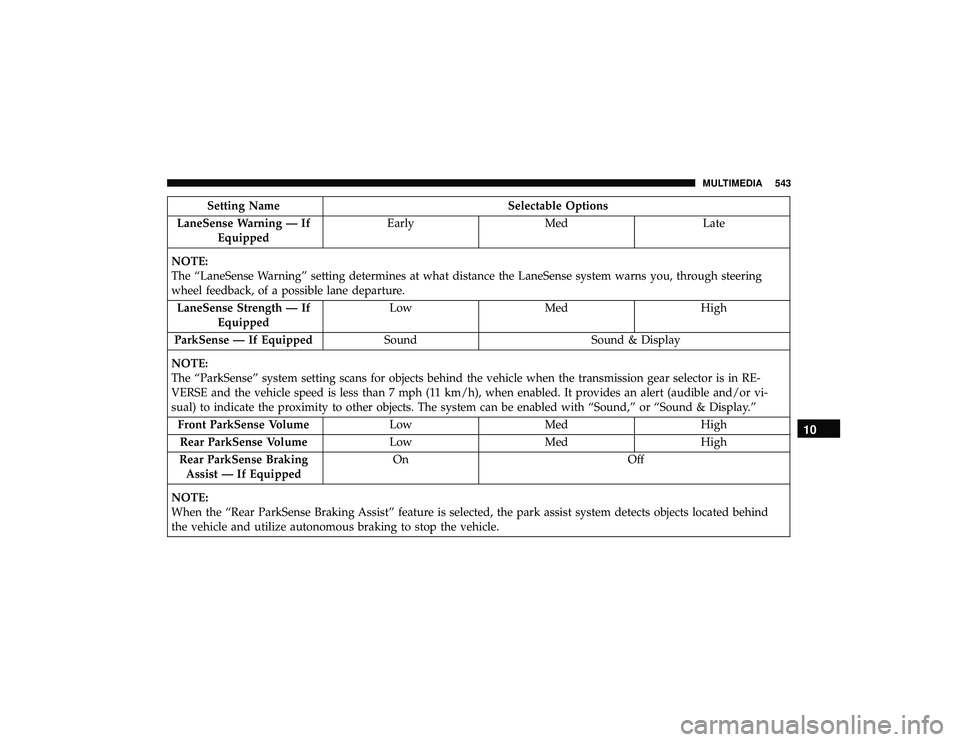

LaneSense Warning — If Equipped Early
Med Late
NOTE:
The “LaneSense Warning” setting determines at what distance the LaneSense system warns you, through steering
wheel feedback, of a possible lane departure. LaneSense Strength — If Equipped Low
Med High
ParkSense — If Equipped SoundSound & Display
NOTE:
The “ParkSense” system setting scans for objects behind the vehicle when the transmission gear selector is in RE-
VERSE and the vehicle speed is less than 7 mph (11 km/h), when enabled. It provides an alert (audible and/or vi-
sual) to indicate the proximity to other objects. The system can be enabled with “Sound,” or “Sound & Display.” Front ParkSense Volume LowMed High
Rear ParkSense Volume LowMed High
Rear ParkSense Braking Assist — If Equipped On
Off
NOTE:
When the “Rear ParkSense Braking Assist” feature is selected, the park assist system detects objects located behind
the vehicle and utilize autonomous braking to stop the vehicle.
10
MULTIMEDIA 543

Setting NameSelectable Options

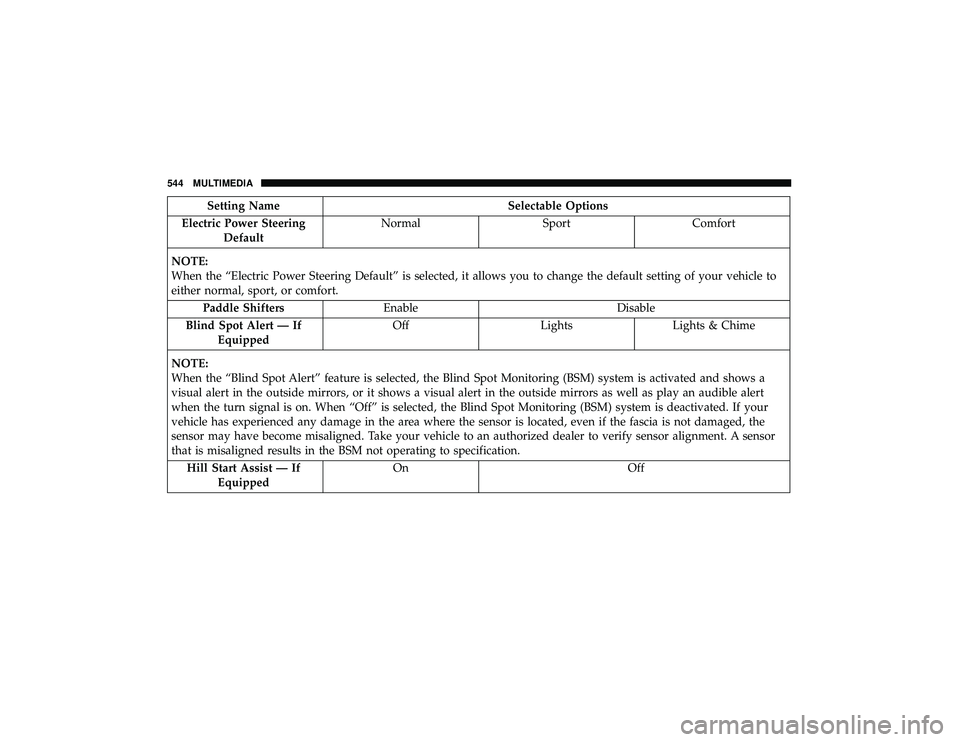

Electric Power Steering Default Normal
SportComfort
NOTE:
When the “Electric Power Steering Default” is selected, it allows you to change the default setting of your vehicle to
either normal, sport, or comfort. Paddle Shifters Enable Disable
Blind Spot Alert — If Equipped Off
LightsLights & Chime
NOTE:
When the “Blind Spot Alert” feature is selected, the Blind Spot Monitoring (BSM) system is activated and shows a
visual alert in the outside mirrors, or it shows a visual alert in the outside mirrors as well as play an audible alert
when the turn signal is on. When “Off” is selected, the Blind Spot Monitoring (BSM) system is deactivated. If your
vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not damaged, the
sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor alignment. A sensor
that is misaligned results in the BSM not operating to specification. Hill Start Assist — If Equipped On
Off
544 MULTIMEDIA

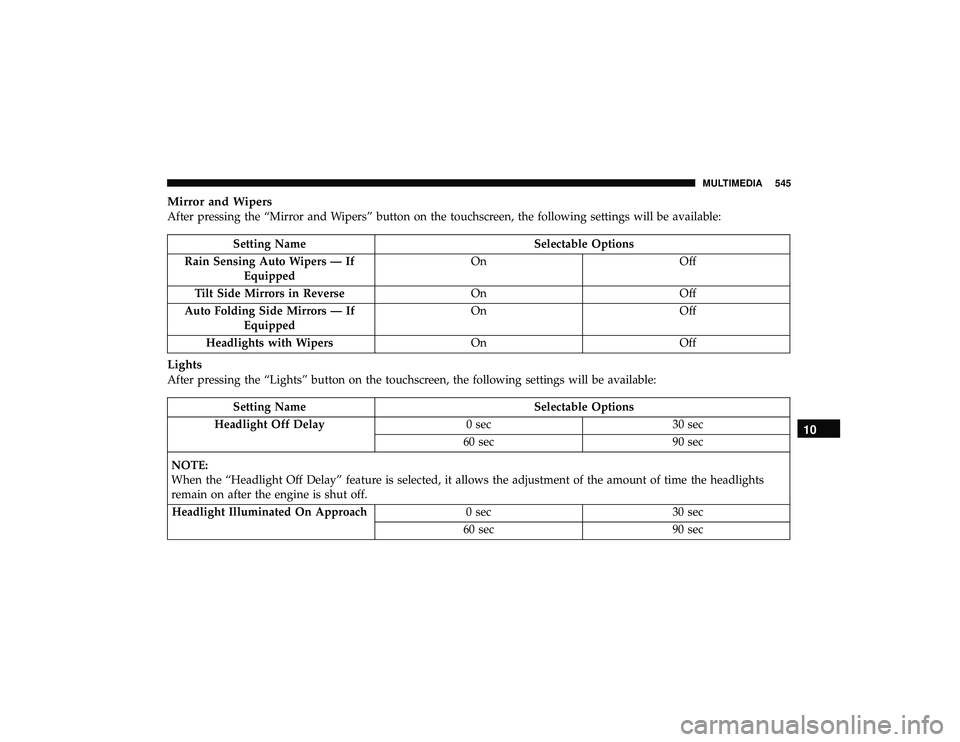

Mirror and Wipers
After pressing the “Mirror and Wipers” button on the touchscreen, the following settings will be available:

Setting NameSelectable Options
Headlights With Wipers — If Equipped On
Off
Auto Dim High Beams — If Equipped On
Off
NOTE:
When the “Auto Dim High Beams” feature is selected, the high beam headlights will activate/deactivate automati-
cally under certain conditions. Daytime Running Lights — If Equipped On
Off
Flash Lights With Lock OnOff
Doors & Locks
After pressing the “Doors & Locks” button on the touchscreen, the following settings will be available:

Setting NameSelectable Options

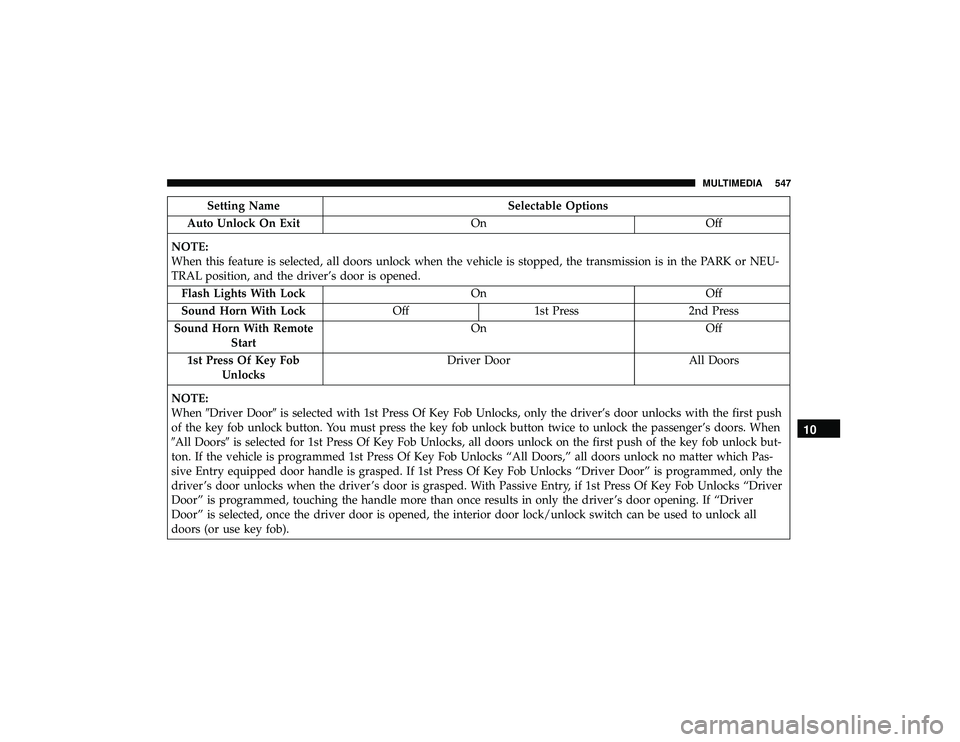

Auto Unlock On Exit OnOff
NOTE:
When this feature is selected, all doors unlock when the vehicle is stopped, the transmission is in the PARK or NEU-
TRAL position, and the driver’s door is opened. Flash Lights With Lock OnOff
Sound Horn With Lock Off1st Press 2nd Press
Sound Horn With Remote Start On
Off
1st Press Of Key Fob Unlocks Driver Door
All Doors
NOTE:
When Driver Door is selected with 1st Press Of Key Fob Unlocks, only the driver’s door unlocks with the first push
of the key fob unlock button. You must press the key fob unlock button twice to unlock the passenger’s doors. When
All Doors is selected for 1st Press Of Key Fob Unlocks, all doors unlock on the first push of the key fob unlock but-
ton. If the vehicle is programmed 1st Press Of Key Fob Unlocks “All Doors,” all doors unlock no matter which Pas-
sive Entry equipped door handle is grasped. If 1st Press Of Key Fob Unlocks “Driver Door” is programmed, only the
driver ’s door unlocks when the driver ’s door is grasped. With Passive Entry, if 1st Press Of Key Fob Unlocks “Driver
Door” is programmed, touching the handle more than once results in only the driver ’s door opening. If “Driver
Door” is selected, once the driver door is opened, the interior door lock/unlock switch can be used to unlock all
doors (or use key fob).
10
MULTIMEDIA 547

Setting NameSelectable Options

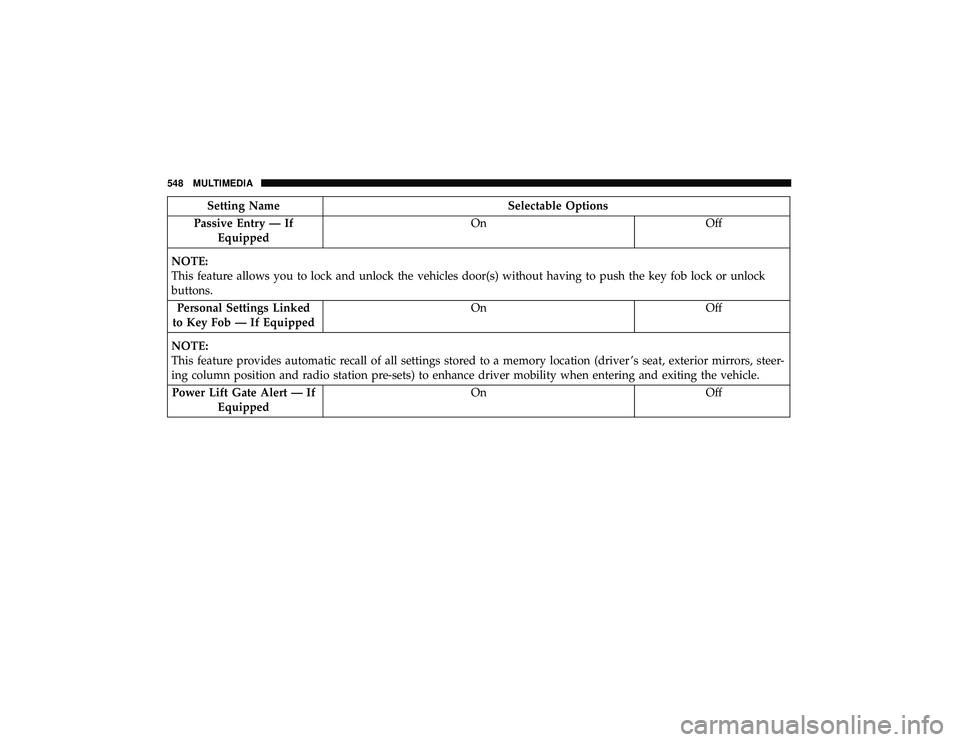

Passive Entry — If Equipped On
Off
NOTE:
This feature allows you to lock and unlock the vehicles door(s) without having to push the key fob lock or unlock
buttons. Personal Settings Linked
to Key Fob — If Equipped On
Off
NOTE:
This feature provides automatic recall of all settings stored to a memory location (driver ’s seat, exterior mirrors, steer-
ing column position and radio station pre-sets) to enhance driver mobility when entering and exiting the vehicle. Power Lift Gate Alert — If Equipped On
Off
548 MULTIMEDIA
