JEEP LIBERTY 2005 KJ / 1.G Owners Manual

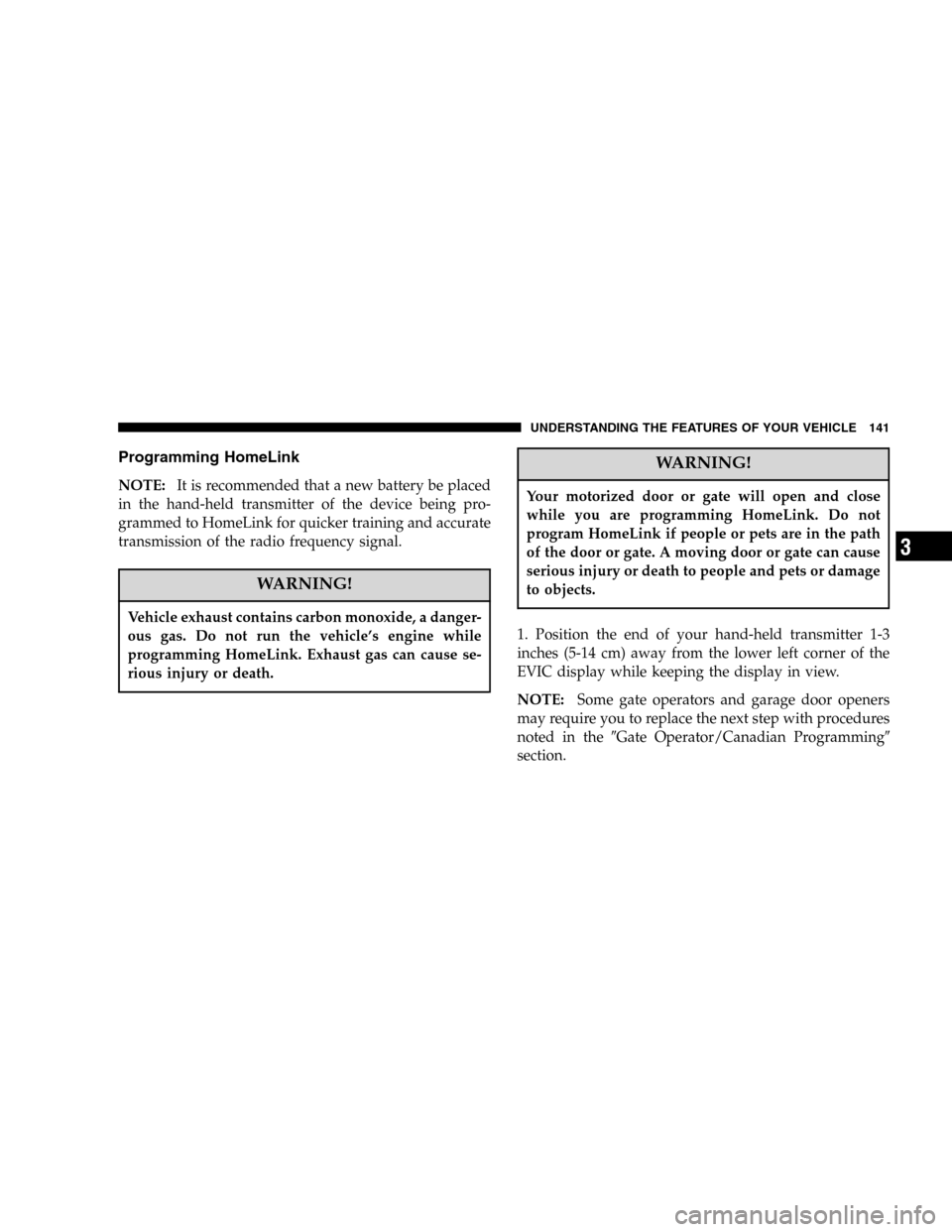

Programming HomeLink
NOTE:It is recommended that a new battery be placed
in the hand-held transmitter of the device being pro-
grammed to HomeLink for quicker training and accurate
transmission of the radio frequency signal.
WARNING!
Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run the vehicle’s engine while
programming HomeLink. Exhaust gas can cause se-
rious injury or death.
WARNING!
Your motorized door or gate will open and close
while you are programming HomeLink. Do not
program HomeLink if people or pets are in the path
of the door or gate. A moving door or gate can cause
serious injury or death to people and pets or damage
to objects.
1. Position the end of your hand-held transmitter 1-3
inches (5-14 cm) away from the lower left corner of the
EVIC display while keeping the display in view.
NOTE:Some gate operators and garage door openers
may require you to replace the next step with procedures
noted in theGate Operator/Canadian Programming
section.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141
3

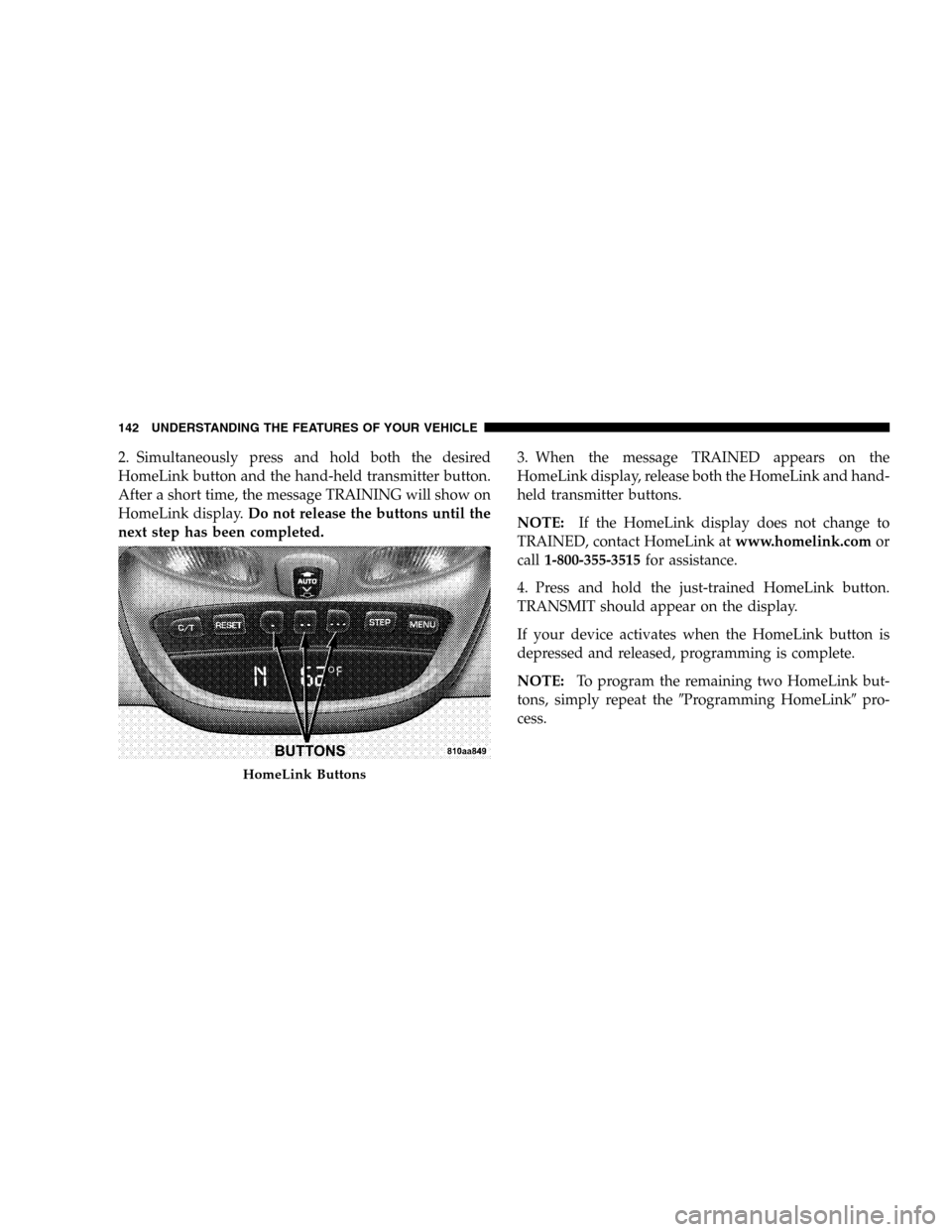

2. Simultaneously press and hold both the desired
HomeLink button and the hand-held transmitter button.
After a short time, the message TRAINING will show on
HomeLink display.Do not release the buttons until the
next step has been completed.3. When the message TRAINED appears on the
HomeLink display, release both the HomeLink and hand-
held transmitter buttons.
NOTE:If the HomeLink display does not change to
TRAINED, contact HomeLink atwww.homelink.comor
call1-800-355-3515for assistance.
4. Press and hold the just-trained HomeLink button.
TRANSMIT should appear on the display.
If your device activates when the HomeLink button is
depressed and released, programming is complete.
NOTE:To program the remaining two HomeLink but-
tons, simply repeat theProgramming HomeLinkpro-
cess.
HomeLink Buttons
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

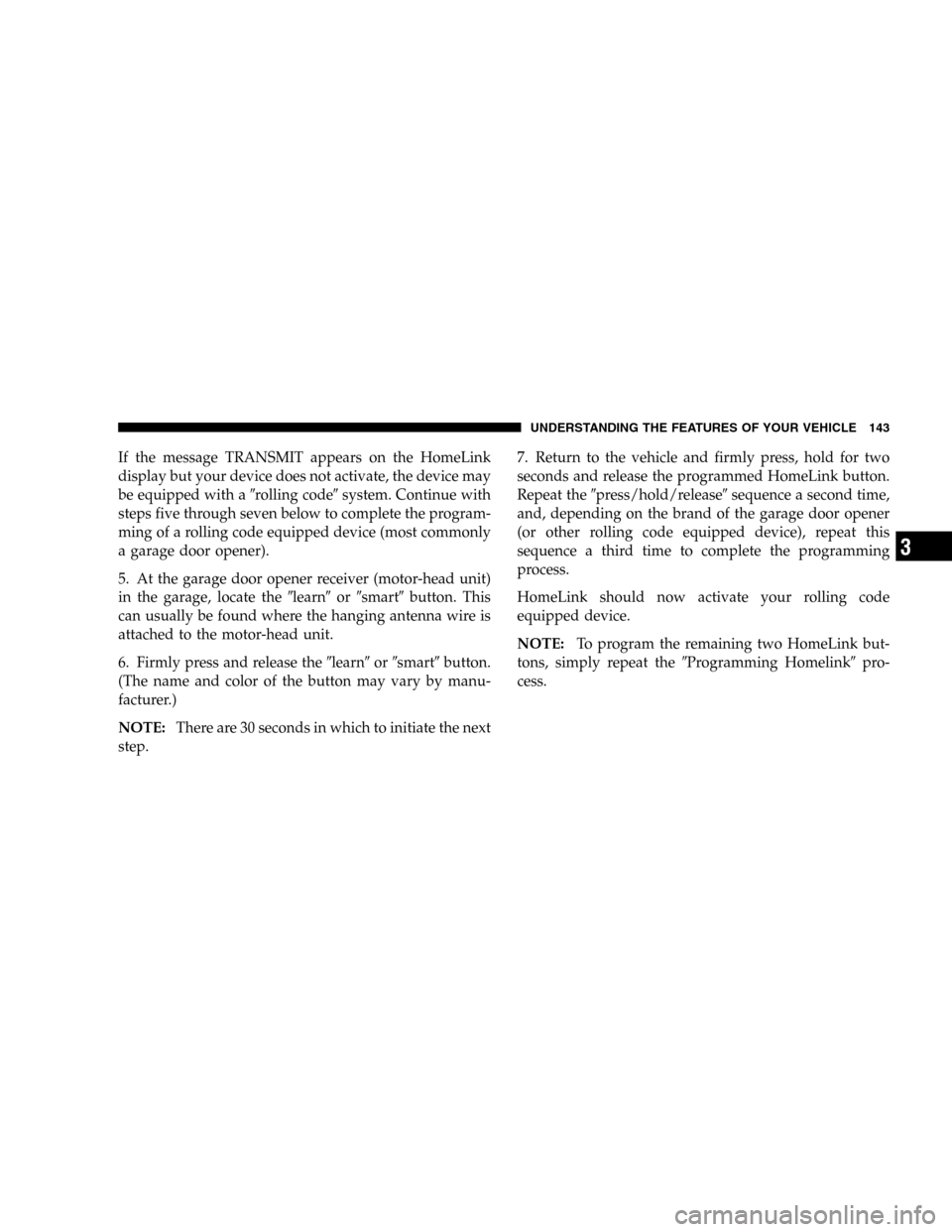

If the message TRANSMIT appears on the HomeLink
display but your device does not activate, the device may
be equipped with arolling codesystem. Continue with
steps five through seven below to complete the program-
ming of a rolling code equipped device (most commonly
a garage door opener).
5. At the garage door opener receiver (motor-head unit)
in the garage, locate thelearnorsmartbutton. This
can usually be found where the hanging antenna wire is
attached to the motor-head unit.
6. Firmly press and release thelearnorsmartbutton.
(The name and color of the button may vary by manu-
facturer.)
NOTE:There are 30 seconds in which to initiate the next
step.7. Return to the vehicle and firmly press, hold for two
seconds and release the programmed HomeLink button.
Repeat thepress/hold/releasesequence a second time,
and, depending on the brand of the garage door opener
(or other rolling code equipped device), repeat this
sequence a third time to complete the programming
process.
HomeLink should now activate your rolling code
equipped device.
NOTE:To program the remaining two HomeLink but-
tons, simply repeat theProgramming Homelinkpro-
cess.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143
3

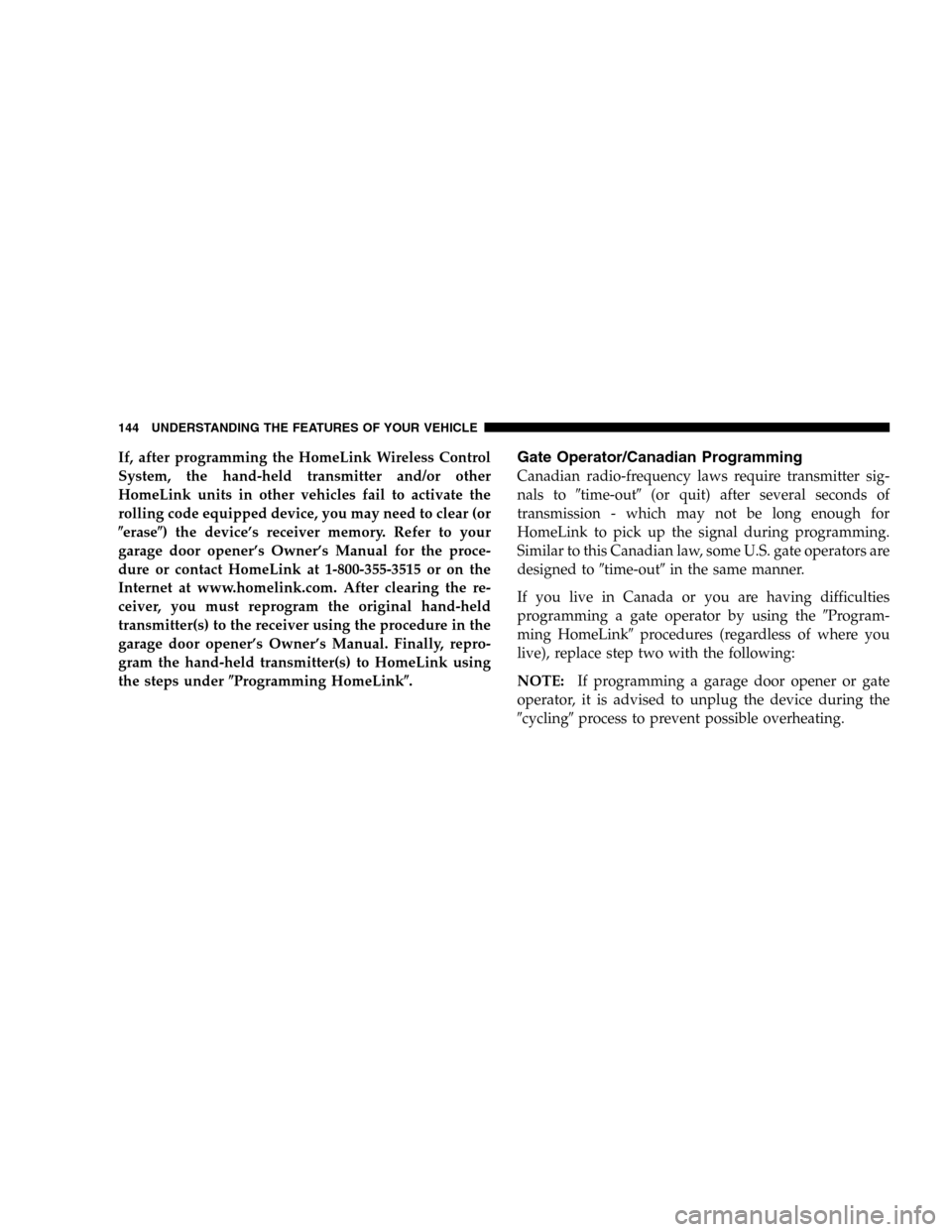

If, after programming the HomeLink Wireless Control
System, the hand-held transmitter and/or other
HomeLink units in other vehicles fail to activate the
rolling code equipped device, you may need to clear (or
erase) the device’s receiver memory. Refer to your
garage door opener’s Owner’s Manual for the proce-
dure or contact HomeLink at 1-800-355-3515 or on the
Internet at www.homelink.com. After clearing the re-
ceiver, you must reprogram the original hand-held
transmitter(s) to the receiver using the procedure in the
garage door opener’s Owner’s Manual. Finally, repro-
gram the hand-held transmitter(s) to HomeLink using
the steps underProgramming HomeLink.Gate Operator/Canadian Programming
Canadian radio-frequency laws require transmitter sig-
nals totime-out(or quit) after several seconds of
transmission - which may not be long enough for
HomeLink to pick up the signal during programming.
Similar to this Canadian law, some U.S. gate operators are
designed totime-outin the same manner.
If you live in Canada or you are having difficulties
programming a gate operator by using theProgram-
ming HomeLinkprocedures (regardless of where you
live), replace step two with the following:
NOTE:If programming a garage door opener or gate
operator, it is advised to unplug the device during the
cyclingprocess to prevent possible overheating.
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

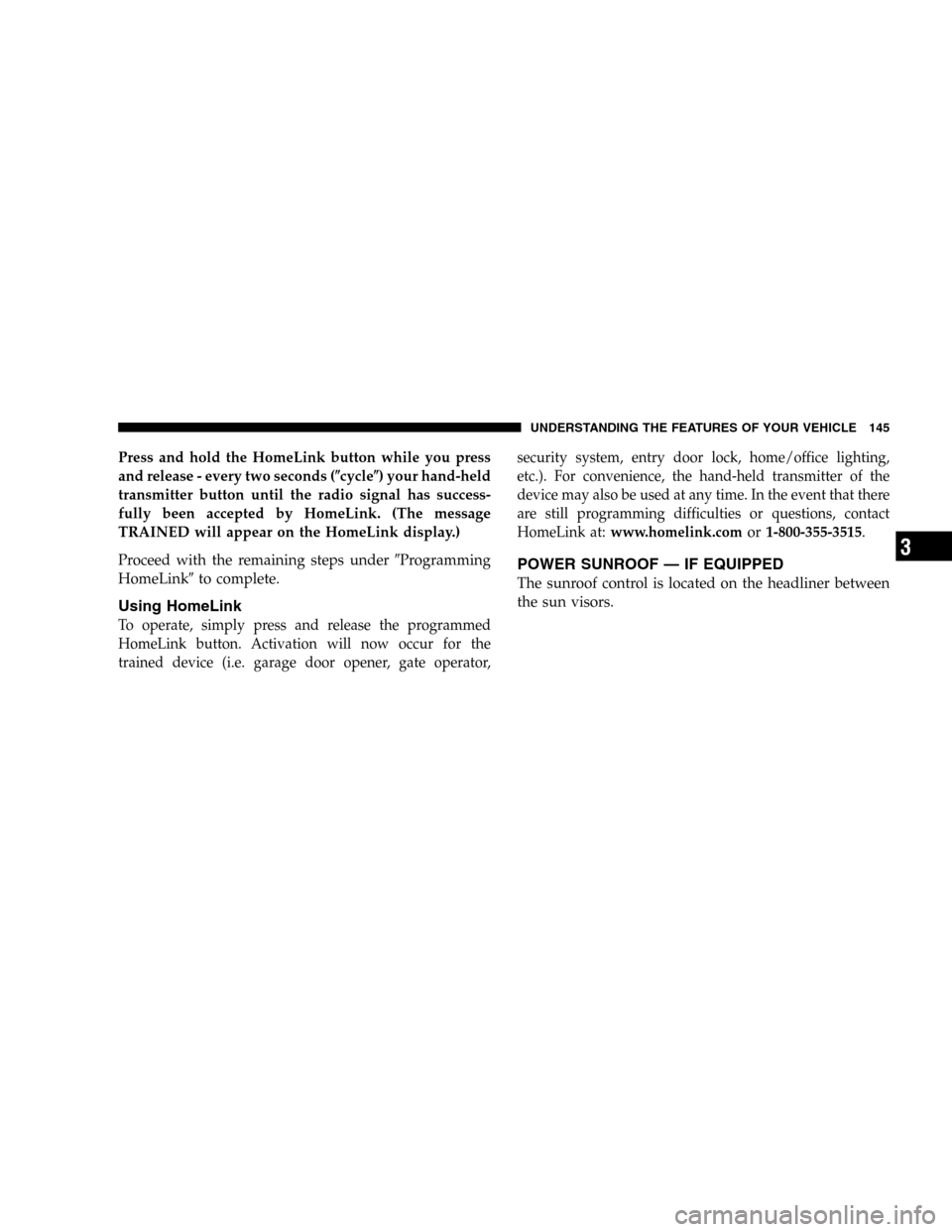

Press and hold the HomeLink button while you press
and release - every two seconds (cycle) your hand-held
transmitter button until the radio signal has success-
fully been accepted by HomeLink. (The message
TRAINED will appear on the HomeLink display.)
Proceed with the remaining steps underProgramming
HomeLinkto complete.
Using HomeLink
To operate, simply press and release the programmed
HomeLink button. Activation will now occur for the
trained device (i.e. garage door opener, gate operator,security system, entry door lock, home/office lighting,
etc.). For convenience, the hand-held transmitter of the
device may also be used at any time. In the event that there
are still programming difficulties or questions, contact
HomeLink at:www.homelink.com
or1-800-355-3515.
POWER SUNROOF — IF EQUIPPED
The sunroof control is located on the headliner between
the sun visors.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

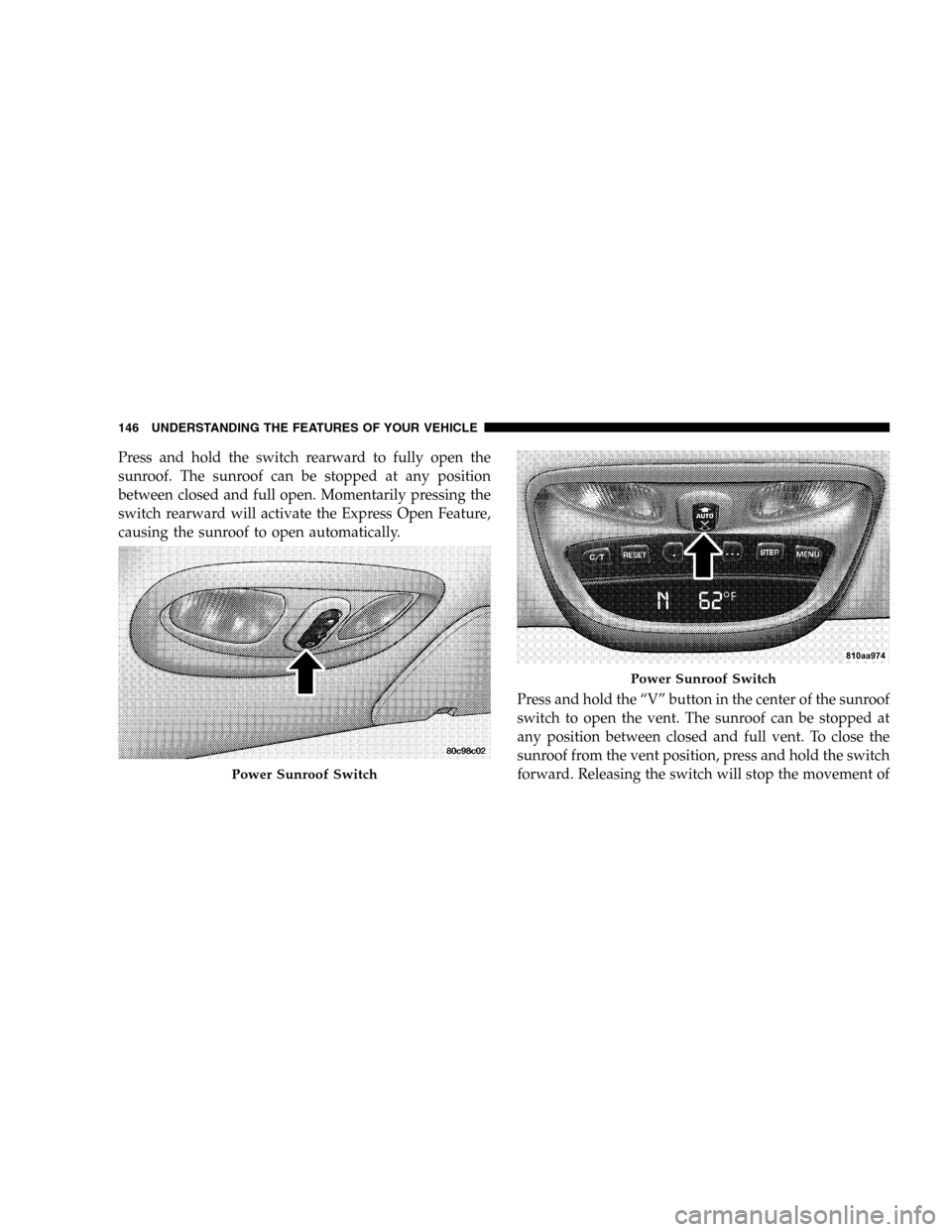

Press and hold the switch rearward to fully open the
sunroof. The sunroof can be stopped at any position
between closed and full open. Momentarily pressing the
switch rearward will activate the Express Open Feature,
causing the sunroof to open automatically.
Press and hold the “V” button in the center of the sunroof
switch to open the vent. The sunroof can be stopped at
any position between closed and full vent. To close the
sunroof from the vent position, press and hold the switch
forward. Releasing the switch will stop the movement of
Power Sunroof Switch
Power Sunroof Switch
146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

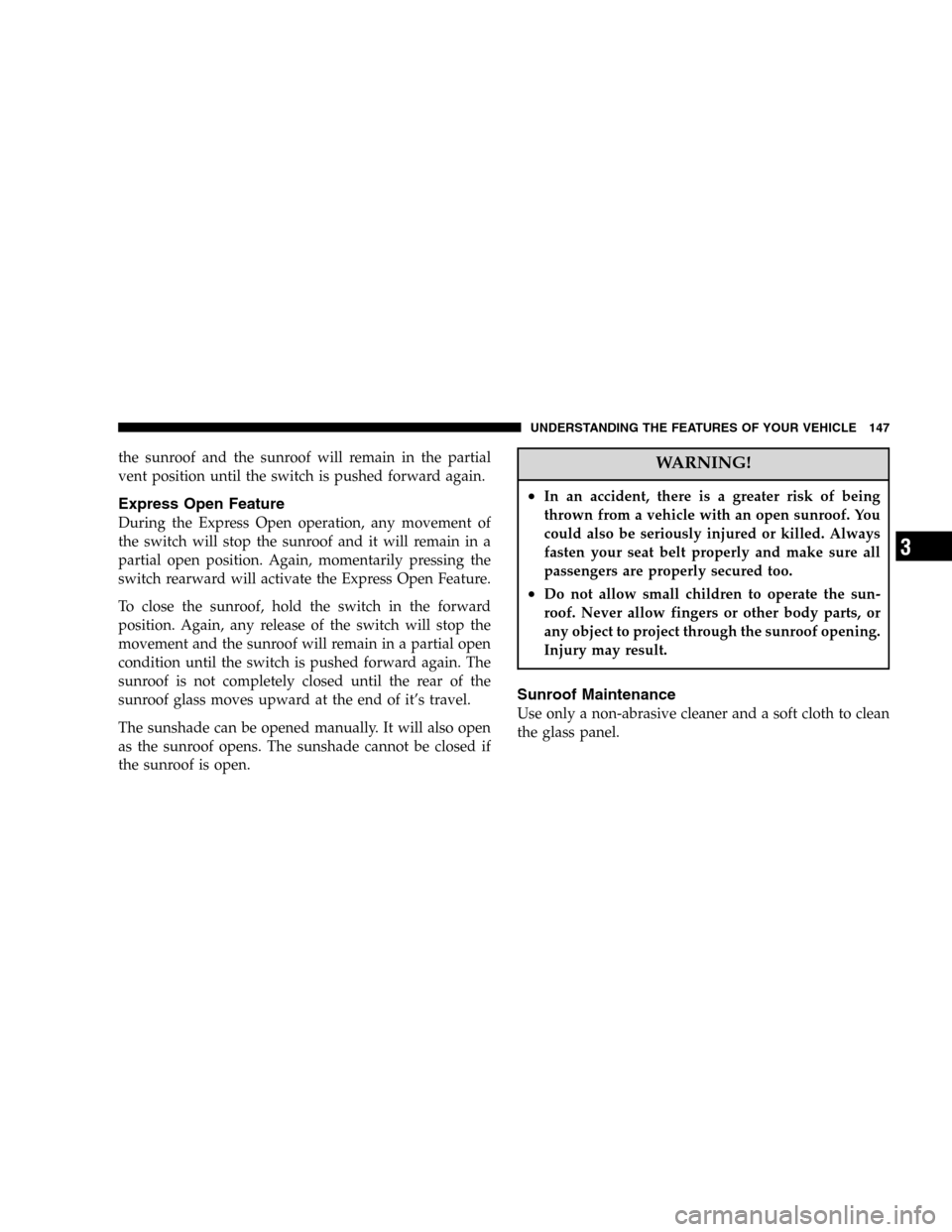

the sunroof and the sunroof will remain in the partial
vent position until the switch is pushed forward again.
Express Open Feature
During the Express Open operation, any movement of
the switch will stop the sunroof and it will remain in a
partial open position. Again, momentarily pressing the
switch rearward will activate the Express Open Feature.
To close the sunroof, hold the switch in the forward
position. Again, any release of the switch will stop the
movement and the sunroof will remain in a partial open
condition until the switch is pushed forward again. The
sunroof is not completely closed until the rear of the
sunroof glass moves upward at the end of it’s travel.
The sunshade can be opened manually. It will also open
as the sunroof opens. The sunshade cannot be closed if
the sunroof is open.
WARNING!
•In an accident, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are properly secured too.
•Do not allow small children to operate the sun-
roof. Never allow fingers or other body parts, or
any object to project through the sunroof opening.
Injury may result.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

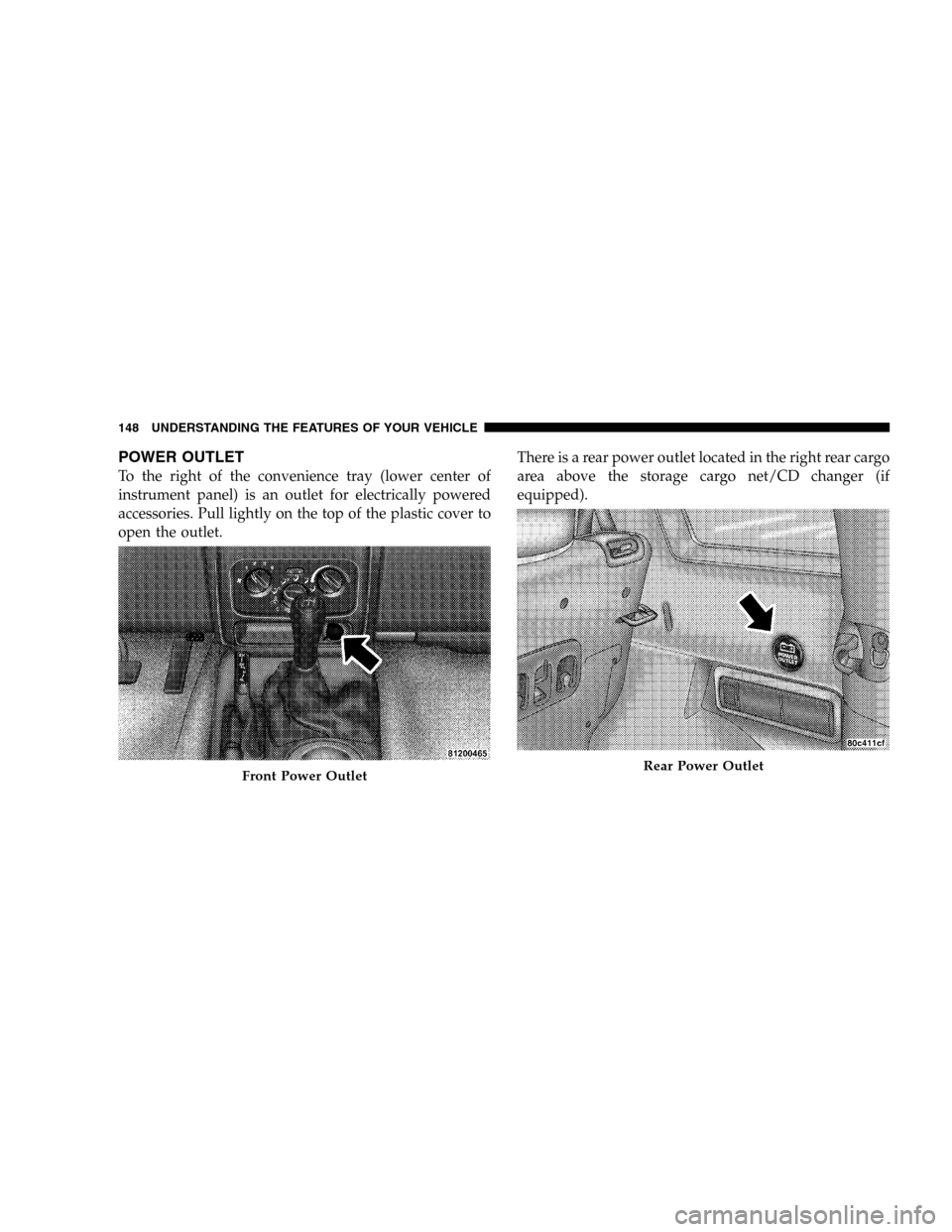

POWER OUTLET
To the right of the convenience tray (lower center of
instrument panel) is an outlet for electrically powered
accessories. Pull lightly on the top of the plastic cover to
open the outlet.There is a rear power outlet located in the right rear cargo
area above the storage cargo net/CD changer (if
equipped).
Front Power OutletRear Power Outlet
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

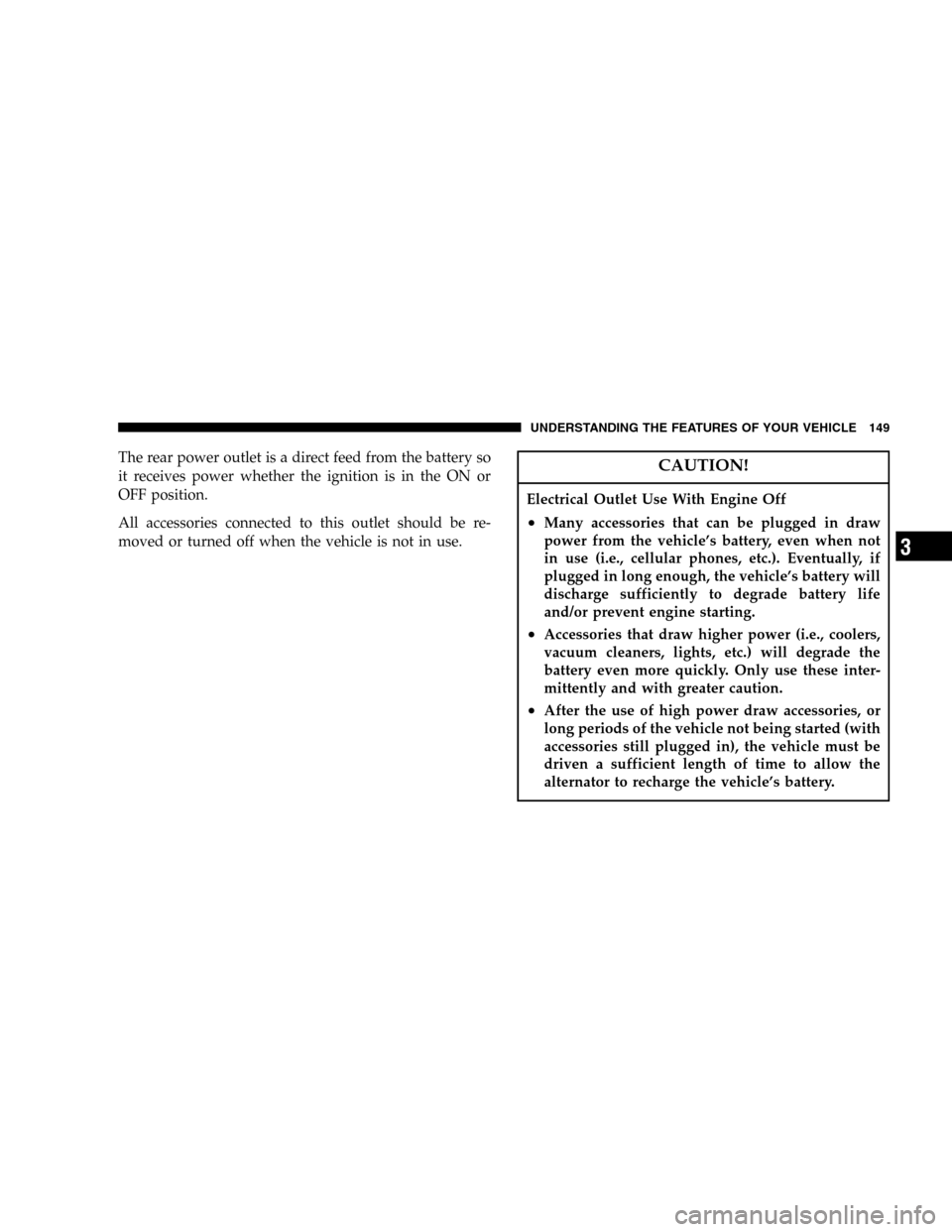

The rear power outlet is a direct feed from the battery so
it receives power whether the ignition is in the ON or
OFF position.
All accessories connected to this outlet should be re-
moved or turned off when the vehicle is not in use.CAUTION!
Electrical Outlet Use With Engine Off
•Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not
in use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
alternator to recharge the vehicle’s battery.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149
3

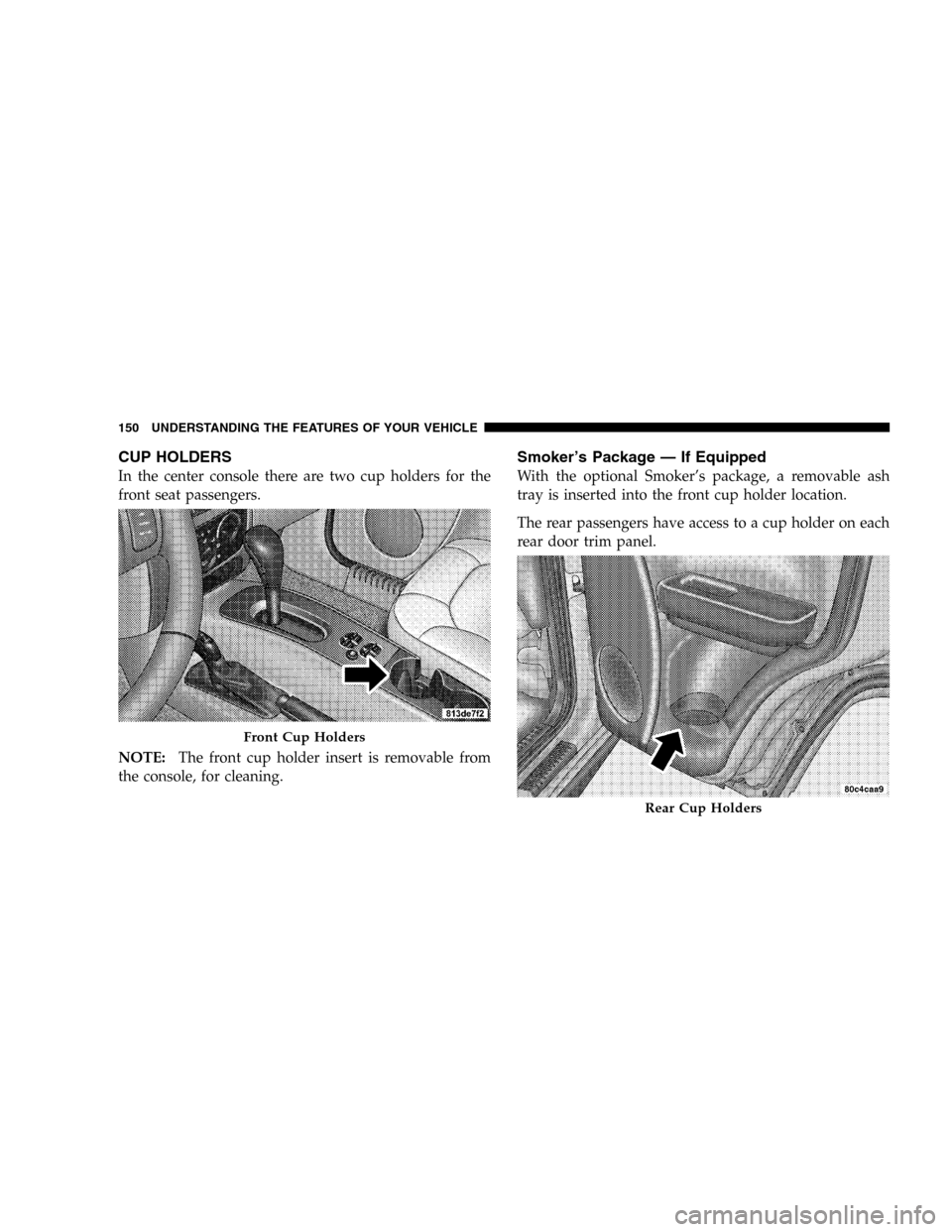

CUP HOLDERS
In the center console there are two cup holders for the
front seat passengers.
NOTE:The front cup holder insert is removable from
the console, for cleaning.
Smoker’s Package — If Equipped
With the optional Smoker’s package, a removable ash
tray is inserted into the front cup holder location.
The rear passengers have access to a cup holder on each
rear door trim panel.
Front Cup Holders
Rear Cup Holders
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
