JEEP LIBERTY 2005 KJ / 1.G Owners Manual

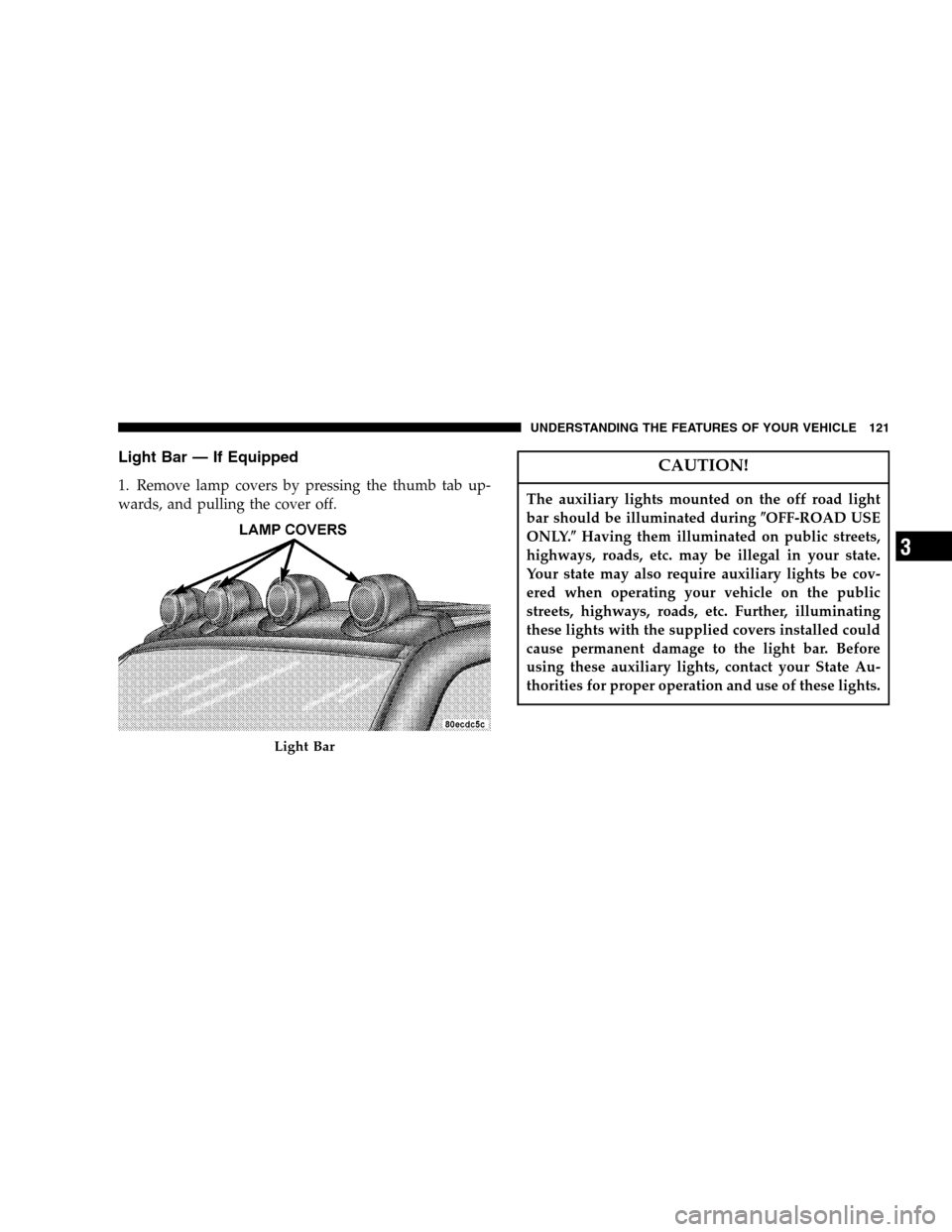

Light Bar — If Equipped
1. Remove lamp covers by pressing the thumb tab up-
wards, and pulling the cover off.
CAUTION!
The auxiliary lights mounted on the off road light
bar should be illuminated duringOFF-ROAD USE
ONLY.Having them illuminated on public streets,
highways, roads, etc. may be illegal in your state.
Your state may also require auxiliary lights be cov-
ered when operating your vehicle on the public
streets, highways, roads, etc. Further, illuminating
these lights with the supplied covers installed could
cause permanent damage to the light bar. Before
using these auxiliary lights, contact your State Au-
thorities for proper operation and use of these lights.
Light Bar
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

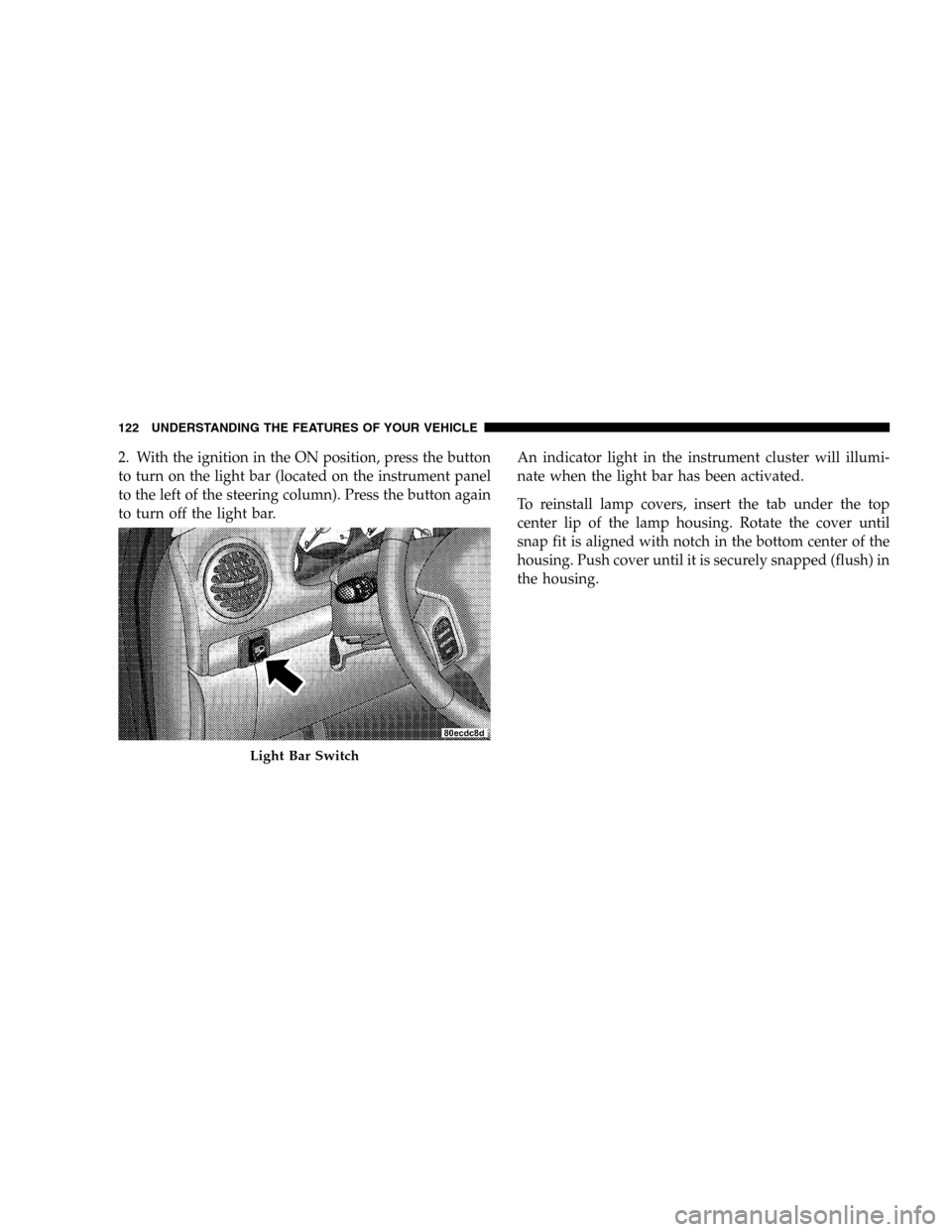

2. With the ignition in the ON position, press the button
to turn on the light bar (located on the instrument panel
to the left of the steering column). Press the button again
to turn off the light bar.An indicator light in the instrument cluster will illumi-
nate when the light bar has been activated.
To reinstall lamp covers, insert the tab under the top
center lip of the lamp housing. Rotate the cover until
snap fit is aligned with notch in the bottom center of the
housing. Push cover until it is securely snapped (flush) in
the housing.
Light Bar Switch
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

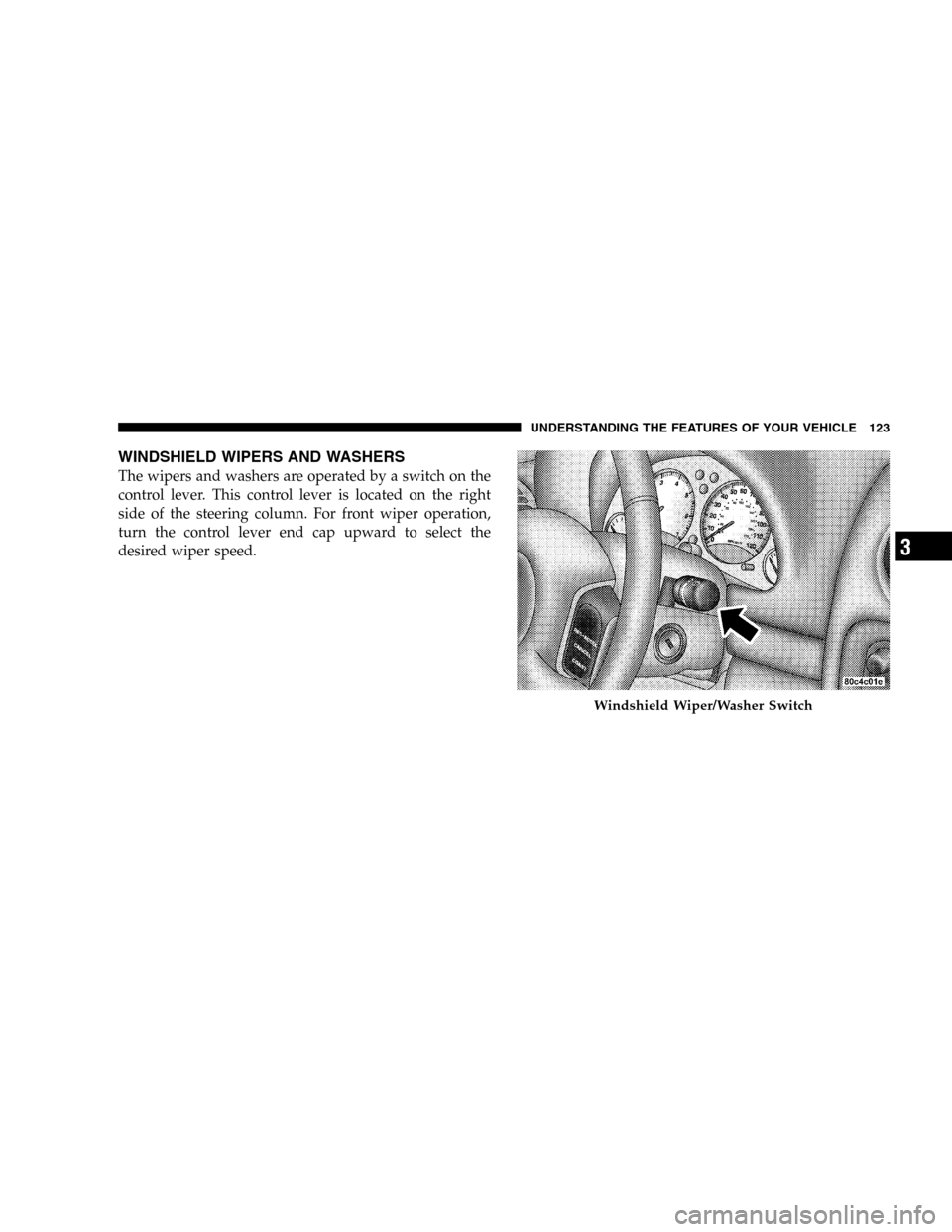

WINDSHIELD WIPERS AND WASHERS
The wipers and washers are operated by a switch on the
control lever. This control lever is located on the right
side of the steering column. For front wiper operation,
turn the control lever end cap upward to select the
desired wiper speed.
Windshield Wiper/Washer Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

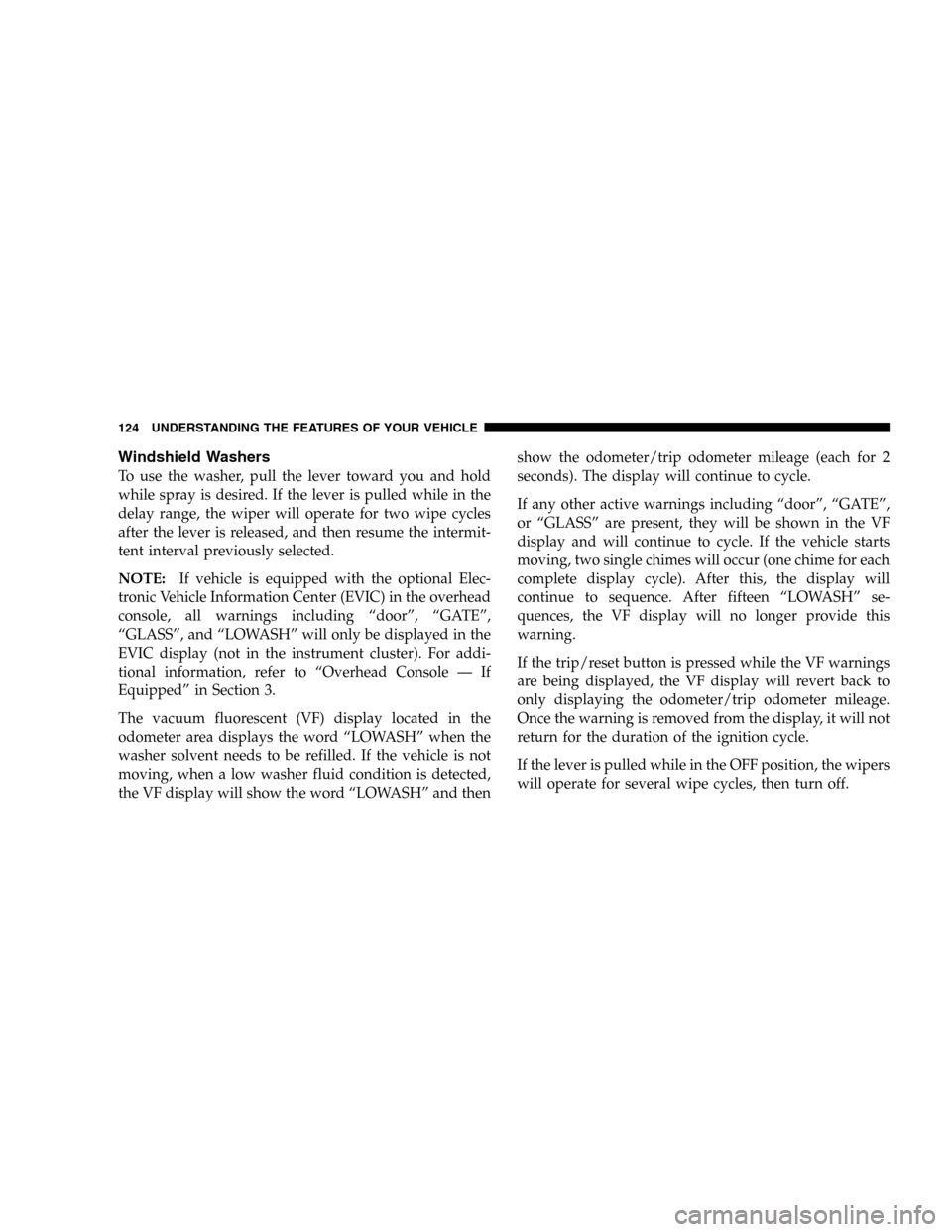

Windshield Washers
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
delay range, the wiper will operate for two wipe cycles
after the lever is released, and then resume the intermit-
tent interval previously selected.
NOTE:If vehicle is equipped with the optional Elec-
tronic Vehicle Information Center (EVIC) in the overhead
console, all warnings including “door”, “GATE”,
“GLASS”, and “LOWASH” will only be displayed in the
EVIC display (not in the instrument cluster). For addi-
tional information, refer to “Overhead Console — If
Equipped” in Section 3.
The vacuum fluorescent (VF) display located in the
odometer area displays the word “LOWASH” when the
washer solvent needs to be refilled. If the vehicle is not
moving, when a low washer fluid condition is detected,
the VF display will show the word “LOWASH” and thenshow the odometer/trip odometer mileage (each for 2
seconds). The display will continue to cycle.
If any other active warnings including “door”, “GATE”,
or “GLASS” are present, they will be shown in the VF
display and will continue to cycle. If the vehicle starts
moving, two single chimes will occur (one chime for each
complete display cycle). After this, the display will
continue to sequence. After fifteen “LOWASH” se-
quences, the VF display will no longer provide this
warning.
If the trip/reset button is pressed while the VF warnings
are being displayed, the VF display will revert back to
only displaying the odometer/trip odometer mileage.
Once the warning is removed from the display, it will not
return for the duration of the ignition cycle.
If the lever is pulled while in the OFF position, the wipers
will operate for several wipe cycles, then turn off.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

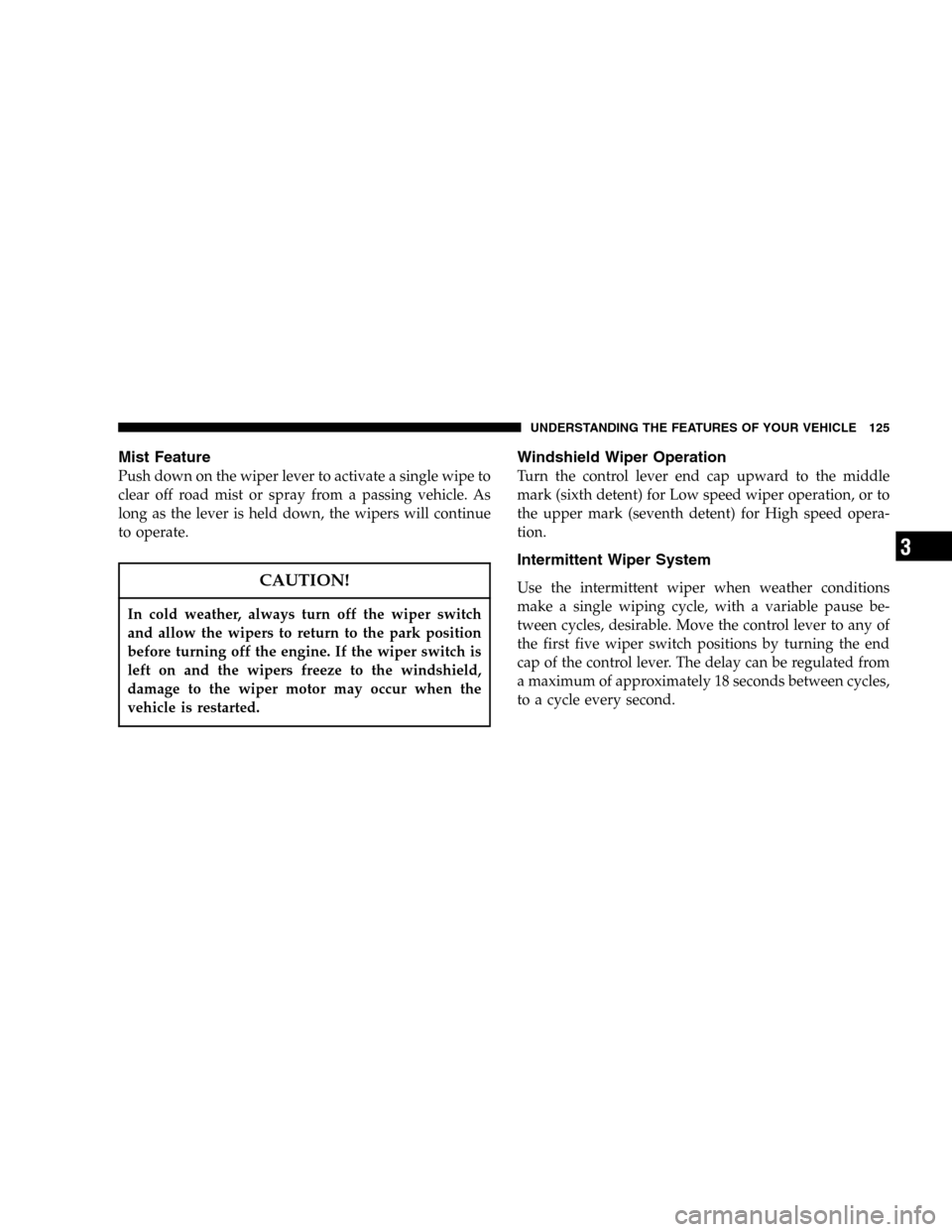

Mist Feature
Push down on the wiper lever to activate a single wipe to
clear off road mist or spray from a passing vehicle. As
long as the lever is held down, the wipers will continue
to operate.
CAUTION!
In cold weather, always turn off the wiper switch
and allow the wipers to return to the park position
before turning off the engine. If the wiper switch is
left on and the wipers freeze to the windshield,
damage to the wiper motor may occur when the
vehicle is restarted.
Windshield Wiper Operation
Turn the control lever end cap upward to the middle
mark (sixth detent) for Low speed wiper operation, or to
the upper mark (seventh detent) for High speed opera-
tion.
Intermittent Wiper System
Use the intermittent wiper when weather conditions
make a single wiping cycle, with a variable pause be-
tween cycles, desirable. Move the control lever to any of
the first five wiper switch positions by turning the end
cap of the control lever. The delay can be regulated from
a maximum of approximately 18 seconds between cycles,
to a cycle every second.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

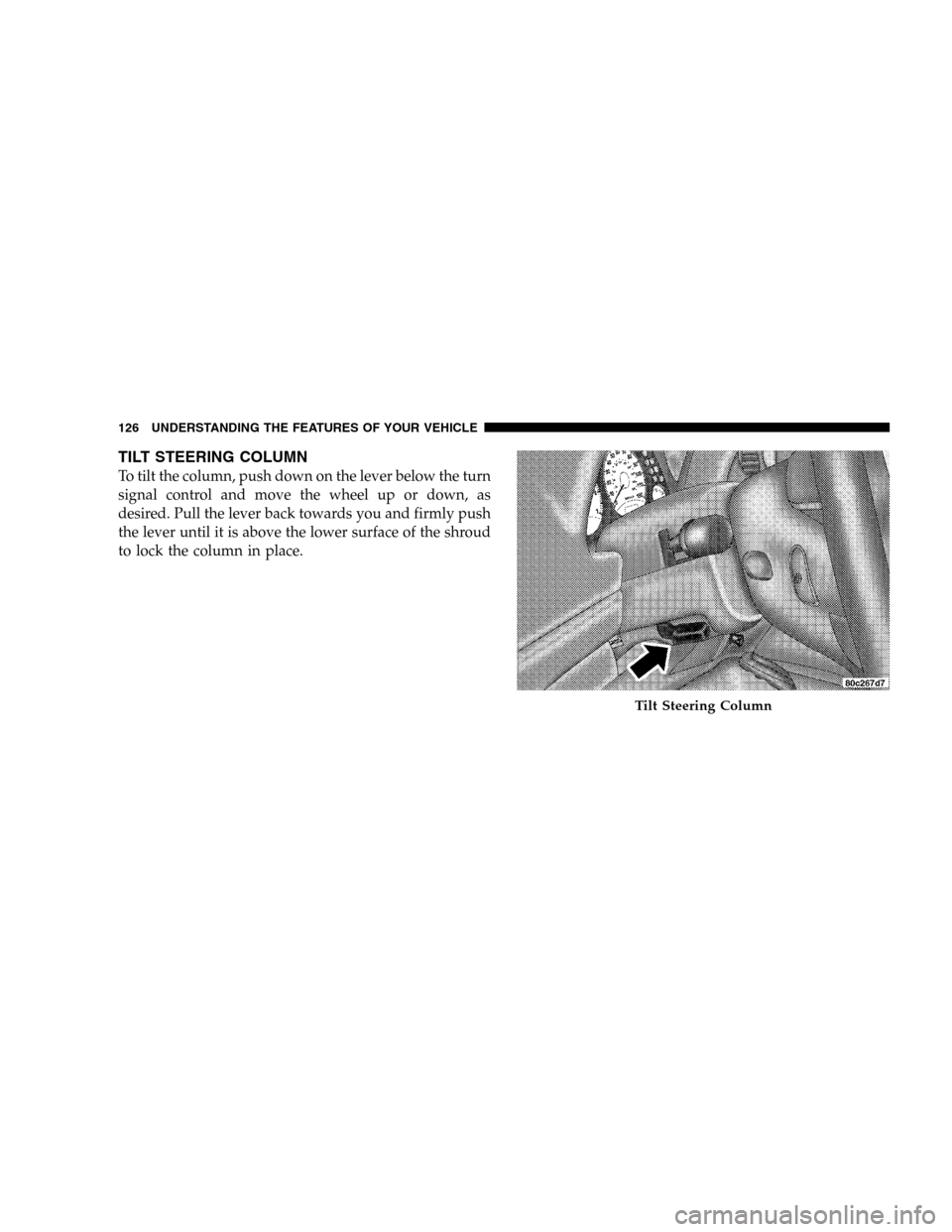

TILT STEERING COLUMN
To tilt the column, push down on the lever below the turn
signal control and move the wheel up or down, as
desired. Pull the lever back towards you and firmly push
the lever until it is above the lower surface of the shroud
to lock the column in place.
Tilt Steering Column
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Tilting the steering column while the vehicle is
moving is dangerous. Without a stable steering col-
umn, you could lose control of the vehicle and have
an accident. Adjust the column only while the ve-
hicle is stopped. Be sure it is locked before driving.

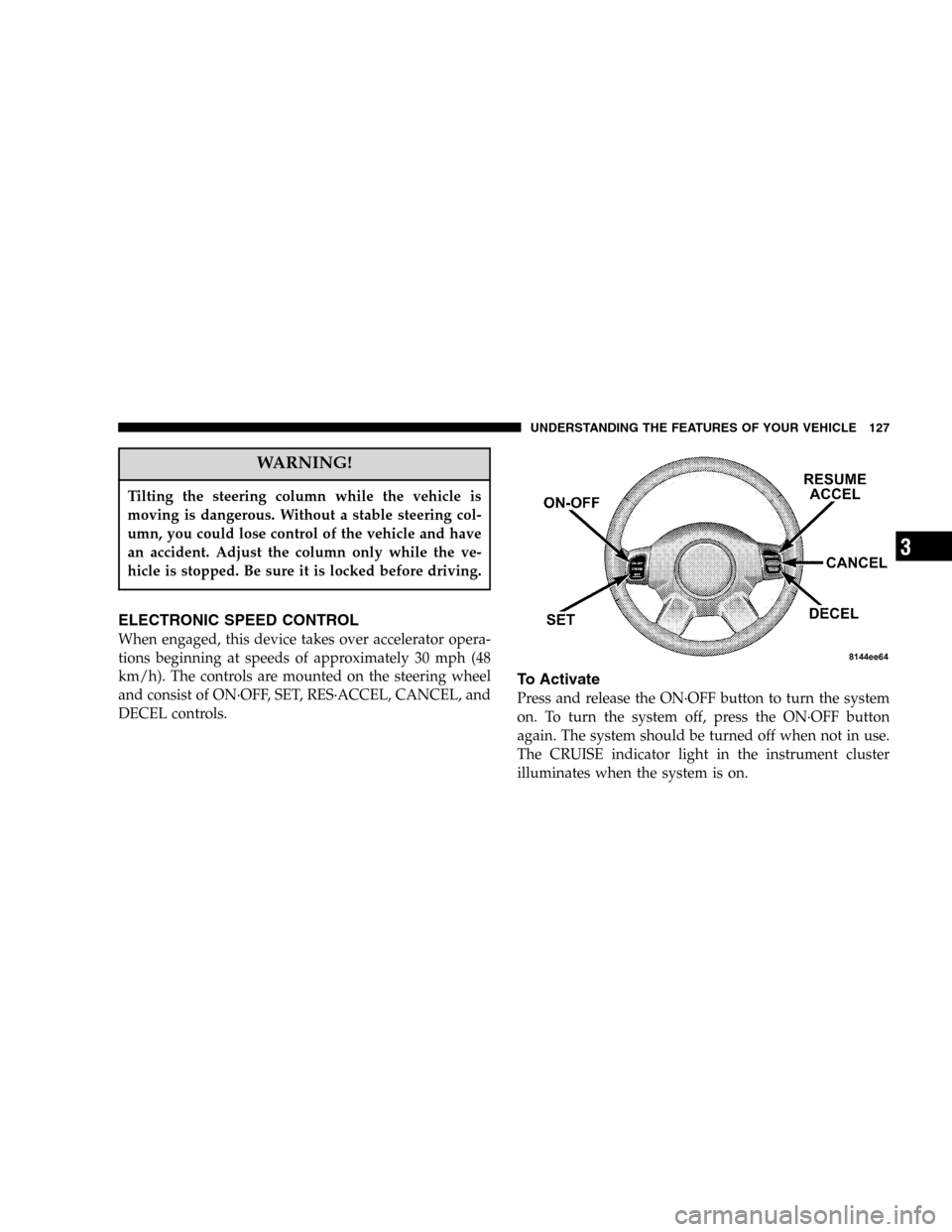

ELECTRONIC SPEED CONTROL
When engaged, this device takes over accelerator opera-
tions beginning at speeds of approximately 30 mph (48
km/h). The controls are mounted on the steering wheel
and consist of ON·OFF, SET, RES·ACCEL, CANCEL, and
DECEL controls.
To Activate
Press and release the ON·OFF button to turn the system
on. To turn the system off, press the ON·OFF button
again. The system should be turned off when not in use.
The CRUISE indicator light in the instrument cluster
illuminates when the system is on.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

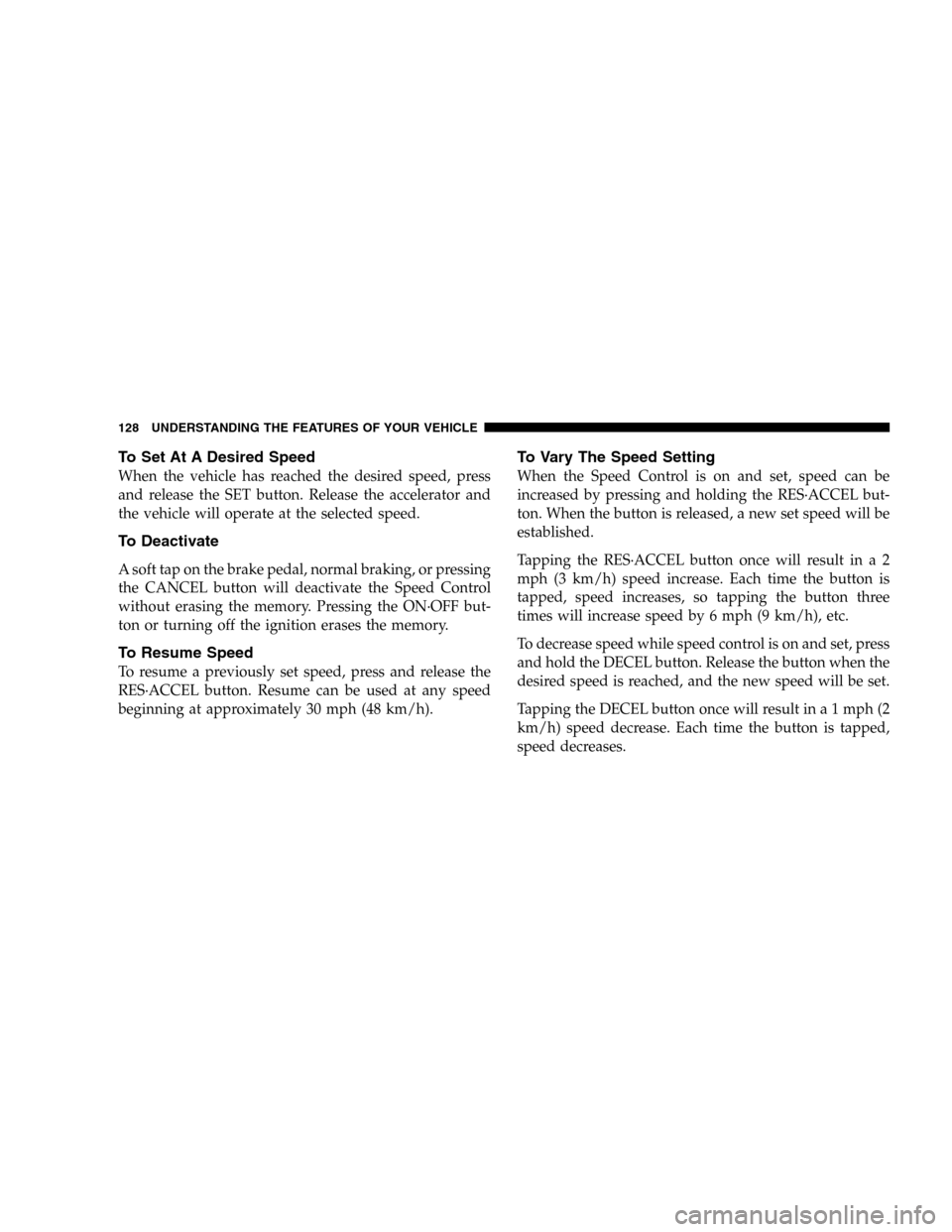

To Set At A Desired Speed
When the vehicle has reached the desired speed, press
and release the SET button. Release the accelerator and
the vehicle will operate at the selected speed.
To Deactivate
A soft tap on the brake pedal, normal braking, or pressing
the CANCEL button will deactivate the Speed Control
without erasing the memory. Pressing the ON·OFF but-
ton or turning off the ignition erases the memory.
To Resume Speed
To resume a previously set speed, press and release the
RES·ACCEL button. Resume can be used at any speed
beginning at approximately 30 mph (48 km/h).
To Vary The Speed Setting
When the Speed Control is on and set, speed can be
increased by pressing and holding the RES·ACCEL but-
ton. When the button is released, a new set speed will be
established.
Tapping the RES·ACCEL button once will result in a 2
mph (3 km/h) speed increase. Each time the button is
tapped, speed increases, so tapping the button three
times will increase speed by 6 mph (9 km/h), etc.
To decrease speed while speed control is on and set, press
and hold the DECEL button. Release the button when the
desired speed is reached, and the new speed will be set.
Tapping the DECEL button once will result in a 1 mph (2
km/h) speed decrease. Each time the button is tapped,
speed decreases.
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

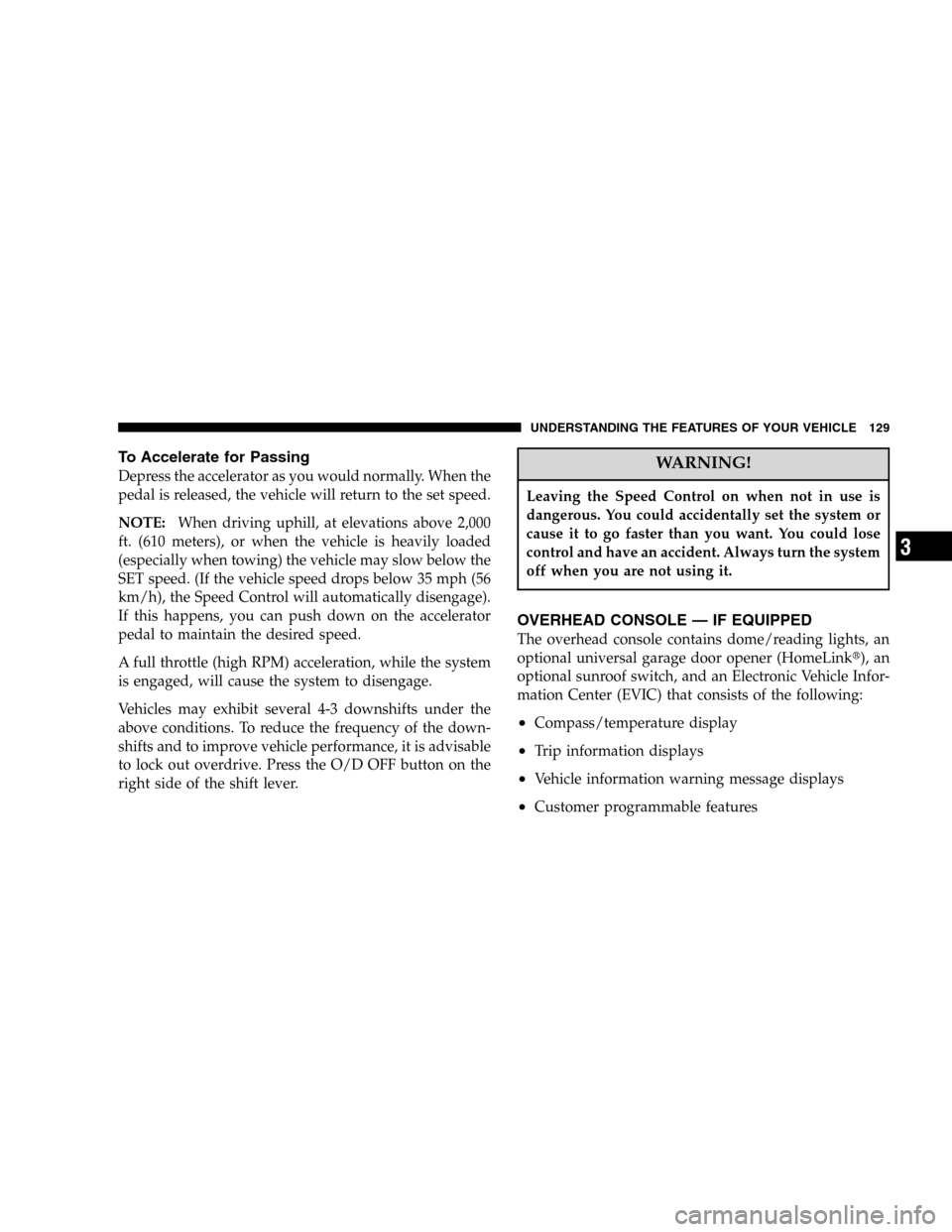

To Accelerate for Passing
Depress the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
NOTE:When driving uphill, at elevations above 2,000
ft. (610 meters), or when the vehicle is heavily loaded
(especially when towing) the vehicle may slow below the
SET speed. (If the vehicle speed drops below 35 mph (56
km/h), the Speed Control will automatically disengage).
If this happens, you can push down on the accelerator
pedal to maintain the desired speed.
A full throttle (high RPM) acceleration, while the system
is engaged, will cause the system to disengage.
Vehicles may exhibit several 4-3 downshifts under the
above conditions. To reduce the frequency of the down-
shifts and to improve vehicle performance, it is advisable
to lock out overdrive. Press the O/D OFF button on the
right side of the shift lever.WARNING!
Leaving the Speed Control on when not in use is
dangerous. You could accidentally set the system or
cause it to go faster than you want. You could lose
control and have an accident. Always turn the system
off when you are not using it.
OVERHEAD CONSOLE — IF EQUIPPED
The overhead console contains dome/reading lights, an
optional universal garage door opener (HomeLink), an
optional sunroof switch, and an Electronic Vehicle Infor-
mation Center (EVIC) that consists of the following:
•Compass/temperature display
•Trip information displays
•Vehicle information warning message displays
•Customer programmable features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

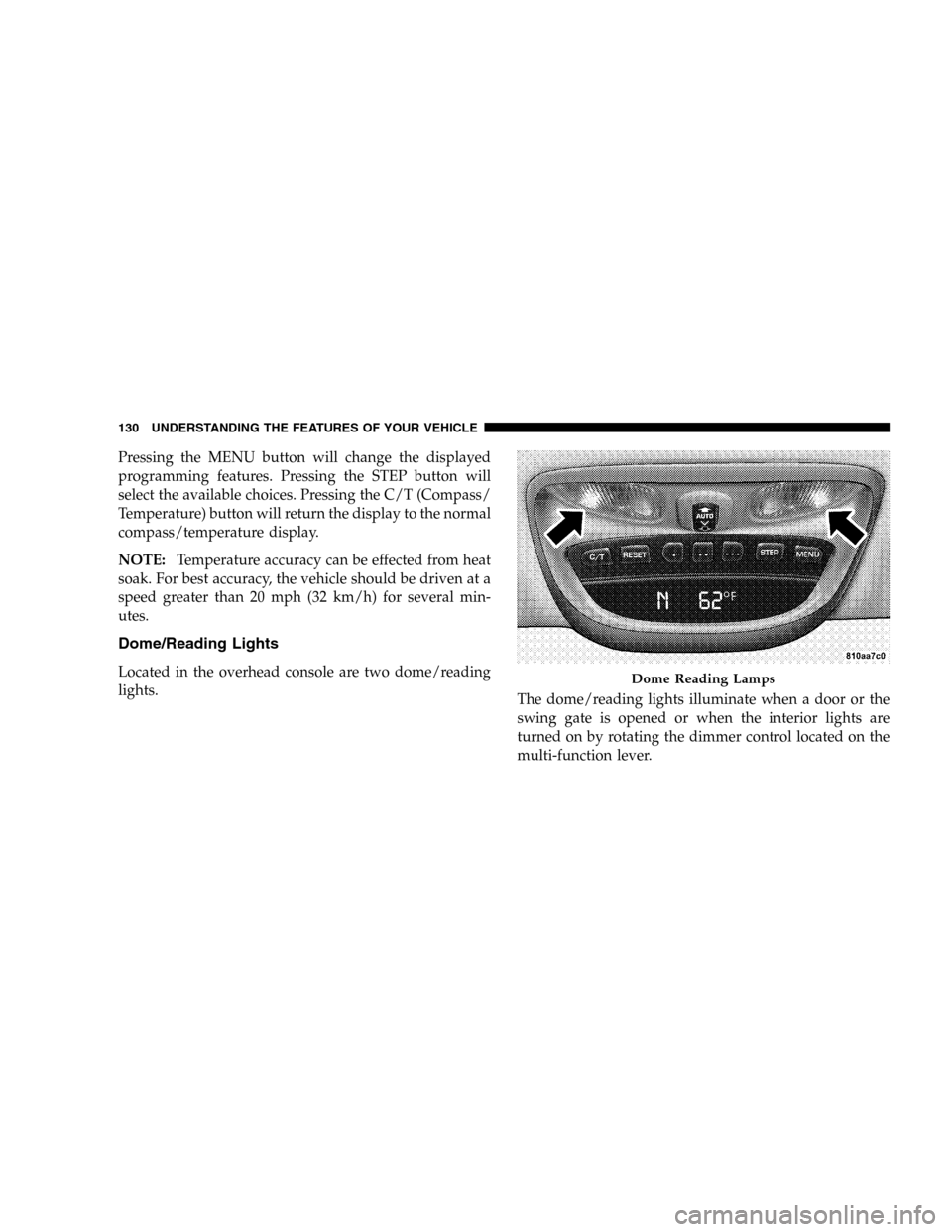

Pressing the MENU button will change the displayed
programming features. Pressing the STEP button will
select the available choices. Pressing the C/T (Compass/
Temperature) button will return the display to the normal
compass/temperature display.
NOTE:Temperature accuracy can be effected from heat
soak. For best accuracy, the vehicle should be driven at a
speed greater than 20 mph (32 km/h) for several min-
utes.
Dome/Reading Lights
Located in the overhead console are two dome/reading
lights.
The dome/reading lights illuminate when a door or the
swing gate is opened or when the interior lights are
turned on by rotating the dimmer control located on the
multi-function lever.Dome Reading Lamps
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
