JEEP LIBERTY 2005 KJ / 1.G User Guide
Manufacturer: JEEP, Model Year: 2005, Model line: LIBERTY, Model: JEEP LIBERTY 2005 KJ / 1.GPages: 424, PDF Size: 11.56 MB

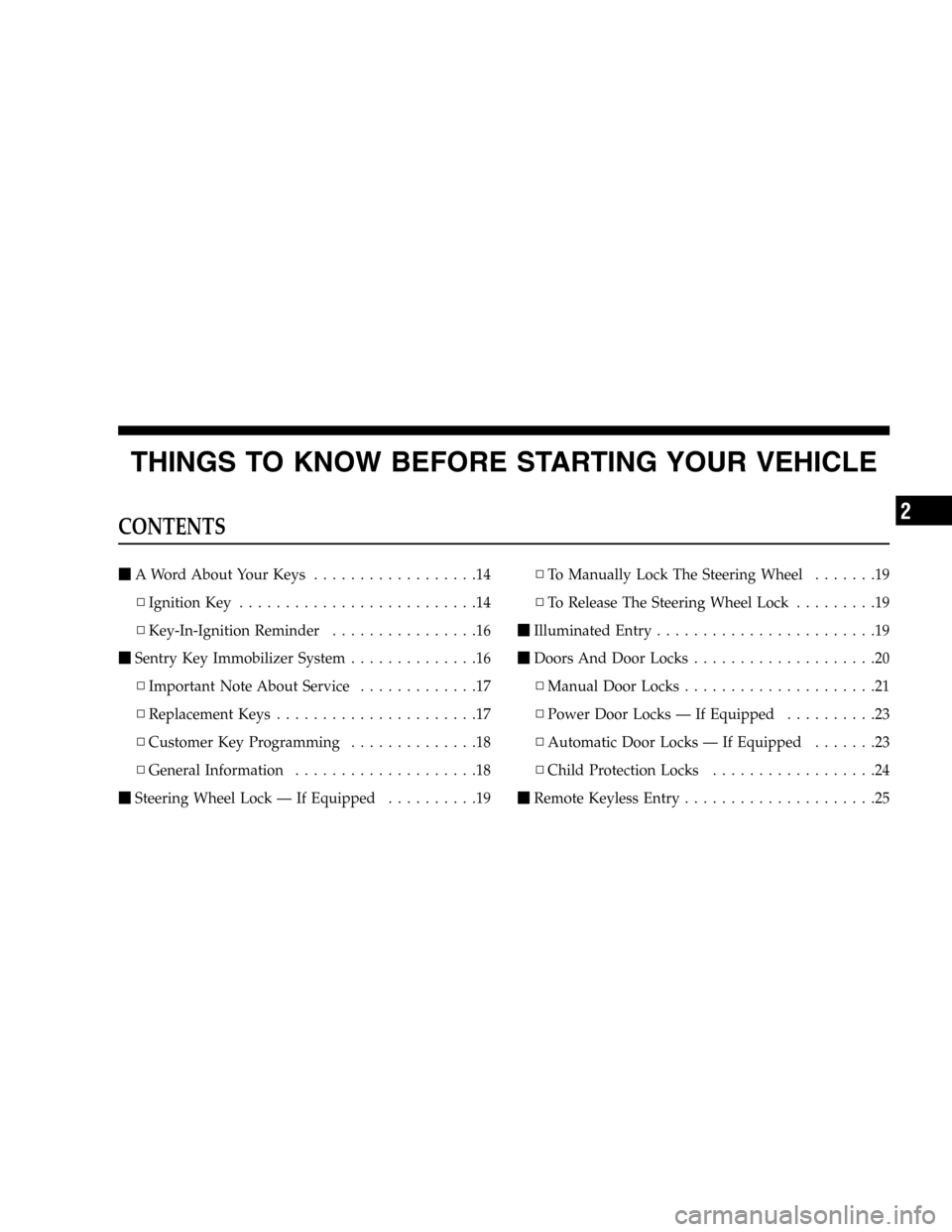

Page 11 of 424
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys..................14
▫Ignition Key..........................14
▫Key-In-Ignition Reminder................16
Sentry Key Immobilizer System..............16
▫Important Note About Service.............17
▫Replacement Keys......................17
▫Customer Key Programming..............18
▫General Information....................18
Steering Wheel Lock — If Equipped..........19▫To Manually Lock The Steering Wheel.......19
▫To Release The Steering Wheel Lock.........19
Illuminated Entry........................19
Doors And Door Locks....................20
▫Manual Door Locks.....................21
▫Power Door Locks — If Equipped..........23
▫Automatic Door Locks — If Equipped.......23
▫Child Protection Locks..................24
Remote Keyless Entry.....................25
2

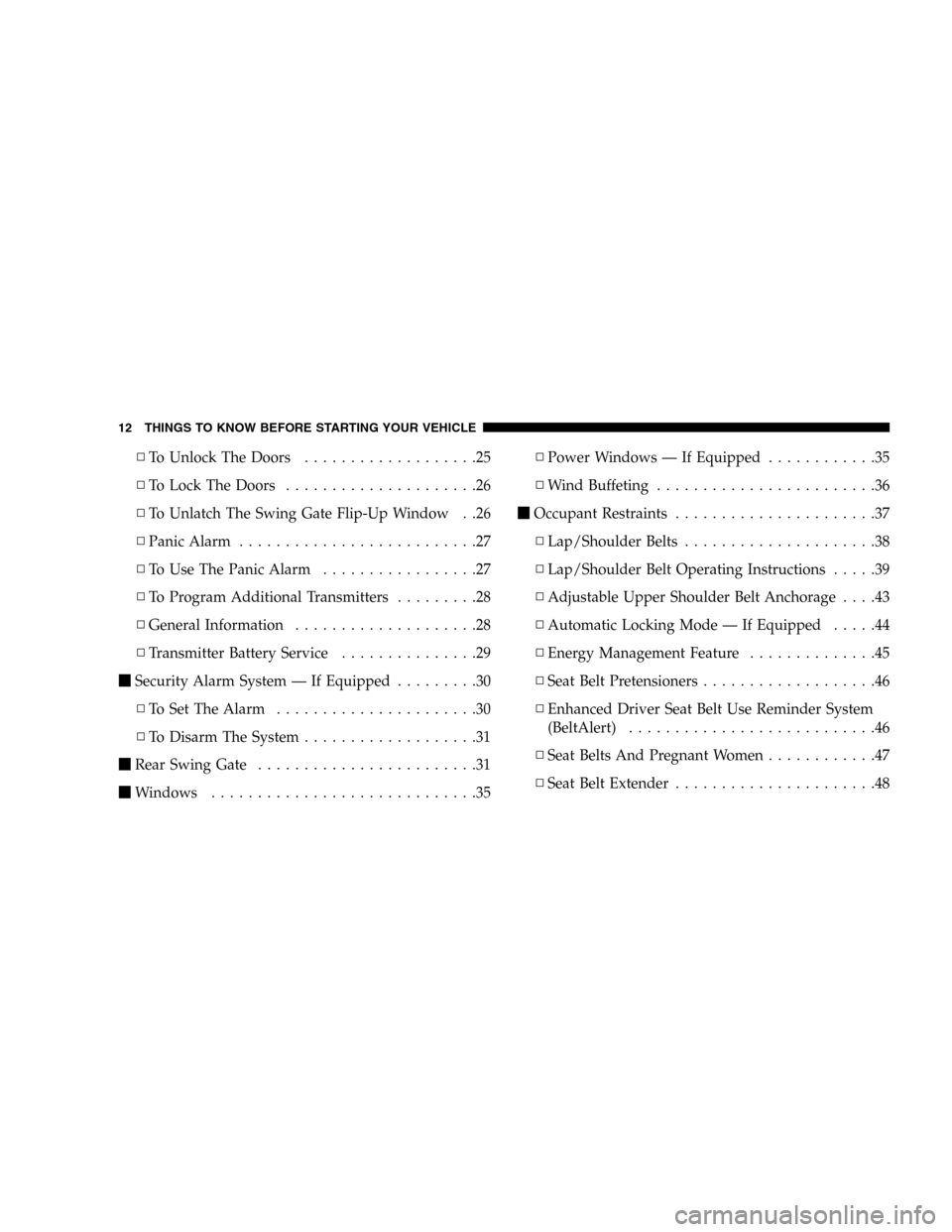

Page 12 of 424
▫To Unlock The Doors...................25
▫To Lock The Doors.....................26
▫To Unlatch The Swing Gate Flip-Up Window . .26
▫Panic Alarm..........................27
▫To Use The Panic Alarm.................27
▫To Program Additional Transmitters.........28
▫General Information....................28
▫Transmitter Battery Service...............29
Security Alarm System — If Equipped.........30
▫To Set The Alarm......................30
▫To Disarm The System...................31
Rear Swing Gate........................31
Windows.............................35▫Power Windows — If Equipped............35
▫Wind Buffeting........................36
Occupant Restraints......................37
▫Lap/Shoulder Belts.....................38
▫Lap/Shoulder Belt Operating Instructions.....39
▫Adjustable Upper Shoulder Belt Anchorage....43
▫Automatic Locking Mode — If Equipped.....44
▫Energy Management Feature..............45
▫Seat Belt Pretensioners...................46
▫Enhanced Driver Seat Belt Use Reminder System
(BeltAlert)...........................46
▫Seat Belts And Pregnant Women............47
▫Seat Belt Extender......................48
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

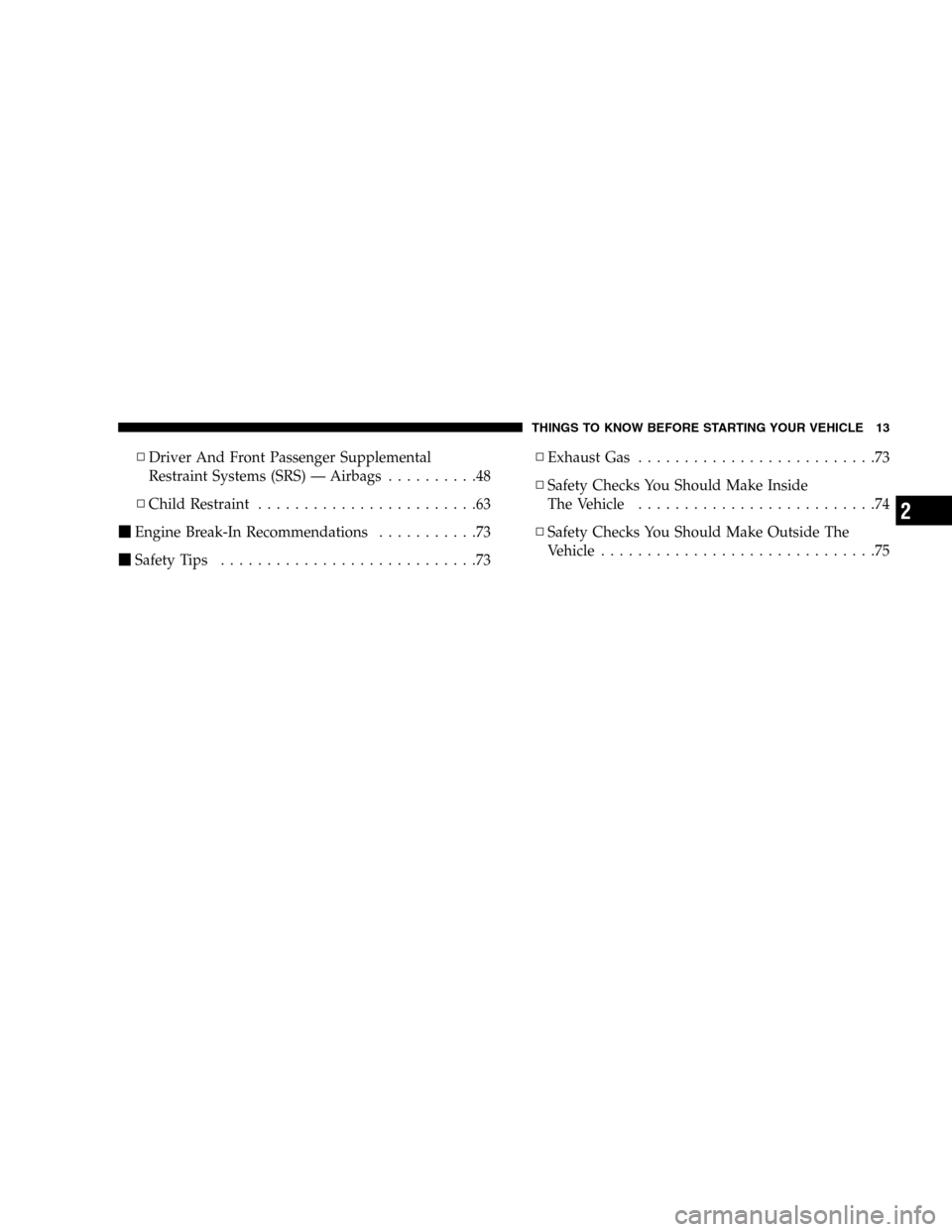

Page 13 of 424
▫Driver And Front Passenger Supplemental
Restraint Systems (SRS) — Airbags..........48
▫Child Restraint........................63
Engine Break-In Recommendations...........73
Safety Tips............................73▫Exhaust Gas..........................73
▫Safety Checks You Should Make Inside
The Vehicle..........................74
▫Safety Checks You Should Make Outside The
Vehicle..............................75
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

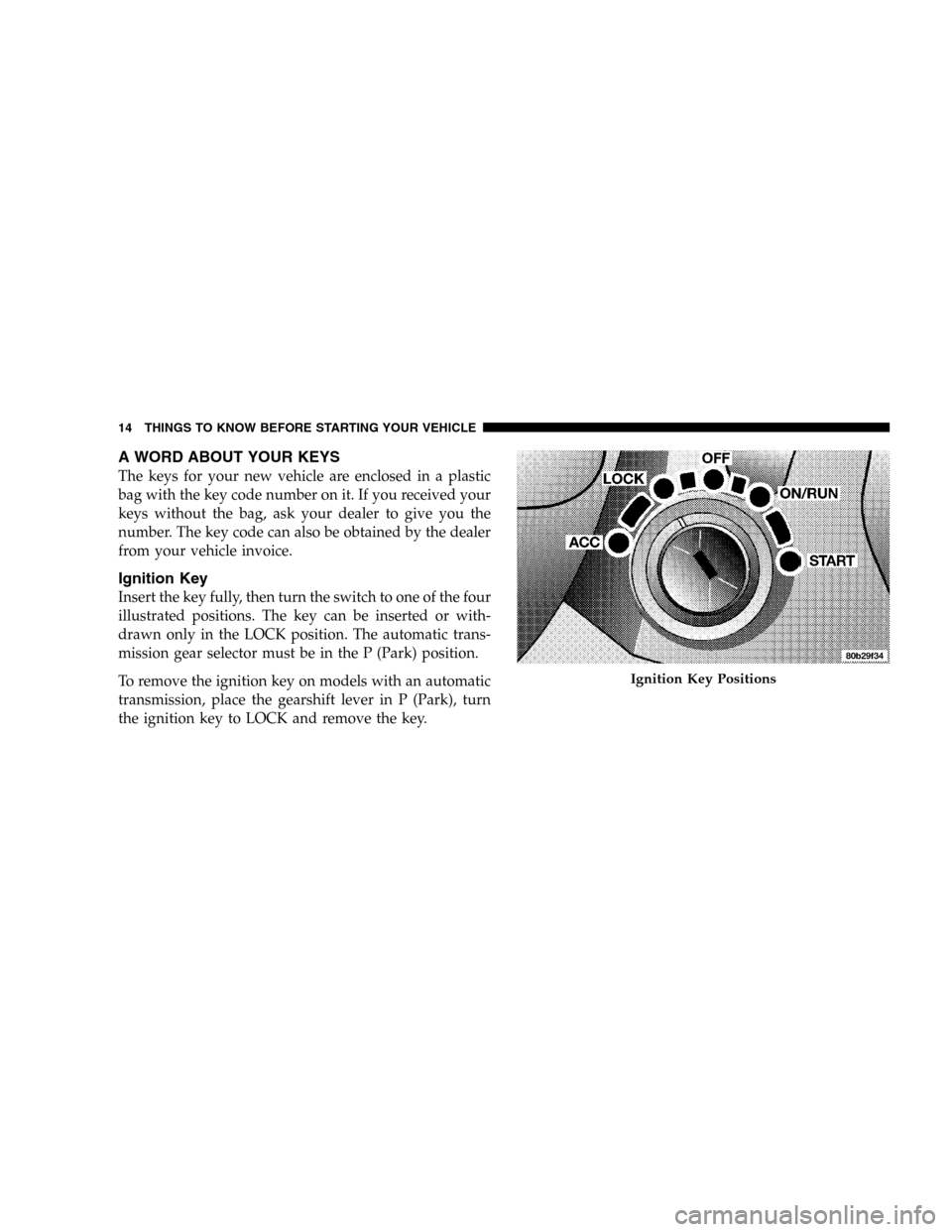

Page 14 of 424
A WORD ABOUT YOUR KEYS
The keys for your new vehicle are enclosed in a plastic
bag with the key code number on it. If you received your
keys without the bag, ask your dealer to give you the
number. The key code can also be obtained by the dealer
from your vehicle invoice.
Ignition Key
Insert the key fully, then turn the switch to one of the four
illustrated positions. The key can be inserted or with-
drawn only in the LOCK position. The automatic trans-
mission gear selector must be in the P (Park) position.
To remove the ignition key on models with an automatic
transmission, place the gearshift lever in P (Park), turn
the ignition key to LOCK and remove the key.
Ignition Key Positions
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

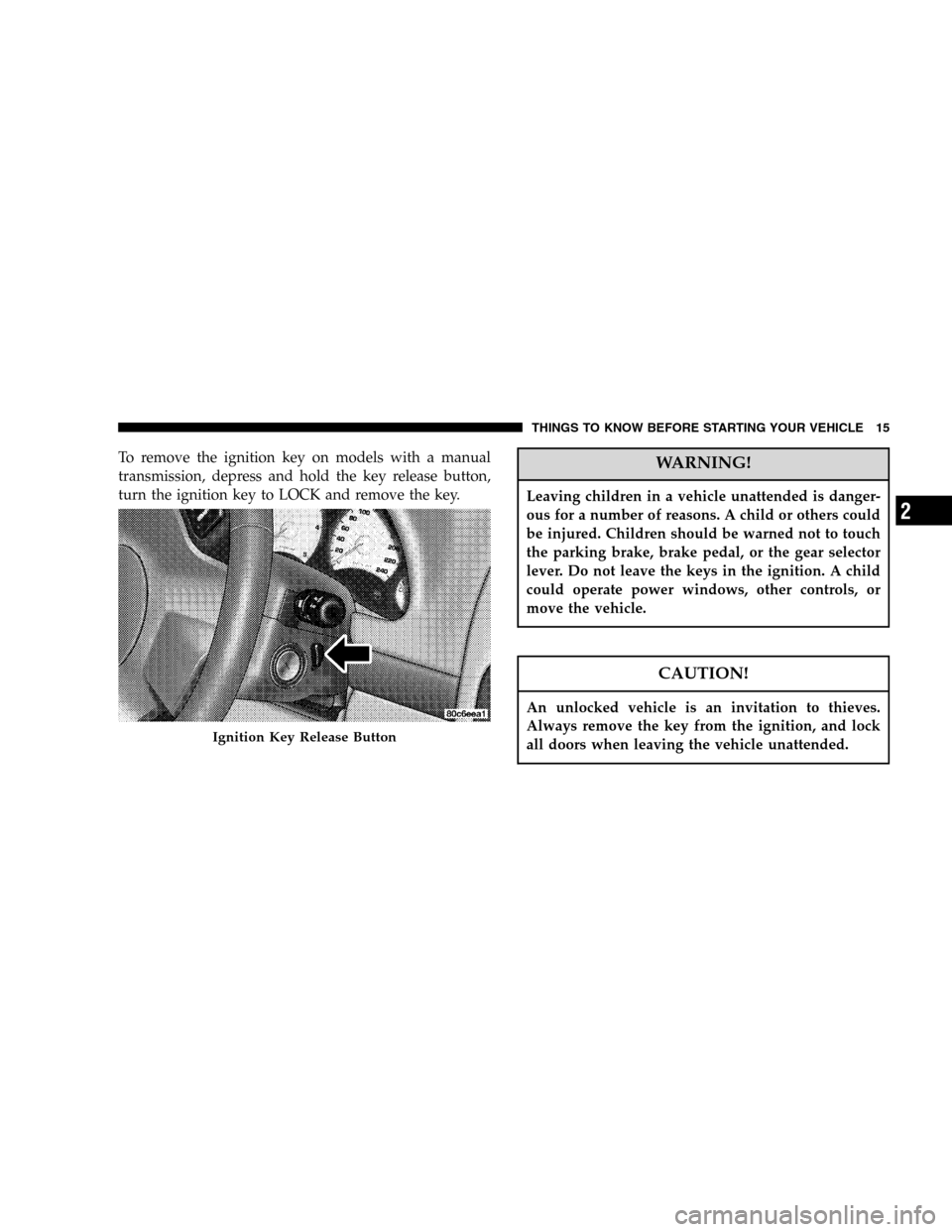

Page 15 of 424
To remove the ignition key on models with a manual
transmission, depress and hold the key release button,
turn the ignition key to LOCK and remove the key.WARNING!
Leaving children in a vehicle unattended is danger-
ous for a number of reasons. A child or others could
be injured. Children should be warned not to touch
the parking brake, brake pedal, or the gear selector
lever. Do not leave the keys in the ignition. A child
could operate power windows, other controls, or
move the vehicle.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the key from the ignition, and lock
all doors when leaving the vehicle unattended.
Ignition Key Release Button
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

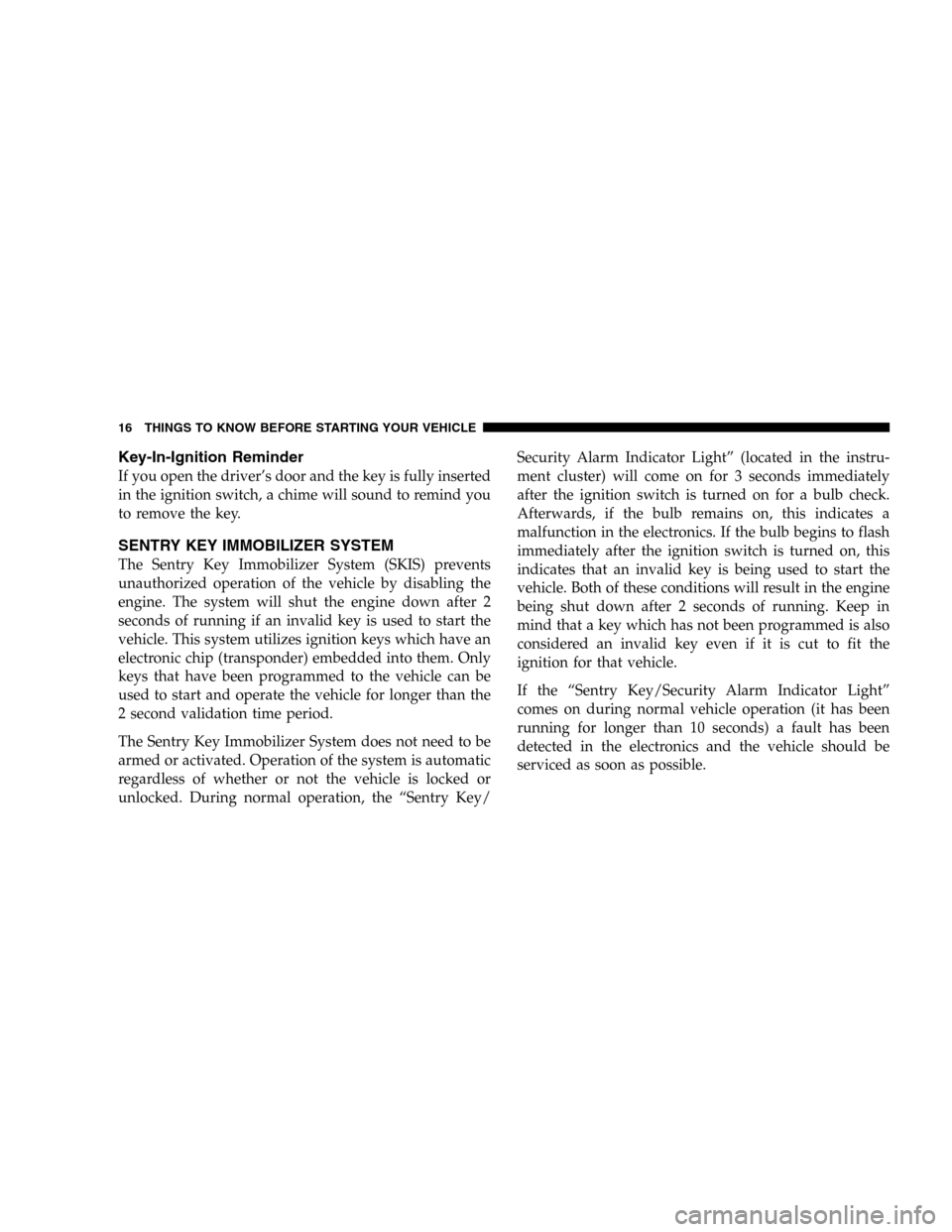

Page 16 of 424
Key-In-Ignition Reminder
If you open the driver’s door and the key is fully inserted
in the ignition switch, a chime will sound to remind you
to remove the key.
SENTRY KEY IMMOBILIZER SYSTEM
The Sentry Key Immobilizer System (SKIS) prevents
unauthorized operation of the vehicle by disabling the
engine. The system will shut the engine down after 2
seconds of running if an invalid key is used to start the
vehicle. This system utilizes ignition keys which have an
electronic chip (transponder) embedded into them. Only
keys that have been programmed to the vehicle can be
used to start and operate the vehicle for longer than the
2 second validation time period.
The Sentry Key Immobilizer System does not need to be
armed or activated. Operation of the system is automatic
regardless of whether or not the vehicle is locked or
unlocked. During normal operation, the “Sentry Key/Security Alarm Indicator Light” (located in the instru-
ment cluster) will come on for 3 seconds immediately
after the ignition switch is turned on for a bulb check.
Afterwards, if the bulb remains on, this indicates a
malfunction in the electronics. If the bulb begins to flash
immediately after the ignition switch is turned on, this
indicates that an invalid key is being used to start the
vehicle. Both of these conditions will result in the engine
being shut down after 2 seconds of running. Keep in
mind that a key which has not been programmed is also
considered an invalid key even if it is cut to fit the
ignition for that vehicle.
If the “Sentry Key/Security Alarm Indicator Light”
comes on during normal vehicle operation (it has been
running for longer than 10 seconds) a fault has been
detected in the electronics and the vehicle should be
serviced as soon as possible.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

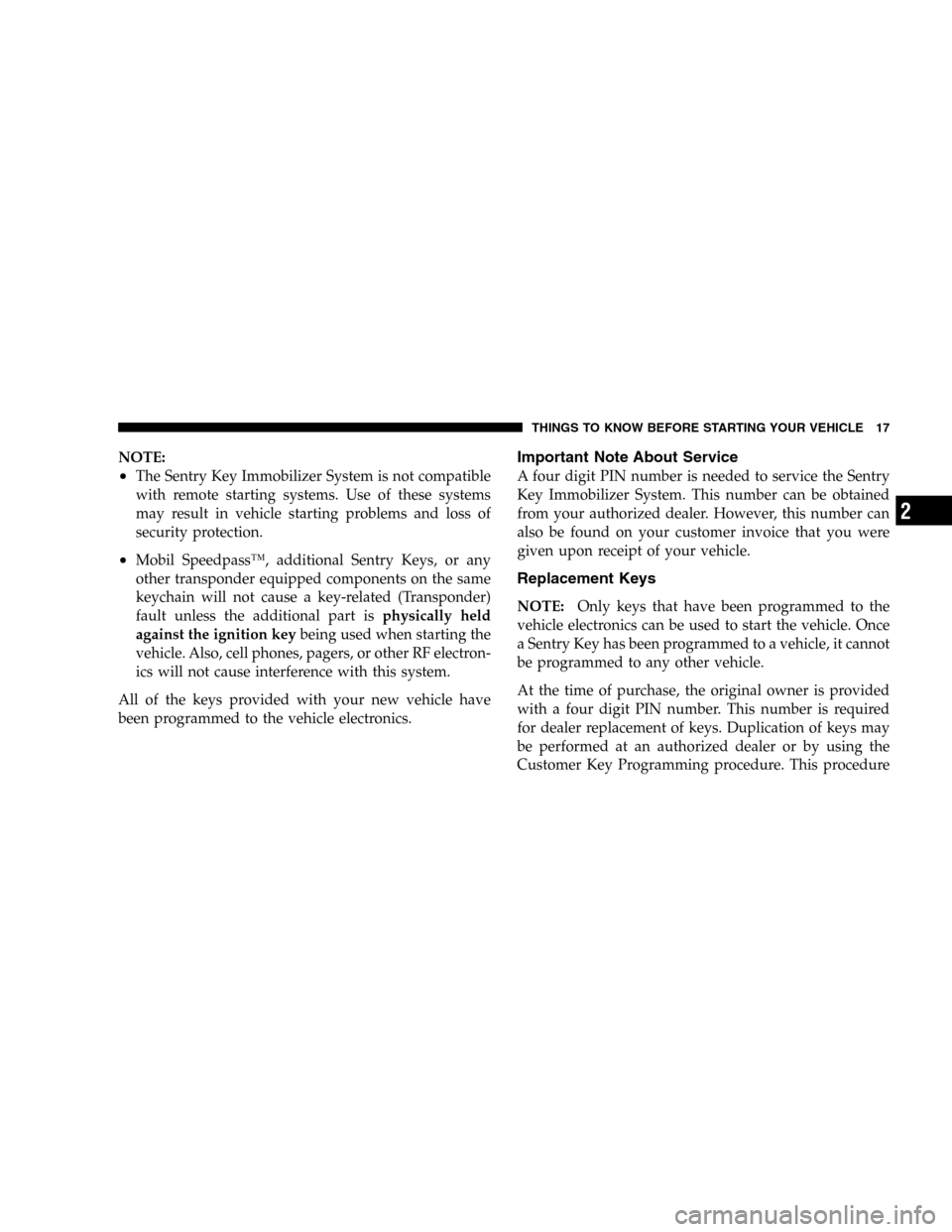

Page 17 of 424
NOTE:
•The Sentry Key Immobilizer System is not compatible
with remote starting systems. Use of these systems
may result in vehicle starting problems and loss of
security protection.
•Mobil Speedpass™, additional Sentry Keys, or any
other transponder equipped components on the same
keychain will not cause a key-related (Transponder)
fault unless the additional part isphysically held
against the ignition keybeing used when starting the
vehicle. Also, cell phones, pagers, or other RF electron-
ics will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Important Note About Service
A four digit PIN number is needed to service the Sentry
Key Immobilizer System. This number can be obtained
from your authorized dealer. However, this number can
also be found on your customer invoice that you were
given upon receipt of your vehicle.
Replacement Keys
NOTE:Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it cannot
be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

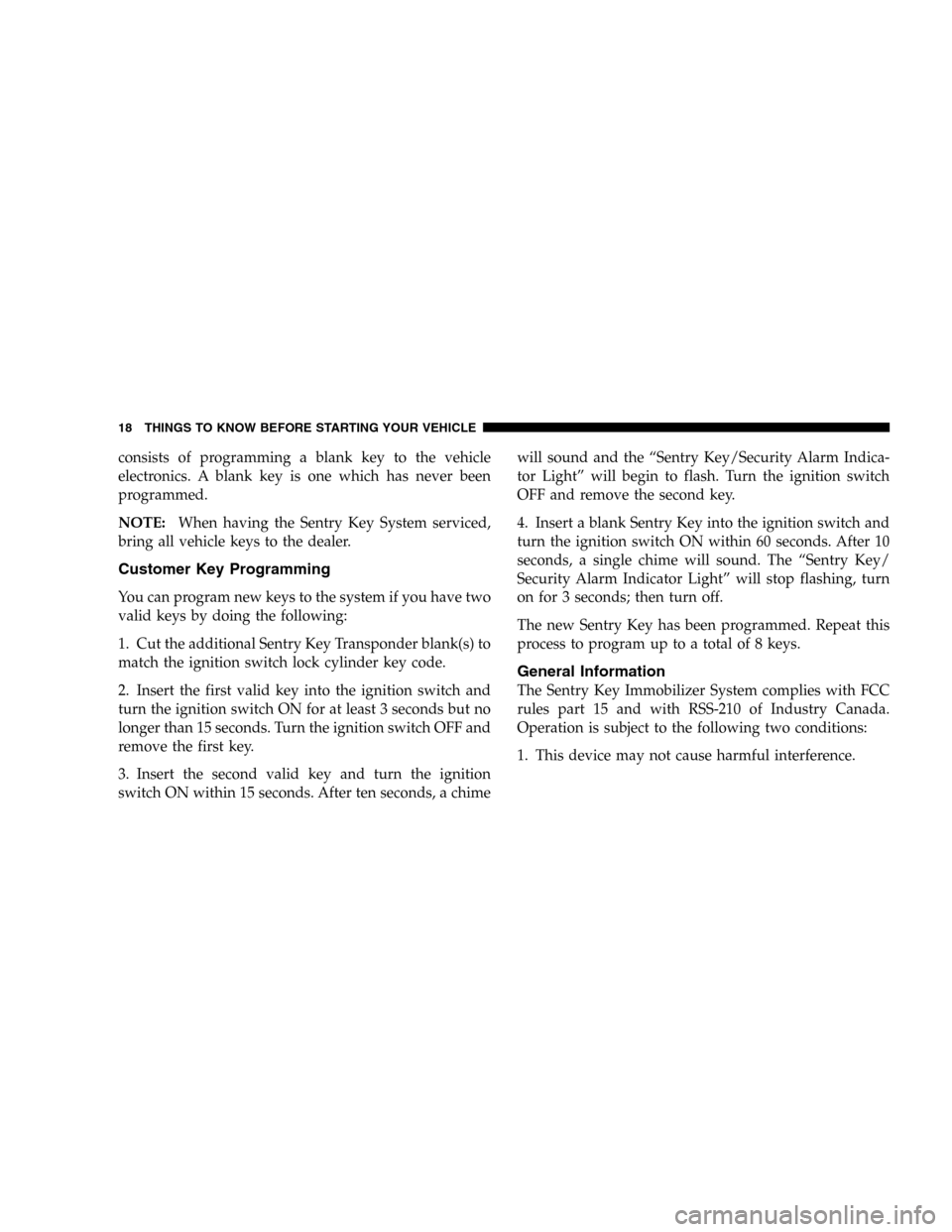

Page 18 of 424
consists of programming a blank key to the vehicle
electronics. A blank key is one which has never been
programmed.
NOTE:When having the Sentry Key System serviced,
bring all vehicle keys to the dealer.
Customer Key Programming
You can program new keys to the system if you have two
valid keys by doing the following:
1. Cut the additional Sentry Key Transponder blank(s) to
match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch and
turn the ignition switch ON for at least 3 seconds but no
longer than 15 seconds. Turn the ignition switch OFF and
remove the first key.
3. Insert the second valid key and turn the ignition
switch ON within 15 seconds. After ten seconds, a chimewill sound and the “Sentry Key/Security Alarm Indica-
tor Light” will begin to flash. Turn the ignition switch
OFF and remove the second key.
4. Insert a blank Sentry Key into the ignition switch and
turn the ignition switch ON within 60 seconds. After 10
seconds, a single chime will sound. The “Sentry Key/
Security Alarm Indicator Light” will stop flashing, turn
on for 3 seconds; then turn off.
The new Sentry Key has been programmed. Repeat this
process to program up to a total of 8 keys.
General Information
The Sentry Key Immobilizer System complies with FCC
rules part 15 and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

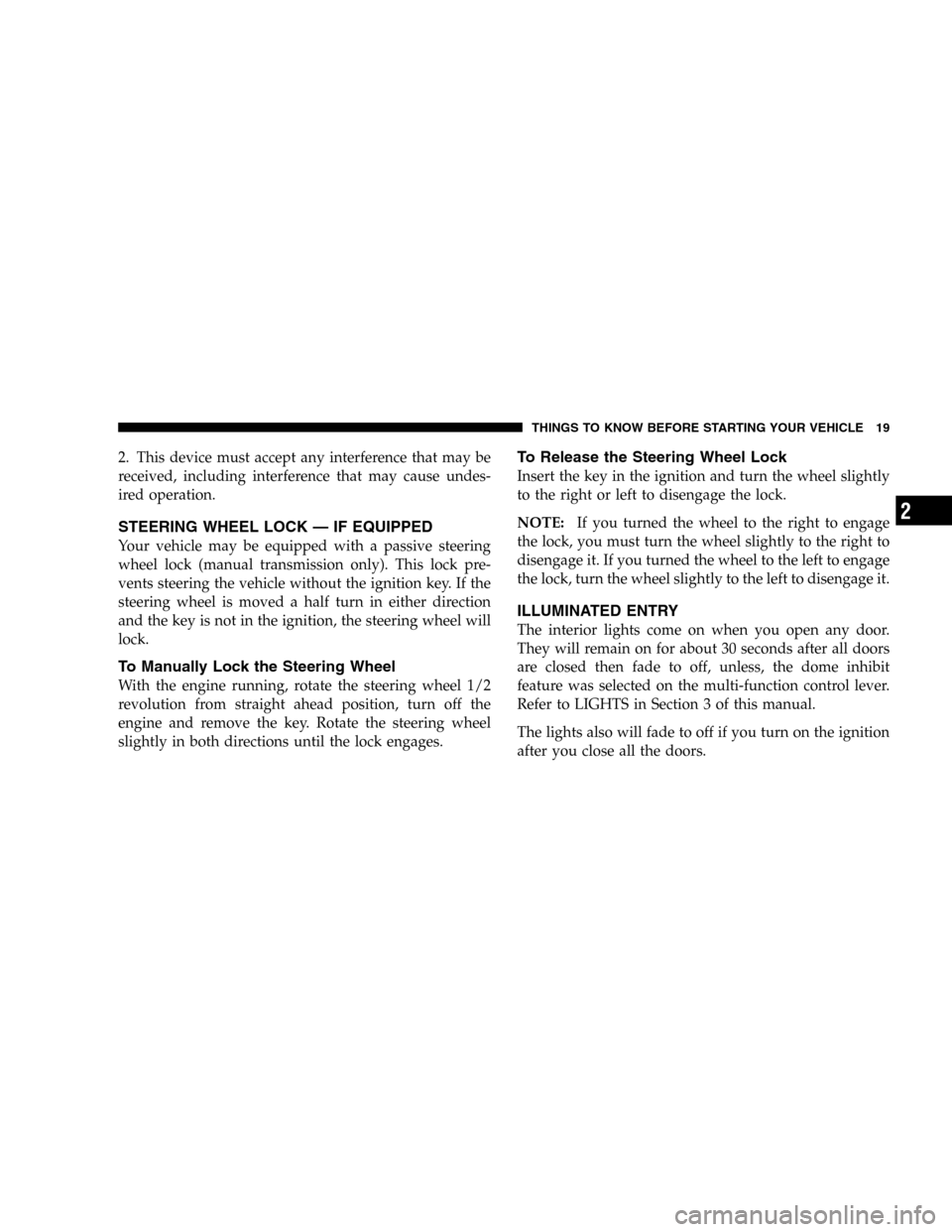

Page 19 of 424
2. This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
STEERING WHEEL LOCK — IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock (manual transmission only). This lock pre-
vents steering the vehicle without the ignition key. If the
steering wheel is moved a half turn in either direction
and the key is not in the ignition, the steering wheel will
lock.
To Manually Lock the Steering Wheel
With the engine running, rotate the steering wheel 1/2
revolution from straight ahead position, turn off the
engine and remove the key. Rotate the steering wheel
slightly in both directions until the lock engages.
To Release the Steering Wheel Lock
Insert the key in the ignition and turn the wheel slightly
to the right or left to disengage the lock.
NOTE:If you turned the wheel to the right to engage
the lock, you must turn the wheel slightly to the right to
disengage it. If you turned the wheel to the left to engage
the lock, turn the wheel slightly to the left to disengage it.
ILLUMINATED ENTRY
The interior lights come on when you open any door.
They will remain on for about 30 seconds after all doors
are closed then fade to off, unless, the dome inhibit
feature was selected on the multi-function control lever.
Refer to LIGHTS in Section 3 of this manual.
The lights also will fade to off if you turn on the ignition
after you close all the doors.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
Page 20 of 424
DOORS AND DOOR LOCKS
The vacuum fluorescent (VF) display located in the
odometer area displays the word “door” as an indication
of a door ajar or door not completely closed. When the
vehicle is not moving and the door is ajar or not
completely closed, the VF display will show the word
“door” and then show the odometer/trip odometer
mileage (each for 2 seconds). The display will continue to
cycle.
NOTE:If vehicle is equipped with the optional Elec-
tronic Vehicle Information Center (EVIC) in the overhead
console, all warnings including “door”, “GATE”,
“GLASS”, and “LOWASH” will only be displayed in the
EVIC display (not in the instrument cluster). For addi-
tional information, refer to “Overhead Console — If
Equipped” in Section 3.If any other active warnings including “GATE”,
“GLASS”, or “LOWASH” are present, they will be shown
in the VF display and will also continue to cycle. If the
vehicle is moving, three single chimes will occur (One
Door Open Display
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
