JEEP LIBERTY 2010 KK / 2.G Owners Manual

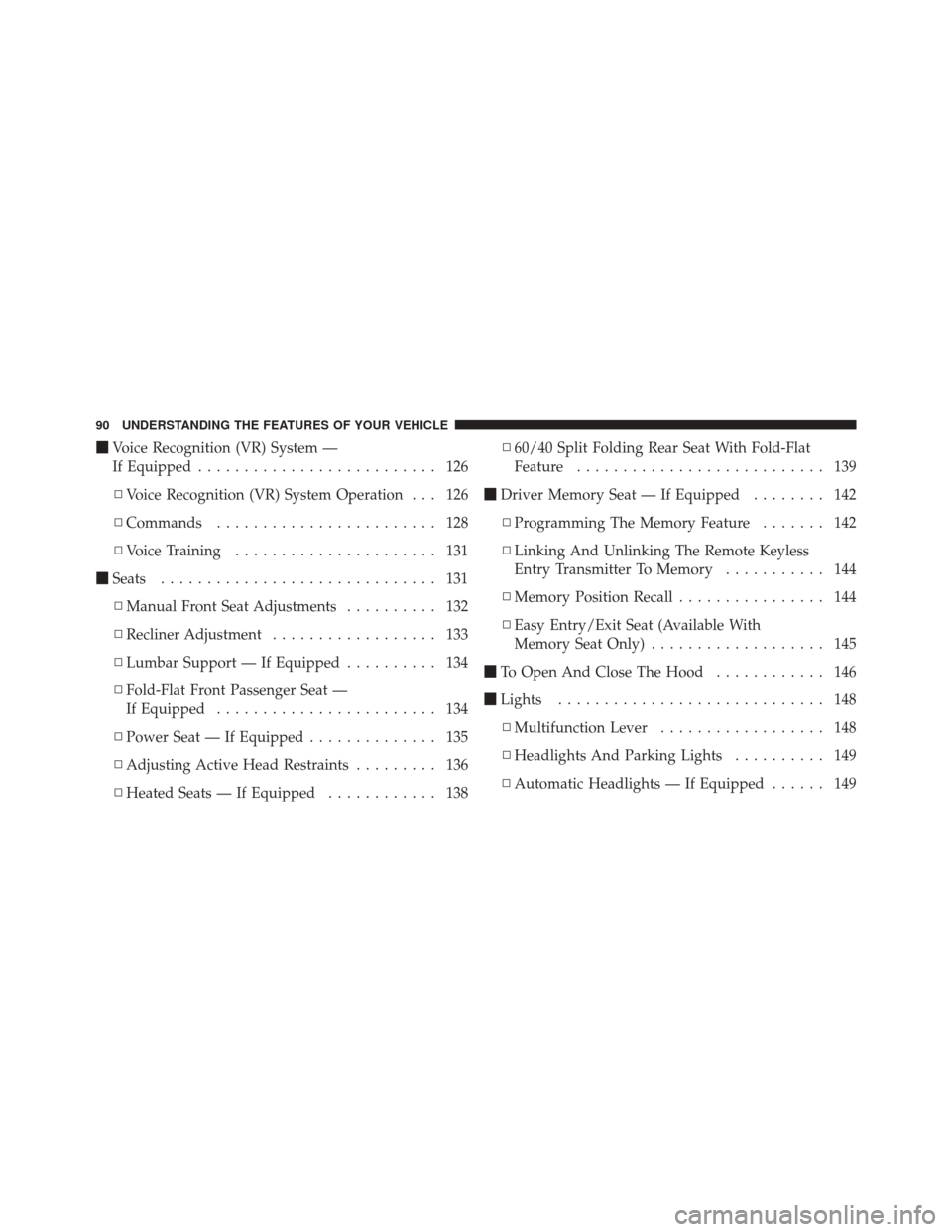

Voice Recognition (VR) System —
If Equipped .......................... 126
▫ Voice Recognition (VR) System Operation . . . 126
▫ Commands ........................ 128
▫ Voice Training ...................... 131
 Seats .............................. 131
▫ Manual Front Seat Adjustments .......... 132
▫ Recliner Adjustment .................. 133
▫ Lumbar Support — If Equipped .......... 134
▫ Fold-Flat Front Passenger Seat —
If Equipped ........................ 134
▫ Power Seat — If Equipped .............. 135
▫ Adjusting Active Head Restraints ......... 136
▫ Heated Seats — If Equipped ............ 138▫
60/40 Split Folding Rear Seat With Fold-Flat
Feature ........................... 139
 Driver Memory Seat — If Equipped ........ 142
▫ Programming The Memory Feature ....... 142
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory ........... 144
▫ Memory Position Recall ................ 144
▫ Easy Entry/Exit Seat (Available With
Memory Seat Only) ................... 145
 To Open And Close The Hood ............ 146
 Lights ............................. 148
▫ Multifunction Lever .................. 148
▫ Headlights And Parking Lights .......... 149
▫ Automatic Headlights — If Equipped ...... 149

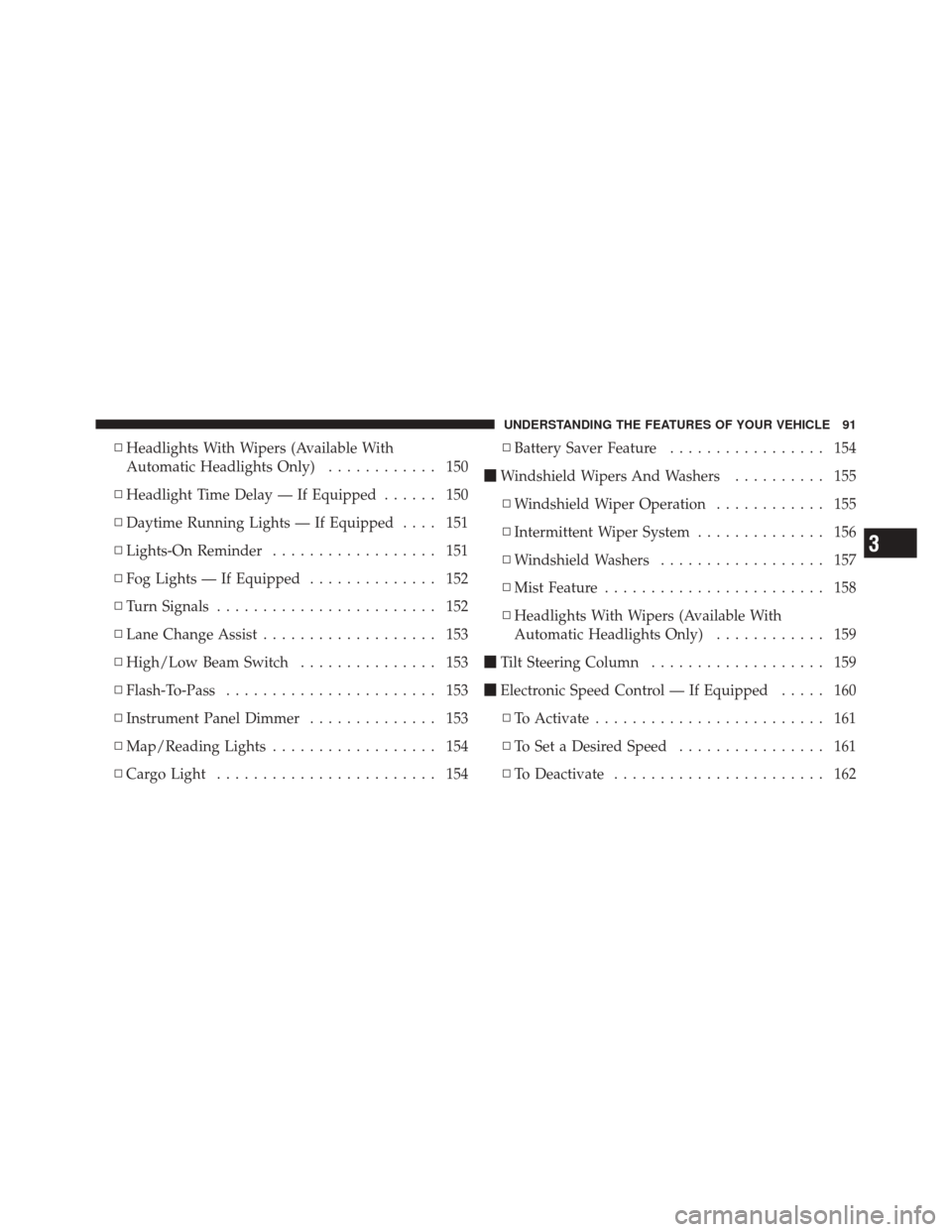

90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Headlights With Wipers (Available With
Automatic Headlights Only) ............ 150
▫ Headlight Time Delay — If Equipped ...... 150
▫ Daytime Running Lights — If Equipped .... 151
▫ Lights-On Reminder .................. 151
▫ Fog Lights — If Equipped .............. 152
▫ Turn Signals ........................ 152
▫ Lane Change Assist ................... 153
▫ High/Low Beam Switch ............... 153
▫ Flash-To-Pass ....................... 153
▫ Instrument Panel Dimmer .............. 153
▫ Map/Reading Lights .................. 154
▫ Cargo Light ........................ 154 ▫
Battery Saver Feature ................. 154
 Windshield Wipers And Washers .......... 155
▫ Windshield Wiper Operation ............ 155
▫ Intermittent Wiper System .............. 156
▫ Windshield Washers .................. 157
▫ Mist Feature ........................ 158
▫ Headlights With Wipers (Available With
Automatic Headlights Only) ............ 159
 Tilt Steering Column ................... 159
 Electronic Speed Control — If Equipped ..... 160
▫ To Activate ......................... 161
▫ To Set a Desired Speed ................ 161
▫ To Deactivate ....................... 162
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

▫To Resume Speed .................... 162
▫ To Vary The Speed Setting .............. 162
▫ To Accelerate For Passing .............. 163
 Parksense Rear Park Assist — If Equipped . . . 163
▫ Parksense Sensors................... 164
▫ Parksense Warning Display ............ 164
▫ Parksense Display................... 165
▫ Enabling And Disabling Parksense ....... 169
▫ Service The Parksense Rear Park Assist
System ............................ 169
▫ Cleaning The Parksense System......... 170
▫ Parksense System Usage Precautions ...... 170
 Garage Door Opener — If Equipped ........ 173▫
Programming HomeLink .............. 174
▫ Gate Operator/Canadian Programming .... 177
▫ Using HomeLink ................... 178
▫
Reprogramming A Single HomeLink Button. . 178
▫ Security ........................... 178
▫ Troubleshooting Tips .................. 179
▫ General Information .................. 179
 Power Sunroof — If Equipped ............ 180
▫ Opening Sunroof — Express ............ 181
▫ Opening Sunroof — Manual Mode ........ 181
▫ Closing Sunroof — Express ............. 181
▫ Closing Sunroof — Manual Mode ........ 181
▫ Pinch Protect Feature ................. 181
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

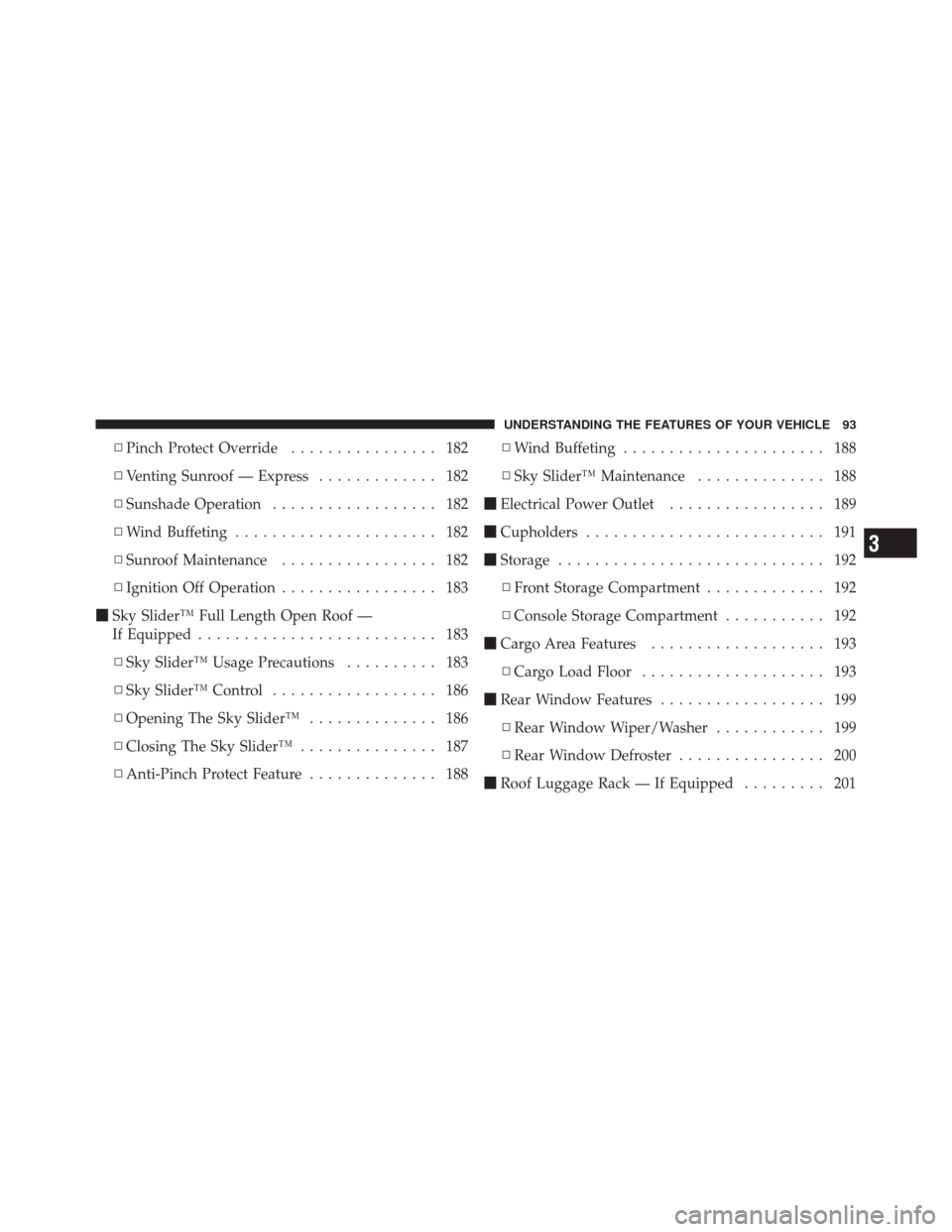

▫Pinch Protect Override ................ 182
▫ Venting Sunroof — Express ............. 182
▫ Sunshade Operation .................. 182
▫ Wind Buffeting ...................... 182
▫ Sunroof Maintenance ................. 182
▫ Ignition Off Operation ................. 183
 Sky Slider™ Full Length Open Roof —
If Equipped .......................... 183
▫ Sky Slider™ Usage Precautions .......... 183
▫ Sky Slider™ Control .................. 186
▫ Opening The Sky Slider™ .............. 186
▫ Closing The Sky Slider™ ............... 187
▫ Anti-Pinch Protect Feature .............. 188 ▫
Wind Buffeting ...................... 188
▫ Sky Slider™ Maintenance .............. 188
 Electrical Power Outlet ................. 189
 Cupholders .......................... 191
 Storage ............................. 192
▫ Front Storage Compartment ............. 192
▫ Console Storage Compartment ........... 192
 Cargo Area Features ................... 193
▫ Cargo Load Floor .................... 193
 Rear Window Features .................. 199
▫ Rear Window Wiper/Washer ............ 199
▫ Rear Window Defroster ................ 200
 Roof Luggage Rack — If Equipped ......... 201
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Automatic Dimming Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.
Adjusting Rearview Mirror
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Automatic Dimming Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Power Mirrors
The power mirror switch is located on the driver’s door
trim panel.
Models with Express Window Feature
Press and release the mirror select button marked L (left)
or R (right) and then press one of the four arrow buttons
to move the mirror in the direction the arrow is pointing.
The selection will time out after 30 seconds of inactivity
to guard against accidentally moving a mirror position
following an adjustment.
NOTE:For vehicles equipped with Driver Memory
Seat, you can use your Remote Keyless Entry (RKE)
transmitter or the memory switch on the instrument
panel to return the power mirrors to pre-programmed
positions. Refer to “Driver Memory Seat” in this section
for details.
Models without Express Window Feature
Press the mirror select button marked L (left) or R (right)
and then press one of the four arrow buttons to move the
mirror in the direction the arrow is pointing.Power Mirror Switch
1 — Mirror Direction Control
2 — Left and Right Mirror Select
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
this section, for further information.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover will turn off the light.
Sun Visor “Slide-On-Rod” Feature — If Equipped
The sun visor “Slide-On Rod” feature allows for addi-
tional flexibility in positioning the sun visor to block out
the sun.
1. Fold down the sun visor.
Illuminated Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

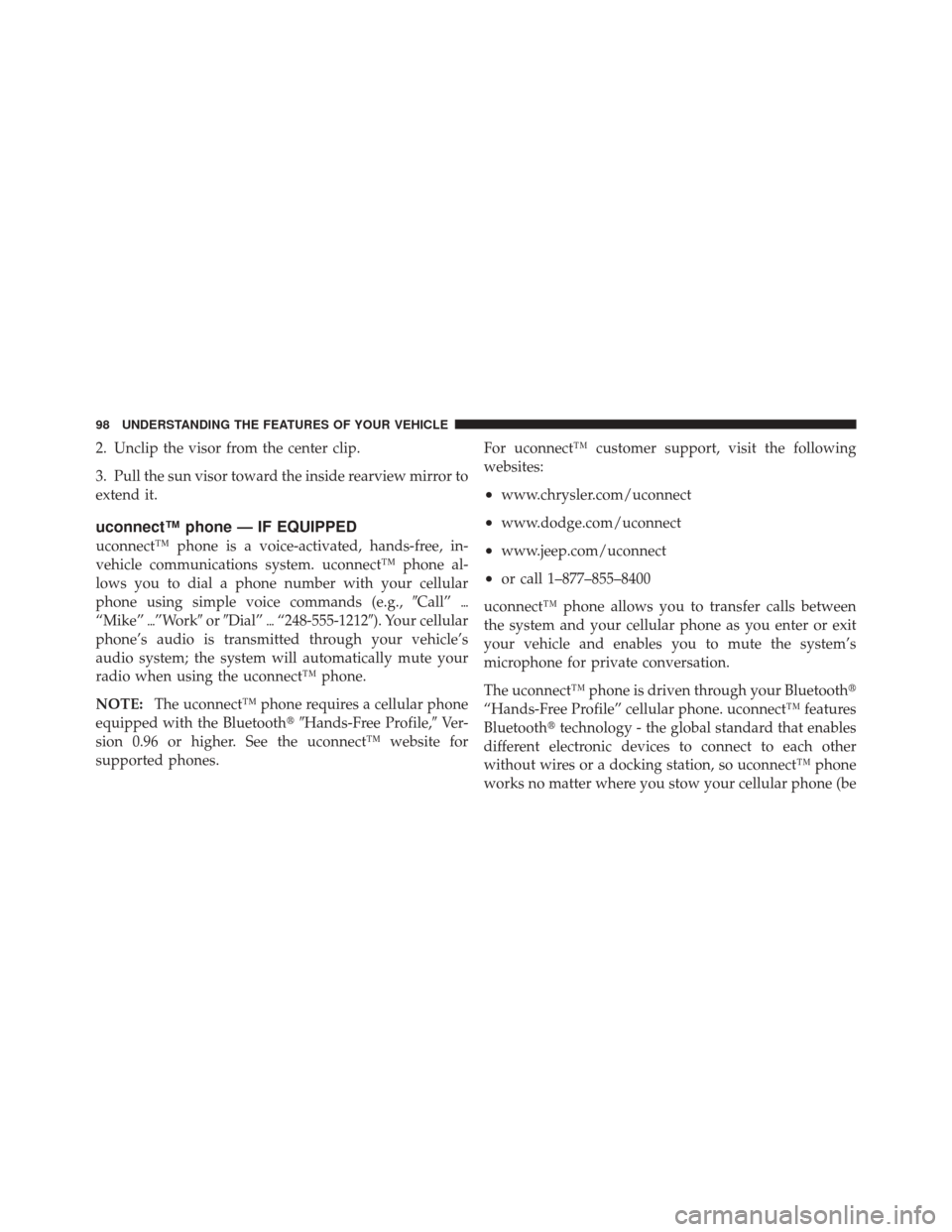

2. Unclip the visor from the center clip.
3. Pull the sun visor toward the inside rearview mirror to
extend it.
uconnect™ phone — IF EQUIPPED
uconnect™ phone is a voice-activated, hands-free, in-
vehicle communications system. uconnect™ phone al-
lows you to dial a phone number with your cellular
phone using simple voice commands (e.g.,Call”
“Mike” ”Work orDial” “248-555-1212). Your cellular
phone’s audio is transmitted through your vehicle’s
audio system; the system will automatically mute your
radio when using the uconnect™ phone.
NOTE: The uconnect™ phone requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,Ve r -
sion 0.96 or higher. See the uconnect™ website for
supported phones. For uconnect™ customer support, visit the following
websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
uconnect™ phone allows you to transfer calls between
the system and your cellular phone as you enter or exit
your vehicle and enables you to mute the system’s
microphone for private conversation.
The uconnect™ phone is driven through your Bluetooth
“Hands-Free Profile” cellular phone. uconnect™ features
Bluetooth technology - the global standard that enables
different electronic devices to connect to each other
without wires or a docking station, so uconnect™ phone
works no matter where you stow your cellular phone (be
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

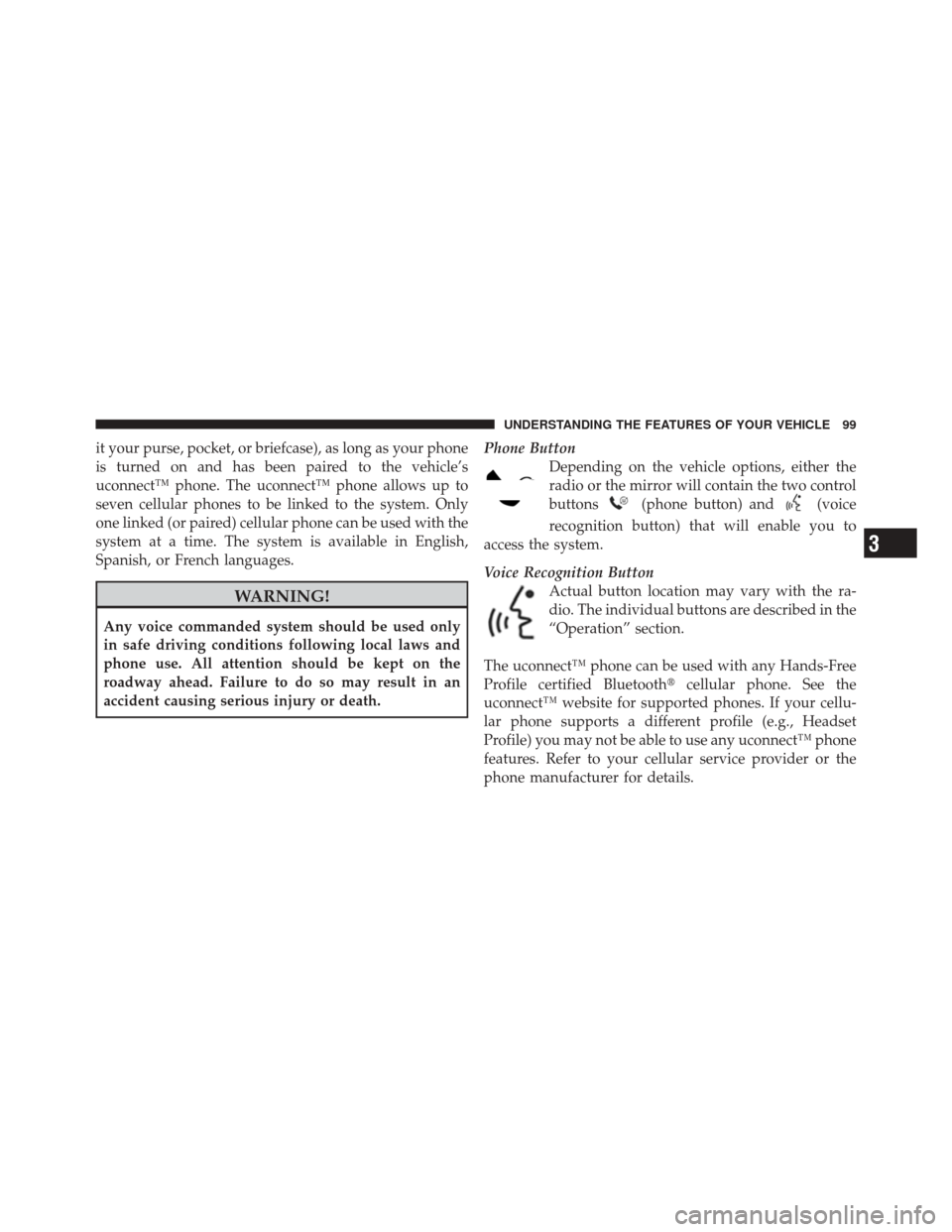

it your purse, pocket, or briefcase), as long as your phone
is turned on and has been paired to the vehicle’s
uconnect™ phone. The uconnect™ phone allows up to
seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages.
WARNING!
Any voice commanded system should be used only
in safe driving conditions following local laws and
phone use. All attention should be kept on the
roadway ahead. Failure to do so may result in an
accident causing serious injury or death.Phone Button
Depending on the vehicle options, either the
radio or the mirror will contain the two control
buttons
(phone button) and(voice
recognition button) that will enable you to
access the system.
Voice Recognition Button Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The uconnect™ phone can be used with any Hands-Free
Profile certified Bluetooth cellular phone. See the
uconnect™ website for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any uconnect™ phone
features. Refer to your cellular service provider or the
phone manufacturer for details.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99
