JEEP LIBERTY 2010 KK / 2.G Owners Manual

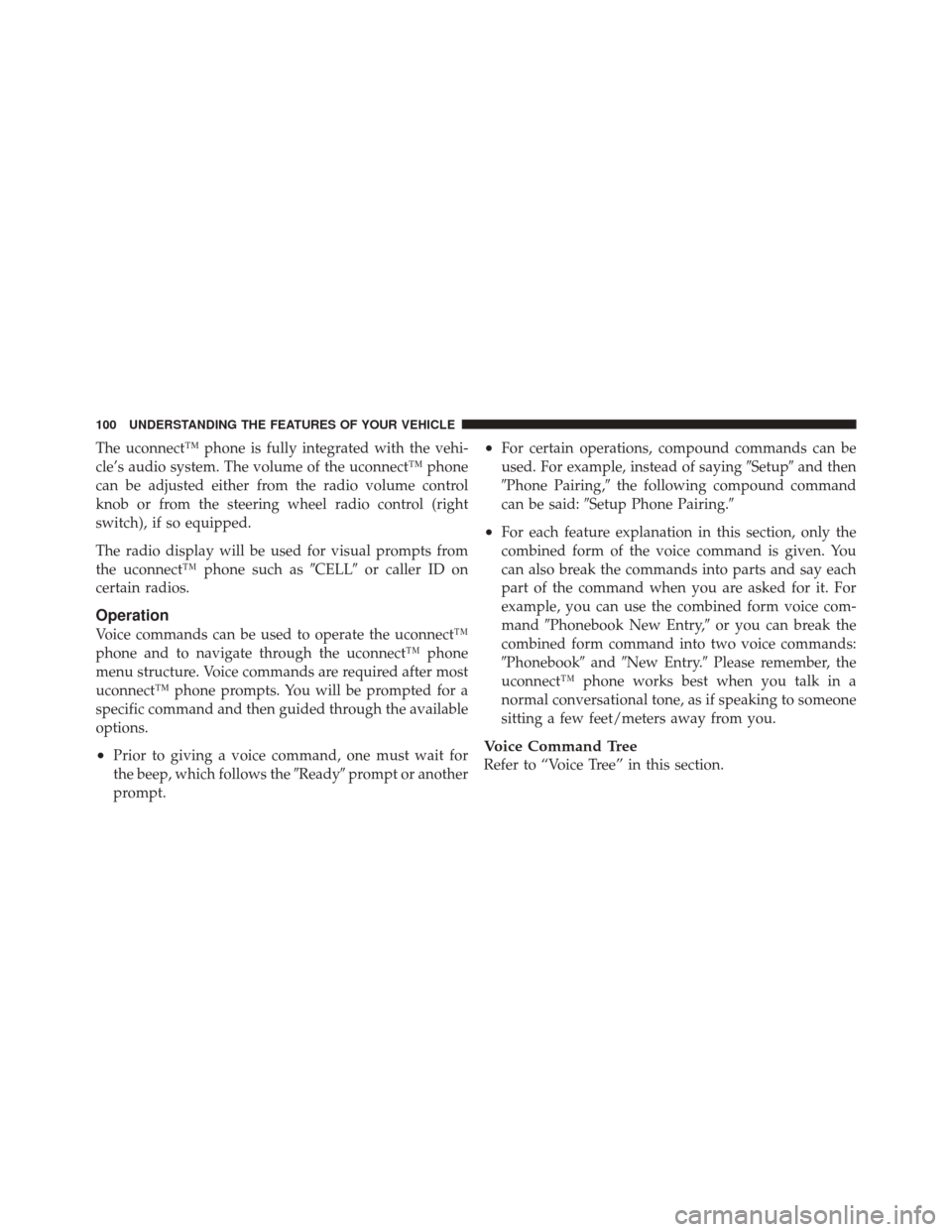

The uconnect™ phone is fully integrated with the vehi-
cle’s audio system. The volume of the uconnect™ phone
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the uconnect™ phone such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the uconnect™
phone and to navigate through the uconnect™ phone
menu structure. Voice commands are required after most
uconnect™ phone prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows the Readyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of saying Setupand then
Phone Pairing, the following compound command
can be said: Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry, or you can break the
combined form command into two voice commands:
Phonebook andNew Entry. Please remember, the
uconnect™ phone works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

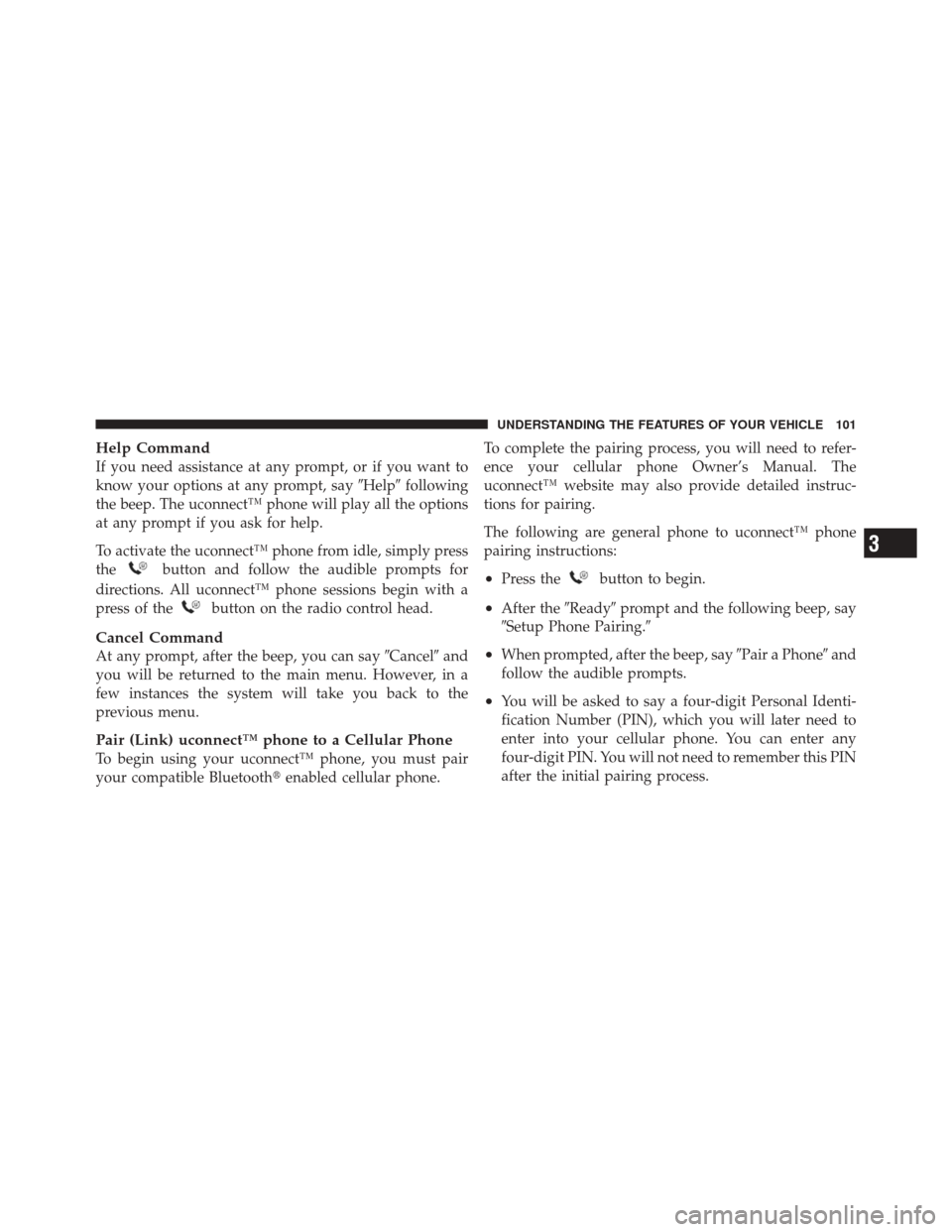

Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, sayHelpfollowing
the beep. The uconnect™ phone will play all the options
at any prompt if you ask for help.
To activate the uconnect™ phone from idle, simply press
the
button and follow the audible prompts for
directions. All uconnect™ phone sessions begin with a
press of the
button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say Canceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) uconnect™ phone to a Cellular Phone
To begin using your uconnect™ phone, you must pair
your compatible Bluetooth enabled cellular phone. To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
uconnect™ website may also provide detailed instruc-
tions for pairing.
The following are general phone to uconnect™ phone
pairing instructions:
•Press thebutton to begin.
•After the
Readyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, say Pair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

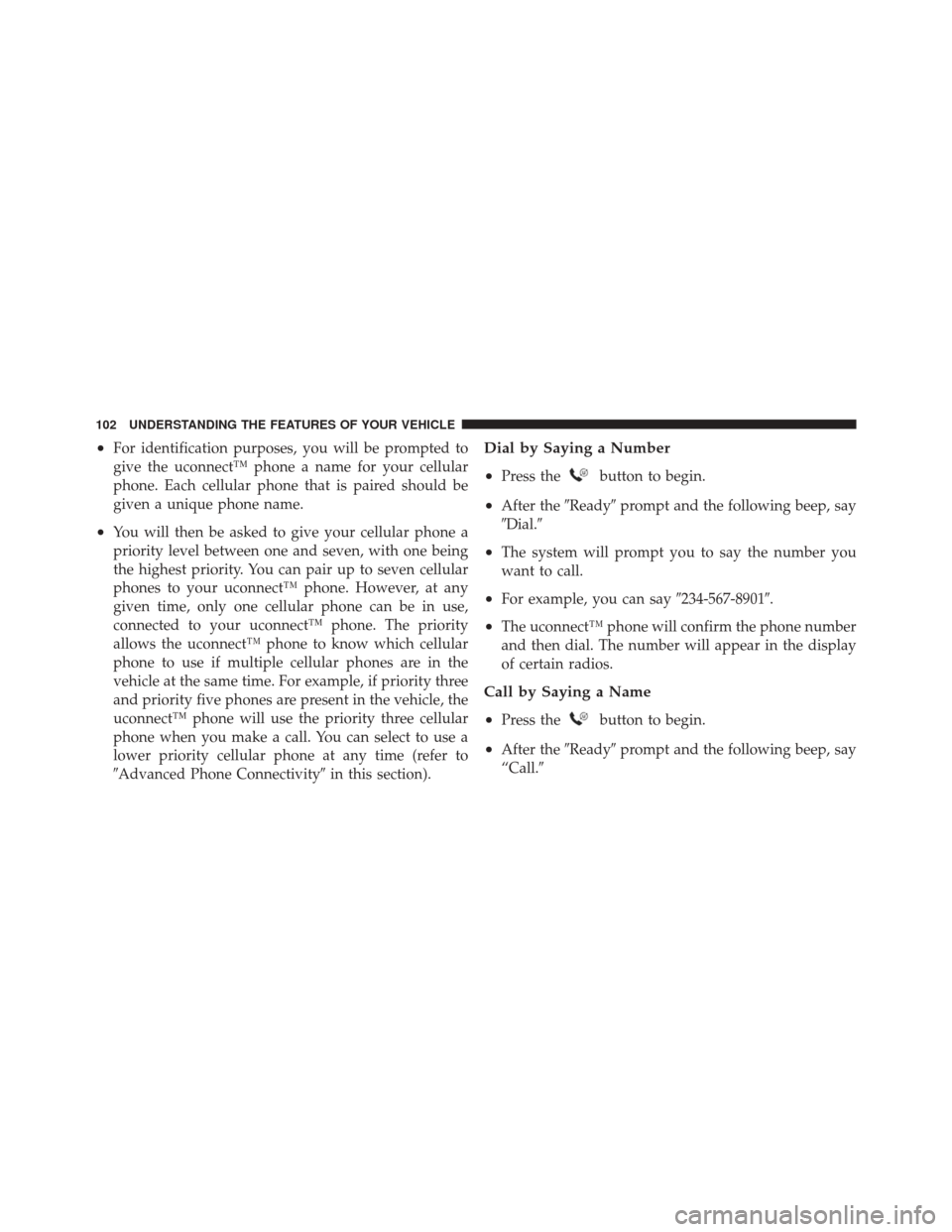

•For identification purposes, you will be prompted to
give the uconnect™ phone a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your uconnect™ phone. However, at any
given time, only one cellular phone can be in use,
connected to your uconnect™ phone. The priority
allows the uconnect™ phone to know which cellular
phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
uconnect™ phone will use the priority three cellular
phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to
Advanced Phone Connectivityin this section).
Dial by Saying a Number
•
Press thebutton to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say 234-567-8901.
•The uconnect™ phone will confirm the phone number
and then dial. The number will appear in the display
of certain radios.
Call by Saying a Name
•
Press thebutton to begin.
•After theReadyprompt and the following beep, say
“Call.
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

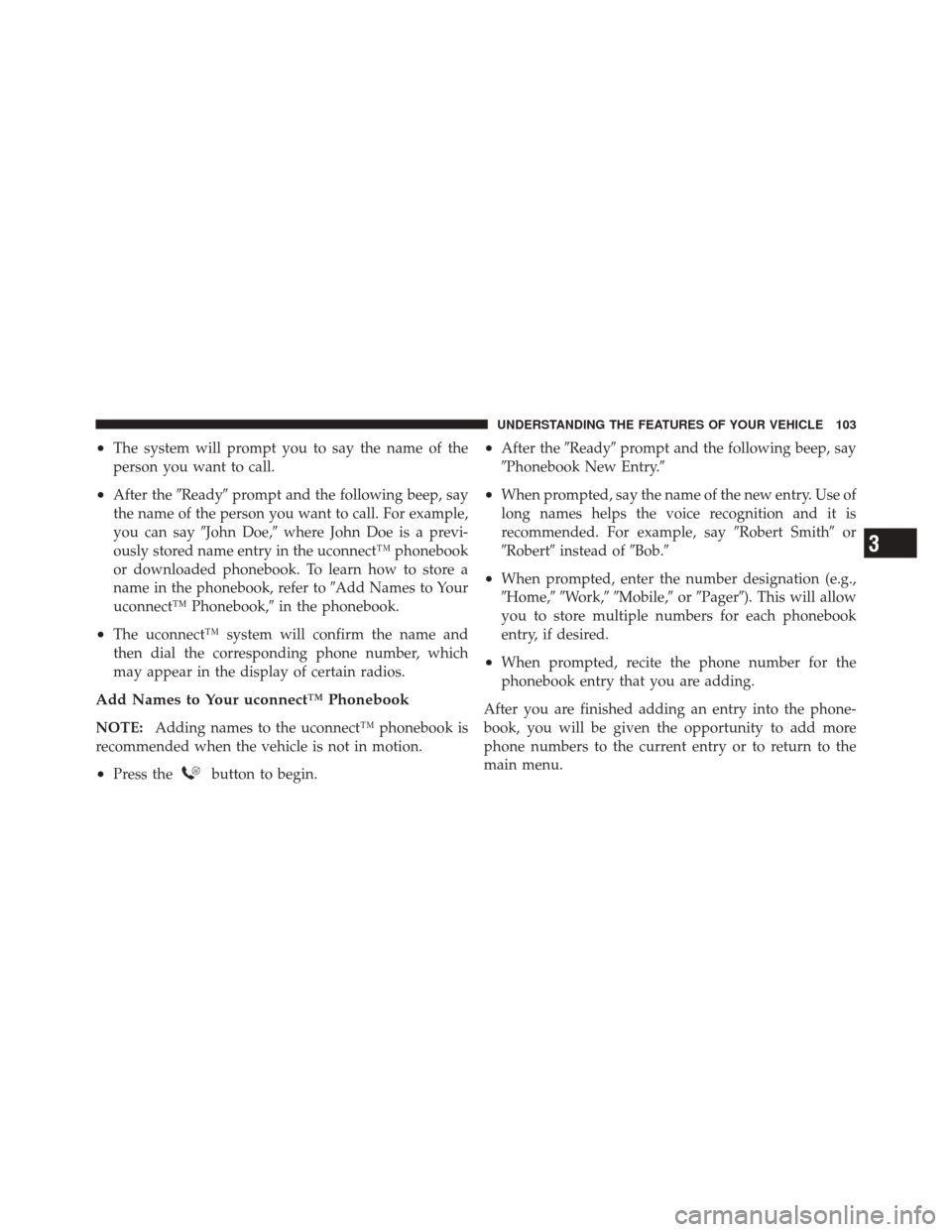

•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can say John Doe,where John Doe is a previ-
ously stored name entry in the uconnect™ phonebook
or downloaded phonebook. To learn how to store a
name in the phonebook, refer to Add Names to Your
uconnect™ Phonebook, in the phonebook.
•The uconnect™ system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your uconnect™ Phonebook
NOTE:Adding names to the uconnect™ phonebook is
recommended when the vehicle is not in motion.
•Press thebutton to begin.
•After the Readyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, say Robert Smithor
Robert instead of Bob.
•When prompted, enter the number designation (e.g.,
Home,Work,Mobile, orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103

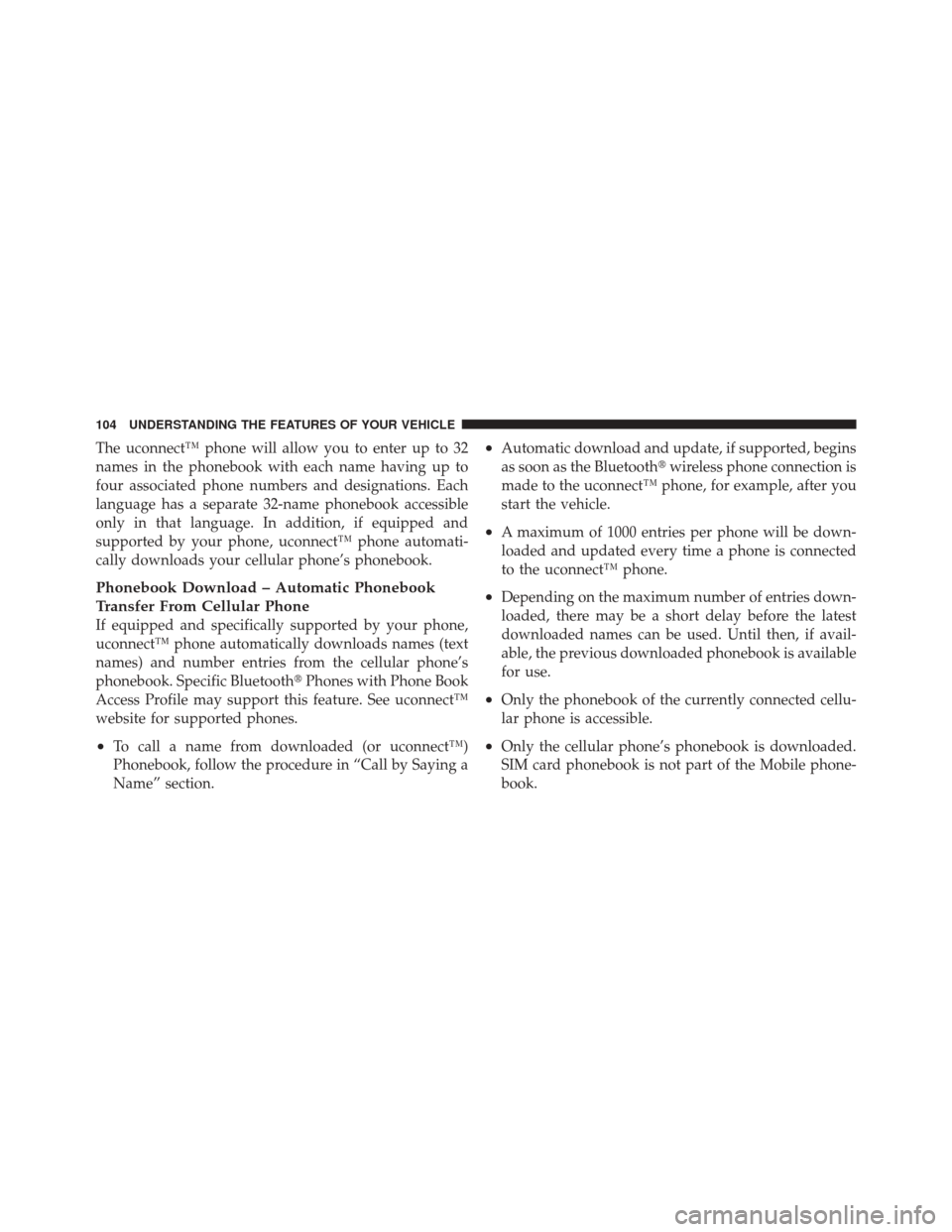

The uconnect™ phone will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, uconnect™ phone automati-
cally downloads your cellular phone’s phonebook.
Phonebook Download – Automatic Phonebook
Transfer From Cellular Phone
If equipped and specifically supported by your phone,
uconnect™ phone automatically downloads names (text
names) and number entries from the cellular phone’s
phonebook. Specific BluetoothPhones with Phone Book
Access Profile may support this feature. See uconnect™
website for supported phones.
•To call a name from downloaded (or uconnect™)
Phonebook, follow the procedure in “Call by Saying a
Name” section.
•Automatic download and update, if supported, begins
as soon as the Bluetooth wireless phone connection is
made to the uconnect™ phone, for example, after you
start the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the uconnect™ phone.
•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if avail-
able, the previous downloaded phonebook is available
for use.
•Only the phonebook of the currently connected cellu-
lar phone is accessible.
•Only the cellular phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile phone-
book.
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

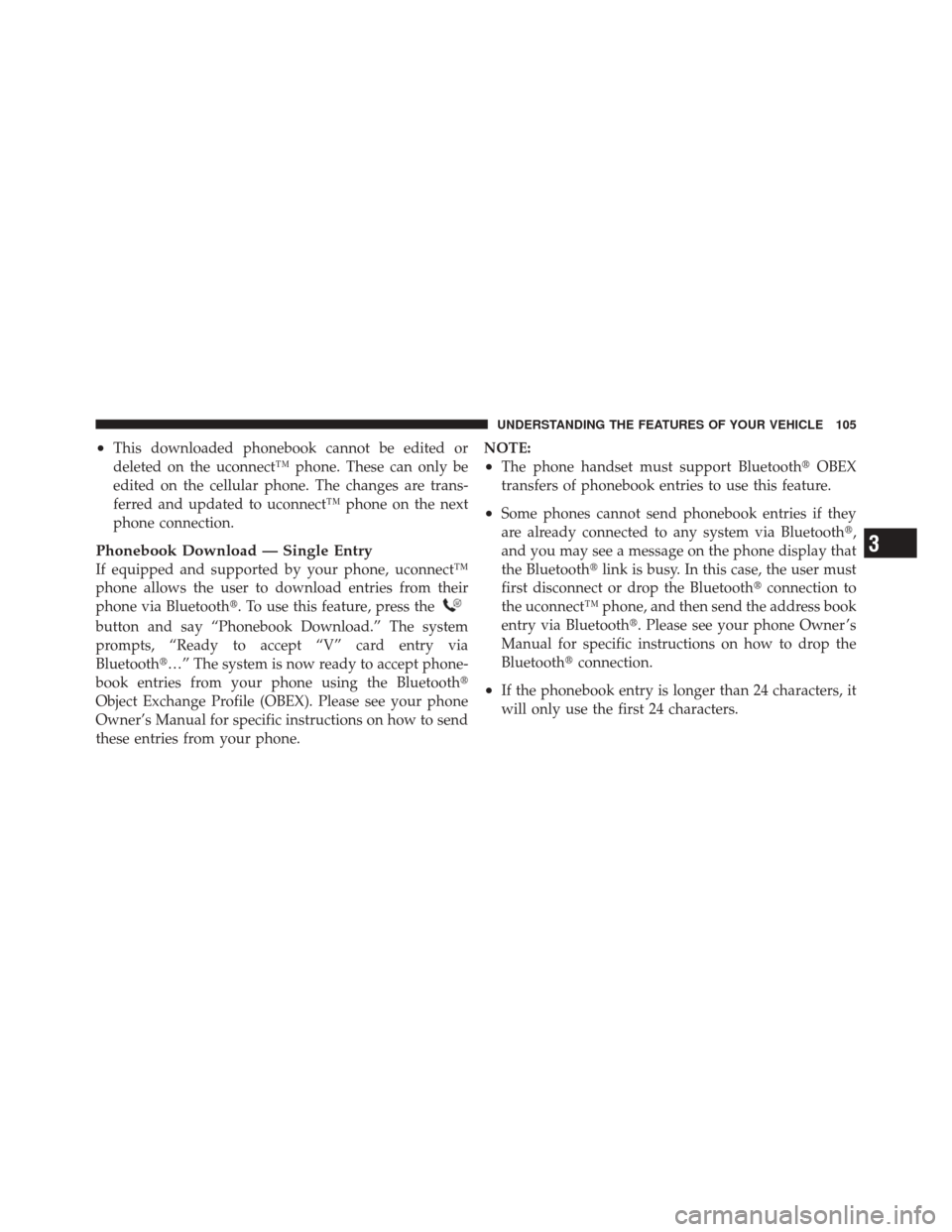

•This downloaded phonebook cannot be edited or
deleted on the uconnect™ phone. These can only be
edited on the cellular phone. The changes are trans-
ferred and updated to uconnect™ phone on the next
phone connection.
Phonebook Download — Single Entry
If equipped and supported by your phone, uconnect™
phone allows the user to download entries from their
phone via Bluetooth. To use this feature, press the
button and say “Phonebook Download.” The system
prompts, “Ready to accept “V” card entry via
Bluetooth…” The system is now ready to accept phone-
book entries from your phone using the Bluetooth
Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone. NOTE:
•The phone handset must support Bluetooth
OBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth ,
and you may see a message on the phone display that
the Bluetooth link is busy. In this case, the user must
first disconnect or drop the Bluetooth connection to
the uconnect™ phone, and then send the address book
entry via Bluetooth. Please see your phone Owner ’s
Manual for specific instructions on how to drop the
Bluetooth connection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

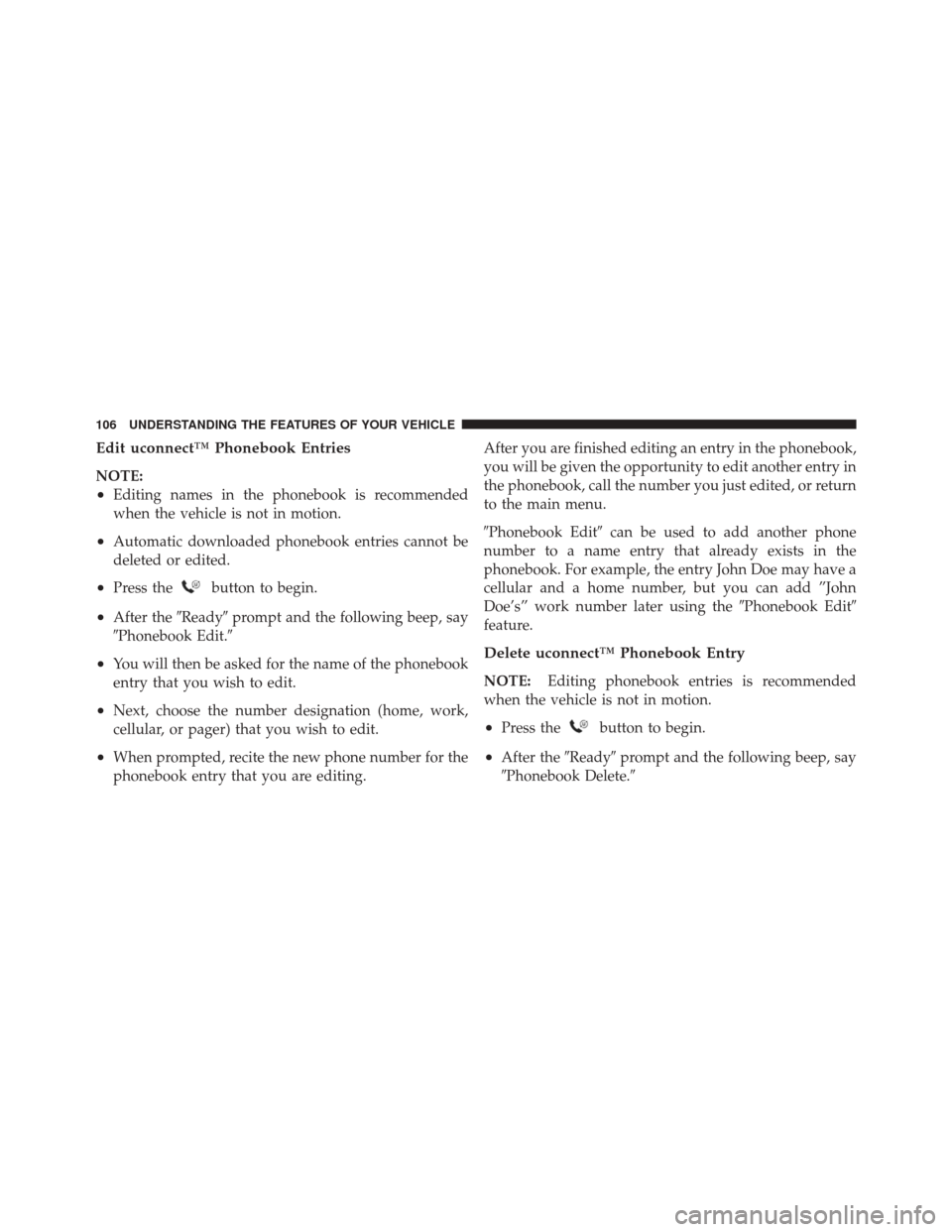

Edit uconnect™ Phonebook Entries
NOTE:
•Editing names in the phonebook is recommended
when the vehicle is not in motion.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
•Press thebutton to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
cellular, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing. After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
Phonebook Edit
can be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
cellular and a home number, but you can add ”John
Doe’s” work number later using the Phonebook Edit
feature.
Delete uconnect™ Phonebook Entry
NOTE: Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press thebutton to begin.
•After the Readyprompt and the following beep, say
Phonebook Delete.
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can sayList
Names to hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the
button while the
uconnect™ phone is playing the desired entry and say
Delete.
•After you enter the name, the uconnect™ phone will
ask you which designation you wish to delete: home,
work, cellular, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
Delete/Erase “All” uconnect™ Phonebook Entries
•
Press thebutton to begin.
•After the Readyprompt and the following beep, say
Phonebook Erase All.
•The uconnect™ phone will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
•Note that only the phonebook in the current language
is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
List All Names in the uconnect™ Phonebook
•
Press thebutton to begin.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

•After theReadyprompt and the following beep, say
Phonebook List Names.
•The uconnect™ phone will play the names of all the
phonebook entries, including the downloaded phone-
book entries, if available.
•To call one of the names in the list, press the
button during the playing of the desired name, and
say Call.
NOTE: The user can also exercise EditorDelete
operations at this point.
•The uconnect™ phone will then prompt you as to the
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
uconnect™ phone if the feature(s) are available on your cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the uconnect™ phone. Check with your
cellular service provider for the features that you have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
uconnect™ phone will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the
button to accept the call. To reject the
call, press and hold the
button until you hear a
single beep, indicating that the incoming call was
rejected.
Answer or Reject an Incoming Call - Call
Currently in Progress
If a call is currently in progress and you have another
incoming call, you will hear the same network tones for
call waiting that you normally hear when using your
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

cellular phone. Press thebutton to place the current
call on hold and answer the incoming call.
NOTE: The uconnect™ phone compatible phones in the
market today do not support rejecting an incoming call
when another call is in progress. Therefore, the user can
only answer an incoming call or ignore it.
Making a Second Call While Current Call is in
Progress
To make a second call while you are currently on a call,
press the
button and say DialorCall followed by
the phone number or phonebook entry you wish to call.
The first call will be on hold while the second call is in
progress. To go back to the first call, refer to Toggling
Between Calls in this section. To combine two calls, refer
to Conference Call in this section.
Place/Retrieve a Call From Hold
To put a call on hold, press thebutton until you hear
a single beep. This indicates that the call is on hold. To
bring the call back from hold, press and hold the
button until you hear a single beep.
Toggling Between Calls
If two calls are in progress (one active and one on hold),
press the
button until you hear a single beep,
indicating that the active and hold status of the two calls
have switched. Only one call can be placed on hold at a
time.
Conference Call
When two calls are in progress (one active and one on
hold), press and hold the
button until you hear a
double beep indicating that the two calls have been
joined into one conference call.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
