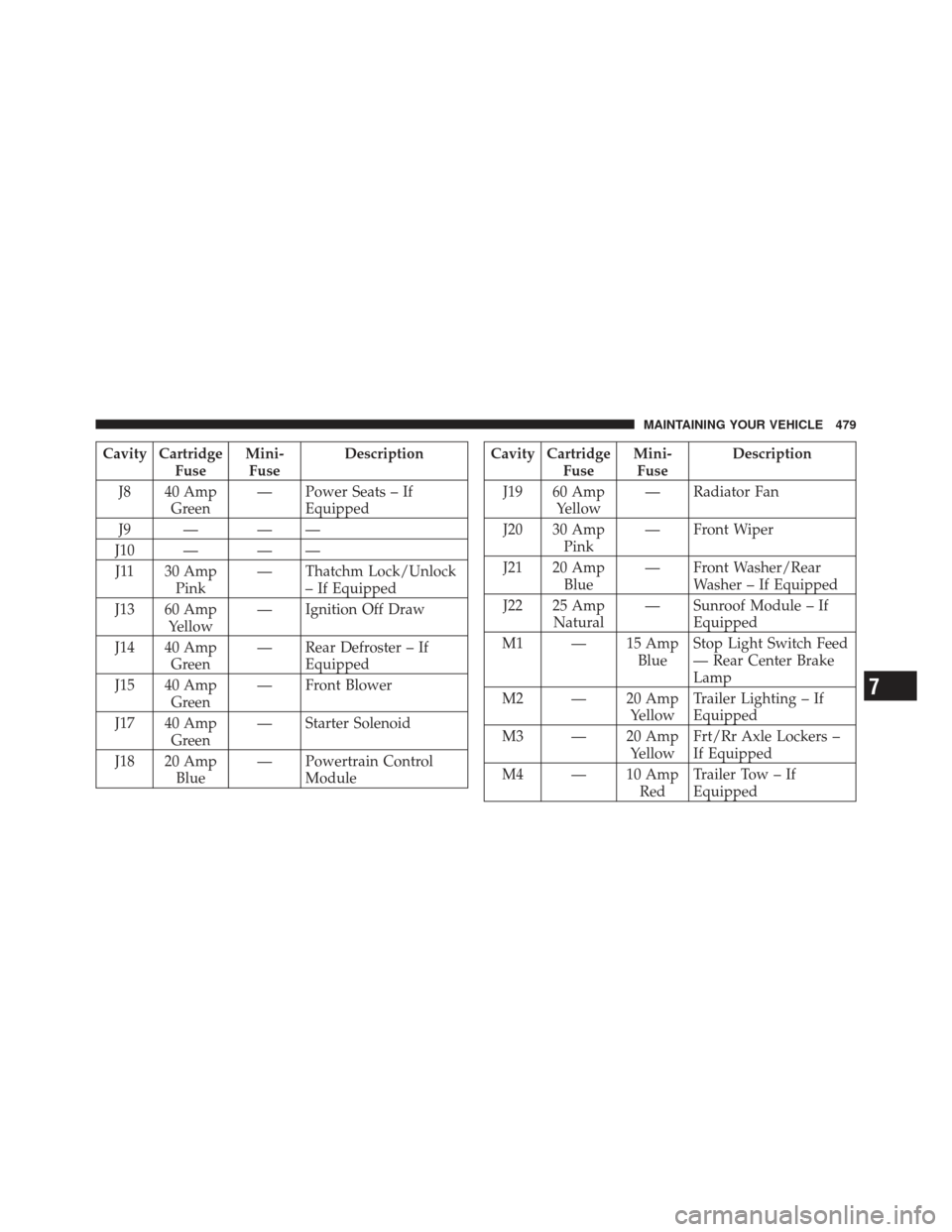

Cavity CartridgeFuseMini-
Fuse Description
J8 40 Amp Green — Power Seats – If
Equipped
J9 — — —
J10 — — — J11 30 Amp Pink — Thatchm Lock/Unlock
– If Equipped
J13 60 Amp Yellow — Ignition Off Draw
J14 40 Amp Green — Rear Defroster – If
Equipped
J15 40 Amp Green — Front Blower
J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain Control
ModuleCavity Cartridge FuseMini-
Fuse Description
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper
J21 20 Amp Blue — Front Washer/Rear
Washer – If Equipped
J22 25 Amp Natural — Sunroof Module – If
Equipped
M1 — 15 Amp BlueStop Light Switch Feed
— Rear Center Brake
Lamp
M2 — 20 Amp YellowTrailer Lighting – If
Equipped
M3 — 20 Amp YellowFrt/Rr Axle Lockers –
If Equipped
M4 — 10 Amp RedTrailer Tow – If
Equipped
7
MAINTAINING YOUR VEHICLE 479

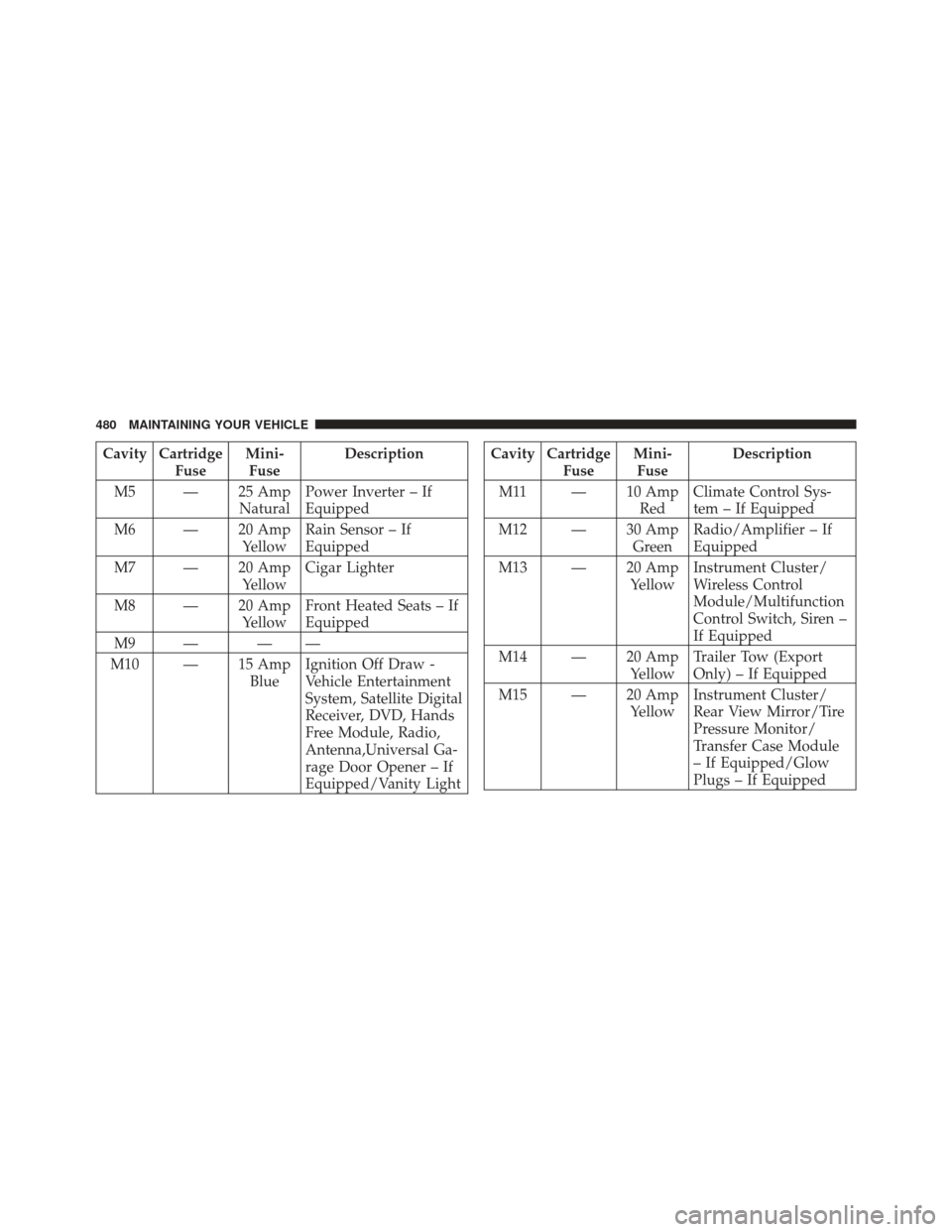

Cavity CartridgeFuseMini-
Fuse Description
M5 — 25 Amp NaturalPower Inverter – If
Equipped
M6 — 20 Amp YellowRain Sensor – If
Equipped
M7 — 20 Amp YellowCigar Lighter
M8 — 20 Amp YellowFront Heated Seats – If
Equipped
M9 — — —
M10 — 15 Amp BlueIgnition Off Draw -
Vehicle Entertainment
System, Satellite Digital
Receiver, DVD, Hands
Free Module, Radio,
Antenna,Universal Ga-
rage Door Opener – If
Equipped/Vanity LightCavity Cartridge
FuseMini-
Fuse Description
M11 — 10 Amp RedClimate Control Sys-
tem – If Equipped
M12 — 30 Amp GreenRadio/Amplifier – If
Equipped
M13 — 20 Amp YellowInstrument Cluster/
Wireless Control
Module/Multifunction
Control Switch, Siren –
If Equipped
M14 — 20 Amp YellowTrailer Tow (Export
Only) – If Equipped
M15 — 20 Amp YellowInstrument Cluster/
Rear View Mirror/Tire
Pressure Monitor/
Transfer Case Module
– If Equipped/Glow
Plugs – If Equipped
480 MAINTAINING YOUR VEHICLE

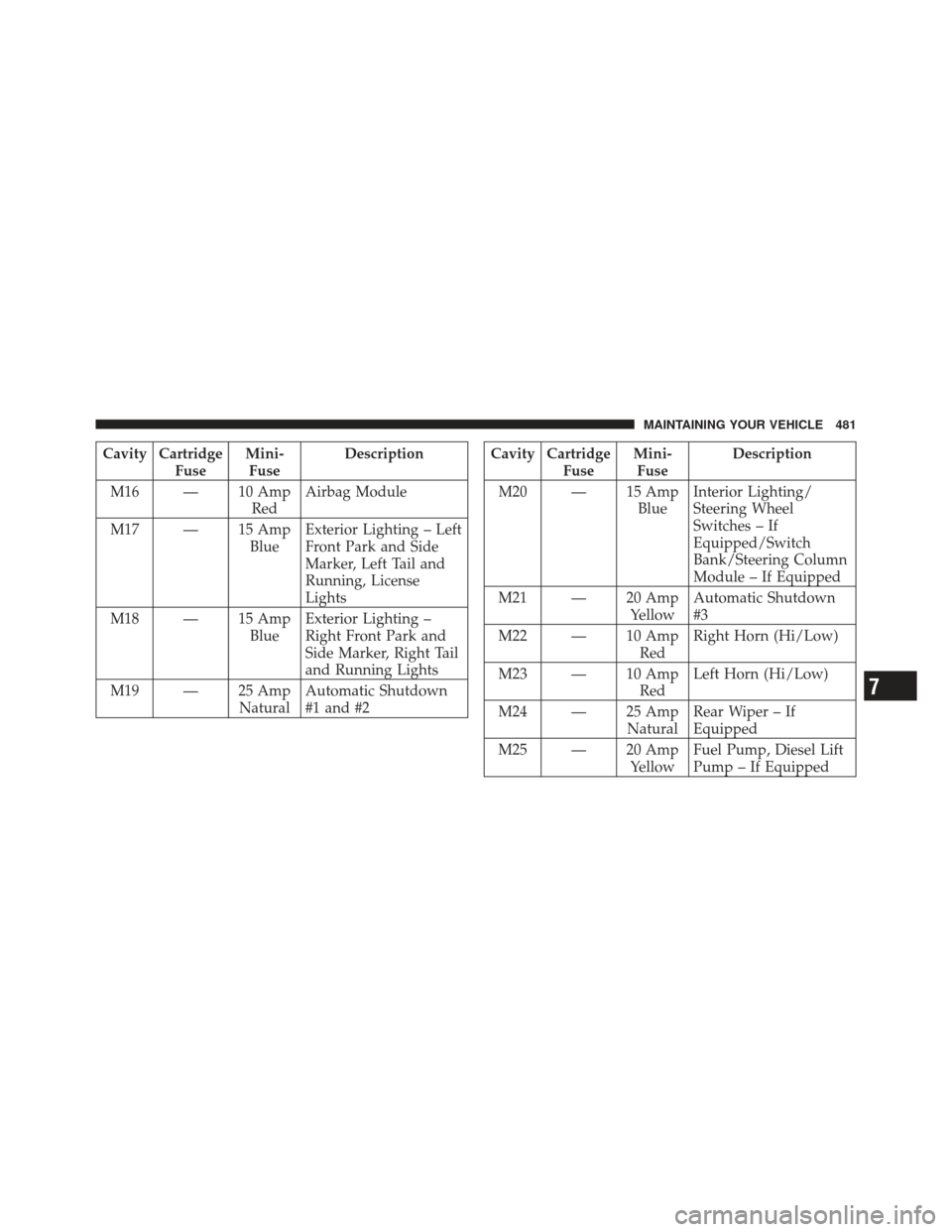

Cavity CartridgeFuseMini-
Fuse Description
M16 — 10 Amp RedAirbag Module
M17 — 15 Amp BlueExterior Lighting – Left
Front Park and Side
Marker, Left Tail and
Running, License
Lights
M18 — 15 Amp BlueExterior Lighting –
Right Front Park and
Side Marker, Right Tail
and Running Lights
M19 — 25 Amp NaturalAutomatic Shutdown
#1 and #2Cavity Cartridge
FuseMini-
Fuse Description
M20 — 15 Amp BlueInterior Lighting/
Steering Wheel
Switches – If
Equipped/Switch
Bank/Steering Column
Module – If Equipped
M21 — 20 Amp YellowAutomatic Shutdown
#3
M22 — 10 Amp RedRight Horn (Hi/Low)
M23 — 10 Amp RedLeft Horn (Hi/Low)
M24 — 25 Amp NaturalRear Wiper – If
Equipped
M25 — 20 Amp YellowFuel Pump, Diesel Lift
Pump – If Equipped
7
MAINTAINING YOUR VEHICLE 481

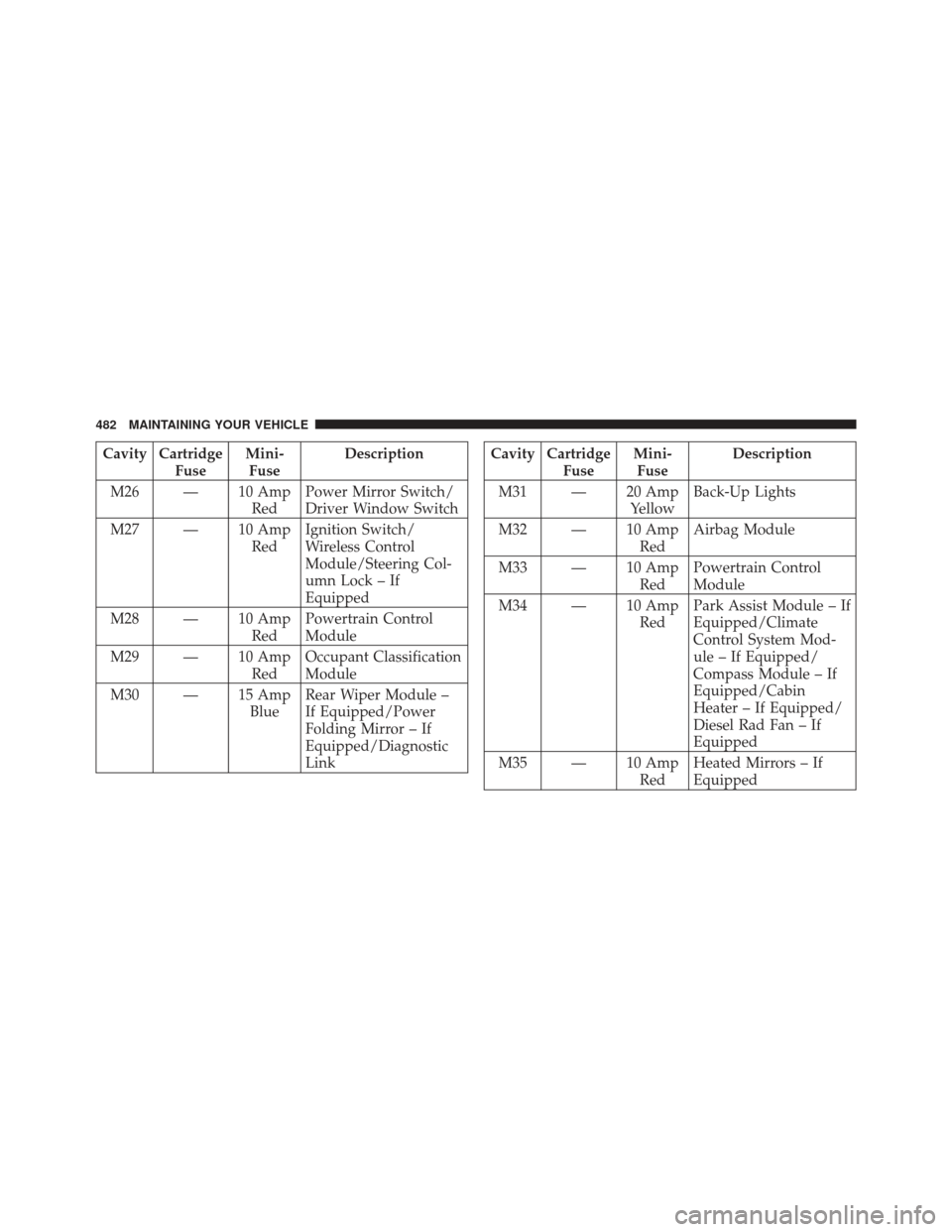

Cavity CartridgeFuseMini-
Fuse Description
M26 — 10 Amp RedPower Mirror Switch/
Driver Window Switch
M27 — 10 Amp RedIgnition Switch/
Wireless Control
Module/Steering Col-
umn Lock – If
Equipped
M28 — 10 Amp RedPowertrain Control
Module
M29 — 10 Amp RedOccupant Classification
Module
M30 — 15 Amp BlueRear Wiper Module –
If Equipped/Power
Folding Mirror – If
Equipped/Diagnostic
LinkCavity Cartridge
FuseMini-
Fuse Description
M31 — 20 Amp YellowBack-Up Lights
M32 — 10 Amp RedAirbag Module
M33 — 10 Amp RedPowertrain Control
Module
M34 — 10 Amp RedPark Assist Module – If
Equipped/Climate
Control System Mod-
ule – If Equipped/
Compass Module – If
Equipped/Cabin
Heater – If Equipped/
Diesel Rad Fan – If
Equipped
M35 — 10 Amp RedHeated Mirrors – If
Equipped
482 MAINTAINING YOUR VEHICLE

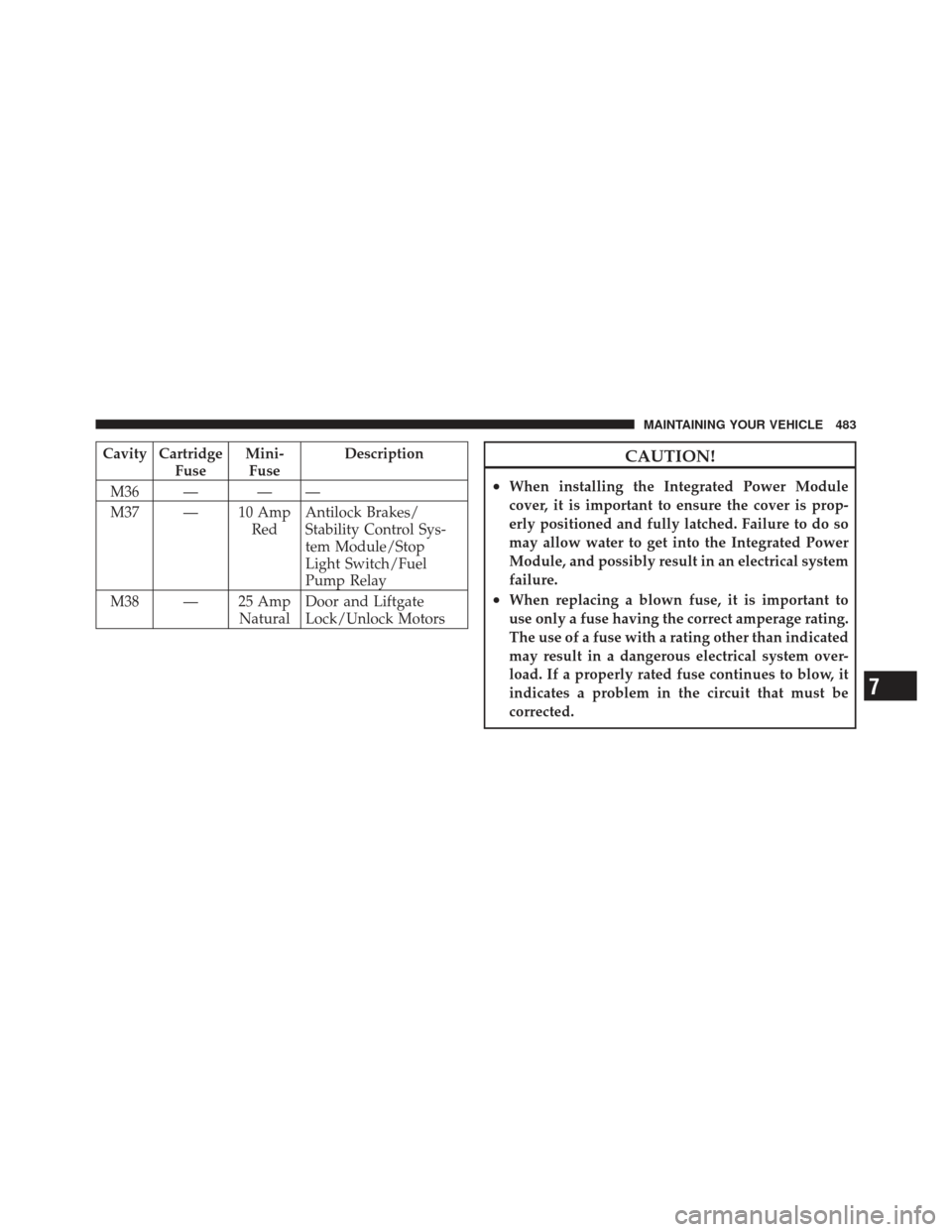

Cavity CartridgeFuseMini-
Fuse Description
M36 — — —
M37 — 10 Amp RedAntilock Brakes/
Stability Control Sys-
tem Module/Stop
Light Switch/Fuel
Pump Relay
M38 — 25 Amp NaturalDoor and Liftgate
Lock/Unlock MotorsCAUTION!
•When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
7
MAINTAINING YOUR VEHICLE 483

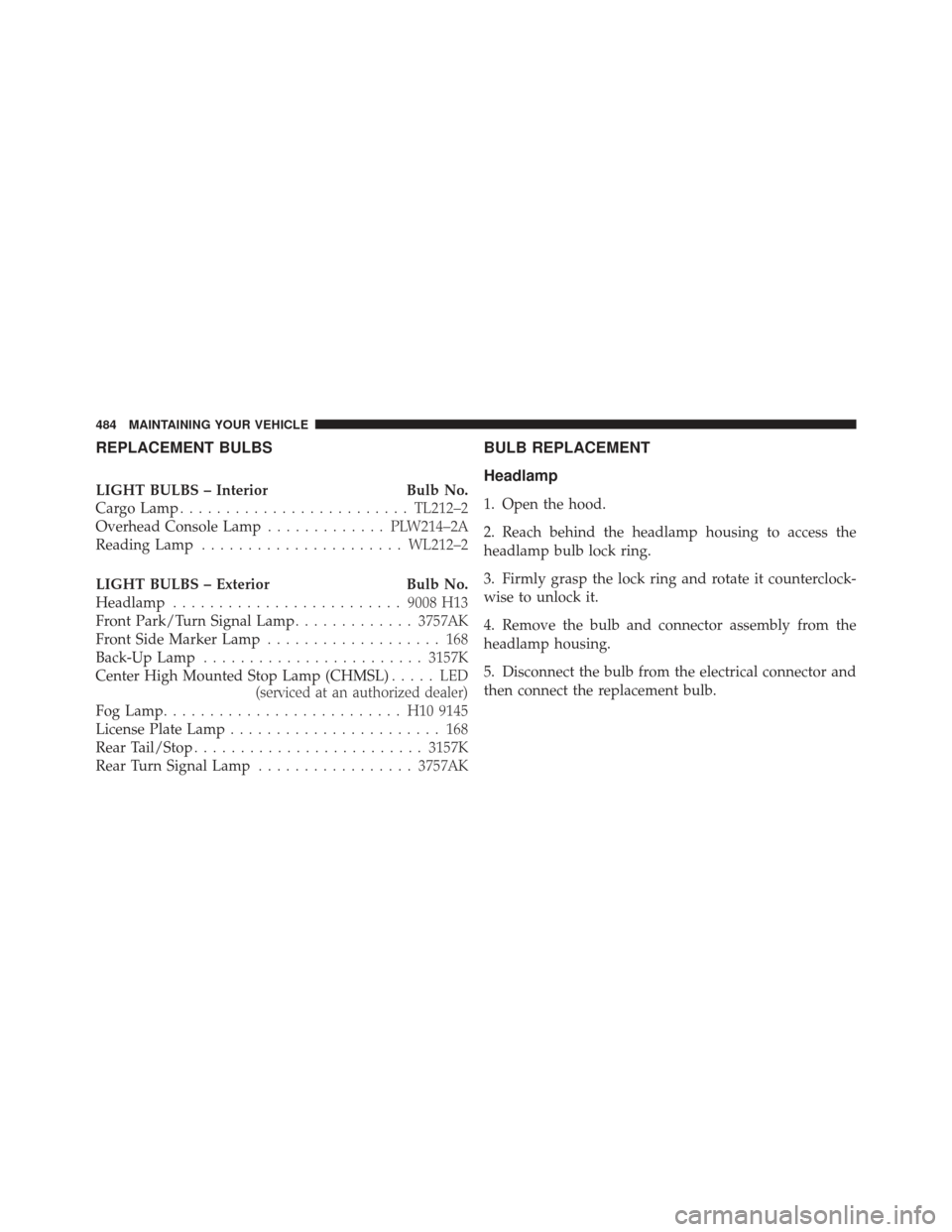

REPLACEMENT BULBS
LIGHT BULBS – InteriorBulb No.
Cargo Lamp ......................... TL212–2
Overhead Console Lamp ............. PLW214–2A
Reading Lamp ...................... WL212–2
LIGHT BULBS – Exterior Bulb No.
Headlamp ......................... 9008 H13
Front Park/Turn Signal Lamp .............3757AK
Front Side Marker Lamp ................... 168
Back-Up Lamp ........................ 3157K
Center High Mounted Stop Lamp (CHMSL) ..... LED
(serviced at an authorized dealer)
Fog Lamp .......................... H10 9145
License Plate Lamp ....................... 168
Rear Tail/Stop ......................... 3157K
Rear Turn Signal Lamp .................3757AK
BULB REPLACEMENT
Headlamp
1. Open the hood.
2. Reach behind the headlamp housing to access the
headlamp bulb lock ring.
3. Firmly grasp the lock ring and rotate it counterclock-
wise to unlock it.
4. Remove the bulb and connector assembly from the
headlamp housing.
5. Disconnect the bulb from the electrical connector and
then connect the replacement bulb.
484 MAINTAINING YOUR VEHICLE

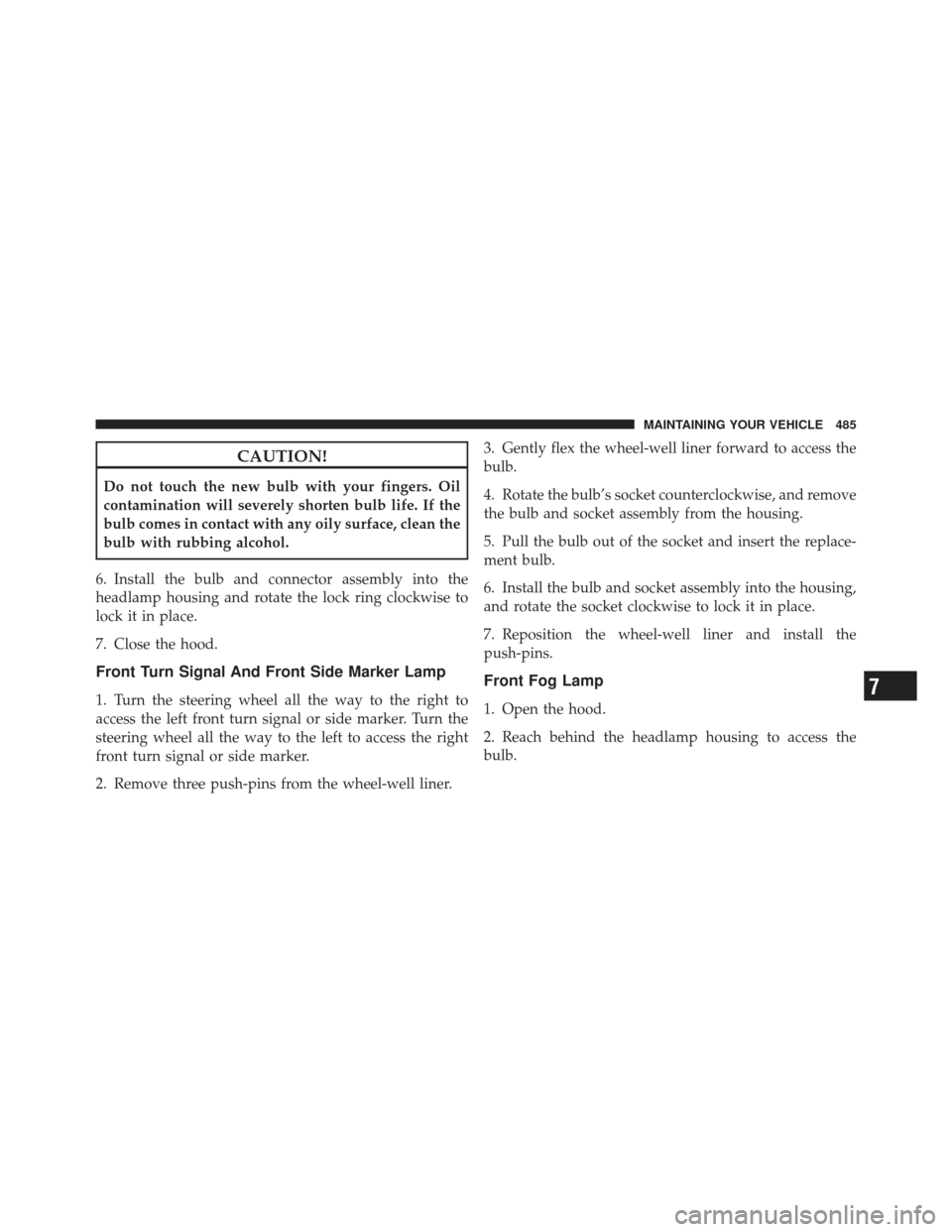

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
6. Install the bulb and connector assembly into the
headlamp housing and rotate the lock ring clockwise to
lock it in place.
7. Close the hood.
Front Turn Signal And Front Side Marker Lamp
1. Turn the steering wheel all the way to the right to
access the left front turn signal or side marker. Turn the
steering wheel all the way to the left to access the right
front turn signal or side marker.
2. Remove three push-pins from the wheel-well liner. 3. Gently flex the wheel-well liner forward to access the
bulb.
4. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the housing.
5. Pull the bulb out of the socket and insert the replace-
ment bulb.
6. Install the bulb and socket assembly into the housing,
and rotate the socket clockwise to lock it in place.
7. Reposition the wheel-well liner and install the
push-pins.
Front Fog Lamp
1. Open the hood.
2. Reach behind the headlamp housing to access the
bulb.
7
MAINTAINING YOUR VEHICLE 485

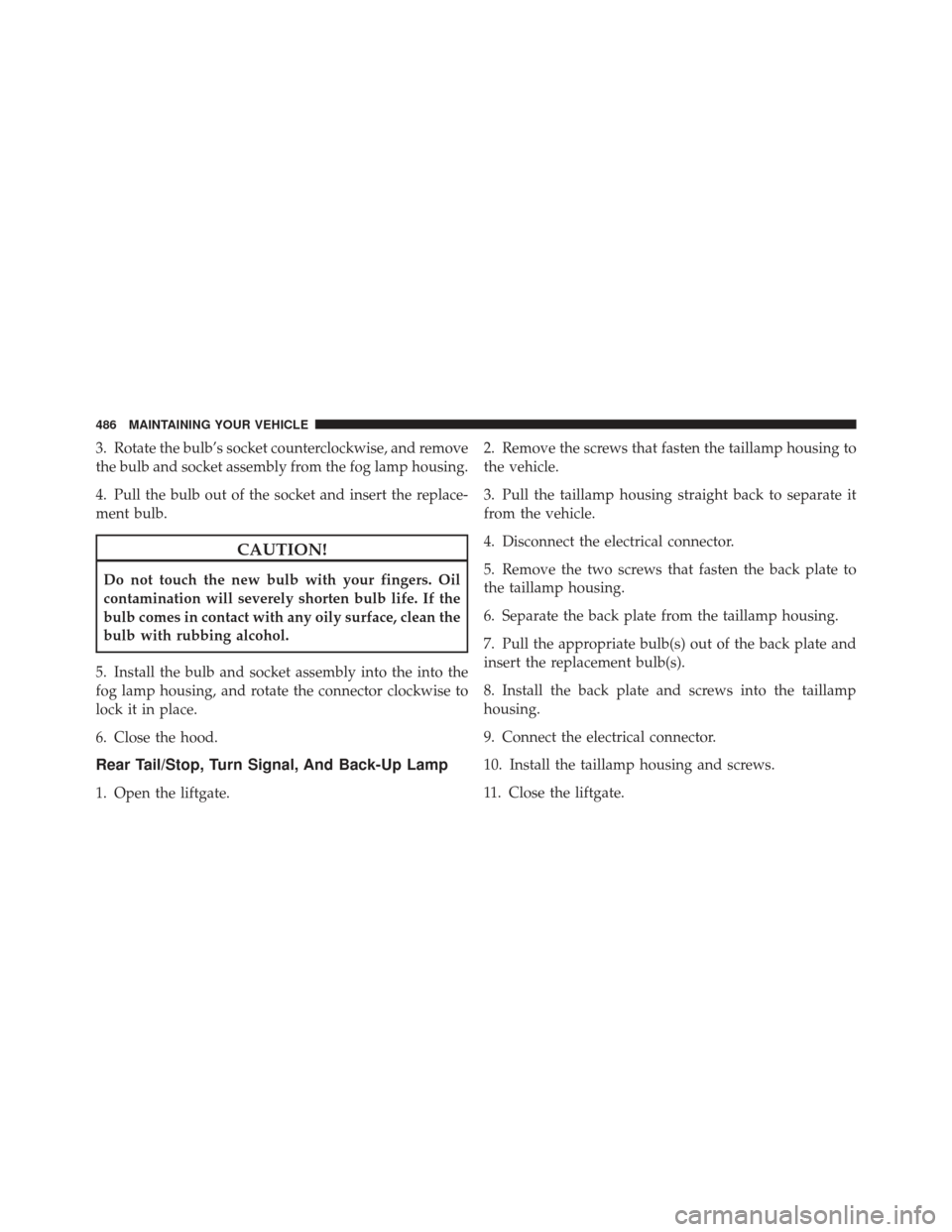

3. Rotate the bulb’s socket counterclockwise, and remove
the bulb and socket assembly from the fog lamp housing.
4. Pull the bulb out of the socket and insert the replace-
ment bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
5. Install the bulb and socket assembly into the into the
fog lamp housing, and rotate the connector clockwise to
lock it in place.
6. Close the hood.
Rear Tail/Stop, Turn Signal, And Back-Up Lamp
1. Open the liftgate. 2. Remove the screws that fasten the taillamp housing to
the vehicle.
3. Pull the taillamp housing straight back to separate it
from the vehicle.
4. Disconnect the electrical connector.
5. Remove the two screws that fasten the back plate to
the taillamp housing.
6. Separate the back plate from the taillamp housing.
7. Pull the appropriate bulb(s) out of the back plate and
insert the replacement bulb(s).
8. Install the back plate and screws into the taillamp
housing.
9. Connect the electrical connector.
10. Install the taillamp housing and screws.
11. Close the liftgate.
486 MAINTAINING YOUR VEHICLE

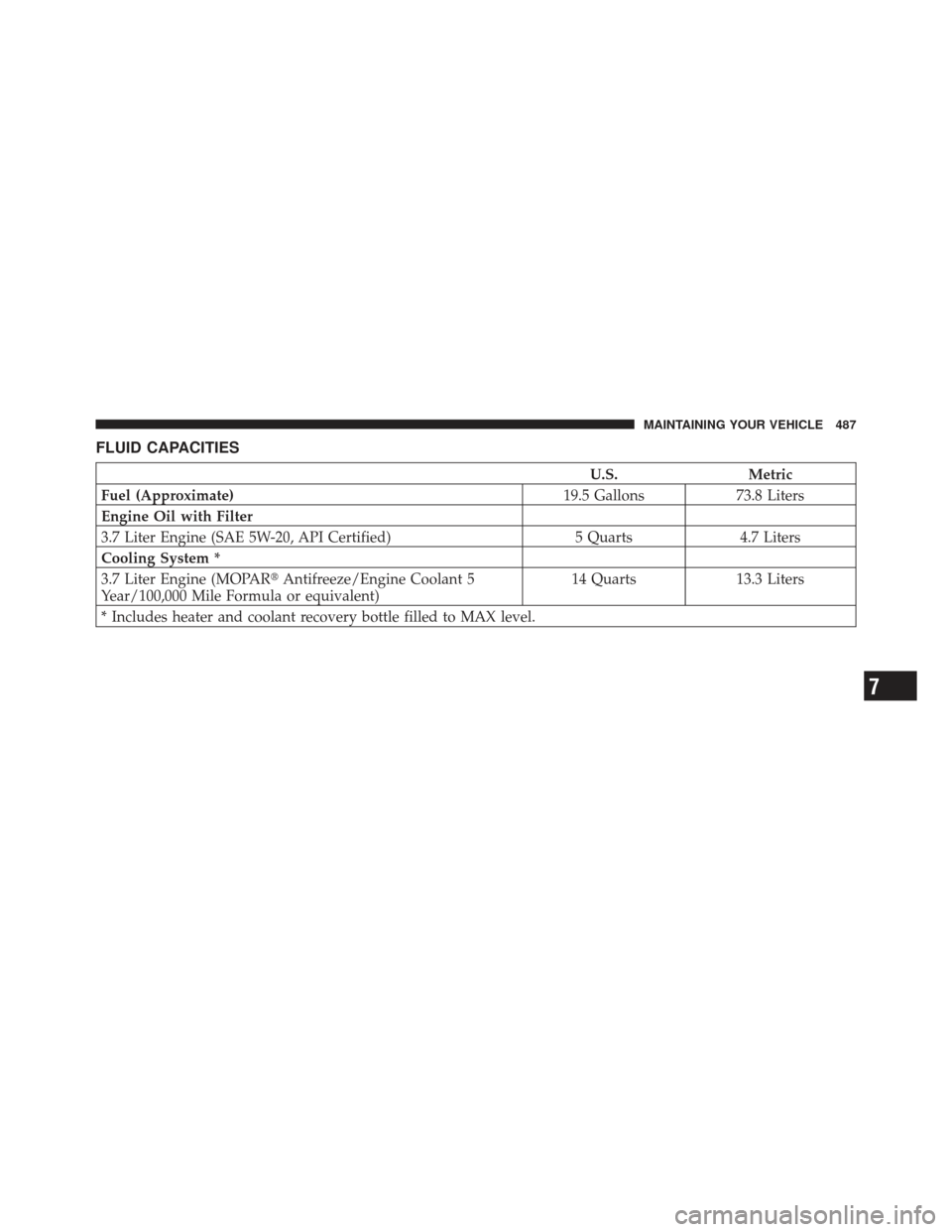

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 19.5 Gallons73.8 Liters
Engine Oil with Filter
3.7 Liter Engine (SAE 5W-20, API Certified) 5 Quarts4.7 Liters
Cooling System *
3.7 Liter Engine (MOPAR Antifreeze/Engine Coolant 5
Year/100,000 Mile Formula or equivalent) 14 Quarts
13.3 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 487

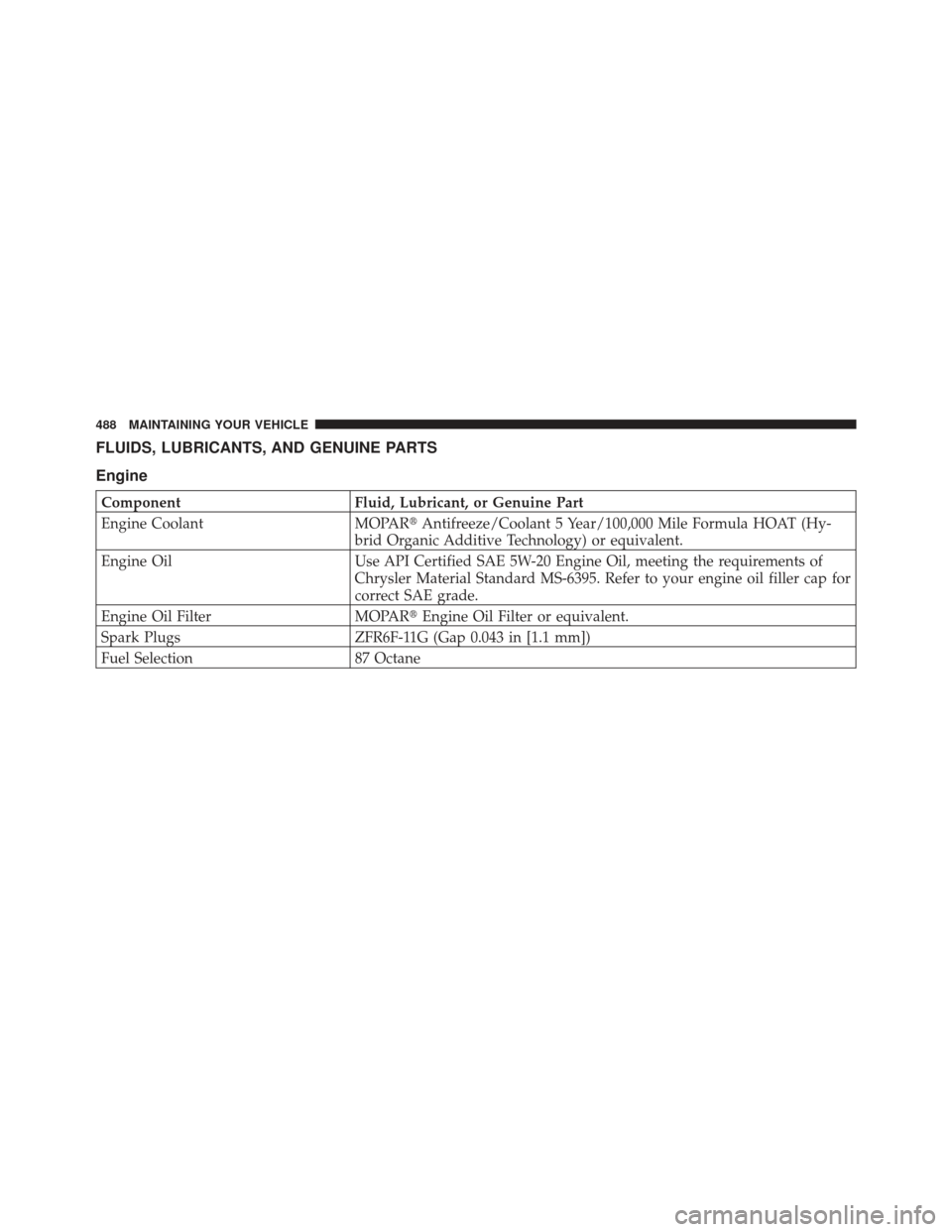

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hy-
brid Organic Additive Technology) or equivalent.
Engine Oil Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter or equivalent.
Spark Plugs ZFR6F-11G (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
