ENGINE COMPARTMENT3.7L Engine
MAINTAINING YOUR VEHICLE
96

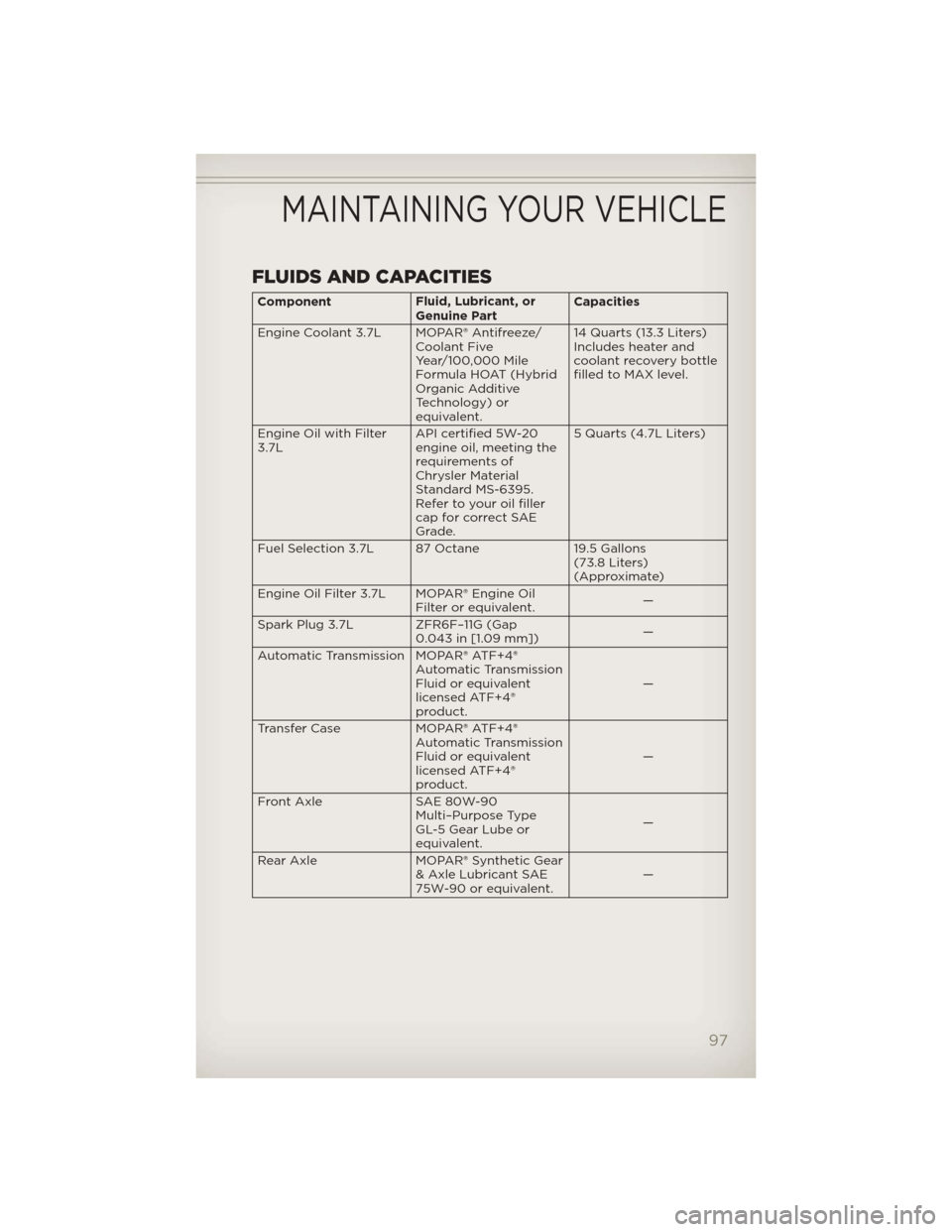

FLUIDS AND CAPACITIES
ComponentFluid, Lubricant, or
Genuine PartCapacities
Engine Coolant 3.7L MOPAR® Antifreeze/ Coolant Five
Year/100,000 Mile
Formula HOAT (Hybrid
Organic Additive
Technology) or
equivalent.14 Quarts (13.3 Liters)
Includes heater and
coolant recovery bottle
filled to MAX level.
Engine Oil with Filter
3.7L API certified 5W-20
engine oil, meeting the
requirements of
Chrysler Material
Standard MS-6395.
Refer to your oil filler
cap for correct SAE
Grade.5 Quarts (4.7L Liters)
Fuel Selection 3.7L 87 Octane 19.5 Gallons (73.8 Liters)
(Approximate)
Engine Oil Filter 3.7L MOPAR® Engine Oil Filter or equivalent. —
Spark Plug 3.7L ZFR6F–11G (Gap 0.043 in [1.09 mm]) —
Automatic Transmission MOPAR® ATF+4® Automatic Transmission
Fluid or equivalent
licensed ATF+4®
product. —
Transfer Case MOPAR® ATF+4®
Automatic Transmission
Fluid or equivalent
licensed ATF+4®
product. —
Front Axle SAE 80W-90
Multi–Purpose Type
GL-5 Gear Lube or
equivalent. —
Rear Axle MOPAR® Synthetic Gear
& Axle Lubricant SAE
75W-90 or equivalent. —
MAINTAINING YOUR VEHICLE
97

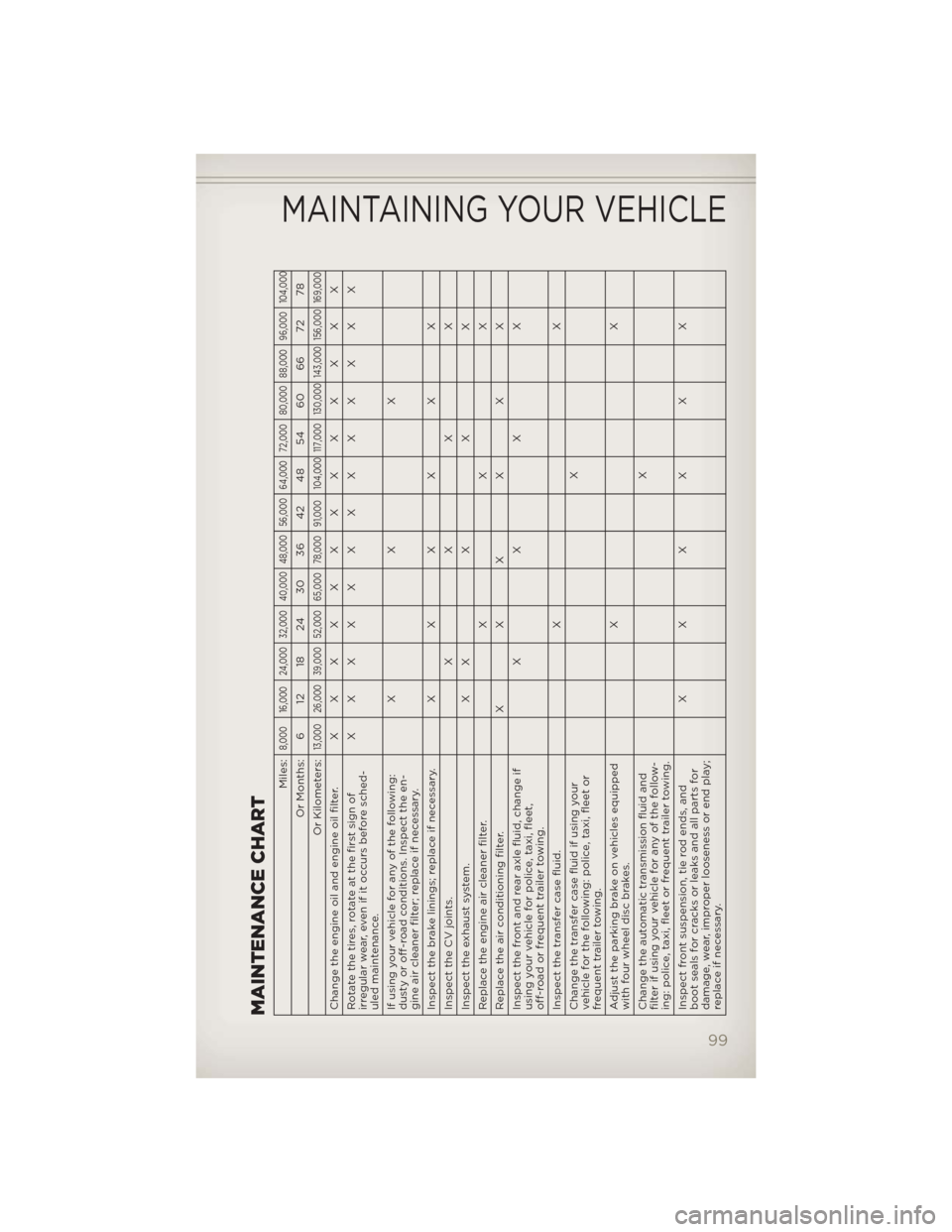

MAINTENANCE CHART
Miles:
8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000
Change the engine oil and engine oil filter. XXXXXXXXXXXXX
Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before sched-
uled maintenance. XXXXXXXXXXXXX
If using your vehicle for any of the following:
dusty or off-road conditions. Inspect the en-
gine air cleaner filter; replace if necessary. XXX
Inspect the brake linings; replace if necessary. XXXXXX
InspecttheCVjoints. XXXX
Inspecttheexhaustsystem. XXXXX
Replace the engine air cleaner filter. X X X
Replace the air conditioning filter. X X X X X X
Inspect the front and rear axle fluid, change if
using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing. XXXX
Inspect the transfer case fluid. X X
Change the transfer case fluid if using your
vehicle for the following: police, taxi, fleet or
frequent trailer towing. X
Adjust the parking brake on vehicles equipped
with four wheel disc brakes. XX
Change the automatic transmission fluid and
filter if using your vehicle for any of the follow-
ing: police, taxi, fleet or frequent trailer towing. X
Inspect front suspension, tie rod ends, and
boot seals for cracks or leaks and all parts for
damage, wear, improper looseness or end play;
replace if necessary. XXXXXX
MAINTAINING YOUR VEHICLE
99

Miles:
8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000
Replace the spark plugs (3.7L engine). XXX
Replace the ignition cables (3.7L engine). X
Inspect and replace PCV valve if necessary. X
Flush and replace the engine coolant at
60 months or 104,000 miles (169,000 km)
whichever comes first. X
Flush and replace the engine coolant at
104,000 miles (169,000 km) or 60 months
whichever comes first. X• Refer to the Owner's Manual on the DVD for the complete maintenance schedule.
MAINTAINING YOUR VEHICLE
100

FUSES
Integrated Power Module (fuses)
• The Integrated Power Module is located in the engine compartment nearthe battery. This center contains cartridge fuses, mini-fuses and relays.
MAINTAINING YOUR VEHICLE
102

CavityCartridge
Fuse Mini-Fuse Description
M22 10 Amp Red Right Horn (RT HORN (HI/LOW)
M23 10 Amp Red Left Horn (LT HORN (HI/LOW)
M24 25 Amp
Natural Rear Wiper (REAR WIPER)
M25 20 Amp
Yellow Fuel Pump (FUEL PUMP), Diesel
Lift Pump (DSL LIFT PUMP) —
Export Only
M26 10 Amp Red Power Mirror Switch (PWR MIRR
SW), Driver Window Switch
(DRVR WIND SW)
M27 10 Amp Red Ignition Switch (IGN SW),
Window Module (WIN MOD)
M28 10 Amp Red Next Generation Controller
(NGC), Transmission Feed
(TRANS FEED), J1962
M29 10 Amp Red Occupant Classification Module
(OCM)
M30 15 Amp Blue Rear Wiper Module (RR WIPER
MOD), Power Folding Mirror
(PWR FOLD MIR)
M31 20 Amp
Yellow Back-Up Lamps (B/U LAMPS)
M32 10 Amp Red Occupant Restraint Controller
(ORC), TT EUROPE
M33 10 Amp Red Next Generation Controller
(NGC), Global Powertrain Engine
Controller (GPEC)
M34 10 Amp Red Park Assist (PRK ASST), Heater
Ventilation, Air Conditioning
Module (HVAC MOD), Headlamp
Wash (HDLP WASH), Compass
(COMPAS)
M35 15 Amp Blue Heated Mirrors
M36 ––
M37 10 Amp Red Anti-Lock Brake System (ABS),
Electronic Stability Control
(ESC), Stop Lamp Switch (STP
LP SW), Fuel Pump Rly Hi
Control
M38 25 Amp
Natural Lock/Unlock Motors
(LOCK/UNLOCK MTRS)
MAINTAINING YOUR VEHICLE
105
