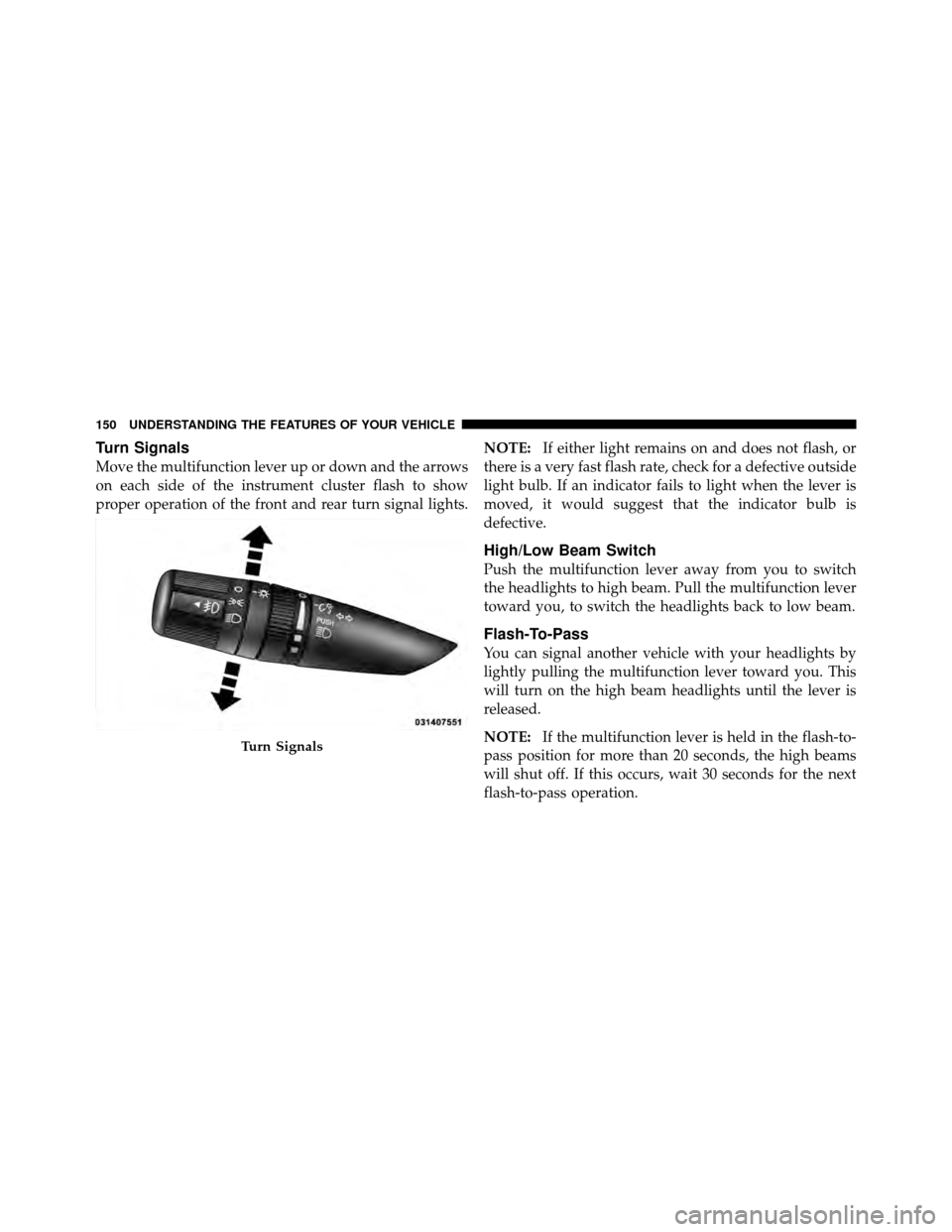

Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.NOTE:
If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you, to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.
NOTE: If the multifunction lever is held in the flash-to-
pass position for more than 20 seconds, the high beams
will shut off. If this occurs, wait 30 seconds for the next
flash-to-pass operation.
Turn Signals
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

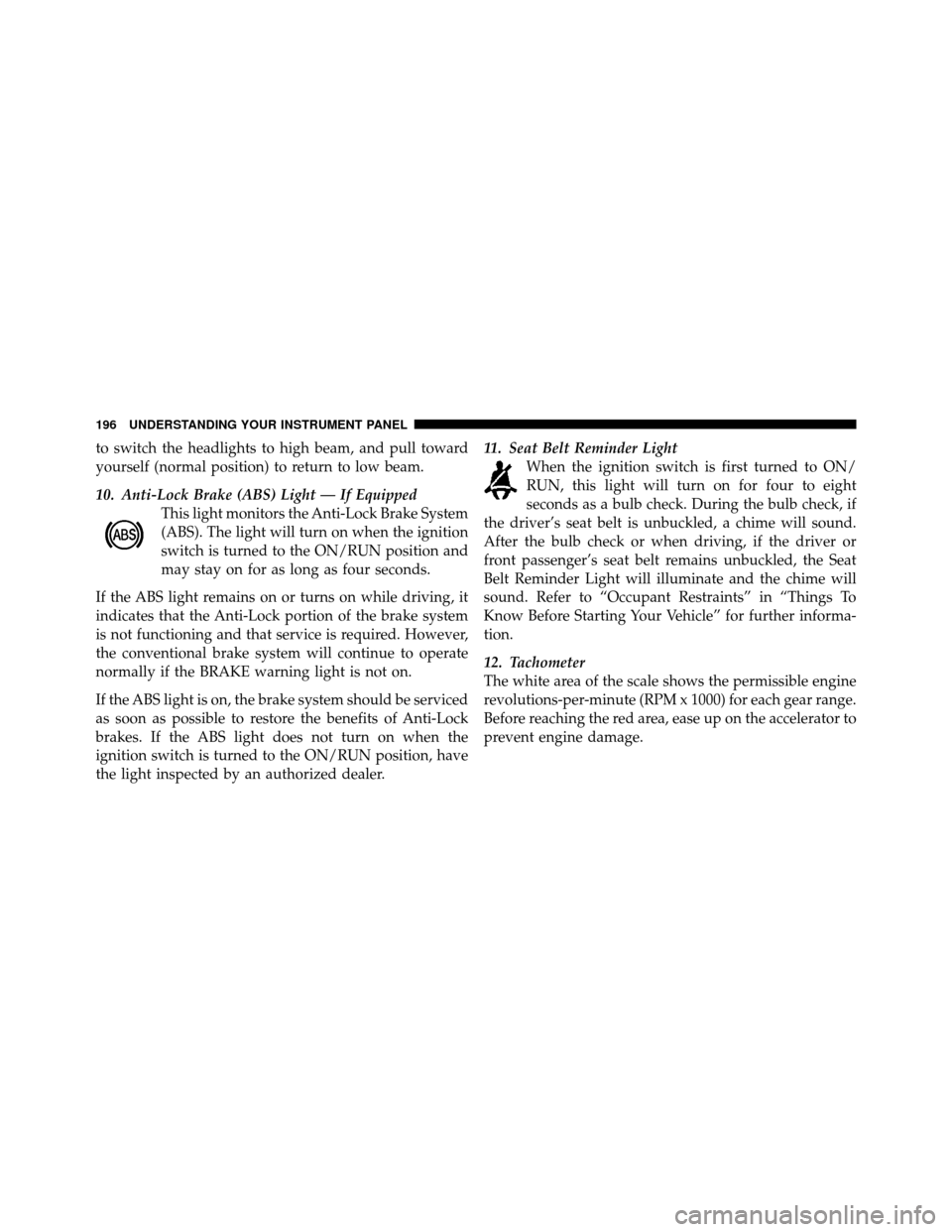

to switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
10. Anti-Lock Brake (ABS) Light — If EquippedThis light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer. 11. Seat Belt Reminder Light
When the ignition switch is first turned to ON/
RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if
the driver’s seat belt is unbuckled, a chime will sound.
After the bulb check or when driving, if the driver or
front passenger’s seat belt remains unbuckled, the Seat
Belt Reminder Light will illuminate and the chime will
sound. Refer to “Occupant Restraints” in “Things To
Know Before Starting Your Vehicle” for further informa-
tion.
12. Tachometer
The white area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.
196 UNDERSTANDING YOUR INSTRUMENT PANEL

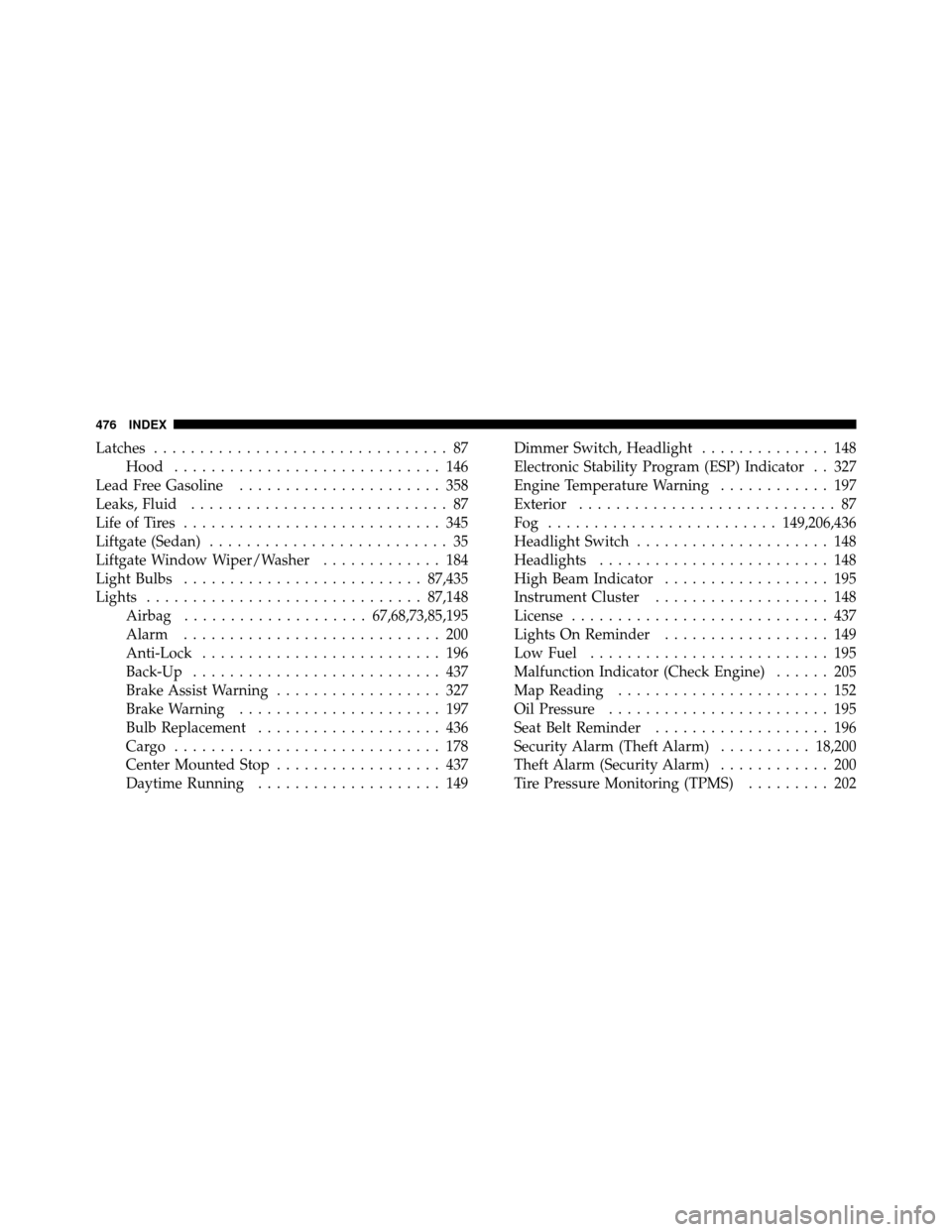

Latches................................ 87
Hood ............................. 146
Lead Free Gasoline ...................... 358
Leaks, Fluid ............................ 87
Life of Tires ............................ 345
Liftgate (Sedan) .......................... 35
Liftgate Window Wiper/Washer ............. 184
Light Bulbs .......................... 87,435
Lights .............................. 87,148
Airbag .................... 67,68,73,85,195
Alarm ............................ 200
Anti-Lock .......................... 196
Back-Up ........................... 437
Brake Assist Warning .................. 327
Brake Warning ...................... 197
Bulb Replacement .................... 436
Cargo ............................. 178
Center Mounted Stop .................. 437
Daytime Running .................... 149 Dimmer Switch, Headlight
.............. 148
Electronic Stability Program (ESP) Indicator . . 327
Engine Temperature Warning ............ 197
Exterior ............................ 87
Fog ......................... 149,206,436
Headlight Switch ..................... 148
Headlights ......................... 148
High Beam Indicator .................. 195
Instrument Cluster ................... 148
License ............................ 437
Lights On Reminder .................. 149
Low Fuel .......................... 195
Malfunction Indicator (Check Engine) ...... 205
Map Reading ....................... 152
Oil Pressure ........................ 195
Seat Belt Reminder ................... 196
Security Alarm (Theft Alarm) ..........18,200
Theft Alarm (Security Alarm) ............ 200
Tire Pressure Monitoring (TPMS) ......... 202
