JEEP PATRIOT 2012 1.G Owners Manual

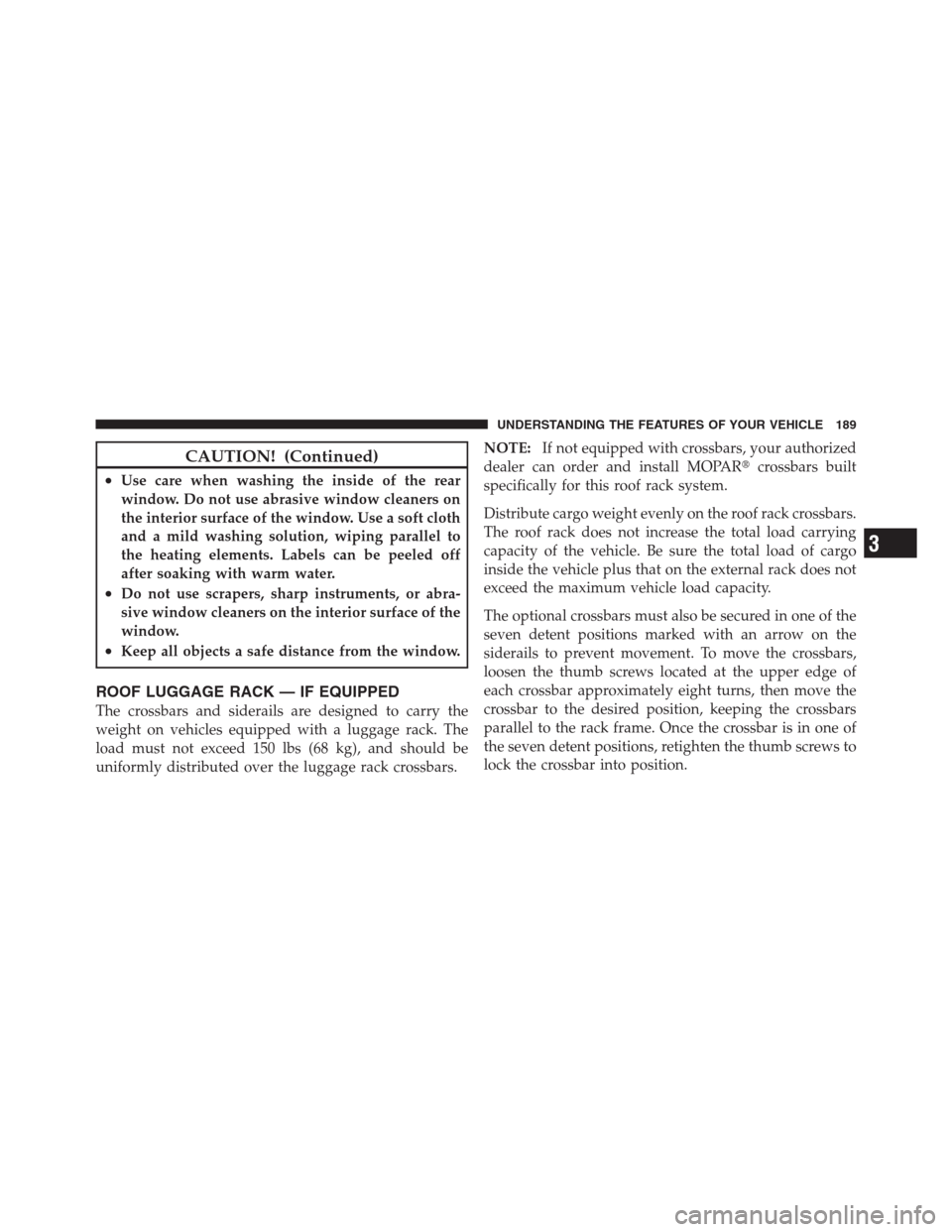

CAUTION! (Continued)
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the
weight on vehicles equipped with a luggage rack. The
load must not exceed 150 lbs (68 kg), and should be
uniformly distributed over the luggage rack crossbars.NOTE:If not equipped with crossbars, your authorized
dealer can order and install MOPARcrossbars built
specifically for this roof rack system.
Distribute cargo weight evenly on the roof rack crossbars.
The roof rack does not increase the total load carrying
capacity of the vehicle. Be sure the total load of cargo
inside the vehicle plus that on the external rack does not
exceed the maximum vehicle load capacity.
The optional crossbars must also be secured in one of the
seven detent positions marked with an arrow on the
siderails to prevent movement. To move the crossbars,
loosen the thumb screws located at the upper edge of
each crossbar approximately eight turns, then move the
crossbar to the desired position, keeping the crossbars
parallel to the rack frame. Once the crossbar is in one of
the seven detent positions, retighten the thumb screws to
lock the crossbar into position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189

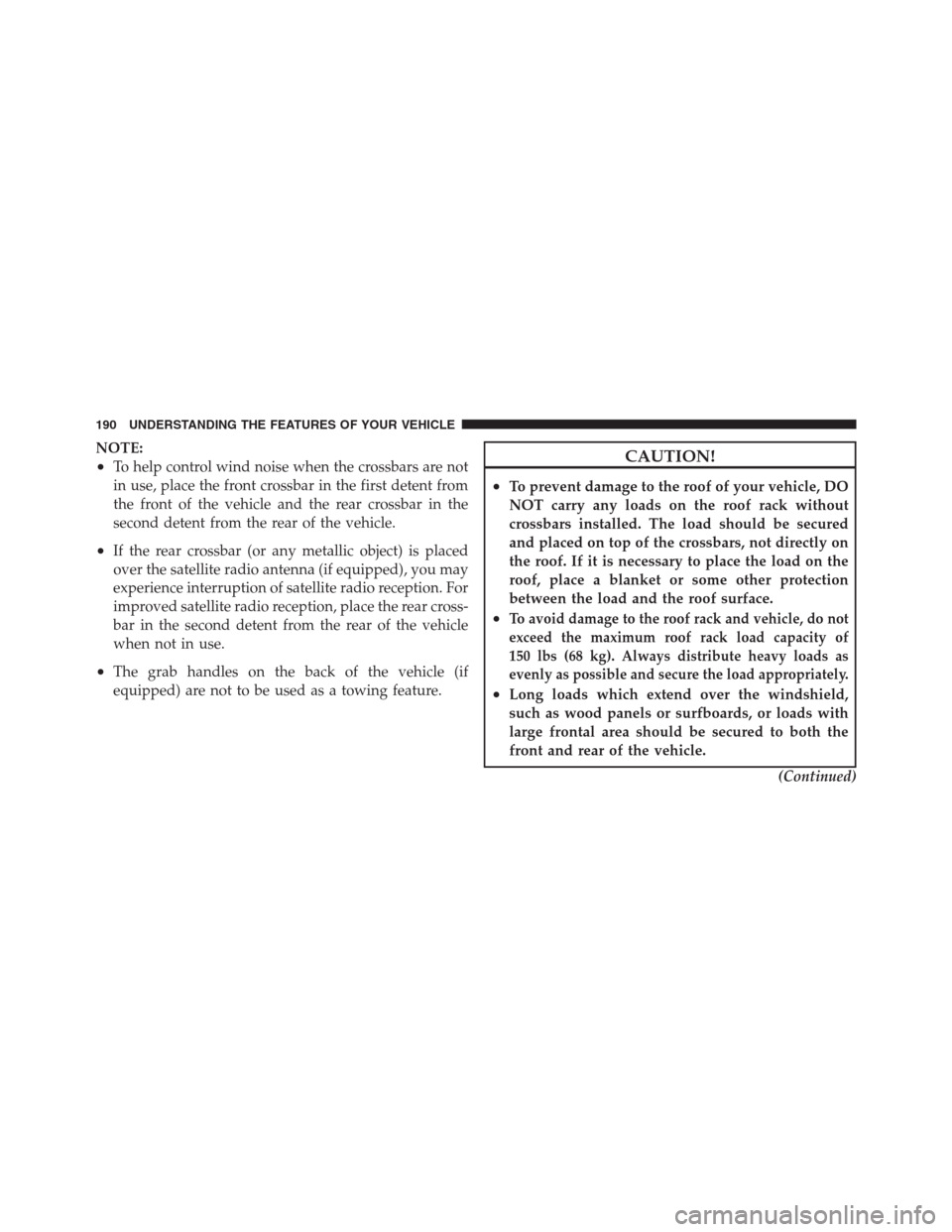

NOTE:
•To help control wind noise when the crossbars are not
in use, place the front crossbar in the first detent from
the front of the vehicle and the rear crossbar in the
second detent from the rear of the vehicle.
•If the rear crossbar (or any metallic object) is placed
over the satellite radio antenna (if equipped), you may
experience interruption of satellite radio reception. For
improved satellite radio reception, place the rear cross-
bar in the second detent from the rear of the vehicle
when not in use.
•The grab handles on the back of the vehicle (if
equipped) are not to be used as a towing feature.
CAUTION!
•To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the roof rack without
crossbars installed. The load should be secured
and placed on top of the crossbars, not directly on
the roof. If it is necessary to place the load on the
roof, place a blanket or some other protection
between the load and the roof surface.
•To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of
150 lbs (68 kg). Always distribute heavy loads as
evenly as possible and secure the load appropriately.
•Long loads which extend over the windshield,
such as wood panels or surfboards, or loads with
large frontal area should be secured to both the
front and rear of the vehicle.
(Continued)
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

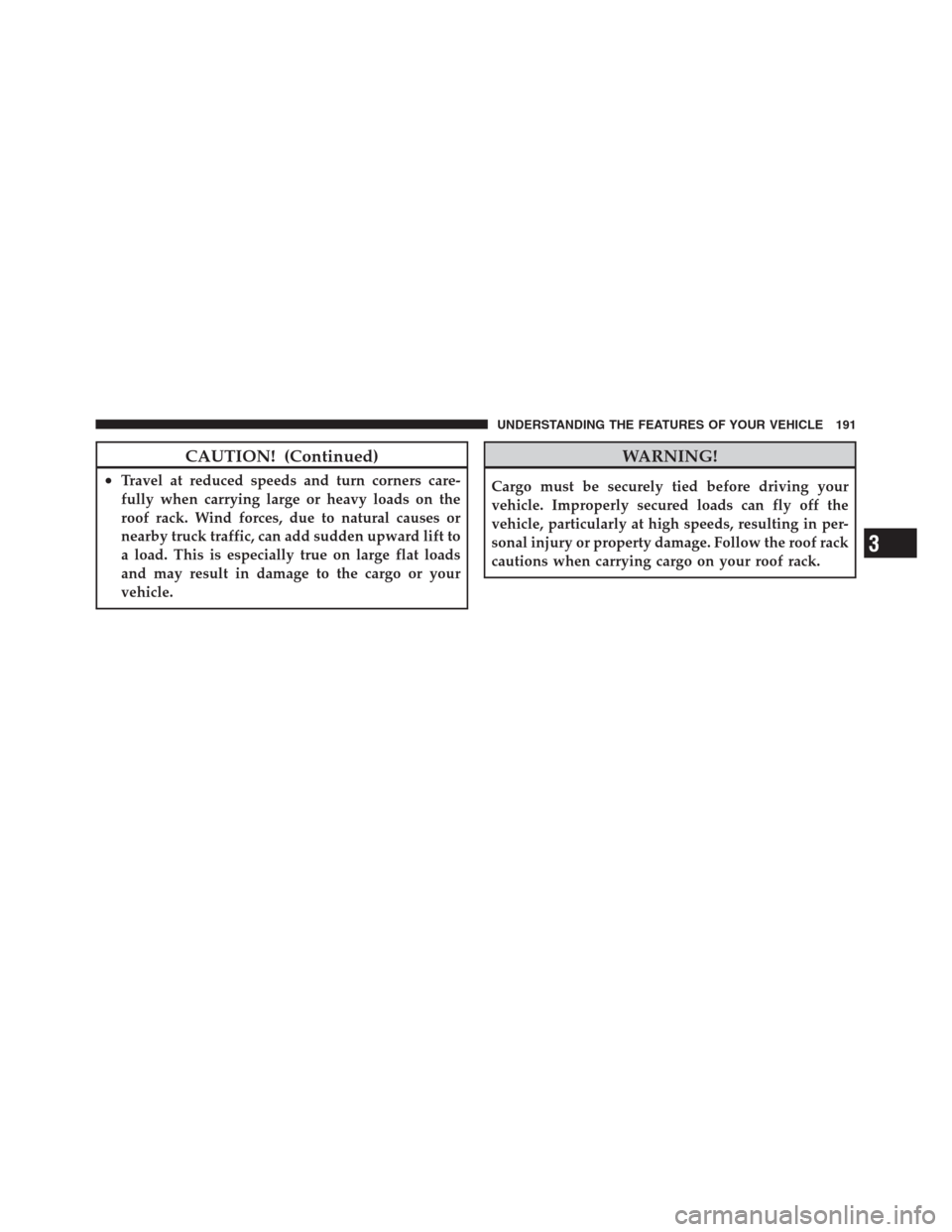

CAUTION! (Continued)
•Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the
roof rack. Wind forces, due to natural causes or
nearby truck traffic, can add sudden upward lift to
a load. This is especially true on large flat loads
and may result in damage to the cargo or your
vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

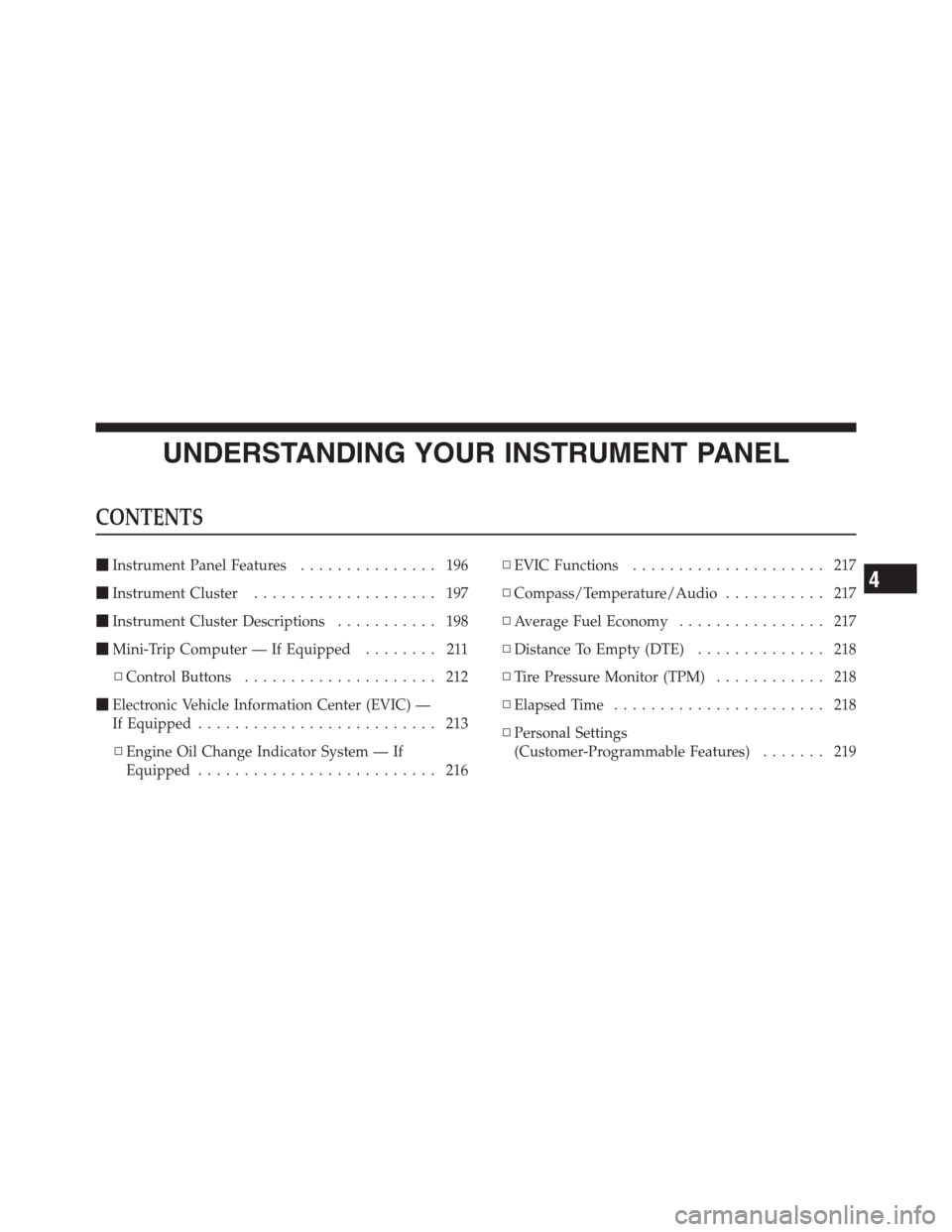

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features............... 196
Instrument Cluster.................... 197
Instrument Cluster Descriptions........... 198
Mini-Trip Computer — If Equipped........ 211
▫Control Buttons..................... 212
Electronic Vehicle Information Center (EVIC) —
If Equipped.......................... 213
▫Engine Oil Change Indicator System — If
Equipped.......................... 216▫EVIC Functions..................... 217
▫Compass/Temperature/Audio........... 217
▫Average Fuel Economy................ 217
▫Distance To Empty (DTE).............. 218
▫Tire Pressure Monitor (TPM)............ 218
▫Elapsed Time....................... 218
▫Personal Settings
(Customer-Programmable Features)....... 219
4

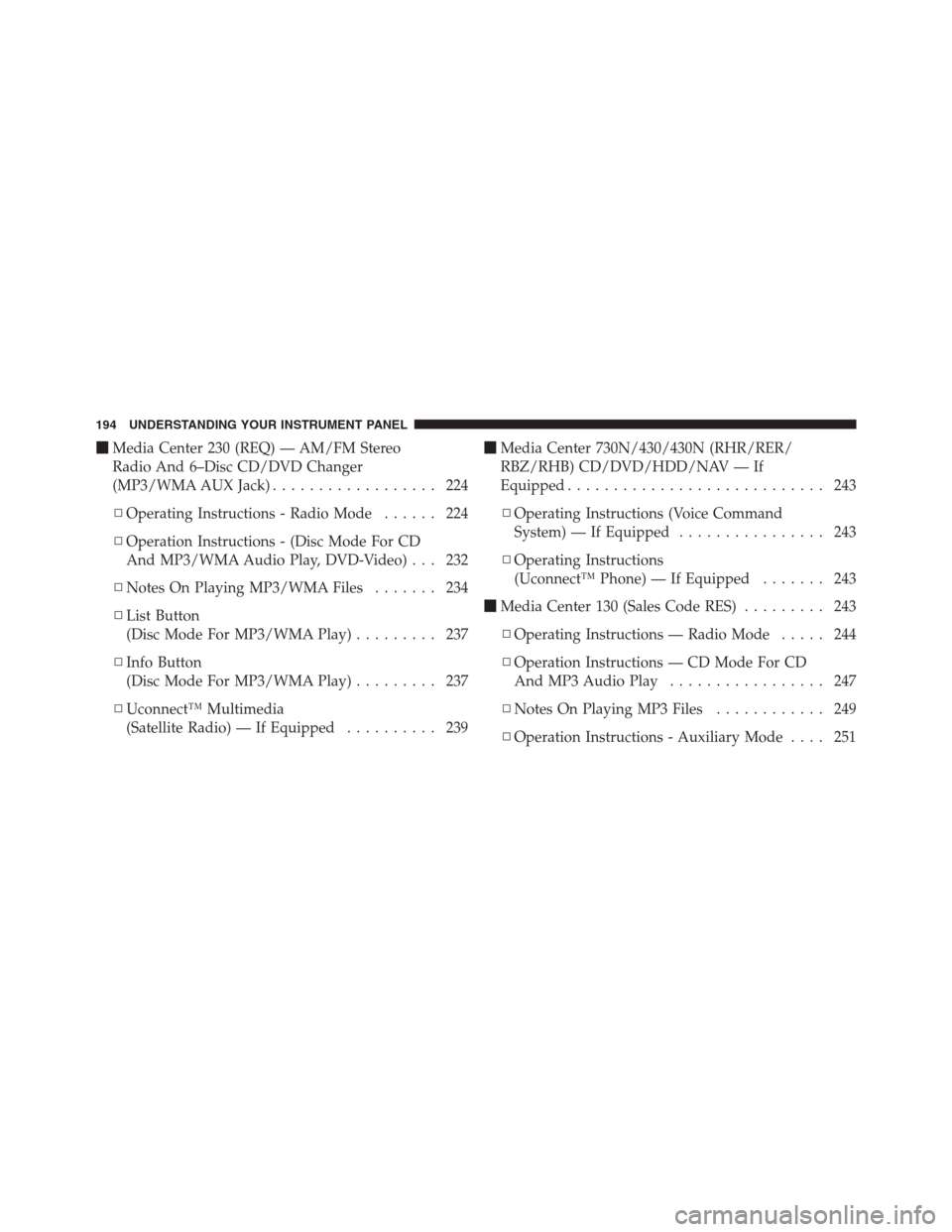

Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack).................. 224
▫Operating Instructions - Radio Mode...... 224
▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 232
▫Notes On Playing MP3/WMA Files....... 234
▫List Button
(Disc Mode For MP3/WMA Play)......... 237
▫Info Button
(Disc Mode For MP3/WMA Play)......... 237
▫Uconnect™ Multimedia
(Satellite Radio) — If Equipped.......... 239Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV — If
Equipped............................ 243
▫Operating Instructions (Voice Command
System) — If Equipped................ 243
▫Operating Instructions
(Uconnect™ Phone) — If Equipped....... 243
Media Center 130 (Sales Code RES)......... 243
▫Operating Instructions — Radio Mode..... 244
▫Operation Instructions — CD Mode For CD
And MP3 Audio Play................. 247
▫Notes On Playing MP3 Files............ 249
▫Operation Instructions - Auxiliary Mode.... 251
194 UNDERSTANDING YOUR INSTRUMENT PANEL

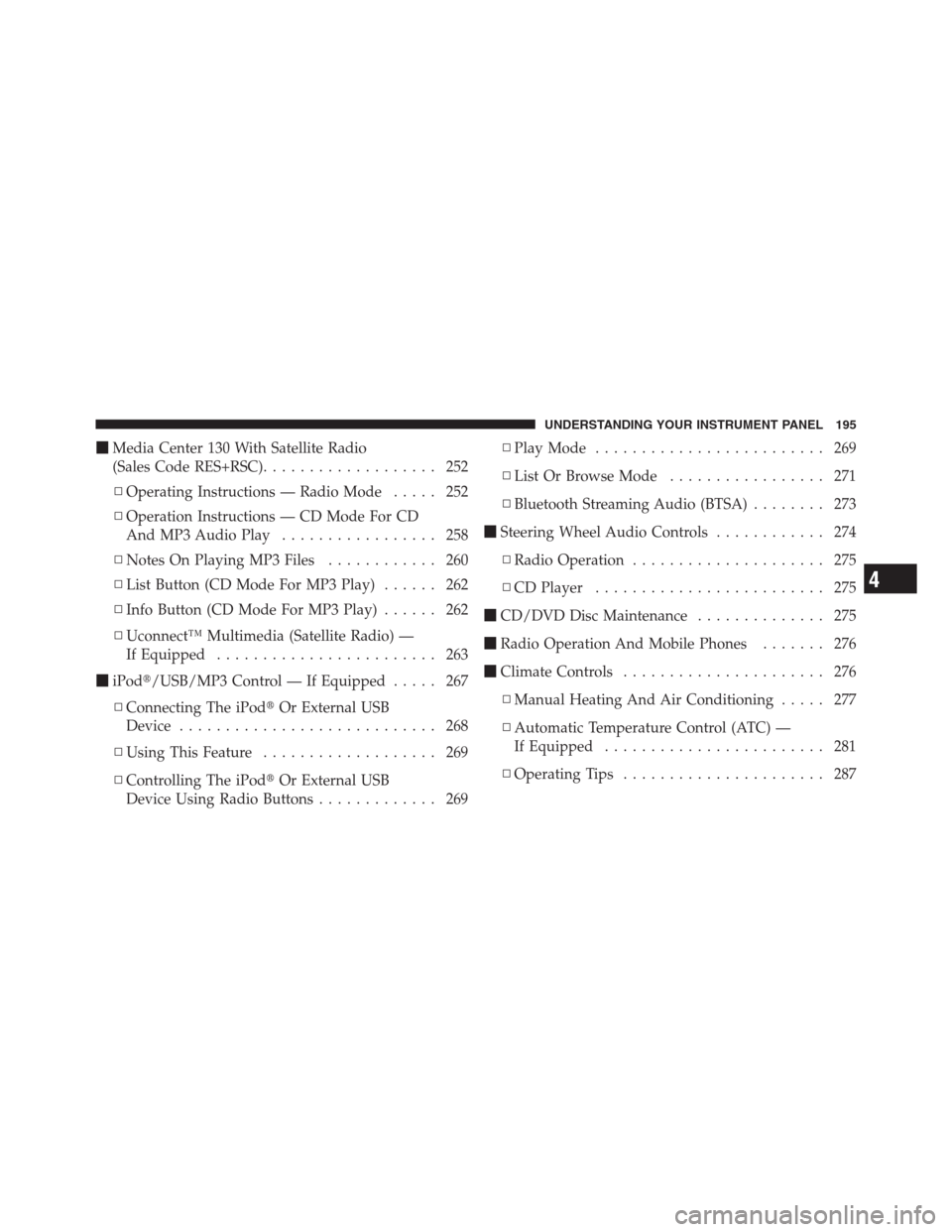

Media Center 130 With Satellite Radio
(Sales Code RES+RSC)................... 252
▫Operating Instructions — Radio Mode..... 252
▫Operation Instructions — CD Mode For CD
And MP3 Audio Play................. 258
▫Notes On Playing MP3 Files............ 260
▫List Button (CD Mode For MP3 Play)...... 262
▫Info Button (CD Mode For MP3 Play)...... 262
▫Uconnect™ Multimedia (Satellite Radio) —
If Equipped........................ 263
iPod/USB/MP3 Control — If Equipped..... 267
▫Connecting The iPodOr External USB
Device............................ 268
▫Using This Feature................... 269
▫Controlling The iPodOr External USB
Device Using Radio Buttons............. 269▫Play Mode......................... 269
▫List Or Browse Mode................. 271
▫Bluetooth Streaming Audio (BTSA)........ 273
Steering Wheel Audio Controls............ 274
▫Radio Operation..................... 275
▫CD Player......................... 275
CD/DVD Disc Maintenance.............. 275
Radio Operation And Mobile Phones....... 276
Climate Controls...................... 276
▫Manual Heating And Air Conditioning..... 277
▫Automatic Temperature Control (ATC) —
If Equipped........................ 281
▫Operating Tips...................... 287
4
UNDERSTANDING YOUR INSTRUMENT PANEL 195

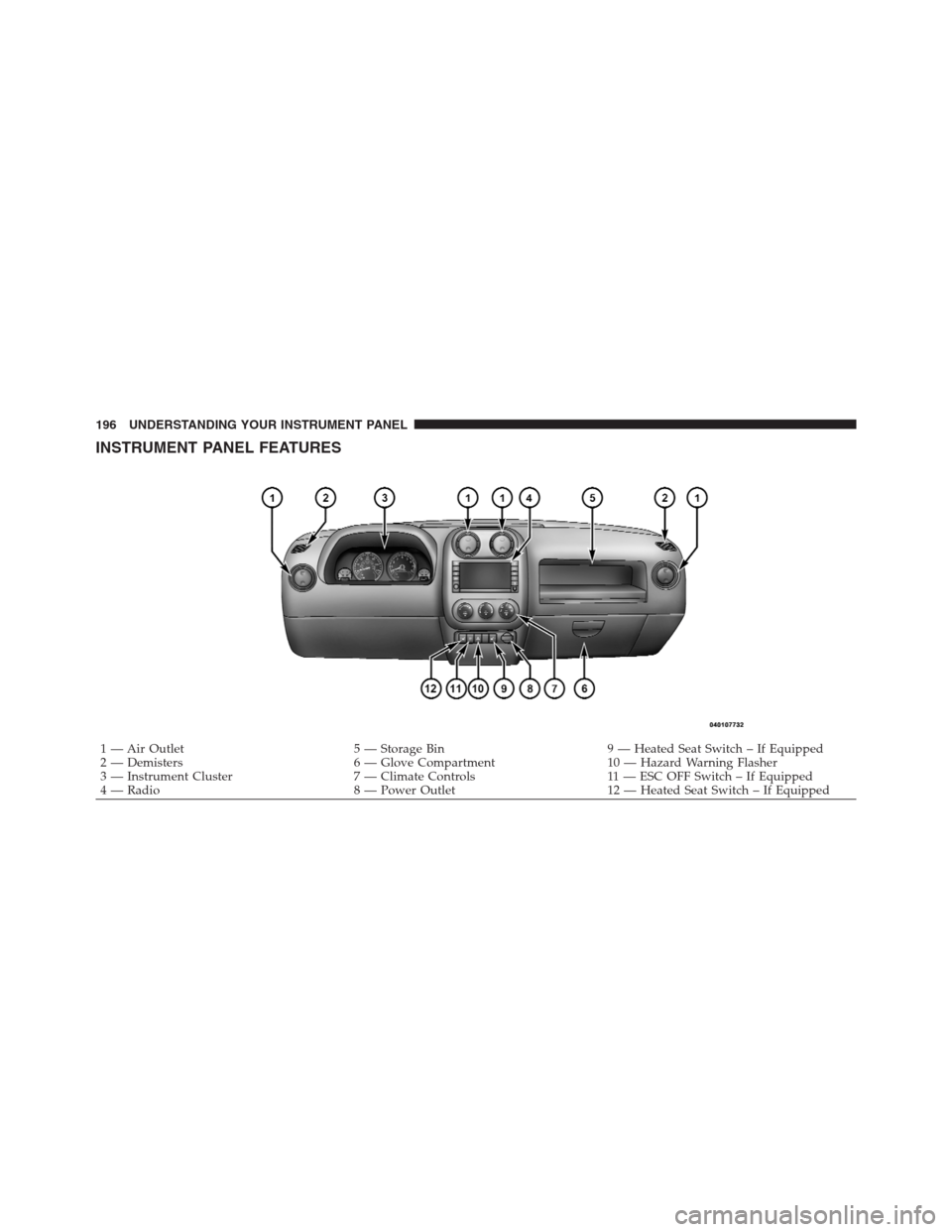

INSTRUMENT PANEL FEATURES
1 — Air Outlet 5 — Storage Bin 9 — Heated Seat Switch – If Equipped
2 — Demisters 6 — Glove Compartment 10 — Hazard Warning Flasher
3 — Instrument Cluster 7 — Climate Controls 11 — ESC OFF Switch – If Equipped
4 — Radio 8 — Power Outlet 12 — Heated Seat Switch – If Equipped 196 UNDERSTANDING YOUR INSTRUMENT PANEL

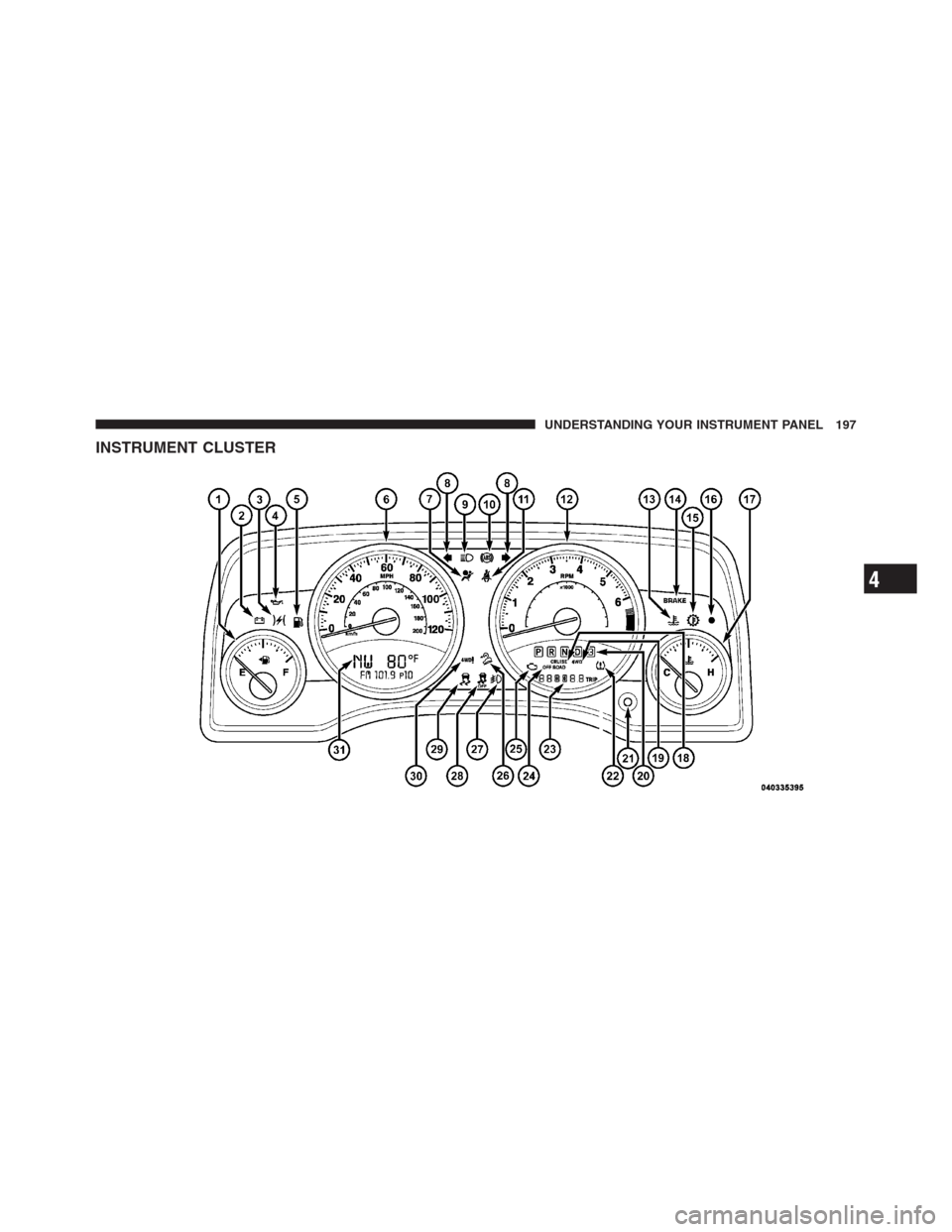

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 197

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge/Fuel Door Reminder
When the ignition switch is in the ON/RUN
position, the pointer will show the level of fuel
remaining in the fuel tank. The fuel pump
symbol points to the side of the vehicle where
the fuel door is located.
2. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
3. Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped and the
shift lever is placed in the PARK position. The light
should turn off. If the light remains lit with the engine
running, your vehicle will usually be drivable; however,
see an authorized dealer for service as soon as possible. If
the light is flashing when the engine is running, imme-
diate service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and
your vehicle may require towing. The light will come on
when the ignition is first turned to ON/RUN and remain
198 UNDERSTANDING YOUR INSTRUMENT PANEL
