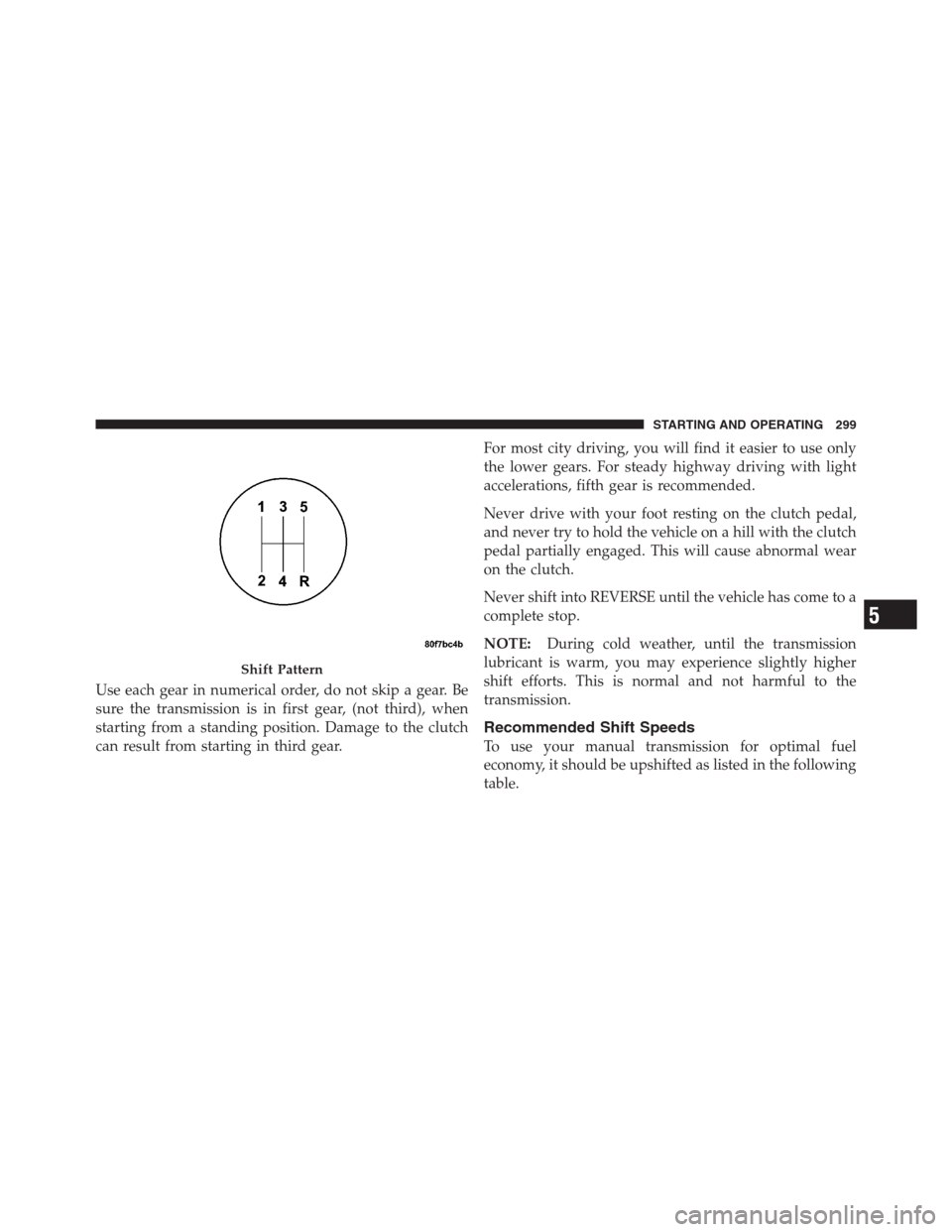

Page 301 of 505

JEEP PATRIOT 2012 1.G Owners Manual Use each gear in numerical order, do not skip a gear. Be
sure the transmission is in first gear, (not third), when
starting from a standing position. Damage to the clutch
can result from starting in t

Page 302 of 505

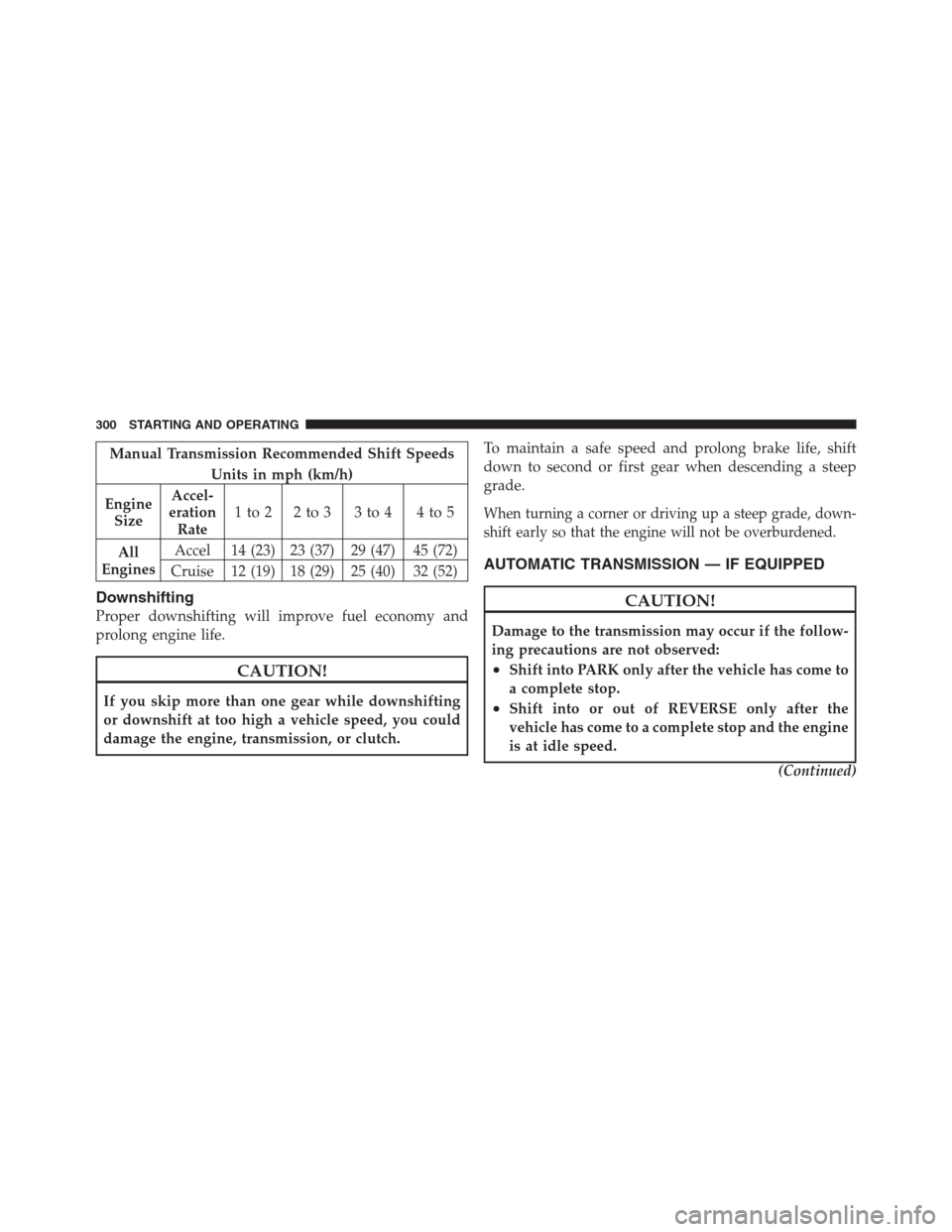

JEEP PATRIOT 2012 1.G Owners Manual Manual Transmission Recommended Shift Speeds
Units in mph (km/h)
Engine
SizeAccel-
eration
Rate1to2 2to3 3to4 4to5
All
EnginesAccel 14 (23) 23 (37) 29 (47) 45 (72)
Cruise 12 (19) 18 (29) 25 (40) 32 (5

Page 303 of 505

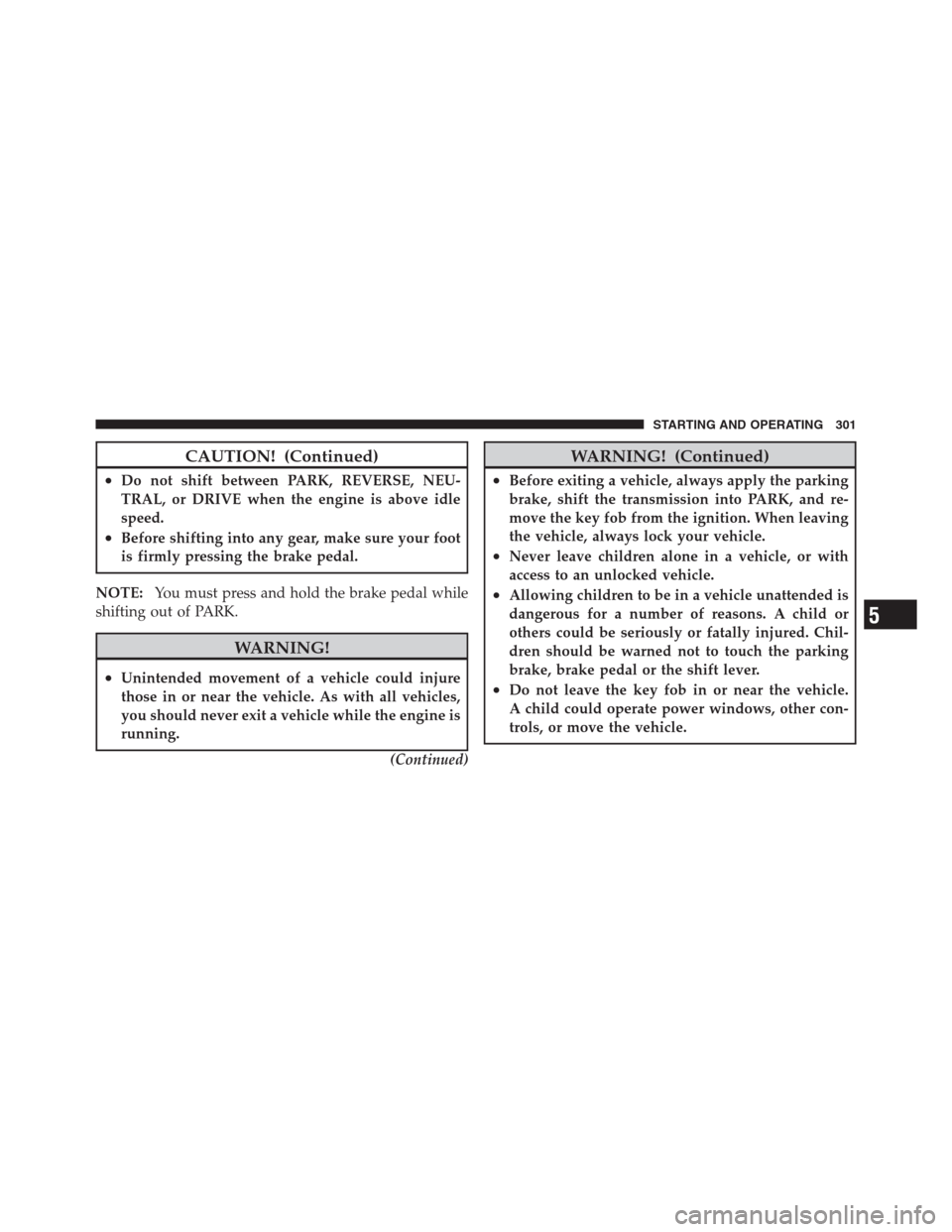

JEEP PATRIOT 2012 1.G Owners Manual CAUTION! (Continued)
•Do not shift between PARK, REVERSE, NEU-
TRAL, or DRIVE when the engine is above idle
speed.
•Before shifting into any gear, make sure your foot
is firmly pressing the brake

Page 304 of 505

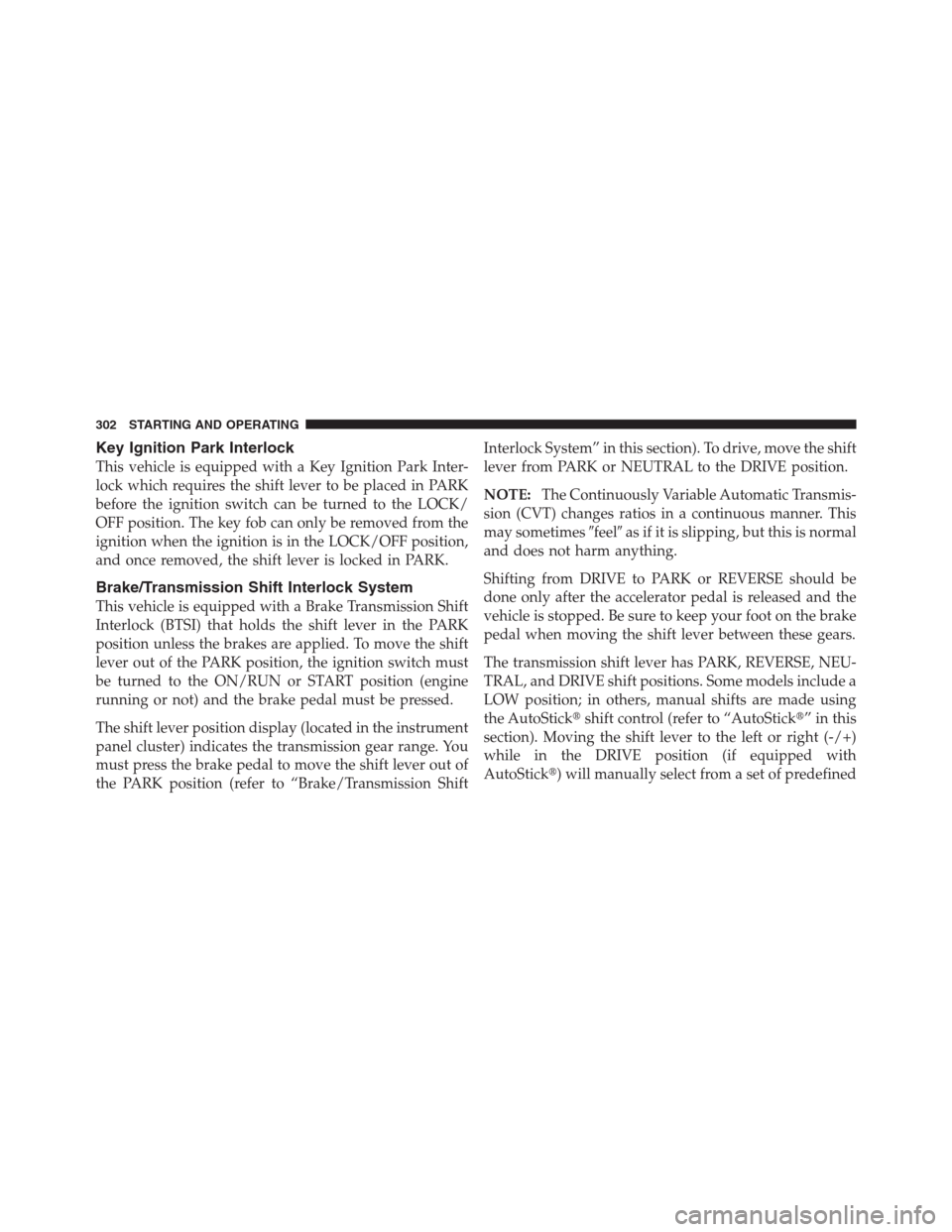

JEEP PATRIOT 2012 1.G Owners Manual Key Ignition Park Interlock
This vehicle is equipped with a Key Ignition Park Inter-
lock which requires the shift lever to be placed in PARK
before the ignition switch can be turned to the LOCK/
OFF

Page 305 of 505

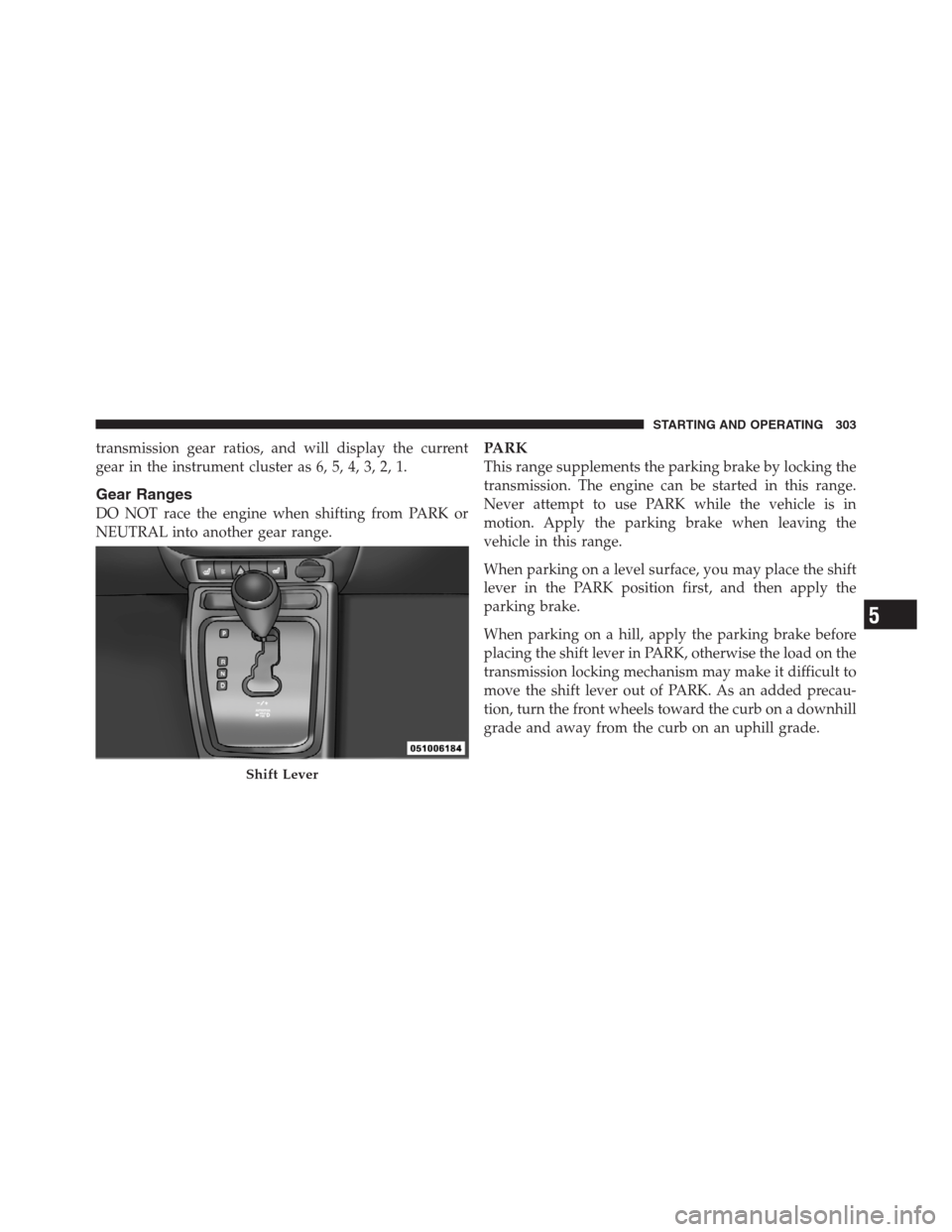

JEEP PATRIOT 2012 1.G Owners Manual transmission gear ratios, and will display the current
gear in the instrument cluster as 6, 5, 4, 3, 2, 1.
Gear Ranges
DO NOT race the engine when shifting from PARK or
NEUTRAL into another gear range

Page 306 of 505

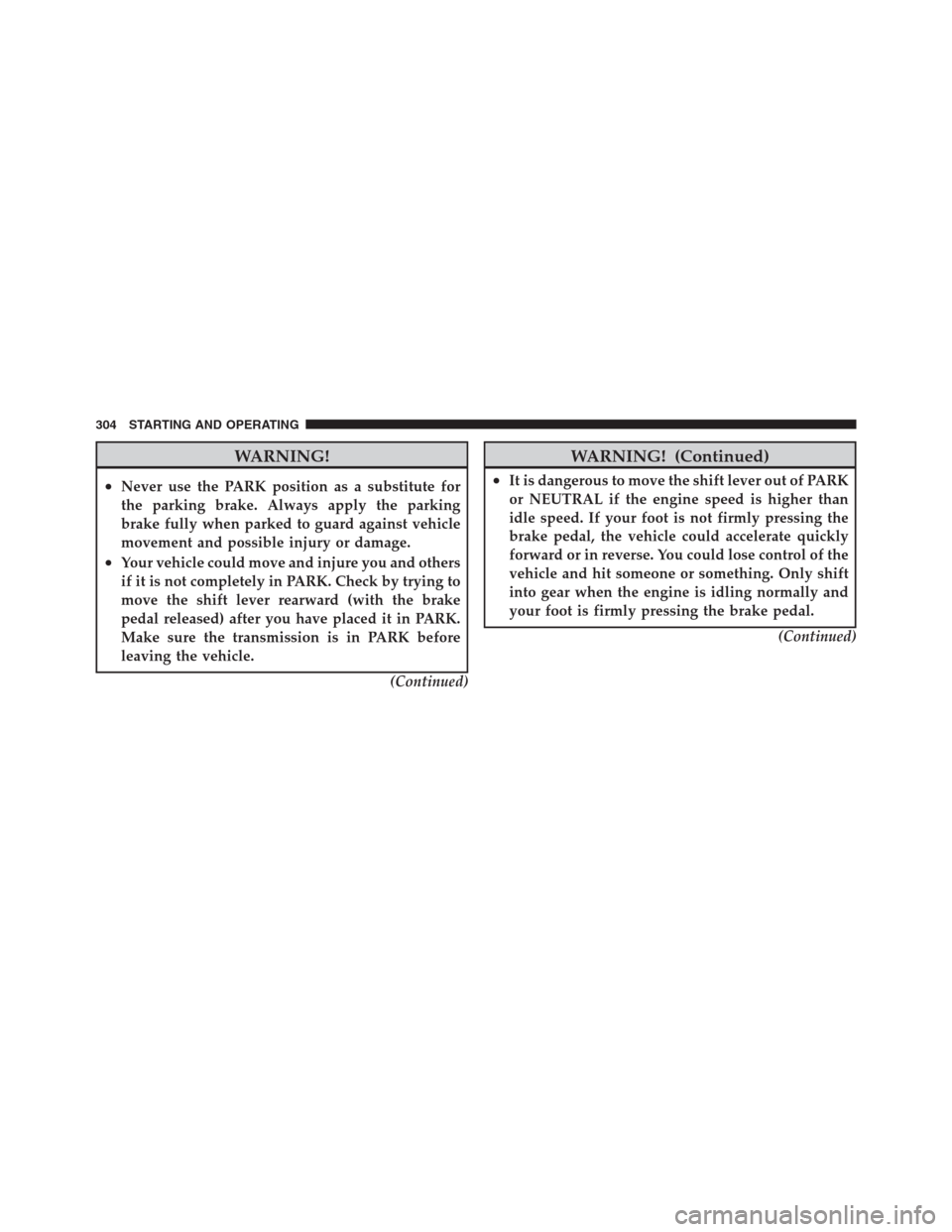

JEEP PATRIOT 2012 1.G Owners Manual WARNING!
•Never use the PARK position as a substitute for
the parking brake. Always apply the parking
brake fully when parked to guard against vehicle
movement and possible injury or damage.
•Your

Page 307 of 505

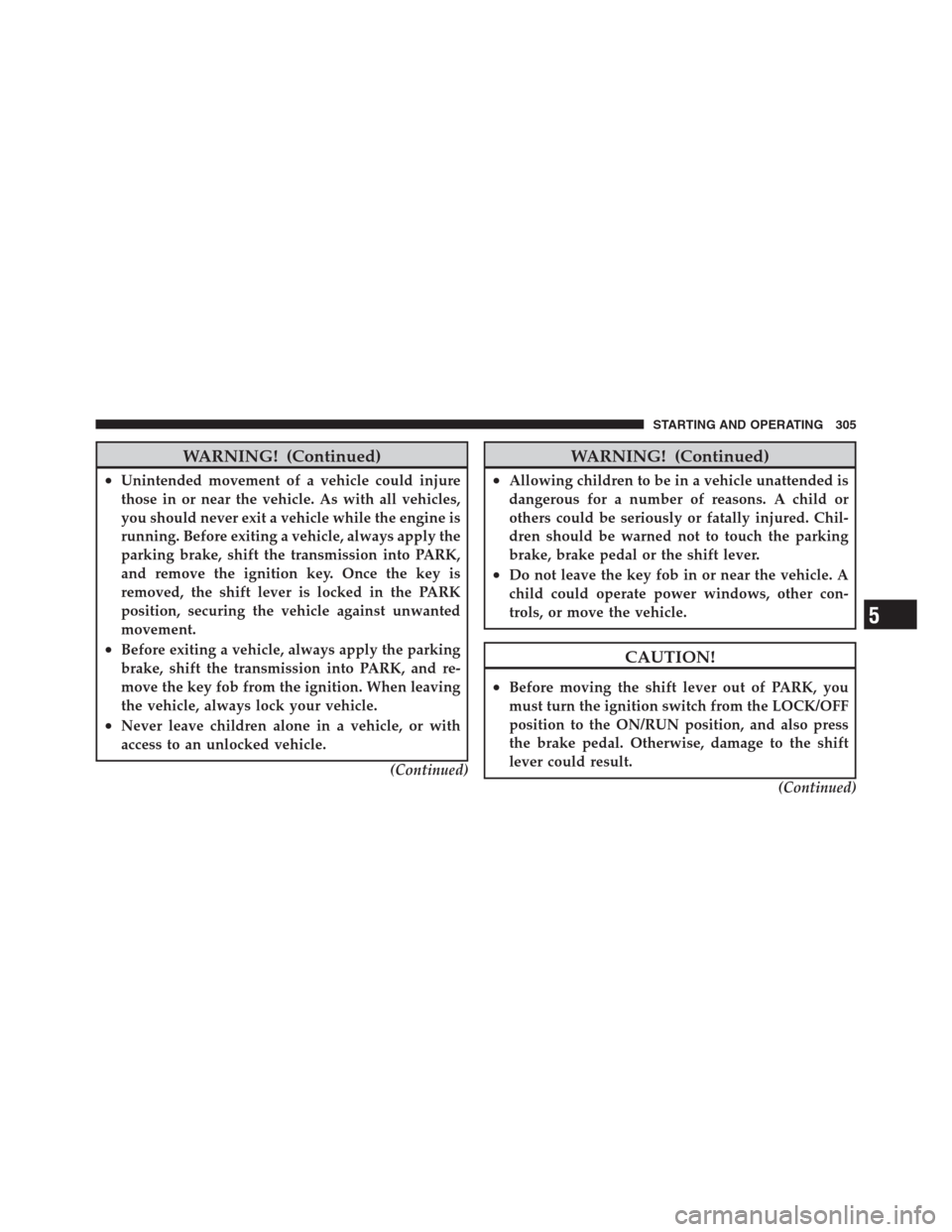

JEEP PATRIOT 2012 1.G Owners Manual WARNING! (Continued)
•Unintended movement of a vehicle could injure
those in or near the vehicle. As with all vehicles,
you should never exit a vehicle while the engine is
running. Before exiting a

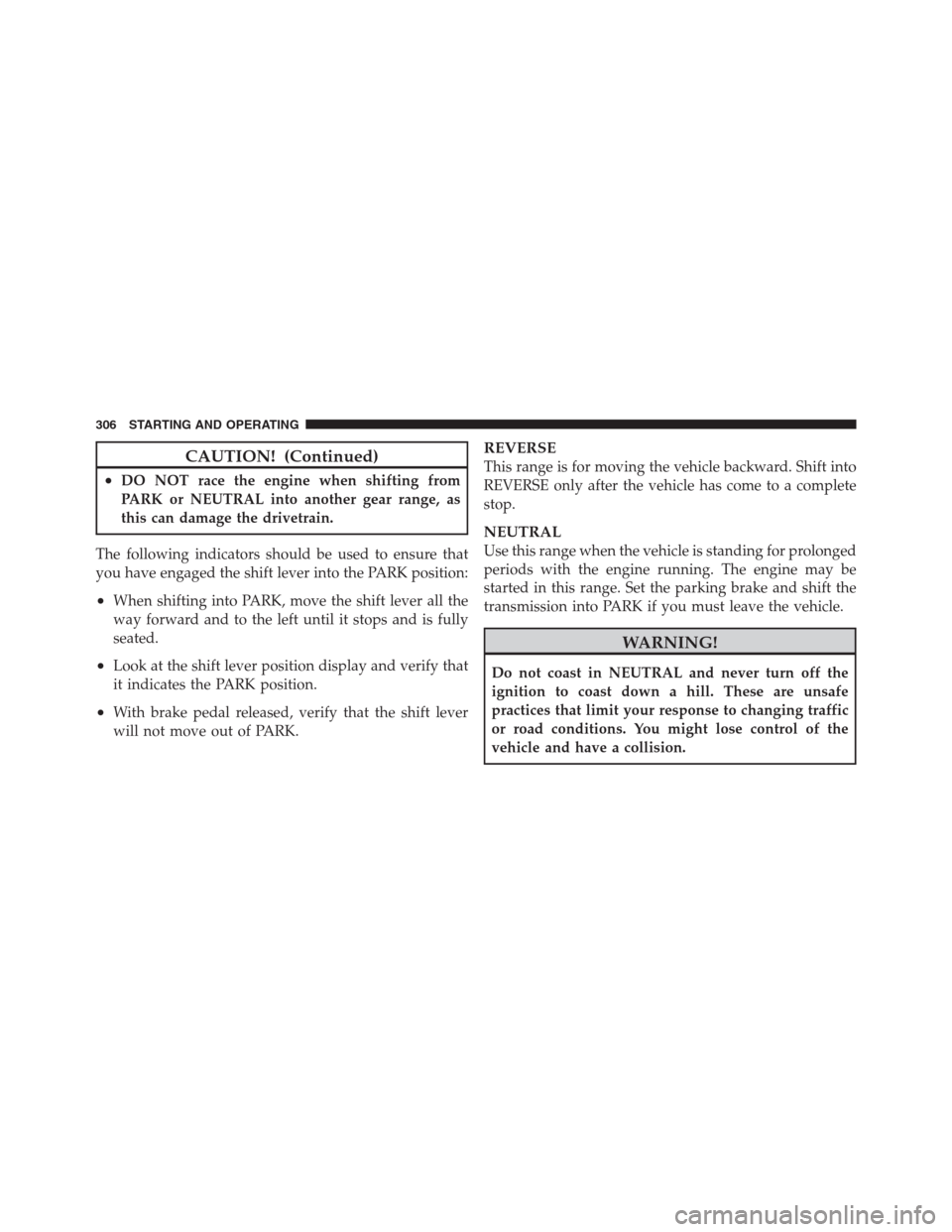

Page 308 of 505

JEEP PATRIOT 2012 1.G Owners Manual CAUTION! (Continued)
•DO NOT race the engine when shifting from
PARK or NEUTRAL into another gear range, as
this can damage the drivetrain.
The following indicators should be used to ensure that
you

Page 309 of 505

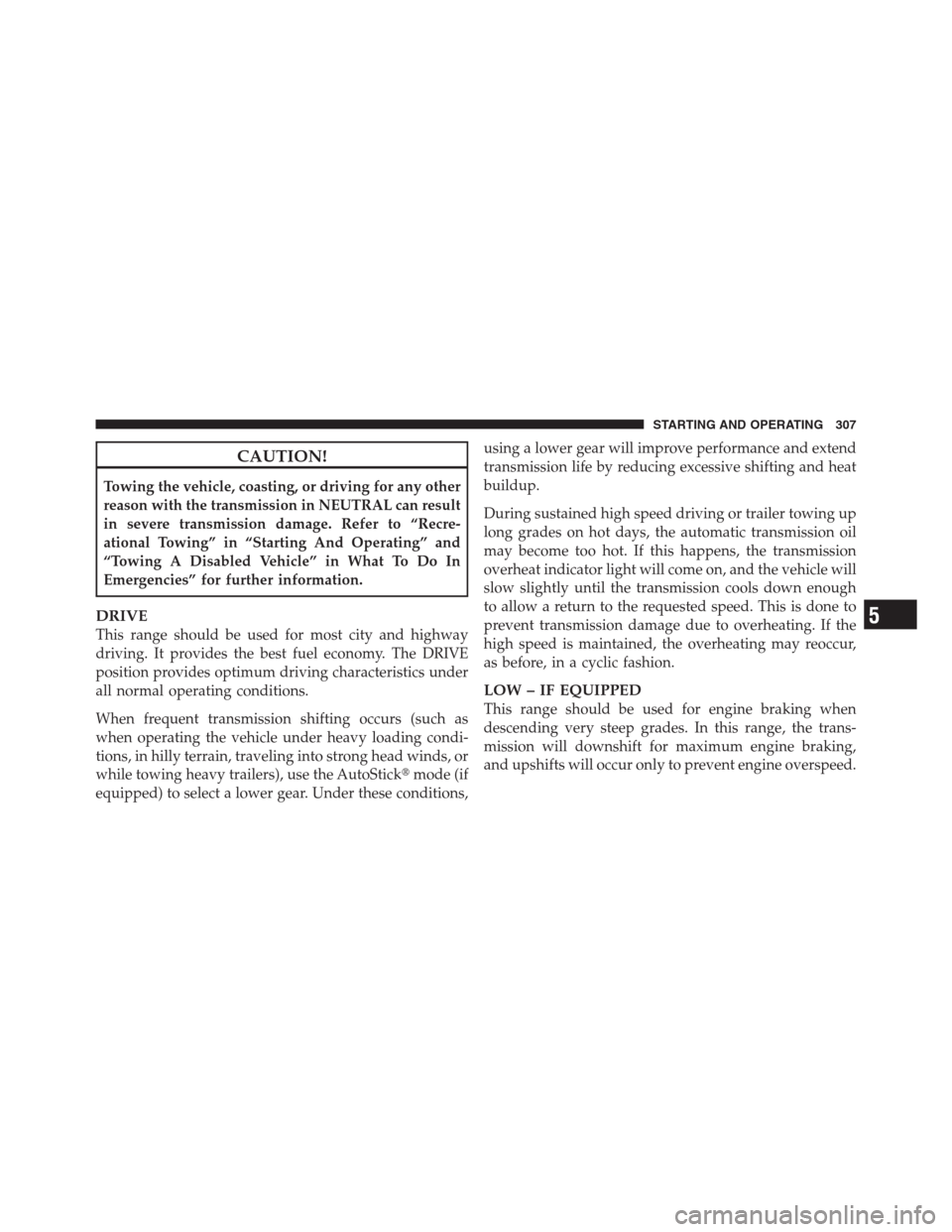

JEEP PATRIOT 2012 1.G Owners Manual CAUTION!
Towing the vehicle, coasting, or driving for any other
reason with the transmission in NEUTRAL can result
in severe transmission damage. Refer to “Recre-
ational Towing” in “Starting An

Page 310 of 505

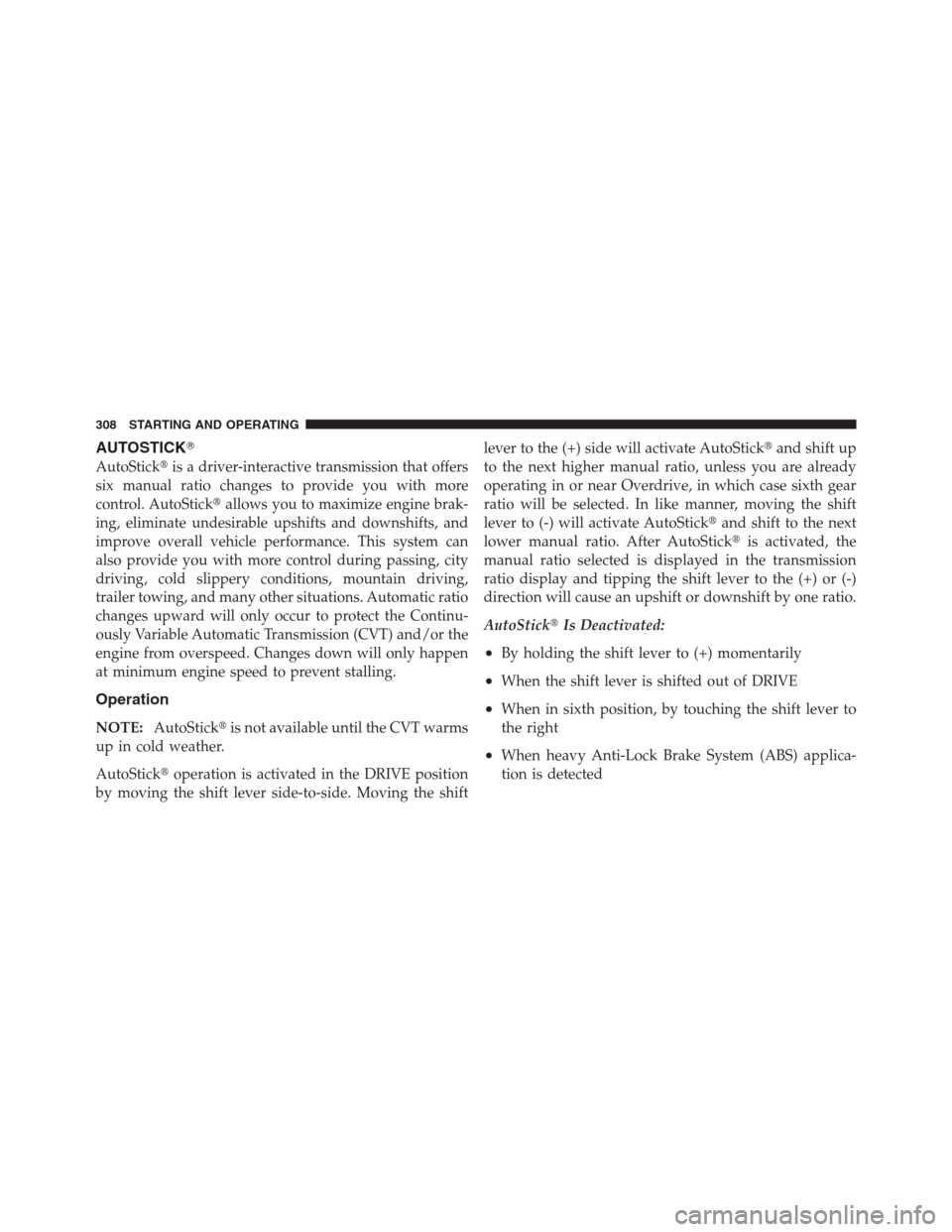

JEEP PATRIOT 2012 1.G Owners Manual AUTOSTICK
AutoStickis a driver-interactive transmission that offers
six manual ratio changes to provide you with more
control. AutoStickallows you to maximize engine brak-
ing, eliminate undesirabl
