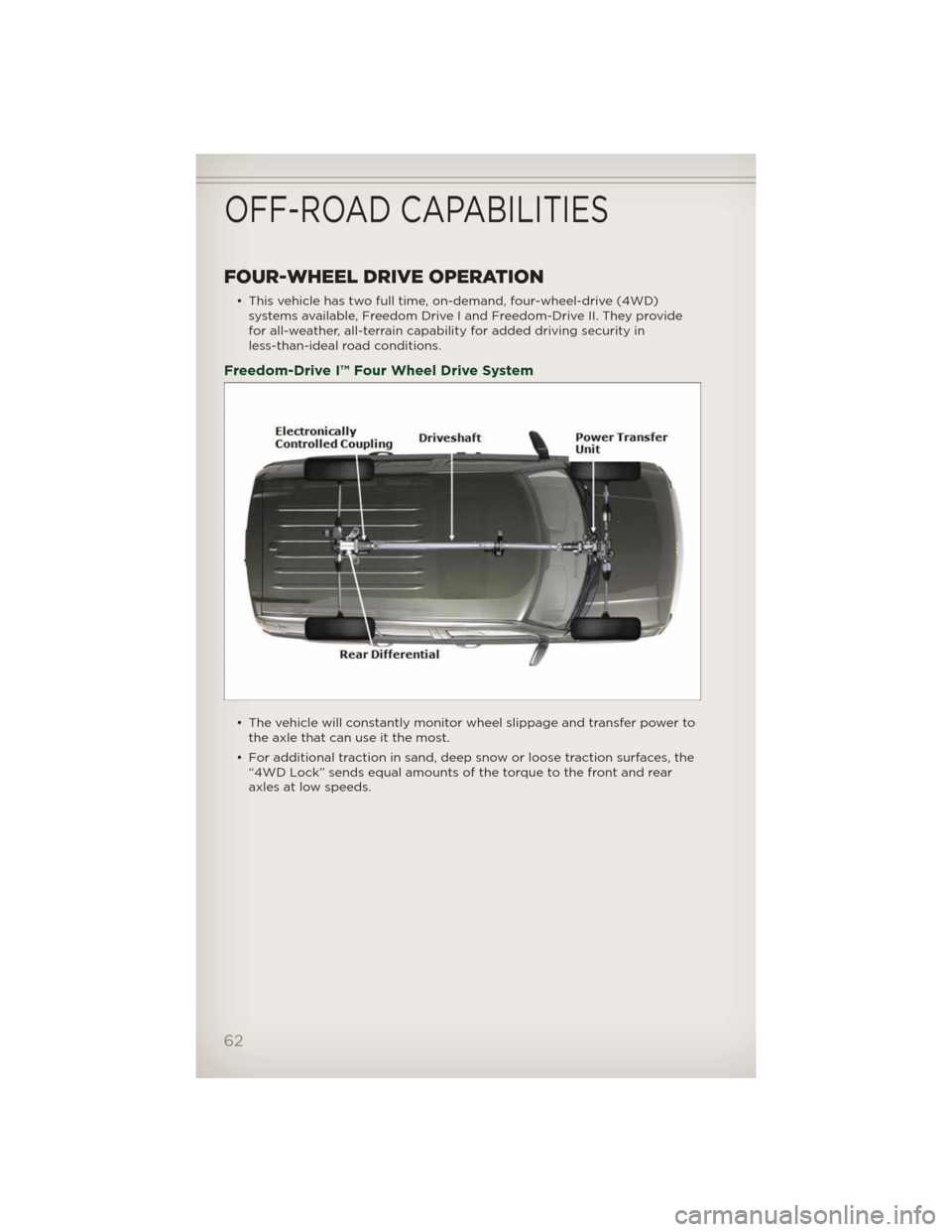

FOUR-WHEEL DRIVE OPERATION
• This vehicle has two full time, on-demand, four-wheel-drive (4WD)
systems available, Freedom Drive I and Freedom-Drive II. They provide
for all-weather, all-terrain capability for added driving security in
less-than-ideal road conditions.
Freedom-Drive I™ Four Wheel Drive System
• The vehicle will constantly monitor wheel slippage and transfer power to
the axle that can use it the most.
• For additional traction in sand, deep snow or loose traction surfaces, the
“4WD Lock” sends equal amounts of the torque to the front and rear
axles at low speeds.
OFF-ROAD CAPABILITIES
62

7. Finish tightening the nuts. Push down on the wrench while at the end of
the handle for increased leverage. Tighten the lug nuts in a star pattern
until each nut has been tightened twice. The correct wheel nut torque is
100 ft lbs (135 N·m). If you doubt that you have tightened the nuts
correctly, have them checked with a torque wrench by your authorized
dealer or service station.
8. Remove the wheel blocks and lower the jack until it is free. Reassemble
the lug wrench to the jack assembly and stow it in the spare tire area.
Secure the assembly using the means provided.
9. Place the deflated (flat) tire in the cargo area,have the tire repaired or
replaced as soon as possible.
10. Check the spare tire pressure as soon as possible. Correct the tire
pressure as required.
Road Tire Installation
Vehicles Equipped With Wheel Covers
1. Mount the road tire on the axle.
2. To ease the installation process for steel wheels with wheel covers,
install two lug nuts on the mounting studs which are on each side of the
valve stem. Install the lug nuts with the cone shaped end of the nut
toward the wheel. Lightly tighten the lug nuts.
3. Align the valve notch in the wheel
cover with the valve stem on the
wheel. Install the cover by hand,
snapping the cover over the two
lug nuts. Do not use a hammer or
excessive force to install the
cover.
4. Install the remaining lug nuts with
the cone shaped end of the nut
toward the wheel. Lightly tighten
the lug nuts.
5. Lower the vehicle to the ground
by turning the jack handle
counterclockwise.
6. Finish tightening the lug nuts. Push down on the wrench while at the
end of the handle for increased leverage. Tighten the lug nuts in a star
pattern until each nut has been tightened twice. The correct tightness of
each lug nut is 100 ft/lbs (135 N·m). If in doubt about the correct
tightness, have them checked with a torque wrench by your authorized
dealer or service station.
7. After 25 miles (40 km) check the lug nut torque with a torque wrench to
ensure that all lug nuts are properly seated against the wheel.
1 — Valve Stem 4 — Wheel
Cover
2 — Valve Notch 5 — Mounting
Stud
3 — Wheel Lug
Nut
WHAT TO DO IN EMERGENCIES
74

Vehicles Without Wheel Covers
1. Mount the road tire on the axle.
2. Install the remaining lug nuts with the cone shaped end of the nut
toward the wheel. Lightly tighten the lug nuts.
3. Lower the vehicle to the ground by turning the jack handle
counterclockwise.
4. Finish tightening the lug nuts. Push down on the wrench while at the
end of the handle for increased leverage. Tighten the lug nuts in a star
pattern until each nut has been tightened twice. The correct tightness of
each lug nut is 100 ft/lbs (135 N·m). If in doubt about the correct
tightness, have them checked with a torque wrench by your authorized
dealer or service station.
5. After 25 miles (40 km) check the lug nut torque with a torque wrench to
ensure that all lug nuts are properly seated against the wheel.
CAUTION!
• Do not attempt to raise the vehicle by jacking on locations other
than those indicated in the Jacking Instructions for this vehicle.
• Be sure to mount the spare tire with the valve stem facing outward.
The vehicle could be damaged if the spare tire is mounted
incorrectly.
WARNING!
• Being under a jacked-up vehicle is dangerous. The vehicle could slip
off the jack and fall on you. You could be crushed. Never put any
part of your body under a vehicle that is on a jack. If you need to
get under a raised vehicle, take it to a service center where it can be
raised on a lift.
• Never start or run the engine while the vehicle is on a jack.
• The jack is designed to be used as a tool for changing tires only. The
jack should not be used to lift the vehicle for service purposes. The
vehicle should be jacked on a firm level surface only. Avoid ice or
slippery areas.
• Do not attempt to change a tire on the side of the vehicle close to
moving traffic, pull far enough off the road to avoid the danger of
being hit when operating the jack or changing the wheel.
(Continued)
WHAT TO DO IN EMERGENCIES
75
