JEEP PATRIOT 2014 1.G Owners Manual

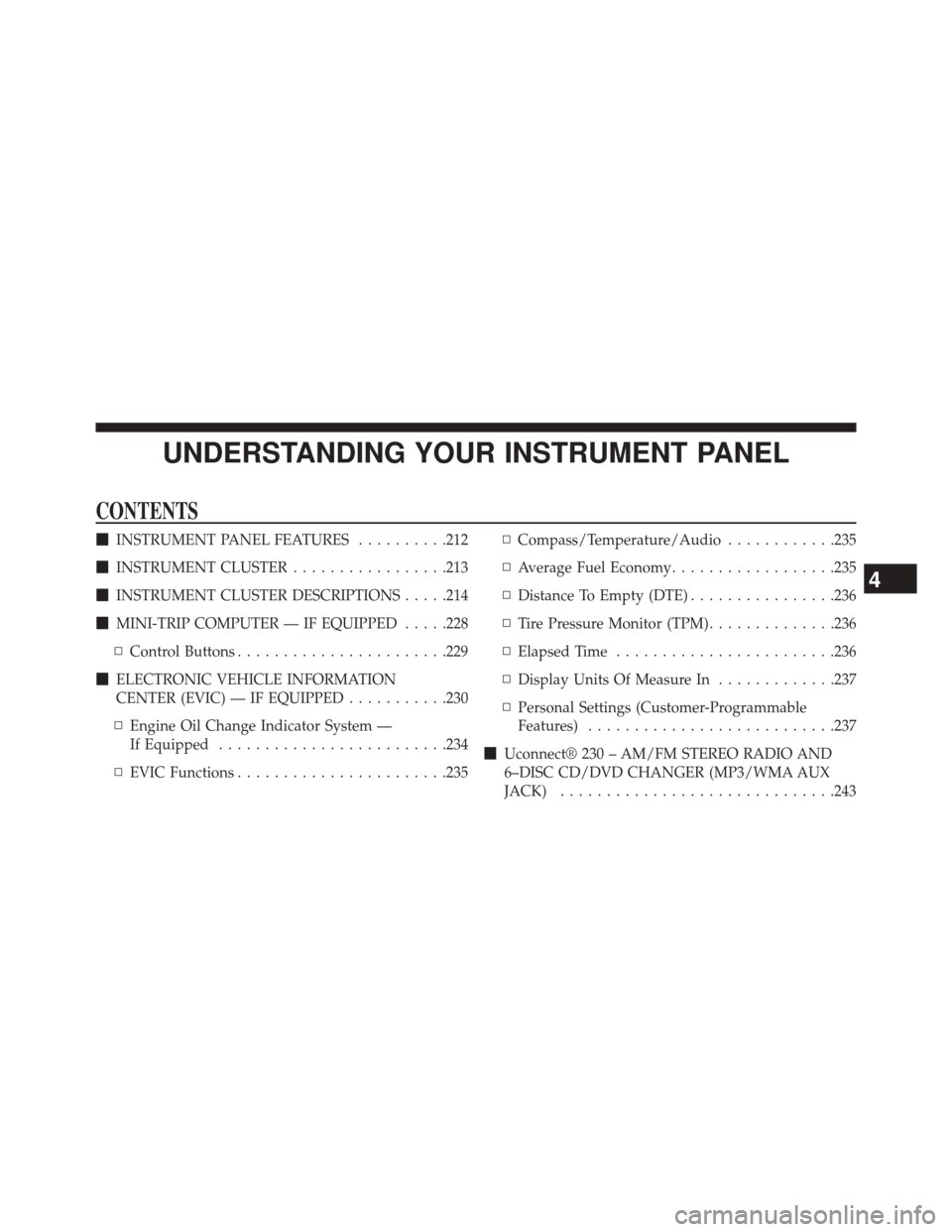

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........212
 INSTRUMENT CLUSTER .................213
 INSTRUMENT CLUSTER DESCRIPTIONS .....214
 MINI-TRIP COMPUTER — IF EQUIPPED .....228
▫ Control Buttons ...................... .229
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) — IF EQUIPPED ...........230
▫ Engine Oil Change Indicator System —
If Equipped ........................ .234
▫ EVIC Functions ...................... .235▫
Compass/Temperature/Audio ............235
▫ Average Fuel Economy ..................235
▫ Distance To Empty (DTE) ................236
▫ Tire Pressure Monitor (TPM) ..............236
▫ Elapsed Time ....................... .236
▫ Display Units Of Measure In .............237
▫ Personal Settings (Customer-Programmable
Features) .......................... .237
 Uconnect® 230 – AM/FM STEREO RADIO AND
6–DISC CD/DVD CHANGER (MP3/WMA AUX
JACK) ............................. .243
4

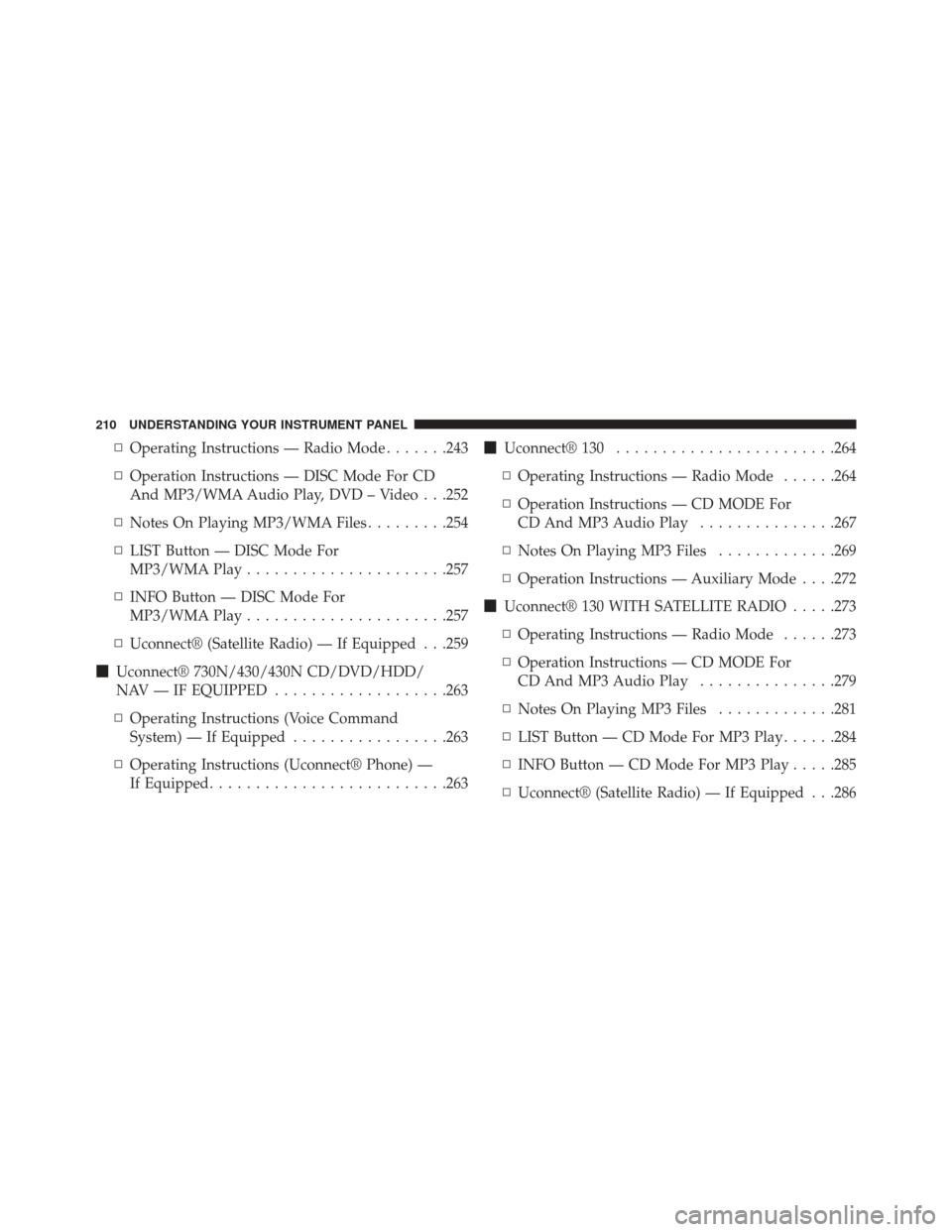

▫Operating Instructions — Radio Mode .......243
▫ Operation Instructions — DISC Mode For CD
And MP3/WMA Audio Play, DVD – Video . . .252
▫ Notes On Playing MP3/WMA Files .........254
▫ LIST Button — DISC Mode For
MP3/WMA Play ..................... .257
▫ INFO Button — DISC Mode For
MP3/WMA Play ..................... .257
▫ Uconnect® (Satellite Radio) — If Equipped . . .259
 Uconnect® 730N/430/430N CD/DVD/HDD/
NAV — IF EQUIPPED ...................263
▫ Operating Instructions (Voice Command
System) — If Equipped .................263
▫ Operating Instructions (Uconnect® Phone) —
If Equipped ......................... .263
Uconnect® 130 ....................... .264
▫ Operating Instructions — Radio Mode ......264
▫ Operation Instructions — CD MODE For
CD And MP3 Audio Play ...............267
▫ Notes On Playing MP3 Files .............269
▫ Operation Instructions — Auxiliary Mode . . . .272
 Uconnect® 130 WITH SATELLITE RADIO .....273
▫ Operating Instructions — Radio Mode ......273
▫ Operation Instructions — CD MODE For
CD And MP3 Audio Play ...............279
▫ Notes On Playing MP3 Files .............281
▫ LIST Button — CD Mode For MP3 Play ......284
▫ INFO Button — CD Mode For MP3 Play .....285
▫ Uconnect® (Satellite Radio) — If Equipped . . .286
210 UNDERSTANDING YOUR INSTRUMENT PANEL

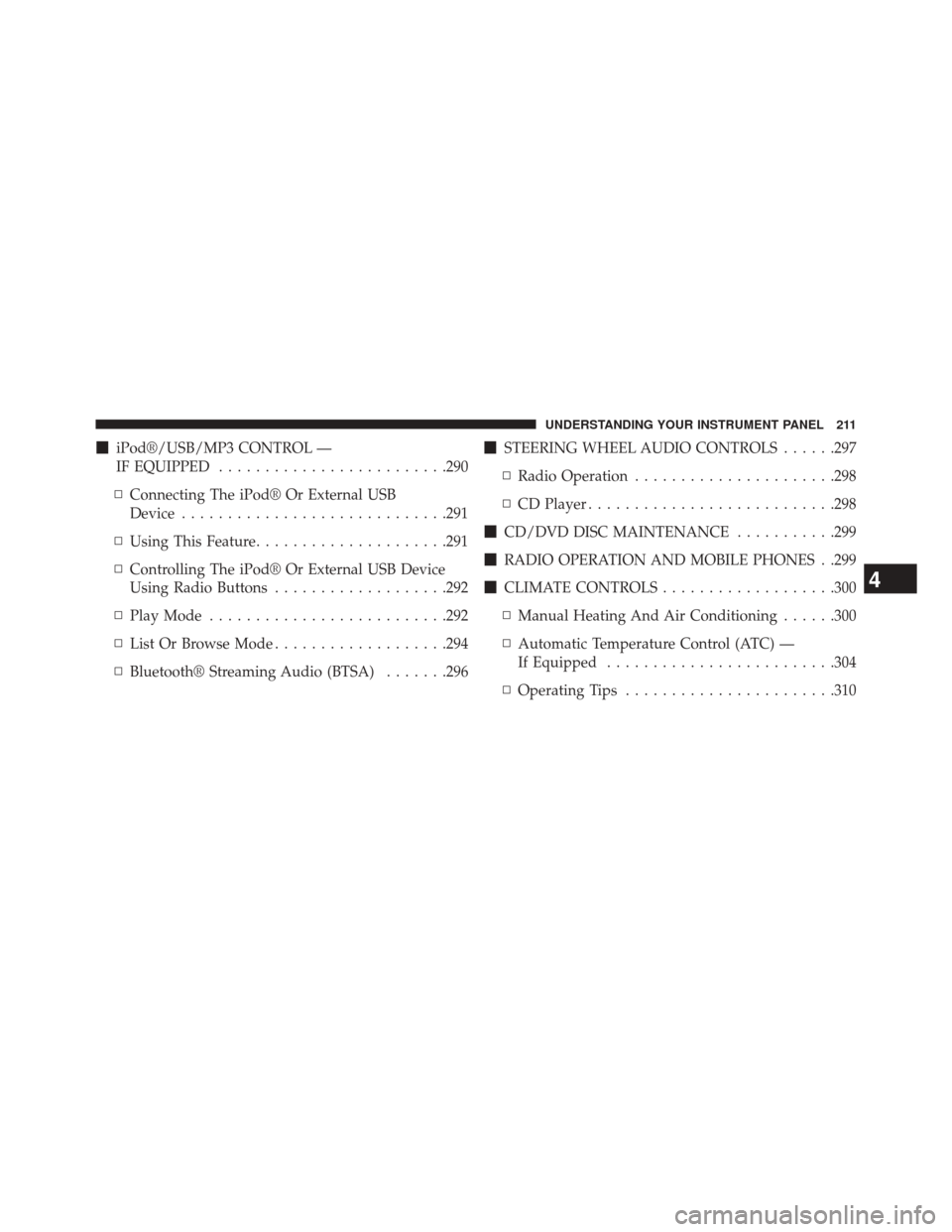

iPod®/USB/MP3 CONTROL —
IF EQUIPPED ........................ .290
▫ Connecting The iPod® Or External USB
Device ............................ .291
▫ Using This Feature .....................291
▫ Controlling The iPod® Or External USB Device
Using Radio Buttons ...................292
▫ Play Mode ......................... .292
▫ List Or Browse Mode ...................294
▫ Bluetooth® Streaming Audio (BTSA) .......296
STEERING WHEEL AUDIO CONTROLS ......297
▫ Radio Operation ..................... .298
▫ CD Player .......................... .298
 CD/DVD DISC MAINTENANCE ...........299
 RADIO OPERATION AND MOBILE PHONES . .299
 CLIMATE CONTROLS ...................300
▫ Manual Heating And Air Conditioning ......300
▫ Automatic Temperature Control (ATC) —
If Equipped ........................ .304
▫ Operating Tips ...................... .310
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211

INSTRUMENT PANEL FEATURES
1 — Air Outlet5 — Storage Bin9 — Heated Seat Switch – If Equipped
2 — Demisters 6 — Glove Compartment10 — Hazard Warning Flasher
3 — Instrument Cluster 7 — Climate Controls11 — ESC OFF Switch – If Equipped
4 — Radio 8 — Power Outlet12 — Heated Seat Switch – If Equipped
212 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 213

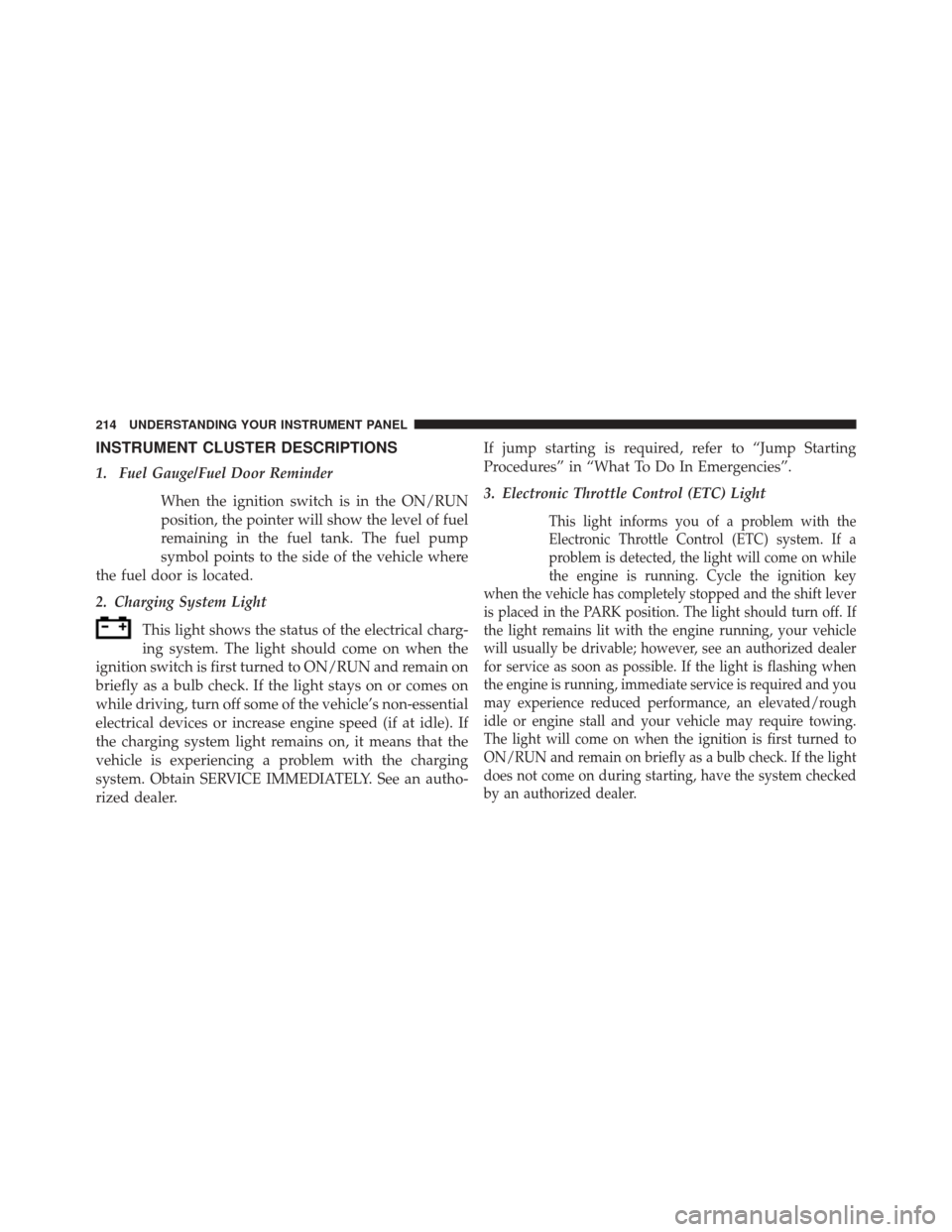

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge/Fuel Door ReminderWhen the ignition switch is in the ON/RUN
position, the pointer will show the level of fuel
remaining in the fuel tank. The fuel pump
symbol points to the side of the vehicle where
the fuel door is located.
2. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer. If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
3. Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on while
the engine is running. Cycle the ignition key
when the vehicle has completely stopped and the shift lever
is placed in the PARK position. The light should turn off. If
the light remains lit with the engine running, your vehicle
will usually be drivable; however, see an authorized dealer
for service as soon as possible. If the light is flashing when
the engine is running, immediate service is required and you
may experience reduced performance, an elevated/rough
idle or engine stall and your vehicle may require towing.
The light will come on when the ignition is first turned to
ON/RUN and remain on briefly as a bulb check. If the light
does not come on during starting, have the system checked
by an authorized dealer.
214 UNDERSTANDING YOUR INSTRUMENT PANEL

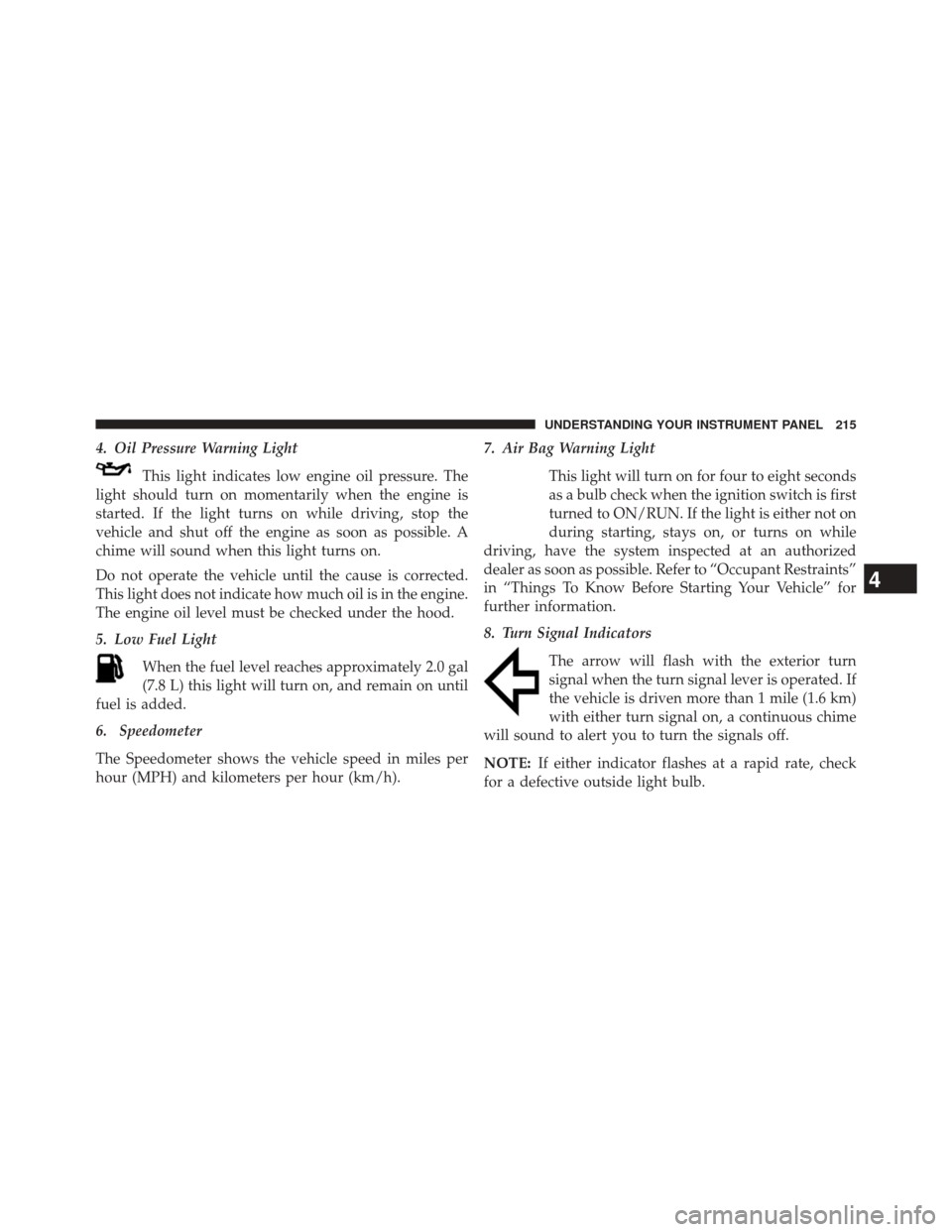

4. Oil Pressure Warning LightThis light indicates low engine oil pressure. The
light should turn on momentarily when the engine is
started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
5. Low Fuel Light
When the fuel level reaches approximately 2.0 gal
(7.8 L) this light will turn on, and remain on until
fuel is added.
6. Speedometer
The Speedometer shows the vehicle speed in miles per
hour (MPH) and kilometers per hour (km/h). 7. Air Bag Warning Light
This light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while
driving, have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
8. Turn Signal Indicators
The arrow will flash with the exterior turn
signal when the turn signal lever is operated. If
the vehicle is driven more than 1 mile (1.6 km)
with either turn signal on, a continuous chime
will sound to alert you to turn the signals off.
NOTE: If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 215

9. High Beam IndicatorThis indicator shows that the high beam head-
lights are on. Push the multifunction lever for-
ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.
10. Anti-Lock Brake (ABS) Light — If Equipped
This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on. If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer.
11. Seat Belt Reminder Light
When the ignition switch is first turned to ON/
RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if
the driver’s seat belt is unbuckled, a chime will sound.
After the bulb check or when driving, if the driver or front
passenger’s seat belt remains unbuckled, the Seat Belt
Reminder Light will illuminate and the chime will sound.
Refer to “Occupant Restraints” in “Things To Know Before
Starting Your Vehicle” for further information.
216 UNDERSTANDING YOUR INSTRUMENT PANEL

12. Tachometer
The white area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.
13. Engine Temperature Warning LightThis light warns of an overheated engine condi-
tion. As engine coolant temperatures rise and the
gauge approaches H, this indicator will illuminate and a
single chime will sound after reaching a set threshold.
Further overheating will cause the temperature gauge to
pass H, a continuous chime will occur until the engine is
allowed to cool or the four minutes duration is expired,
whichever come first.
If the light turns on while driving, safely pull over and stop
the vehicle. If the A/C system is on, turn it off. Also, shift
the transmission into NEUTRAL and idle the vehicle. If the temperature reading does not return to normal, turn the
engine off immediately and call for service. Refer to “If
Your Engine Overheats” in “What To Do In Emergencies”
for further information.
14. Brake Warning Light
This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on it may
indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with
the anti-lock brake system reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Control (ESC) system.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 217

In this case, the light will remain on until the condition
has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake
and a brake pedal pulsation may be felt during each stop.
The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
The light will remain on until the cause is corrected.
NOTE:The light may flash momentarily during sharp
cornering maneuvers, which change fluid level condi-
tions. The vehicle should have service performed, and
the brake fluid level checked.
If brake failure is indicated, immediate repair is neces-
sary.WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed.
It will take longer to stop the vehicle. You could have
a collision. Have the vehicle checked immediately.
Vehicles equipped with the Anti-Lock Brake System
(ABS), are also equipped with Electronic Brake Force
Distribution (EBD). In the event of an EBD failure, the
Brake Warning Light will turn on along with the ABS
Light. Immediate repair to the ABS system is required.
Operation of the Brake Warning Light can be checked by
turning the ignition switch from the OFF position to the
ON/RUN position. The light should illuminate for ap-
proximately two seconds. The light should then turn off
unless the parking brake is applied or a brake fault is
detected. If the light does not illuminate, have the light
inspected by an authorized dealer.
218 UNDERSTANDING YOUR INSTRUMENT PANEL
