JEEP PATRIOT 2015 1.G Owners Manual

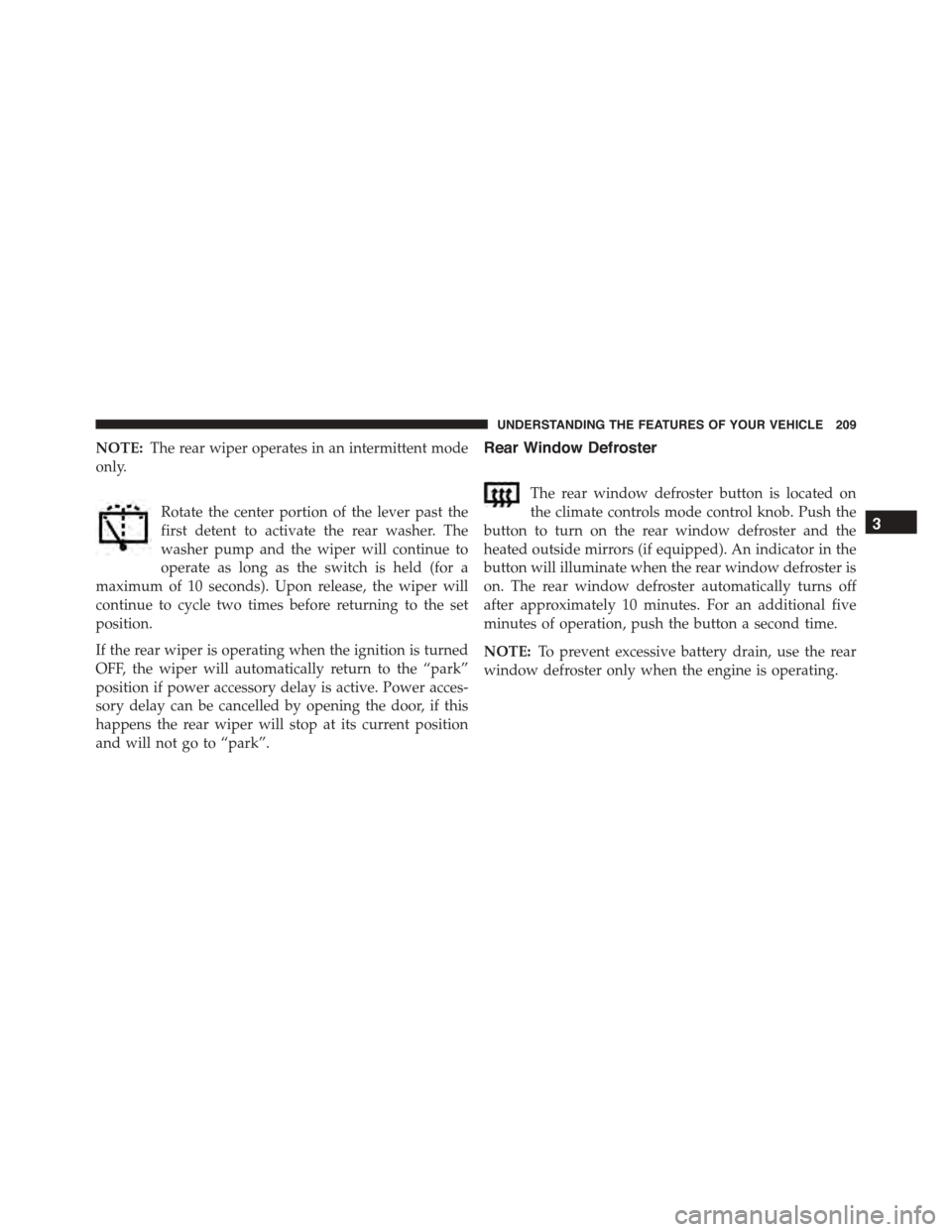

NOTE:The rear wiper operates in an intermittent mode
only.
Rotate the center portion of the lever past the
first detent to activate the rear washer. The
washer pump and the wiper will continue to
operate as long as the switch is held (for a
maximum of 10 seconds). Upon release, the wiper will
continue to cycle two times before returning to the set
position.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position if power accessory delay is active. Power acces-
sory delay can be cancelled by opening the door, if this
happens the rear wiper will stop at its current position
and will not go to “park”.
Rear Window Defroster
The rear window defroster button is located on
the climate controls mode control knob. Push the
button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator in the
button will illuminate when the rear window defroster is
on. The rear window defroster automatically turns off
after approximately 10 minutes. For an additional five
minutes of operation, push the button a second time.
NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 209

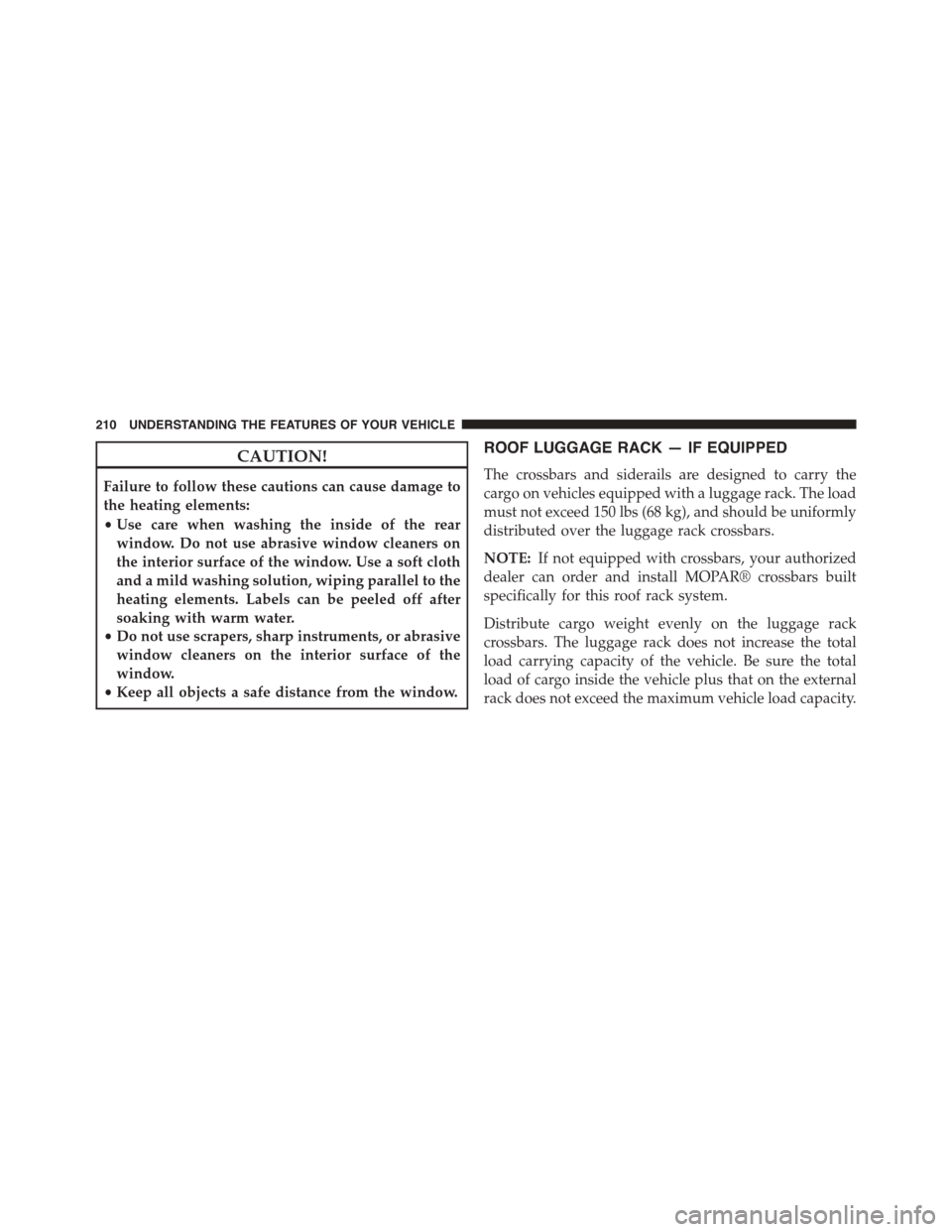

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
•Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
ROOF LUGGAGE RACK — IF EQUIPPED
The crossbars and siderails are designed to carry the
cargo on vehicles equipped with a luggage rack. The load
must not exceed 150 lbs (68 kg), and should be uniformly
distributed over the luggage rack crossbars.
NOTE:If not equipped with crossbars, your authorized
dealer can order and install MOPAR® crossbars built
specifically for this roof rack system.
Distribute cargo weight evenly on the luggage rack
crossbars. The luggage rack does not increase the total
load carrying capacity of the vehicle. Be sure the total
load of cargo inside the vehicle plus that on the external
rack does not exceed the maximum vehicle load capacity.
210 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

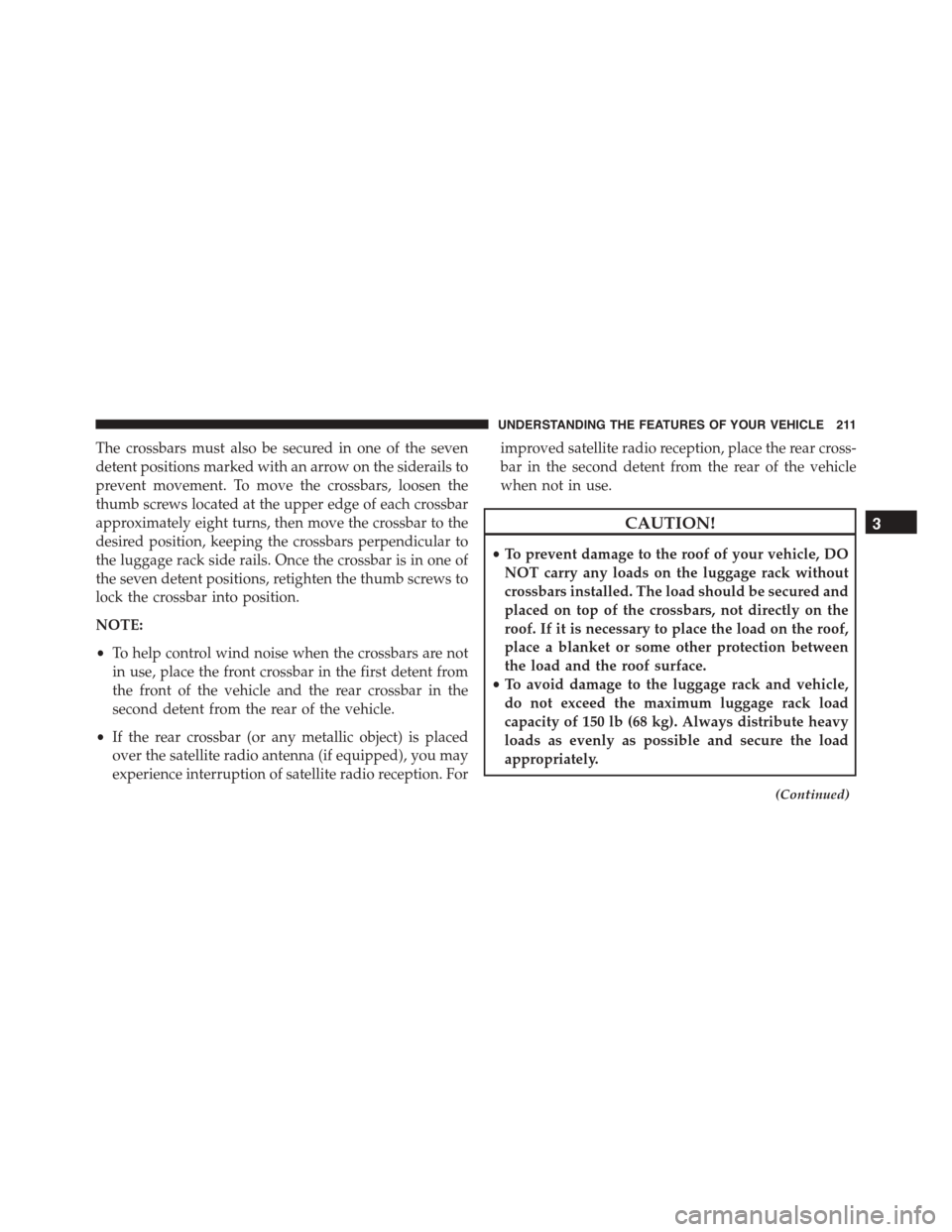

The crossbars must also be secured in one of the seven
detent positions marked with an arrow on the siderails to
prevent movement. To move the crossbars, loosen the
thumb screws located at the upper edge of each crossbar
approximately eight turns, then move the crossbar to the
desired position, keeping the crossbars perpendicular to
the luggage rack side rails. Once the crossbar is in one of
the seven detent positions, retighten the thumb screws to
lock the crossbar into position.
NOTE:
•To help control wind noise when the crossbars are not
in use, place the front crossbar in the first detent from
the front of the vehicle and the rear crossbar in the
second detent from the rear of the vehicle.
•If the rear crossbar (or any metallic object) is placed
over the satellite radio antenna (if equipped), you may
experience interruption of satellite radio reception. For
improved satellite radio reception, place the rear cross-
bar in the second detent from the rear of the vehicle
when not in use.
CAUTION!
•To prevent damage to the roof of your vehicle, DO
NOT carry any loads on the luggage rack without
crossbars installed. The load should be secured and
placed on top of the crossbars, not directly on the
roof. If it is necessary to place the load on the roof,
place a blanket or some other protection between
the load and the roof surface.
•To avoid damage to the luggage rack and vehicle,
do not exceed the maximum luggage rack load
capacity of 150 lb (68 kg). Always distribute heavy
loads as evenly as possible and secure the load
appropriately.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 211

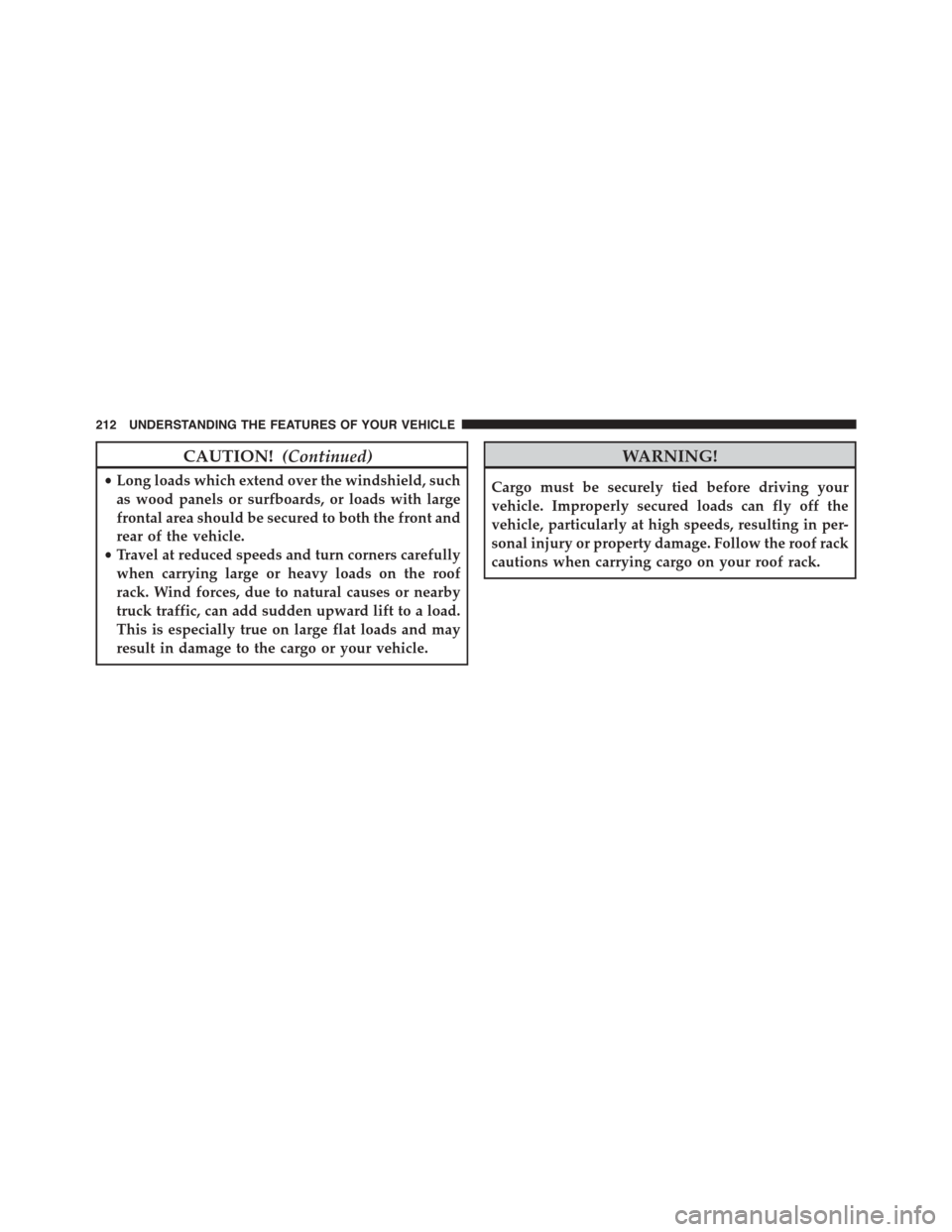

CAUTION!(Continued)
•Long loads which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
•Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward lift to a load.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
cautions when carrying cargo on your roof rack.
212 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

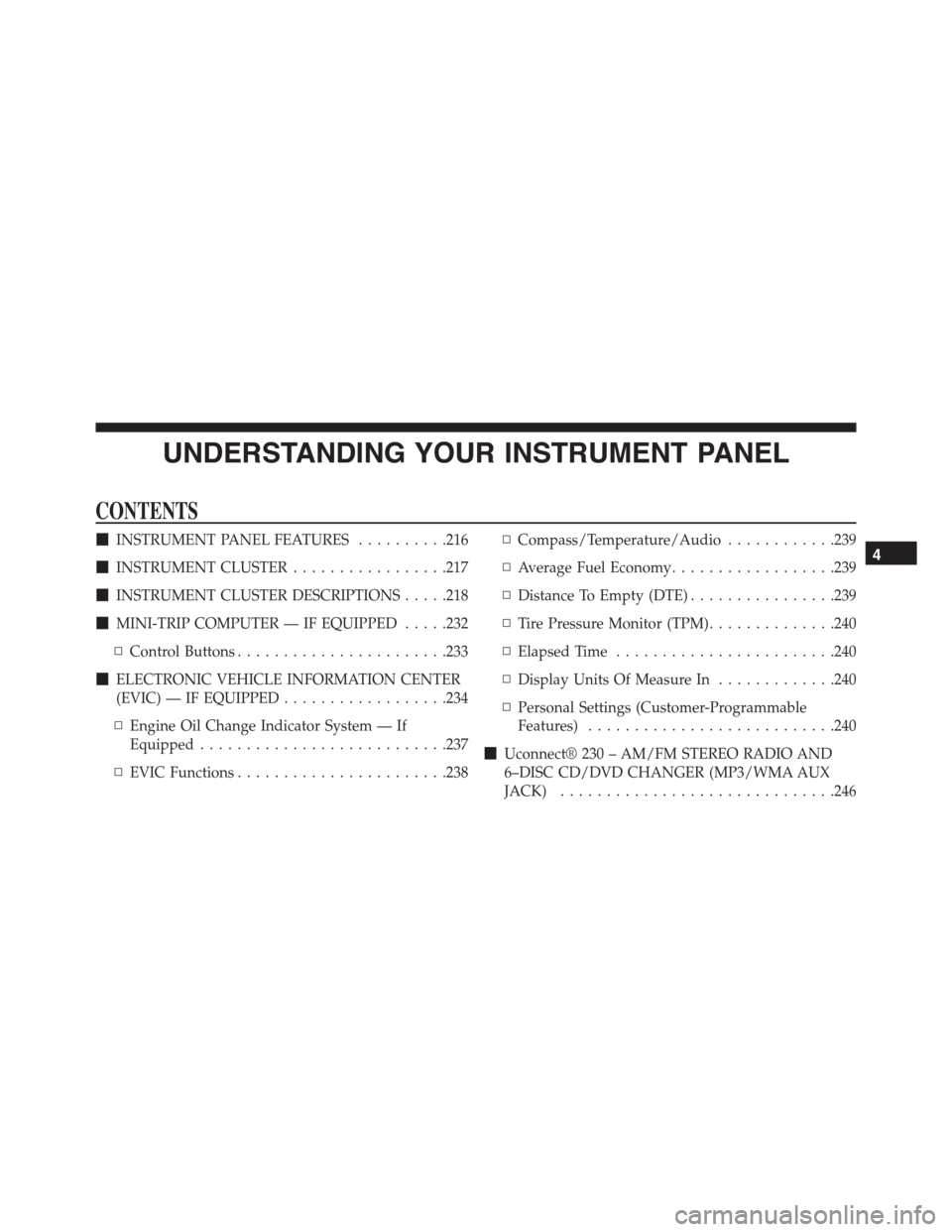

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
!INSTRUMENT PANEL FEATURES..........216
!INSTRUMENT CLUSTER.................217
!INSTRUMENT CLUSTER DESCRIPTIONS.....218
!MINI-TRIP COMPUTER — IF EQUIPPED.....232
▫Control Buttons.......................233
!ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) — IF EQUIPPED..................234
▫Engine Oil Change Indicator System — If
Equipped...........................237
▫EVIC Functions.......................238
▫Compass/Temperature/Audio............239
▫Average Fuel Economy..................239
▫Distance To Empty (DTE)................239
▫Tire Pressure Monitor (TPM)..............240
▫Elapsed Time........................240
▫Display Units Of Measure In.............240
▫Personal Settings (Customer-Programmable
Features)...........................240
!Uconnect® 230 – AM/FM STEREO RADIO AND
6–DISC CD/DVD CHANGER (MP3/WMA AUX
JACK)..............................246
4

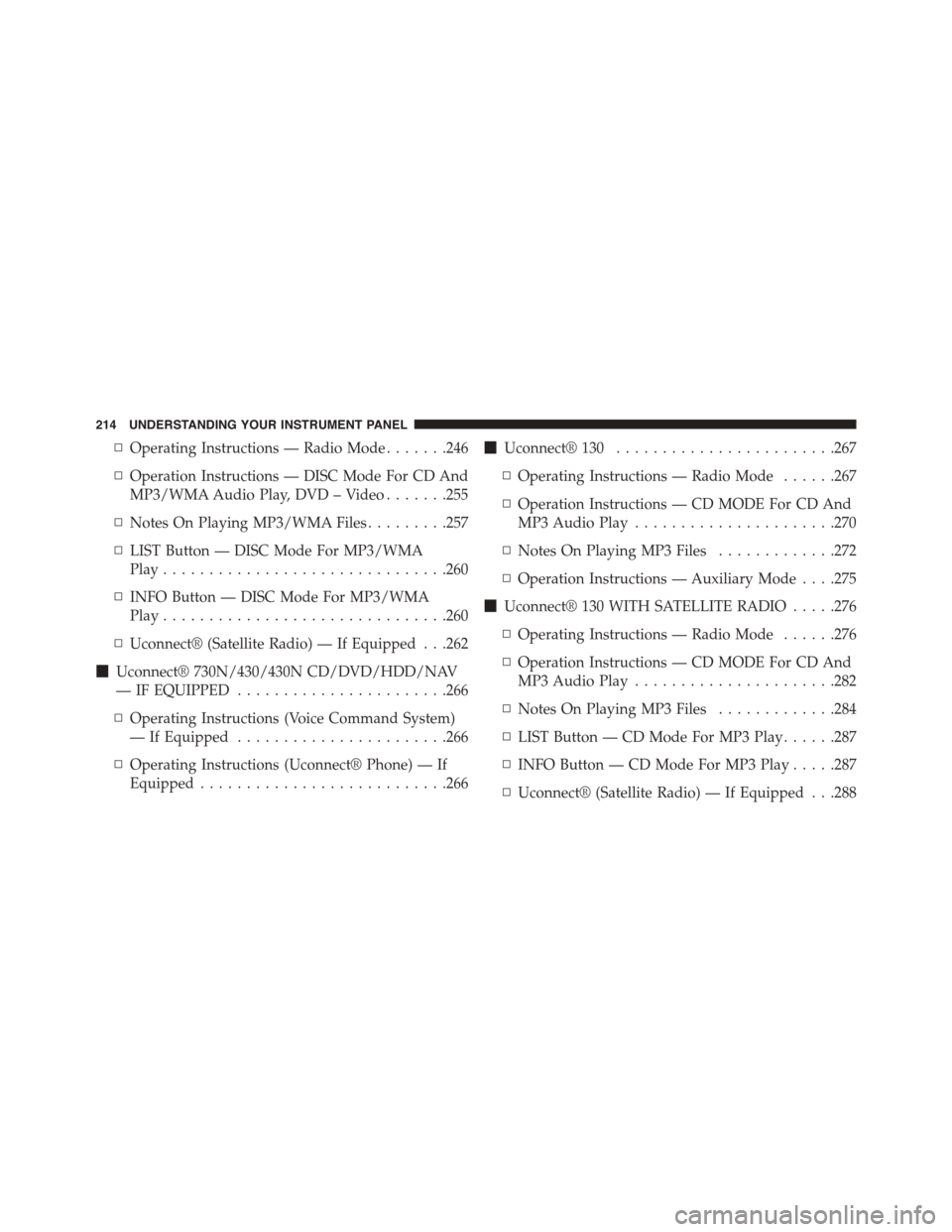

▫Operating Instructions — Radio Mode.......246
▫Operation Instructions — DISC Mode For CD And
MP3/WMA Audio Play, DVD – Video.......255
▫Notes On Playing MP3/WMA Files.........257
▫LIST Button — DISC Mode For MP3/WMA
Play...............................260
▫INFO Button — DISC Mode For MP3/WMA
Play...............................260
▫Uconnect® (Satellite Radio) — If Equipped . . .262
!Uconnect® 730N/430/430N CD/DVD/HDD/NAV
— IF EQUIPPED.......................266
▫Operating Instructions (Voice Command System)
— If Equipped.......................266
▫Operating Instructions (Uconnect® Phone) — If
Equipped...........................266
!Uconnect® 130........................267
▫Operating Instructions — Radio Mode......267
▫Operation Instructions — CD MODE For CD And
MP3 Audio Play......................270
▫Notes On Playing MP3 Files.............272
▫Operation Instructions — Auxiliary Mode . . . .275
!Uconnect® 130 WITH SATELLITE RADIO.....276
▫Operating Instructions — Radio Mode......276
▫Operation Instructions — CD MODE For CD And
MP3 Audio Play......................282
▫Notes On Playing MP3 Files.............284
▫LIST Button — CD Mode For MP3 Play......287
▫INFO Button — CD Mode For MP3 Play.....287
▫Uconnect® (Satellite Radio) — If Equipped . . .288
214 UNDERSTANDING YOUR INSTRUMENT PANEL

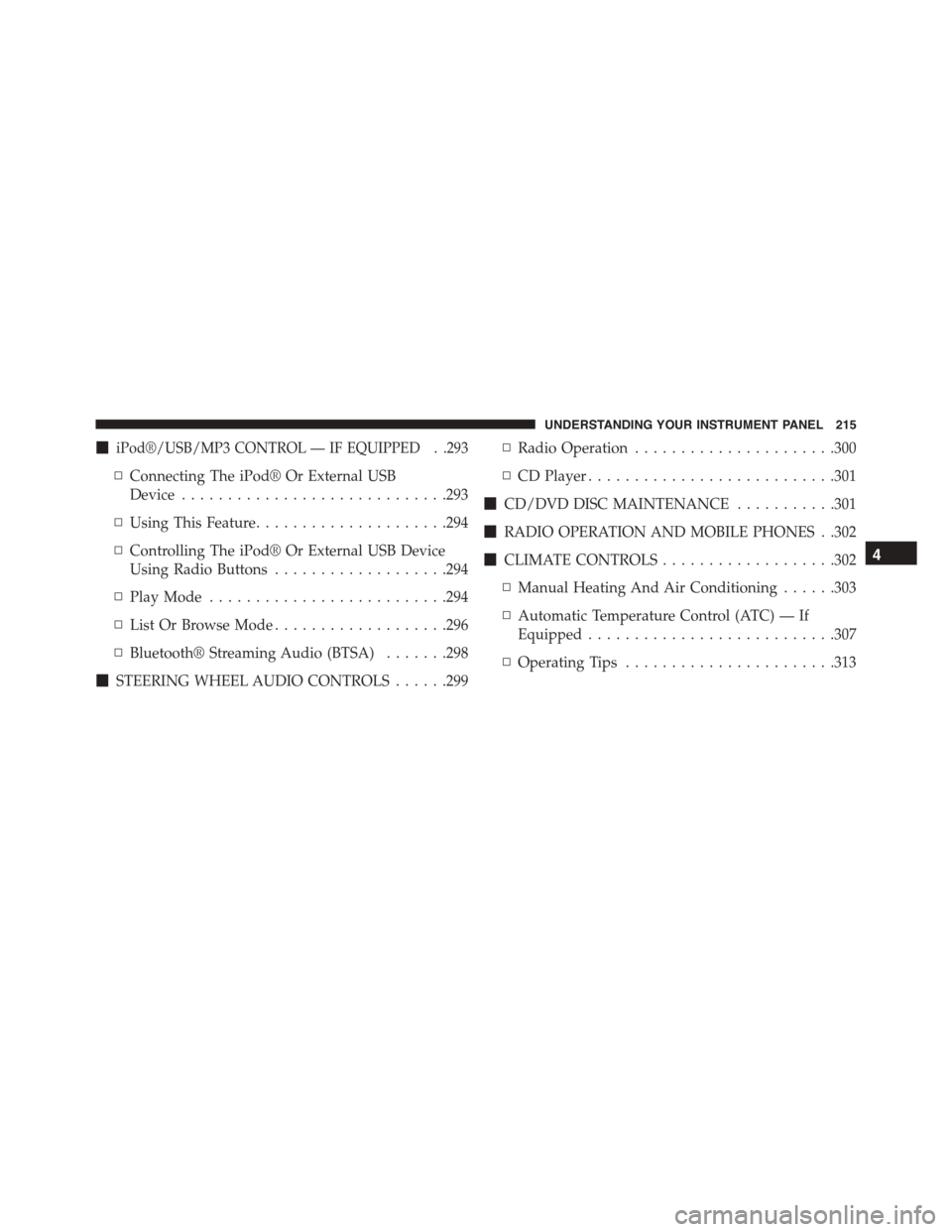

!iPod®/USB/MP3 CONTROL — IF EQUIPPED . .293
▫Connecting The iPod® Or External USB
Device.............................293
▫Using This Feature.....................294
▫Controlling The iPod® Or External USB Device
Using Radio Buttons...................294
▫Play Mode..........................294
▫List Or Browse Mode...................296
▫Bluetooth® Streaming Audio (BTSA).......298
!STEERING WHEEL AUDIO CONTROLS......299
▫Radio Operation......................300
▫CD Player...........................301
!CD/DVD DISC MAINTENANCE...........301
!RADIO OPERATION AND MOBILE PHONES . .302
!CLIMATE CONTROLS...................302
▫Manual Heating And Air Conditioning......303
▫Automatic Temperature Control (ATC) — If
Equipped...........................307
▫Operating Tips.......................313
4
UNDERSTANDING YOUR INSTRUMENT PANEL 215

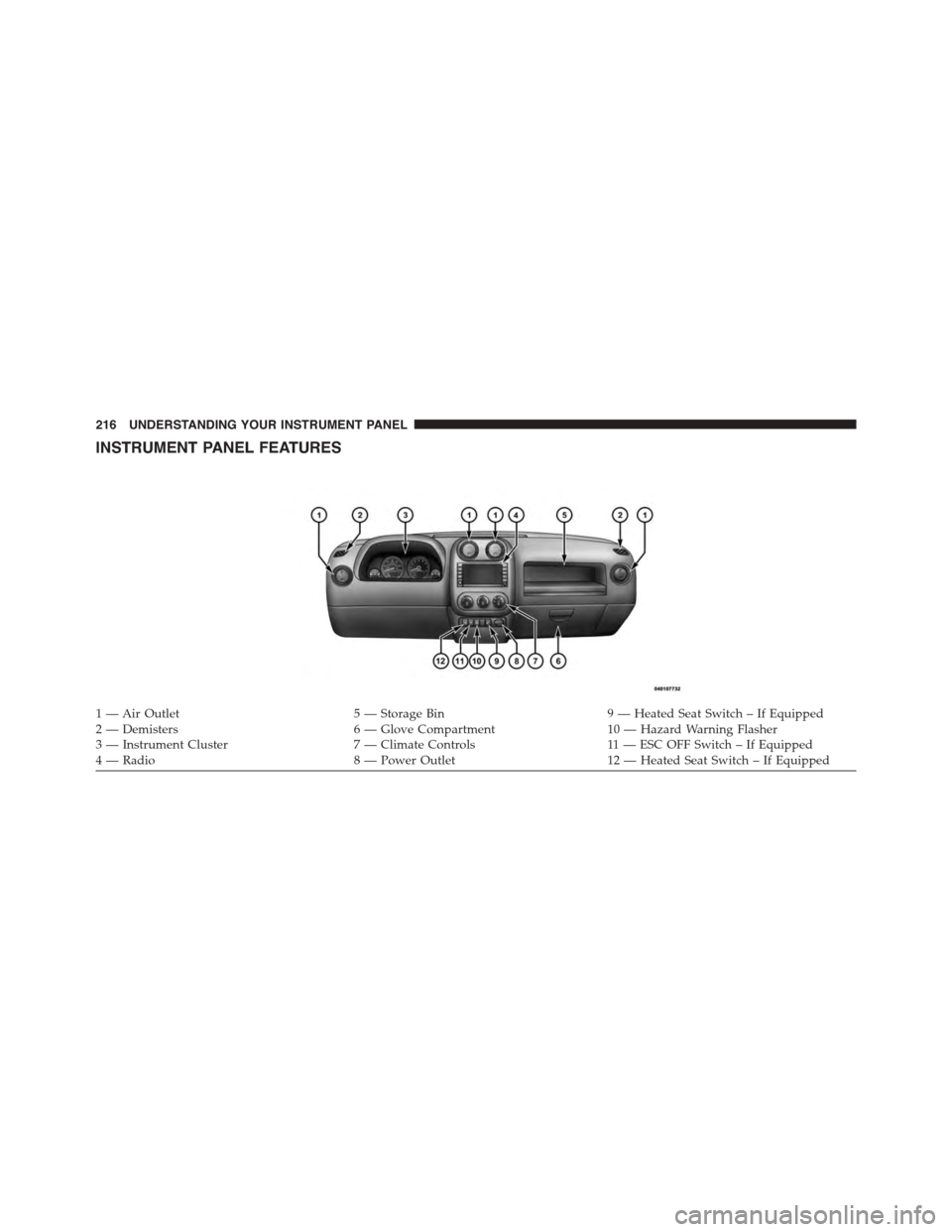

INSTRUMENT PANEL FEATURES
1 — Air Outlet5 — Storage Bin9 — Heated Seat Switch – If Equipped2 — Demisters6 — Glove Compartment10 — Hazard Warning Flasher3—InstrumentCluster7—ClimateControls11 — E S C O F F S w i t c h – I f E q u i p p e d4 — Radio8 — Power Outlet12 — Heated Seat Switch – If Equipped
216 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 217

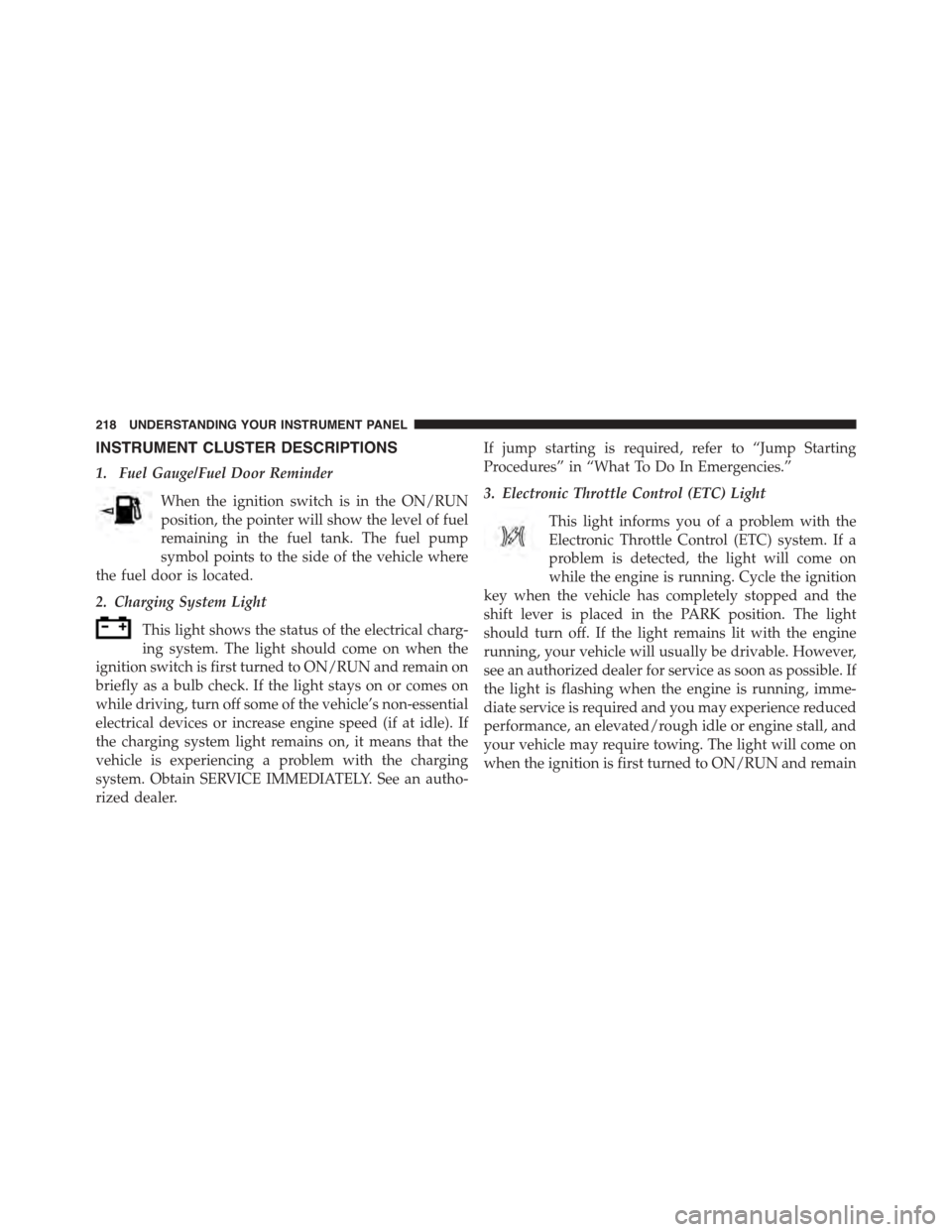

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge/Fuel Door Reminder
When the ignition switch is in the ON/RUN
position, the pointer will show the level of fuel
remaining in the fuel tank. The fuel pump
symbol points to the side of the vehicle where
the fuel door is located.
2. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies.”
3. Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped and the
shift lever is placed in the PARK position. The light
should turn off. If the light remains lit with the engine
running, your vehicle will usually be drivable. However,
see an authorized dealer for service as soon as possible. If
the light is flashing when the engine is running, imme-
diate service is required and you may experience reduced
performance, an elevated/rough idle or engine stall, and
your vehicle may require towing. The light will come on
when the ignition is first turned to ON/RUN and remain
218 UNDERSTANDING YOUR INSTRUMENT PANEL
