CAUTION!(Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with great caution.
•After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.

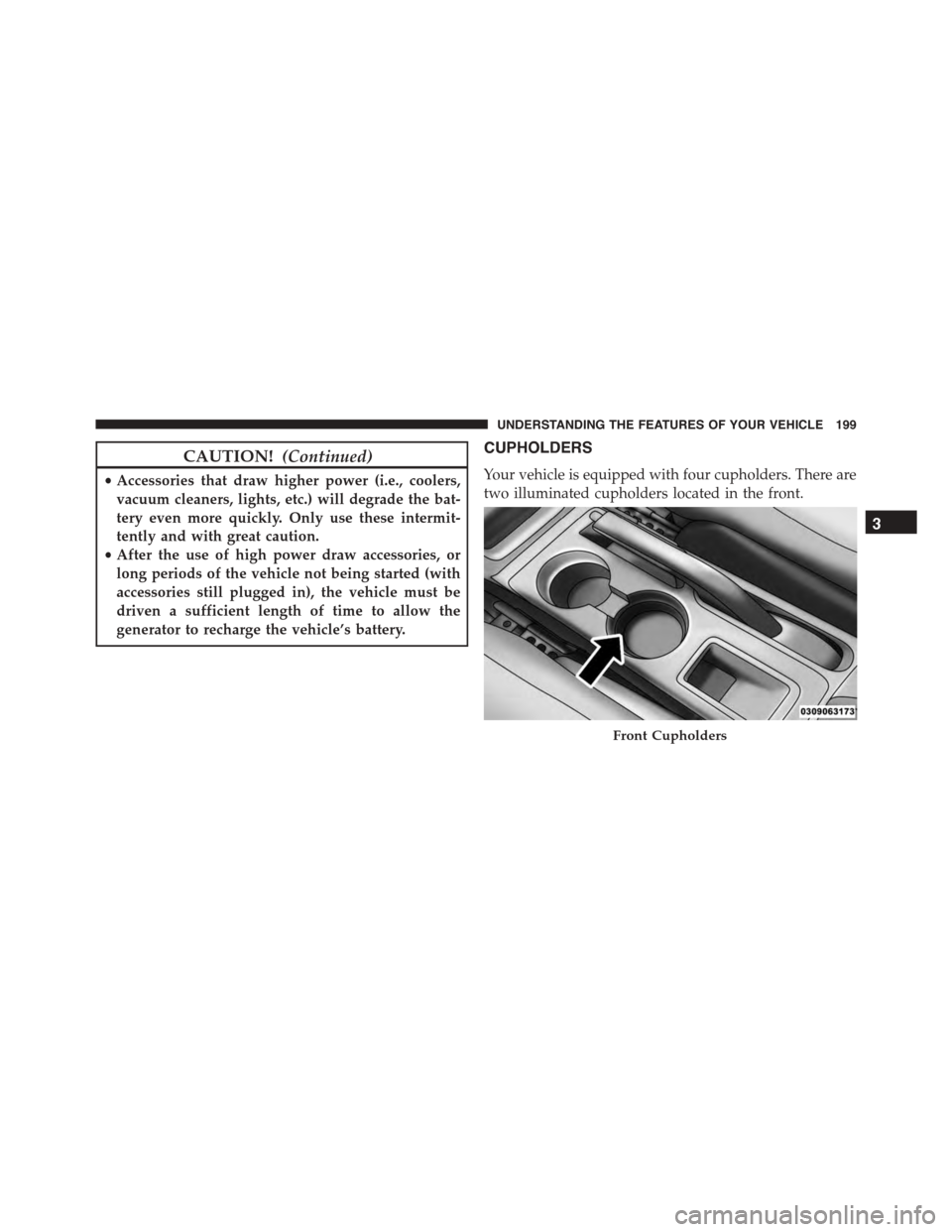

CUPHOLDERS
Your vehicle is equipped with four cupholders. There are
two illuminated cupholders located in the front.
Front Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 199

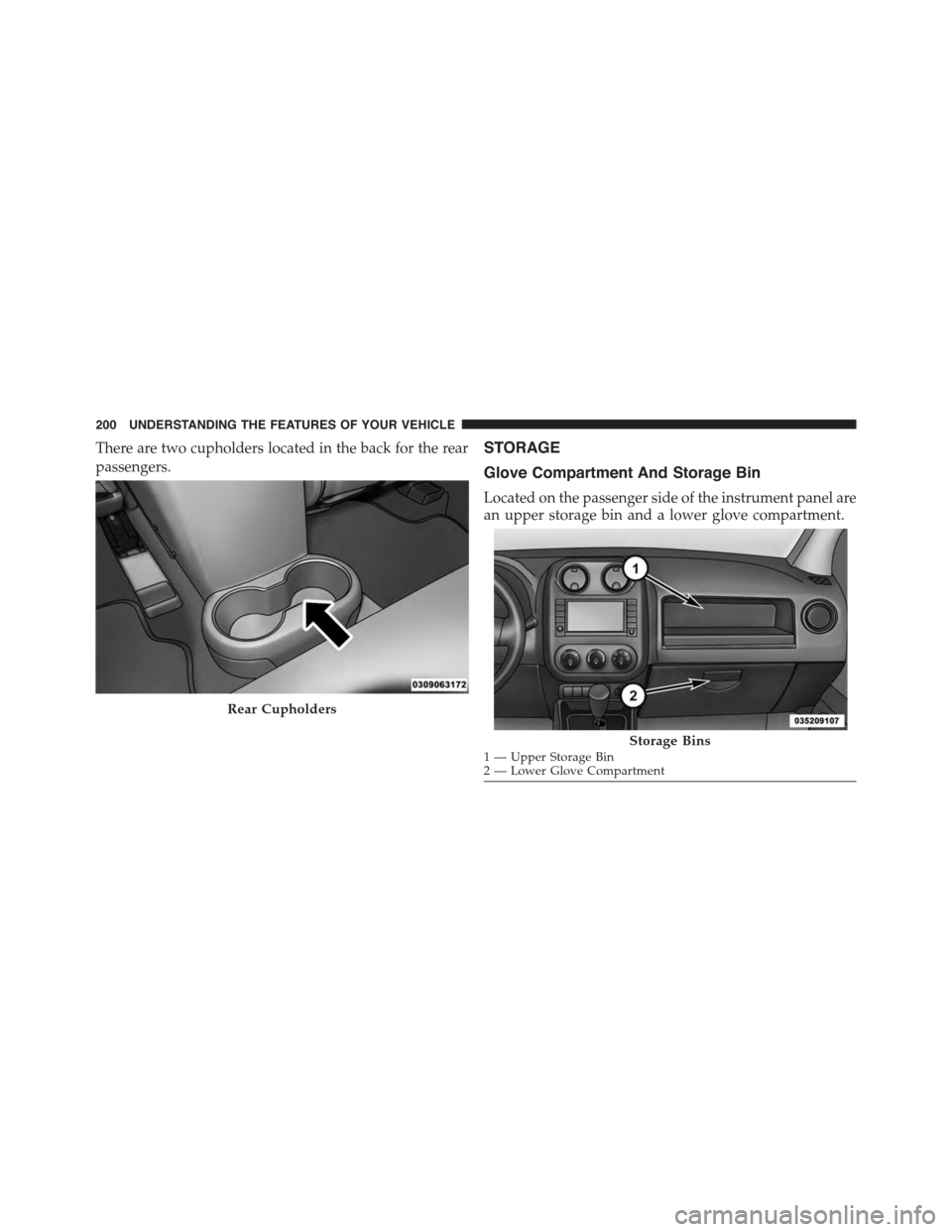

There are two cupholders located in the back for the rear
passengers.
STORAGE
Glove Compartment And Storage Bin
Located on the passenger side of the instrument panel are
an upper storage bin and a lower glove compartment.
Rear Cupholders
Storage Bins1 — Upper Storage Bin2—LowerGloveCompartment
200 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

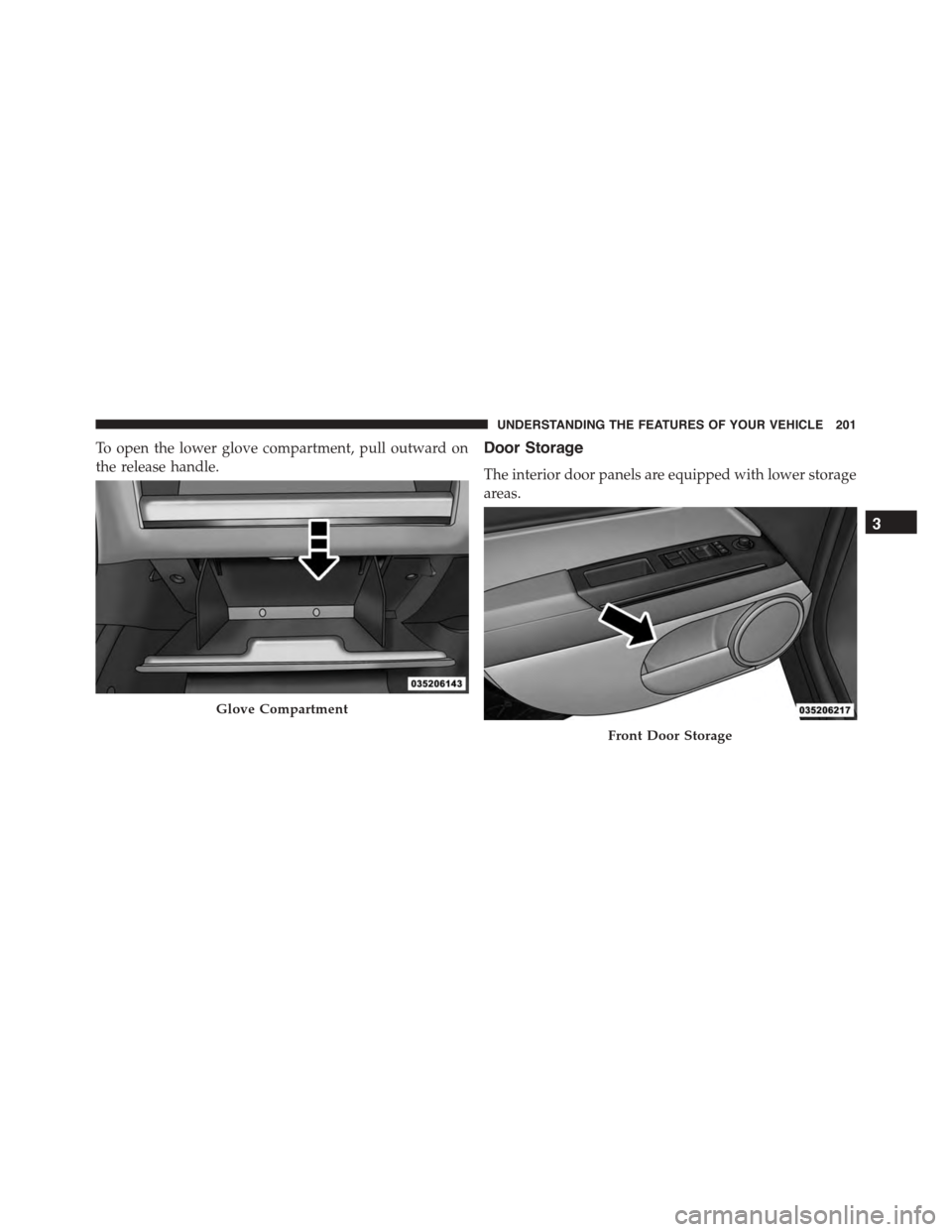

To open the lower glove compartment, pull outward on
the release handle.
Door Storage
The interior door panels are equipped with lower storage
areas.
Glove Compartment
Front Door Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 201

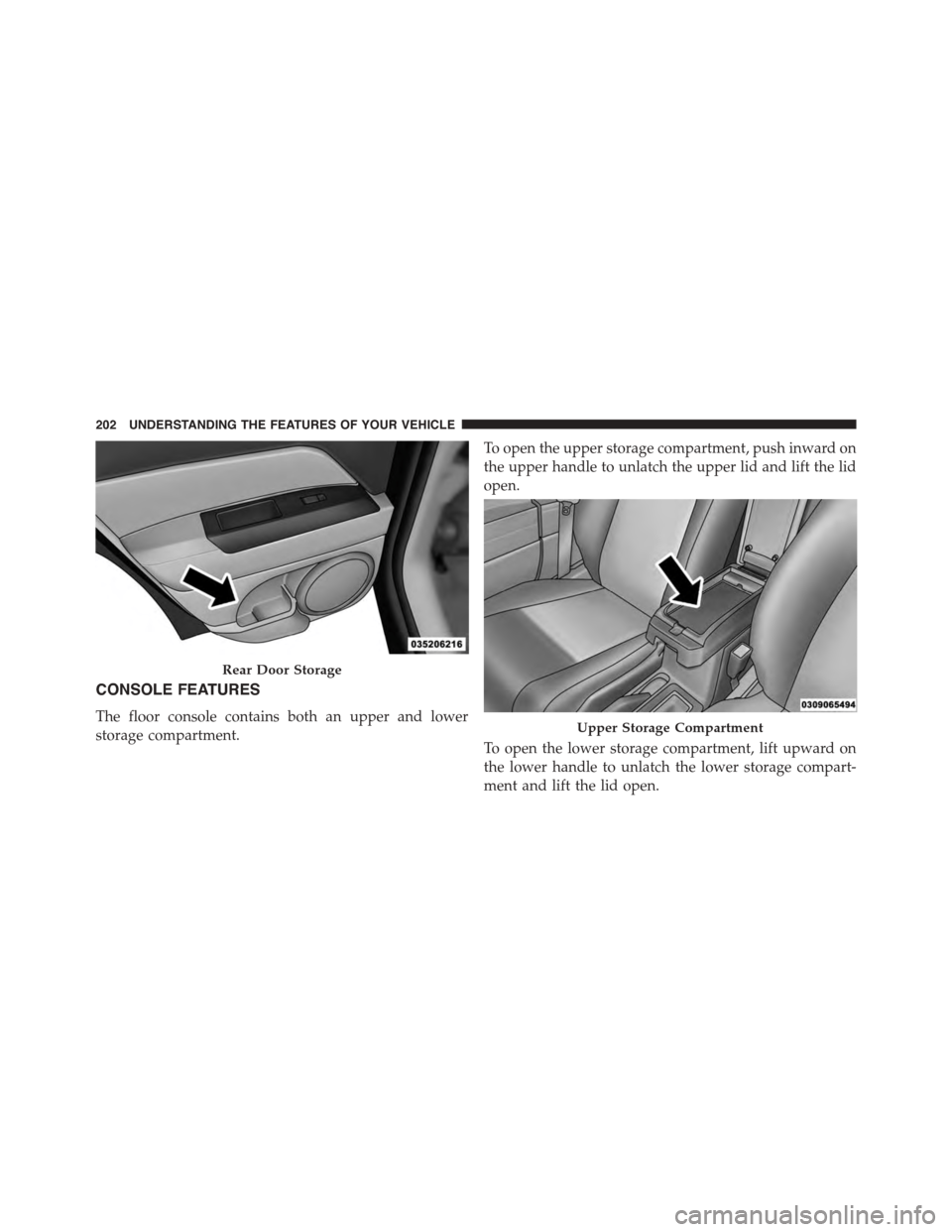

CONSOLE FEATURES
The floor console contains both an upper and lower
storage compartment.
To open the upper storage compartment, push inward on
the upper handle to unlatch the upper lid and lift the lid
open.
To open the lower storage compartment, lift upward on
the lower handle to unlatch the lower storage compart-
ment and lift the lid open.
Rear Door Storage
Upper Storage Compartment
202 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.

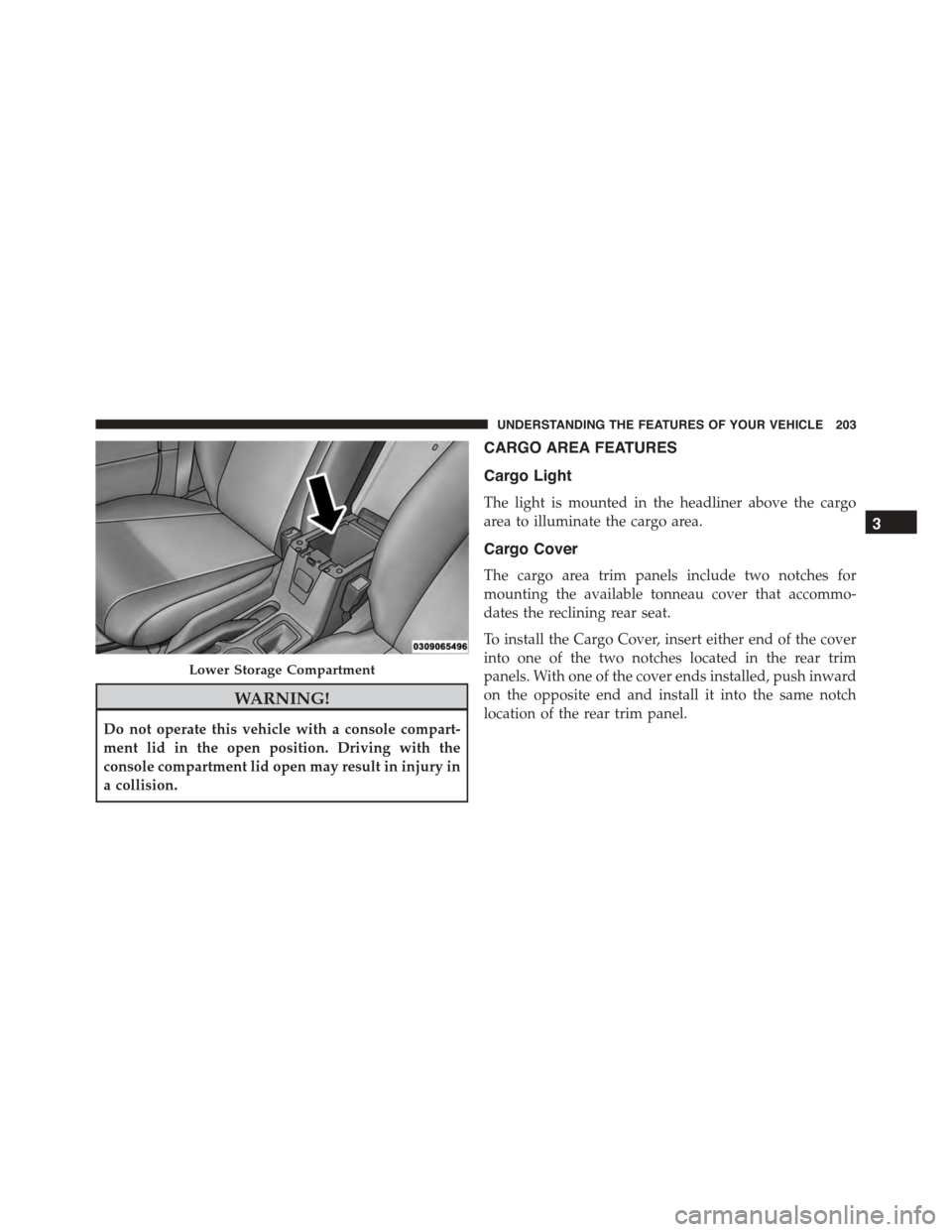

CARGO AREA FEATURES
Cargo Light
The light is mounted in the headliner above the cargo
area to illuminate the cargo area.
Cargo Cover
The cargo area trim panels include two notches for
mounting the available tonneau cover that accommo-
dates the reclining rear seat.
To install the Cargo Cover, insert either end of the cover
into one of the two notches located in the rear trim
panels. With one of the cover ends installed, push inward
on the opposite end and install it into the same notch
location of the rear trim panel.
Lower Storage Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203

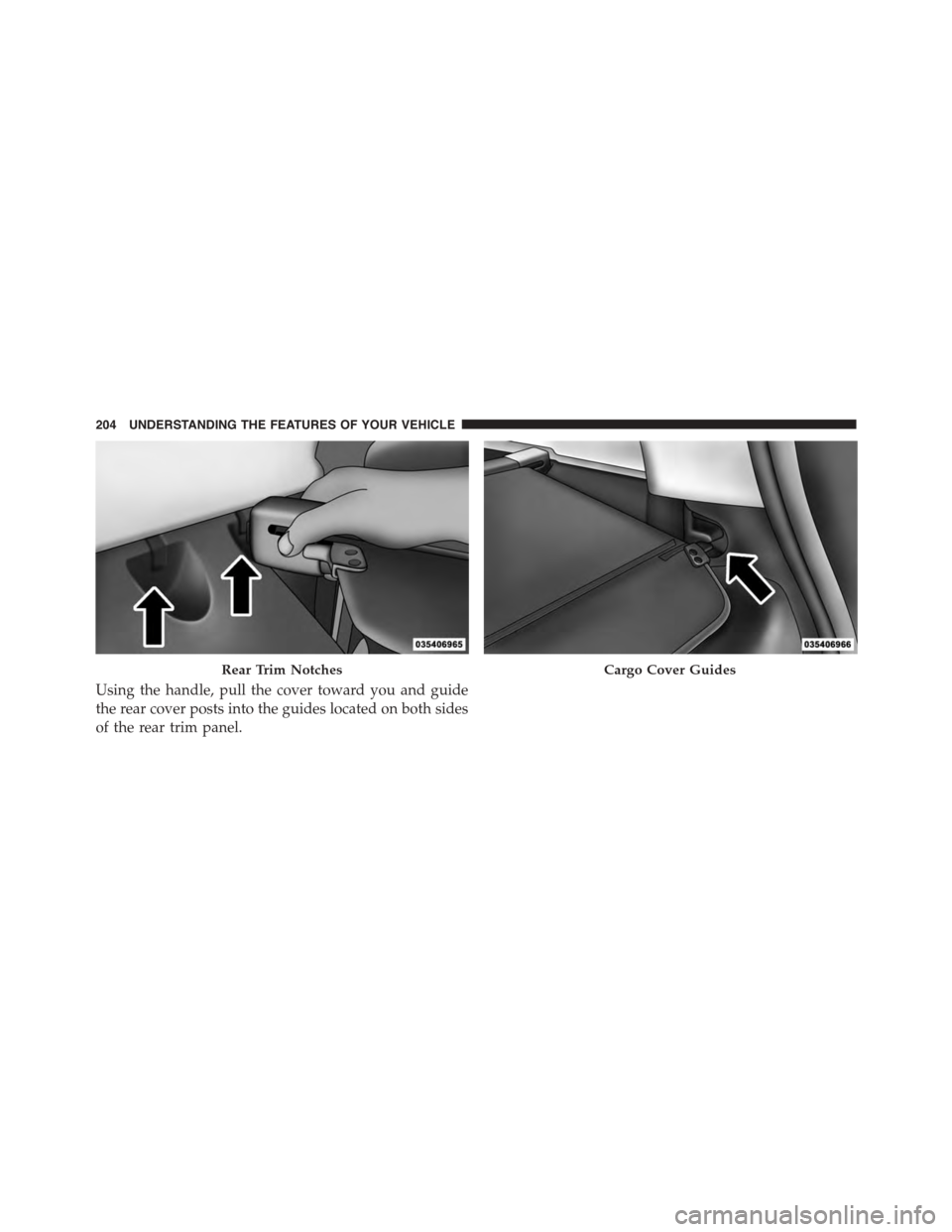

Using the handle, pull the cover toward you and guide
the rear cover posts into the guides located on both sides
of the rear trim panel.
Rear Trim NotchesCargo Cover Guides
204 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
In a collision a cargo cover loose in the vehicle could
cause injury. It could fly around in a sudden stop and
strike someone in the vehicle. Do not store the cargo
cover on the cargo floor or in the passenger compart-
ment. Remove the cover from the vehicle when taken
from its mounting. Do not store in the vehicle.

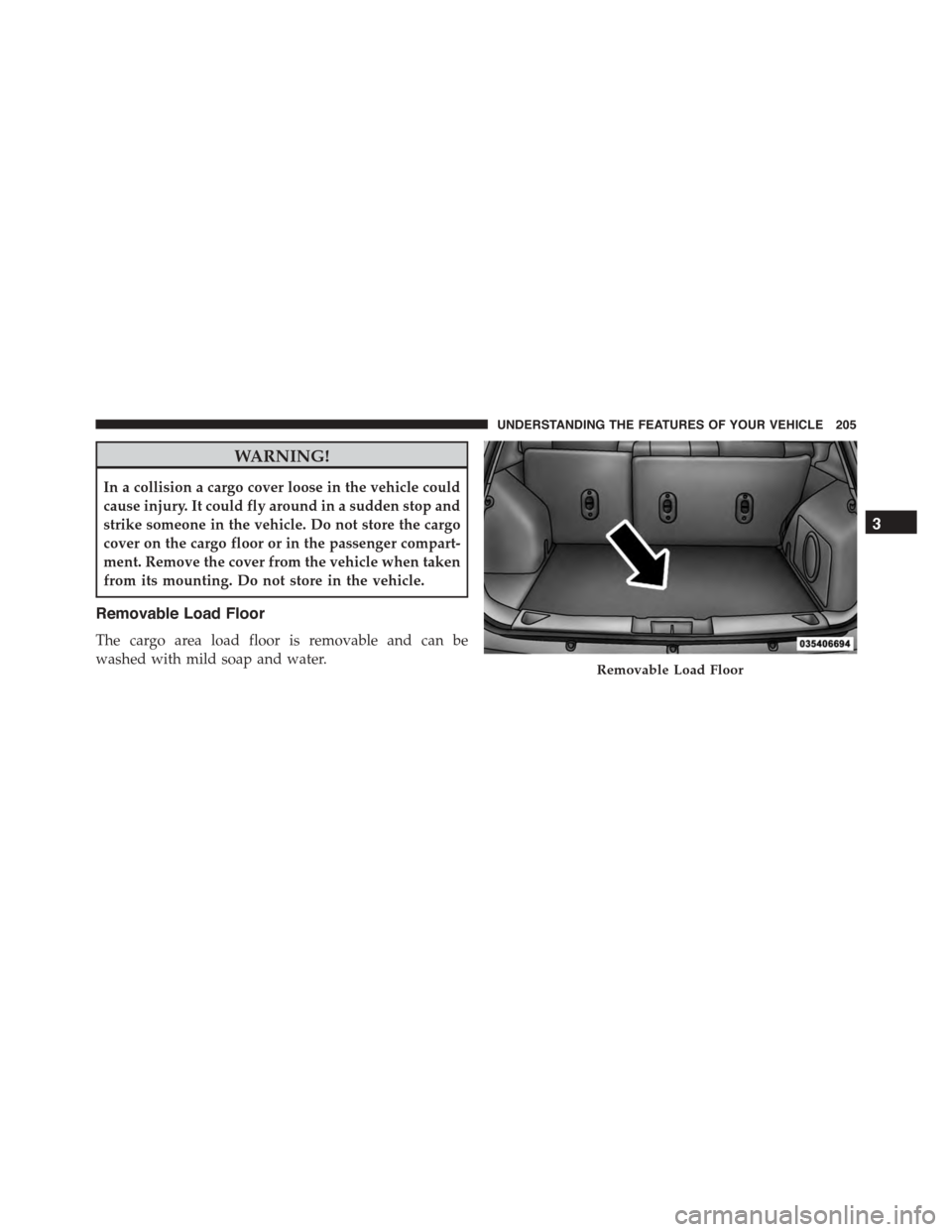

Removable Load Floor
The cargo area load floor is removable and can be
washed with mild soap and water.Removable Load Floor
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 205

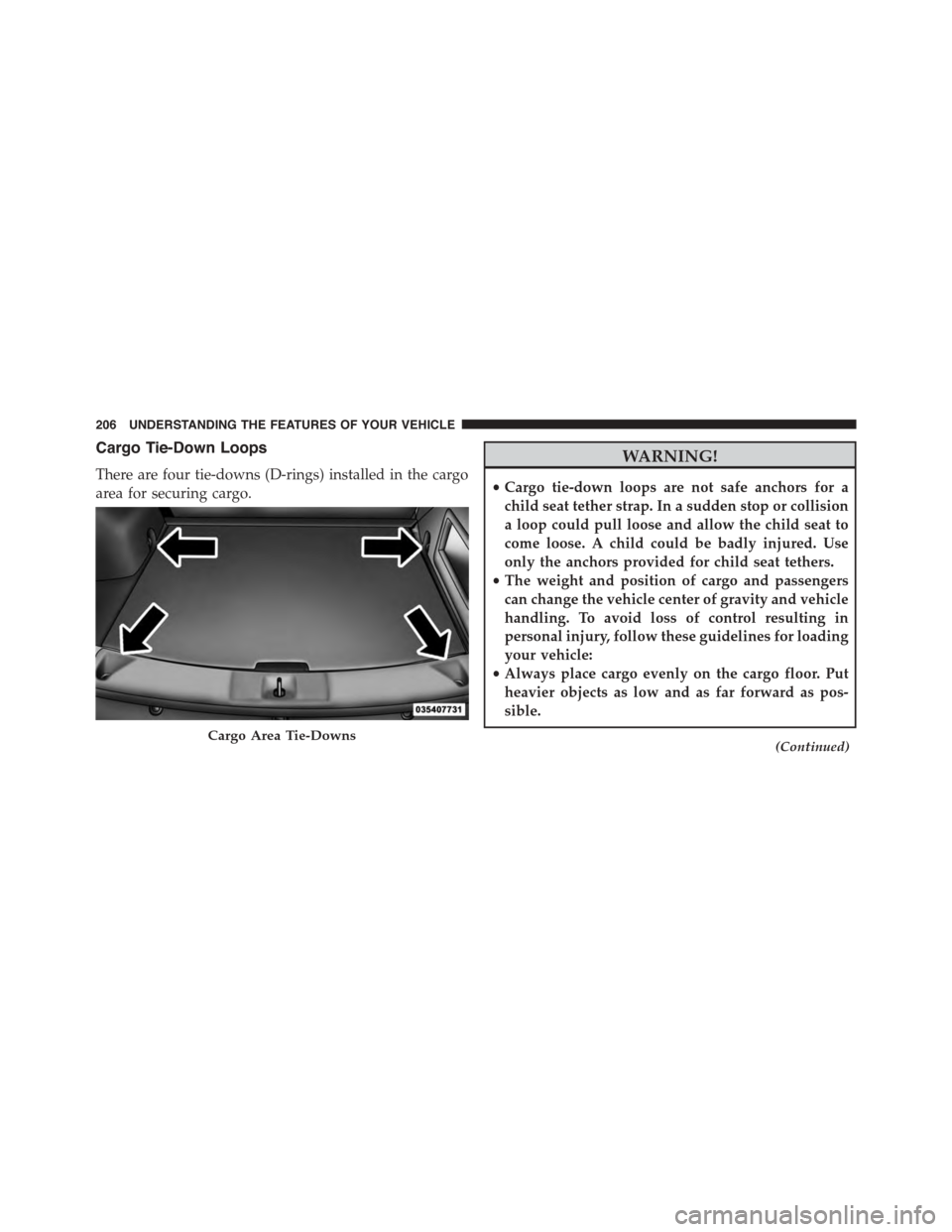

Cargo Tie-Down Loops
There are four tie-downs (D-rings) installed in the cargo
area for securing cargo.
WARNING!
•Cargo tie-down loops are not safe anchors for a
child seat tether strap. In a sudden stop or collision
a loop could pull loose and allow the child seat to
come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.
•The weight and position of cargo and passengers
can change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in
personal injury, follow these guidelines for loading
your vehicle:
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as pos-
sible.
(Continued)Cargo Area Tie-Downs
206 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!(Continued)
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the rear of
the vehicle to sway.
•Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats
and use seat belts.

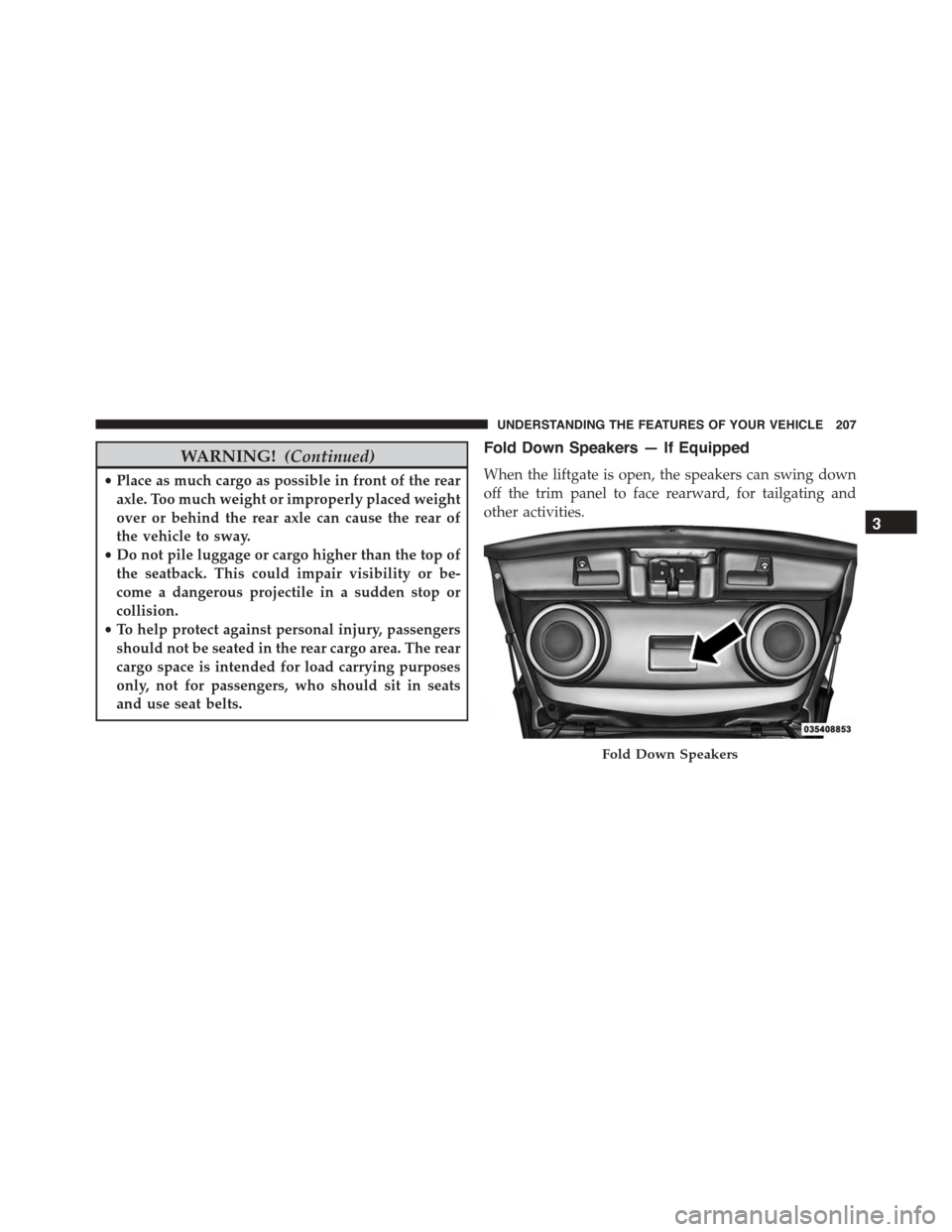

Fold Down Speakers — If Equipped
When the liftgate is open, the speakers can swing down
off the trim panel to face rearward, for tailgating and
other activities.
Fold Down Speakers
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 207

REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer is controlled by a rotary switch
located on the center portion of the control lever. The
control lever is located on the right side of the steering
column.
Rotate the center portion of the lever upward to
the first detent position for rear wiper operation.
Rear Wiper/Washer Control Lever
