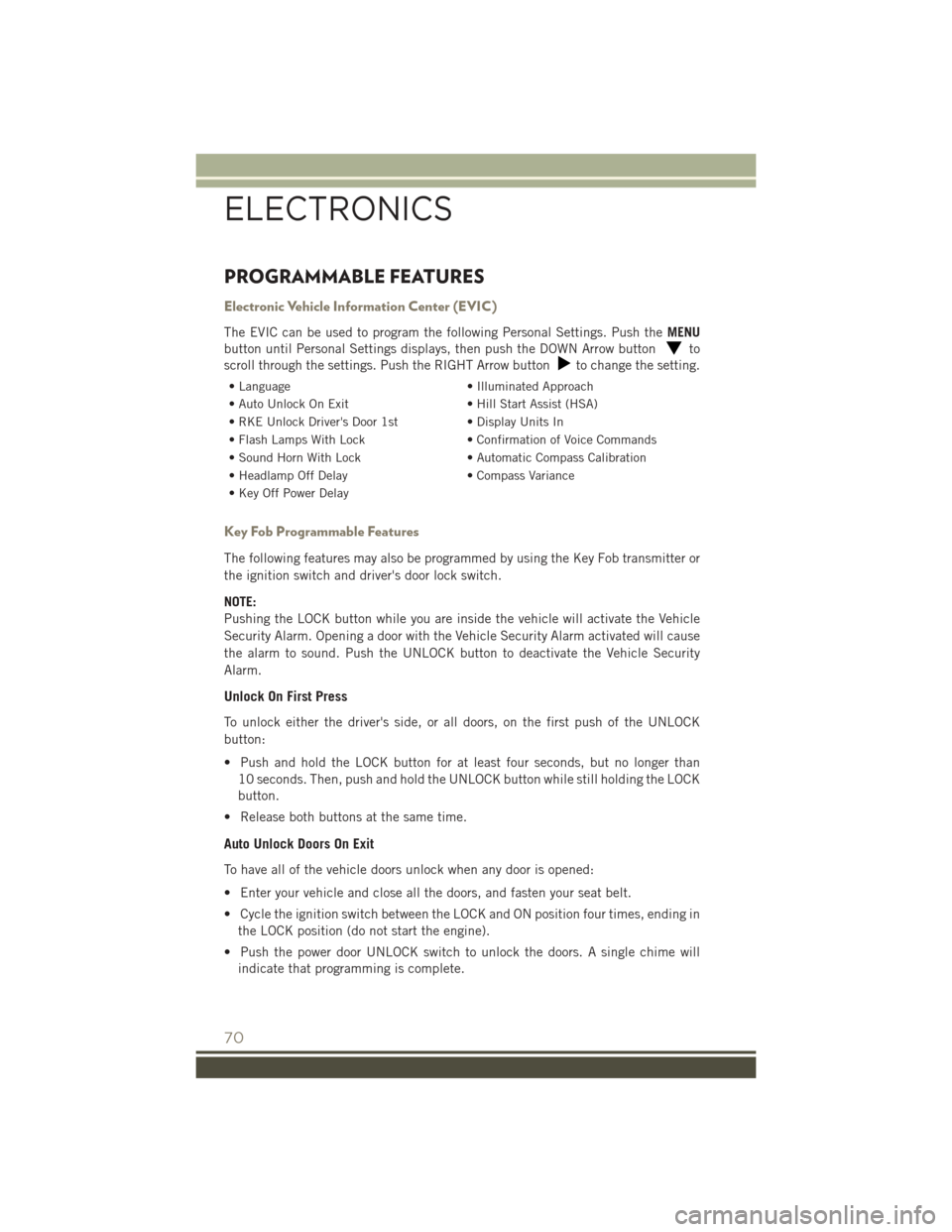

PROGRAMMABLE FEATURES
Electronic Vehicle Information Center (EVIC)
The EVIC can be used to program the following Personal Settings. Push theMENU
button until Personal Settings displays, then push the DOWN Arrow buttonto
scroll through the settings. Push the RIGHT Arrow buttonto change the setting.
•Language•IlluminatedApproach
• Auto Unlock On Exit• Hill Start Assist (HSA)
• RKE Unlock Driver's Door 1st• Display Units In
• Flash Lamps With Lock• Confirmation of Voice Commands
• Sound Horn With Lock• Automatic Compass Calibration
• Headlamp Off Delay• Compass Variance
• Key Off Power Delay
Key Fob Programmable Features
The following features may also be programmed by using the Key Fob transmitter or
the ignition switch and driver's door lock switch.
NOTE:
Pushing the LOCK button while you are inside the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security Alarm activated will cause
the alarm to sound. Push the UNLOCK button to deactivate the Vehicle Security
Alarm.
Unlock On First Press
To unlock either the driver's side, or all doors, on the first push of the UNLOCK
button:
• Push and hold the LOCK button for at least four seconds, but no longer than
10 seconds. Then, push and hold the UNLOCK button while still holding the LOCK
button.
• Release both buttons at the same time.
Auto Unlock Doors On Exit
To have all of the vehicle doors unlock when any door is opened:
• Enter your vehicle and close all the doors, and fasten your seat belt.
• Cycle the ignition switch between the LOCK and ON position four times, ending in
the LOCK position (do not start the engine).
• Push the power door UNLOCK switch to unlock the doors. A single chime will
indicate that programming is complete.
ELECTRONICS
70

Cavity Cartridge FuseMini-FuseDescription
1220 Amp Yellow 115V AC Inverter – IfEquipped
1320 Amp Yellow Cigar Lighter
1410 Amp Red Instrument Cluster
15 40 Amp GreenRadiator Fan
1615 Amp Lt Blue Dome Lamp/Sunroof/Rear Wiper Motor
1710 Amp Red Wireless ControlModule
18 40 Amp GreenAuto Shutdown Relay
1920 Amp Yellow Radio Amplifiers
2015 Amp Lt BlueRadio
2110 Amp Red Intrusion Module/Siren – If Equipped
2210 Amp Red Heating, AC/Compass
2315 Amp Lt Blue Auto Shutdown Relay
2415 Amp Lt Blue Power Sunroof – IfEquipped
2510 Amp Red Heated Mirror – IfEquipped
2615 Amp Lt Blue Auto Shutdown Relay
2710 Amp Red Airbag Control Module
2810 Amp Red Airbag ControlModule/OccupantClassification Module
29Hot Car (No Fuse Re-quired)
3020 Amp Yellow Heated Seat – IfEquipped
3110 Amp Red Headlamp Washer – IfEquipped
3230 Amp PinkAuto Shutdown Relay
3310 Amp Red J1962 Conn/Powertrain ControlModule
3430 Amp PinkAntilock BrakeValve
35 40 Amp GreenAntilock Brake Pump
3630 Amp PinkHeadlamp/WasherControl/Smart Glass –If Equipped
3725 Amp Clear Diesel Heater and H2/MOD power top
MAINTAINING YOUR VEHICLE
114

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Front Header LampT578
Center Dome LampT578
Rear Cargo Lamp/Flashlight8–A35LFAA
Exterior Bulbs
Bulb Number
Low Beam HeadlampH11
Premium Low Beam HeadlampHIR2
High Beam Headlamp9005
Premium High Beam HeadlampHIR2
Premium Front Park Lamp3157K
Front Park/Turn Signal Lamp7444NA
Front Side Marker Lamp194
Front Fog LampH11LL
Center High Mounted Stop Lamp(CHMSL)LED Assembly(Serviced at Authorized Dealer)
Rear Tail/Stop LampLED Assembly(Serviced at Authorized Dealer)
Rear Turn Lamp7440NA (WY21W) Amber
Backup Lamp7440 (W21W) Crystal
License LampW5W
