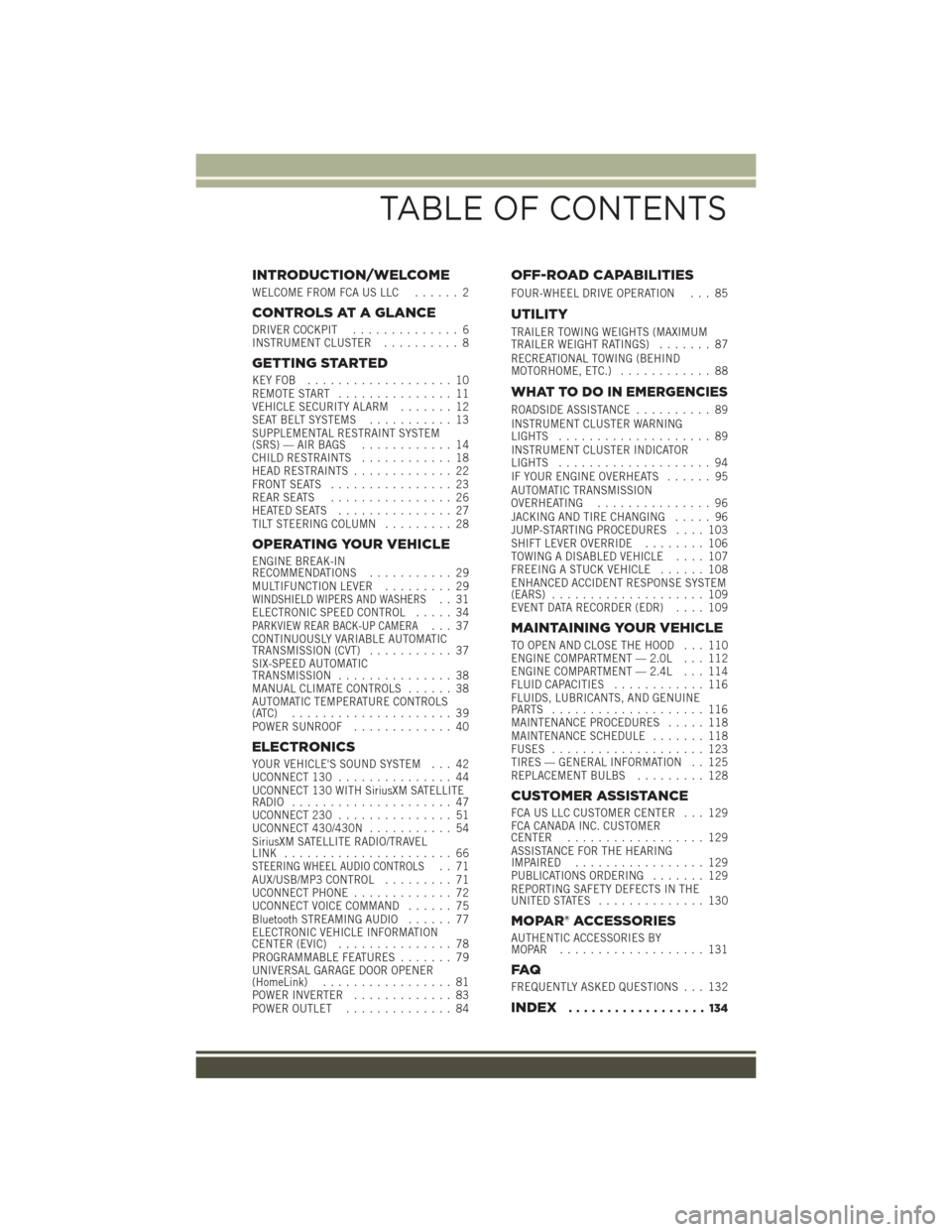

Page 3 of 148
INTRODUCTION/WELCOME
WELCOME FROM FCA US LLC...... 2
CONTROLS AT A GLANCE
DRIVER COCKPIT.............. 6
INSTRUMENT CLUSTER .......... 8
GETTING STARTED
KEYFOB ................... 10
REMOTE START............... 11
VEHICLE SECURITY ALARM ....... 12
SEAT BELT SYSTEMS ........... 13
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) — AIR BAGS ............ 14
CHILD RESTRAINTS ............ 18
HEAD RESTRAINTS ............. 22
FRONT SEATS ................ 23
REAR SEATS ................ 26
HEATEDSEATS ............... 27
TILT STEERING COLUMN ......... 28
OPERATING YOUR VEHICLE
ENGINE BREAK-IN
RECOMMENDATIONS........... 29
MULTIFUNCTION LEVER ......... 29
WINDSHIELD WIPERS AND WASHERS.. 31
ELECTRONIC SPEED CONTROL ..... 34
PARKVIEW REAR BACK-UP CAMERA... 37
CONTINUOUSLY VARIABLE AUTOMATIC
TRANSMISSION (CVT) ........... 37
SIX-SPEED AUTOMATIC
TRANSMISSION ............... 38
MANUAL CLIMATE CONTROLS ...... 38
AUTOMATIC TEMPERATURE CONTROLS
(ATC) ..................... 39
POWER SUNROOF ............. 40
ELECTRONICS
YOUR VEHICLE'S SOUND SYSTEM . . . 42
UCONNECT 130............... 44
UCONNECT 130 WITH SiriusXM SATELLITE
RADIO ..................... 47
UCONNECT 230 ............... 51
UCONNECT 430/430N ........... 54
SiriusXM SATELLITE RADIO/TRAVEL
LINK ...................... 66
STEERING WHEEL AUDIO CONTROLS.. 71
AUX/USB/MP3 CONTROL ......... 71
UCONNECT PHONE ............. 72
UCONNECT VOICE COMMAND ...... 75
Bluetooth STREAMING AUDIO ...... 77
ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ............... 78
PROGRAMMABLE FEATURES ....... 79
UNIVERSAL GARAGE DOOR OPENER
(HomeLink) ................. 81
POWER INVERTER ............. 83
POWER OUTLET .............. 84
OFF-ROAD CAPABILITIES
FOUR-WHEEL DRIVE OPERATION . . . 85
UTILITY
TRAILER TOWING WEIGHTS (MAXIMUM
TRAILER WEIGHT RATINGS) ....... 87
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ............ 88
WHAT TO DO IN EMERGENCIES
ROADSIDE ASSISTANCE .......... 89
INSTRUMENT CLUSTER WARNING
LIGHTS .................... 89
INSTRUMENT CLUSTER INDICATOR
LIGHTS .................... 94
IF YOUR ENGINE OVERHEATS ...... 95
AUTOMATIC TRANSMISSION
OVERHEATING ............... 96
JACKING AND TIRE CHANGING ..... 96
JUMP-STARTING PROCEDURES .... 103
SHIFT LEVER OVERRIDE ........ 106
TOWING A DISABLED VEHICLE .... 107
FREEING A STUCK VEHICLE ...... 108
ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .................... 109
EVENT DATA RECORDER (EDR) .... 109
MAINTAINING YOUR VEHICLE
TO OPEN AND CLOSE THE HOOD . . . 110
ENGINE COMPARTMENT — 2.0L . . . 112
ENGINE COMPARTMENT — 2.4L . . . 114
FLUID CAPACITIES............ 116
FLUIDS, LUBRICANTS, AND GENUINE
PARTS .................... 116
MAINTENANCE PROCEDURES ..... 118
MAINTENANCE SCHEDULE ....... 118
FUSES .................... 123
TIRES — GENERAL INFORMATION . . 125
REPLACEMENT BULBS ......... 128
CUSTOMER ASSISTANCE
FCA US LLC CUSTOMER CENTER . . . 129
FCA CANADA INC. CUSTOMER
CENTER.................. 129
ASSISTANCE FOR THE HEARING
IMPAIRED ................. 129
PUBLICATIONS ORDERING ....... 129
REPORTING SAFETY DEFECTS IN THE
UNITEDSTATES .............. 130
MOPAR® ACCESSORIES
AUTHENTIC ACCESSORIES BY
MOPAR ................... 131
FAQ
FREQUENTLY ASKED QUESTIONS . . . 132
INDEX.................. 134
TABLE OF CONTENTS

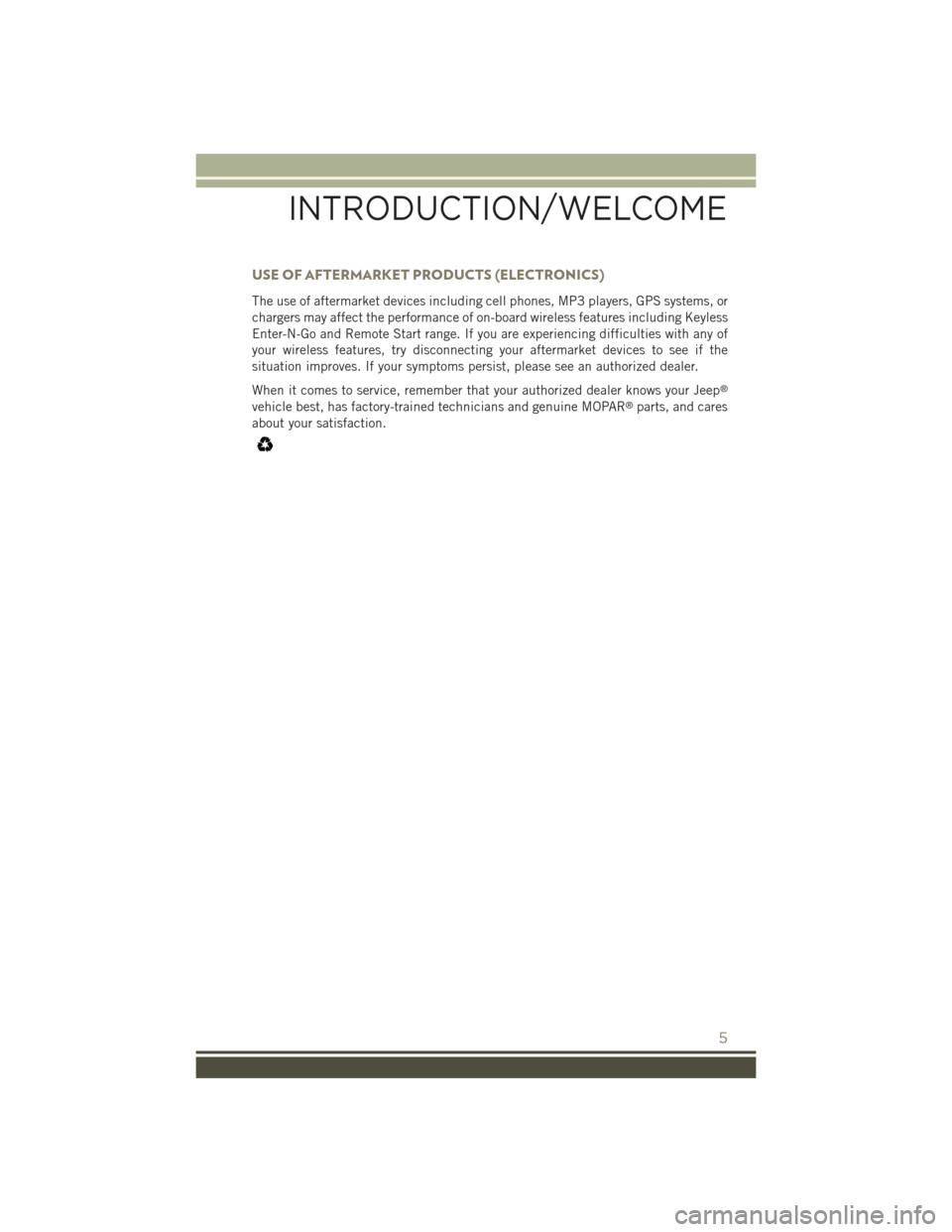

Page 7 of 148
USE OF AFTERMARKET PRODUCTS (ELECTRONICS)
The use of aftermarket devices including cell phones, MP3 players, GPS systems, or
chargers may affect the performance of on-board wireless features including Keyless
Enter-N-Go and Remote Start range. If you are experiencing difficulties with any of
your wireless features, try disconnecting your aftermarket devices to see if the
situation improves. If your symptoms persist, please see an authorized dealer.
When it comes to service, remember that your authorized dealer knows your Jeep
®
vehicle best, has factory-trained technicians and genuine MOPAR®parts, and cares
about your satisfaction.
INTRODUCTION/WELCOME
5

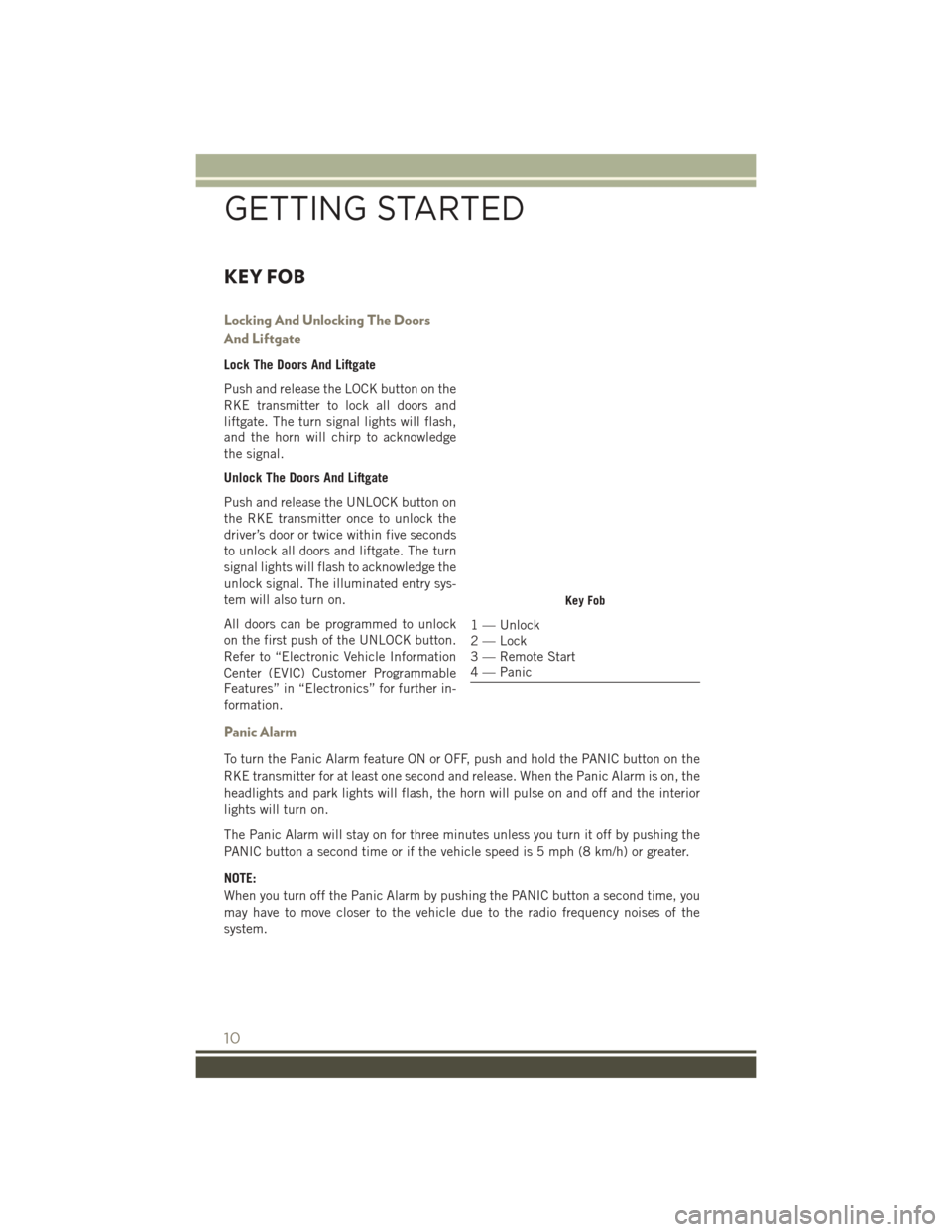

Page 12 of 148
KEY FOB
Locking And Unlocking The Doors
And Liftgate
Lock The Doors And Liftgate
Push and release the LOCK button on the
RKE transmitter to lock all doors and
liftgate. The turn signal lights will flash,
and the horn will chirp to acknowledge
the signal.
Unlock The Doors And Liftgate
Push and release the UNLOCK button on
the RKE transmitter once to unlock the
driver’s door or twice within five seconds
to unlock all doors and liftgate. The turn
signal lights will flash to acknowledge the
unlock signal. The illuminated entry sys-
tem will also turn on.
All doors can be programmed to unlock
on the first push of the UNLOCK button.
Refer to “Electronic Vehicle Information
Center (EVIC) Customer Programmable
Features” in “Electronics” for further in-
formation.
Panic Alarm
To turn the Panic Alarm feature ON or OFF, push and hold the PANIC button on the
RKE transmitter for at least one second and release. When the Panic Alarm is on, the
headlights and park lights will flash, the horn will pulse on and off and the interior
lights will turn on.
The Panic Alarm will stay on for three minutes unless you turn it off by pushing the
PANIC button a second time or if the vehicle speed is 5 mph (8 km/h) or greater.
NOTE:
When you turn off the Panic Alarm by pushing the PANIC button a second time, you
may have to move closer to the vehicle due to the radio frequency noises of the
system.
Key Fob
1 — Unlock
2 — Lock
3 — Remote Start
4 — Panic
GETTING STARTED
10

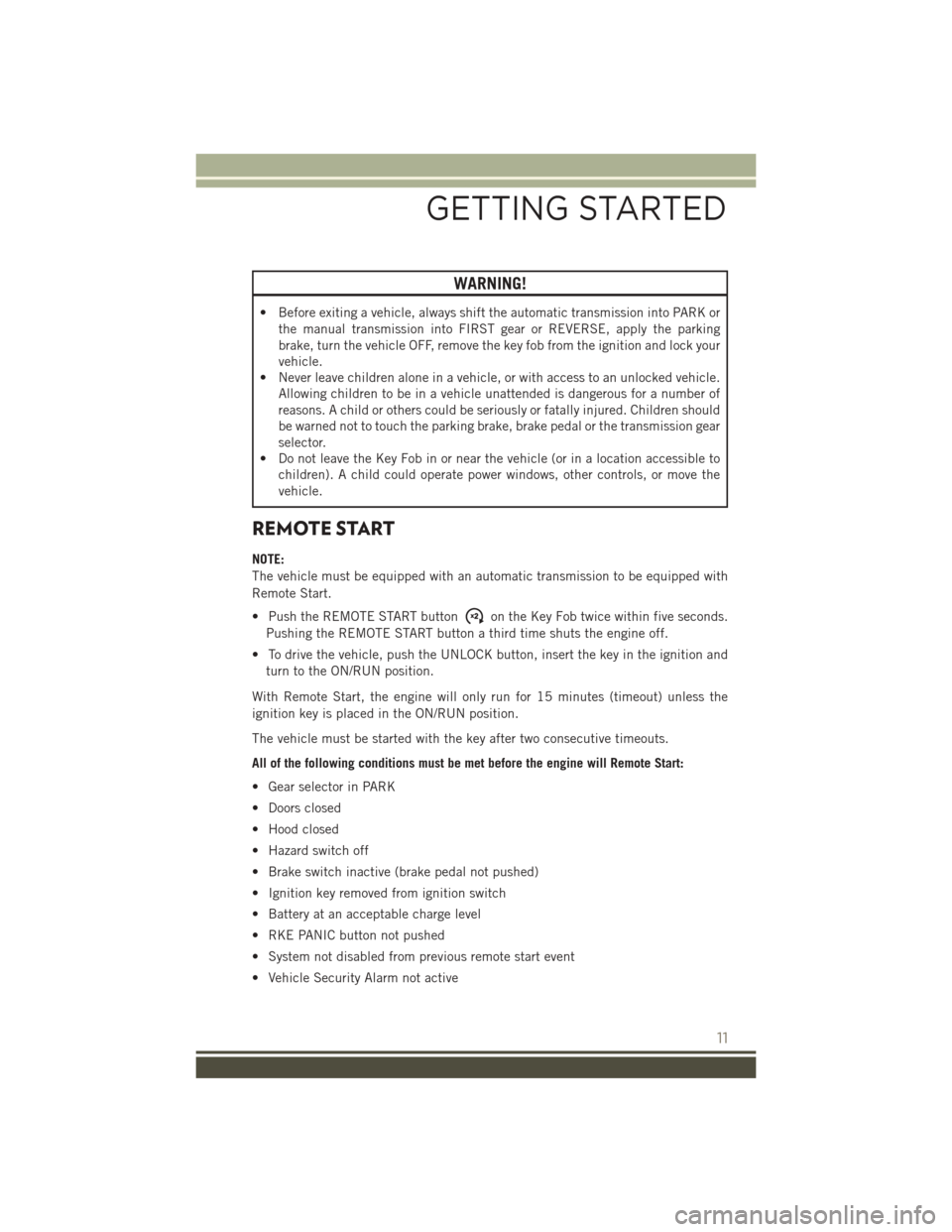

Page 13 of 148
WARNING!
• Before exiting a vehicle, always shift the automatic transmission into PARK orthe manual transmission into FIRST gear or REVERSE, apply the parking
brake, turn the vehicle OFF, remove the key fob from the ignition and lock your
vehicle.
• Never leave children alone in a vehicle, or with access to an unlocked vehicle.
Allowing children to be in a vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or fatally injured. Children should
be warned not to touch the parking brake, brake pedal or the transmission gear
selector.
• Do not leave the Key Fob in or near the vehicle (or in a location accessible to
children). A child could operate power windows, other controls, or move the
vehicle.
REMOTE START
NOTE:
The vehicle must be equipped with an automatic transmission to be equipped with
Remote Start.
• Push the REMOTE START button
on the Key Fob twice within five seconds.
Pushing the REMOTE START button a third time shuts the engine off.
• To drive the vehicle, push the UNLOCK button, insert the key in the ignition and turn to the ON/RUN position.
With Remote Start, the engine will only run for 15 minutes (timeout) unless the
ignition key is placed in the ON/RUN position.
The vehicle must be started with the key after two consecutive timeouts.
All of the following conditions must be met before the engine will Remote Start:
• Gear selector in PARK
• Doors closed
• Hood closed
• Hazard switch off
• Brake switch inactive (brake pedal not pushed)
• Ignition key removed from ignition switch
• Battery at an acceptable charge level
• RKE PANIC button not pushed
• System not disabled from previous remote start event
• Vehicle Security Alarm not active
GETTING STARTED
11

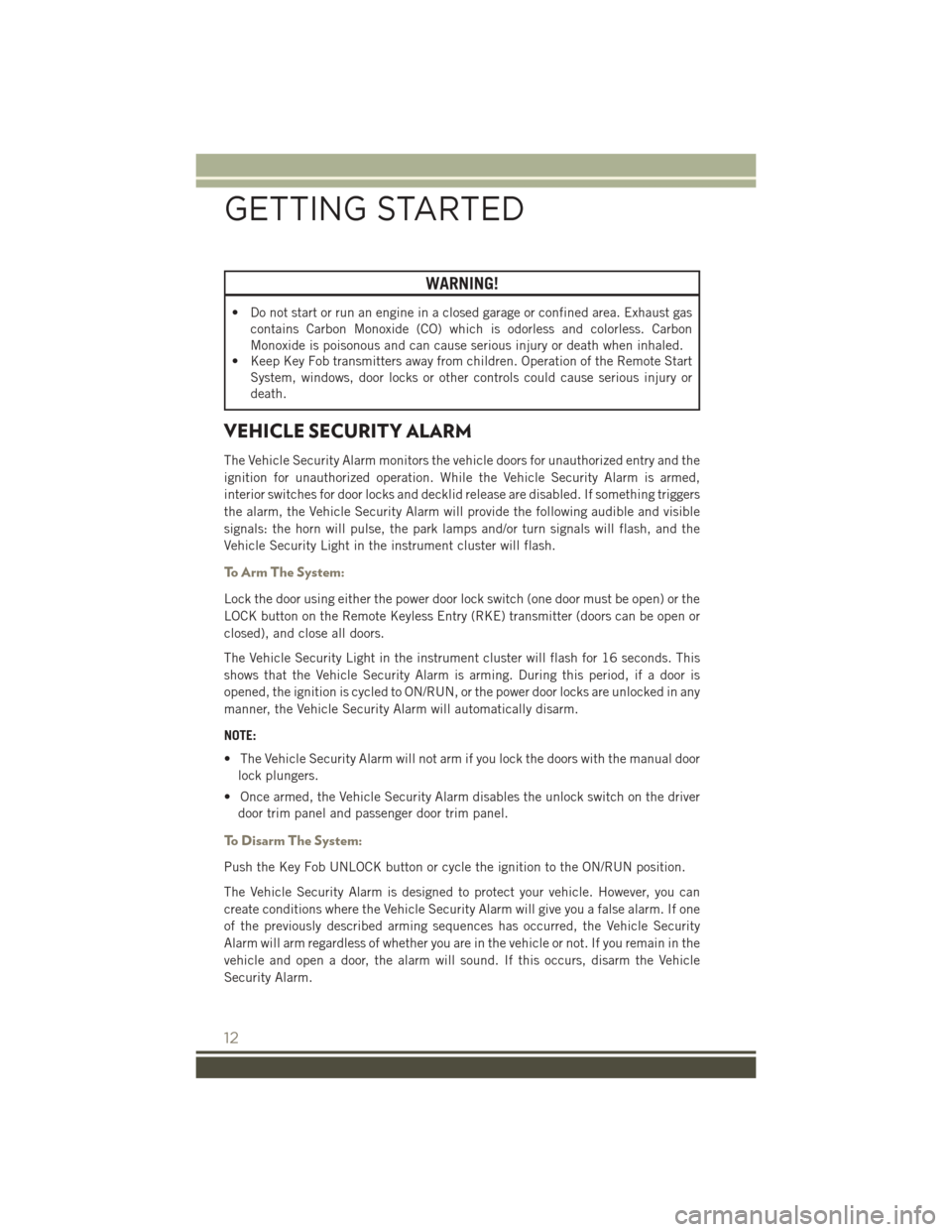

Page 14 of 148
WARNING!
• Do not start or run an engine in a closed garage or confined area. Exhaust gascontains Carbon Monoxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury or death when inhaled.
• Keep Key Fob transmitters away from children. Operation of the Remote Start
System, windows, door locks or other controls could cause serious injury or
death.
VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors for unauthorized entry and the
ignition for unauthorized operation. While the Vehicle Security Alarm is armed,
interior switches for door locks and decklid release are disabled. If something triggers
the alarm, the Vehicle Security Alarm will provide the following audible and visible
signals: the horn will pulse, the park lamps and/or turn signals will flash, and the
Vehicle Security Light in the instrument cluster will flash.
To Arm The System:
Lock the door using either the power door lock switch (one door must be open) or the
LOCK button on the Remote Keyless Entry (RKE) transmitter (doors can be open or
closed), and close all doors.
The Vehicle Security Light in the instrument cluster will flash for 16 seconds. This
shows that the Vehicle Security Alarm is arming. During this period, if a door is
opened, the ignition is cycled to ON/RUN, or the power door locks are unlocked in any
manner, the Vehicle Security Alarm will automatically disarm.
NOTE:
• The Vehicle Security Alarm will not arm if you lock the doors with the manual door
lock plungers.
• Once armed, the Vehicle Security Alarm disables the unlock switch on the driver door trim panel and passenger door trim panel.
To Disarm The System:
Push the Key Fob UNLOCK button or cycle the ignition to the ON/RUN position.
The Vehicle Security Alarm is designed to protect your vehicle. However, you can
create conditions where the Vehicle Security Alarm will give you a false alarm. If one
of the previously described arming sequences has occurred, the Vehicle Security
Alarm will arm regardless of whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this occurs, disarm the Vehicle
Security Alarm.
GETTING STARTED
12

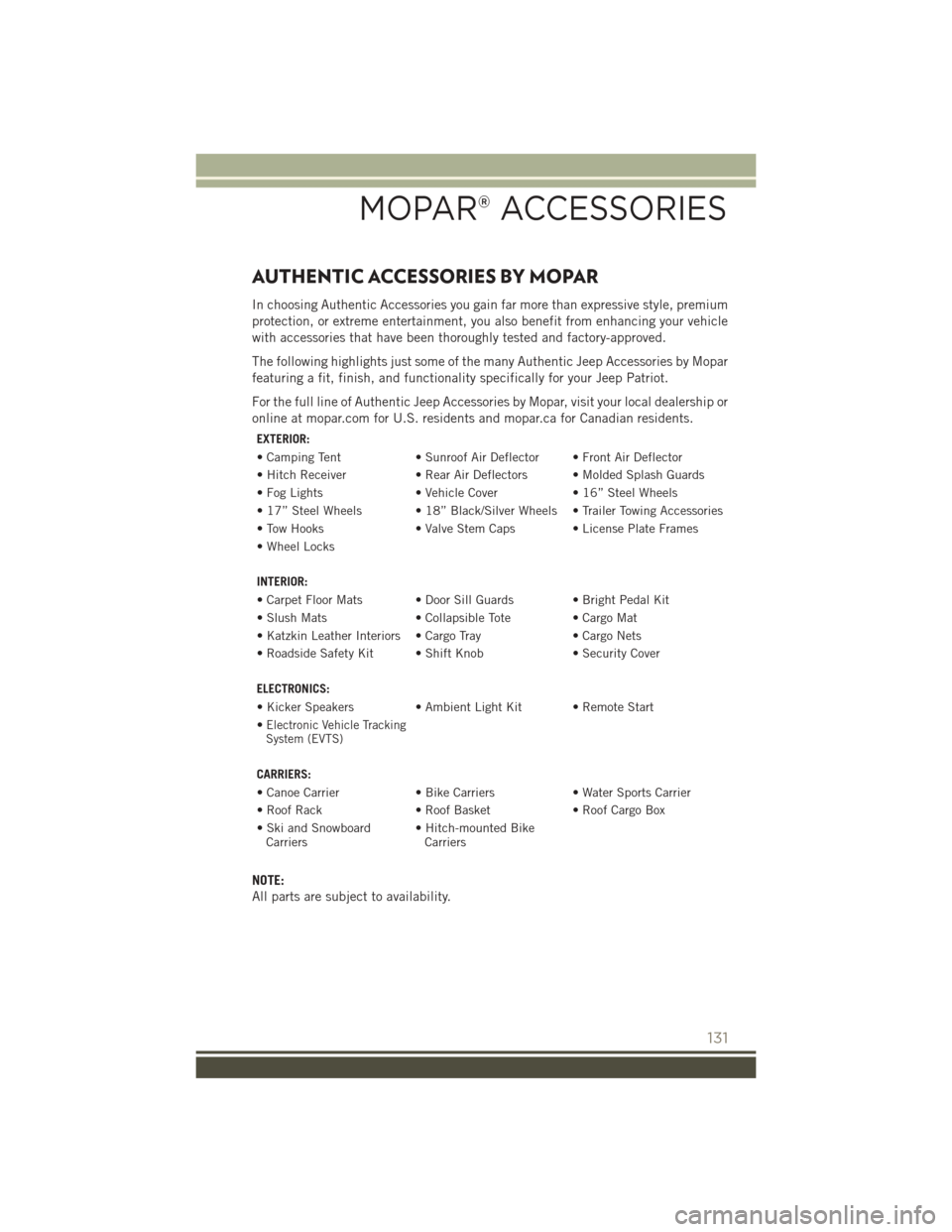

Page 133 of 148
AUTHENTIC ACCESSORIES BY MOPAR
In choosing Authentic Accessories you gain far more than expressive style, premium
protection, or extreme entertainment, you also benefit from enhancing your vehicle
with accessories that have been thoroughly tested and factory-approved.
The following highlights just some of the many Authentic Jeep Accessories by Mopar
featuring a fit, finish, and functionality specifically for your Jeep Patriot.
For the full line of Authentic Jeep Accessories by Mopar, visit your local dealership or
online at mopar.com for U.S. residents and mopar.ca for Canadian residents.
EXTERIOR:
• Camping Tent• Sunroof Air Deflector • Front Air Deflector
• Hitch Receiver • Rear Air Deflectors • Molded Splash Guards
• Fog Lights • Vehicle Cover• 16” Steel Wheels
• 17” Steel Wheels • 18” Black/Silver Wheels • Trailer Towing Accessories
• Tow Hooks • Valve Stem Caps • License Plate Frames
• Wheel Locks
INTERIOR:
• Carpet Floor Mats • Door Sill Guards • Bright Pedal Kit
• Slush Mats • Collapsible Tote • Cargo Mat
• Katzkin Leather Interiors • Cargo Tray • Cargo Nets
• Roadside Safety Kit • Shift Knob • Security Cover
ELECTRONICS:
• Kicker Speakers • Ambient Light Kit • Remote Start
•
Electronic Vehicle Tracking
System (EVTS)
CARRIERS:
• Canoe Carrier • Bike Carriers• Water Sports Carrier
• Roof Rack • Roof Basket• Roof Cargo Box
• Ski and Snowboard Carriers • Hitch-mounted Bike
Carriers
NOTE:
All parts are subject to availability.
MOPAR® ACCESSORIES
131

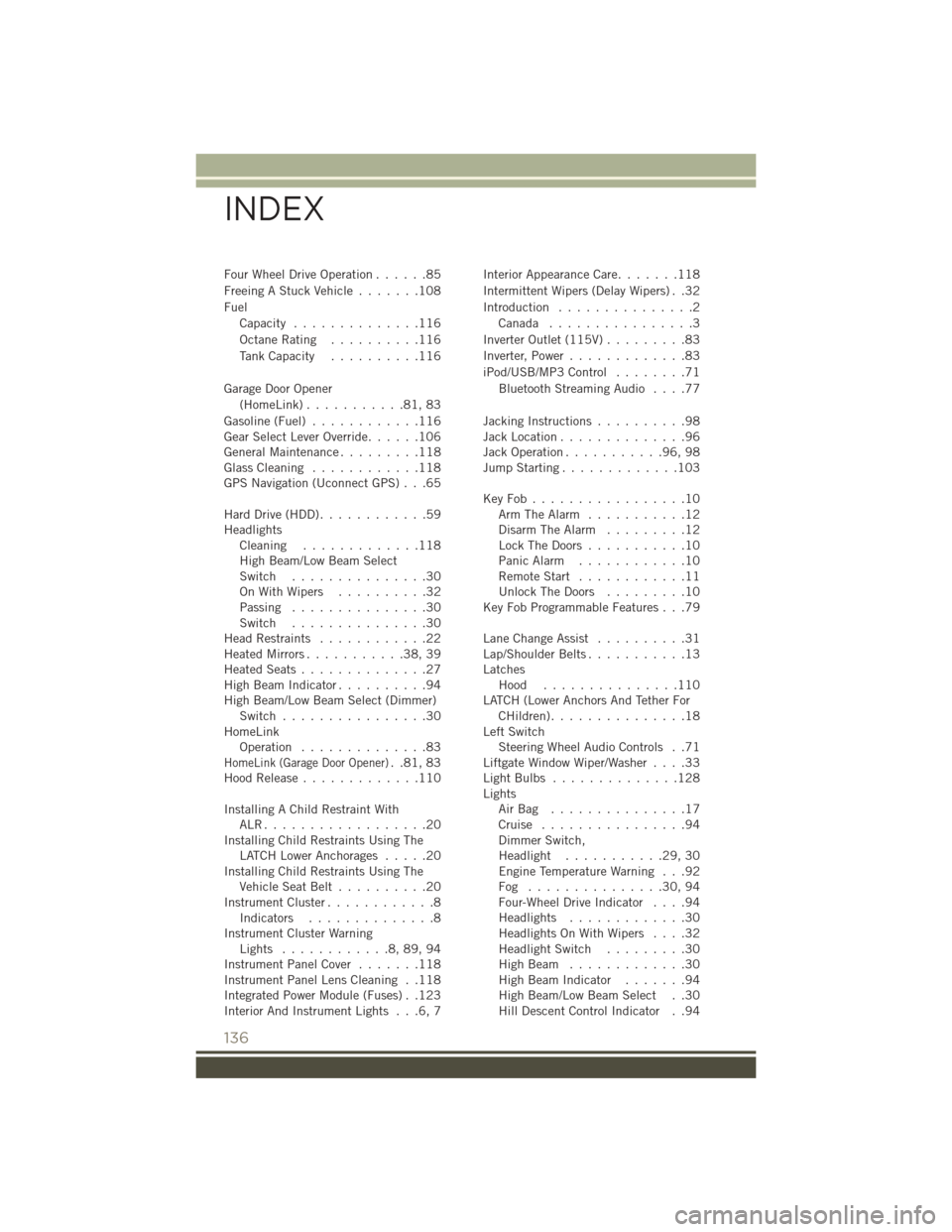

Page 138 of 148
Four Wheel Drive Operation......85
Freeing A Stuck Vehicle .......108
Fuel Capacity ..............116
Octane Rating ..........116
Tank Capacity ..........116
Garage Door Opener (HomeLink) ...........81,83
Gasoline(Fuel) ............116
Gear Select Lever Override ......106
GeneralMaintenance.........118
Glass Cleaning ............118
GPS Navigation (Uconnect GPS) . . .65
Hard Drive (HDD) ............59
Headlights Cleaning .............118
High Beam/Low Beam Select
Switch ...............30
OnWithWipers ..........32
Passing ...............30
Switch ...............30
Head Restraints ............22
Heated Mirrors ...........38,39
Heated Seats ..............27
High Beam Indicator ..........94
High Beam/Low Beam Select (Dimmer) Switch ................30
HomeLink Operation ..............83
HomeLink (Garage Door Opener). .81, 83
Hood Release .............110
Installing A Child Restraint With ALR..................20
Installing Child Restraints Using The LATCH Lower Anchorages .....20
Installing Child Restraints Using The Vehicle Seat Belt ..........20
Instrument Cluster ............8
Indicators ..............8
Instrument Cluster Warning Lights ............8,89,94
Instrument Panel Cover .......118
Instrument Panel Lens Cleaning . .118
Integrated Power Module (Fuses) . .123
Interior And Instrument Lights . . .6, 7 Interior Appearance Care
.......118
Intermittent Wipers (Delay Wipers) . .32
Introduction ...............2
Canada ................3
Inverter Outlet (115V) .........83
Inverter, Power .............83
iPod/USB/MP3 Control ........71
Bluetooth Streaming Audio ....77
Jacking Instructions ..........98
Jack Location ..............96
Jack Operation ...........96,98
Jump Starting .............103
KeyFob.................10 Arm The Alarm ...........12
Disarm The Alarm .........12
Lock The Doors ...........10
Panic Alarm ............10
Remote Start ............11
Unlock The Doors .........10
Key Fob Programmable Features . . .79
Lane Change Assist ..........31
Lap/Shoulder Belts ...........13
Latches Hood ...............110
LATCH (Lower Anchors And Tether For CHildren)...............18
Left Switch Steering Wheel Audio Controls . .71
Liftgate Window Wiper/Washer ....33
LightBulbs ..............128
Lights AirBag ...............17
Cruise ................94
Dimmer Switch,
Headlight ...........29,30
Engine Temperature Warning . . .92
Fog ...............30,94
Four-Wheel Drive Indicator ....94
Headlights .............30
Headlights On With Wipers ....32
Headlight Switch .........30
HighBeam .............30
High Beam Indicator .......94
High Beam/Low Beam Select . .30
Hill Descent Control Indicator . .94
INDEX
136
Page 139 of 148
InstrumentCluster ........30
LowFuel ..............89
SeatBeltReminder ........93
Security Alarm...........94
Tire Pressure Monitoring
(TPMS) ...............90
Transmission Warning .......93
TurnSignal ..........29,31
Locks Liftgate, Tailgate ..........10
Lubrication, Body ...........118
Lumbar Support ............26
Maintenance Free Battery ......118
Maintenance,General ........118
MaintenanceProcedures.......118
Maintenance Record .........122
MaintenanceSchedule........118
Malfunction Indicator Light (Check Engine)................93
Manual Transmission Lubricant Selection .......117
Master Cylinder (Brakes) .......118
MediaCenterRadio........51,54
MOPAR Accessories .........131
Multi-Function Control Lever .....29
Navigation ................63
Navigation System (Uconnect GPS) ...........63
Navigation Voice Prompt Volume . . .63
New Vehicle Break-In Period .....29
OilChangeIndicator..........95
Oil,Engine ........... 116, 118
Capacity ..............116
Change Interval .........118
Checking .............118
Disposal ..............118
Filter ............ 116, 118
Filter Disposal ..........118
Materials Added To .......118
Recommendation .....116, 118
Viscosity .............118
Oil Filter, Selection ..........118
Oil Pressure Light ...........89
Outlet Power ................84 Overheating, Engine
..........95
PaintCare...............118
Panic Alarm ...............10
Passing Light ..............30
Phone (Pairing) .............73
Phone (Uconnect) ...........72
Placard, Tire And Loading Information .............125
Power Inverter ...............83
Outlet (Auxiliary Electrical
Outlet) ...............84
Sunroof ...............40
Power Seats Down.................24
Forward ...............24
Rearward ..............24
Tilt ..................24
Up ..................24
Power Steering Fluid .........117
Power Transfer Unit ..........117
Preparation For Jacking ........97
Programmable Electronic Features . .79
Radio Presets ........45,48,52,57
RadioOperation.....45,48,52,57
R
earCamera ..............37
Rear ParkSense System ........37
Rear Seat, Folding ...........26
Rear Wiper/Washer ...........33
Recreational Towing ..........88
Refrigerant ...............118
Remote Keyless Entry (RKE) Arm The Alarm ...........12
Disarm The Alarm .........12
Lock The Doors ...........10
Panic Alarm ............10
Remote Keyless Entry (RKE) . . .10
Unlock The Doors .........10
Remote Starting How To Use Remote Start .....11
KeyFob ...............11
Remote Starting System .....11
Remote Starting System ........11
Replacement Bulbs ..........128
Reporting Safety Defects .......130

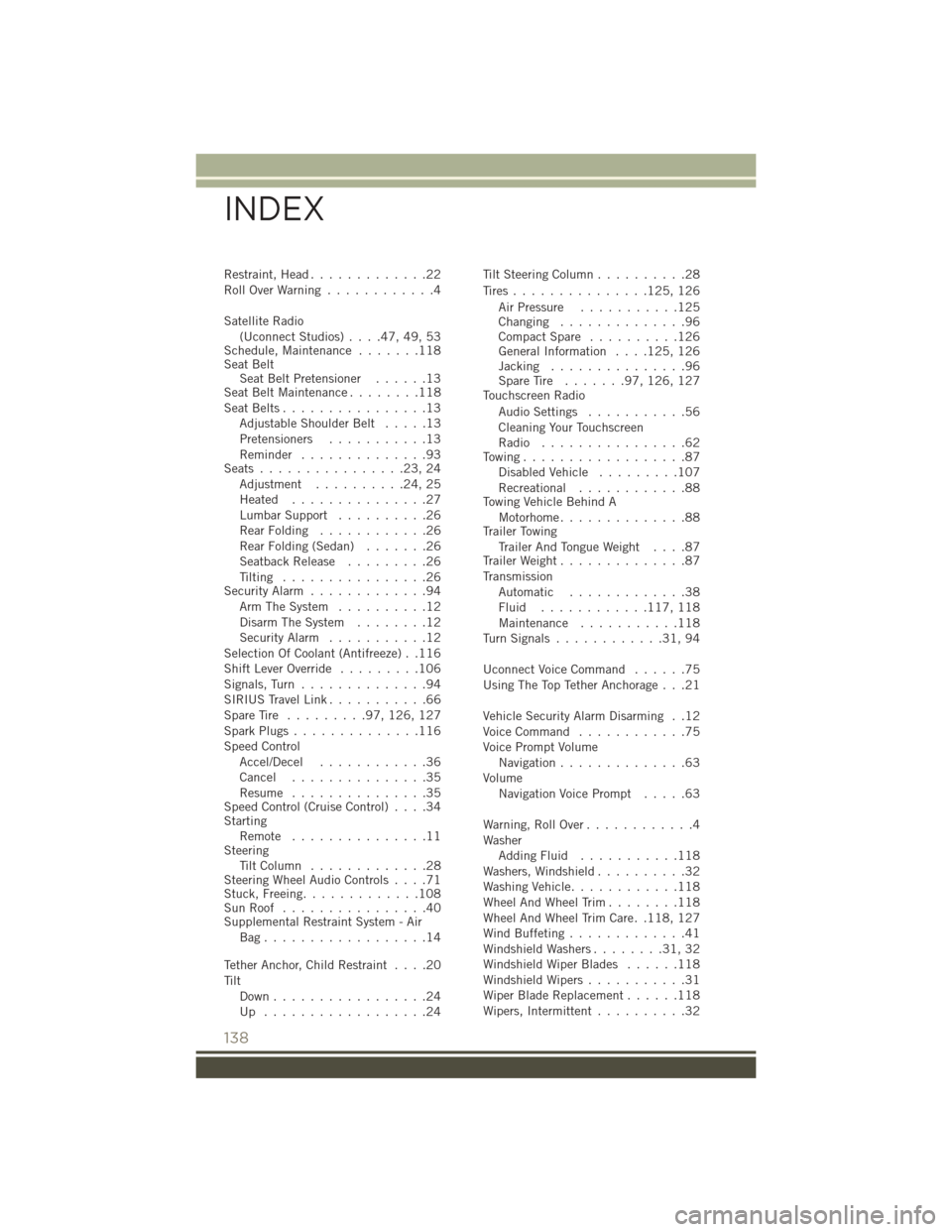

INDEX
137
Page 140 of 148
Restraint, Head.............22
RollOverWarning ............4
Satellite Radio (Uconnect Studios) ....47,49,53
Schedule, Maintenance .......118
Seat Belt Seat Belt Pretensioner ......13
SeatBeltMaintenance........118
Seat Belts ................13
AdjustableShoulderBelt .....13
Pretensioners ...........13
Reminder ..............93
Seats................23,24
Adjustment ..........24,25
Heated ...............27
Lumbar Support ..........26
RearFolding ............26
RearFolding(Sedan) .......26
Seatback Release .........26
Tilting ................26
Security Alarm .............94
Arm The System ..........12
Disarm The System ........12
Security Alarm ...........12
Selection Of Coolant (Antifreeze) . .116
Shift Lever Override .........106
Signals, Turn ..............94
SIRIUSTravelLink...........66
Spare Tire .........97, 126, 127
Spark Plugs ..............116
Speed Control Accel/Decel ............36
Cancel ...............35
Resume ...............35
Speed Control (Cruise Control) ....34
Starting
Remote ...............11
Steering
TiltColumn .............28
Steering Wheel Audio Controls ....71
Stuck, Freeing .............108
SunRoof ................40
Supplemental Restraint System - Air
Bag..................14
Tether Anchor, Child Restraint ....20
Tilt Down .................24
Up ..................24 Tilt Steering Column
..........28
Tires ............... 125, 126
Air Pressure ...........125
Changing ..............96
Compact Spare ..........126
General Information ....125, 126
Jacking ...............96
SpareTire .......97, 126, 127
Touchscreen Radio
Audio Settings ...........56
Cleaning Your Touchscreen
Radio ................62
Towing..................87
Disabled Vehicle .........107
Recreational ............88
Towing Vehicle Behind A
Motorhome ..............88
Trailer Towing
Trailer And Tongue Weight ....87
T
railer Weight ..............87
Transmission Automatic .............38
Fluid ............ 117, 118
Maintenance ...........118
TurnSignals............31,94
Uconnect Voice Command ......75
Using The Top Tether Anchorage . . .21
Vehicle Security Alarm Disarming . .12
Voice Command ............75
Voice Prompt Volume Navigation ..............63
Volume Navigation Voice Prompt .....63
Warning,RollOver............4
Washer AddingFluid ...........118
Washers, Windshield ..........32
Washing Vehicle ............118
WheelAndWheelTrim........118
Wheel And Wheel Trim Care. .118, 127
Wind Buffeting .............41
WindshieldWashers........31,32
WindshieldWiperBlades ......118
WindshieldWipers...........31
Wiper Blade Replacement ......118
Wipers, Intermittent ..........32
INDEX
138
