WARNING
8)NEVER leave children unattended inside
the vehicle, let alone leave the vehicle
with the doors unlocked in a place that
children can access easily. Children may
seriously, or even fatally, injure themselves.
Also ensure that children do not
inadvertently operate the electric parking
brake, the brake pedal or the automatic
transmission lever.
9)Always use this device when carrying
children. After engaging the device on both
rear doors, check for proper engagement
by trying to open a rear door with the
internal handle.
10)Once the Dead Lock device has been
actuated, doors cannot be opened from
inside; for this reason, make sure there are
no persons left inside the vehicle.
WARNING
2)Make sure to take the key with you once
a door or the tailgate is locked, to prevent
locking the same key inside the vehicle.
Once it has been left inside, the key can be
collected only using the second key
supplied with the vehicle.3)The operation of the recognition system
depends on various factors, such as, for
example, any electromagnetic wave
interference from external sources (e.g.
mobile phones), the charge of the battery
in the electronic key and the presence
of metal objects near the key or the vehicle.
In these cases it is still possible to unlock
the doors by using the metal insert in
the electronic key (see description on the
following pages).
SEATS
FRONT SEATS WITH
MANUAL ADJUSTMENT
11)4)
Longitudinal adjustment: lift the lever
A fig. 13 and push the seat fully forward
or backward.
12)
IMPORTANT Carry out the adjustment
while sitting on the seat involved (driver
side or passenger side).
Height adjustment: move lever B fig.
13 upwards or downwards to achieve
the required height.
Backrest angle adjustment: move
lever C fig. 13 to adjust the backrest
angle, accompanying it with the
movement of the torso (operate the
lever until the desired position is
reached, then release it).
13J0A0043C
14
GETTING TO KNOW YOUR CAR

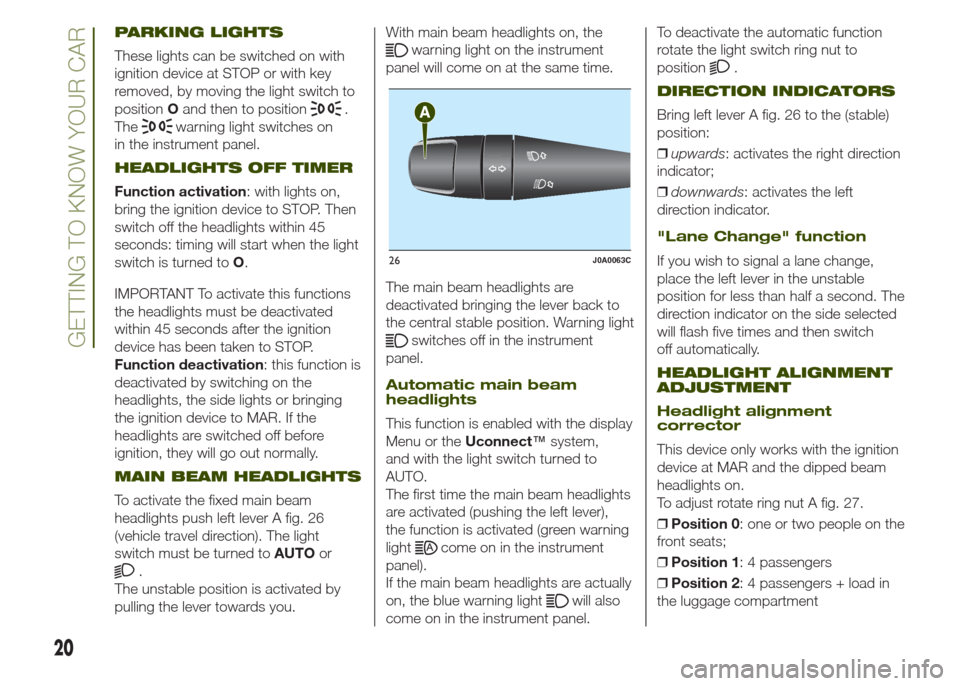

PARKING LIGHTS
These lights can be switched on with
ignition device at STOP or with key
removed, by moving the light switch to
positionOand then to position
.
The
warning light switches on
in the instrument panel.
HEADLIGHTS OFF TIMER
Function activation: with lights on,
bring the ignition device to STOP. Then
switch off the headlights within 45
seconds: timing will start when the light
switch is turned toO.
IMPORTANT To activate this functions
the headlights must be deactivated
within 45 seconds after the ignition
device has been taken to STOP.
Function deactivation: this function is
deactivated by switching on the
headlights, the side lights or bringing
the ignition device to MAR. If the
headlights are switched off before
ignition, they will go out normally.
MAIN BEAM HEADLIGHTS
To activate the fixed main beam
headlights push left lever A fig. 26
(vehicle travel direction). The light
switch must be turned toAUTOor
.
The unstable position is activated by
pulling the lever towards you.With main beam headlights on, the
warning light on the instrument
panel will come on at the same time.
The main beam headlights are
deactivated bringing the lever back to
the central stable position. Warning light
switches off in the instrument
panel.
Automatic main beam
headlights
This function is enabled with the display
Menu or theUconnect™system,
and with the light switch turned to
AUTO.
The first time the main beam headlights
are activated (pushing the left lever),
the function is activated (green warning
light
come on in the instrument
panel).
If the main beam headlights are actually
on, the blue warning light
will also
come on in the instrument panel.To deactivate the automatic function
rotate the light switch ring nut to
position
.
DIRECTION INDICATORS
Bring left lever A fig. 26 to the (stable)
position:
❒upwards: activates the right direction
indicator;
❒downwards: activates the left
direction indicator.
"Lane Change" function
If you wish to signal a lane change,
place the left lever in the unstable
position for less than half a second. The
direction indicator on the side selected
will flash five times and then switch
off automatically.
HEADLIGHT ALIGNMENT
ADJUSTMENT
Headlight alignment
corrector
This device only works with the ignition
device at MAR and the dipped beam
headlights on.
To adjust rotate ring nut A fig. 27.
❒Position 0: one or two people on the
front seats;
❒Position 1: 4 passengers
❒Position 2: 4 passengers + load in
the luggage compartment
26J0A0063C
20
GETTING TO KNOW YOUR CAR

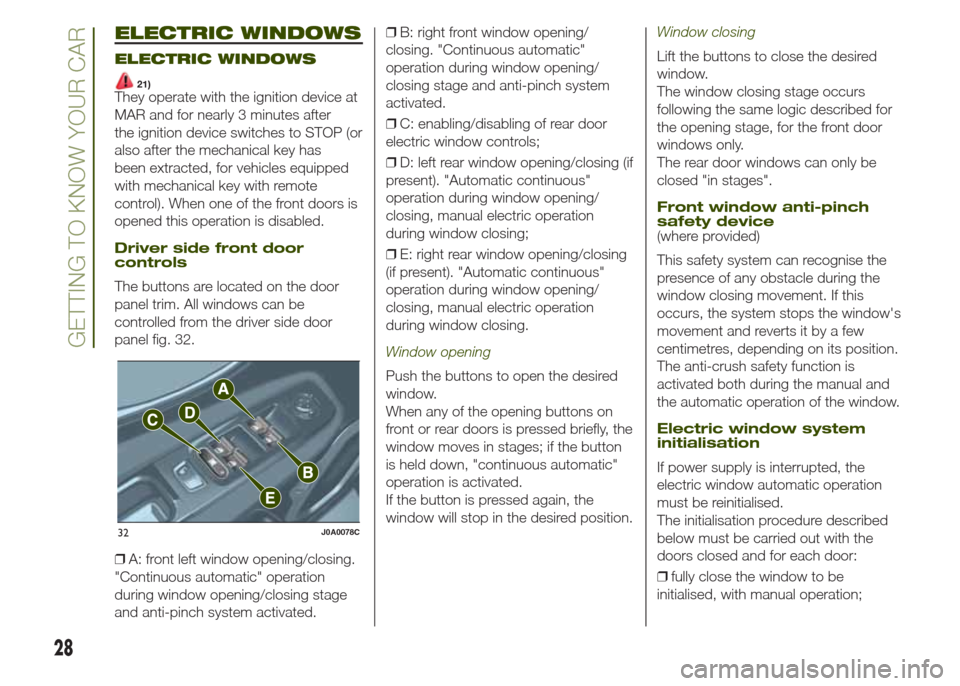

ELECTRIC WINDOWS
ELECTRIC WINDOWS
21)They operate with the ignition device at
MAR and for nearly 3 minutes after
the ignition device switches to STOP (or
also after the mechanical key has
been extracted, for vehicles equipped
with mechanical key with remote
control). When one of the front doors is
opened this operation is disabled.
Driver side front door
controls
The buttons are located on the door
panel trim. All windows can be
controlled from the driver side door
panel fig. 32.
❒A: front left window opening/closing.
"Continuous automatic" operation
during window opening/closing stage
and anti-pinch system activated.❒B: right front window opening/
closing. "Continuous automatic"
operation during window opening/
closing stage and anti-pinch system
activated.
❒C: enabling/disabling of rear door
electric window controls;
❒D: left rear window opening/closing (if
present). "Automatic continuous"
operation during window opening/
closing, manual electric operation
during window closing;
❒E: right rear window opening/closing
(if present). "Automatic continuous"
operation during window opening/
closing, manual electric operation
during window closing.
Window opening
Push the buttons to open the desired
window.
When any of the opening buttons on
front or rear doors is pressed briefly, the
window moves in stages; if the button
is held down, "continuous automatic"
operation is activated.
If the button is pressed again, the
window will stop in the desired position.
Window closing
Lift the buttons to close the desired
window.
The window closing stage occurs
following the same logic described for
the opening stage, for the front door
windows only.
The rear door windows can only be
closed "in stages".
Front window anti-pinch
safety device
(where provided)
This safety system can recognise the
presence of any obstacle during the
window closing movement. If this
occurs, the system stops the window's
movement and reverts it by a few
centimetres, depending on its position.
The anti-crush safety function is
activated both during the manual and
the automatic operation of the window.
Electric window system
initialisation
If power supply is interrupted, the
electric window automatic operation
must be reinitialised.
The initialisation procedure described
below must be carried out with the
doors closed and for each door:
❒fully close the window to be
initialised, with manual operation;
32J0A0078C
28
GETTING TO KNOW YOUR CAR

❒after the window has reached the
upper end of travel, hold the up button
down for at least 3 seconds.
WARNING
21)Incorrect use of the electric windows
may be dangerous. Before and during their
operation, ensure that any passengers
are not at risk from the moving glass either
by personal objects getting caught in the
mechanism or by being hit by it directly.
When leaving the vehicle (equipped with
mechanical key with remote control),
always remove the key from the ignition
device to prevent accidental operation of
the electric windows from being a hazard
for those still on board.
ELECTRIC SUN
ROOF
22)11)The electric sun roof comprises two
glass panels (the front one is mobile
and the rear one fixed) and is fitted with
an electrically operated sun blind.
The sun roof and the blind can
be operated only with the ignition
device turned to MAR.
CONTROL BUTTONS
Button Afig. 33: pressing the button
on the front glass panel, it will
completely open. From the position of
complete opening, pull the button:
the front panel will completely close.
During the automatic opening and
closing stages, press button A again to
interrupt the blind movement.
Button Bfig. 33: pressing this button,
the blind will mode towards the rear
part of the vehicle, until it is fully open.
With blind fully open press button B:
the blind will move towards the front
part of the vehicle, until it is fully closed.
During the automatic opening and
closing stages, press button B again to
interrupt the blind movement.Button Cfig. 33: press and release the
button to move the roof to "spoiler"
position (swivel opening). This type of
swivel opening can be activated
irrespective of the position of the sun
roof. During the spoiler opening, any
pressure on button C stops the roof
closing.
33J0A0224C
29

ANTI-PINCH DEVICE
The sun roof and the electric blind are
equipped with an anti-pinch safety
system capable of detecting the
presence of an obstacle whilst the roof
is closing: if this happens, the system
intervenes and the movement of the
glass is immediately reversed.
EMERGENCY OPERATION
If the control buttons fail to operate, the
sun blind and the sun roof can be
moved manually, proceeding as
described below:
❒Sun blind movement: remove
protective cap A fig. 34 on the internal
trim;
❒Sun roof movement: remove
protective cap B fig. 34 on the internal
trim;
❒take the supplied spanner C fig. 34
from the luggage compartment;❒insert key C in housing A (for blind
movement) or B (for sun roof
movement) and turn it clockwise to
open the roof (or the blind) or
anticlockwise to close the roof (or the
blind).
INITIALISATION
PROCEDURE
Following an automatic movement
malfunction while opening/closing or
after an emergency manoeuvre (see
description in the previous paragraph),
the automatic operation of the sun
roof must be initialised again.
Proceed as follows:
❒move the roof to fully closed position;
❒move the ignition device to STOP
and keep it there for 10 seconds;
❒move the ignition device to MAR;
❒press button A in closing position;
❒press the button for at least 10
seconds, then you should hear the
mechanical stop of the roof motor;
❒press the button A in the "closing"
position again within 5 seconds;
❒hold down button A: in this position,
the roof will perform an automatic
opening and closing cycle. Otherwise,
repeat the operations starting from
the beginning;❒hold down button A until the roof is
completely closed: the initialisation
procedure has ended.
WARNING
22)When leaving the vehicle (equipped
with mechanical key with a remote control),
always remove the key from the ignition
device to avoid the risk of injury to those
still inside the vehicle due to accidental
operation of the sun roof. Improper use of
the roof can be dangerous. Before and
during operation, always check that
nobody is at risk of being injured by the
moving sun roof or by objects getting
caught or hit by it.
WARNING
11)Do not open the sun roof if a
transverse roof rack is fitted. Do not open
the sun roof if there is snow or ice on it:
you may damage it.
34J0A00390C
30
GETTING TO KNOW YOUR CAR

PANEL STORAGE
SUITCASE
After removing the roof panels, they
must be positioned inside the
dedicated suitcase inside the luggage
compartment. It is recommended to
perform this procedure from outside the
vehicle.
Proceed as follows:
❒open the suitcase, position the first
panel B as shown in fig. 38 and then
position the second panel C;❒close the suitcase and position it
properly inside the luggage
compartment;
❒secure the suitcase firmly to the
retaining hooks on the luggage
compartment crossmember.
IMPORTANT Never put excess loads
on the suitcase; for further information,
see the description in the documents
supplied with the suitcase.
EMERGENCY OPERATION
If the control buttons fail to operate, the
sun roof can be moved manually,
proceeding as described below:
❒remove protective cap A fig. 39 on
the internal trim;
❒introduce the supplied key B into
housing A and turn it clockwise to open
the roof or anticlockwise to close it.
WARNING
12)Do not open the sun roof if a
transverse roof rack is fitted. Do not open
the sun roof if there is snow or ice on it:
you may damage it.
36J0A0272C
37J0A0271C
38J0A0416C
39J0A0080C
32
GETTING TO KNOW YOUR CAR

CLOSING
To close the luggage compartment
grab the handle located inside the
tailgate.
IMPORTANT Before closing the
luggage compartment make sure that
you have the keys since the luggage
compartment is automatically locked.
LUGGAGE
COMPARTMENT
INITIALISATION
IMPORTANT If the battery is
disconnected or the protection fuse
blows, the luggage compartment
opening/closing mechanism must be
reinitialised as follows:
❒close all the doors and the luggage
compartment;
❒press the
button on the remote
control;
❒press the
button on the remote
control.
LOAD COMPARTMENT
CHARACTERISTICS
Reconfigurable load
platform
The platform can take two different
positions: "threshold level" position or
"completely raised" position. The load
platform can be located in oblique
position (tilted towards the rear seat
backrests), in order to facilitate access
to the area underneath the luggage
compartment.
The load platform can be tilted, and is
equipped with a washable plastic
surface, useful for instance for
transporting wet or muddy items.
13)
Reconfigurable load
platform access/movement
To access the double load
compartment grab device A fig. 46 and
raise platform B upwards keeping it
with one hand.
To move the load platform from lower to
upper position, proceed as follows:
❒grip handle A and raise platform B,
holding it with one hand;
❒position platform B correctly in the
guides D fig. 47 on the side panels and
rear crossmember E.
46J0A0086C
47J0A0088C
35

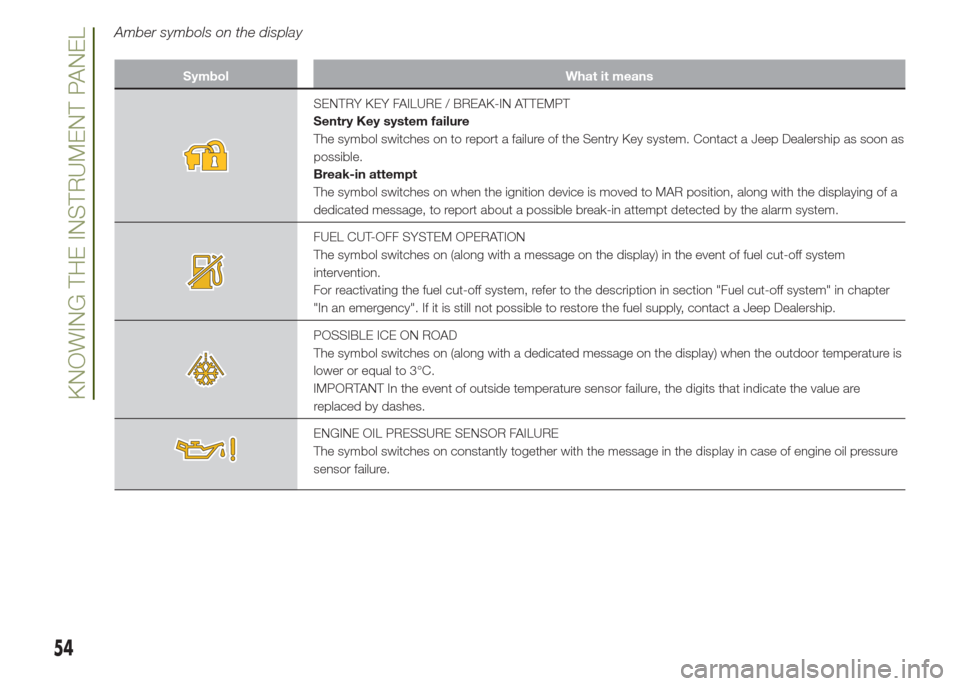

Amber symbols on the display
Symbol What it means
SENTRY KEY FAILURE / BREAK-IN ATTEMPT
Sentry Key system failure
The symbol switches on to report a failure of the Sentry Key system. Contact a Jeep Dealership as soon as
possible.
Break-in attempt
The symbol switches on when the ignition device is moved to MAR position, along with the displaying of a
dedicated message, to report about a possible break-in attempt detected by the alarm system.
FUEL CUT-OFF SYSTEM OPERATION
The symbol switches on (along with a message on the display) in the event of fuel cut-off system
intervention.
For reactivating the fuel cut-off system, refer to the description in section "Fuel cut-off system" in chapter
"In an emergency". If it is still not possible to restore the fuel supply, contact a Jeep Dealership.
POSSIBLE ICE ON ROAD
The symbol switches on (along with a dedicated message on the display) when the outdoor temperature is
lower or equal to 3°C.
IMPORTANT In the event of outside temperature sensor failure, the digits that indicate the value are
replaced by dashes.
ENGINE OIL PRESSURE SENSOR FAILURE
The symbol switches on constantly together with the message in the display in case of engine oil pressure
sensor failure.
54
KNOWING THE INSTRUMENT PANEL

Symbol What it means

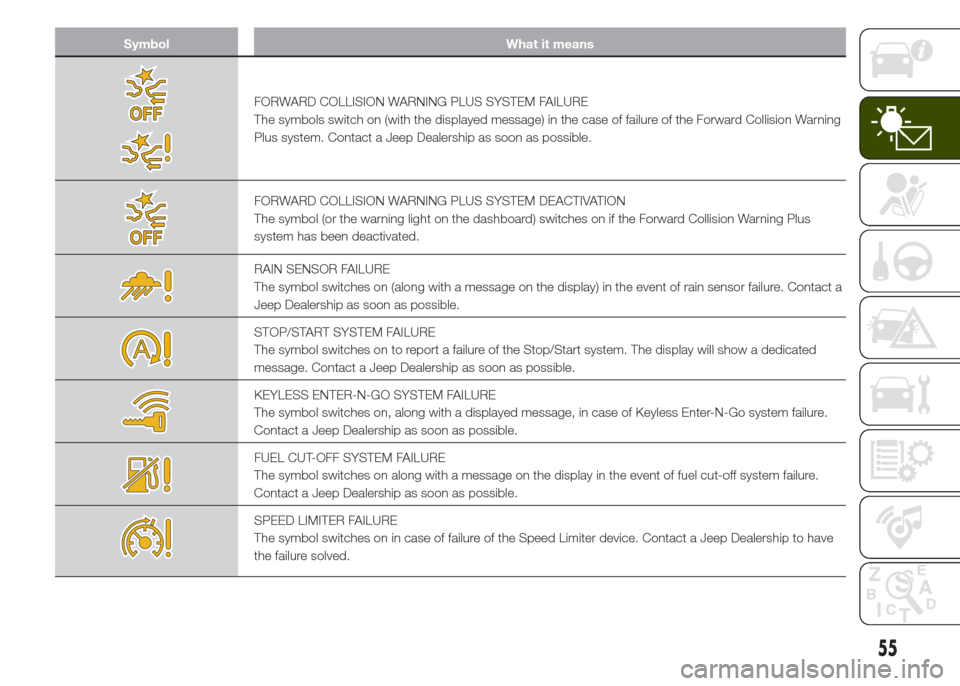

FORWARD COLLISION WARNING PLUS SYSTEM FAILURE
The symbols switch on (with the displayed message) in the case of failure of the Forward Collision Warning
Plus system. Contact a Jeep Dealership as soon as possible.
FORWARD COLLISION WARNING PLUS SYSTEM DEACTIVATION
The symbol (or the warning light on the dashboard) switches on if the Forward Collision Warning Plus
system has been deactivated.
RAIN SENSOR FAILURE
The symbol switches on (along with a message on the display) in the event of rain sensor failure. Contact a
Jeep Dealership as soon as possible.
STOP/START SYSTEM FAILURE
The symbol switches on to report a failure of the Stop/Start system. The display will show a dedicated
message. Contact a Jeep Dealership as soon as possible.
KEYLESS ENTER-N-GO SYSTEM FAILURE
The symbol switches on, along with a displayed message, in case of Keyless Enter-N-Go system failure.
Contact a Jeep Dealership as soon as possible.
FUEL CUT-OFF SYSTEM FAILURE
The symbol switches on along with a message on the display in the event of fuel cut-off system failure.
Contact a Jeep Dealership as soon as possible.
SPEED LIMITER FAILURE
The symbol switches on in case of failure of the Speed Limiter device. Contact a Jeep Dealership to have
the failure solved.
55

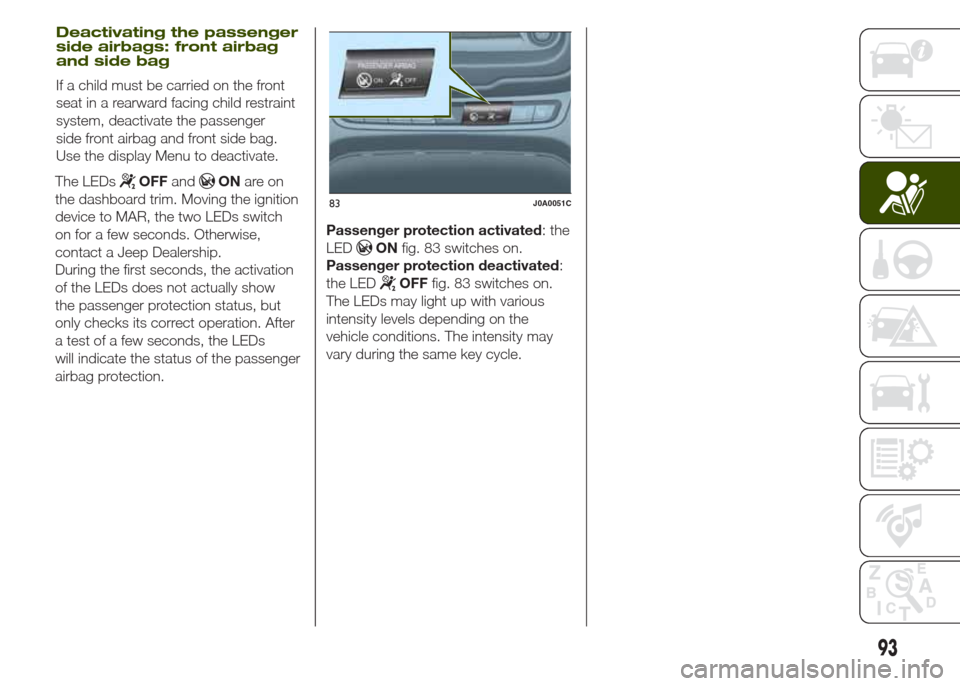

The LEDsOFFandONare on
the dashboard trim. Moving the ignition
device to MAR, the two LEDs switch
on for a few seconds. Otherwise,
contact a Jeep Dealership.
During the first seconds, the activation
of the LEDs does not actually show
the passenger protection status, but
only checks its correct operation. After
a test of a few seconds, the LEDs
will indicate the status of the passenger
airbag protection.Passenger protection activated: the
LED
ONfig. 83 switches on.
Passenger protection deactivated:
the LED
OFFfig. 83 switches on.
The LEDs may light up with various
intensity levels depending on the
vehicle conditions. The intensity may
vary during the same key cycle.
83J0A0051C
93
Deactivating the passenger
side airbags: front airbag
and side bag
If a child must be carried on the front
seat in a rearward facing child restraint
system, deactivate the passenger
side front airbag and front side bag.
Use the display Menu to deactivate.
