JEEP RENEGADE 2015 1.G Owner's Guide

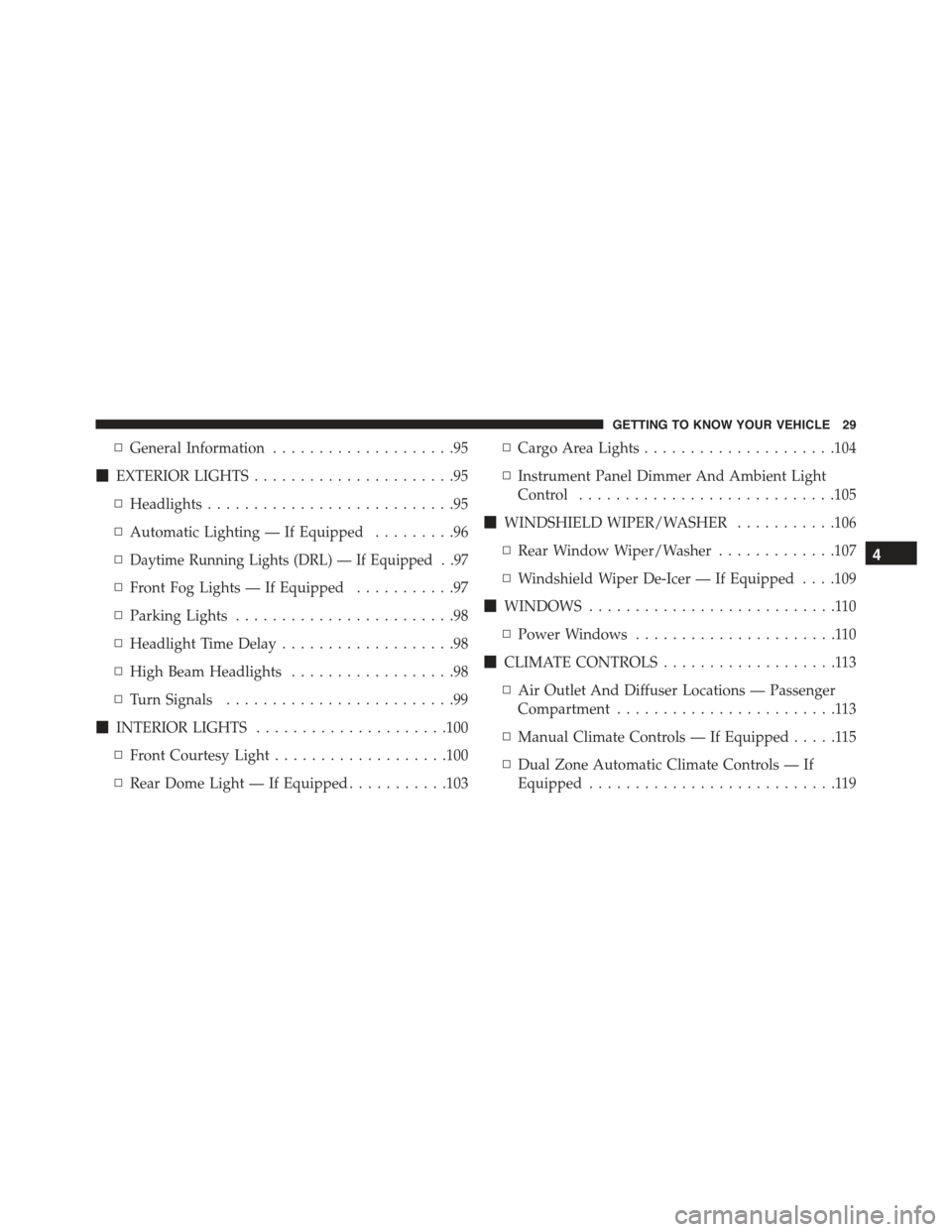

▫General Information....................95
!EXTERIOR LIGHTS......................95
▫Headlights...........................95
▫Automatic Lighting — If Equipped.........96
▫Daytime Running Lights (DRL) — If Equipped . .97
▫Front Fog Lights — If Equipped...........97
▫Parking Lights........................98
▫Headlight Time Delay...................98
▫High Beam Headlights..................98
▫Turn Signals.........................99
!INTERIOR LIGHTS.....................100
▫Front Courtesy Light...................100
▫Rear Dome Light — If Equipped...........103
▫Cargo Area Lights.....................104
▫Instrument Panel Dimmer And Ambient Light
Control............................105
!WINDSHIELD WIPER/WASHER...........106
▫Rear Window Wiper/Washer.............107
▫Windshield Wiper De-Icer — If Equipped . . . .109
!WINDOWS...........................110
▫Power Windows......................110
!CLIMATE CONTROLS...................113
▫Air Outlet And Diffuser Locations — Passenger
Compartment........................113
▫Manual Climate Controls — If Equipped.....115
▫Dual Zone Automatic Climate Controls — If
Equipped...........................119
4
GETTING TO KNOW YOUR VEHICLE 29

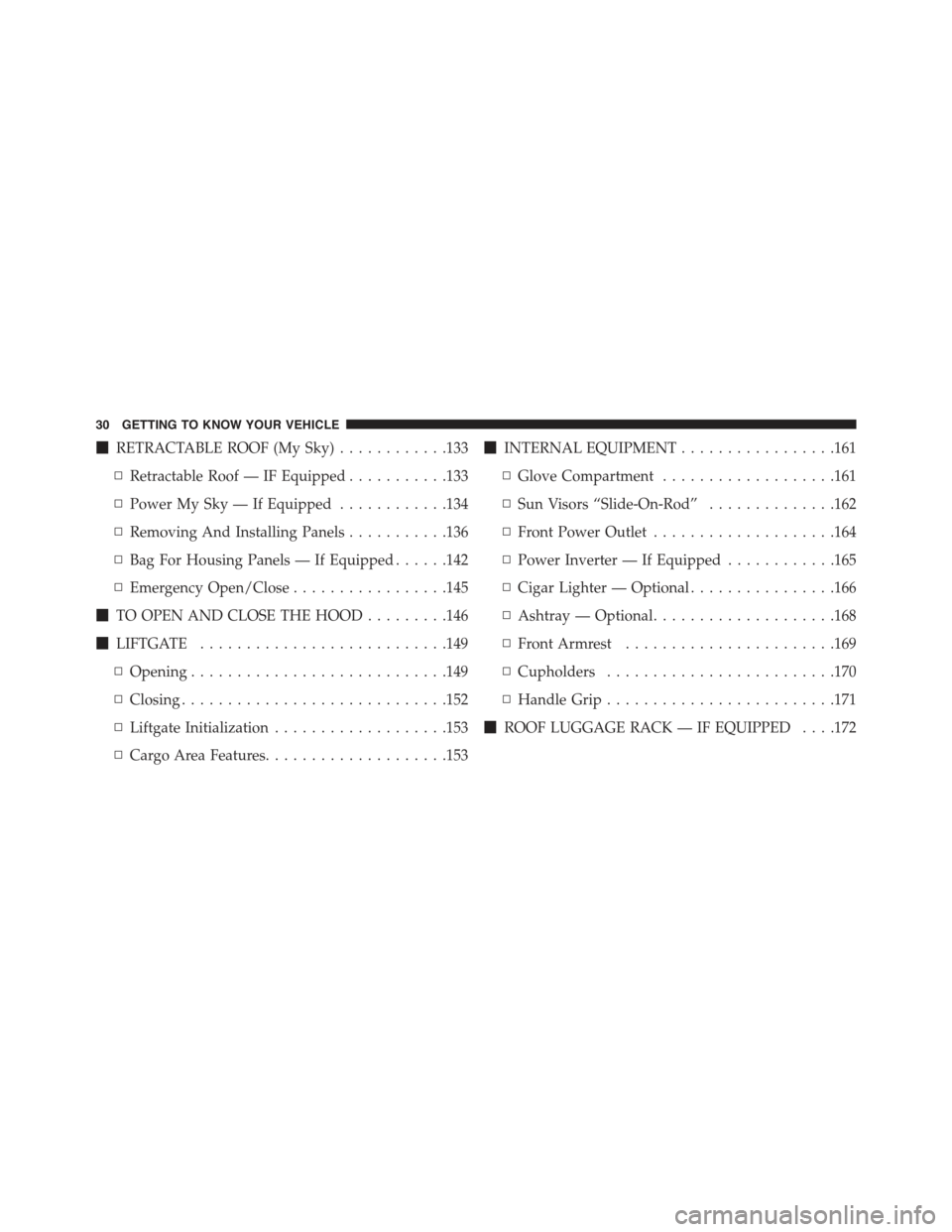

!RETRACTABLE ROOF (My Sky)............133
▫Retractable Roof — IF Equipped...........133
▫Power My Sky — If Equipped............134
▫Removing And Installing Panels...........136
▫Bag For Housing Panels — If Equipped......142
▫Emergency Open/Close.................145
!TO OPEN AND CLOSE THE HOOD.........146
!LIFTGATE...........................149
▫Opening............................149
▫Closing.............................152
▫Liftgate Initialization...................153
▫Cargo Area Features....................153
!INTERNAL EQUIPMENT.................161
▫Glove Compartment...................161
▫Sun Visors “Slide-On-Rod”..............162
▫Front Power Outlet....................164
▫Power Inverter — If Equipped............165
▫Cigar Lighter — Optional................166
▫Ashtray — Optional....................168
▫Front Armrest.......................169
▫Cupholders.........................170
▫Handle Grip.........................171
!ROOF LUGGAGE RACK — IF EQUIPPED . . . .172
30 GETTING TO KNOW YOUR VEHICLE

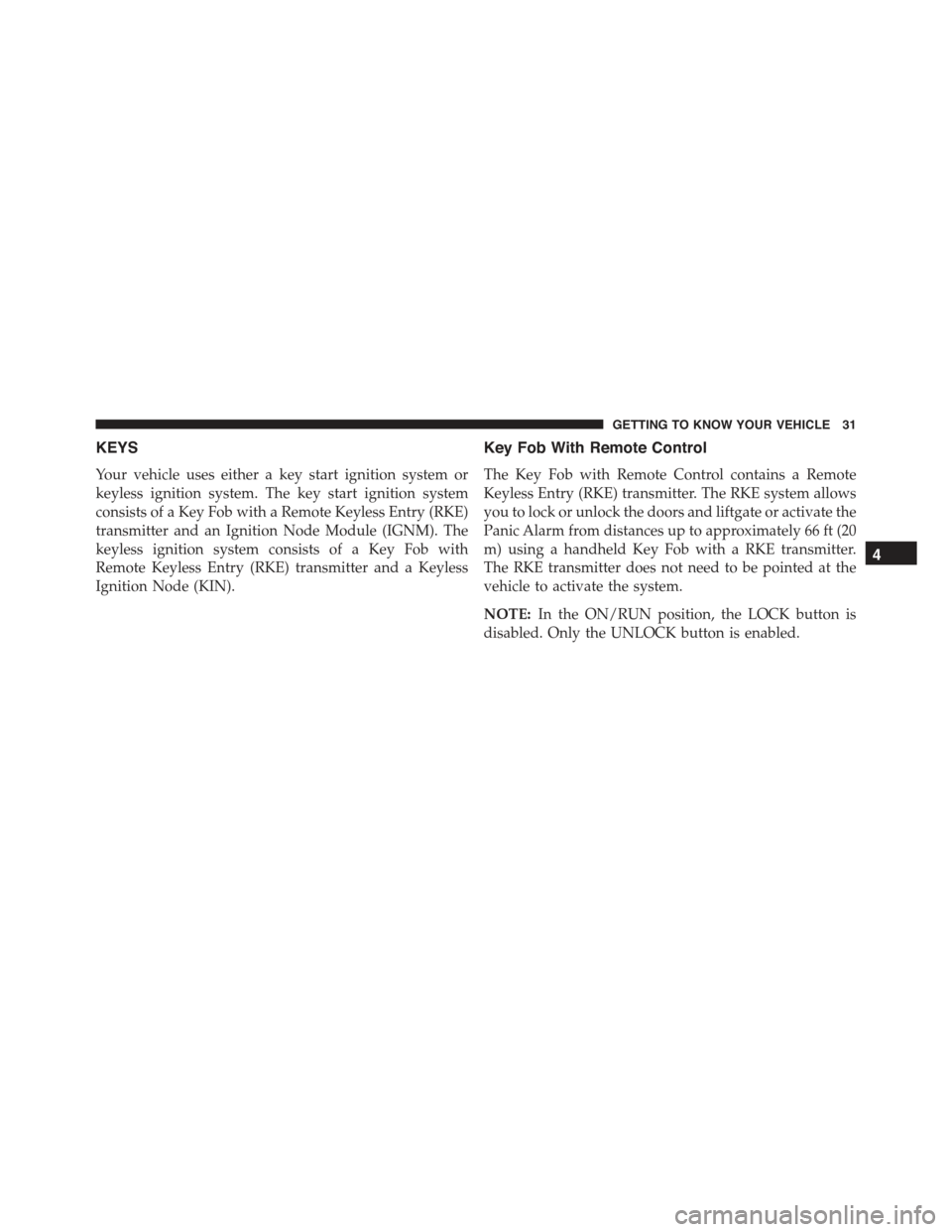

KEYS
Your vehicle uses either a key start ignition system or
keyless ignition system. The key start ignition system
consists of a Key Fob with a Remote Keyless Entry (RKE)
transmitter and an Ignition Node Module (IGNM). The
keyless ignition system consists of a Key Fob with
Remote Keyless Entry (RKE) transmitter and a Keyless
Ignition Node (KIN).
Key Fob With Remote Control
The Key Fob with Remote Control contains a Remote
Keyless Entry (RKE) transmitter. The RKE system allows
you to lock or unlock the doors and liftgate or activate the
Panic Alarm from distances up to approximately 66 ft (20
m) using a handheld Key Fob with a RKE transmitter.
The RKE transmitter does not need to be pointed at the
vehicle to activate the system.
NOTE:In the ON/RUN position, the LOCK button is
disabled. Only the UNLOCK button is enabled.
4
GETTING TO KNOW YOUR VEHICLE 31

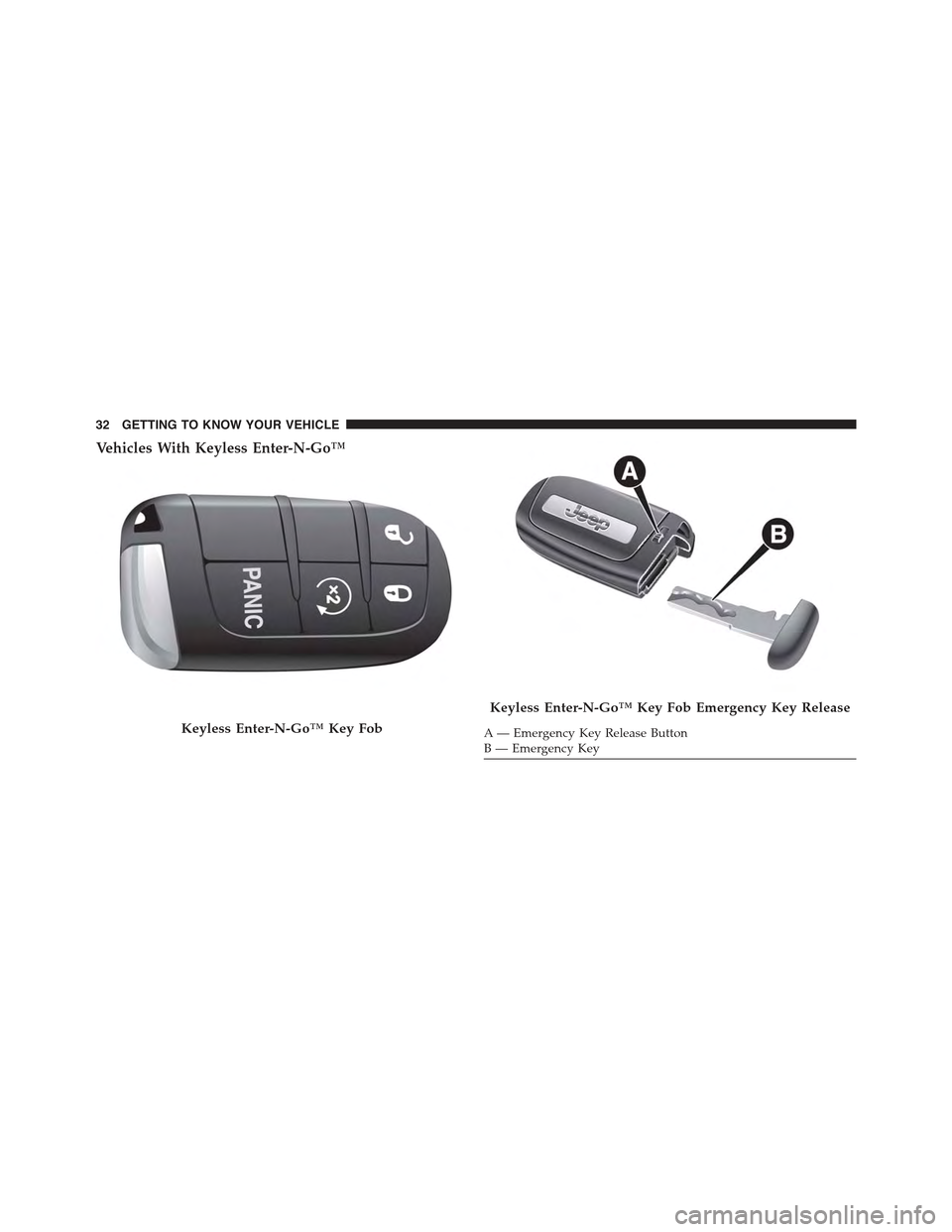

Vehicles With Keyless Enter-N-Go™
Keyless Enter-N-Go™ Key Fob
Keyless Enter-N-Go™ Key Fob Emergency Key Release
A — Emergency Key Release ButtonB — Emergency Key
32 GETTING TO KNOW YOUR VEHICLE

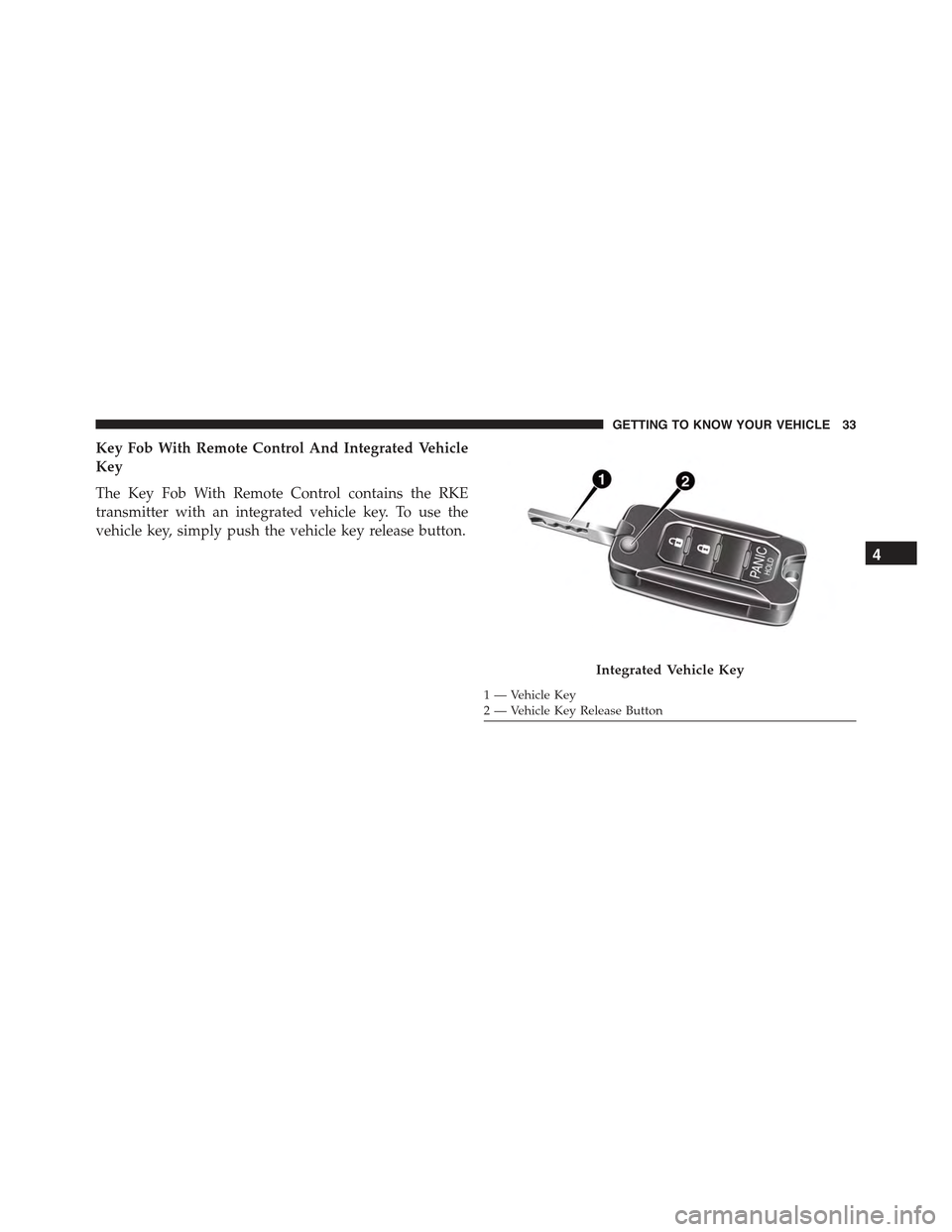

Key Fob With Remote Control And Integrated Vehicle
Key
The Key Fob With Remote Control contains the RKE
transmitter with an integrated vehicle key. To use the
vehicle key, simply push the vehicle key release button.
Integrated Vehicle Key
1 — Vehicle Key2 — Vehicle Key Release Button
4
GETTING TO KNOW YOUR VEHICLE 33

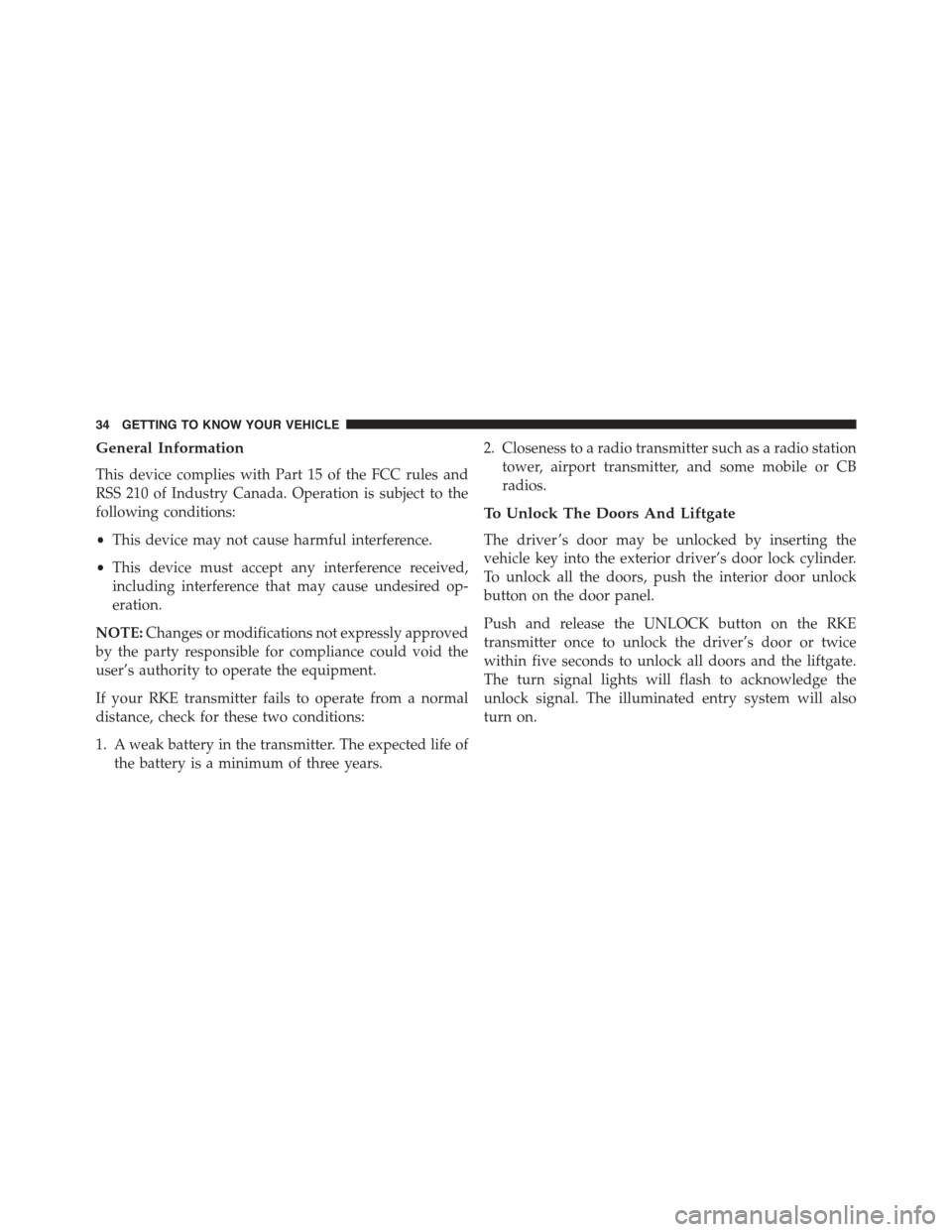

General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. A weak battery in the transmitter. The expected life of
the battery is a minimum of three years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB
radios.
To Unlock The Doors And Liftgate
The driver ’s door may be unlocked by inserting the
vehicle key into the exterior driver’s door lock cylinder.
To unlock all the doors, push the interior door unlock
button on the door panel.
Push and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice
within five seconds to unlock all doors and the liftgate.
The turn signal lights will flash to acknowledge the
unlock signal. The illuminated entry system will also
turn on.
34 GETTING TO KNOW YOUR VEHICLE

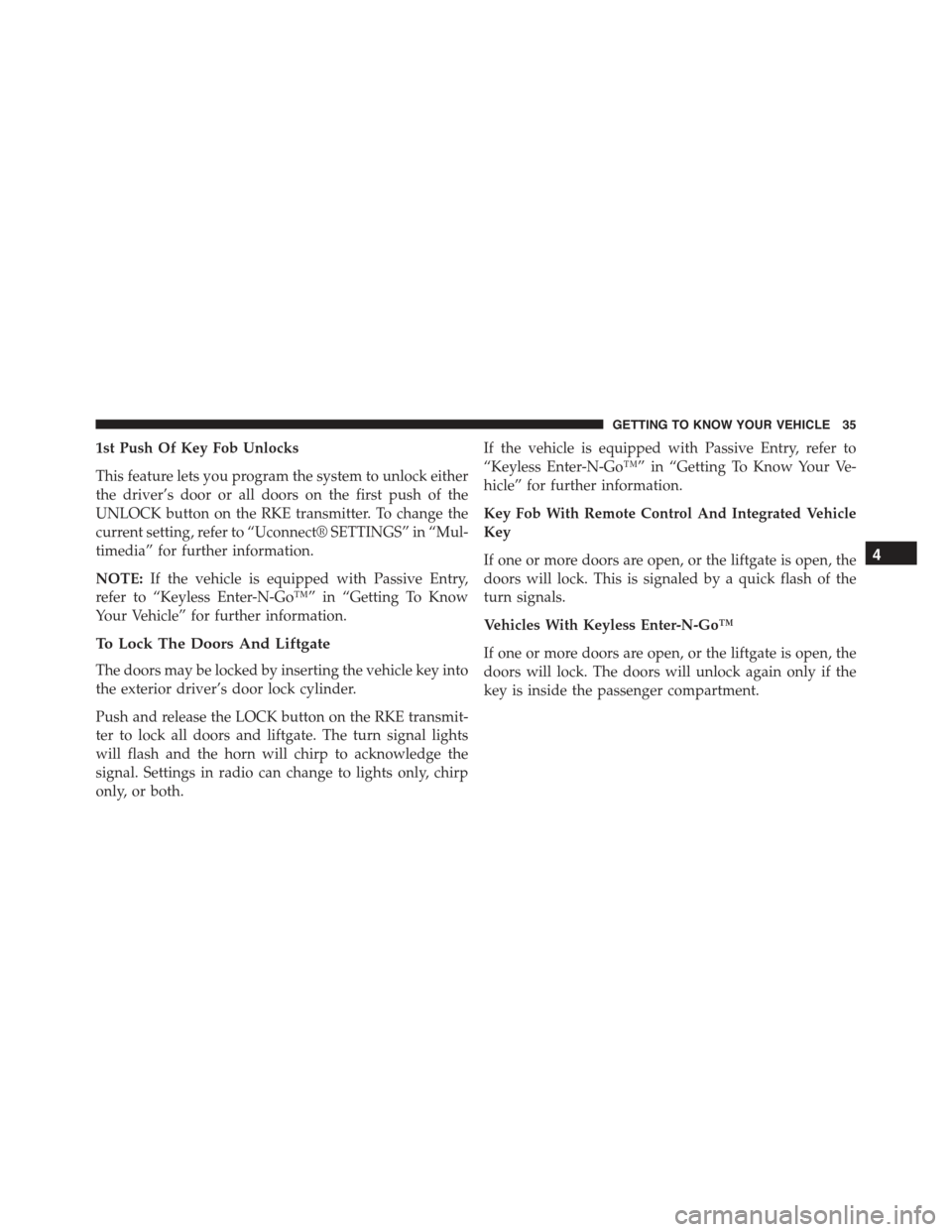

1st Push Of Key Fob Unlocks
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the
UNLOCK button on the RKE transmitter. To change the
current setting, refer to “Uconnect® SETTINGS” in “Mul-
timedia” for further information.
NOTE:If the vehicle is equipped with Passive Entry,
refer to “Keyless Enter-N-Go™” in “Getting To Know
Your Vehicle” for further information.
To Lock The Doors And Liftgate
The doors may be locked by inserting the vehicle key into
the exterior driver’s door lock cylinder.
Push and release the LOCK button on the RKE transmit-
ter to lock all doors and liftgate. The turn signal lights
will flash and the horn will chirp to acknowledge the
signal. Settings in radio can change to lights only, chirp
only, or both.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go™” in “Getting To Know Your Ve-
hicle” for further information.
Key Fob With Remote Control And Integrated Vehicle
Key
If one or more doors are open, or the liftgate is open, the
doors will lock. This is signaled by a quick flash of the
turn signals.
Vehicles With Keyless Enter-N-Go™
If one or more doors are open, or the liftgate is open, the
doors will lock. The doors will unlock again only if the
key is inside the passenger compartment.
4
GETTING TO KNOW YOUR VEHICLE 35

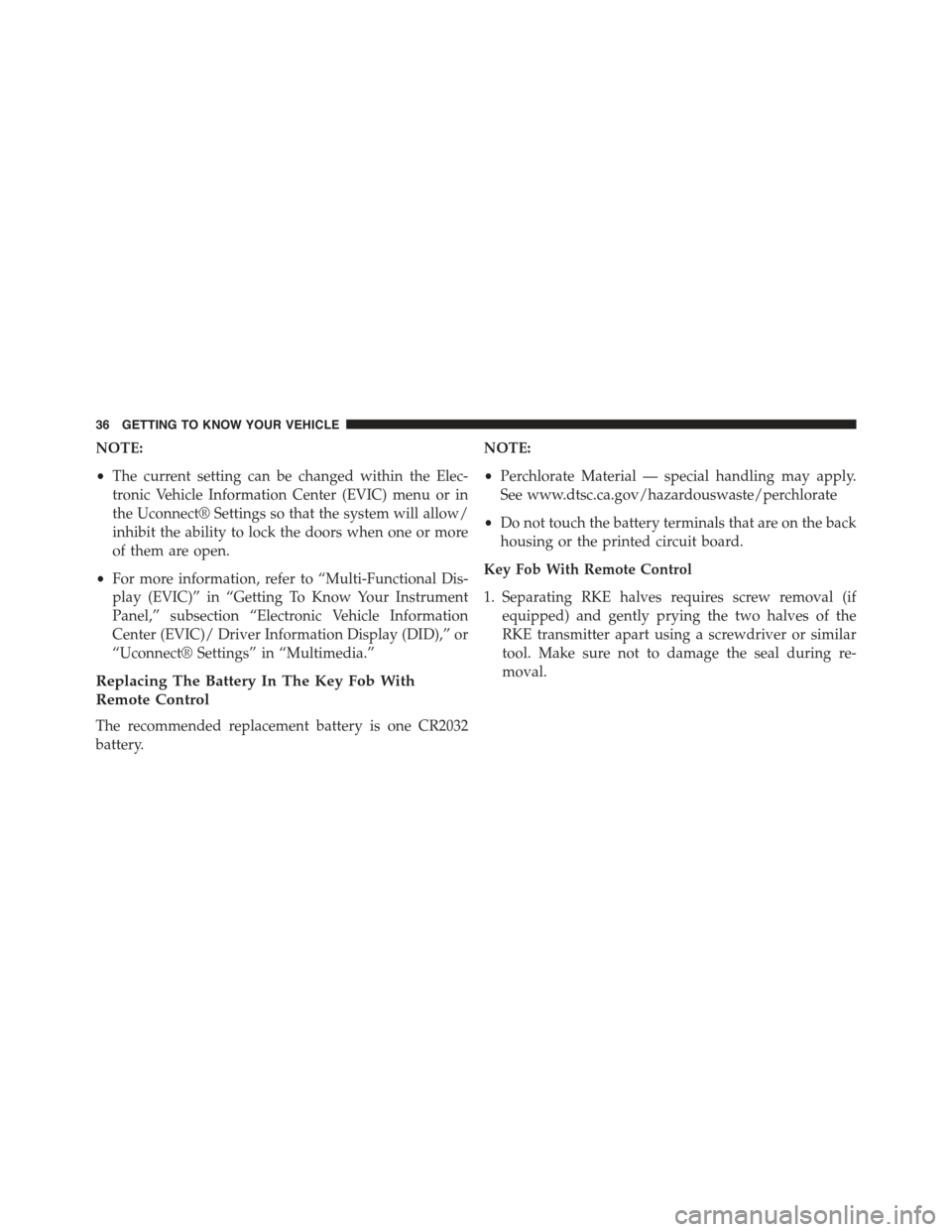

NOTE:
•The current setting can be changed within the Elec-
tronic Vehicle Information Center (EVIC) menu or in
the Uconnect® Settings so that the system will allow/
inhibit the ability to lock the doors when one or more
of them are open.
•For more information, refer to “Multi-Functional Dis-
play (EVIC)” in “Getting To Know Your Instrument
Panel,” subsection “Electronic Vehicle Information
Center (EVIC)/ Driver Information Display (DID),” or
“Uconnect® Settings” in “Multimedia.”
Replacing The Battery In The Key Fob With
Remote Control
The recommended replacement battery is one CR2032
battery.
NOTE:
•Perchlorate Material — special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.
Key Fob With Remote Control
1. Separating RKE halves requires screw removal (if
equipped) and gently prying the two halves of the
RKE transmitter apart using a screwdriver or similar
tool. Make sure not to damage the seal during re-
moval.
36 GETTING TO KNOW YOUR VEHICLE

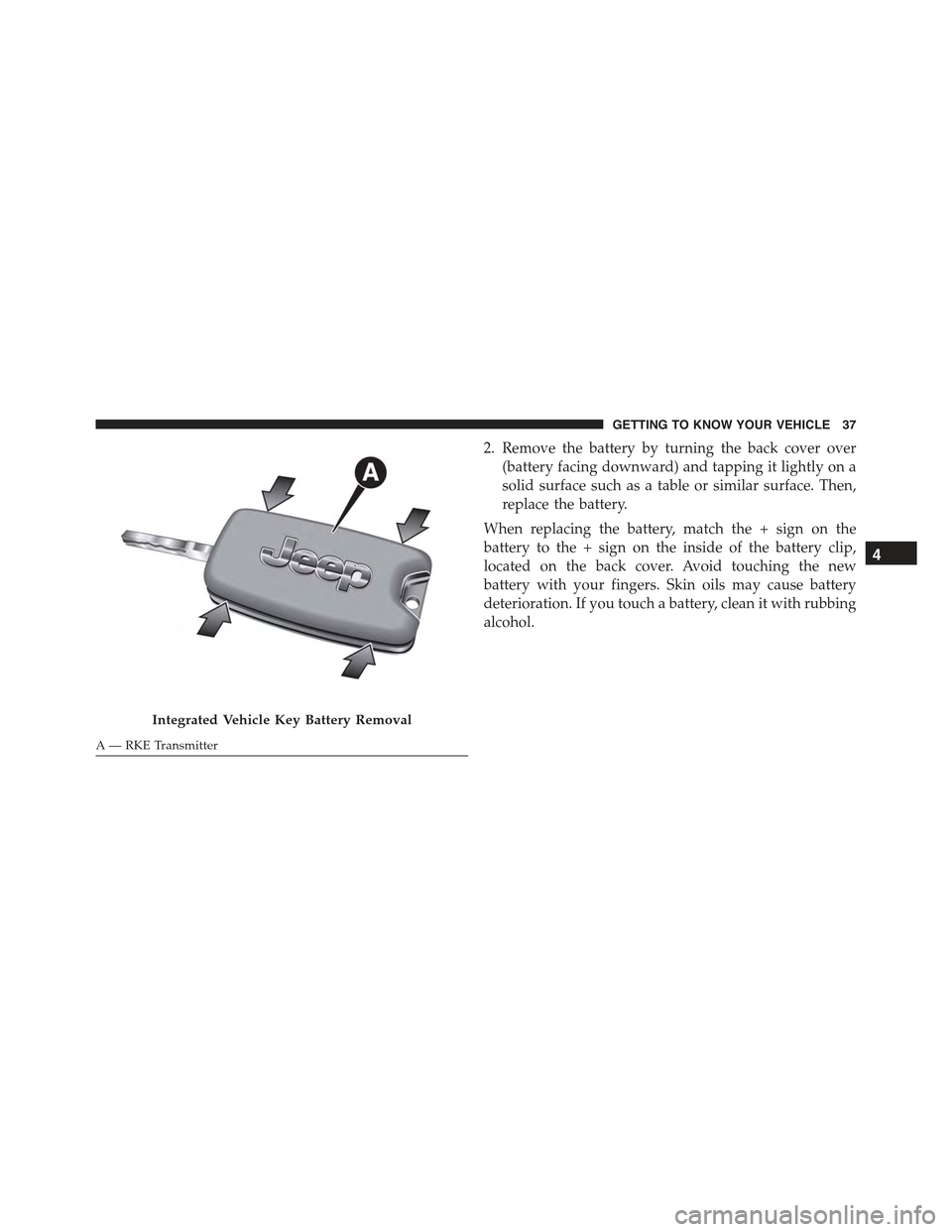

2. Remove the battery by turning the back cover over
(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar surface. Then,
replace the battery.
When replacing the battery, match the + sign on the
battery to the + sign on the inside of the battery clip,
located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with rubbing
alcohol.
Integrated Vehicle Key Battery Removal
A— RKE Transmitter
4
GETTING TO KNOW YOUR VEHICLE 37

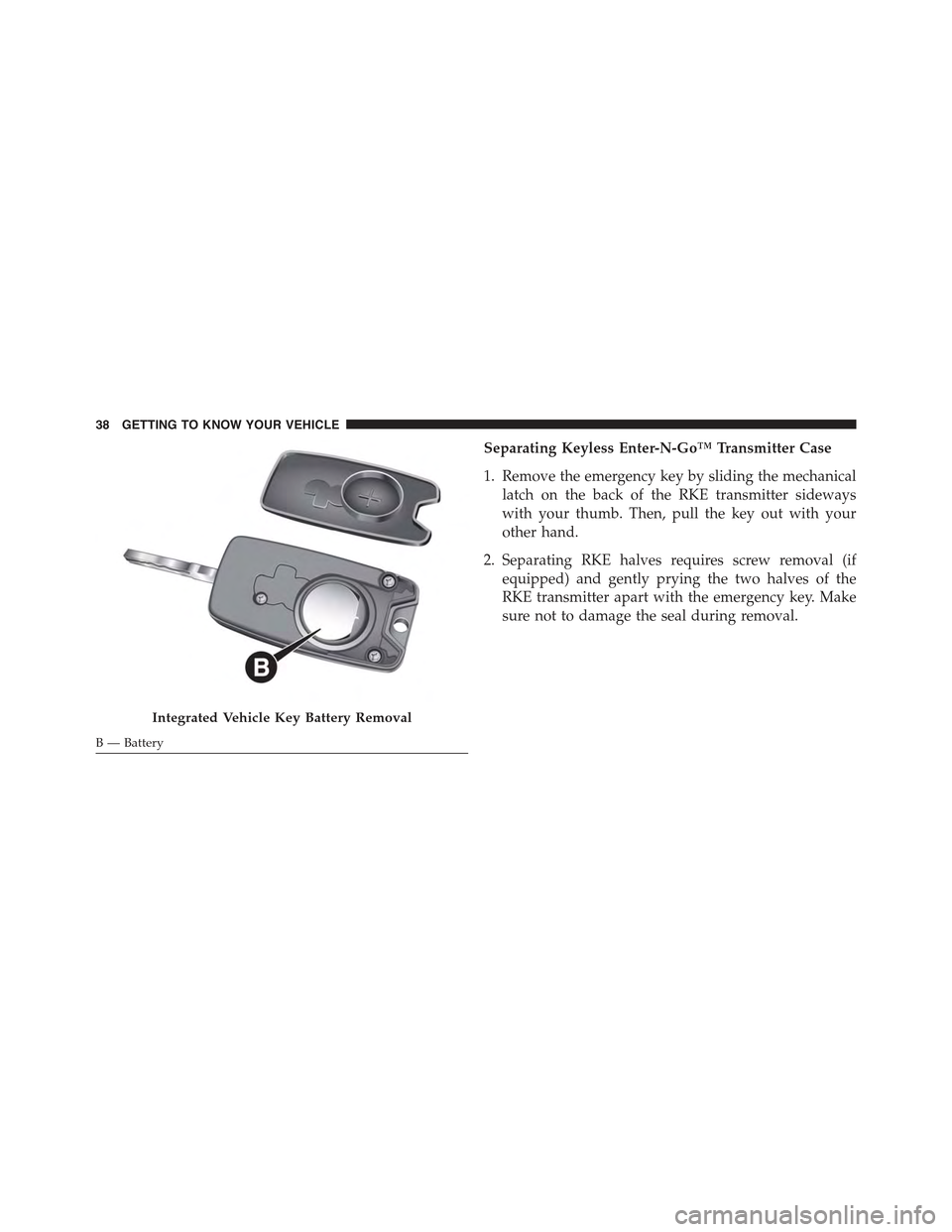

Separating Keyless Enter-N-Go™ Transmitter Case
1. Remove the emergency key by sliding the mechanical
latch on the back of the RKE transmitter sideways
with your thumb. Then, pull the key out with your
other hand.
2. Separating RKE halves requires screw removal (if
equipped) and gently prying the two halves of the
RKE transmitter apart with the emergency key. Make
sure not to damage the seal during removal.
Integrated Vehicle Key Battery Removal
B — Battery
