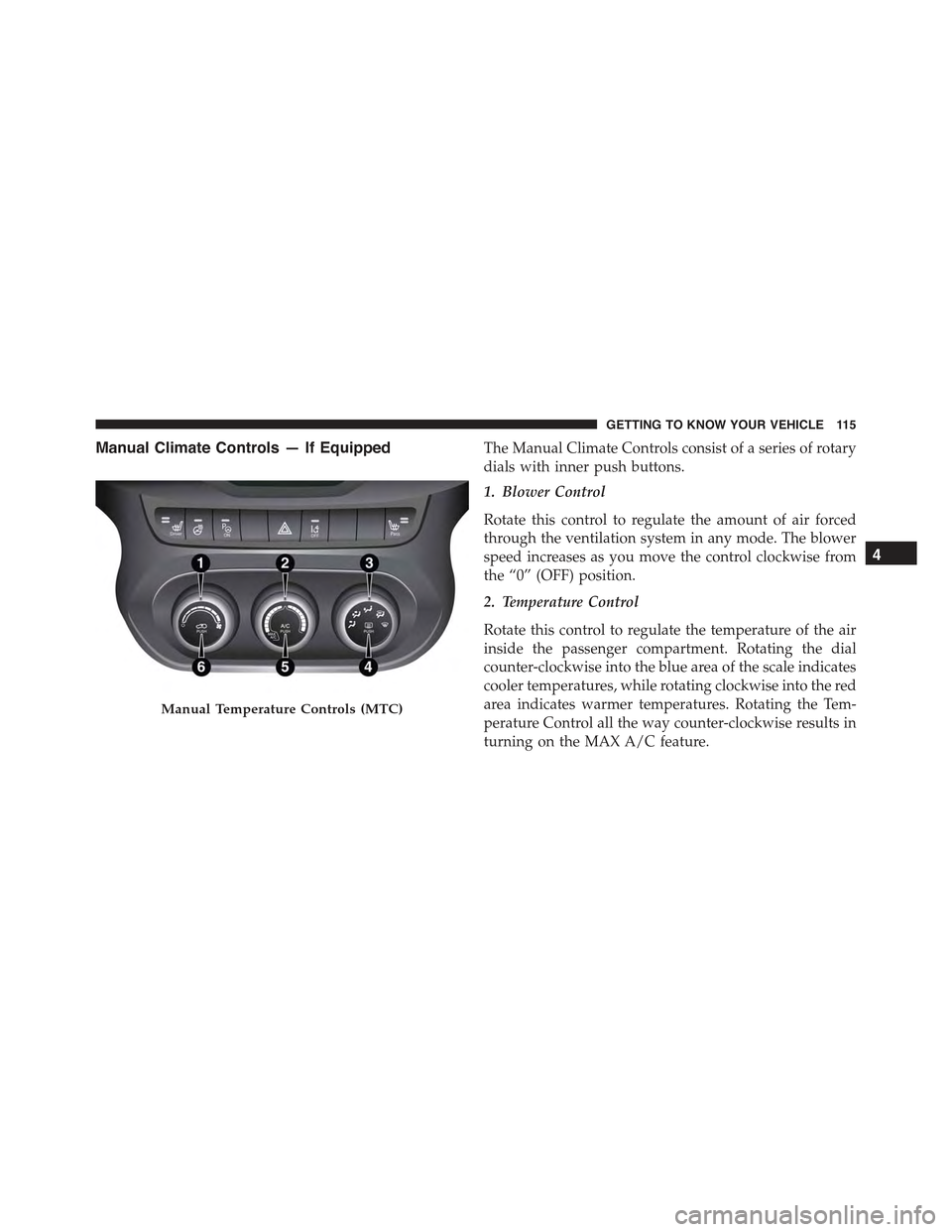

Manual Climate Controls — If EquippedThe Manual Climate Controls consist of a series of rotary
dials with inner push buttons.
1. Blower Control
Rotate this control to regulate the amount of air forced
through the ventilation system in any mode. The blower
speed increases as you move the control clockwise from
the “0” (OFF) position.
2. Temperature Control
Rotate this control to regulate the temperature of the air
inside the passenger compartment. Rotating the dial
counter-clockwise into the blue area of the scale indicates
cooler temperatures, while rotating clockwise into the red
area indicates warmer temperatures. Rotating the Tem-
perature Control all the way counter-clockwise results in
turning on the MAX A/C feature.
Manual Temperature Controls (MTC)
4
GETTING TO KNOW YOUR VEHICLE 115

Dual Zone Automatic Climate Controls — If
Equipped
1. Driver Temperature Control
Provides the driver with independent temperature con-
trol. Rotate the adjustment knob to set desired tempera-
ture shown in the Temperature Display. Rotate fully
counter-clockwise for maximum A/C (LO).
2. A/C Button
Push the A/C Control Button to change the current
setting. The indicator illuminates when the A/C is ON.
Performing this function again will cause the A/C opera-
tion to change to AUTO mode and the A/C indicator will
turn OFF.
3. MAX Defrost Button
Push the MAX Defrost button to change the current
airflow setting to Defrost mode. The indicator illuminates
when this feature is ON. Performing this function will
cause the ATC to change to manual mode. The blower
speed increases to full (all LEDs ON) when MAX Defrost
Automatic Temperature Controls (ATC)
4
GETTING TO KNOW YOUR VEHICLE 119

mode is selected, the air conditioning compressor is
turned ON (LED ON), both driver and passenger tem-
perature controls are set to (HI), defrost mode is selected
(LED ON), rear defroster is turned ON (LED ON) and the
air recirculation is turned OFF (LED OFF). If the MAX
Defrost mode is turned OFF, the climate system will
return to the previous setting.
4. Blower Control Indicator LEDs
A total of eight LEDs illuminate to visually indicate
blower speeds.
5. Rear Defrost Button
Push the Rear Defrost button to turn ON the rear window
defroster and the heated outside mirrors (if equipped).
An indicator will illuminate when the rear window
defroster is ON. The rear window defroster automatically
turns OFF after 20 minutes.
6. AUTO Button
Pushing this button will automatically control the inte-
rior cabin temperature by adjusting airflow distribution
and amount. Performing this function will cause the
Automatic Temperature Controls (ATC) to change be-
tween manual mode and automatic modes.
7. Passenger Temperature Control
Provides the passenger with independent temperature
control. Rotate the adjustment knob to set desired tem-
perature shown in the Temperature Display.
NOTE:Rotating the Passenger Temperature Control
knob while in Sync mode will automatically exit Sync.
8. Passenger Temperature Display
Rotate the Passenger Temperature Control dial clockwise
or counter-clockwise to adjust the air temperature in the
front right (Passenger Temperature Control) zone of the
passenger compartment. The set temperature is shown
120 GETTING TO KNOW YOUR VEHICLE

NOTE:
•When in Max Defrost mode, the Recirculation button
will change the setting to normal Defrost mode. This
indicates that you can not enter to this mode due to
fogging risk.
•When the Auto indicator is ON and the Recirculation
indicator is OFF, the Recirculation is in AUTO mode.
If the Recirculation indicator is ON, the Recirculation
setting is manual and Recirculation is ON.
14. Driver Temperature Display
Rotate the Driver Temperature Control dial clockwise or
counter-clockwise, to adjust the air temperature in the
front left (Driver Temperature Control) zone of the pas-
senger compartment. The set temperature is shown on
the display. Turning the control knob completely in one
direction or the other activates the#HI#(maximum heat-
ing) or#LO#(maximum cooling) functions shown in the
display, respectively. To deactivate these functions, turn
the temperature knob to the desired temperature.
Description
The Automatic Dual Zone Climate Control system regu-
lates the air temperatures in the passenger compartment
in two zones: driver side and passenger side.
The system maintains comfort inside the passenger com-
partment and compensates for possible variations in
external climate conditions.
The Climate Control system can recognize extremely cold
(or extremely hot) conditions in the passenger compart-
ment and provide optimal management of the system’s
capabilities.
NOTE:The reference temperature is 72° F (22° C) for
optimal comfort management.
122 GETTING TO KNOW YOUR VEHICLE

MANUAL mode (the set temperatures will flash on the
display). The blower speed is the same in all the zones of
the passenger compartment.
Adjusting The Air Temperature
Rotate the Driver Temperature Control, or the Passenger
Temperature Control, dial clockwise or counter-
clockwise, to adjust the air temperature in the front left
(Driver Temperature Control) or right (Passenger Tem-
perature Control) zone of the passenger compartment.
The set temperatures are shown on the displays.
Push the SYNC button to align the air temperature
between the two zones.
Turn the Passenger Temperature Control knob to return
to the separate management of air temperatures in the
two zones.
Turning the control knobs completely in one direction or
the other activates the#HI#(maximum heating) or#LO#
(maximum cooling) functions respectively.
To deactivate these functions, turn the temperature knob
to the desired temperature.
Air Distribution Selection
By pushing the Mode Control buttons (Defrost/Panel/
Floor buttons), it is possible to set one of the seven
possible air distributions manually by activating one or
more mode buttons:
•Defrost Mode – Air flow to the windshield and front
side window diffusers to defrost them. Use Defrost
mode with maximum temperature settings for best
windshield and side window defrosting. When the
defrost mode is selected, the blower will automatically
default to medium-high.
4
GETTING TO KNOW YOUR VEHICLE 125

MAX A/C
MAX A/C sets the system for maximum cooling perfor-
mance.
Rotate the driver temperature control adjust knob
counter-clockwise for MAX A/C. Both driver and pas-
senger temperature displays will show MAX A/C LO.
In MAX A/C, the blower speed and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the
selected setting and MAX A/C to exit.
Rapid Window Demisting (MAX-Defrost function)
Push the MAX-defrost button to activate (LED on) the
windshield and side window demisting function.
The Climate Control system carries out the following
operations:
•Turns on the air conditioning compressor when envi-
ronmental conditions are suitable.
•Turns air recirculation off.
•Sets fan speed according to the engine coolant tem-
perature.
•Directs air flow to windshield and front side window
diffusers.
•Activates the heated rear window defrost.
•Activates the heated windshield (if equipped).
•Displays the fan speed (Blower Control Indicator LED
illuminated).
130 GETTING TO KNOW YOUR VEHICLE

NOTE:
•Do not load objects that weigh over 165 pounds (75 kg)
on top of the roof panel bag.
•The bag is washable. Refer to the documentation that
is supplied with the bag.
Emergency Open/Close
If the Power My Sky switch fails, the retractable roof can
be operated manually as follows:
1. Remove the protective cap located on the inner lining.
2. Remove the Allen Key that is supplied in the tool bag
in the cargo area.
3. Insert the Allen Key into the key hole and turn it
clockwise to open the roof or counter-clockwise to
close.
Tie-Down Clips
4
GETTING TO KNOW YOUR VEHICLE 145

Restore Default Settings
Selecting this item, and you can reset and restore the
default settings.
Vehicle Setup
This menu item allows you to change the settings for the
following:
•Display
•Units of measure
•Clock and Data
•Safety
•Safety and Assistance
•Lights
•Doors and Locks
•Compass (If Equipped)
Vehicles Equipped With Multifunctional Display
Reconfigurable:Menu items#Display#(you can select
only the items#See Phone#and#See Navigation,##Secu-
rity,#and#Safety & Assistance#(only#Volume Alerts#is
selectable) are present.
All other entries are displayed and selected on the
display of the Uconnect® system.
“Display”
By selecting the#Display,#you can access the following
settings:
•Language: allows you to select the language in which
to display the information/warnings.
•See Phone:allows you to view, on the instrument
cluster display, the information relating to Phone
mode displayed on the display of the Uconnect®
system.
5
GETTING TO KNOW YOUR INSTRUMENT PANEL 213

•See Navigation:allows you to view, on the instrument
cluster display, information relating to the navigation
mode.
$Units Of Measure$
By selecting the item#Units of measure,#you can select
the unit of measure to use for displaying various magni-
tudes.
Possible options are:
•US
•Metric
•Custom
$Clock & Data$
By selecting the item,#Clock & Data#you can adjust the
clock.
Possible options are:
•Set Time: adjust hours/minutes
•Set Format: adjust the time format#12h#(12 hours) or
#24h#(24 hours)
•Set Date: adjust day/month/year
Safety
By selecting the item “Safety,” you can make the follow-
ing adjustments:
•Speed Warning:
Set the vehicle speed limit (km/h or mph), which the
driver is notified through a visual and acoustic signaling
(display of a message and a symbol on the display).
•Speed Belt Buzzer:
This function is only viewable when the Seat Belt Re-
minder (SBR) system is active.
214 GETTING TO KNOW YOUR INSTRUMENT PANEL

2. Rotate the headlamp bulb socket counterclockwise
then pull outwards.
3. Push on the locking tab on the headlamp bulb connec-
tor and remove the bulb and socket.
Headlamp Bulb SocketHeadlamp Bulb Connector
