Mileage or time passed
(whichever comes first)10,00020,00030,00040,00050,00060,00070,00080,00090,000100,000110,000120,000130,000140,000150,000
Years 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers16,00032,00048,00064,00080,00096,000112,000128,000144,000160,000176,000192,000208,000224,000240,000
Replace the timing belt (1.4LTurbo Engine).•
%Recommend replacement.
•Mandatory service
(#) The air cleaner cartridge must be changed every
15,000 miles if used in dusty areas.
(*) The oil and oil filter replacement must be carried out
when indicated by a warning light or message on the
instrument panel, or in any case should not exceed 1 year
or 10,000 miles.
(**) The spark plug change is distance based only, yearly
intervals do not apply. The following are essential to
ensure correct operation and prevent serious damage to
the engine:
•Only use spark plugs of the same make and type
which are specially certified for such engines (refer to
“Engine Information” in “Technical Data” for further
information).
9
MAINTAINING AND CARING FOR YOUR VEHICLE 525

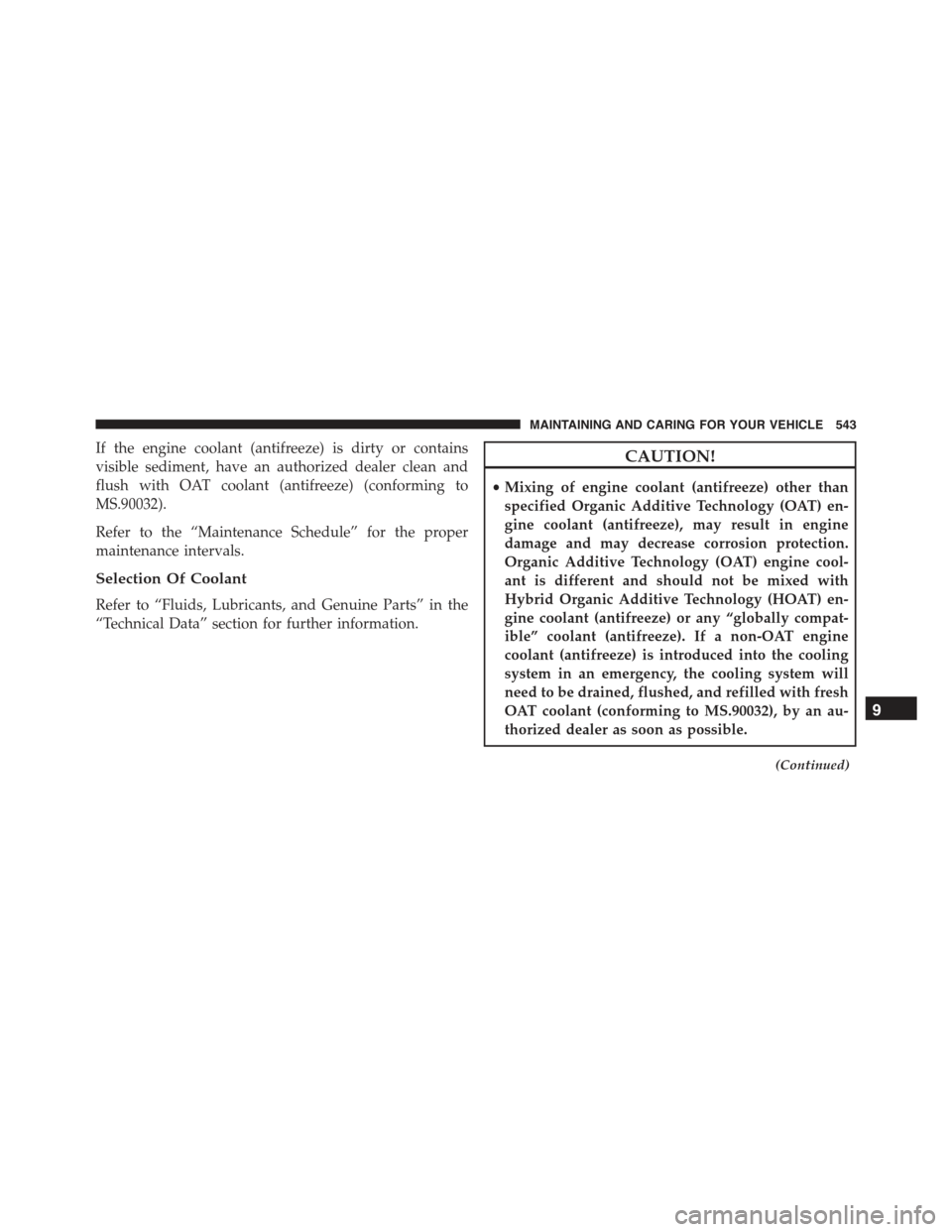

If the engine coolant (antifreeze) is dirty or contains
visible sediment, have an authorized dealer clean and
flush with OAT coolant (antifreeze) (conforming to
MS.90032).
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
Selection Of Coolant
Refer to “Fluids, Lubricants, and Genuine Parts” in the
“Technical Data” section for further information.
CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS.90032), by an au-
thorized dealer as soon as possible.
(Continued)
9
MAINTAINING AND CARING FOR YOUR VEHICLE 543

Use only manufacturer’s recommended brake fluid. Re-
fer to “Fluids, Lubricants, and Genuine Parts” in the
“Technical Data” section for further information.
WARNING!
•Use only manufacturer ’s recommended brake
fluid. Refer to “Fluids, Lubricants, and Genuine
Parts” in the “Technical Data” section for further
information. Using the wrong type of brake fluid
can severely damage your brake system and/or
impair its performance. The proper type of brake
fluid for your vehicle is also identified on the
original factory installed hydraulic master cylinder
reservoir.
(Continued)
WARNING!(Continued)
•To avoid contamination from foreign matter or
moisture, use only new brake fluid or fluid that has
been in a tightly closed container. Keep the master
cylinder reservoir cap secured at all times. Brake
fluid in a open container absorbs moisture from the
air resulting in a lower boiling point. This may
cause it to boil unexpectedly during hard or pro-
longed braking, resulting in sudden brake failure.
This could result in a collision.
•Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.
(Continued)
9
MAINTAINING AND CARING FOR YOUR VEHICLE 549

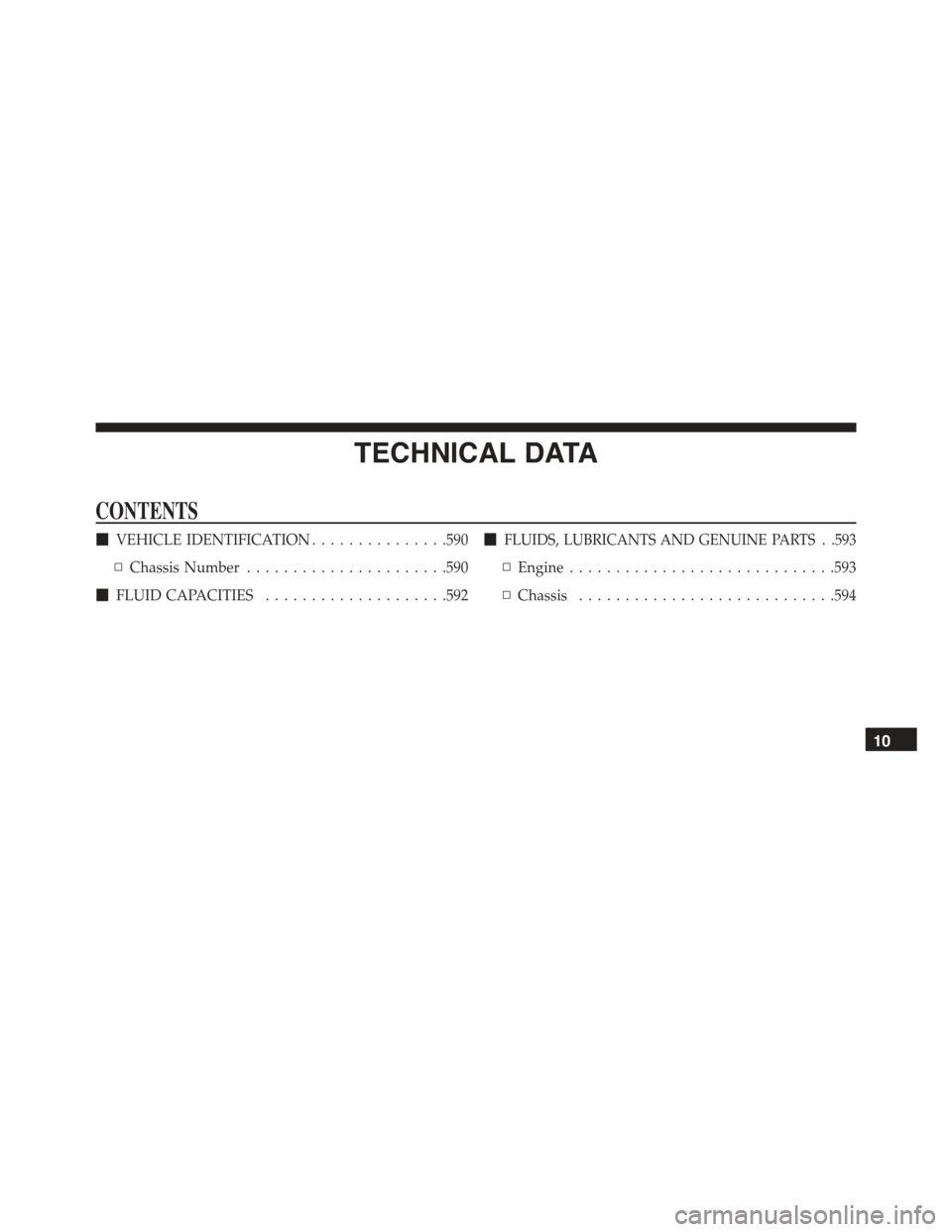

TECHNICAL DATA
CONTENTS
!VEHICLE IDENTIFICATION...............590
▫Chassis Number......................590
!FLUID CAPACITIES....................592
!FLUIDS, LUBRICANTS AND GENUINE PARTS . .593
▫Engine.............................593
▫Chassis............................594
10

VEHICLE IDENTIFICATION
Chassis Number

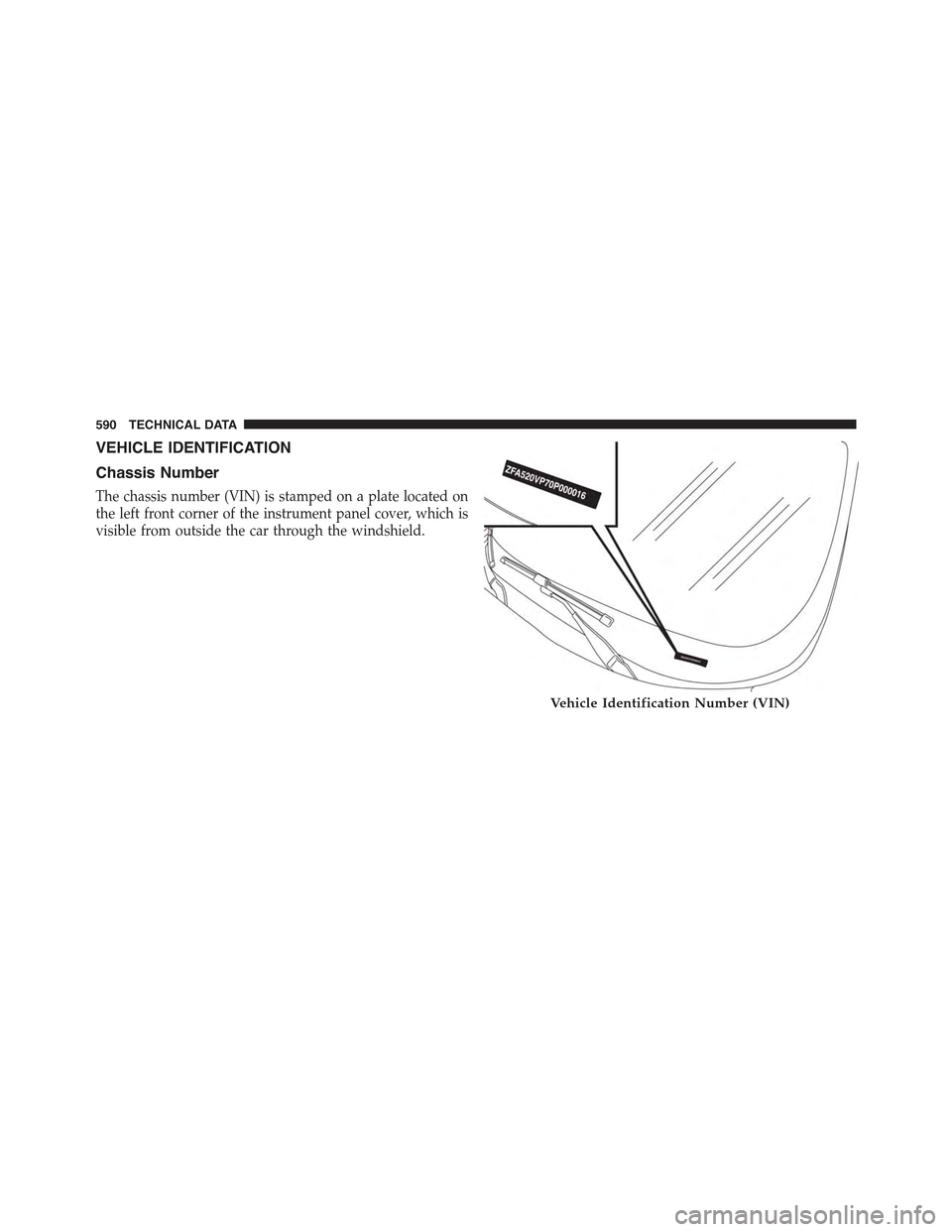

The chassis number (VIN) is stamped on a plate located on
the left front corner of the instrument panel cover, which is
visible from outside the car through the windshield.
Vehicle Identification Number (VIN)
590 TECHNICAL DATA

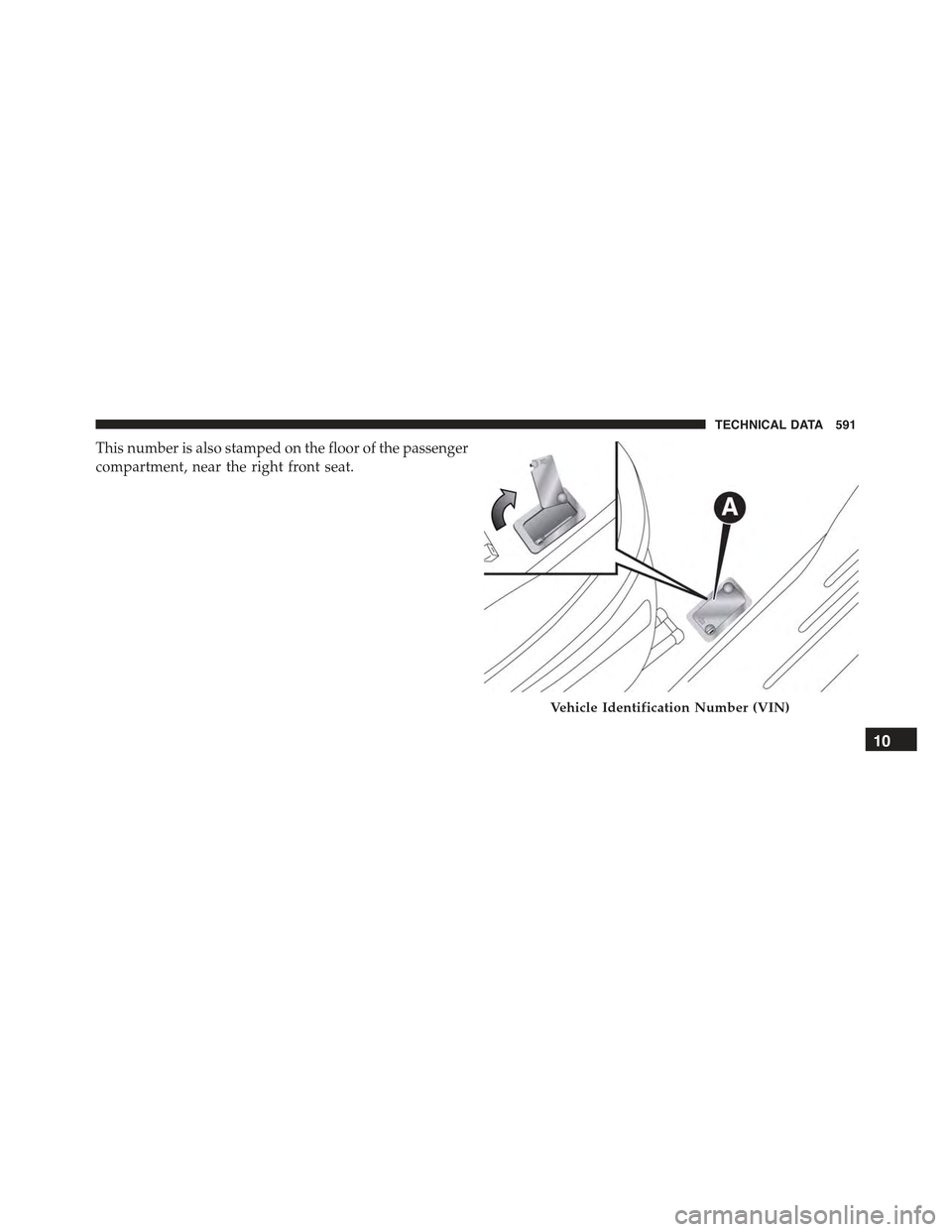

This number is also stamped on the floor of the passenger
compartment, near the right front seat.
Vehicle Identification Number (VIN)
10
TECHNICAL DATA 591

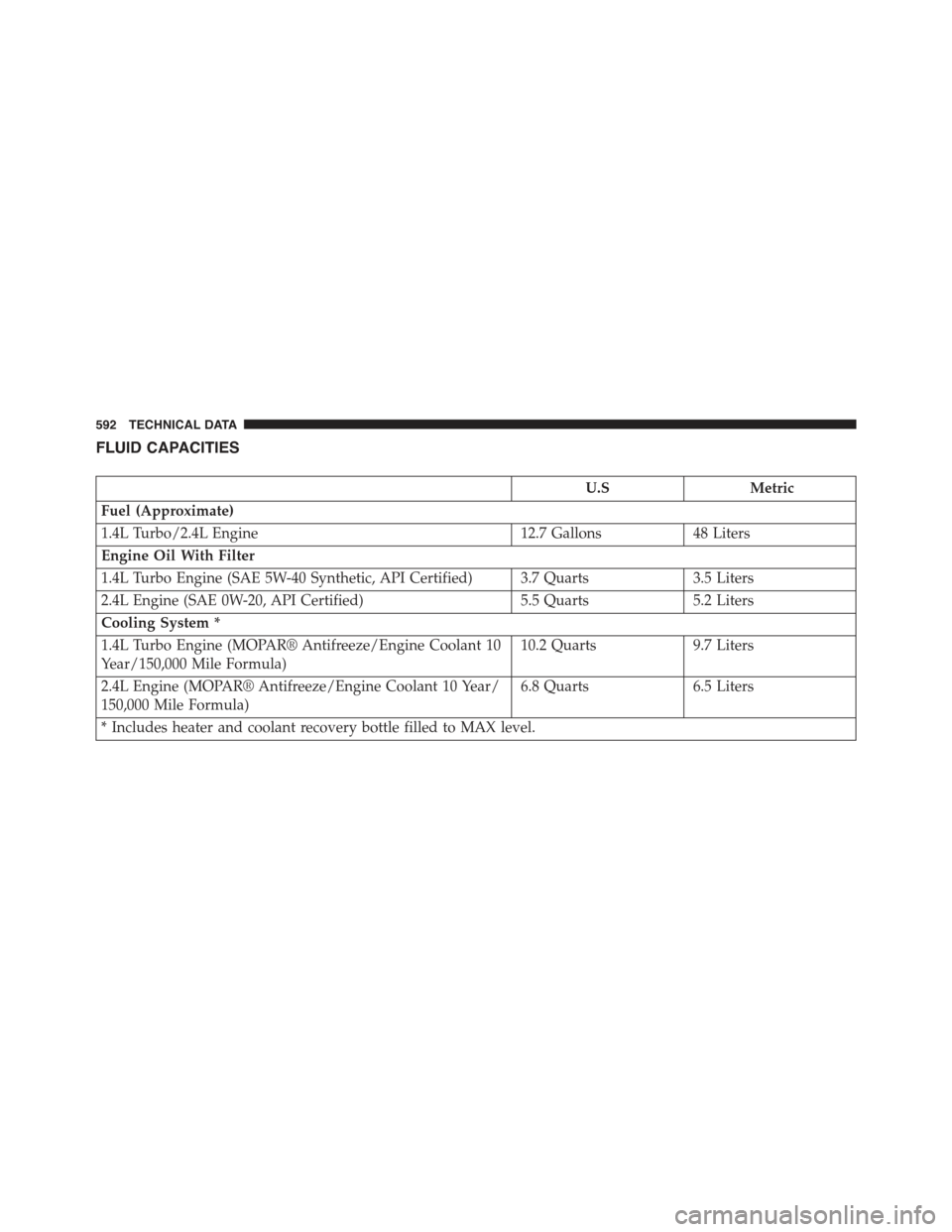

FLUID CAPACITIES
U.SMetric
Fuel (Approximate)
1.4L Turbo/2.4L Engine12.7 Gallons48 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 3.7 Quarts3.5 Liters
2.4L Engine (SAE 0W-20, API Certified)5.5 Quarts5.2 Liters
Cooling System *
1.4L Turbo Engine (MOPAR® Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula)
10.2 Quarts9.7 Liters
2.4L Engine (MOPAR® Antifreeze/Engine Coolant 10 Year/
150,000 Mile Formula)
6.8 Quarts6.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
592 TECHNICAL DATA

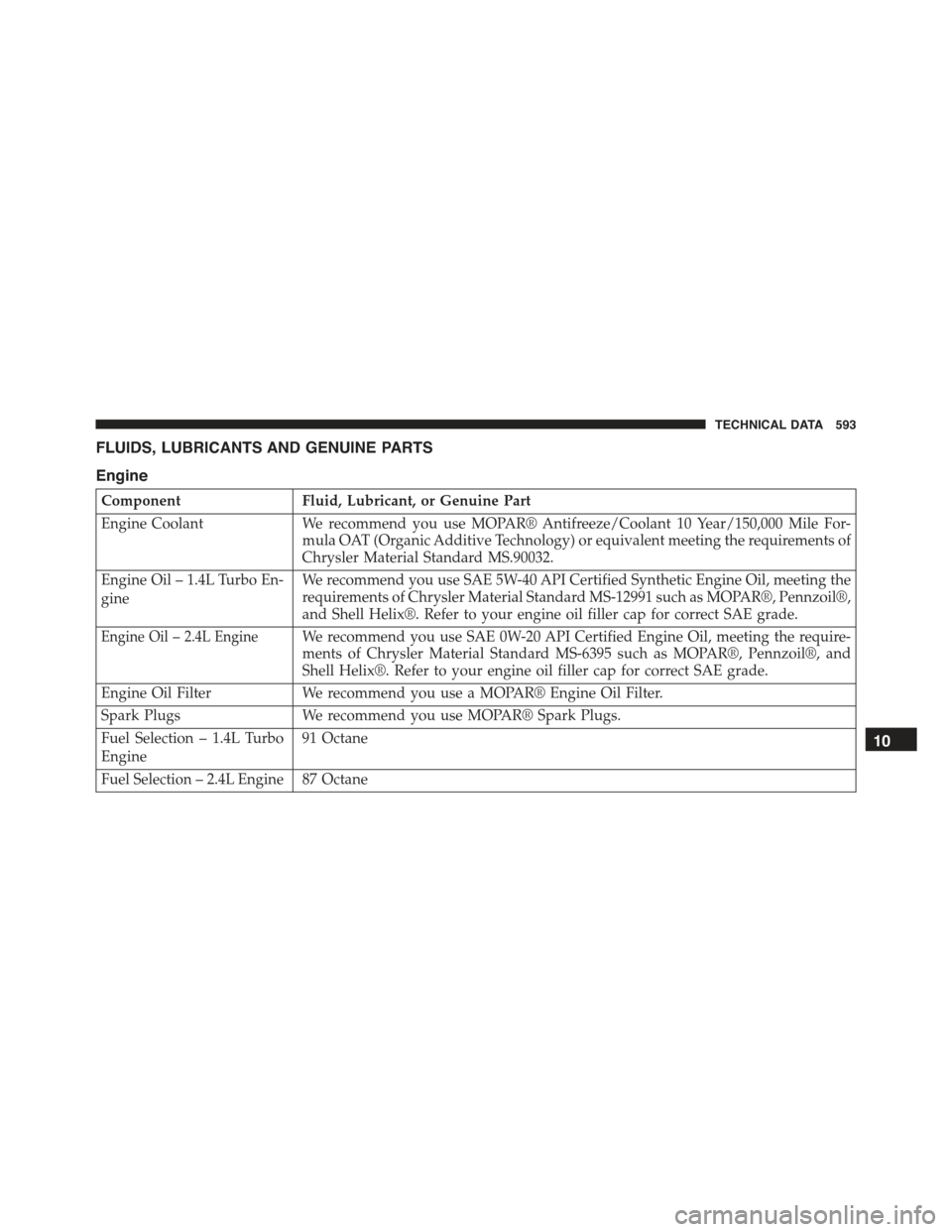

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile For-
mula OAT (Organic Additive Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS.90032.
Engine Oil – 1.4L Turbo En-
gine
We recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the
requirements of Chrysler Material Standard MS-12991 such as MOPAR®, Pennzoil®,
and Shell Helix®. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – 2.4L EngineWe recommend you use SAE 0W-20 API Certified Engine Oil, meeting the require-
ments of Chrysler Material Standard MS-6395 such as MOPAR®, Pennzoil®, and
Shell Helix®. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil FilterWe recommend you use a MOPAR® Engine Oil Filter.
Spark PlugsWe recommend you use MOPAR® Spark Plugs.
Fuel Selection – 1.4L Turbo
Engine
91 Octane
Fuel Selection – 2.4L Engine 87 Octane
10
TECHNICAL DATA 593

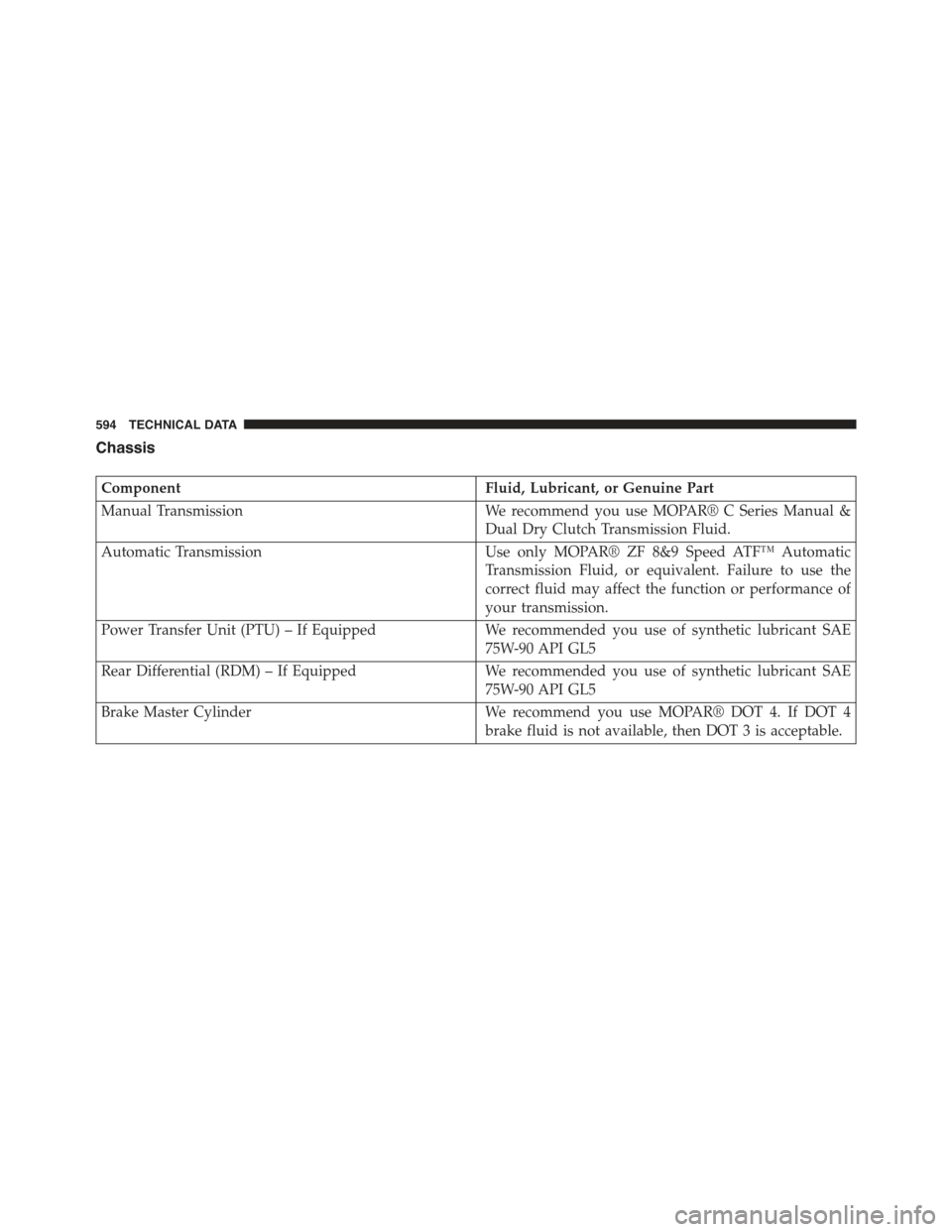

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual TransmissionWe recommend you use MOPAR® C Series Manual &
Dual Dry Clutch Transmission Fluid.
Automatic TransmissionUse only MOPAR® ZF 8&9 Speed ATF™ Automatic
Transmission Fluid, or equivalent. Failure to use the
correct fluid may affect the function or performance of
your transmission.
Power Transfer Unit (PTU) – If EquippedWe recommended you use of synthetic lubricant SAE
75W-90 API GL5
Rear Differential (RDM) – If EquippedWe recommended you use of synthetic lubricant SAE
75W-90 API GL5
Brake Master CylinderWe recommend you use MOPAR® DOT 4. If DOT 4
brake fluid is not available, then DOT 3 is acceptable.
594 TECHNICAL DATA
