remote start JEEP RENEGADE 2016 1.G User Guide

same exterior zone (for further information, refer to
Keyless Enter-N-GoinGetting To Know Your
Vehicle”).
•Push the LOCK button on the Remote Keyless Entry
(RKE) transmitter.
3. If any doors are open, close them.
NOTE:
•If a second chime is heard after approximately four
seconds from arming the alarm, disarm the alarm by
pressing the UNLOCK button. Check for the correct
closure of doors and liftgate, then reactivate the
system by following steps 1 and 2.
•If a second chime is heard after approximately four
seconds from arming the alarm, even with the doors
and liftgate properly closed, a fault may have oc-
curred during the arming operation. If this occurs,
contact your authorized dealer.To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
•Push the UNLOCK button on the Remote Keyless
Entry (RKE) transmitter.
•Grasp the Passive Entry Unlock Door Handle with a
valid Key Fob available in the same exterior zone (if
equipped). Refer toKeyless Enter-N-GoinGetting
To Know Your Vehiclefor further information.
•Cycle the vehicle ignition system out of the STOP/OFF
position.
– For vehicles equipped with Keyless Enter-N-Go,
push the Keyless Enter-N-Go START/STOP button
(requires at least one valid Key Fob in the vehicle).
– For vehicles not equipped with Keyless Enter-N-Go,
insert a valid key into the ignition switch and turn
the key to the MAR/RUN position.
4
GETTING TO KNOW YOUR VEHICLE 53

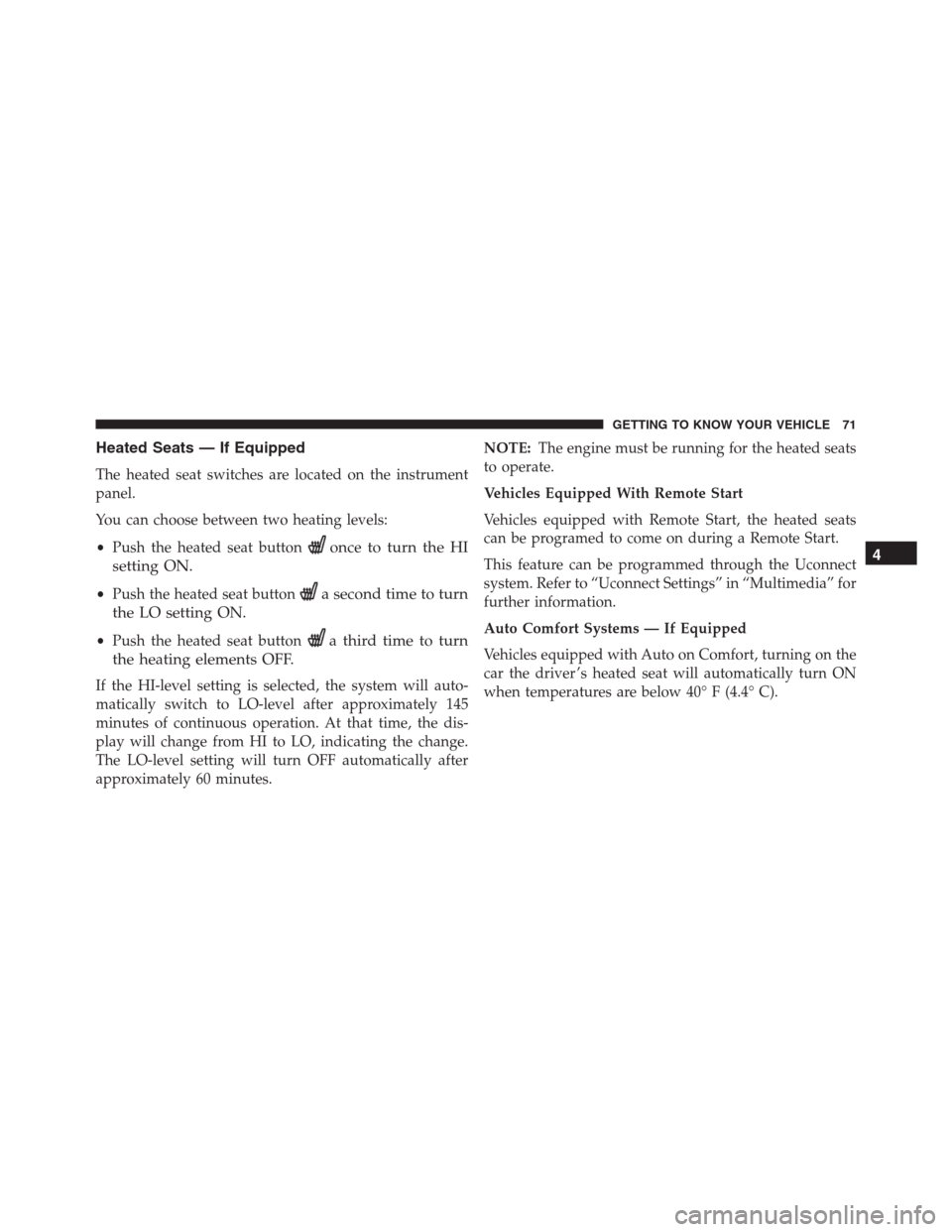

Heated Seats — If Equipped
The heated seat switches are located on the instrument
panel.
You can choose between two heating levels:
•Push the heated seat button
once to turn the HI
setting ON.
•Push the heated seat buttona second time to turn
the LO setting ON.
•Push the heated seat buttona third time to turn
the heating elements OFF.
If the HI-level setting is selected, the system will auto-
matically switch to LO-level after approximately 145
minutes of continuous operation. At that time, the dis-
play will change from HI to LO, indicating the change.
The LO-level setting will turn OFF automatically after
approximately 60 minutes.NOTE:The engine must be running for the heated seats
to operate.
Vehicles Equipped With Remote Start
Vehicles equipped with Remote Start, the heated seats
can be programed to come on during a Remote Start.
This feature can be programmed through the Uconnect
system. Refer to “Uconnect Settings” in “Multimedia” for
further information.
Auto Comfort Systems — If Equipped
Vehicles equipped with Auto on Comfort, turning on the
car the driver ’s heated seat will automatically turn ON
when temperatures are below 40° F (4.4° C).
4
GETTING TO KNOW YOUR VEHICLE 71

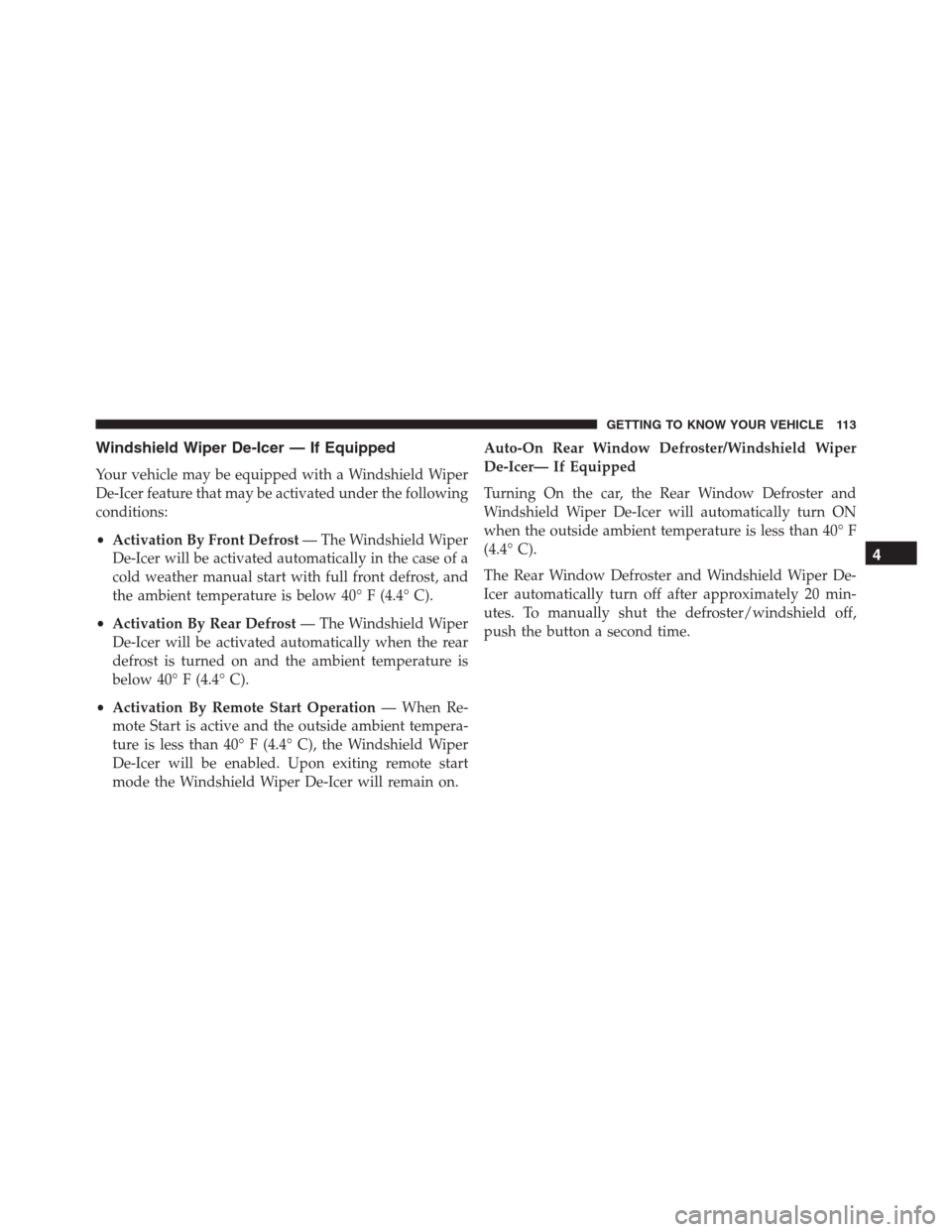

Windshield Wiper De-Icer — If Equipped
Your vehicle may be equipped with a Windshield Wiper
De-Icer feature that may be activated under the following
conditions:
•Activation By Front Defrost— The Windshield Wiper
De-Icer will be activated automatically in the case of a
cold weather manual start with full front defrost, and
the ambient temperature is below 40° F (4.4° C).
•Activation By Rear Defrost— The Windshield Wiper
De-Icer will be activated automatically when the rear
defrost is turned on and the ambient temperature is
below 40° F (4.4° C).
•Activation By Remote Start Operation— When Re-
mote Start is active and the outside ambient tempera-
ture is less than 40° F (4.4° C), the Windshield Wiper
De-Icer will be enabled. Upon exiting remote start
mode the Windshield Wiper De-Icer will remain on.Auto-On Rear Window Defroster/Windshield Wiper
De-Icer— If Equipped
Turning On the car, the Rear Window Defroster and
Windshield Wiper De-Icer will automatically turn ON
when the outside ambient temperature is less than 40° F
(4.4° C).
The Rear Window Defroster and Windshield Wiper De-
Icer automatically turn off after approximately 20 min-
utes. To manually shut the defroster/windshield off,
push the button a second time.
4
GETTING TO KNOW YOUR VEHICLE 113

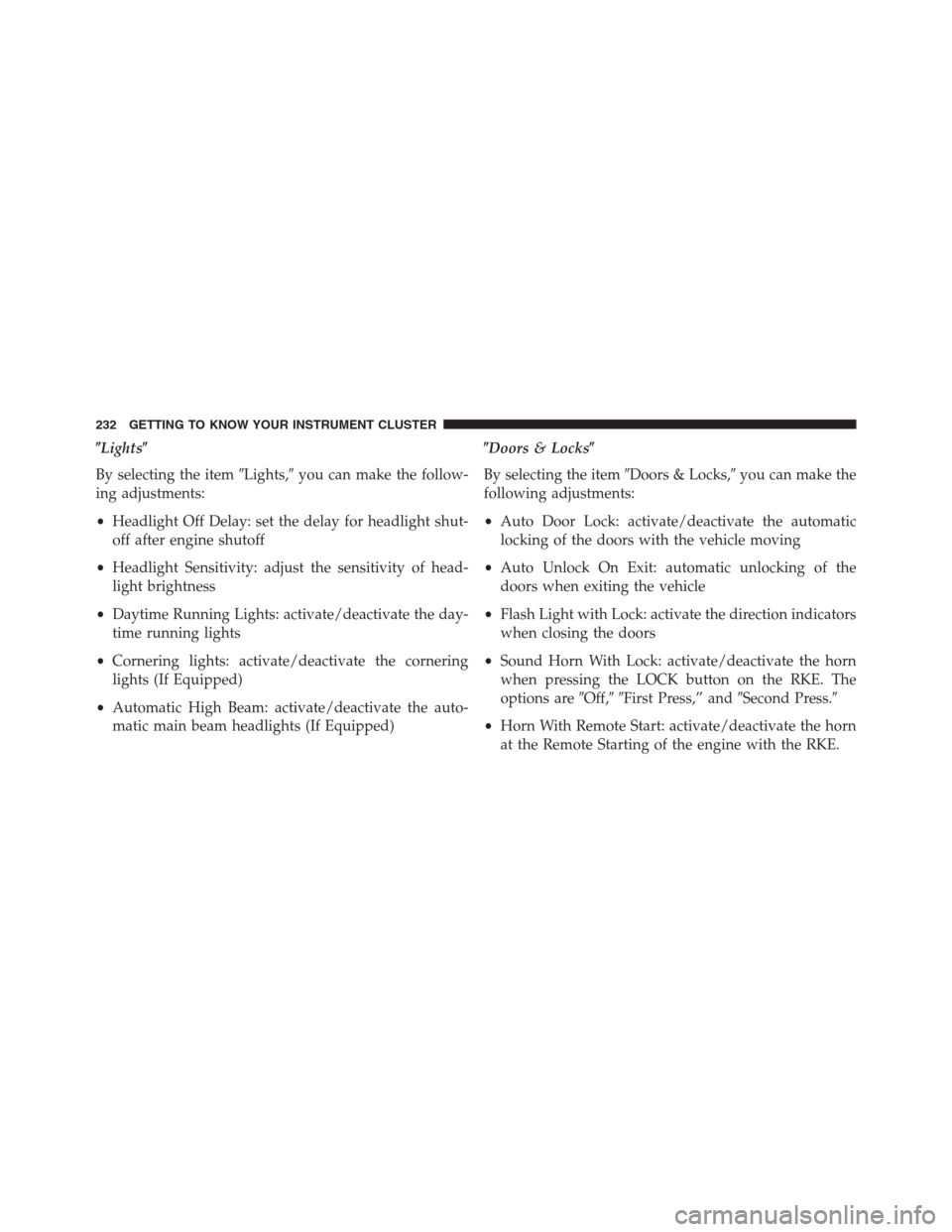

Lights
By selecting the itemLights,you can make the follow-
ing adjustments:
•Headlight Off Delay: set the delay for headlight shut-
off after engine shutoff
•Headlight Sensitivity: adjust the sensitivity of head-
light brightness
•Daytime Running Lights: activate/deactivate the day-
time running lights
•Cornering lights: activate/deactivate the cornering
lights (If Equipped)
•Automatic High Beam: activate/deactivate the auto-
matic main beam headlights (If Equipped)Doors & Locks
By selecting the itemDoors & Locks,you can make the
following adjustments:
•Auto Door Lock: activate/deactivate the automatic
locking of the doors with the vehicle moving
•Auto Unlock On Exit: automatic unlocking of the
doors when exiting the vehicle
•Flash Light with Lock: activate the direction indicators
when closing the doors
•Sound Horn With Lock: activate/deactivate the horn
when pressing the LOCK button on the RKE. The
options areOff,First Press,” andSecond Press.
•Horn With Remote Start: activate/deactivate the horn
at the Remote Starting of the engine with the RKE.
232 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

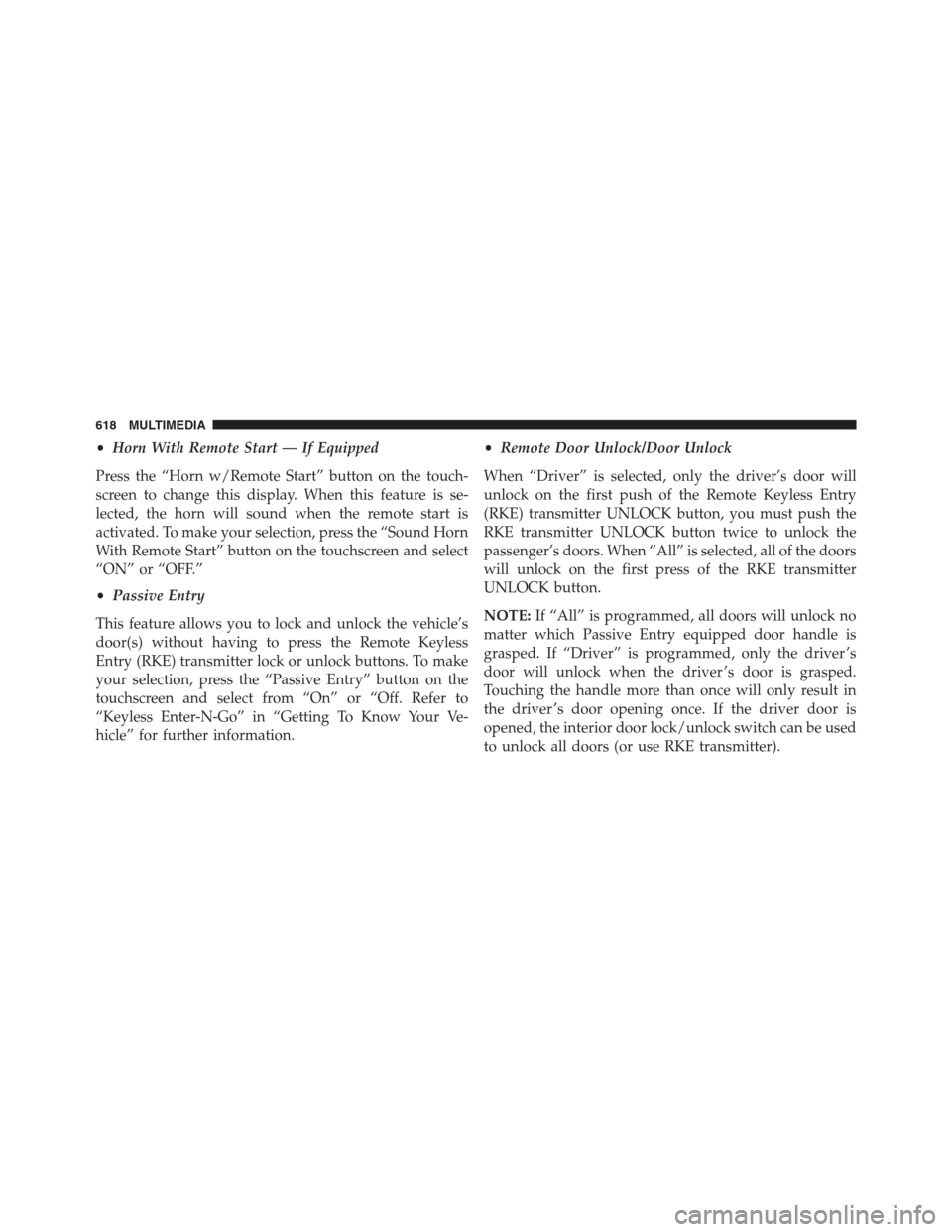

•Horn With Remote Start — If Equipped
Press the “Horn w/Remote Start” button on the touch-
screen to change this display. When this feature is se-
lected, the horn will sound when the remote start is
activated. To make your selection, press the “Sound Horn
With Remote Start” button on the touchscreen and select
“ON” or “OFF.”
•Passive Entry
This feature allows you to lock and unlock the vehicle’s
door(s) without having to press the Remote Keyless
Entry (RKE) transmitter lock or unlock buttons. To make
your selection, press the “Passive Entry” button on the
touchscreen and select from “On” or “Off. Refer to
“Keyless Enter-N-Go” in “Getting To Know Your Ve-
hicle” for further information.•Remote Door Unlock/Door Unlock
When “Driver” is selected, only the driver’s door will
unlock on the first push of the Remote Keyless Entry
(RKE) transmitter UNLOCK button, you must push the
RKE transmitter UNLOCK button twice to unlock the
passenger’s doors. When “All” is selected, all of the doors
will unlock on the first press of the RKE transmitter
UNLOCK button.
NOTE:If “All” is programmed, all doors will unlock no
matter which Passive Entry equipped door handle is
grasped. If “Driver” is programmed, only the driver ’s
door will unlock when the driver ’s door is grasped.
Touching the handle more than once will only result in
the driver ’s door opening once. If the driver door is
opened, the interior door lock/unlock switch can be used
to unlock all doors (or use RKE transmitter).
618 MULTIMEDIA

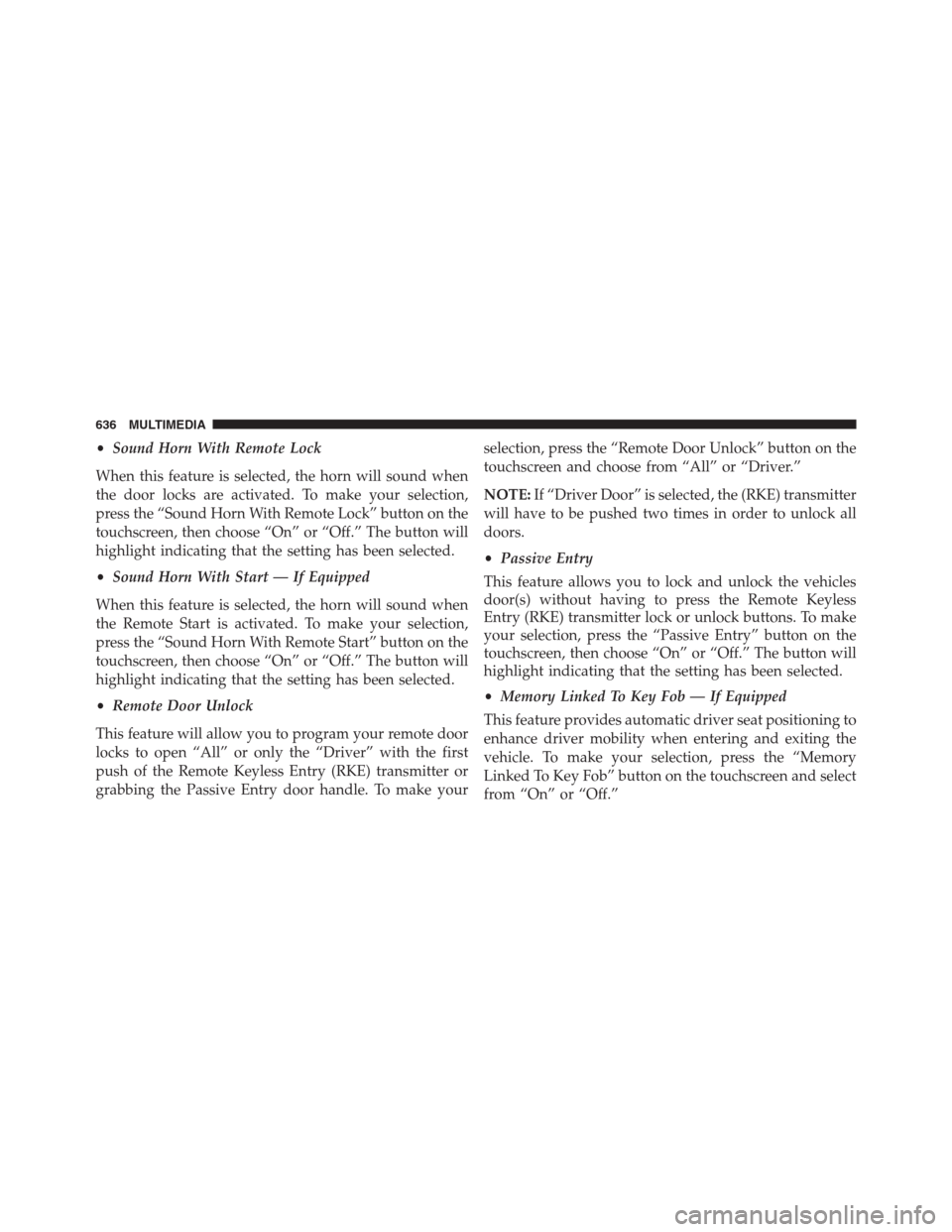

•Sound Horn With Remote Lock
When this feature is selected, the horn will sound when
the door locks are activated. To make your selection,
press the “Sound Horn With Remote Lock” button on the
touchscreen, then choose “On” or “Off.” The button will
highlight indicating that the setting has been selected.
•Sound Horn With Start — If Equipped
When this feature is selected, the horn will sound when
the Remote Start is activated. To make your selection,
press the “Sound Horn With Remote Start” button on the
touchscreen, then choose “On” or “Off.” The button will
highlight indicating that the setting has been selected.
•Remote Door Unlock
This feature will allow you to program your remote door
locks to open “All” or only the “Driver” with the first
push of the Remote Keyless Entry (RKE) transmitter or
grabbing the Passive Entry door handle. To make yourselection, press the “Remote Door Unlock” button on the
touchscreen and choose from “All” or “Driver.”
NOTE:If “Driver Door” is selected, the (RKE) transmitter
will have to be pushed two times in order to unlock all
doors.
•Passive Entry
This feature allows you to lock and unlock the vehicles
door(s) without having to press the Remote Keyless
Entry (RKE) transmitter lock or unlock buttons. To make
your selection, press the “Passive Entry” button on the
touchscreen, then choose “On” or “Off.” The button will
highlight indicating that the setting has been selected.
•Memory Linked To Key Fob — If Equipped
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
vehicle. To make your selection, press the “Memory
Linked To Key Fob” button on the touchscreen and select
from “On” or “Off.”
636 MULTIMEDIA

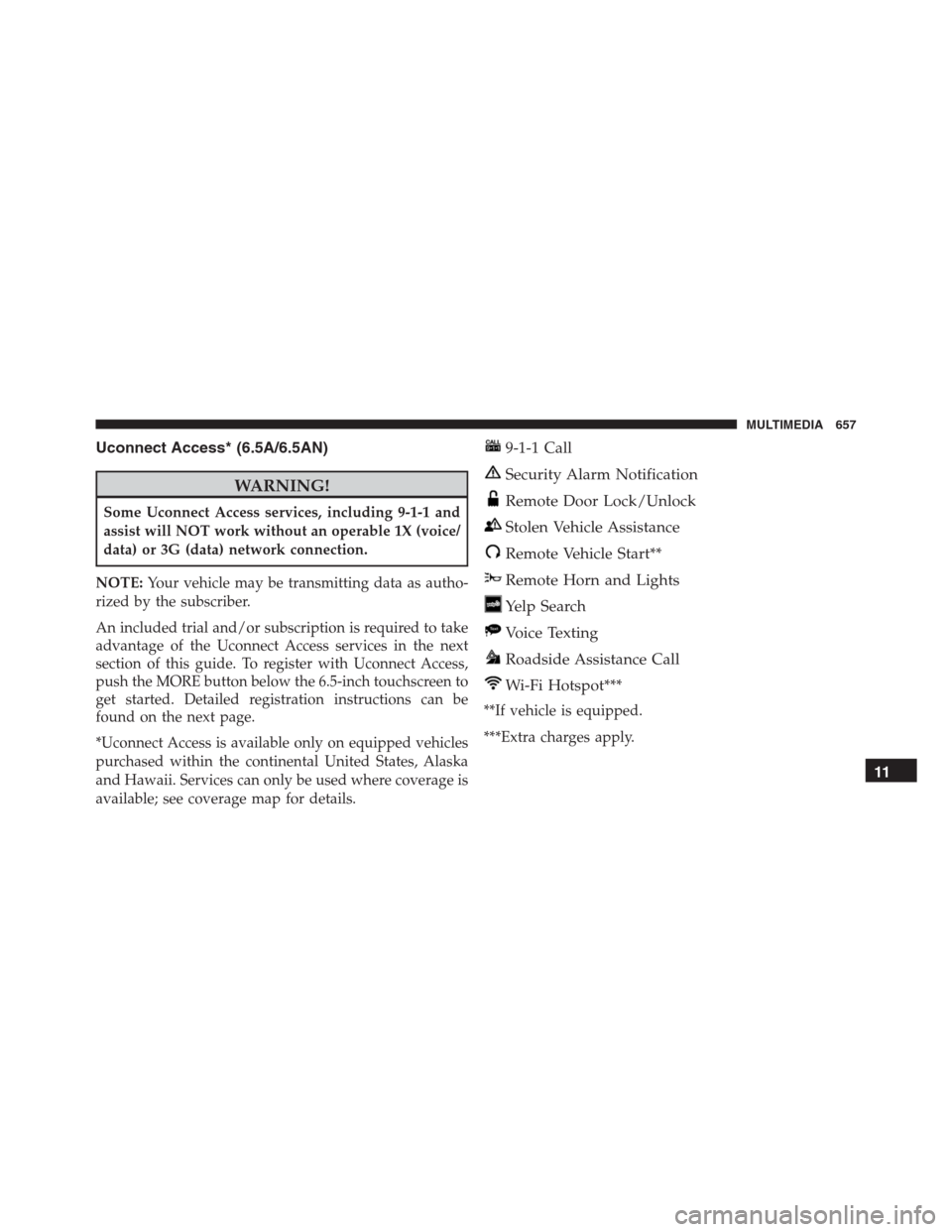

Uconnect Access* (6.5A/6.5AN)
WARNING!
Some Uconnect Access services, including 9-1-1 and
assist will NOT work without an operable 1X (voice/
data) or 3G (data) network connection.
NOTE:Your vehicle may be transmitting data as autho-
rized by the subscriber.
An included trial and/or subscription is required to take
advantage of the Uconnect Access services in the next
section of this guide. To register with Uconnect Access,
push the MORE button below the 6.5-inch touchscreen to
get started. Detailed registration instructions can be
found on the next page.
*Uconnect Access is available only on equipped vehicles
purchased within the continental United States, Alaska
and Hawaii. Services can only be used where coverage is
available; see coverage map for details.
9-1-1 Call
Security Alarm Notification
Remote Door Lock/Unlock
Stolen Vehicle Assistance
Remote Vehicle Start**
Remote Horn and Lights
Yelp Search
Voice Texting
Roadside Assistance Call
Wi-Fi Hotspot***
**If vehicle is equipped.
***Extra charges apply.
11
MULTIMEDIA 657

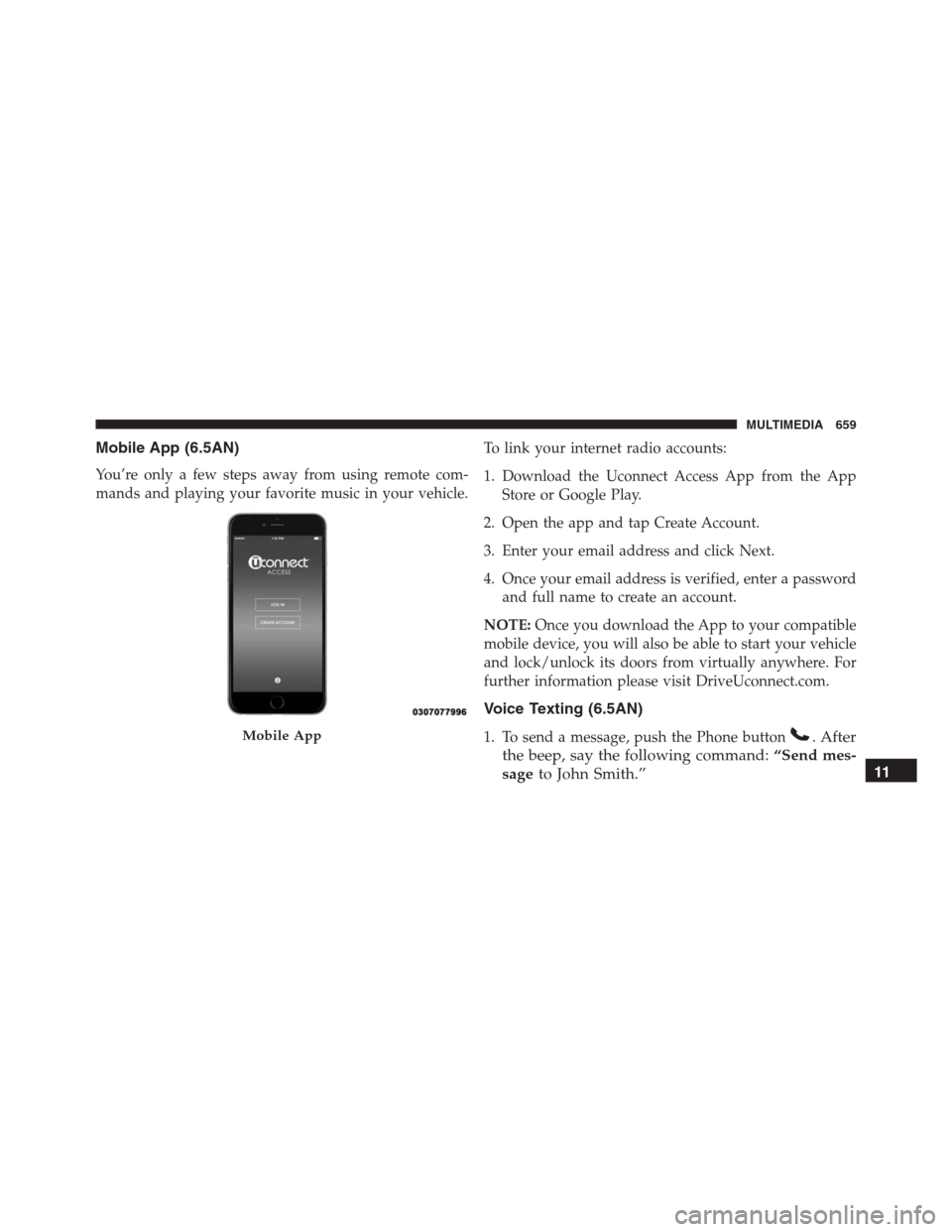

Mobile App (6.5AN)
You’re only a few steps away from using remote com-
mands and playing your favorite music in your vehicle.To link your internet radio accounts:
1. Download the Uconnect Access App from the App
Store or Google Play.
2. Open the app and tap Create Account.
3. Enter your email address and click Next.
4. Once your email address is verified, enter a password
and full name to create an account.
NOTE:Once you download the App to your compatible
mobile device, you will also be able to start your vehicle
and lock/unlock its doors from virtually anywhere. For
further information please visit DriveUconnect.com.
Voice Texting (6.5AN)
1. To send a message, push the Phone button. After
the beep, say the following command:“Send mes-
sageto John Smith.”Mobile App
11
MULTIMEDIA 659

KeyFob...............................54
Remote...............................54
Remote Keyless Entry (RKE)................54
Driver Information Display (DID)
Instrument Cluster......................221
Oil Change............................221
Driver’s Seat Back Tilt.......................67
Driving................................411
Electrical Outlet, Auxiliary (Power Outlet)........166
Electric Park Brake........................327
Electric Parking Brake......................327
Electronic Roll Mitigation (ERM)..............245
Electronic Speed Control (Cruise Control)........351
Electronic Stability Control (ESC)...........240, 250
Electronic Throttle Control Warning Light........193
Electronic Vehicle Information Center (EVIC)......386
Electronic Vehicle Information Center (EVIC). . . .216Emergency, In Case Of
Hazard Warning Flasher..................435
Jacking...........................483, 565
Jump Starting..........................499
Overheating...........................506
Tow Hooks............................516
Towing..............................514
Emission Control System Maintenance..........522
Engine
Air Cleaner...........................539
Break-In Recommendations................326
Checking Oil Level......................535
Compartment..........................533
Coolant (Antifreeze).....................601
Cooling..............................547
Exhaust Gas Caution.................313, 405
Fails To Start..........................322
Flooded, Starting.......................322
Fuel Requirements......................400
670 INDEX

ParkSense System, Rear.....................381
Pets...................................312
Placard, Tire And Loading Information..........574
Power
Brakes...............................239
Inverter..............................168
Outlet (Auxiliary Electrical Outlet)...........166
Windows.............................114
Pregnant Women And Seat Belts...............270
Preparation For Jacking.....................486
Pretensioners
Seat Belts.............................271
Radial Ply Tires..........................582
Radio Frequency
General Information............33, 45, 49, 51, 64
Radio Operation..........................644
Rain Sensitive Wiper System.................109
Rear Camera............................386Rear Cross Path...........................93
Rear ParkSense System.....................381
Rearview Mirrors..........................83
Rear Window Defroster.....................111
Rear Wiper/Washer........................111
Recorder, Event Data.......................290
Recreational Towing.......................430
Reformulated Gasoline.....................401
Refrigerant..............................541
Reminder, Lights On........................99
Reminder, Seat Belt........................260
Remote Control
Starting System.........................45
Remote Keyless Entry (RKE)..................31
Arm The Alarm.........................52
Keyless Enter-N-Go......................58
Programming Additional Key Fobs...........40
Programming Additional Transmitters.........40
Remote Sound System (Radio) Controls.........642
12
INDEX 677
