•For example: If approaching the left side of the lane
the steering wheel will turn to the right.•When the LaneSense system senses the lane has been
approached and is in a lane departure situation, the
left thick lane line flashes yellow (on/off) and the left
thin line remains solid yellow. The LaneSense indicator
changes from solid yellow to flashing yellow. At this
time torque is applied to the steering wheel in the
opposite direction of the lane boundary.
Lane Sensed (Solid Yellow Thick Line, Solid Yellow
Thin Line/Solid Yellow Indicator)
7
STARTING AND OPERATING 379

•For example: If approaching the left side of the lane
the steering wheel will turn to the right.
NOTE:The LaneSense system operates with the similar
behavior for a right lane departure.Changing LaneSense Status
The LaneSense system has settings to adjust the intensity
of the torque warning and the warning zone sensitivity
(early/late) that you can configure through the Uconnect
system screen. Refer to “Uconnect Settings” in “Multime-
dia” for further information.
NOTE:
•When enabled the system operates above 37 mph
(60 km/h) and below 112 mph (180 km/h).
•Use of the turn signal suppresses the warnings.
•The system will not apply torque to the steering wheel
whenever a safety system engages. (anti-lock brakes,
traction control system, electronic stability control,
forward collision warning, etc.).
Lane Approached (Flashing Yellow Thick Line, Solid
Yellow Thin Line/Flashing Yellow Indicator)
380 STARTING AND OPERATING

REAR PARKSENSE — IF EQUIPPED
The Rear ParkSense system provides visual and audible
indications of the distance between the rear fascia and a
detected obstacle when backing up, e.g. during a parking
maneuver. Refer to ParkSense System Usage Precautions
for limitations of this system and recommendations.
Rear ParkSense will retain the last system state (enabled
or disabled) from the last ignition cycle when the ignition
is changed to the MAR/RUN position.
Rear ParkSense can be active only when the shift lever is
in REVERSE.
Rear ParkSense Sensors
The four Rear ParkSense sensors, located in the rear
fascia/bumper, monitor the area behind the vehicle that
is within the sensors’ field of view. The sensors can detectobstacles from approximately 12 inches (30 cm) up to 59
inches (150 cm) from the rear fascia/bumper in the
horizontal direction, depending on the location, type and
orientation of the obstacle.
Parking Sensors
7
STARTING AND OPERATING 381

Chime
By shifting the vehicle in REVERSE and in the case of the
presence of a rear obstacle, an acoustic signal that varies
with the distance of the obstacle from the bumper is
activated.
The frequency of the acoustic signal:
•Increases with the distance between car and object
decreases.
•Becomes continuous when the distance that separates
the car from the obstacle is less than approximately 12
inches (30 cm), while terminates immediately if the
distance to the obstacle increases.
•Remains constant if the distance between car and
obstacle remains unchanged. If this situation occurs
for the side sensors, the signal is stopped after approxi-
mately three seconds to avoid, for example, it activates
in case of maneuver along a wall.When the system emits a beeping sound, the volume of
the Uconnect system, if turned on, is automatically
lowered by Rear ParkSense.
Detection Distances
If the sensors detect more obstacles, it is taken into
account only what is the shorter distance.
Instrument Cluster Display
Rear ParkSense is displayed on the instrument cluster
only if you have selected the itembeep and display
inside theSettingsmenu of the Uconnect system.
If an obstacle is detected in the center rear region, the
display will show a single solid arc in the center rear
region and will produce a one-half second tone. As the
vehicle moves closer to the obstacle, the display will
show the single arc moving closer to the vehicle and the
sound tone will change from slow, to fast, to continuous.
382 STARTING AND OPERATING

If an obstacle is detected in the left and/or right rear
region, the display will show a single flashing arc in the
left and/or right rear region and will produce a fast
sound tone. As the vehicle moves closer to the obstacle,
the display will show the single arc moving closer to the
vehicle and the tone will change from fast to continuous.
In general, the car is closest to the obstacle when the
display shows only a flashing arc and the chime becomes
continuous.
The color on the display depends on the distance and
location of the obstacle.
Enabling And Disabling Rear ParkSense
Rear ParkSense can be enabled and disabled with the
Rear ParkSense switch.
When the Rear ParkSense switch is pressed to
disable the system, the instrument cluster will
display the “PARKSENSE DISABLED” messagefor approximately five seconds. Refer to “Electronic Vehicle
Information Center (EVIC)” or “Driver Information Dis-
play (DID)” in “Getting To Know Your Instrument Panel”
for further information. When the shift lever is moved to
REVERSE and the system is disabled, the EVIC/DID will
display the “PARKSENSE DISABLED” message for as long
as the vehicle is in REVERSE.
The Rear ParkSense switch LED will be ON when Rear
ParkSense is disabled or requires service. The Rear
ParkSense switch LED will be OFF when the system is
enabled. If the Rear ParkSense switch is pushed, and
requires service, the Rear ParkSense switch LED will
blink momentarily, and then the LED will be ON.
Rear ParkSense will remember the previous state when
the vehicle is switch off.
7
STARTING AND OPERATING 383

CAUTION!
After turning off the ignition, the Rear ParkSense
remains in this setting until the next key cycle, even
in the case of changing the setting of starting MAR/
RUN to STOP/OFF and then again in MAR/RUN.
Service The Rear ParkSense System
During vehicle start up, when the Rear ParkSense System
has detected a faulted condition, the instrument cluster
will actuate a single chime, once per ignition cycle, and it
will display the “PARKSENSE UNAVAILABLE WIPE
REAR SENSORS” or the “PARKSENSE UNAVAILABLE
SERVICE REQUIRED” message. Refer to “Electronic
Vehicle Information Center (EVIC) or Driver Information
Display (DID)” for further information. When the shiftlever is moved to REVERSE and the system has detected
a faulted condition, the EVIC/DID will display the
PARKSENSE UNAVAILABLE WIPE REAR SENSORS
orPARKSENSE UNAVAILABLE SERVICE REQUIRED
message for as long as the vehicle is in REVERSE. Under
this condition, Rear ParkSense will not operate.
If “PARKSENSE UNAVAILABLE WIPE REAR SEN-
SORS” appears in the Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID) make
sure the outer surface and the underside of the rear
fascia/bumper is clean and clear of snow, ice, mud, dirt
or other obstructions and then cycle the ignition. If the
message continues to appear, see an authorized dealer.
If “PARKSENSE UNAVAILABLE SERVICE REQUIRED”
appears in the EVIC/DID, see an authorized dealer.
384 STARTING AND OPERATING

ParkSense System Usage Precautions
NOTE:
•Ensure that the outer surface and the underside of the
rear bumper is clean and clear of snow, ice, mud, dirt
or other obstruction to keep the Rear ParkSense system
operating properly.
•Jackhammers, large trucks, and other vibrations could
affect the performance of Rear ParkSense.
•Clean the Rear ParkSense sensors regularly, taking
care not to scratch or damage them. The sensors must
not be covered with ice, snow, slush, mud, dirt or
debris. Failure to do so can result in the system not
working properly. The Rear ParkSense system might
not detect an obstacle behind the fascia/bumper, or it
could provide a false indication that an obstacle is
behind the fascia/bumper.•Objects such as bicycle carriers, etc., must not be
placed within 12 inches (30 cm) from the rear fascia/
bumper while driving the vehicle. Failure to do so can
result in the system misinterpreting a close object as a
sensor problem, causing a failure indication to be
displayed in the instrument cluster.
CAUTION!
•ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below
the sensors will not be detected when they are in
close proximity.
•
The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the driver
looks over his/her shoulder when using ParkSense.
7
STARTING AND OPERATING 385

WARNING!
•Drivers must be careful when backing up even
when using ParkSense. Always check carefully
behind your vehicle, look behind you, and be sure
to check for pedestrians, animals, other vehicles,
obstructions, and blind spots before backing up.
You are responsible for safety and must continue to
pay attention to your surroundings. Failure to do so
can result in serious injury or death.
•Before using ParkSense, it is strongly recom-
mended that the ball mount and hitch ball assem-
bly is disconnected from the vehicle when the
vehicle is not used for towing. Failure to do so can
result in injury or damage to vehicles or obstacles
because the hitch ball will be much closer to the
obstacle than the rear fascia when the loudspeaker
sounds the continuous tone. Also, the sensors
(Continued)
WARNING!(Continued)
could detect the ball mount and hitch ball assem-
bly, depending on its size and shape, giving a false
indication that an obstacle is behind the vehicle.
If it’s necessary to keep the trailer hitch and hitch ball
assembly mounted for a long period, it is possible to filter
out the trailer hitch and hitch ball assembly presence in
sensor field of view. The filtering operation must be
performed only by an authorized dealer.
REAR BACK UP CAMERA — IF EQUIPPED
The Rear Back Up Camera that allows you to see an
on-screen image of your vehicle’s rear surroundings
when the shift lever is put into REVERSE. The image will
be displayed on the touchscreen display along with a
note to “check entire surroundings” across the top of the
screen. After five seconds this note will disappear. The
camera is located above the rear license plate.
386 STARTING AND OPERATING

When the vehicle is shifted out of REVERSE (with camera
delay turned OFF), the rear camera mode is exited and
the navigation or audio screen appears again.
When the vehicle is shifted out of REVERSE (with camera
delay turned ON), the camera image will continue to be
displayed for up to 10 seconds after shifting out ofREVERSE unless the vehicle speed exceeds 8 mph
(13 km/h), the vehicle is shifted into PARK or the ignition
is switched to the STOP/OFF position.
A touchscreen button to disable the camera is available
when the vehicle is not in REVERSE. Display of the
camera image after shifting out of REVERSE can be
disabled via Uconnect Settings.
When enabled, active guide lines are overlaid on the
image to illustrate the width of the vehicle and its
projected backup path based on the steering wheel
position.
When enabled, fixed guide lines are overlaid on the
image to illustrate the width of the vehicle.
Different colored zones indicate the distance to the rear of
the vehicle.
Parking Camera
7
STARTING AND OPERATING 387

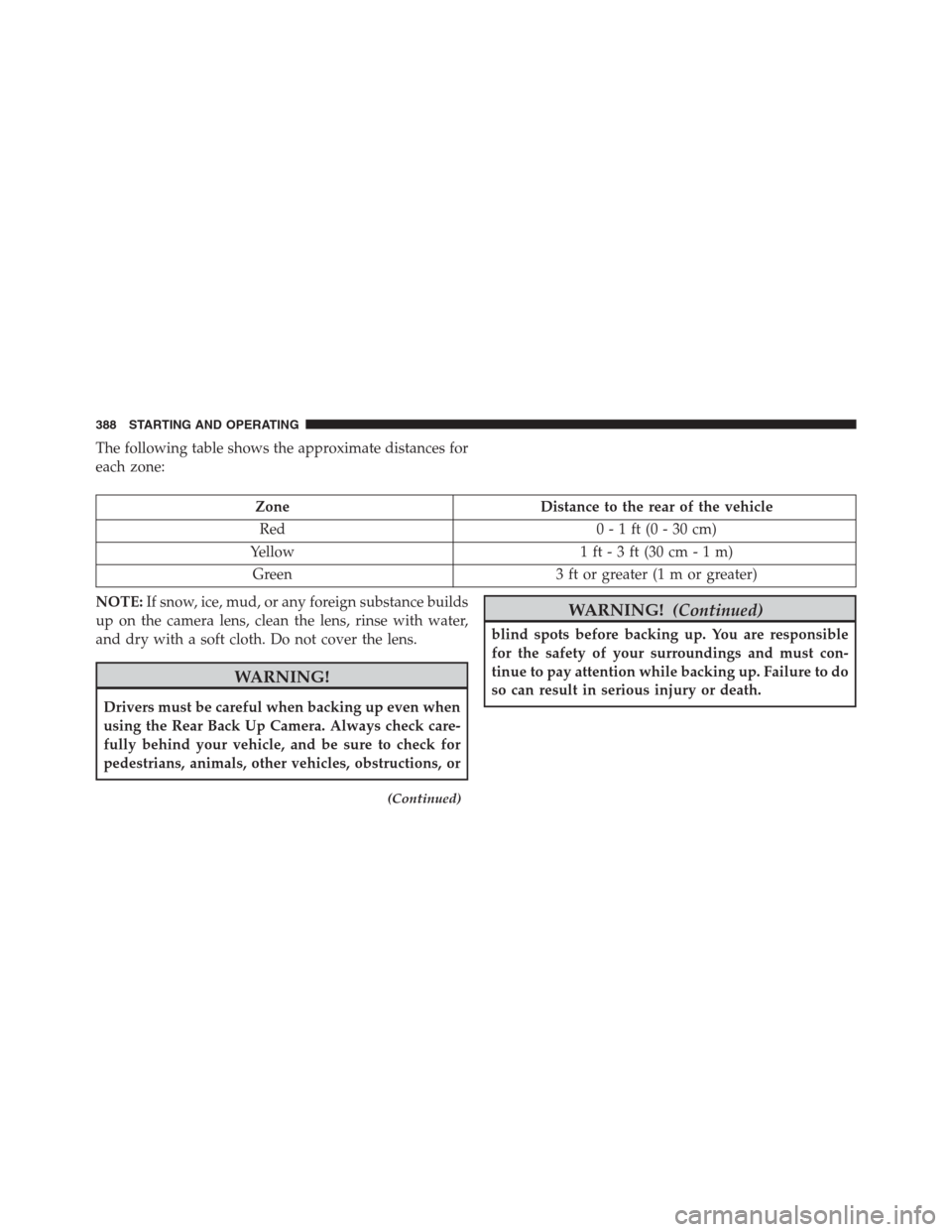

The following table shows the approximate distances for
each zone:
Zone Distance to the rear of the vehicle
Red 0 - 1 ft (0 - 30 cm)
Yellow 1 ft - 3 ft (30 cm - 1 m)
Green 3 ft or greater (1 m or greater)
NOTE:If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water,
and dry with a soft cloth. Do not cover the lens.
WARNING!
Drivers must be careful when backing up even when
using the Rear Back Up Camera. Always check care-
fully behind your vehicle, and be sure to check for
pedestrians, animals, other vehicles, obstructions, or
(Continued)
WARNING!(Continued)
blind spots before backing up. You are responsible
for the safety of your surroundings and must con-
tinue to pay attention while backing up. Failure to do
so can result in serious injury or death.
388 STARTING AND OPERATING
