JEEP RENEGADE 2016 1.G Owners Manual

•AUTO: This four-wheel drive operation is a continu-
ous operation, is fully automatic and can be used on
and off road. This mode balances traction to ensure
maneuverability and acceleration improvement com-
pared to a vehicle with two wheel drive. This modealso reduces fuel consumption, since it allows the
disconnect of the drive shaft where conditions permit.
•SNOW: This mode allows you to have greater stability
under conditions of bad weather. For use on and off
road on surfaces with poor traction, such as roads
covered with snow. When in SNOW mode (depending
on certain operating conditions), the transmission may
use second gear (rather than first gear) during
launches, to minimize wheel slippage.
•SAND: For off-road driving or use on surfaces with
poor traction, such as sandy bottoms. The transmission
is set to provide maximum traction.
•MUD: For off-road driving or use on surfaces with
poor traction, such as roads covered by mud or wet
grass.
Selec-Terrain Switch (Trailhawk)
7
STARTING AND OPERATING 359

•ROCK(Trailhawk only): This mode is only available
in 4WD LOW range. The device sets the vehicle to
maximize traction and allow the highest steering ca-
pacity for off-road surfaces. This mode gives you the
maximum performance off-road. Use for low speed
obstacles such as large rocks, deep ruts, etc.
NOTE:
•Rock mode is only available on the vehicles equipped
with the Off-Road package.
•Activate the Hill Descent Control or Selec Speed
Control for steep downhill control. See “Electronic
Brake Control System” in this section for further
information.FORWARD COLLISION WARNING (FCW) WITH
MITIGATION — IF EQUIPPED
Forward Collision Warning (FCW) With Mitigation
Operation — If Equipped
The Forward Collision Warning (FCW) system with
mitigation provides the driver with audible warnings,
visual warnings (within the EVIC/DID), and may apply
a brake jerk to warn the driver when it detects a potential
frontal collision. The warnings and limited braking are
intended to provide the driver with enough time to react,
avoid or mitigate the potential collision.
360 STARTING AND OPERATING

NOTE:
•FCW monitors the information from the forward look-
ing sensors as well as the Electronic Brake Controller
(EBC), to calculate the probability of a forward colli-
sion. When the system determines that a forward
collision is probable, the driver will be provided with
audible and visual warnings and may provide a brake
jerk warning.
•If the driver does not take action based upon these
progressive warnings, then the system will provide a
limited level of active braking to help slow the vehicle
and mitigate the potential forward collision. If the
driver reacts to the warnings by braking and the
system determines that the driver intends to avoid the
collision by braking but has not applied sufficient
brake force, the system will compensate and provide
additional brake force as required.Vehicles With A Manual Transmission: After the end of
the intervention of automatic braking, the engine could
stall, unless the driver can depress the clutch pedal.
Vehicles With Automatic Transmission: After the end of
the intervention of automatic braking, the transmission
may remain in last gear stored: therefore the car could
lurch forward, once the brakes release a few seconds
later. If the Forward Collision Warning with Mitigation
event stops the vehicle completely, the system will hold
the vehicle at standstill for two seconds and then release
the brakes.
If a Forward Collision Warning with Mitigation event
begins at a speed below 20 mph (32 km/h), the system
may provide the maximum braking possible to mitigate
the potential forward collision. If the Forward Collision
Warning with Mitigation event stops the vehicle com-
pletely, the system will hold the vehicle at standstill for
two seconds and then release the brakes.
7
STARTING AND OPERATING 361

When the system determines a collision with the vehicle
in front of you is no longer probable, the warning
message will be deactivated.NOTE:
•The minimum speed for FCW activation is 4 mph
(7 km/h).
•The maximum speed for FCW activation is 124 mph
(200 km/h).
•The FCW alerts may be triggered on objects other than
vehicles such as guard rails or sign posts based on the
course prediction. This is expected and is a part of
normal FCW activation and functionality.
•The FCW system is intended for on-road use only. If
the vehicle is taken off-road, the FCW system should
be deactivated to prevent unnecessary warnings to the
surroundings.
•If the vehicle enters 4WD Low Range, the FCW system
will be automatically deactivated.
FCW Message
362 STARTING AND OPERATING

•The active braking is enabled only if the front seat belts
are fastened.
•The active braking is disabled when a trailer is con-
nected with a Mopar Trailer Towing system. If the
vehicle is equipped with an aftermarket system, it is
recommended that the Active Braking is turned off
manually.
WARNING!
Forward Collision Warning (FCW) is not intended to
avoid a collision on its own, nor can FCW detect
every type of potential collision. The driver has the
responsibility to avoid a collision by controlling the
vehicle via braking and steering. Failure to follow
this warning could lead to serious injury or death.
Turning FCW ON Or OFF
The forward collision menu setting is located in the
Uconnect settings.
NOTE:The default status of FCW is “Warning + Active
Braking,” this allows the system to warn you of a
possible collision with the vehicle in front of you and
enable the active braking.
•Changing the FCW status to “Off” deactivates the
system, so no warning or active braking will be
available in case of a possible collision
•Changing the FCW status to “Only warning” prevents
the system from providing limited active braking, or
additional brake support if the driver is not braking
adequately in the event of a potential frontal collision,
but maintains the audible and visual warnings.
Changing the status of the system is only possible with
the vehicle at a complete stop.
7
STARTING AND OPERATING 363

NOTE:The FCW system state is not kept in memory
from one key cycle to the next. If the system is turned
OFF, it will turn On when the vehicle is restarted.
Changing FCW Sensitivity
By changing the settings on the menu of the Uconnect
system, you can change the sensitivity of the system by
choosing one of the following three options:Near,
MediumorFar. Refer to “Multimedia” for further
information.
The default option isMedium. This setting provides
that the system notify the driver of a possible accident
with the vehicle ahead of it when the latter is at a
standard distance, intermediate between the other two
possible settings.
By setting the sensitivity of the system toFar, the
system will warn the driver of a possible accident with
the vehicle in front when the latter is at a greater distance,
giving you the chance to act on the brakes in a morelimited and gradual. This setting gives the driver the
maximum possible time of reaction to prevent a possible
accident.
By changing the option toNear, the system will warn
the driver of a possible accident with the vehicle ahead of
it when the latter is a reduced distance. This setting offers
a reaction time to the driver lower than the settings
MediumandFar, in the case of a potential accident,
while a more dynamic driving of the car.
The setting of the sensitivity of the system is maintained
in memory when the engine is switched off.
FCW Limited Warning
If the EVIC/DID displays “FCW Limited Functionality”
or “FCW Limited Functionality Wipe Front Windshield”
momentarily, there may be a condition that limits FCW
functionality. Although the vehicle is still drivable under
normal conditions, the active braking may not be fully
available. Once the condition that limited the system
364 STARTING AND OPERATING

performance is no longer present, the system will return
to its full performance state. If the problem persists, see
your authorized dealer.
Service FCW Warning
If the system turns off, and the EVIC/DID displays:
•FCW Unavailable Service Required
This indicates there is an internal system fault. Although
the vehicle is still drivable under normal conditions, have
the system checked by an authorized dealer.
“Wipe Front Radar Sensor In Front Of Vehicle” Warn-
ing
The “FCW Front Radar Sensor Temporarily Blocked”
warning will display when conditions temporarily limit
system performance. This most often occurs at times of
poor visibility, such as in snow or heavy rain. The system
may also become temporarily blinded due to obstruc-
tions, such as mud, dirt or ice. In these cases, theEVIC/DID will display “FCW Front Radar Sensor Tem-
porarily Blocked” and the system will deactivate.
The “FCW Front Radar Sensor Temporarily Blocked”
message can sometimes be displayed while driving in
highly reflective areas (i.e. tunnels with reflective tiles, or
ice and snow). The system will recover after the vehicle
has left these areas. Under rare conditions, when the
radar is not tracking any vehicles or objects in its path
this warning may temporarily occur.
If weather conditions are not a factor, the driver should
examine the sensor. It may require cleaning or removal of
an obstruction. The sensor is located behind the lower
grille. In absence of visible obstructions on the bumper, it
could be necessary to wipe off the radar directly on the
surface, after having the radar cover removed. It’s rec-
ommended that your authorized dealer perform’s this
operation.
7
STARTING AND OPERATING 365

NOTE:
•If the “FCW Front Radar Sensor Temporarily Blocked”
message occurs frequently (e.g. more than once on
every trip) without any snow, rain, mud, or other
obstruction, have the radar sensor realigned at your
authorized dealer.
•Installing a snow plow, front-end protector, an after-
market grille or modifying the grille is not recom-
mended. Doing so may block the sensor and inhibit
FCW operation.Precautions While Driving With FCW
In certain driving conditions, such as:
•Driving in the vicinity of a curve
•Small vehicles and/or not aligned to the lane
•Lane changing of other vehicles
•Passing of vehicles in an oncoming intersection
The intervention of the system could be unexpected or
delayed. The driver must therefore always pay particular
attention, while maintaining control of the car to drive in
complete safety.
366 STARTING AND OPERATING

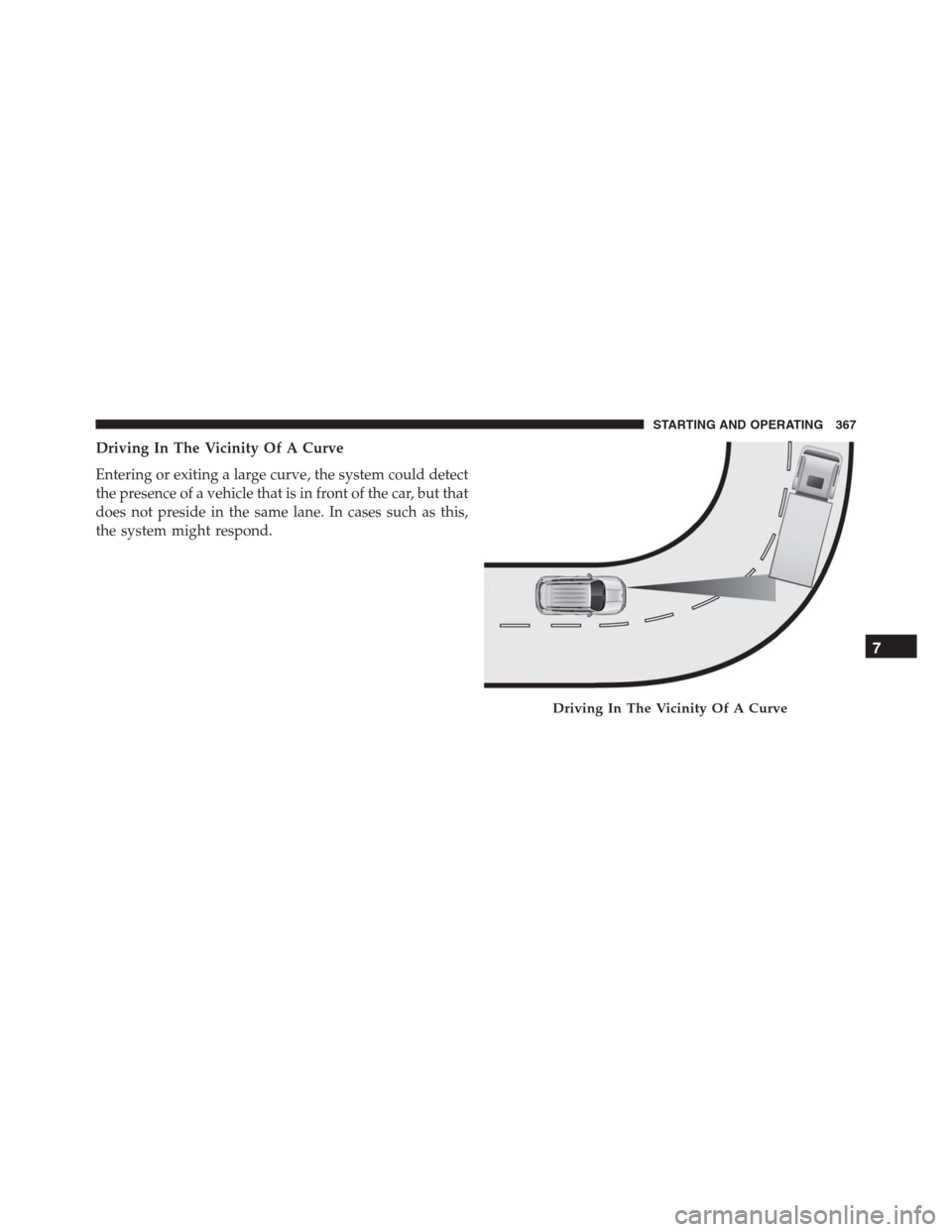

Driving In The Vicinity Of A Curve
Entering or exiting a large curve, the system could detect
the presence of a vehicle that is in front of the car, but that
does not preside in the same lane. In cases such as this,
the system might respond.
Driving In The Vicinity Of A Curve
7
STARTING AND OPERATING 367

Small Vehicles And/Or Not Aligned To The Lane
The system is not able to detect the presence of vehicles
that are in front of the car but placed outside the field of
action of the radar sensor and could therefore not react in
the presence of small vehicles such as bicycles or motor-
cycles.
Small Vehicles And/Or Not Aligned To The Lane
