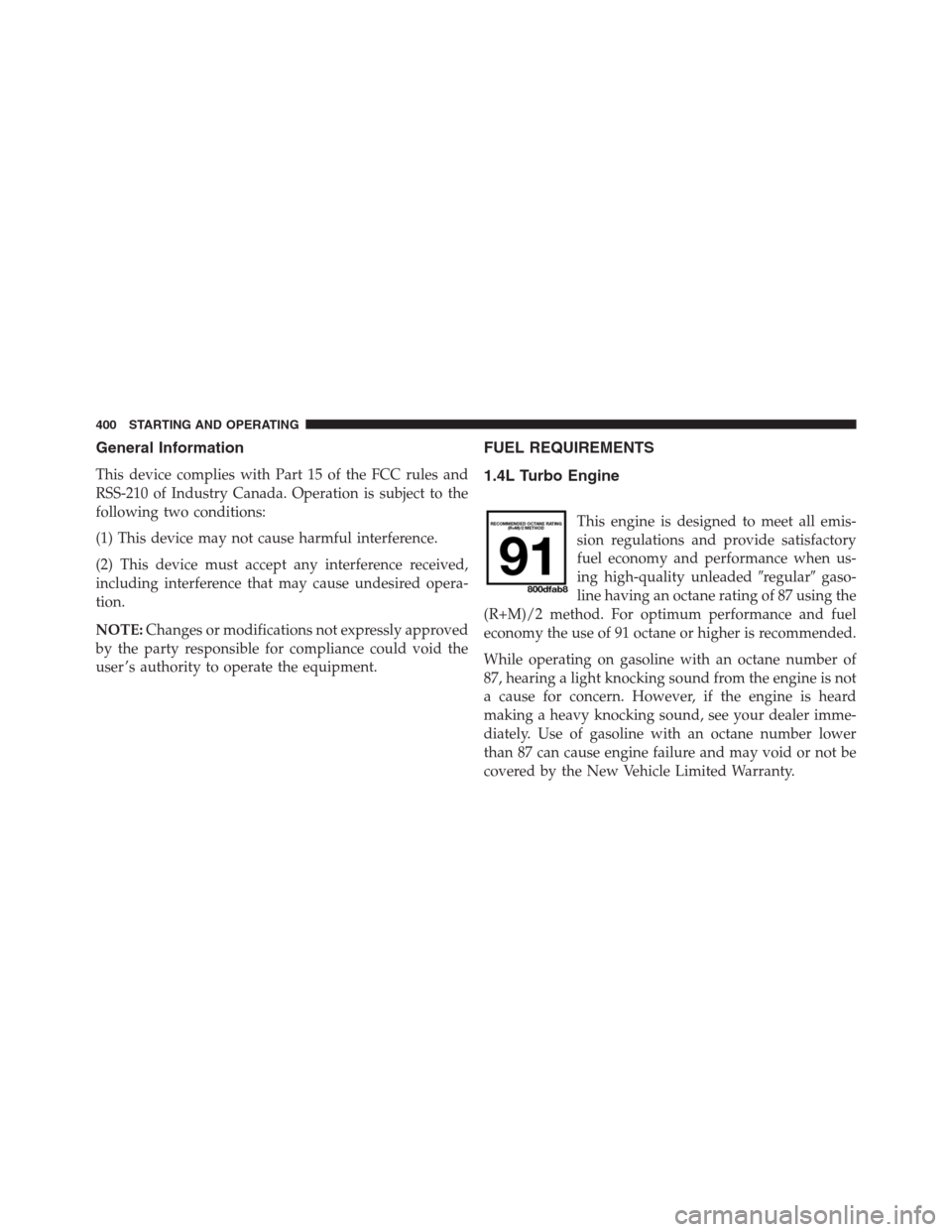

General Information
This device complies with Part 15 of the FCC rules and
RSS-210 of Industry Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received,
including interference that may cause undesired opera-
tion.
NOTE:Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
FUEL REQUIREMENTS
1.4L Turbo Engine
This engine is designed to meet all emis-
sion regulations and provide satisfactory
fuel economy and performance when us-
ing high-quality unleadedregulargaso-
line having an octane rating of 87 using the
(R+M)/2 method. For optimum performance and fuel
economy the use of 91 octane or higher is recommended.
While operating on gasoline with an octane number of
87, hearing a light knocking sound from the engine is not
a cause for concern. However, if the engine is heard
making a heavy knocking sound, see your dealer imme-
diately. Use of gasoline with an octane number lower
than 87 can cause engine failure and may void or not be
covered by the New Vehicle Limited Warranty.
400 STARTING AND OPERATING

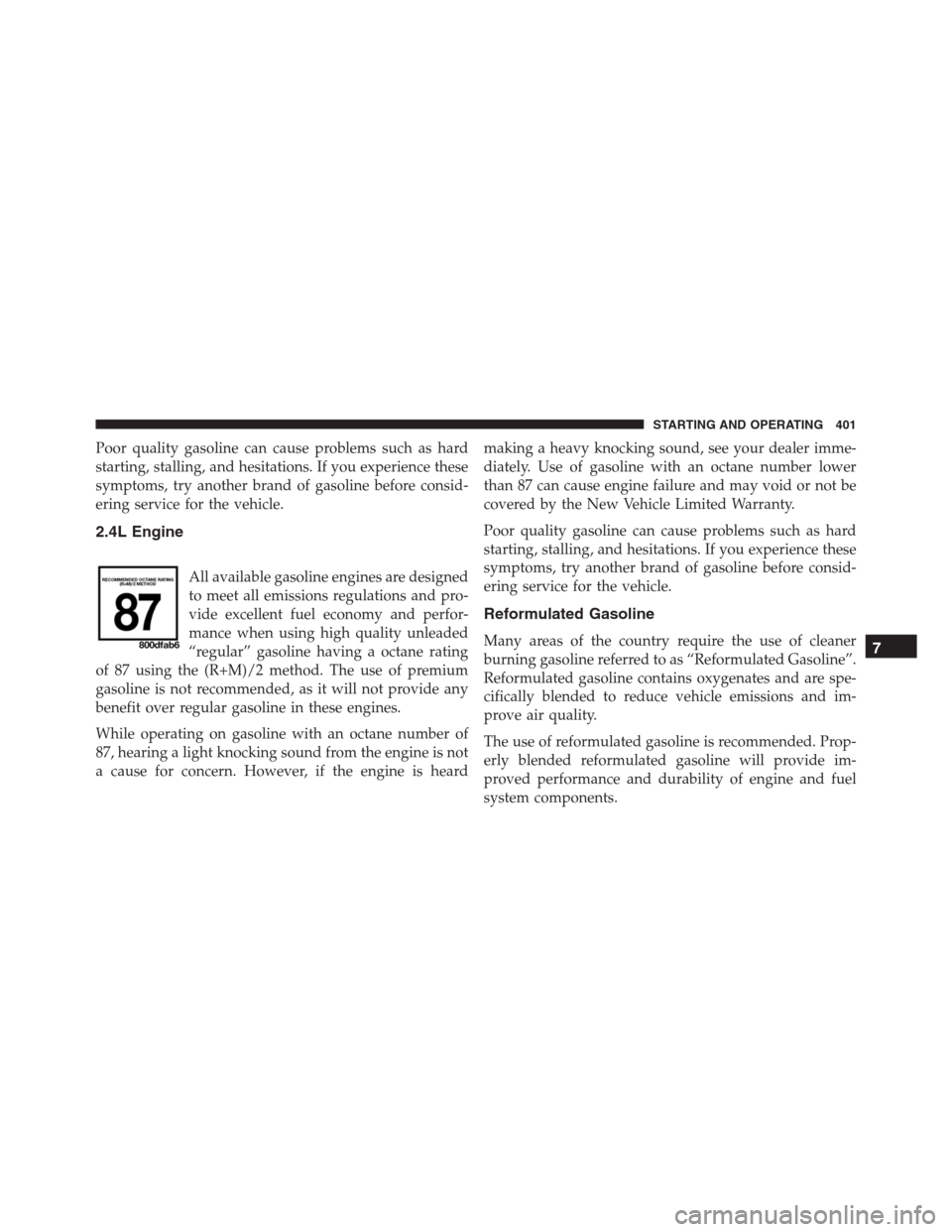

Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of gasoline before consid-
ering service for the vehicle.
2.4L Engine
All available gasoline engines are designed
to meet all emissions regulations and pro-
vide excellent fuel economy and perfor-
mance when using high quality unleaded
“regular” gasoline having a octane rating
of 87 using the (R+M)/2 method. The use of premium
gasoline is not recommended, as it will not provide any
benefit over regular gasoline in these engines.
While operating on gasoline with an octane number of
87, hearing a light knocking sound from the engine is not
a cause for concern. However, if the engine is heardmaking a heavy knocking sound, see your dealer imme-
diately. Use of gasoline with an octane number lower
than 87 can cause engine failure and may void or not be
covered by the New Vehicle Limited Warranty.
Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of gasoline before consid-
ering service for the vehicle.
Reformulated Gasoline
Many areas of the country require the use of cleaner
burning gasoline referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and are spe-
cifically blended to reduce vehicle emissions and im-
prove air quality.
The use of reformulated gasoline is recommended. Prop-
erly blended reformulated gasoline will provide im-
proved performance and durability of engine and fuel
system components.7
STARTING AND OPERATING 401

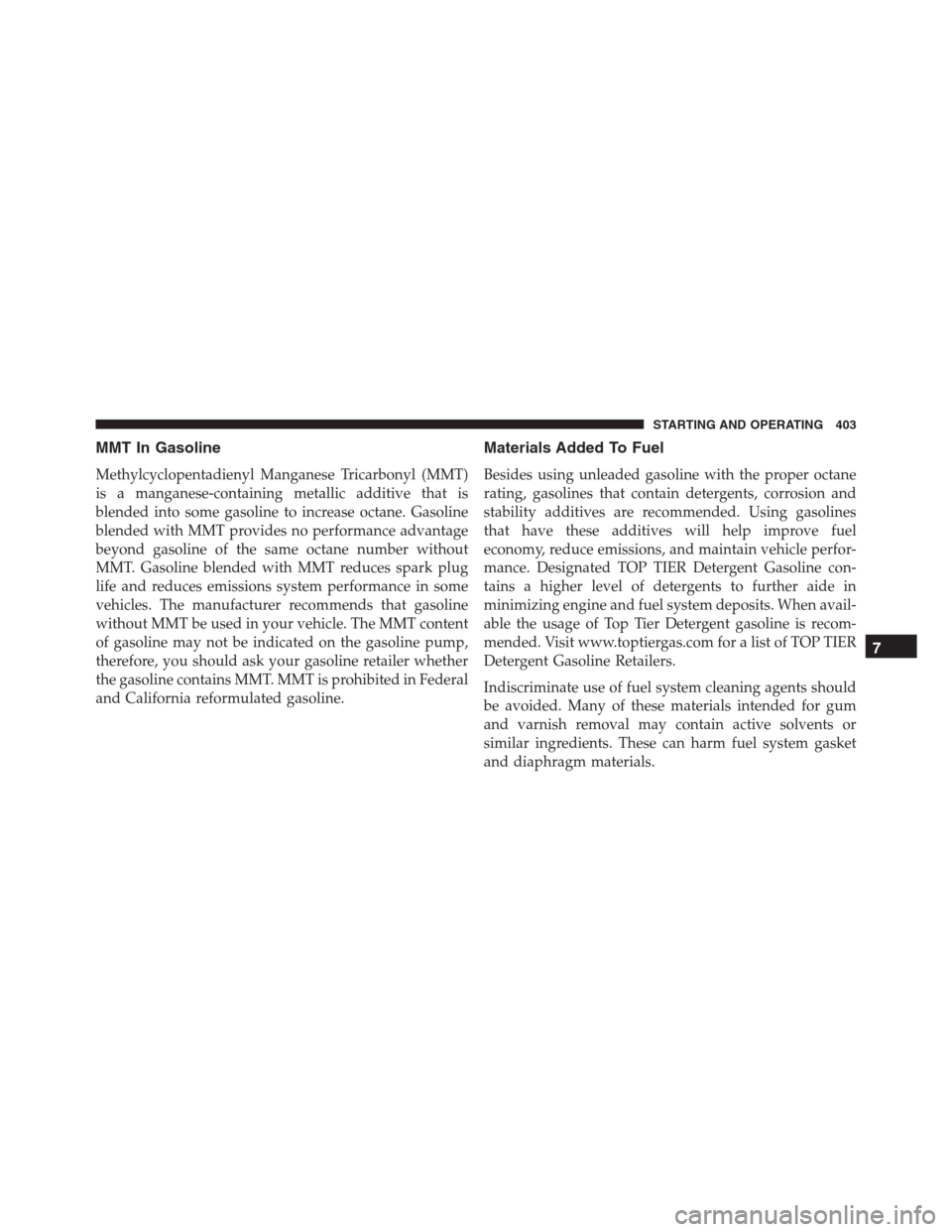

MMT In Gasoline
Methylcyclopentadienyl Manganese Tricarbonyl (MMT)
is a manganese-containing metallic additive that is
blended into some gasoline to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug
life and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content
of gasoline may not be indicated on the gasoline pump,
therefore, you should ask your gasoline retailer whether
the gasoline contains MMT. MMT is prohibited in Federal
and California reformulated gasoline.
Materials Added To Fuel
Besides using unleaded gasoline with the proper octane
rating, gasolines that contain detergents, corrosion and
stability additives are recommended. Using gasolines
that have these additives will help improve fuel
economy, reduce emissions, and maintain vehicle perfor-
mance. Designated TOP TIER Detergent Gasoline con-
tains a higher level of detergents to further aide in
minimizing engine and fuel system deposits. When avail-
able the usage of Top Tier Detergent gasoline is recom-
mended. Visit www.toptiergas.com for a list of TOP TIER
Detergent Gasoline Retailers.
Indiscriminate use of fuel system cleaning agents should
be avoided. Many of these materials intended for gum
and varnish removal may contain active solvents or
similar ingredients. These can harm fuel system gasket
and diaphragm materials.
7
STARTING AND OPERATING 403

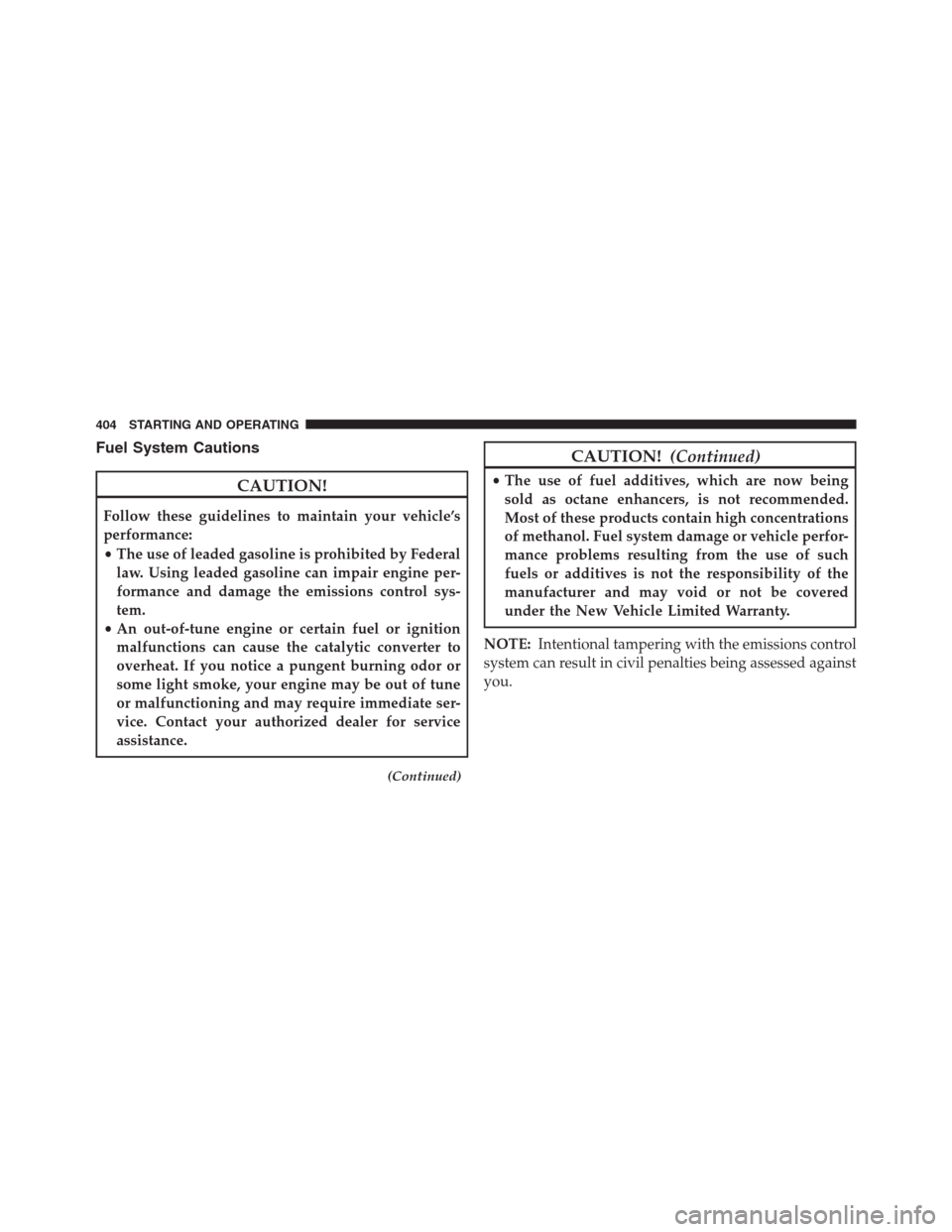

Fuel System Cautions
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:
•The use of leaded gasoline is prohibited by Federal
law. Using leaded gasoline can impair engine per-
formance and damage the emissions control sys-
tem.
•An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune
or malfunctioning and may require immediate ser-
vice. Contact your authorized dealer for service
assistance.
(Continued)
CAUTION!(Continued)
•The use of fuel additives, which are now being
sold as octane enhancers, is not recommended.
Most of these products contain high concentrations
of methanol. Fuel system damage or vehicle perfor-
mance problems resulting from the use of such
fuels or additives is not the responsibility of the
manufacturer and may void or not be covered
under the New Vehicle Limited Warranty.
NOTE:Intentional tampering with the emissions control
system can result in civil penalties being assessed against
you.
404 STARTING AND OPERATING

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile Formula
OAT (Organic Additive Technology) or equivalent meeting the requirements of
FCA Material Standard MS.90032.
Engine Oil – 1.4L Turbo
EngineWe recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the
requirements of FCA Material Standard MS-12991 such as MOPAR, Pennzoil, and
Shell Helix. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil –
2.4L EngineWe recommend you use SAE 0W-20 API Certified Engine Oil, meeting the require-
ments of FCA Material Standard MS-6395 such as MOPAR, Pennzoil, and Shell Helix.
Refer to your engine oil filler cap for correct SAE grade.
Engine Oil Filter We recommend you use a MOPAR Engine Oil Filter.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection –
1.4L Turbo Engine91 Octane Recommended, 87 Octane Acceptable, 0-15% Ethanol
Fuel Selection – 2.4L Engine87 Octane, 0-15% Ethanol
10

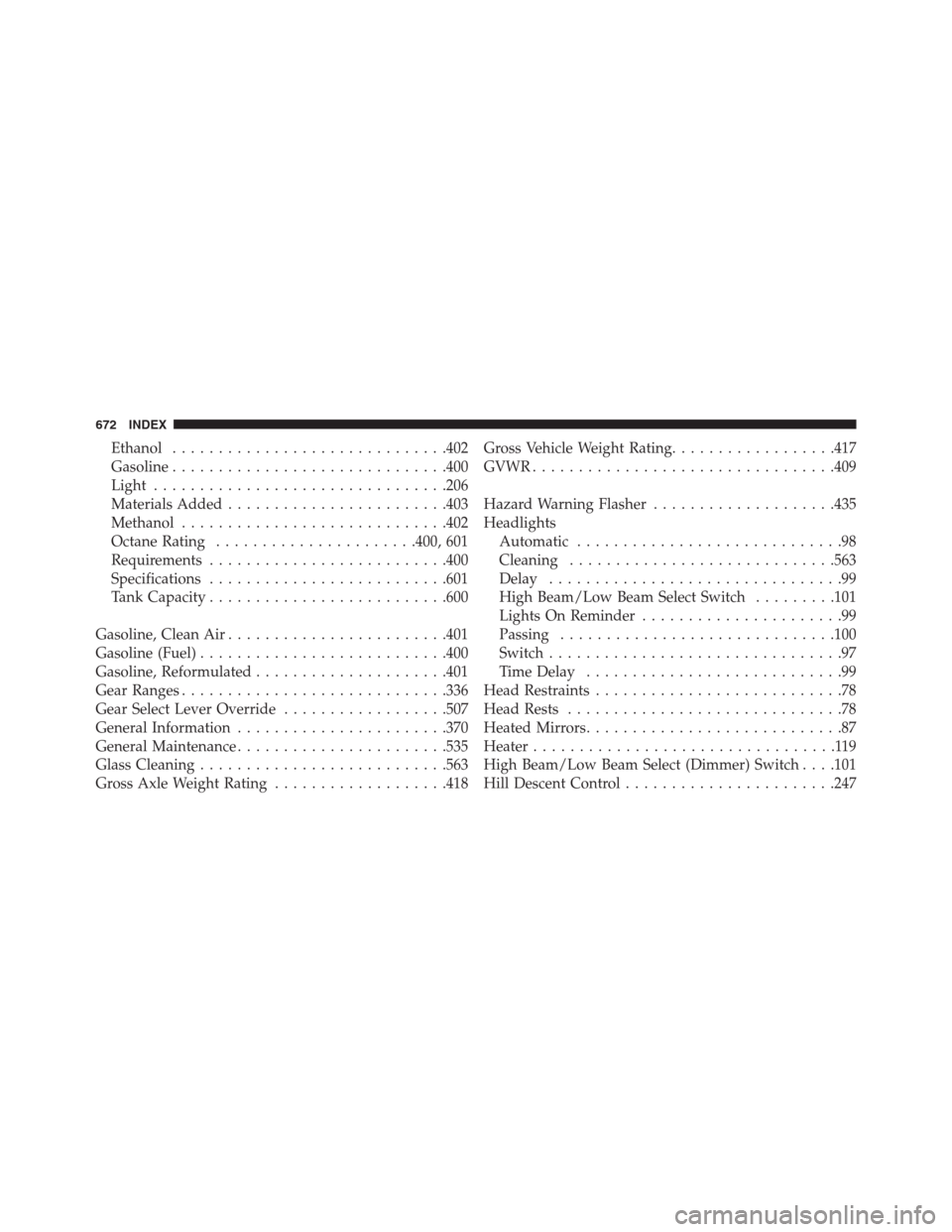

TECHNICAL DATA 601

Ethanol..............................402
Gasoline..............................400
Light................................206
Materials Added........................403
Methanol.............................402
Octane Rating......................400, 601
Requirements..........................400
Specifications..........................601
Tank Capacity..........................600
Gasoline, Clean Air........................401
Gasoline (Fuel)...........................400
Gasoline, Reformulated.....................401
Gear Ranges.............................336
Gear Select Lever Override..................507
General Information.......................370
General Maintenance.......................535
Glass Cleaning...........................563
Gross Axle Weight Rating...................418Gross Vehicle Weight Rating..................417
GVWR.................................409
Hazard Warning Flasher....................435
Headlights
Automatic.............................98
Cleaning.............................563
Delay................................99
High Beam/Low Beam Select Switch.........101
Lights On Reminder......................99
Passing..............................100
Switch................................97
Time Delay............................99
Head Restraints...........................78
Head Rests..............................78
Heated Mirrors............................87
Heater.................................119
High Beam/Low Beam Select (Dimmer) Switch. . . .101
Hill Descent Control.......................247
672 INDEX

Master Cylinder (Brakes)....................553
Methanol...............................402
Mirrors
Heated...............................87
Outside...............................85
Rearview..........................83, 435
Vanity...............................106
Modifications/Alterations, Vehicle...............7
Monitor, Tire Pressure System................389
MTBE/ETBE............................402
New Vehicle Break-In Period.................326
Occupant Restraints.......................258
Octane Rating, Gasoline (Fuel).............400, 601
Oil, Engine..........................535, 601
Capacity.............................600
Change Interval........................536
Checking.............................535Disposal..............................538
Filter.............................538, 601
Filter Disposal.........................538
Materials Added To......................538
Pressure Warning Light...................190
Recommendation....................537, 600
Viscosity..........................537, 600
Oil Filter, Change.........................538
Oil Filter, Selection........................538
Oil Pressure Light.........................190
Onboard Diagnostic System..................215
Operating Precautions......................215
Operator Manual (Owner’s Manual).............5
Outside Rearview Mirrors....................85
Overheating, Engine.......................506
Owner’s Manual (Operator Manual)...........5,16
Paint Care..............................558
Parking Brake............................327
676 INDEX
