Manual Climate Control Descriptions
IconDescription
MAX A/C Setting
MAX A/C sets the system for maximum cooling performance. Rotate the temperature control
adjust knob counterclockwise to the MAX A/C setting. In MAX A/C, the blower speed and
mode position can be adjusted to desired user settings.
A/C Button
Push this button to engage the Air Conditioning. A light will illuminate when the Air Condi-
tioning system is engaged.
Recirculation Button
Push this control button to change the system between recirculation mode and outside air
mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or high
humidity are present.
NOTE:
•Continuous use of the Recirculation mode may make the inside air stuffy and window fog-
ging may occur. Extended use of this mode is not recommended.
•The use of the Recirculation mode in cold or damp weather could cause windows to fog on
the inside, because of moisture buildup inside the vehicle. Select the outside air position for
maximum defogging.
•Recirculation can be used in all modes except for Defrost.
•The A/C can be deselected manually without disturbing the mode control selection.
68 GETTING TO KNOW YOUR VEHICLE

IconDescription
Front Defrost Mode
Air is directed through the windshield and side window demister outlets. Use this mode with
maximum blower and temperature settings for best windshield and side window defrosting.
NOTE:The air conditioning compressor operates in Mix or Defrost, even if the Air Condition-
ing (A/C) button is not pushed. This dehumidifies the air to help dry the windshield. To im-
prove fuel economy, use these modes only when required.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after 20 minutes.
Temperature Control
Rotate this control to regulate the temperature of the air inside the passenger compartment. Ro-
tating the dial counterclockwise into the blue area of the scale indicates cooler temperatures,
while rotating clockwise into the red area indicates warmer temperatures. Rotating the Tempera-
ture Control all the way counterclockwise results in turning on the MAX A/C feature.
Blower Control
Rotate this control to regulate the amount of air forced through the ventilation system in any
mode. The blower speed increases as you move the control clockwise from the “0” (OFF) posi-
tion.
3
GETTING TO KNOW YOUR VEHICLE 69

System Maintenance
In Winter, the Climate Control system must be turned on at
least once a month for approximately 10 minutes.
Have the system inspected at an authorized dealer before
the summer.
NOTE:The system uses R-1234yf (refrigerant) which does
not pollute the environment in the event of accidental
leakage. Under no circumstances is the use of R-134a
(refrigerant) allowed.Automatic Climate Control Overview
Automatic Climate Control Descriptions
Icon Description
MAX A/C Setting
MAX A/C sets the system for maximum cooling performance. Rotate the driver temperature
control adjust knob counterclockwise for MAX A/C. Both driver and passenger temperature dis-
plays will show MAX A/C LO. In MAX A/C, the blower speed and mode position can be ad-
justed to desired user settings. Pressing other settings will cause the MAX A/C operation to
switch to the selected setting and MAX A/C to exit.
Automatic Climate Controls
72 GETTING TO KNOW YOUR VEHICLE

IconDescription
Bi-Level Mode
Bi-Level Mode
Bi-Level Mode is obtained by pressing both the Panel Mode button and the Floor Mode button,
activating them both. Air comes from the instrument panel outlets and floor outlets. A slight
amount of air is directed through the defrost and side window demister outlets.
NOTE: Bi-Level Mode is designed under comfort conditions to provide cooler air out of the
panel outlets and warmer air from the floor outlets.
Mix Mode
Mix Mode
Mix Mode is obtained by pressing both the Windshield Mode button and the Floor Mode but-
ton, activating them both. Air is directed through the floor, defrost, and side window demister
outlets. This setting works best in cold or snowy conditions that require extra heat to the wind-
shield. This setting is good for maintaining comfort while reducing moisture on the windshield.
Climate Control Power Button
Press and release this button to turn the Climate Control on/off.
Driver Temperature Knob
Provides the driver with independent temperature control. Rotate the adjustment knob to set
desired temperature shown in the Temperature Display. Rotate fully counterclockwise for maxi-
mum A/C (LO). The set temperature is shown on the display. Turning the control knob com-
pletely in one direction or the other activates the HI (maximum heating) or LO (maximum cool-
ing) functions shown in the display, respectively. To deactivate these functions, turn the
temperature knob to the desired temperature.
76 GETTING TO KNOW YOUR VEHICLE

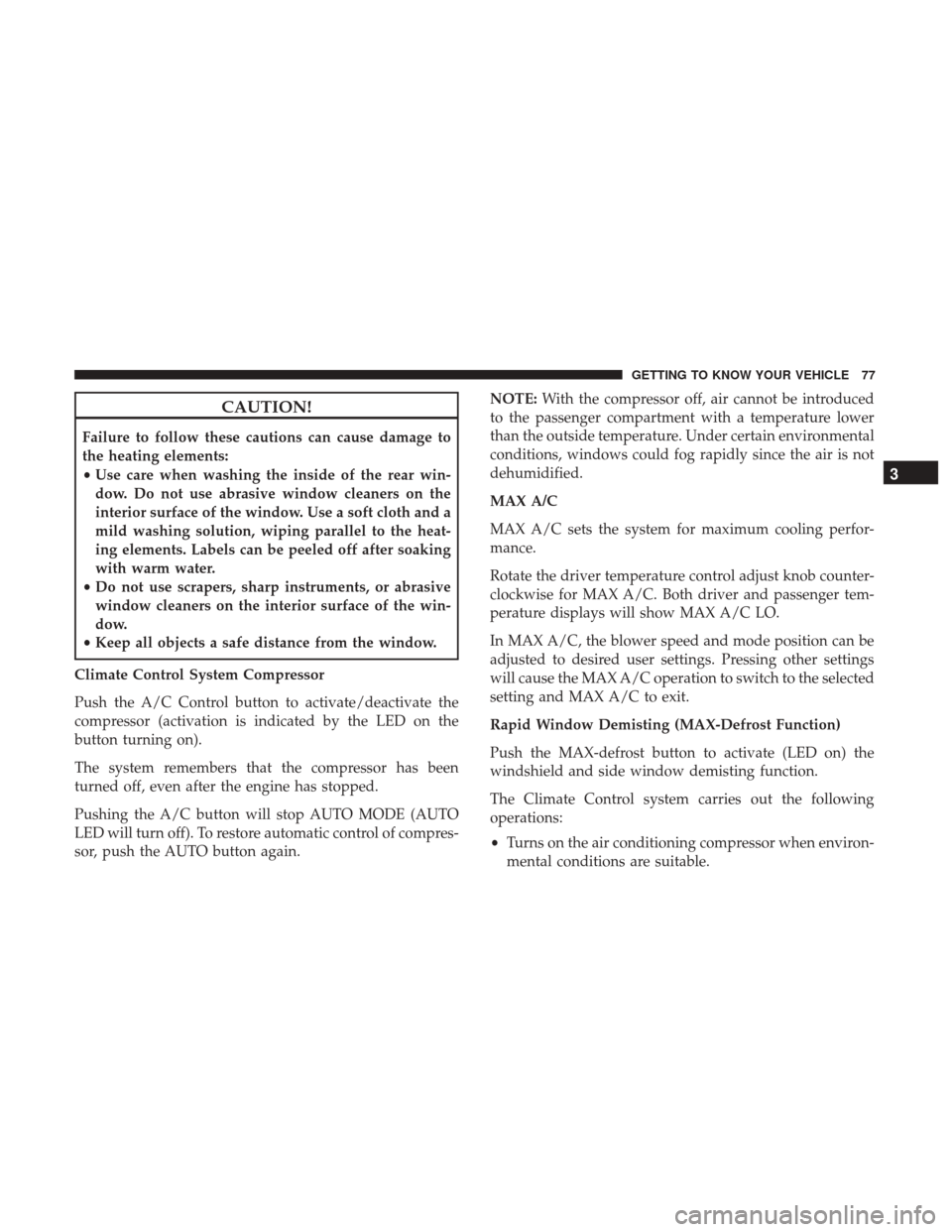

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear win-
dow. Do not use abrasive window cleaners on the
interior surface of the window. Use a soft cloth and a
mild washing solution, wiping parallel to the heat-
ing elements. Labels can be peeled off after soaking
with warm water.
• Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the win-
dow.
• Keep all objects a safe distance from the window.
Climate Control System Compressor
Push the A/C Control button to activate/deactivate the
compressor (activation is indicated by the LED on the
button turning on).
The system remembers that the compressor has been
turned off, even after the engine has stopped.
Pushing the A/C button will stop AUTO MODE (AUTO
LED will turn off). To restore automatic control of compres-
sor, push the AUTO button again. NOTE:
With the compressor off, air cannot be introduced
to the passenger compartment with a temperature lower
than the outside temperature. Under certain environmental
conditions, windows could fog rapidly since the air is not
dehumidified.
MAX A/C
MAX A/C sets the system for maximum cooling perfor-
mance.
Rotate the driver temperature control adjust knob counter-
clockwise for MAX A/C. Both driver and passenger tem-
perature displays will show MAX A/C LO.
In MAX A/C, the blower speed and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the selected
setting and MAX A/C to exit.
Rapid Window Demisting (MAX-Defrost Function)
Push the MAX-defrost button to activate (LED on) the
windshield and side window demisting function.
The Climate Control system carries out the following
operations:
• Turns on the air conditioning compressor when environ-
mental conditions are suitable.
3
GETTING TO KNOW YOUR VEHICLE 77

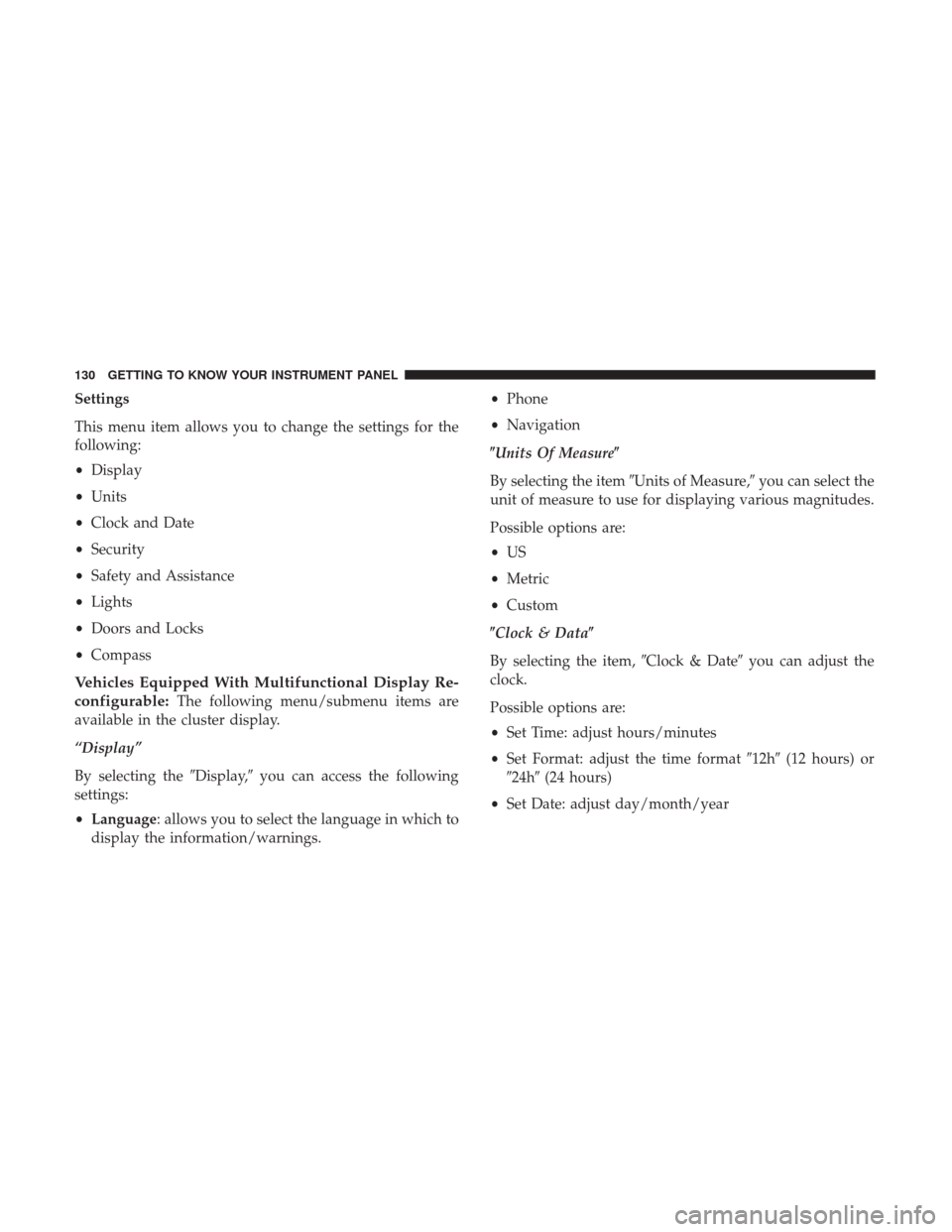

Settings
This menu item allows you to change the settings for the
following:
•Display
• Units
• Clock and Date
• Security
• Safety and Assistance
• Lights
• Doors and Locks
• Compass
Vehicles Equipped With Multifunctional Display Re-
configurable:
The following menu/submenu items are
available in the cluster display.
“Display”
By selecting the Display,you can access the following
settings:
• Language: allows you to select the language in which to
display the information/warnings. •
Phone
• Navigation
Units Of Measure
By selecting the item Units of Measure,you can select the
unit of measure to use for displaying various magnitudes.
Possible options are:
• US
• Metric
• Custom
Clock & Data
By selecting the item, Clock & Dateyou can adjust the
clock.
Possible options are:
• Set Time: adjust hours/minutes
• Set Format: adjust the time format 12h(12 hours) or
24h (24 hours)
• Set Date: adjust day/month/year
130 GETTING TO KNOW YOUR INSTRUMENT PANEL

Buttons On The Faceplate
Buttons on the faceplate are located below the Uconnect
system in the center of the instrument panel. In addition,
there is a Scroll/Enter control knob located on the right
side of the Climate Controls in the center of the instrument
panel. Turn the control knob to scroll through menus andchange settings (i.e., 30, 60, 90), push the center of the
control knob one or more times to select or change a setting
(i.e., ON, OFF).
Your Uconnect system may also have screen off and back
buttons located below the Uconnect system.
Push the screen off button to turn off the Uconnect touch-
screen. Push the screen off button a second time to turn the
touchscreen on.
Push the back button to exit out of a menu or certain option
on the Uconnect system.
Buttons On The Touchscreen
Buttons on the touchscreen are accessible on the Uconnect
display.
Customer Programmable Features — Uconnect 5.0
Settings
Push the MORE button on the faceplate, then press the
“Settings” button on the touchscreen to display the settings
menu screen. In this mode, the Uconnect system allows
you to access programmable features that may be
equipped such as Display, Clock, Safety/Assistance,
Uconnect 6.5 NAV Buttons On The Touchscreen And
Buttons On The Faceplate
1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate
10
MULTIMEDIA 445

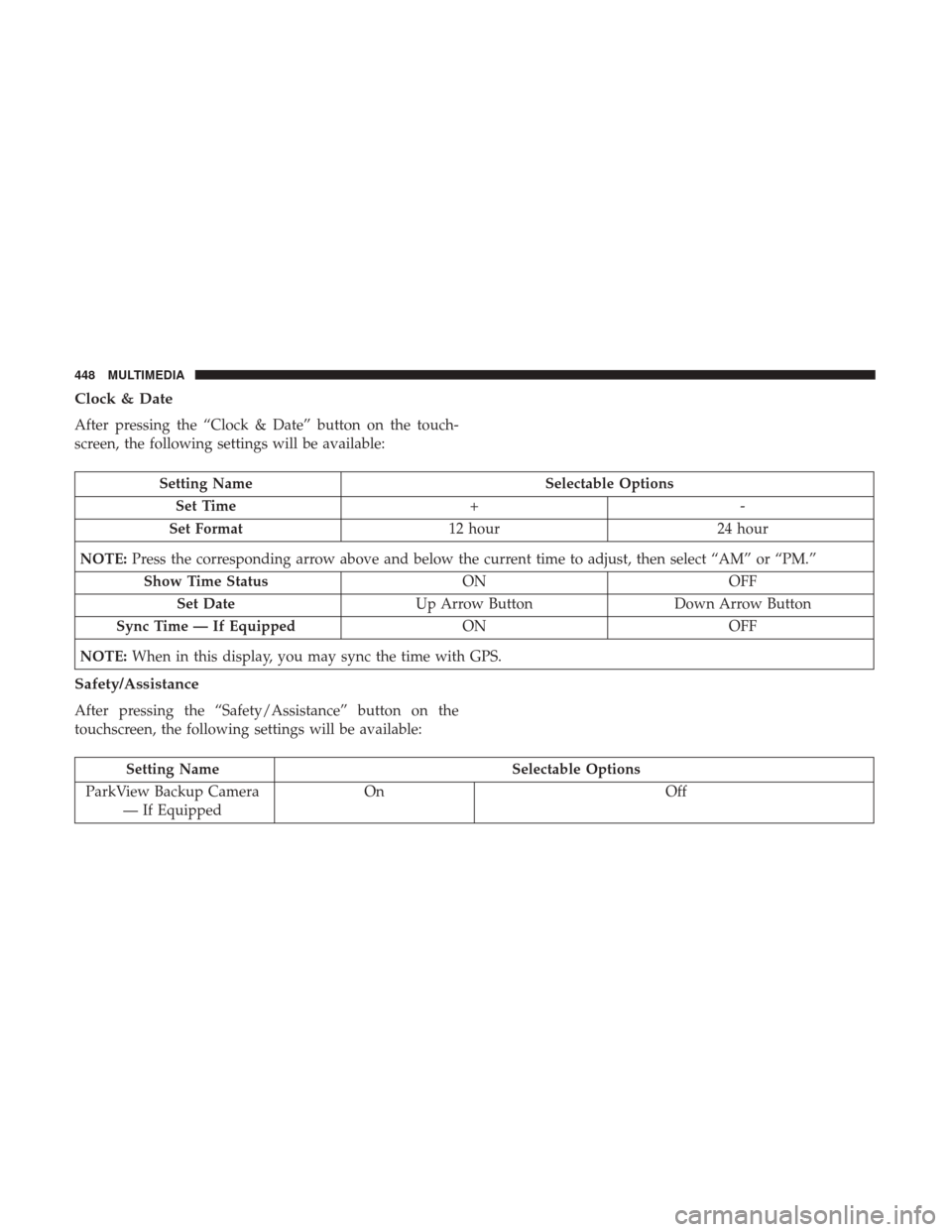

Clock & Date
After pressing the “Clock & Date” button on the touch-
screen, the following settings will be available:
Setting NameSelectable Options
Set Time +-
Set Format 12 hour24 hour
NOTE: Press the corresponding arrow above and below the current time to adjust, then select “AM” or “PM.”
Show Time Status ONOFF
Set Date Up Arrow Button Down Arrow Button
Sync Time — If Equipped ONOFF
NOTE: When in this display, you may sync the time with GPS.
Safety/Assistance
After pressing the “Safety/Assistance” button on the
touchscreen, the following settings will be available:
Setting Name Selectable Options
ParkView Backup Camera — If Equipped On
Off
448 MULTIMEDIA

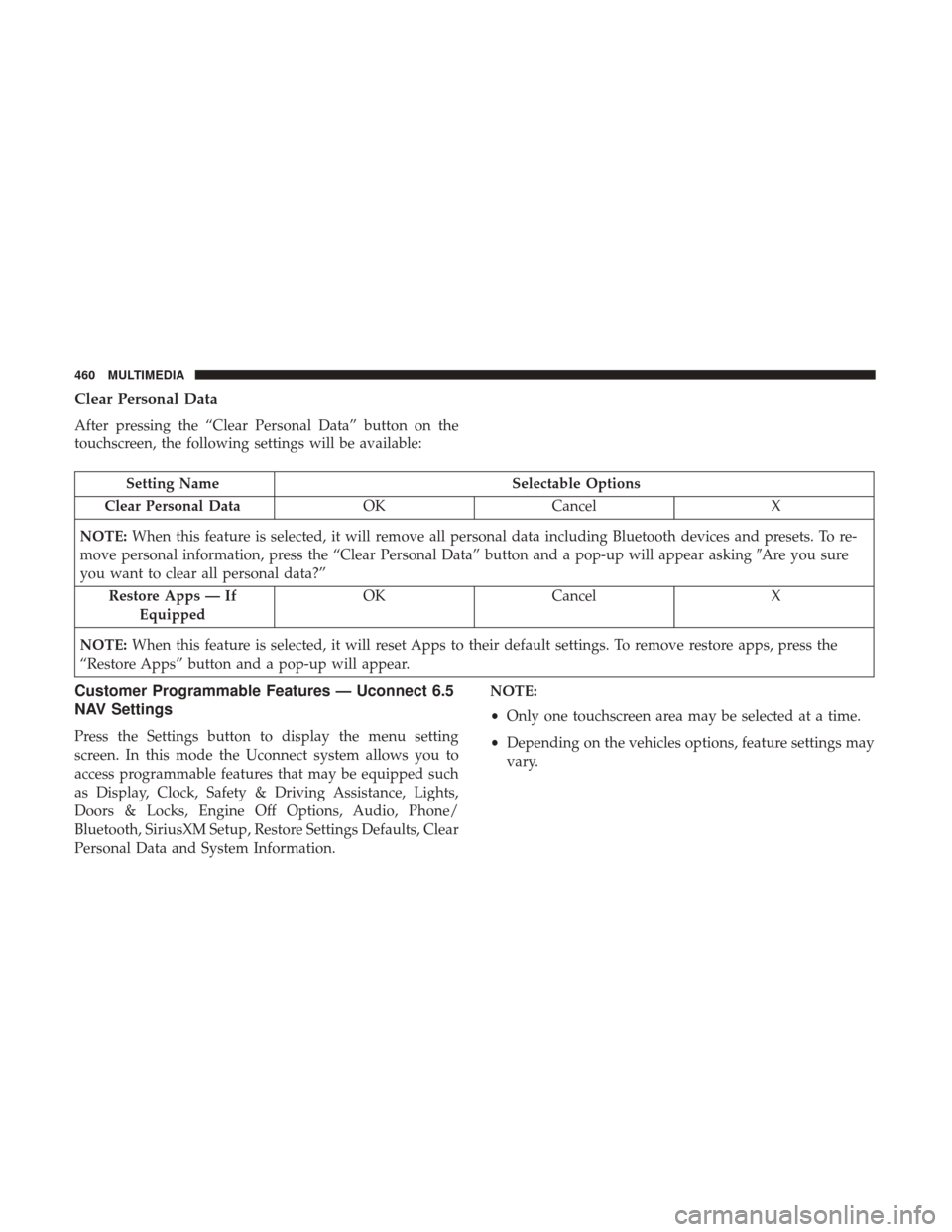

Clear Personal Data
After pressing the “Clear Personal Data” button on the
touchscreen, the following settings will be available:
Setting NameSelectable Options
Clear Personal Data OKCancel X
NOTE: When this feature is selected, it will remove all personal data including Bluetooth devices and presets. To re-
move personal information, press the “Clear Personal Data” button and a pop-up will appear asking Are you sure
you want to clear all personal data?”
Restore Apps — If Equipped OK
Cancel X
NOTE: When this feature is selected, it will reset Apps to their default settings. To remove restore apps, press the
“Restore Apps” button and a pop-up will appear.
Customer Programmable Features — Uconnect 6.5
NAV Settings
Press the Settings button to display the menu setting
screen. In this mode the Uconnect system allows you to
access programmable features that may be equipped such
as Display, Clock, Safety & Driving Assistance, Lights,
Doors & Locks, Engine Off Options, Audio, Phone/
Bluetooth, SiriusXM Setup, Restore Settings Defaults, Clear
Personal Data and System Information. NOTE:
•
Only one touchscreen area may be selected at a time.
• Depending on the vehicles options, feature settings may
vary.
460 MULTIMEDIA

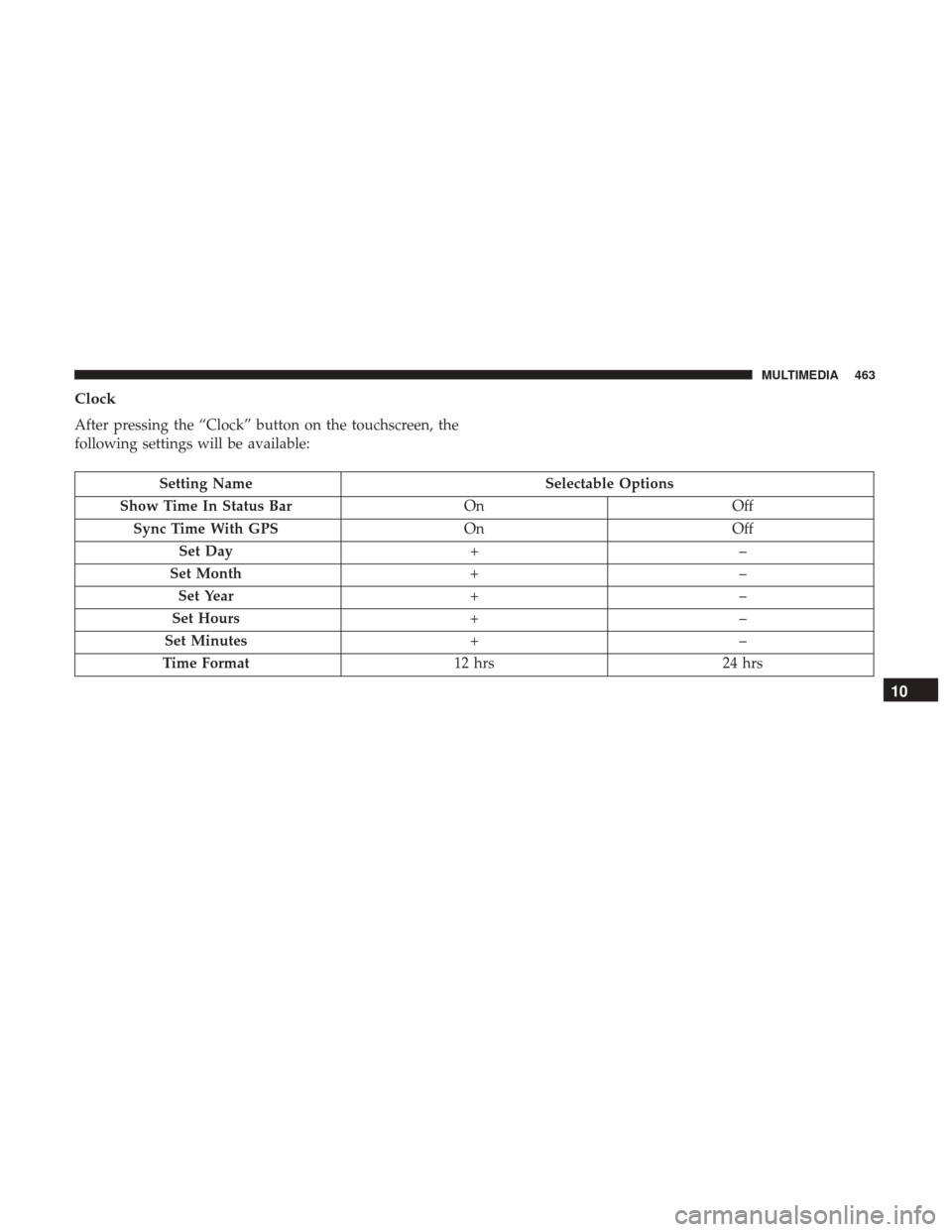

Clock
After pressing the “Clock” button on the touchscreen, the
following settings will be available:
Setting NameSelectable Options
Show Time In Status Bar OnOff
Sync Time With GPS OnOff
Set Day +–
Set Month +–
Set Year +–
Set Hours +–
Set Minutes +–
Time Format 12 hrs24 hrs
10
