When replacing a blown fuse, always use
an appropriate replacement fuse with the
same amp rating as the original fuse. Never
replace a fuse with another fuse of higher
amp rating. Never replace a blown fuse with
metal wires or any other material. Failure to
use proper fuses may result in serious
personal injury, fire and/or property
damage.
Before replacing a fuse, make sure that the
ignition is off and that all the other services
are switched off and/or disengaged.
If the replaced fuse blows again, contact an
authorized dealer.
If a general protection fuse for safety
systems (air bag system, braking systemyf
power unit systems (engine system,
gearbox systemyfRUVWHHULQJV\VWHPEORZV
contact an authorized dealer.

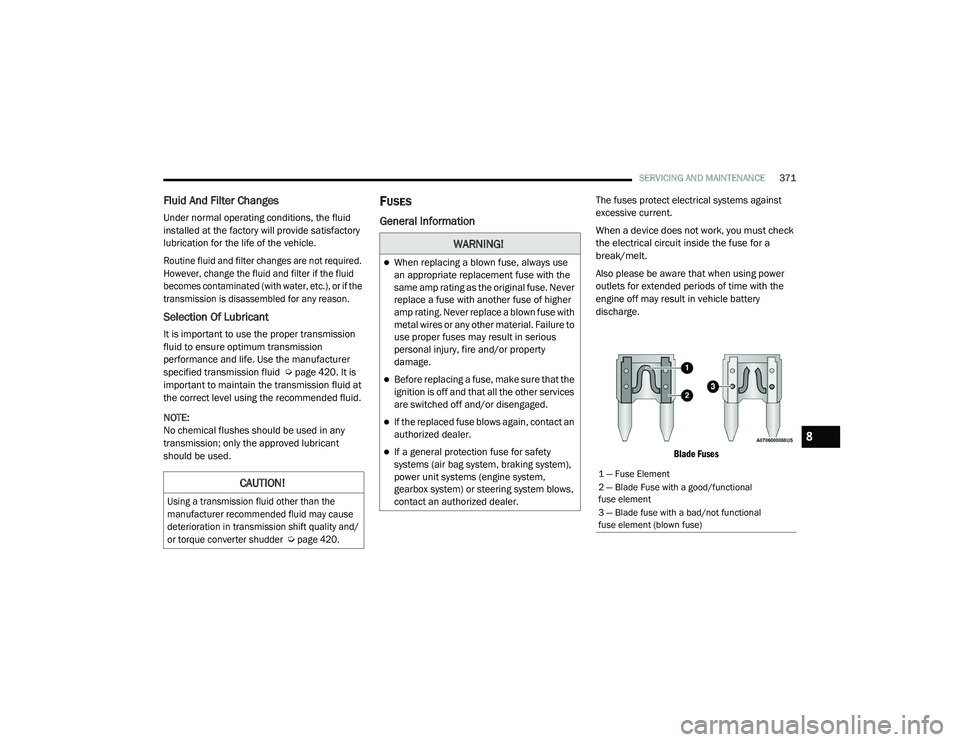

1 — Fuse Element
2 — Blade Fuse with a good/functional
fuse element
3 — Blade fuse with a bad/not functional
fuse element (blown fuseyf
