light JEEP RENEGADE 2022 Owners Manual

:$5N,N*
$Q\ PoGLILFatLoQV oU aOteUatLoQV to tKLV YeKLFOe FoXOG VeULoXVO\ aIIeFt LtV
UoaGZoUtKLQeVV aQG VaIet\ aQG Pa\ OeaG to a FoOOLVLoQ UeVXOtLQg LQ
VeULoXV LQMXU\ oU GeatK.
5eG :aUQLQg /LgKtV
$LU Bag :aUQLQg /LgKt Úpage 83
Brake Warning Light
Úpage 83
Battery Charge Warning Light Úpage 84
Door Open Warning Light Úpage 84
Electric Power Steering Fault Warning Light Úpage 84
Electronic Throttle Control (ETCyf:DUQLQJ/LJKt Úpage 84
Engine Coolant Temperature Warning Light Úpage 84
Hood Open Warning Light Úpage 85
Liftgate Open Warning Light Úpage 85
Red Warning Lights

WARNING!

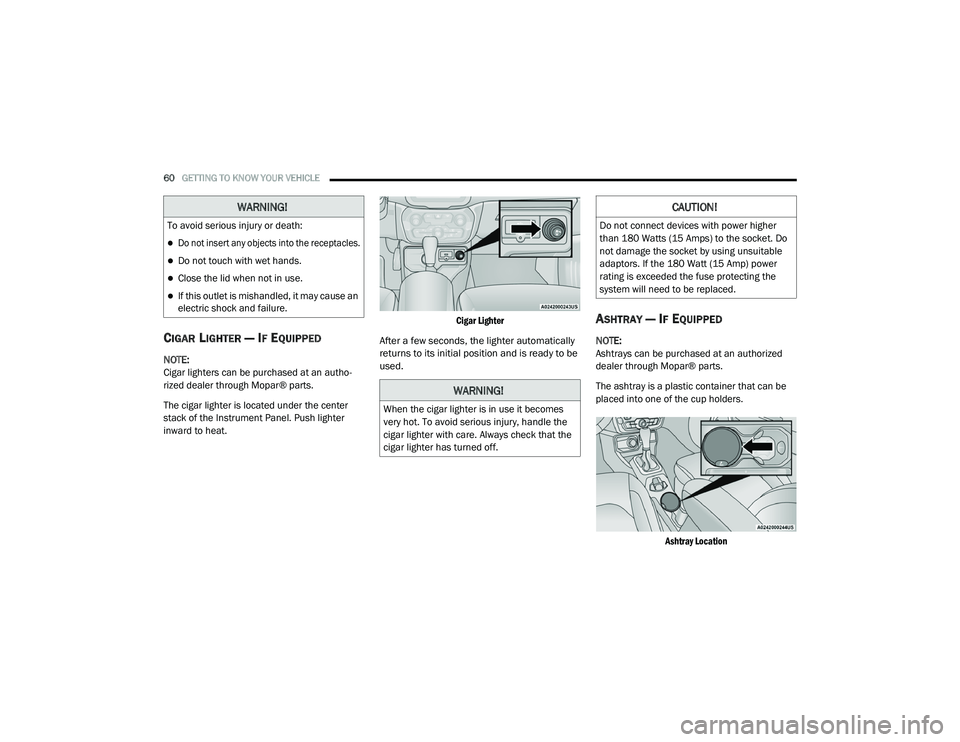

To avoid serious injury or death:

Do not insert any objects into the receptacles.

Do not touch with wet hands.
Close the lid when not in use.
If this outlet is mishandled, it may cause an
electric shock and failure.
WARNING!
When the cigar lighter is in use it becomes
very hot. To avoid serious injury, handle the
cigar lighter with care. Always check that the
cigar lighter has turned off.
CAUTION!
Do not connect devices with power higher
than 180 Watts (15 AmpsyfWRWKHVRFNHW'R
not damage the socket by using unsuitable
adaptors. If the 180 Watt (15 AmpyfSRZHU
rating is exceeded the fuse protecting the
system will need to be replaced.

:$5N,N*

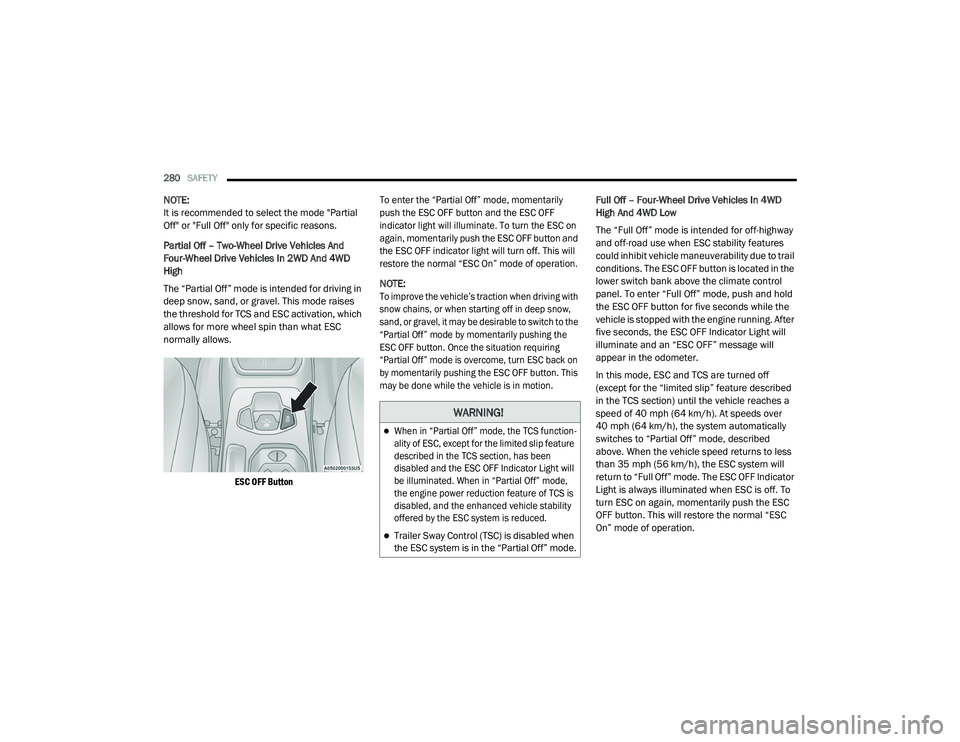

When in “Partial Off” mode, the TCS function-
ality of ESC, except for the limited slip feature
described in the TCS section, has been
disabled and the ESC OFF Indicator Light will
be illuminated. When in “Partial Off” mode,
the engine power reduction feature of TCS is
disabled, and the enhanced vehicle stability
offered by the ESC system is reduced.

Trailer Sway Control (TSCyfLVGLVDEOHGZKHQ
the ESC system is in the “Partial Off” mode.

:$5N,N*

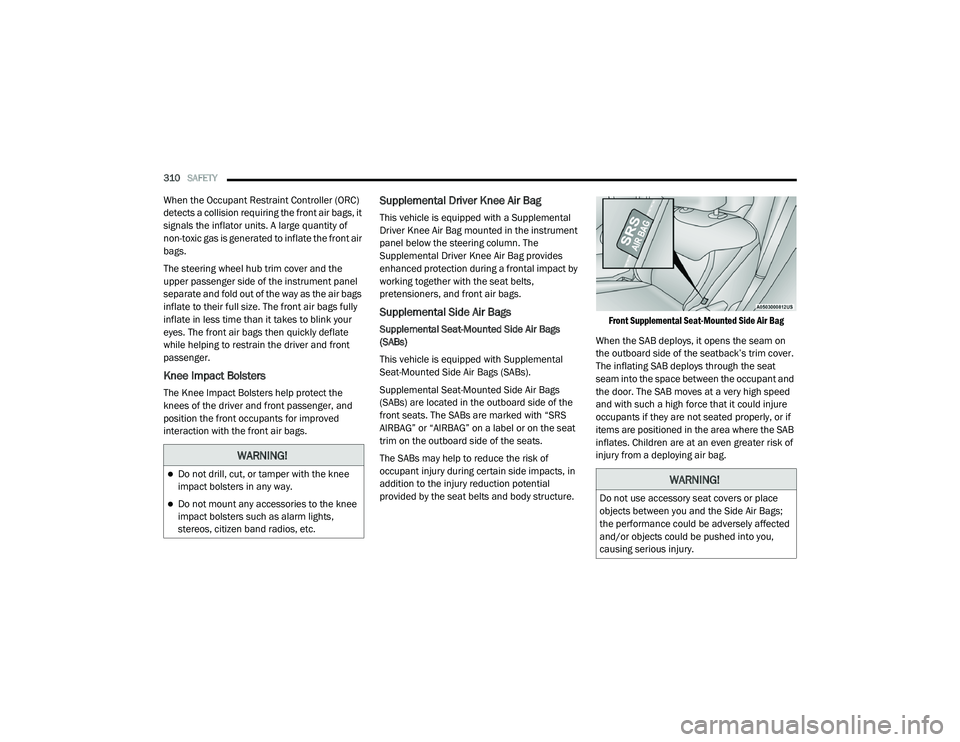

Do not drill, cut, or tamper with the knee
impact bolsters in any way.
Do not mount any accessories to the knee
impact bolsters such as alarm lights,
stereos, citizen band radios, etc.
WARNING!
Do not use accessory seat covers or place
objects between you and the Side Air Bags;
the performance could be adversely affected
and/or objects could be pushed into you,
causing serious injury.

:$5N,N*

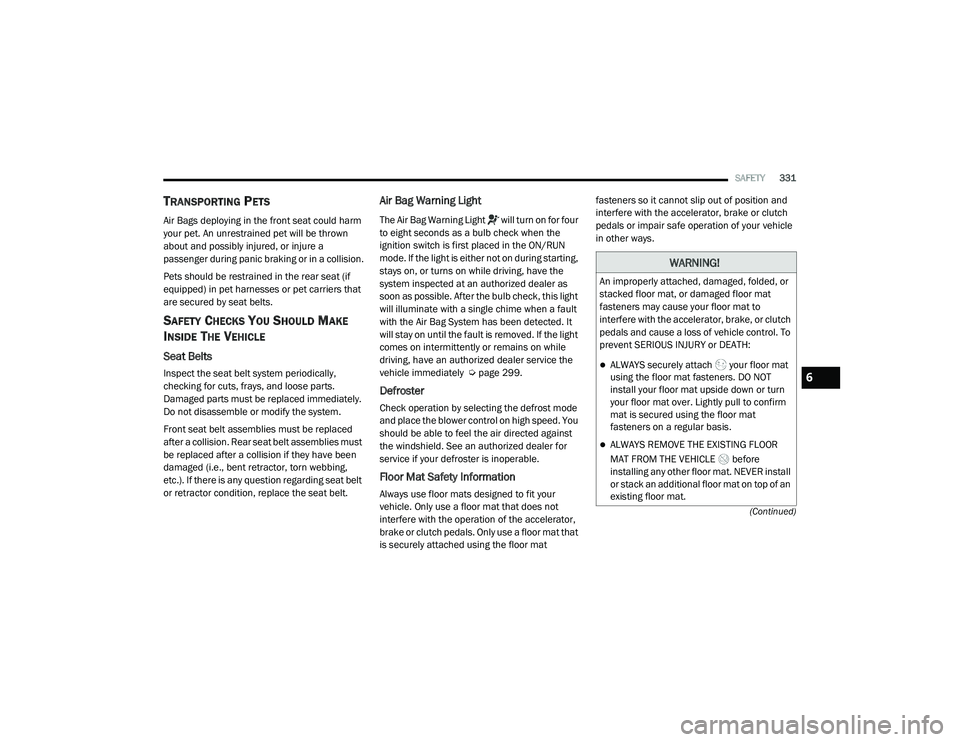

$Q LPSUoSeUO\ attaFKeG GaPageG IoOGeG oU
VtaFkeG IOooU Pat oU GaPageG IOooU Pat
IaVteQeUV Pa\ FaXVe \oXU IOooU Pat to
LQteUIeUe ZLtK tKe aFFeOeUatoU bUake oU FOXtFK
SeGaOV aQG FaXVe a OoVV oI YeKLFOe FoQtUoO. 7o
SUeYeQt SE5,OUS ,N-U5< oU 'E$7+
ALWAYS securely attach your floor mat
using the floor mat fasteners. DO NOT
install your floor mat upside down or turn
your floor mat over. Lightly pull to confirm
mat is secured using the floor mat
fasteners on a regular basis.
ALWAYS REMOVE THE EXISTING FLOOR
MAT FROM THE VEHICLE before
installing any other floor mat. NEVER install
or stack an additional floor mat on top of an
existing floor mat.
6

21_BV_OM_EN_USC_t.book Page 331

:$5N,N*
Ignoring the overhead console light could
mean you will not have SOS Call services. If
the overhead console light is illuminated,
have an authorized dealer service the SOS
Call system immediately.
The Occupant Restraint Control module
turns on the air bag Warning Light on the
instrument panel if a malfunction in any
part of the system is detected. If the Air Bag
Warning Light is illuminated, have an
authorized dealer service the Occupant
Restraint Control system immediately.
WARNING!
ALWAYS obey traffic laws and pay attention to
the road. ALWAYS drive safely with your hands
on the steering wheel. You have full
responsibility and assume all risks related to
the use of the features and applications in
this vehicle. Only use the features and
applications when it is safe to do so. Failure
to do so may result in an accident involving
serious injury or death.
7

21_BV_OM_EN_USC_t.book Page 337

:$5N,N*
Never have any smoking materials lit in or
near the vehicle when the fuel door is open
or the tank is being filled.
Never add fuel when the engine is running.
This is in violation of most state and federal
fire regulations and may cause the
Malfunction Indicator Light to turn on.
A fire may result if fuel is pumped into a
portable container that is inside of a
vehicle. You could be burned. Always place
fuel containers on the ground while filling.
CAUTION!
Driving with a hot cooling system could
damage your vehicle. If the temperature
gauge reads “H,” pull over and stop the
vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops
back into the normal range. If the pointer
remains on the “H” and you hear continuous
chimes, turn the engine off immediately and
call for service.WARNING!
You or others can be badly burned by hot
engine coolant (antifreezeyfRUVWHDPIURP
your radiator. If you see or hear steam coming
from under the hood, do not open the hood
until the radiator has had time to cool. Never
try to open a cooling system pressure cap
when the radiator or coolant bottle is hot.7

21_BV_OM_EN_USC_t.book Page 347

SERVICING AND MAINTENANCE
SC\b\fED SERVICING
Your vehicle is equipped with an automatic oil
change indicator system. The oil change
indicator system will remind you that it is time to
take your vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil
change indicator message will illuminate in the
instrument cluster. This means that service is
required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow and
extremely hot or cold ambient temperatures will
influence when the “Change Oil” or “Oil Change
Required” message is displayed. Have your
vehicle serviced as soon as possible, within the
next 500 miles (805 kmyf.
An authorized dealer will reset the oil change
indicator message after completing the
scheduled oil change.NOTE:

Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 kmyf
1 year or 350 hours of engine run time, which
-
ever comes first. The 350 hours of engine run
or idle time is generally only a concern for fleet
customers.

NOTE:
The Oil Change Indicator will not illuminate
under these conditions.
Once A Month Or Before A Long Trip:
Check engine oil level.
Check windshield washer fluid level.
Check the tire inflation pressures and look
for unusual wear or damage.
Check the fluid levels of the coolant reservoir,
and brake master cylinder reservoir, and fill
as needed.
Check function of all interior and exterior
lights.
MAINTENANCE PLAN
NOTE:
Using white lithium grease, lubricate the door
hinge roller pivot joints twice a year to prevent
premature wear.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
Change oil and filter.
Inspect battery and clean and tighten
terminals as required.
Inspect the CV/Universal joints.
Inspect brake pads, shoes, rotors, drums, and
hoses.
Inspect engine cooling system protection and
hoses.
Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before the oil
indicator system turns on.
Inspect exhaust system.
Inspect engine air cleaner filter if using in
dusty or off-road conditions.
8
