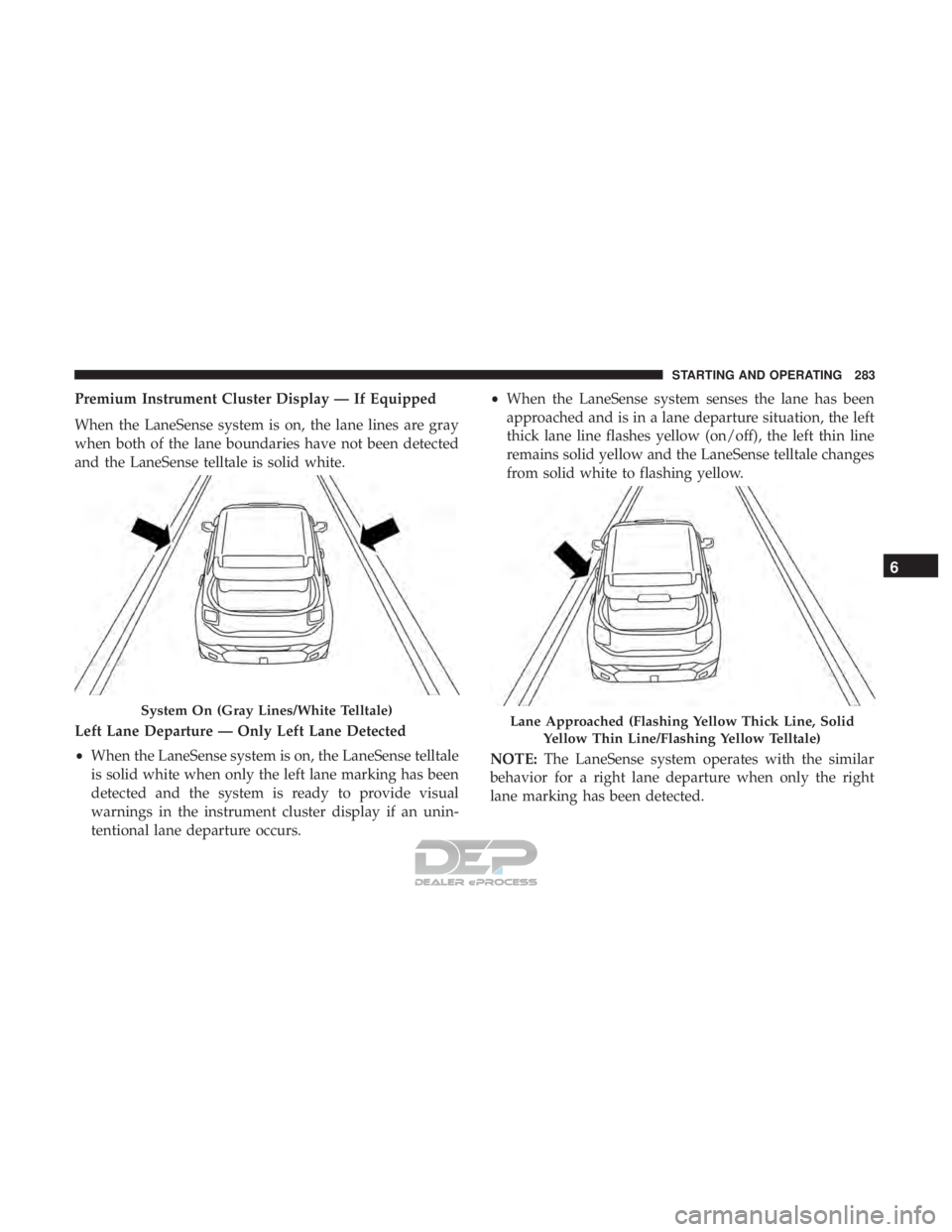

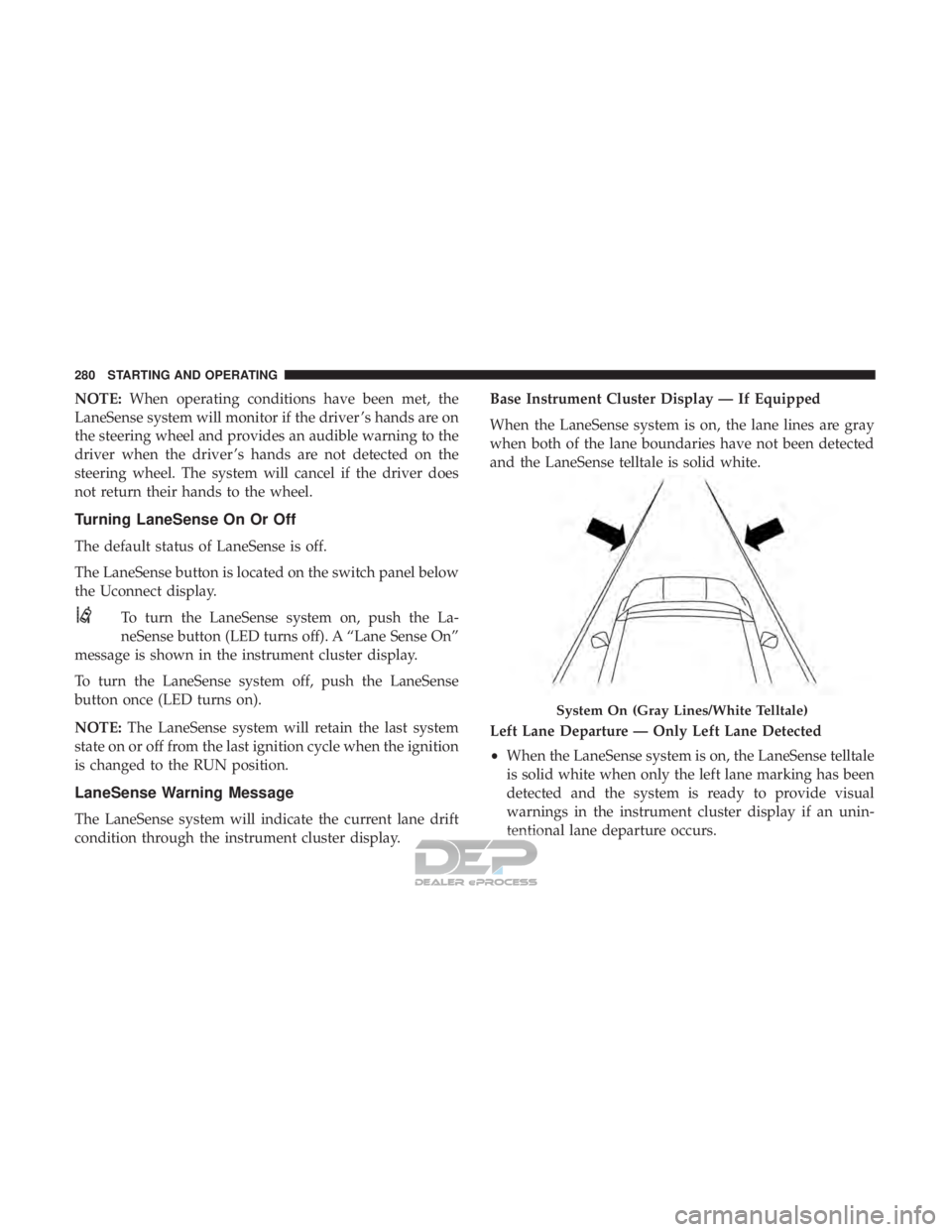

Lanes Sensed (White Lines/Green Telltale)
6
STARTING AND OPERATING 281

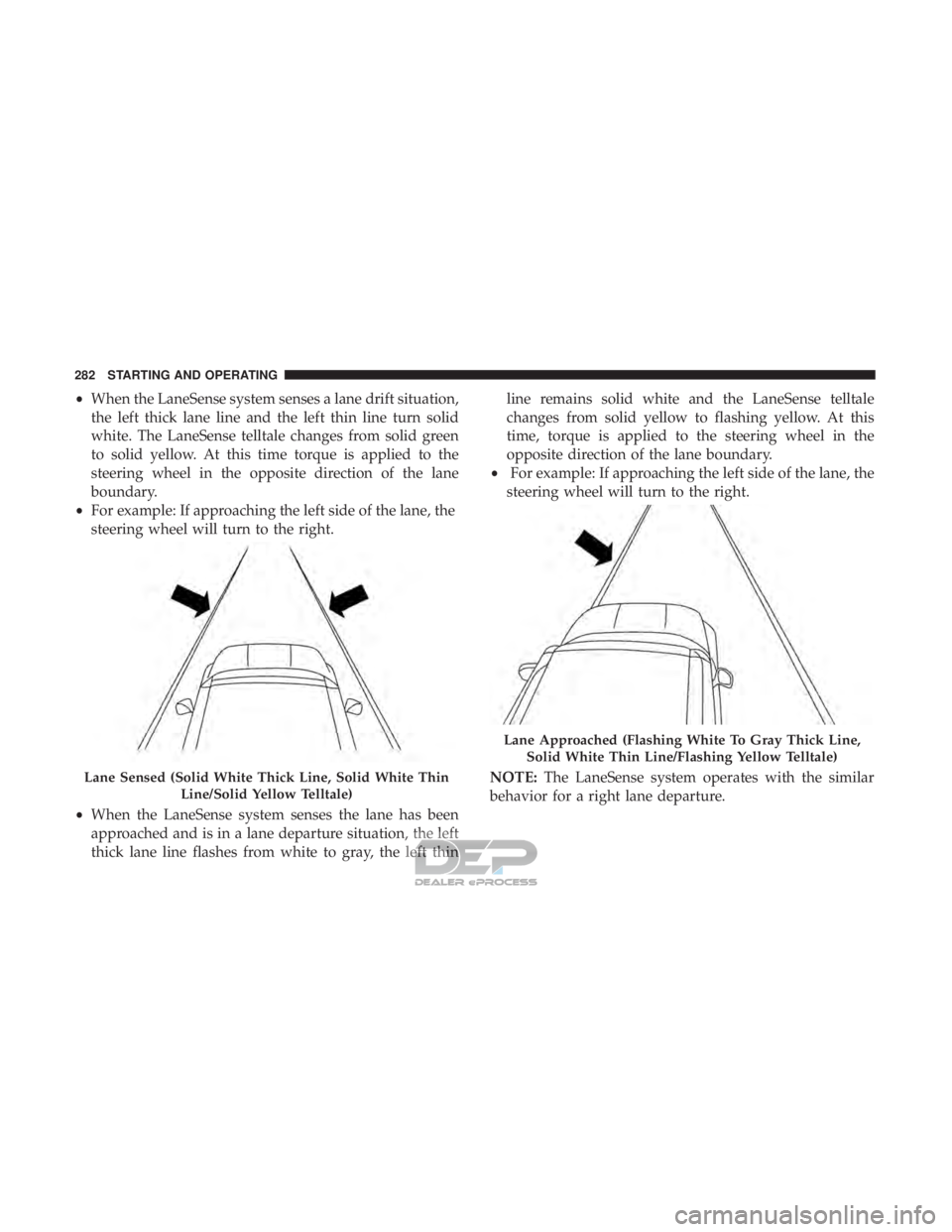

Lane Approached (Flashing White To Gray Thick Line,Solid White Thin Line/Flashing Yellow Telltale)
282 STARTING AND OPERATING

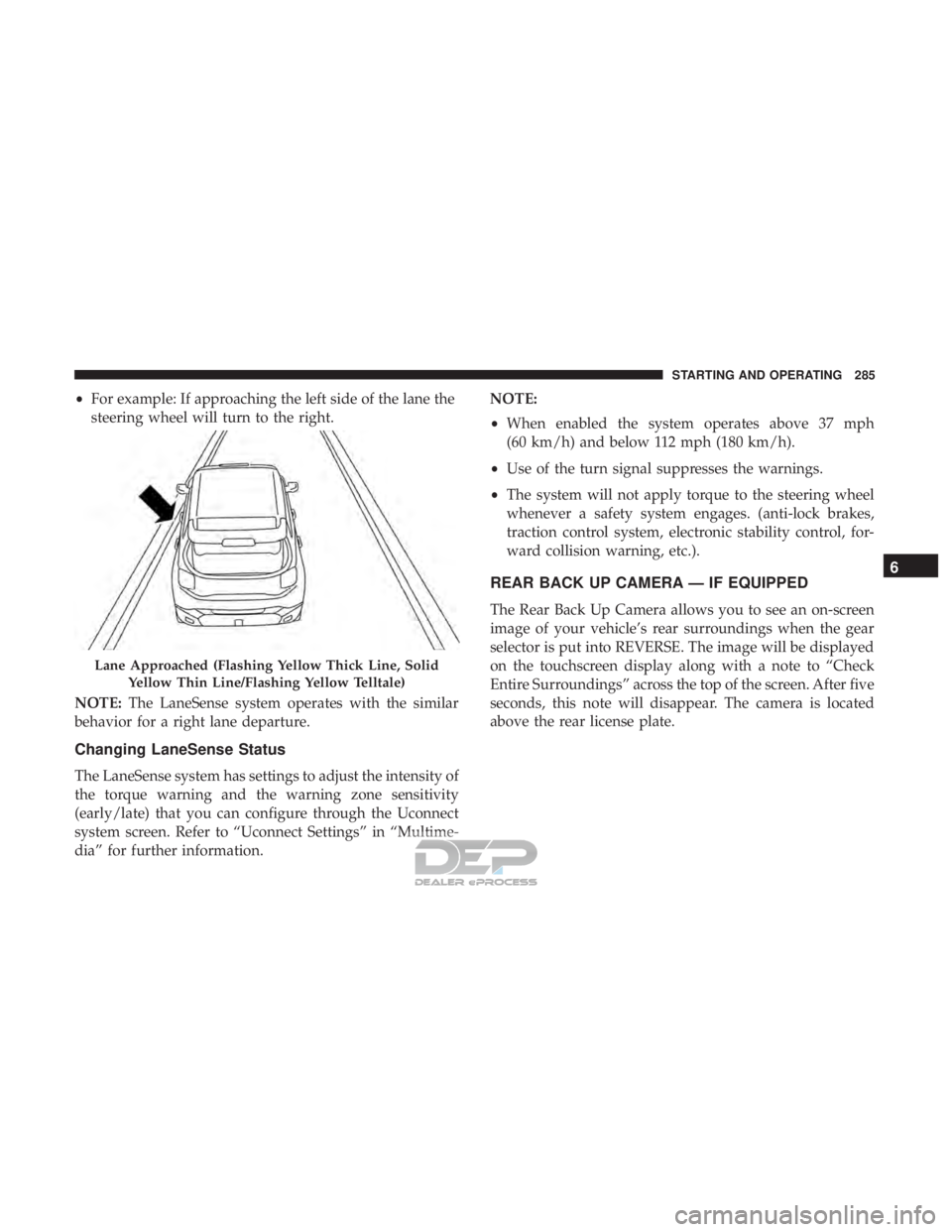

Lane Approached (Flashing Yellow Thick Line, SolidYellow Thin Line/Flashing Yellow Telltale)
6
STARTING AND OPERATING 283

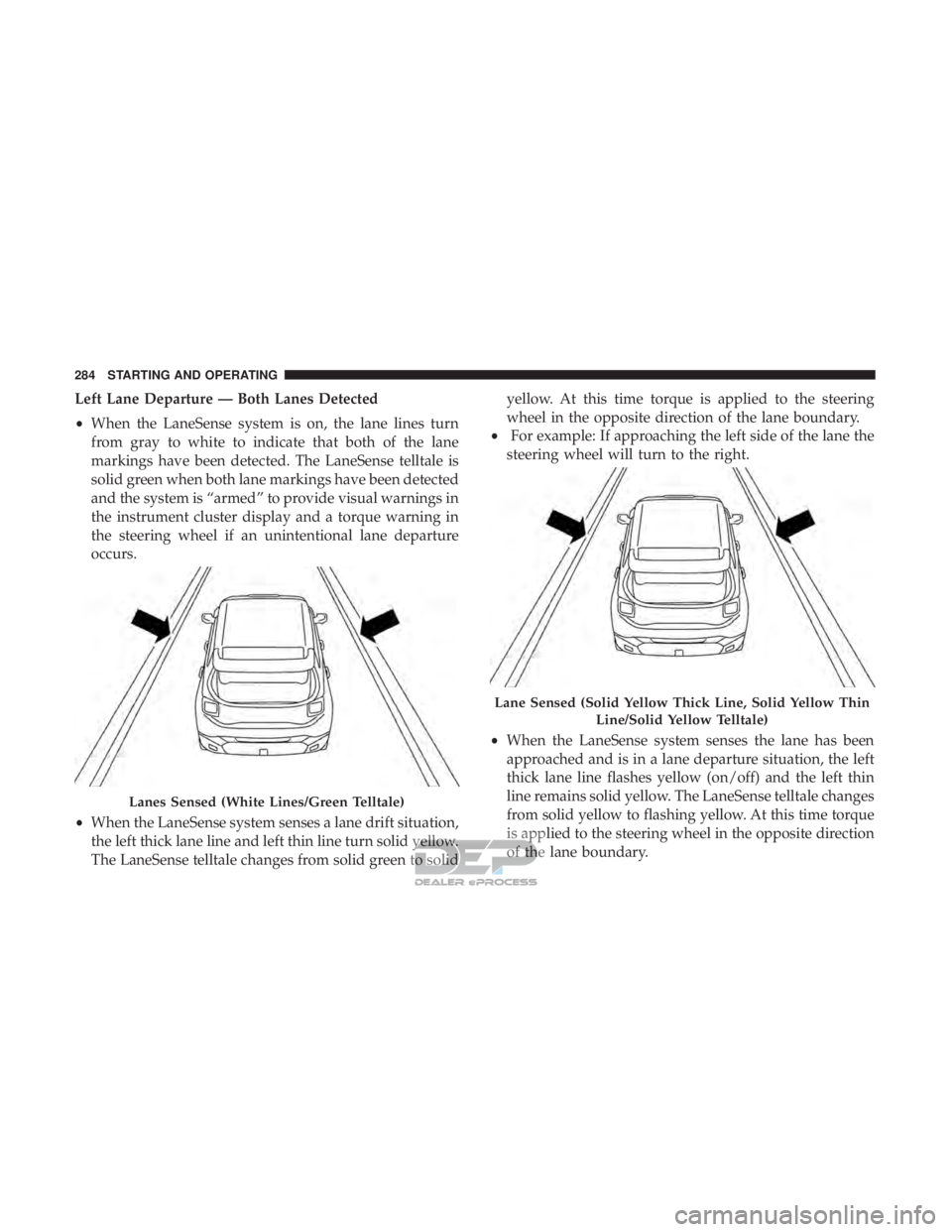

Lane Sensed (Solid Yellow Thick Line, Solid Yellow ThinLine/Solid Yellow Telltale)
284 STARTING AND OPERATING

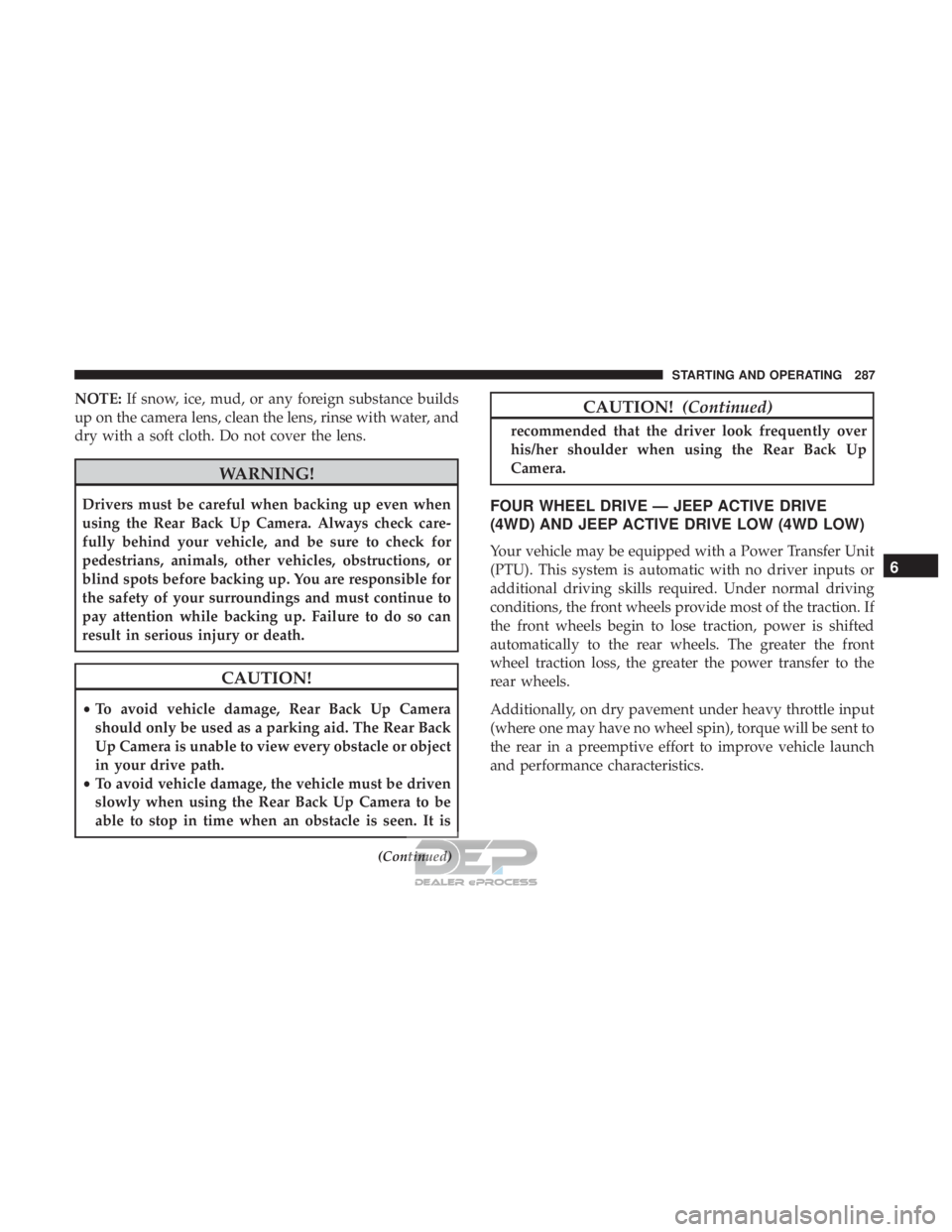

NOTE:If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water, and
dry with a soft cloth. Do not cover the lens.
CAUTION!
• To avoid vehicle damage, Rear Back Up Camera
should only be used as a parking aid. The Rear Back
Up Camera is unable to view every obstacle or object
in your drive path.
• To avoid vehicle damage, the vehicle must be driven
slowly when using the Rear Back Up Camera to be
able to stop in time when an obstacle is seen. It is
(Continued)
