JEEP RENEGADE LATITUDE 2017 Repair Manual

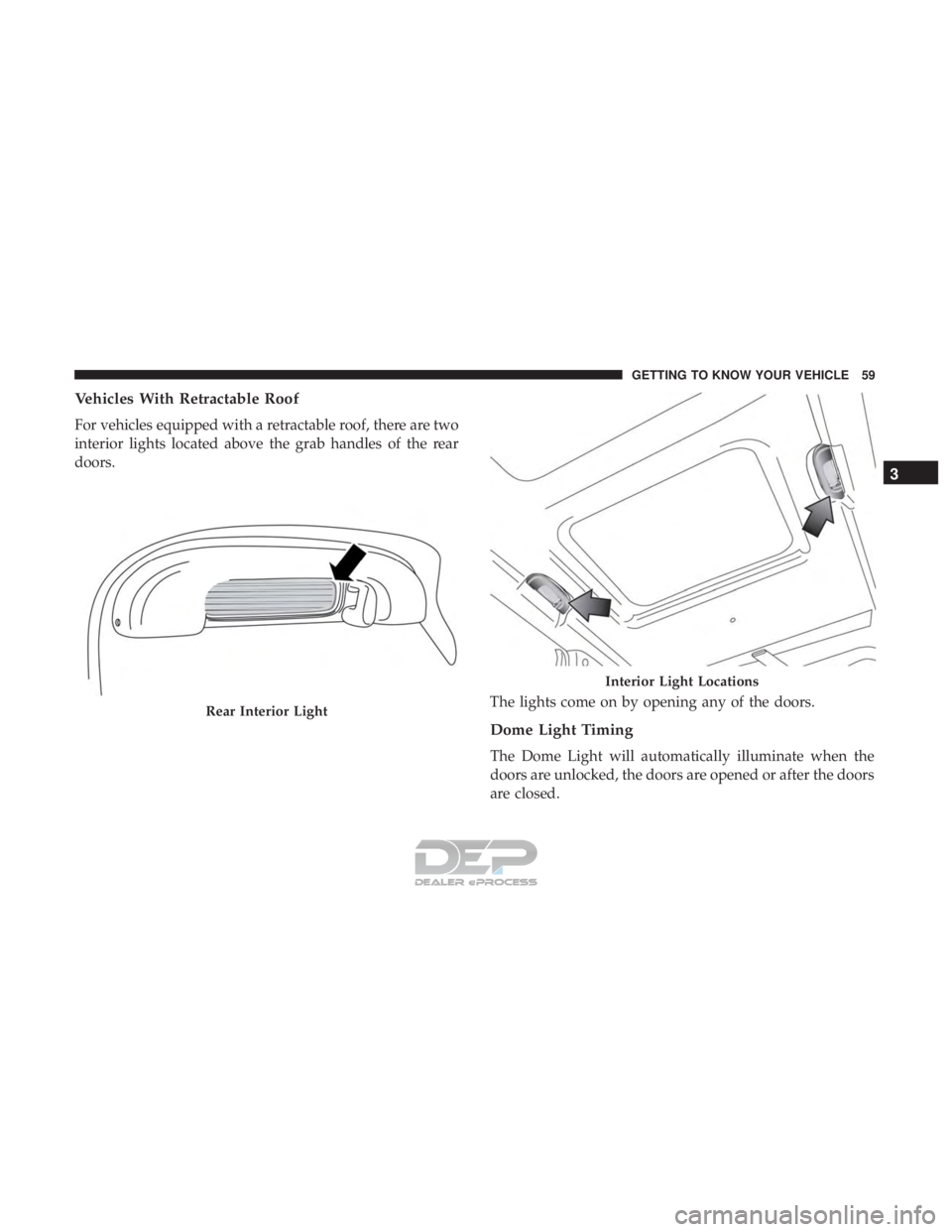

Interior Light Locations
3
GETTING TO KNOW YOUR VEHICLE 59

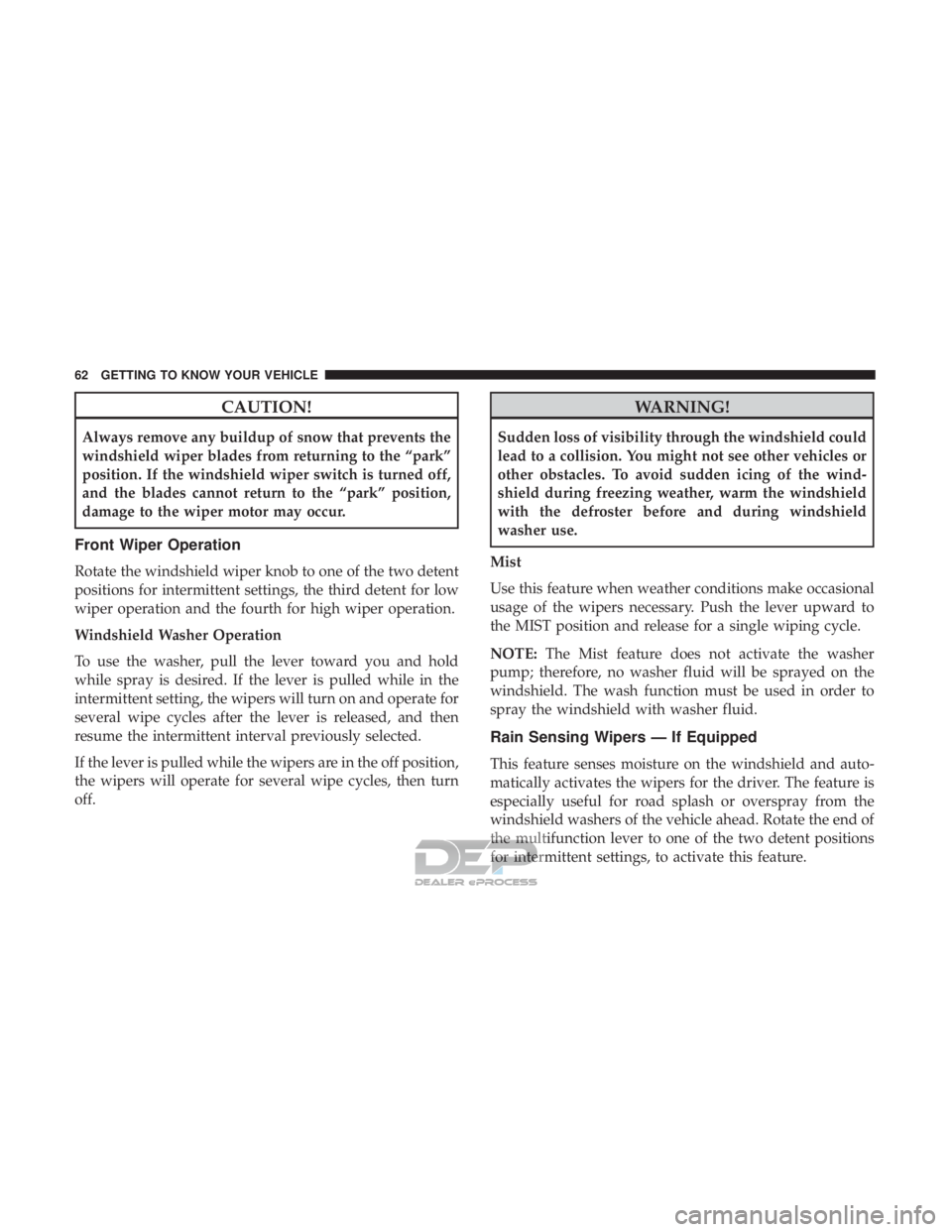

CAUTION!
Always remove any buildup of snow that prevents the
windshield wiper blades from returning to the “park”
position. If the windshield wiper switch is turned off,
and the blades cannot return to the “park” position,
damage to the wiper motor may occur.
Front Wiper Operation
Rotate the windshield wiper knob to one of the two detent
positions for intermittent settings, the third detent for low
wiper operation and the fourth for high wiper operation.
Windshield Washer Operation
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
intermittent setting, the wipers will turn on and operate for
several wipe cycles after the lever is released, and then
resume the intermittent interval previously selected.
If the lever is pulled while the wipers are in the off position,
the wipers will operate for several wipe cycles, then turn
off.

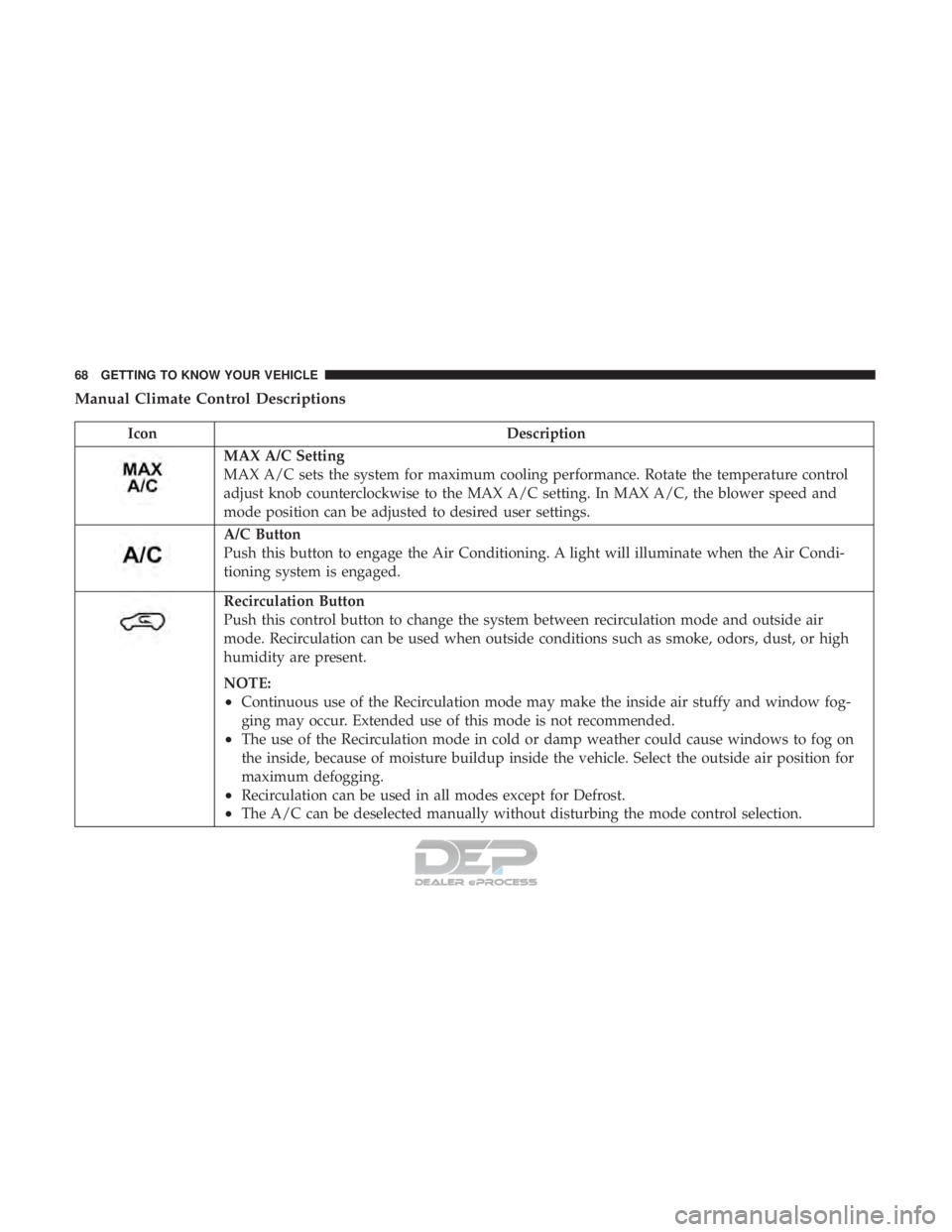

IconDescription
MAX A/C Setting
MAX A/C sets the system for maximum cooling performance. Rotate the temperature control
adjust knob counterclockwise to the MAX A/C setting. In MAX A/C, the blower speed and
mode position can be adjusted to desired user settings.
