JEEP RENEGADE TRAILHAWK 2016 Owners Manual

D — Digital Indicator Fuel Level Indicator With The Reserve (the
triangle symbol pointing toward the right indicates where the
fuel filler door is located)
E — Speedometer (speed indicator)
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 179

D — Digital Indicator Fuel Level (the triangle symbol pointing
toward the right indicates where the fuel filler door is located)
E — Speedometer (speed indicator) 180 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

GETTING TO KNOW YOUR INSTRUMENT CLUSTER 181

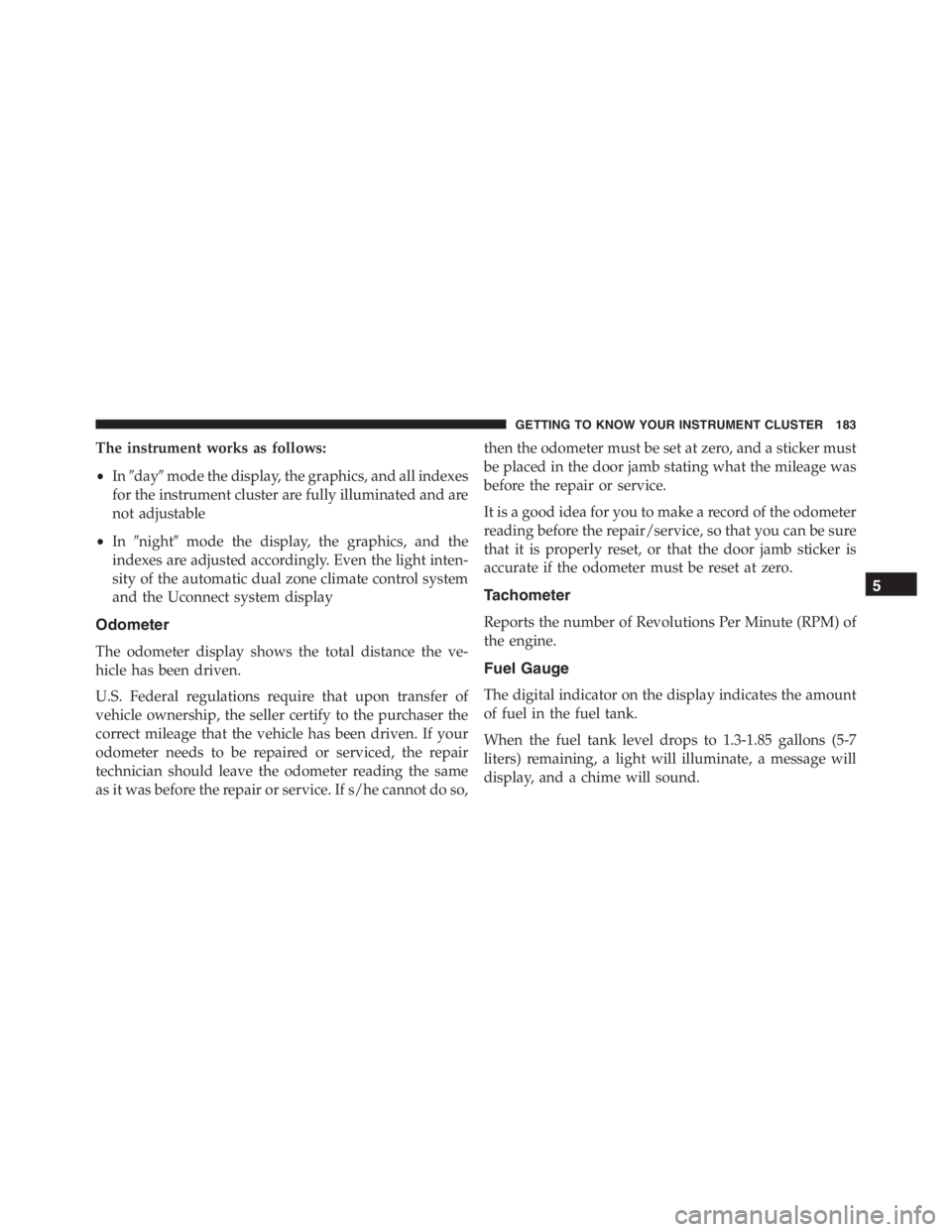

GETTING TO KNOW YOUR INSTRUMENT CLUSTER 183

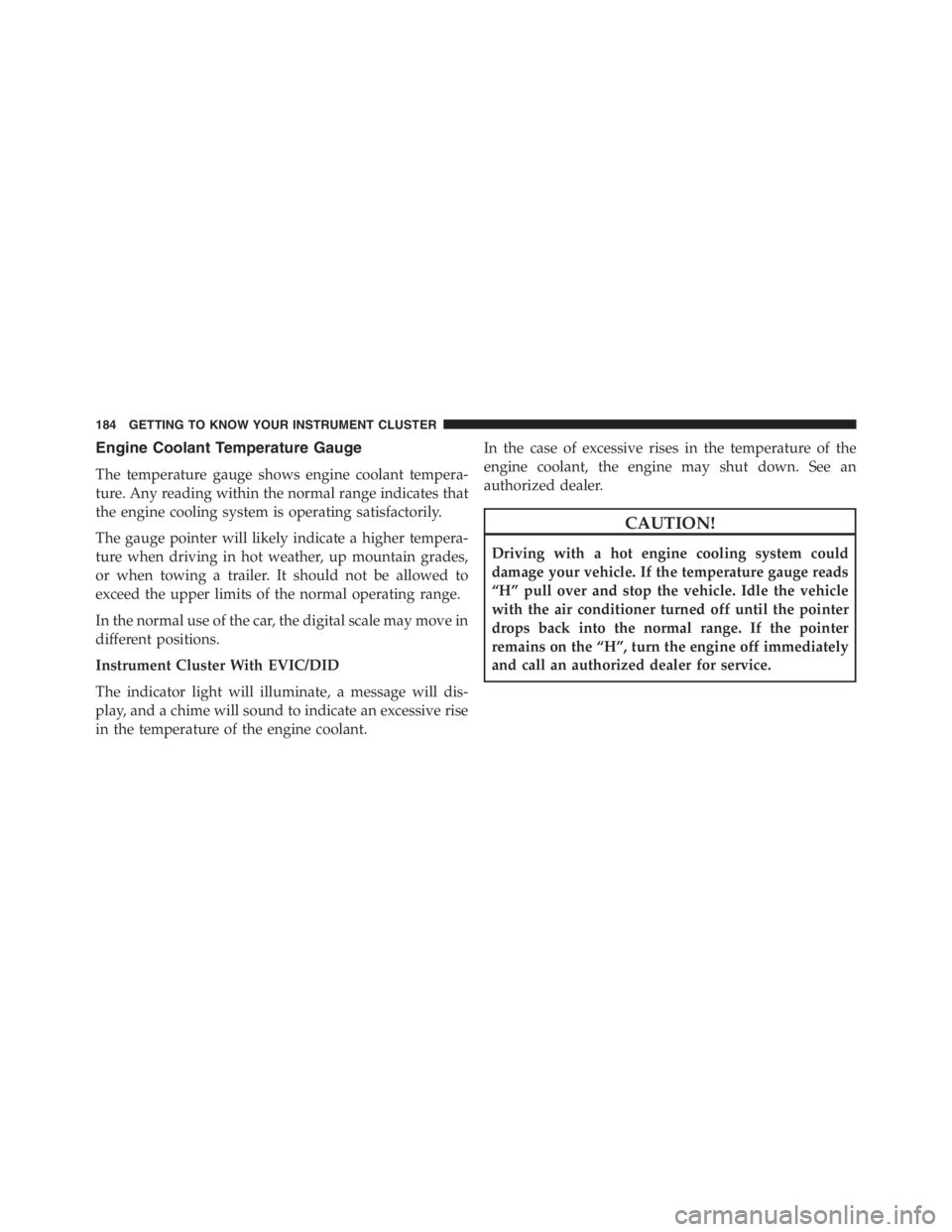

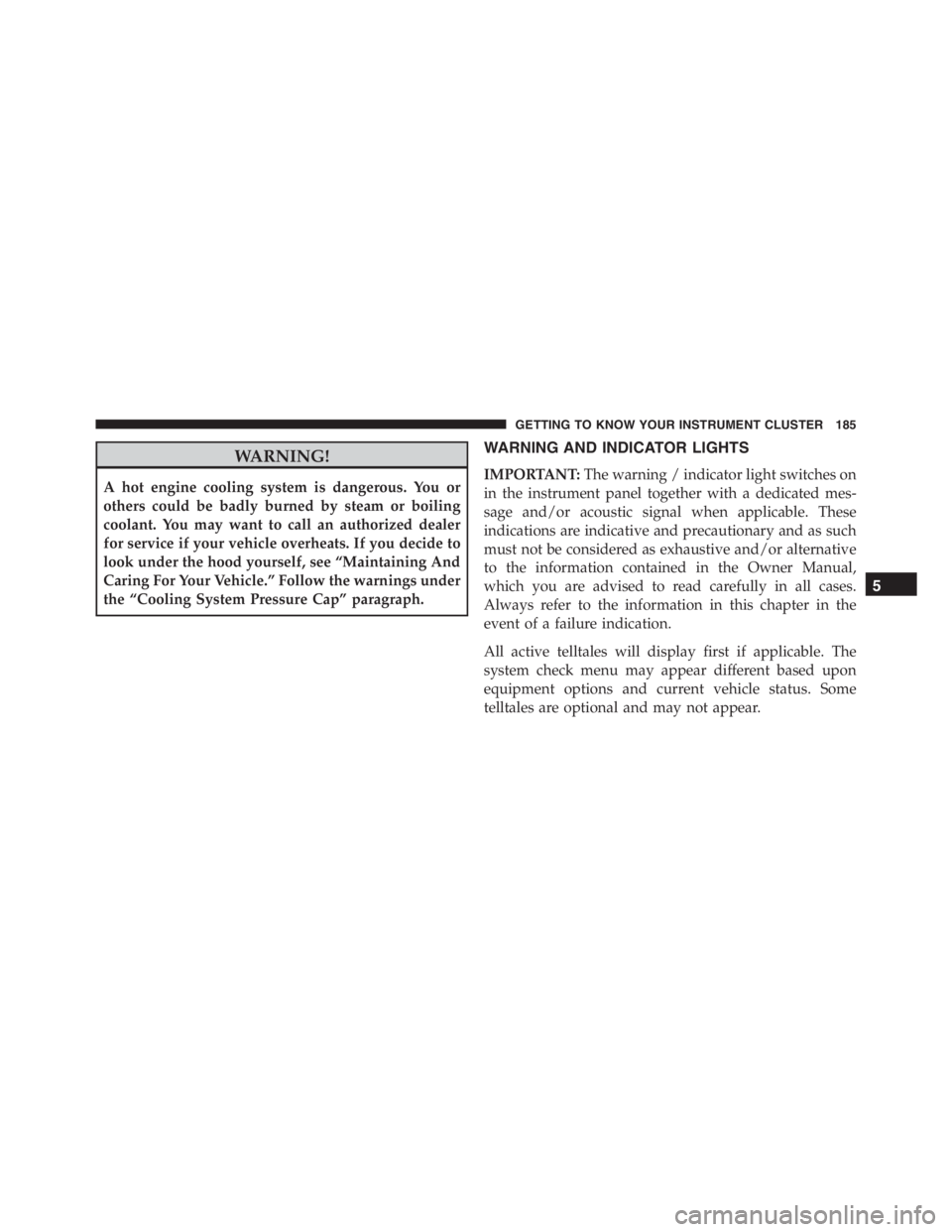

GETTING TO KNOW YOUR INSTRUMENT CLUSTER 185

Red Telltale
LightWhat It Means
Seat Belt Reminder Warning Light
When the ignition switch is first turned to ON/RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if the driver’s seat belt is unbuckled, a
chime will sound. After the bulb check or when driving, if the driver seat belt remains un-
buckled, the Seat Belt Reminder Light will flash or remain on continuously and a chime will
sound. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for
further information.
186 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

Red Telltale
LightWhat It Means
Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb check when the ignition switch is
first turned to ON/RUN. If the light is either not on during starting, stays on, or turns on
while driving, have the system inspected at an authorized dealer as soon as possible. This
light will illuminate with a single chime when a fault with the Air Bag Warning Light has
been detected, it will stay on until the fault is cleared. If the light comes on intermittently or
remains on while driving, have an authorized dealer service the vehicle immediately. Refer
to “Occupant Restraints” in “Things To Know Before Starting Your Vehicle” for further infor-
mation.
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 187

Red Telltale
LightWhat It Means
United States
Canada
Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking brake
application. If the brake light turns on it may indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with the anti-lock brake system reser-
voir.
If the light remains on when the parking brake has been disengaged, and the fluid level is at
the full mark on the master cylinder reservoir, it indicates a possible brake hydraulic system
malfunction or that a problem with the Brake Booster has been detected by the Anti-Lock
Brake System (ABS) / Electronic Stability Control (ESC) system. In this case, the light will
remain on until the condition has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake, and a brake pedal pulsation may
be felt during each stop.
The dual brake system provides a reserve braking capac-
ity in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system isindicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
