JEEP RENEGADE TRAILHAWK 2016 Owners Manual

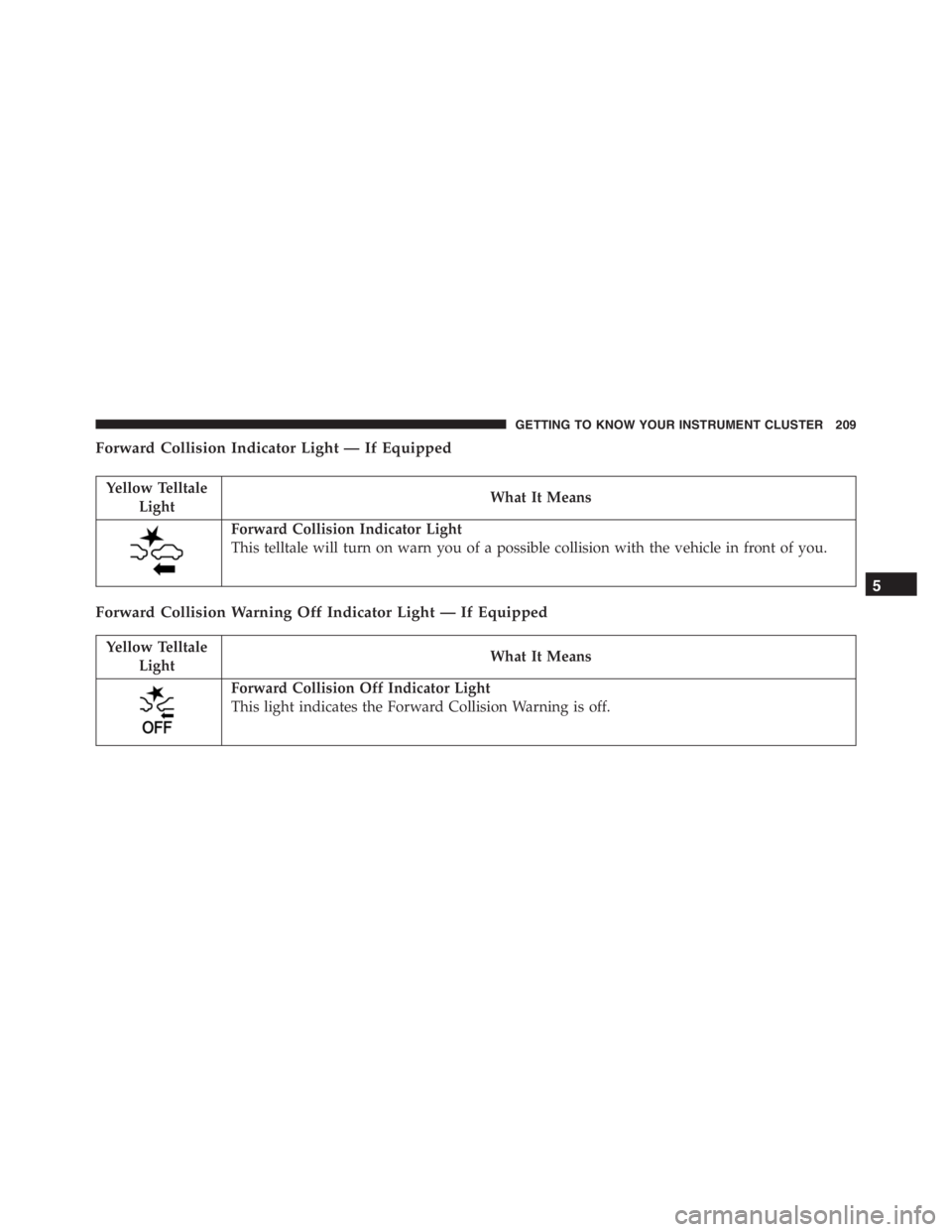

Yellow Telltale
LightWhat It Means
Forward Collision Indicator Light
This telltale will turn on warn you of a possible collision with the vehicle in front of you.
Forward Collision Warning Off Indicator Light — If Equipped
Yellow Telltale
LightWhat It Means
Forward Collision Off Indicator Light
This light indicates the Forward Collision Warning is off.
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 209

Yellow Telltale
LightWhat It Means

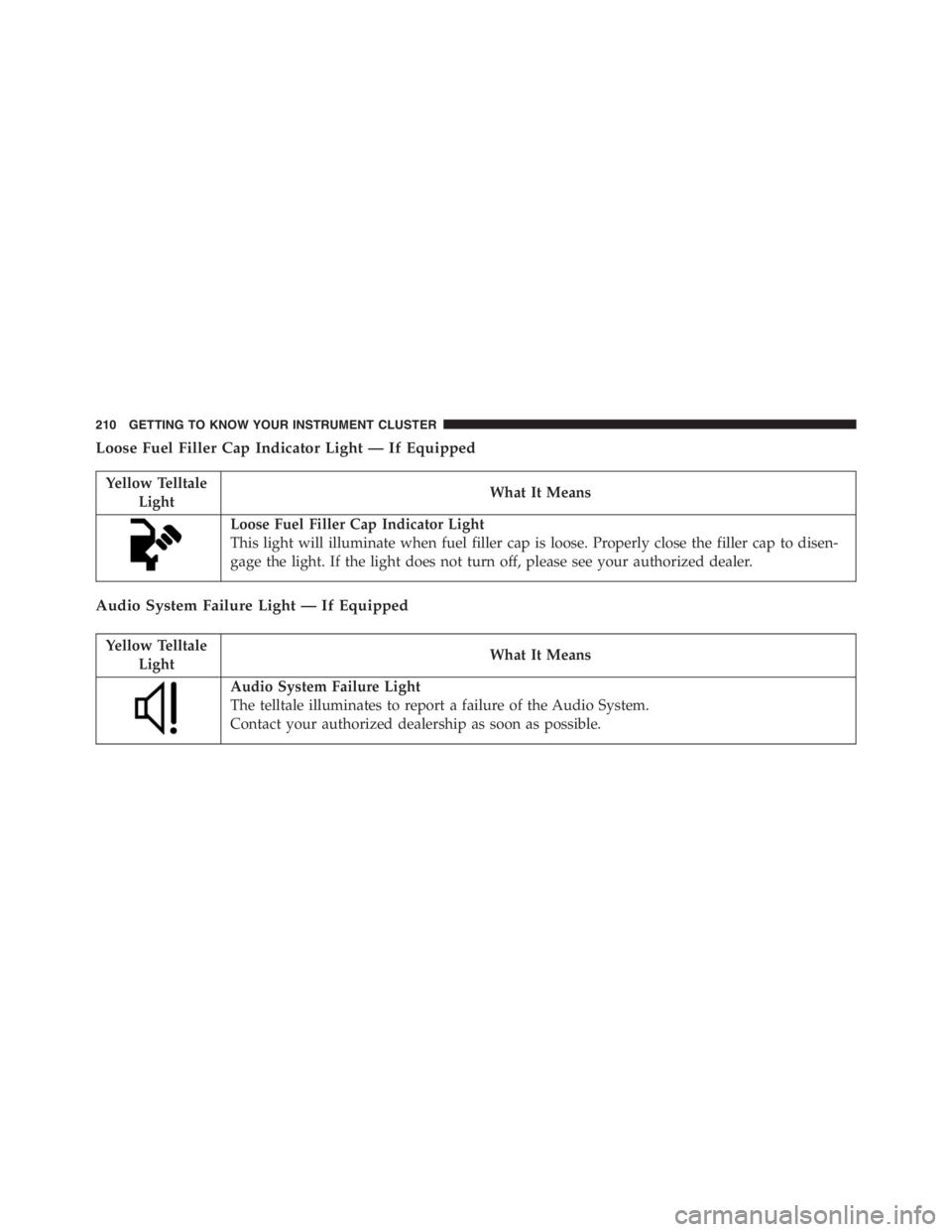

Loose Fuel Filler Cap Indicator Light
This light will illuminate when fuel filler cap is loose. Properly close the filler cap to disen-
gage the light. If the light does not turn off, please see your authorized dealer.
Audio System Failure Light — If Equipped
Yellow Telltale
LightWhat It Means
Audio System Failure Light
The telltale illuminates to report a failure of the Audio System.
Contact your authorized dealership as soon as possible.
210 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

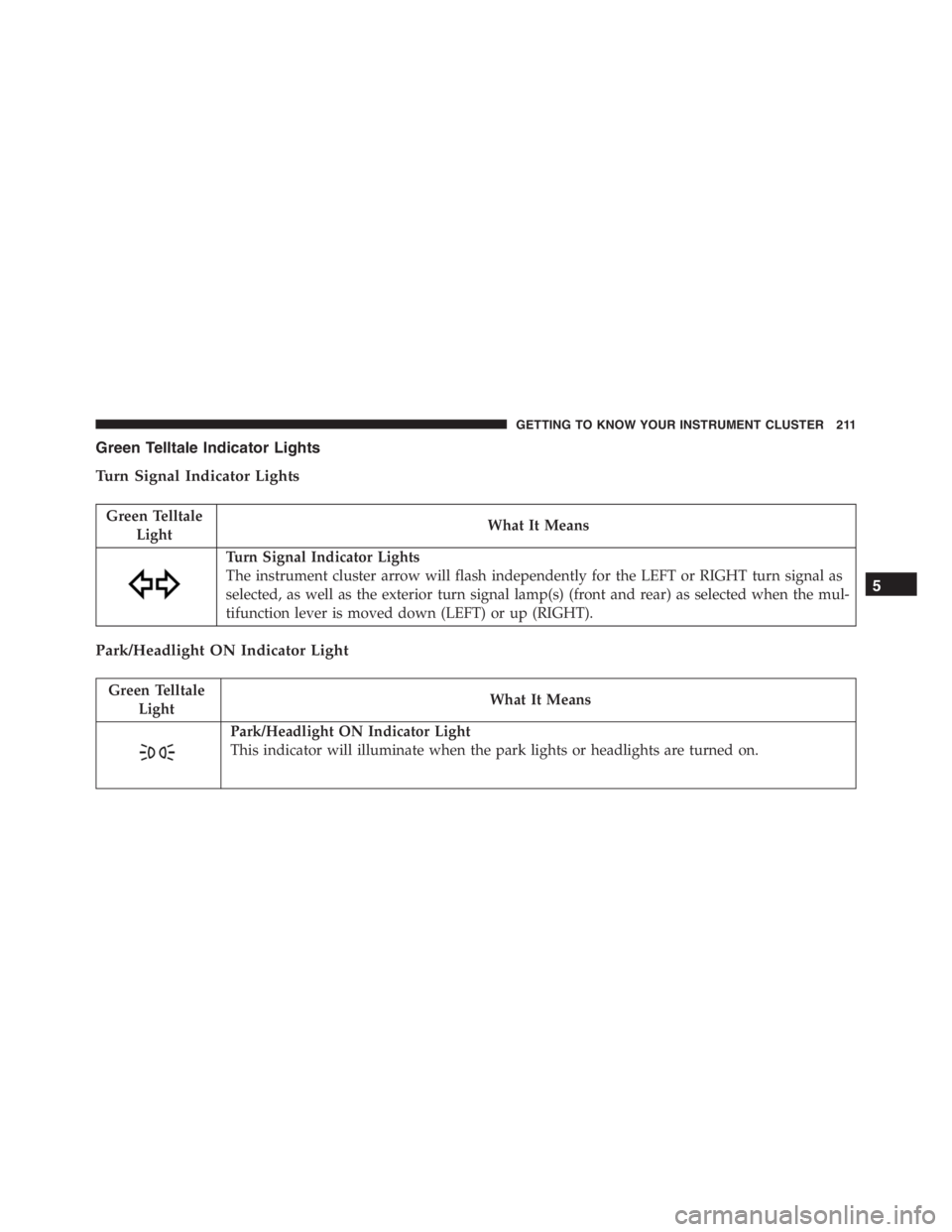

Green Telltale
LightWhat It Means
Turn Signal Indicator Lights
The instrument cluster arrow will flash independently for the LEFT or RIGHT turn signal as
selected, as well as the exterior turn signal lamp(s) (front and rear) as selected when the mul-
tifunction lever is moved down (LEFT) or up (RIGHT).
Park/Headlight ON Indicator Light
Green Telltale
LightWhat It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 211

Green Telltale
LightWhat It Means

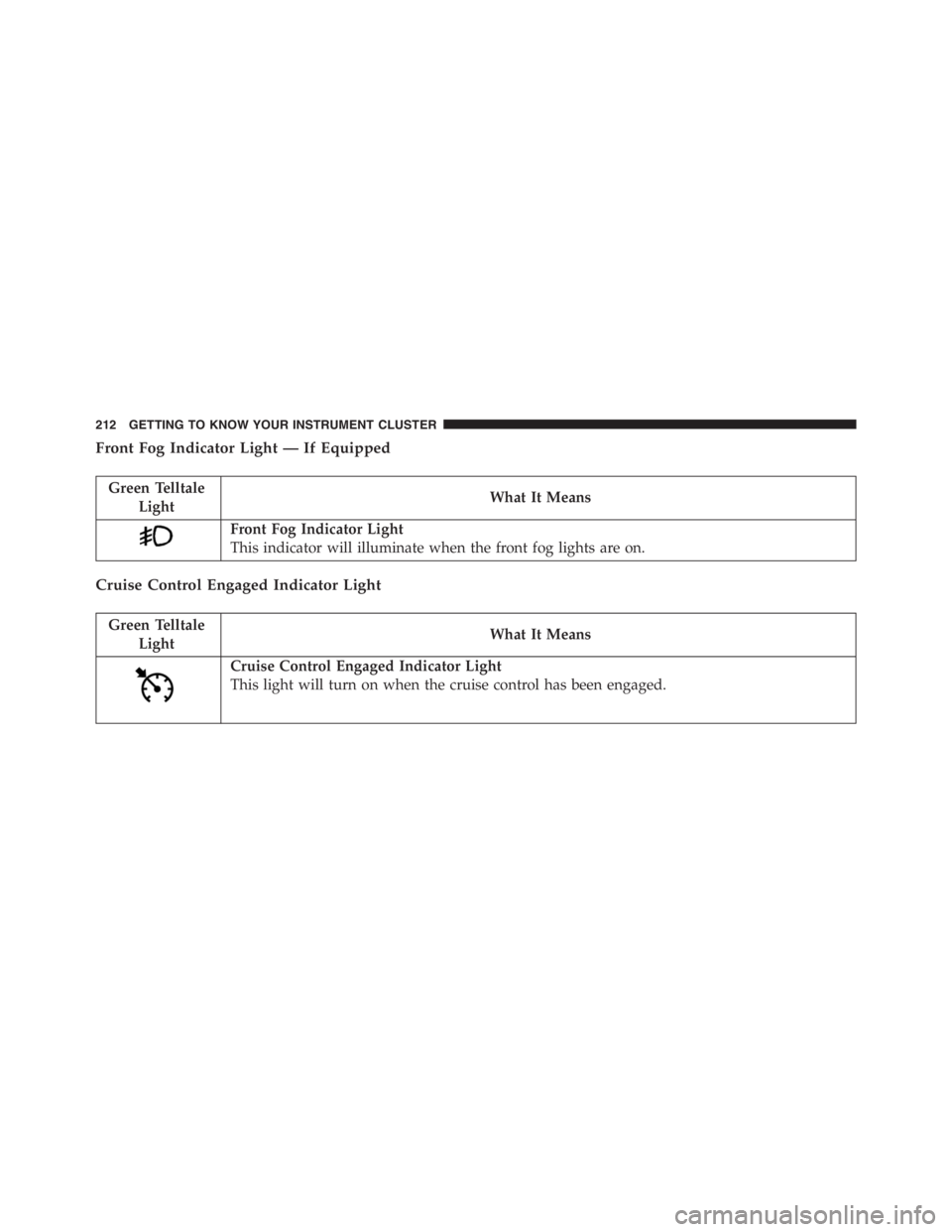

Front Fog Indicator Light
This indicator will illuminate when the front fog lights are on.
Cruise Control Engaged Indicator Light
Green Telltale
LightWhat It Means
Cruise Control Engaged Indicator Light
This light will turn on when the cruise control has been engaged.
212 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

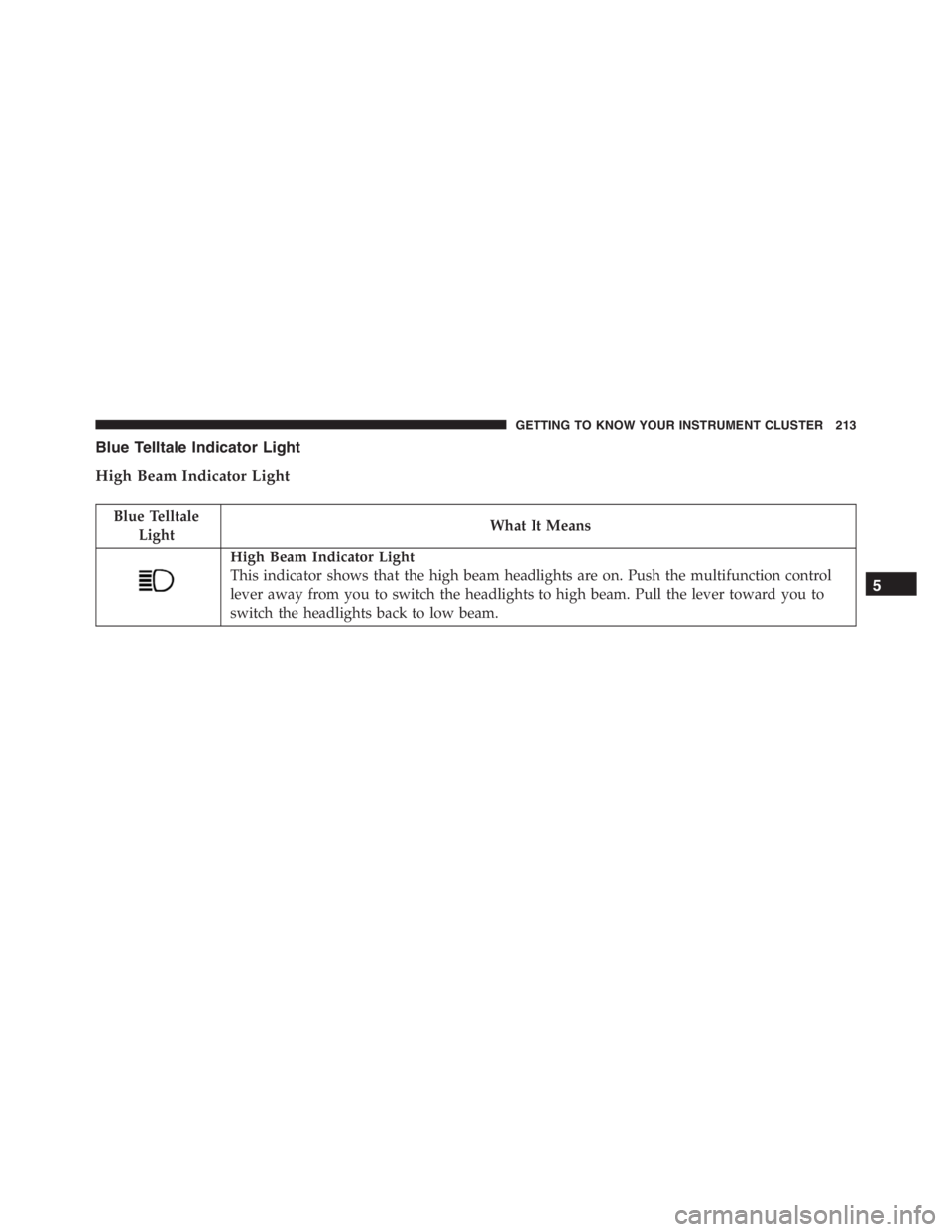

Blue Telltale
LightWhat It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam.
GETTING TO KNOW YOUR INSTRUMENT CLUSTER 213

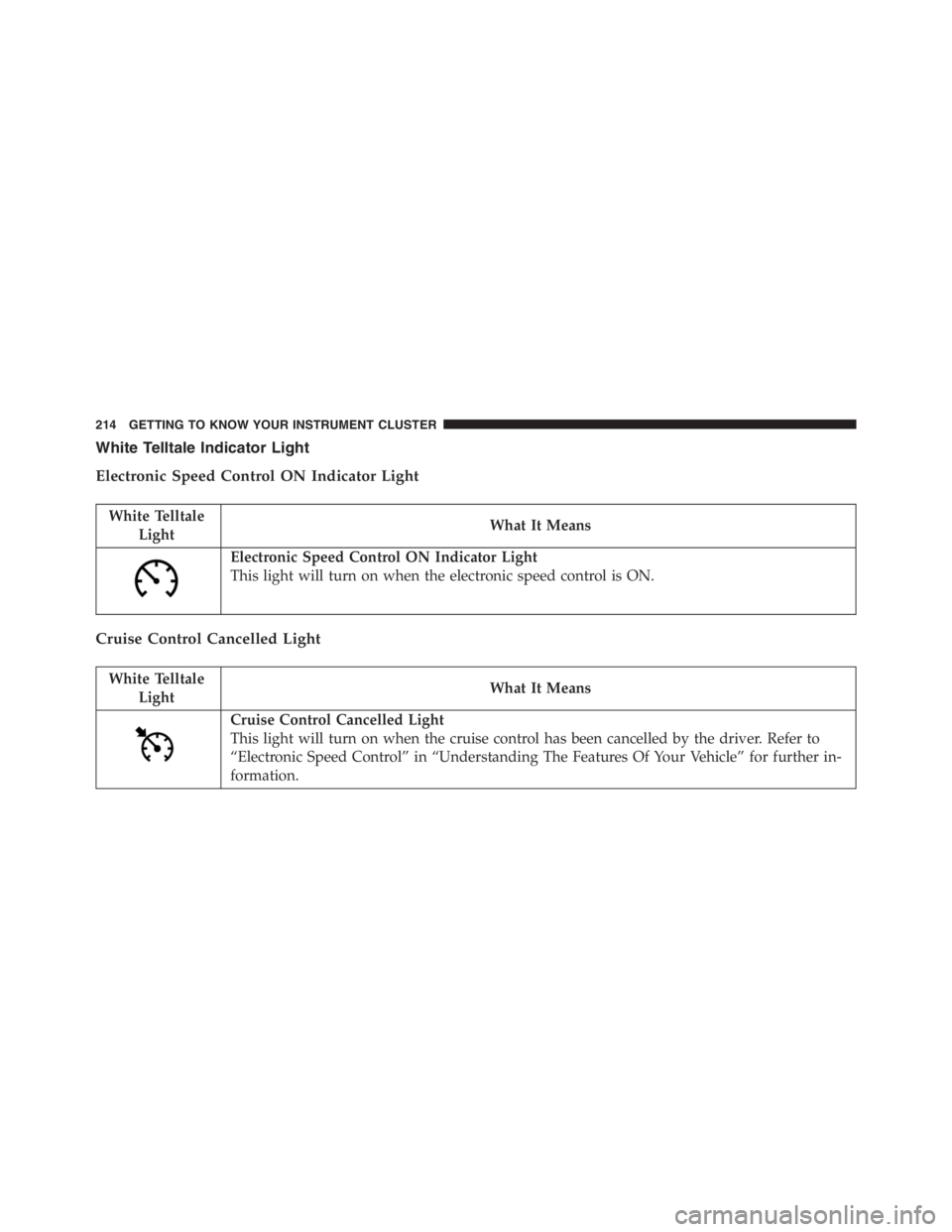

White Telltale
LightWhat It Means
Electronic Speed Control ON Indicator Light
This light will turn on when the electronic speed control is ON.
Cruise Control Cancelled Light
White Telltale
LightWhat It Means
Cruise Control Cancelled Light
This light will turn on when the cruise control has been cancelled by the driver. Refer to
“Electronic Speed Control” in “Understanding The Features Of Your Vehicle” for further in-
formation.
214 GETTING TO KNOW YOUR INSTRUMENT CLUSTER

GETTING TO KNOW YOUR INSTRUMENT CLUSTER 215

GETTING TO KNOW YOUR INSTRUMENT CLUSTER 217
