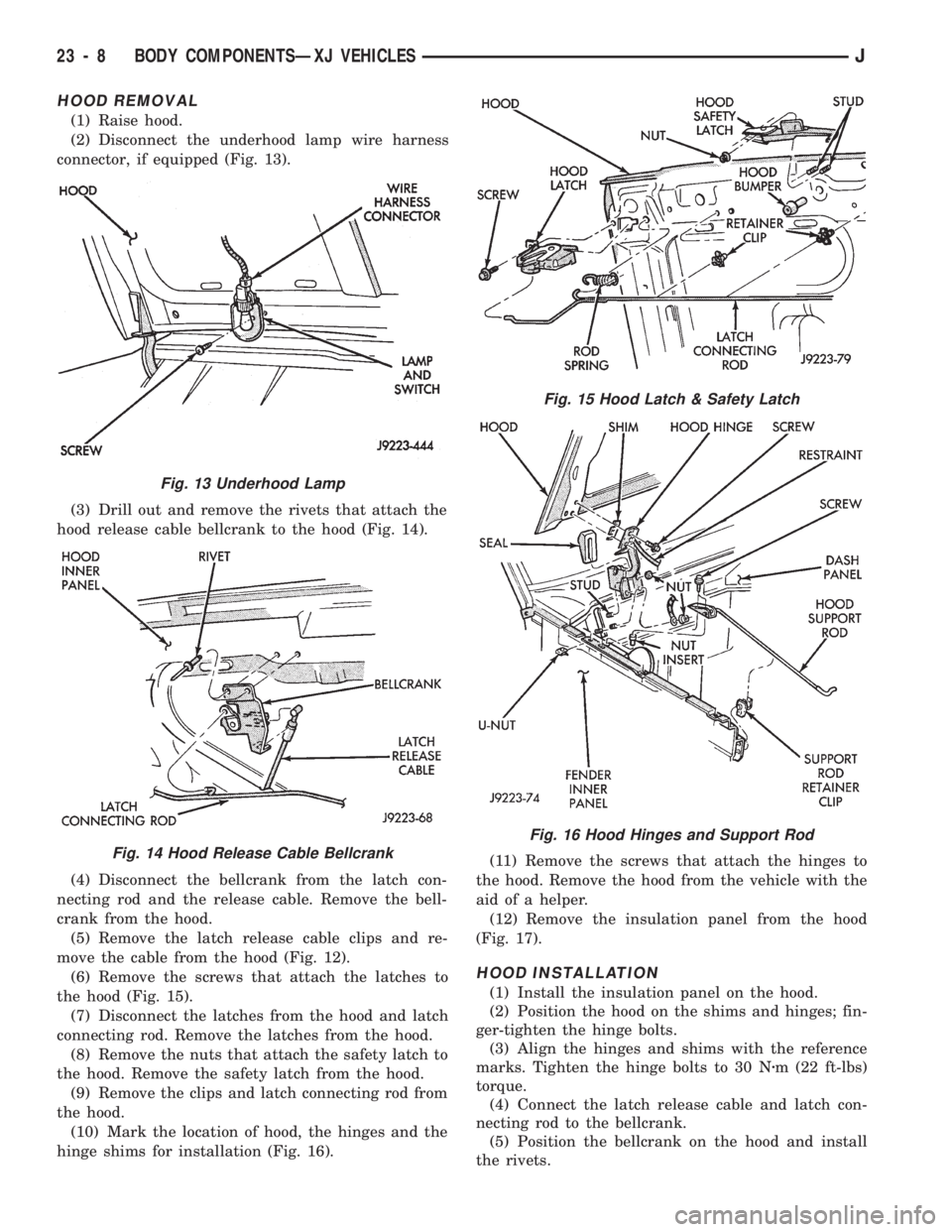

Fig. 14 Hood Release Cable Bellcrank
Fig. 15 Hood Latch & Safety Latch
Fig. 16 Hood Hinges and Support Rod
23 - 8 BODY COMPONENTSÐXJ VEHICLESJ

Fig. 18 Hood Bumper
Fig. 19 Hood Latch Striker
Fig. 20 Hood Hinge and Seal
JBODY COMPONENTSÐXJ VEHICLES 23 - 9

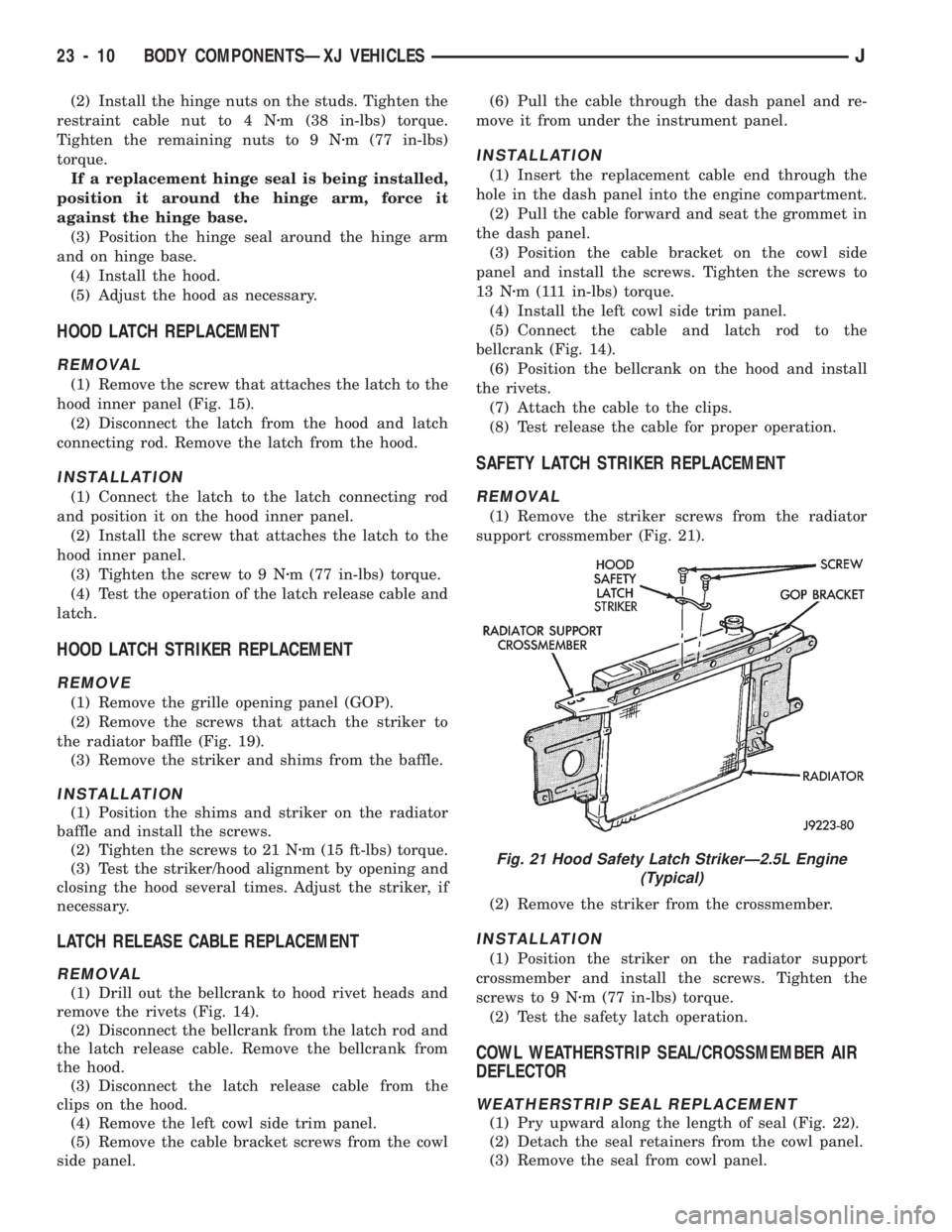

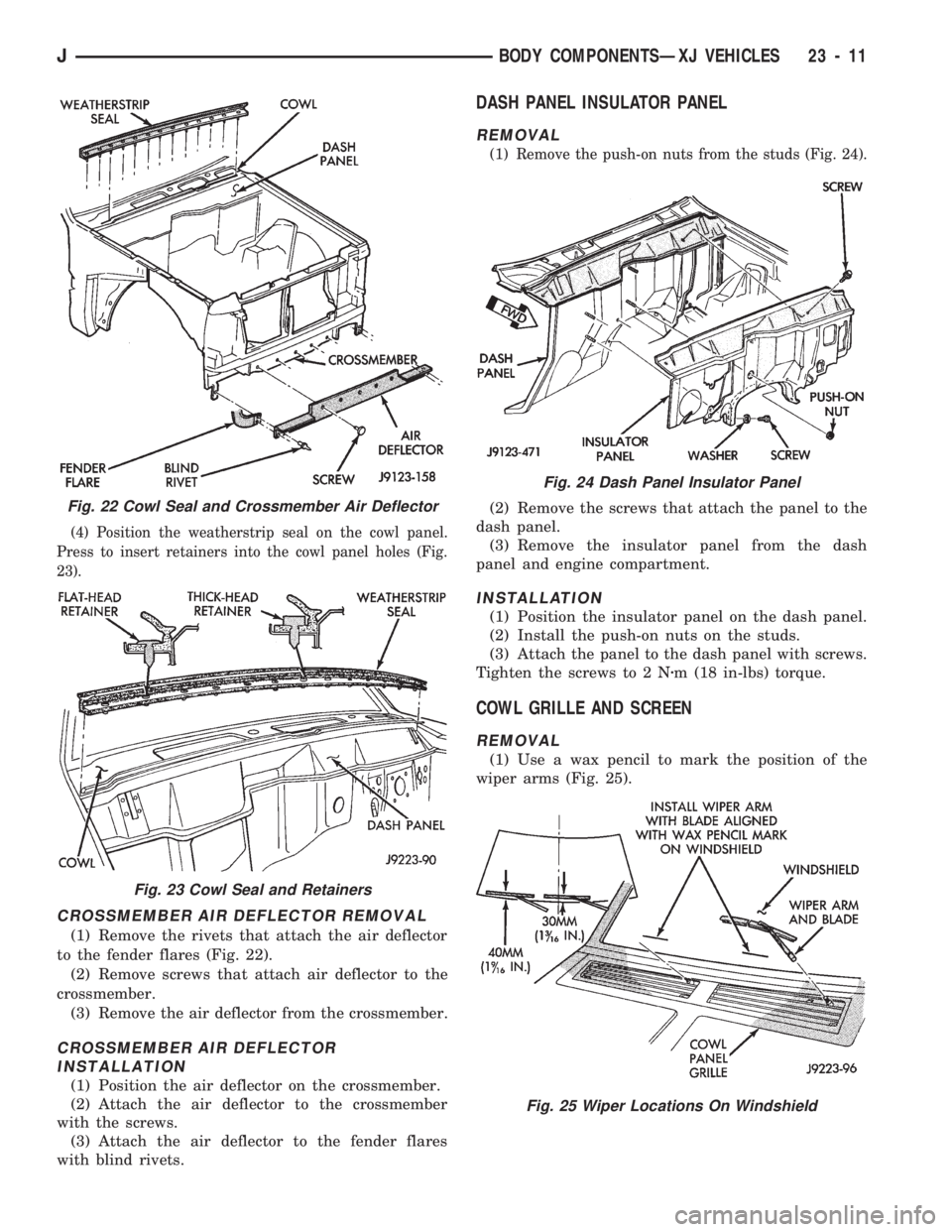

Fig. 23 Cowl Seal and Retainers
Fig. 24 Dash Panel Insulator Panel
Fig. 25 Wiper Locations On Windshield
JBODY COMPONENTSÐXJ VEHICLES 23 - 11

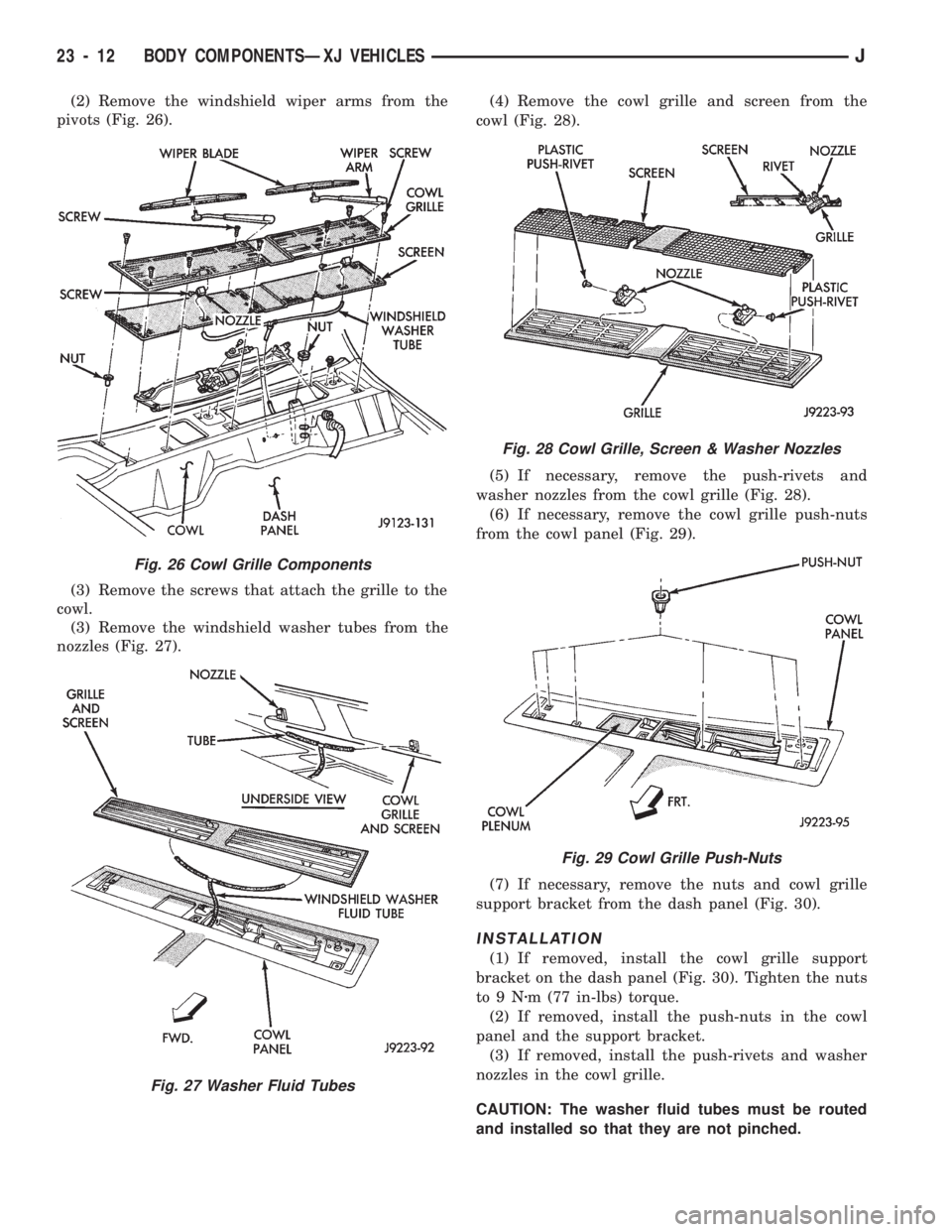

Fig. 26 Cowl Grille Components
Fig. 27 Washer Fluid Tubes
Fig. 28 Cowl Grille, Screen & Washer Nozzles
Fig. 29 Cowl Grille Push-Nuts
23 - 12 BODY COMPONENTSÐXJ VEHICLESJ

Fig. 33 Battery Holddown Rods & Retainers

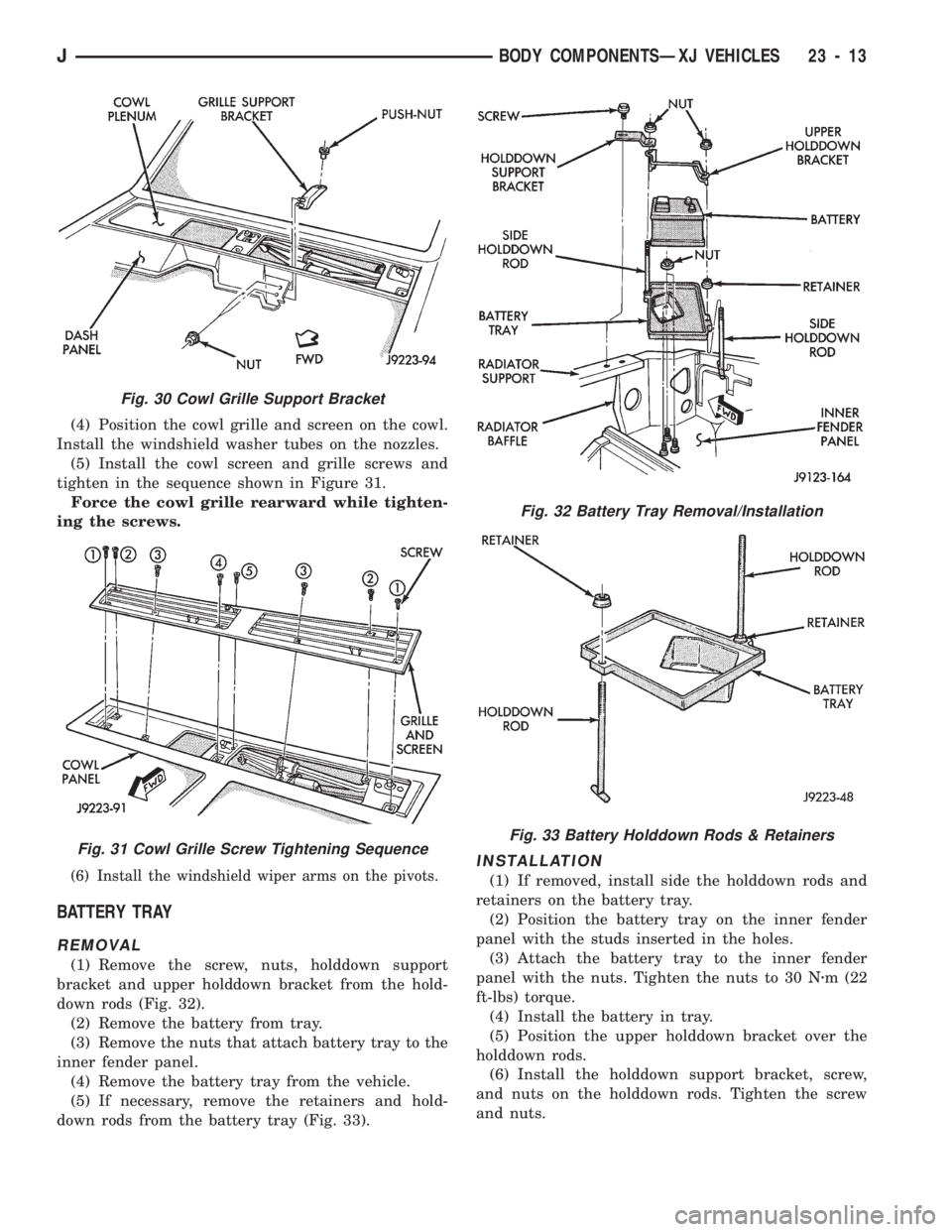

Fig. 30 Cowl Grille Support Bracket
Fig. 31 Cowl Grille Screw Tightening Sequence
JBODY COMPONENTSÐXJ VEHICLES 23 - 13

Fig. 37 Battery Removal/Installation
Fig. 38 Battery Tray Removal/Installation
Fig. 34 Radio Antenna Removal/Installation
Fig. 35 Power Antenna Wire Harness & Cable
Connectors
23 - 14 BODY COMPONENTSÐXJ VEHICLESJ

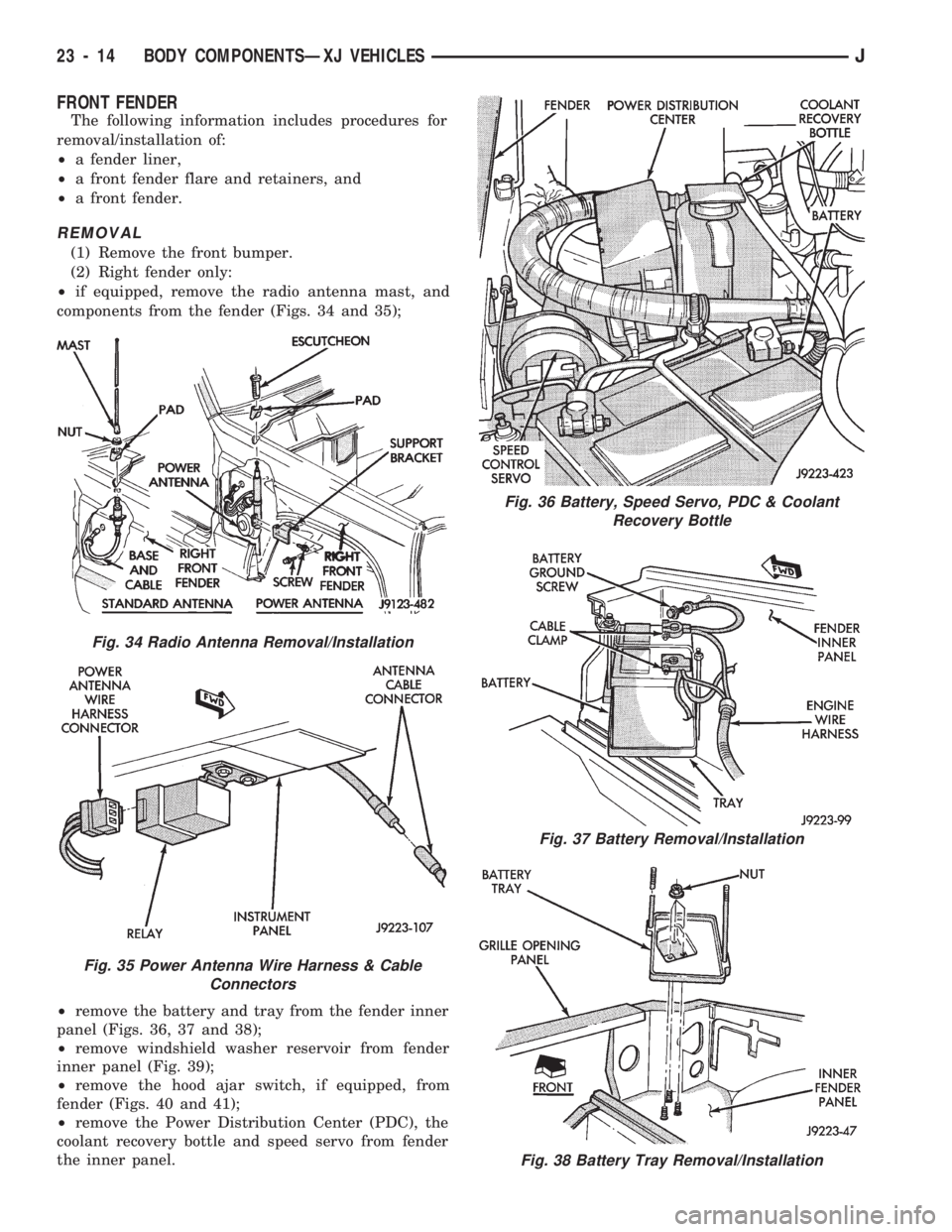

Fig. 42 Power Distribution Center and Vapor Canister
Fig. 43 Coolant Recovery Bottle

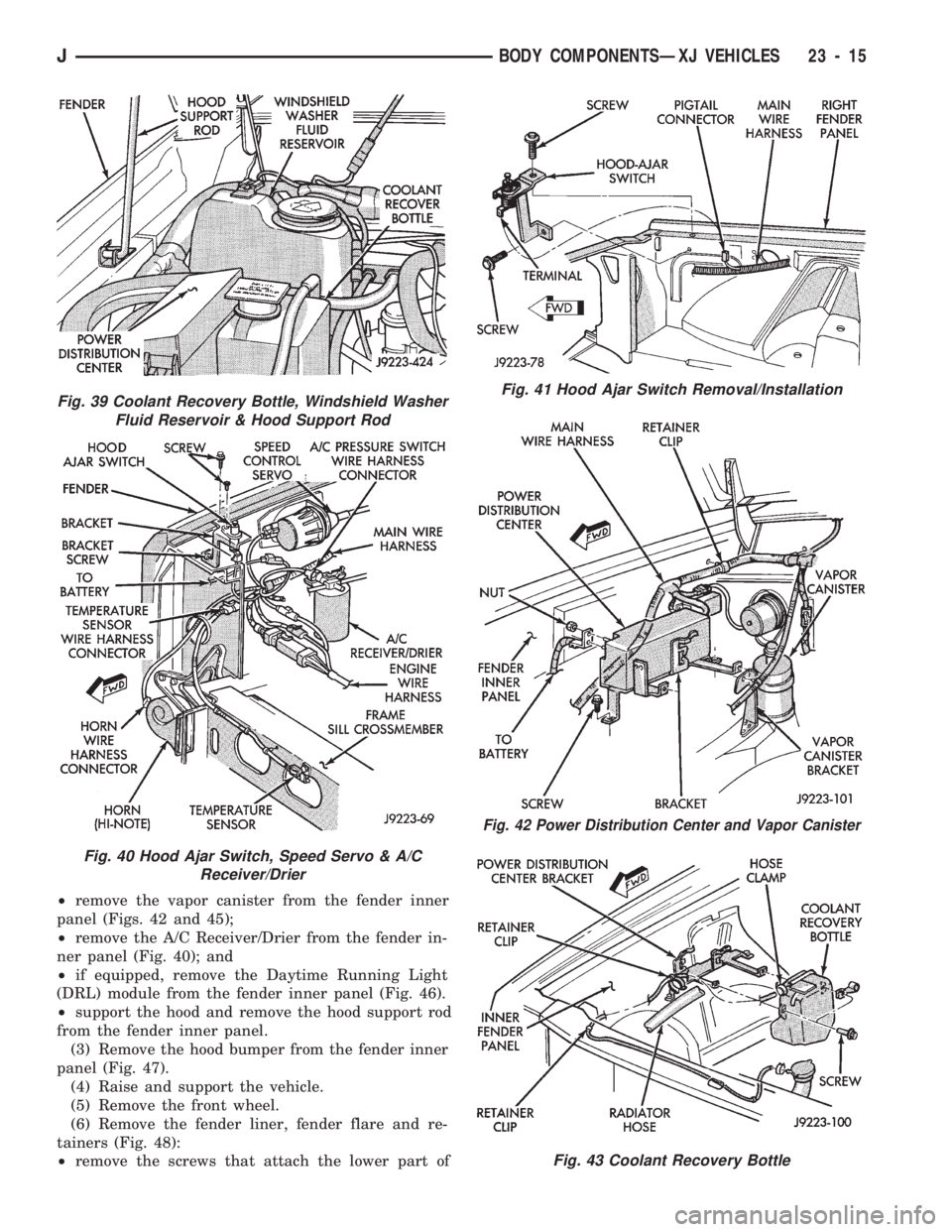

Fig. 39 Coolant Recovery Bottle, Windshield Washer
Fluid Reservoir & Hood Support Rod
Fig. 40 Hood Ajar Switch, Speed Servo & A/C
Receiver/Drier
JBODY COMPONENTSÐXJ VEHICLES 23 - 15

Fig. 45 Vapor Canister

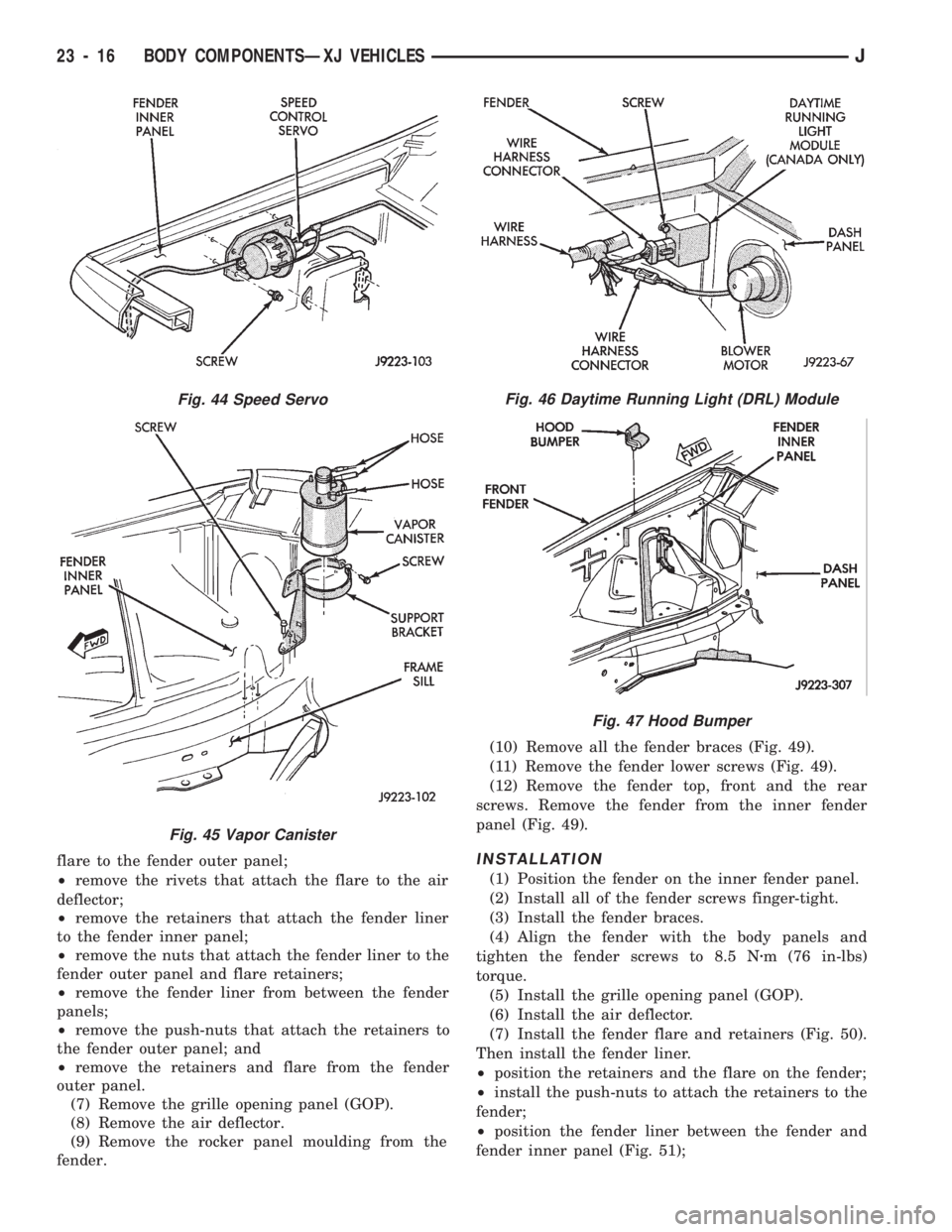

Fig. 46 Daytime Running Light (DRL) Module
Fig. 47 Hood Bumper
