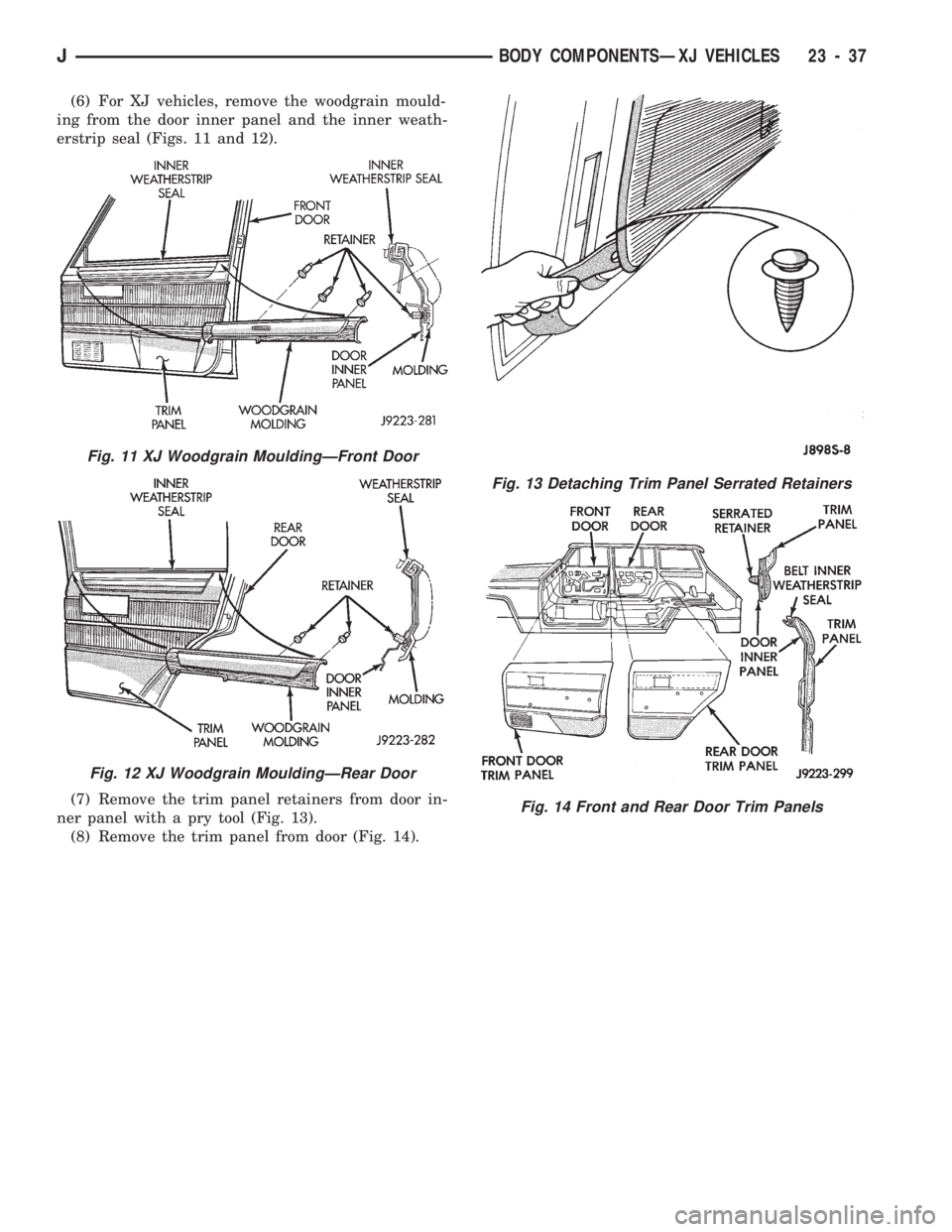

Fig. 12 XJ Woodgrain MouldingÐRear Door
Fig. 13 Detaching Trim Panel Serrated Retainers
Fig. 14 Front and Rear Door Trim Panels
JBODY COMPONENTSÐXJ VEHICLES 23 - 37

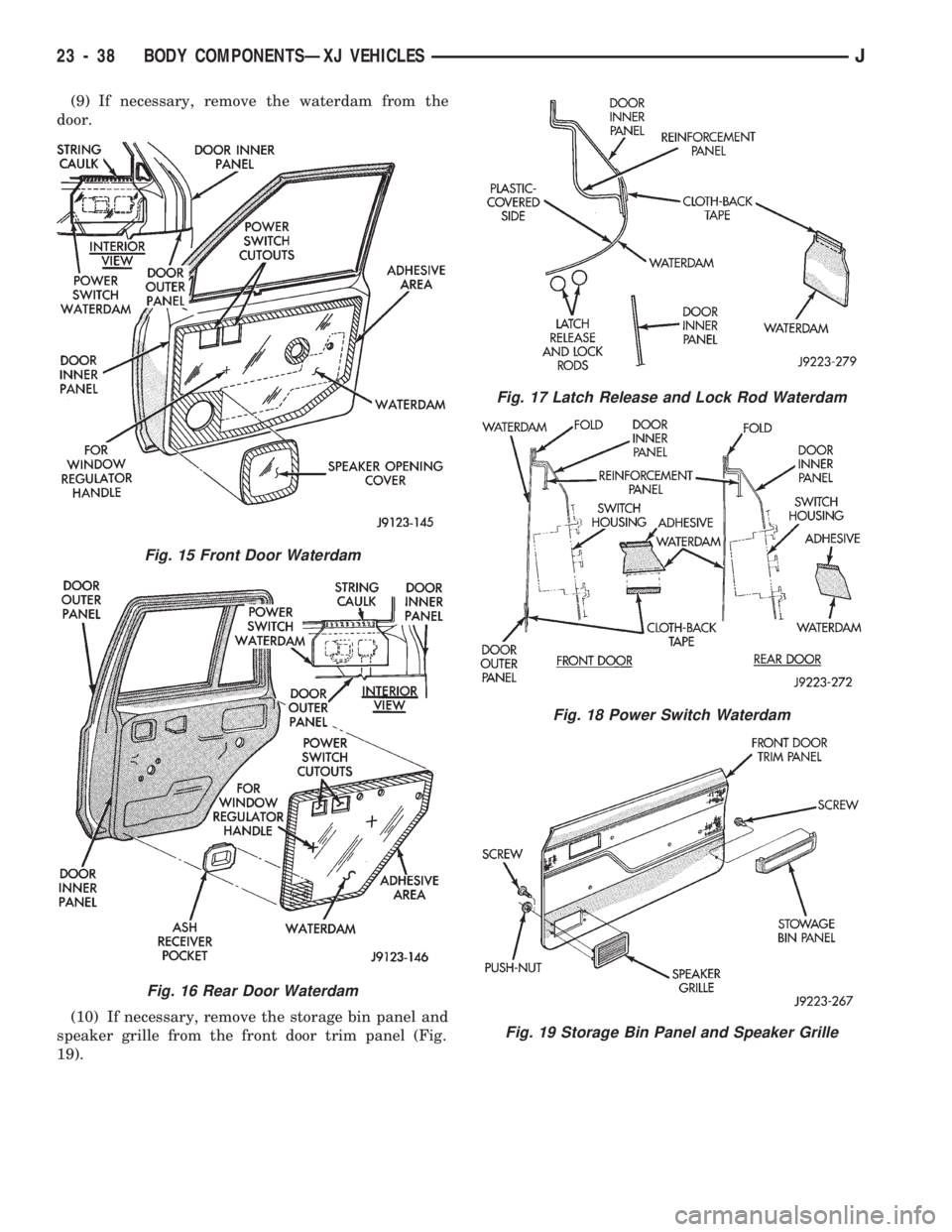

Fig. 16 Rear Door Waterdam
Fig. 17 Latch Release and Lock Rod Waterdam
Fig. 18 Power Switch Waterdam
Fig. 19 Storage Bin Panel and Speaker Grille
23 - 38 BODY COMPONENTSÐXJ VEHICLESJ

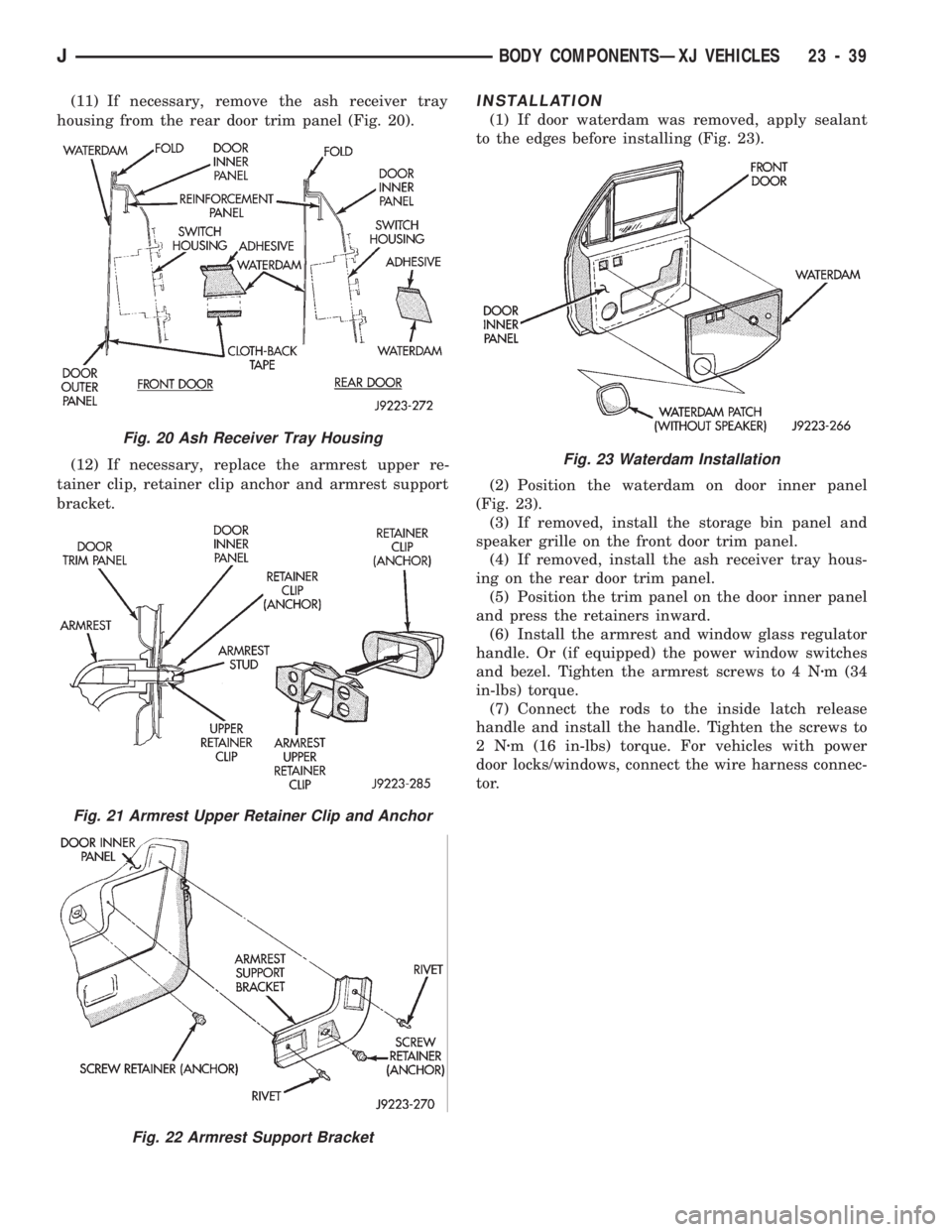

Fig. 21 Armrest Upper Retainer Clip and Anchor
Fig. 22 Armrest Support Bracket
Fig. 23 Waterdam Installation
JBODY COMPONENTSÐXJ VEHICLES 23 - 39

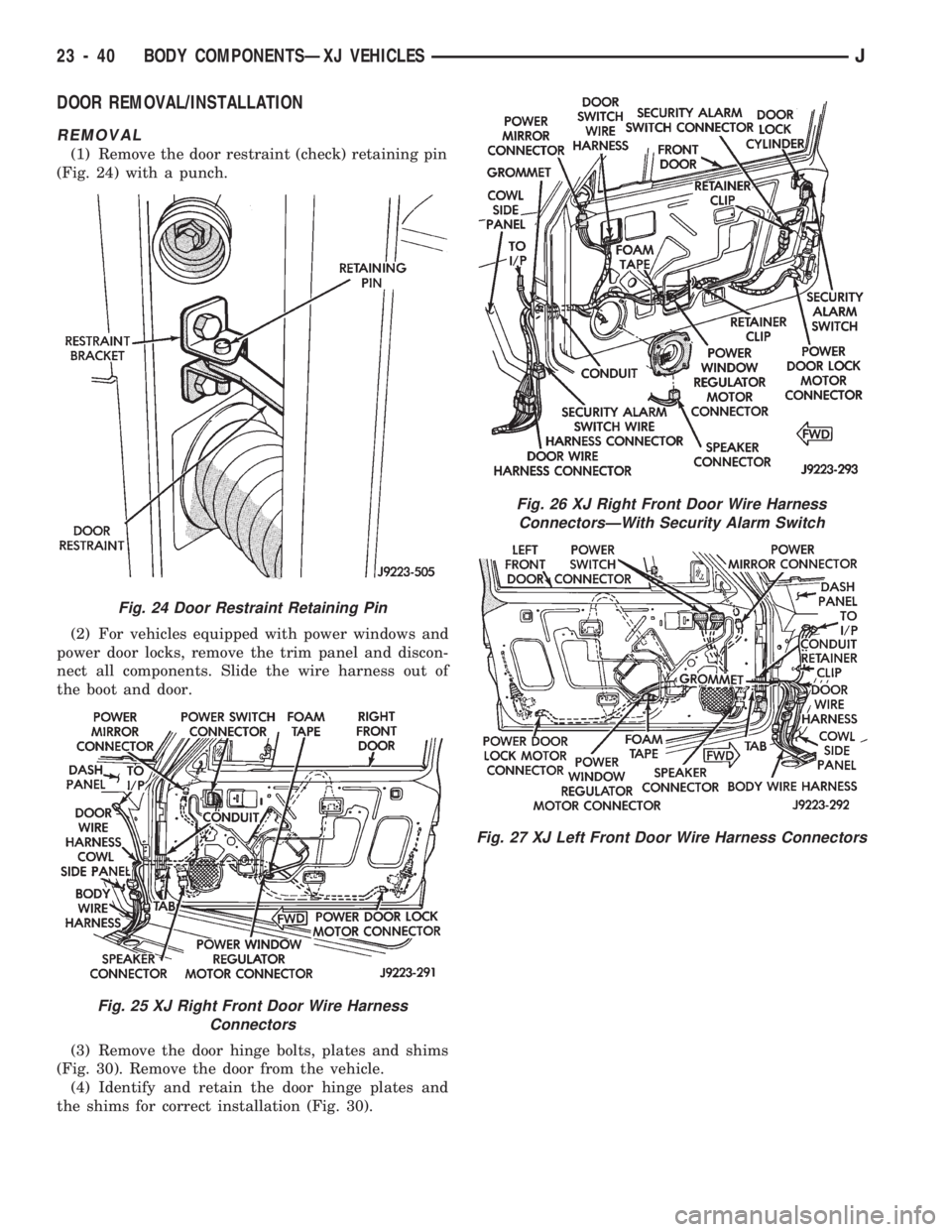

Fig. 25 XJ Right Front Door Wire Harness
Connectors
Fig. 26 XJ Right Front Door Wire Harness
ConnectorsÐWith Security Alarm Switch
Fig. 27 XJ Left Front Door Wire Harness Connectors
23 - 40 BODY COMPONENTSÐXJ VEHICLESJ

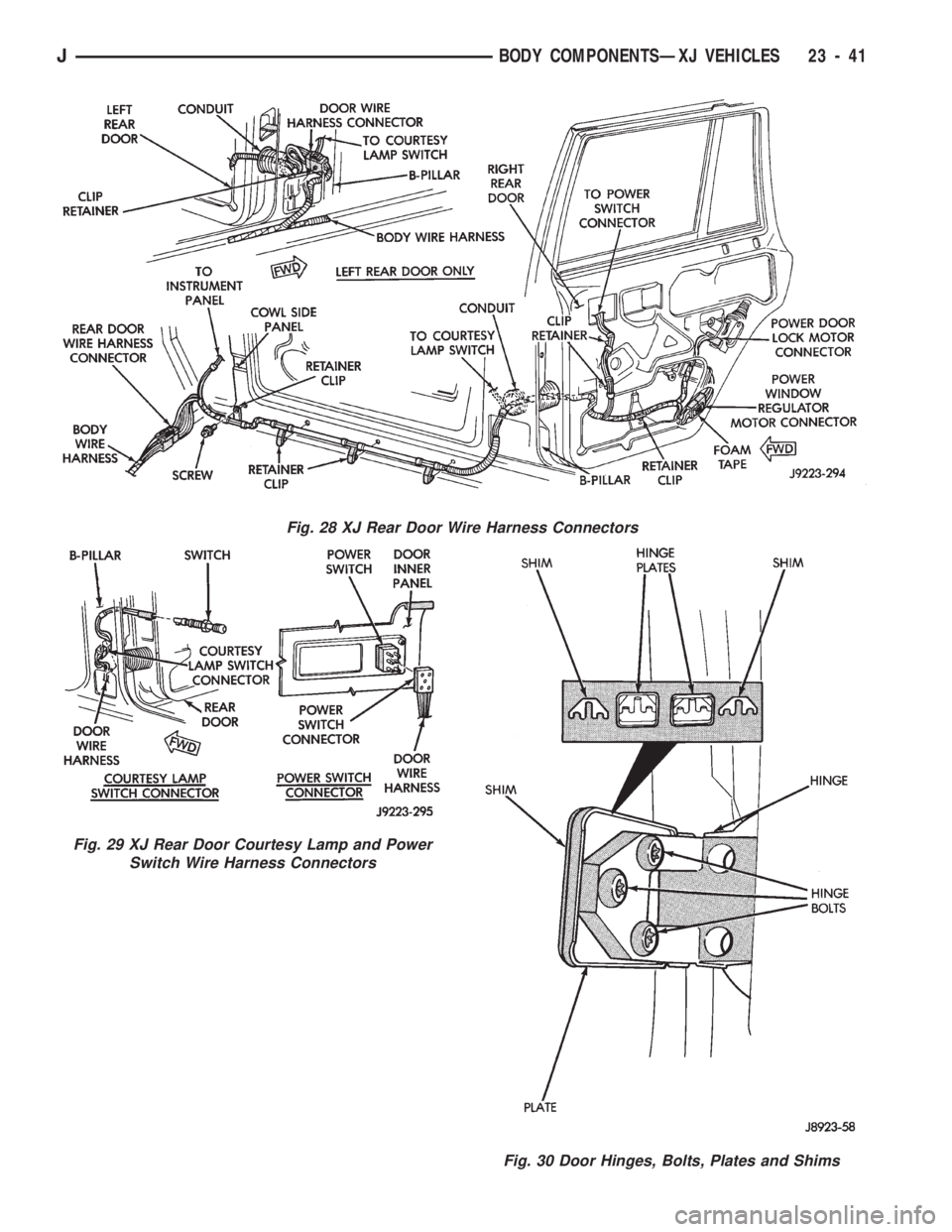

Fig. 29 XJ Rear Door Courtesy Lamp and Power
Switch Wire Harness Connectors
Fig. 30 Door Hinges, Bolts, Plates and Shims
JBODY COMPONENTSÐXJ VEHICLES 23 - 41

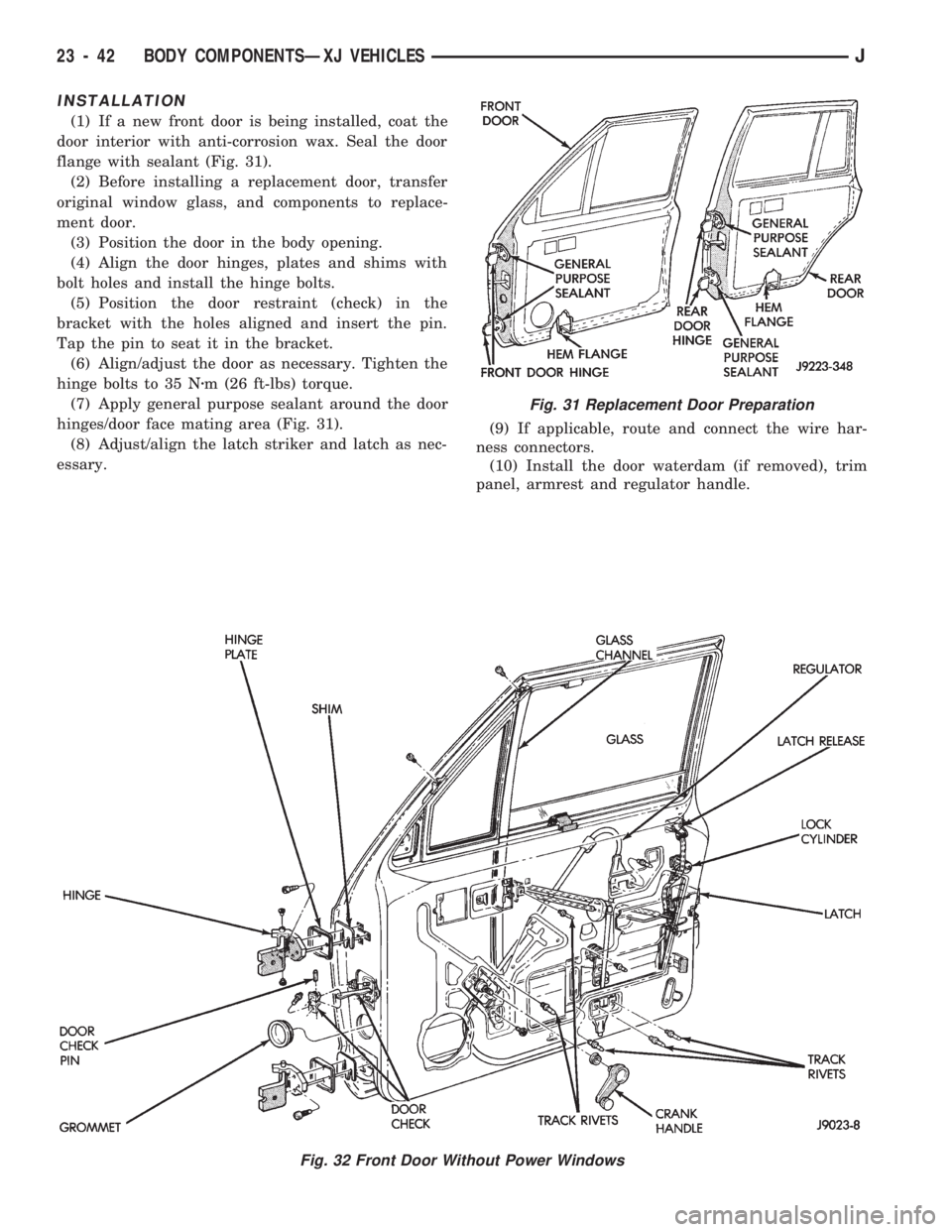

Fig. 31 Replacement Door Preparation

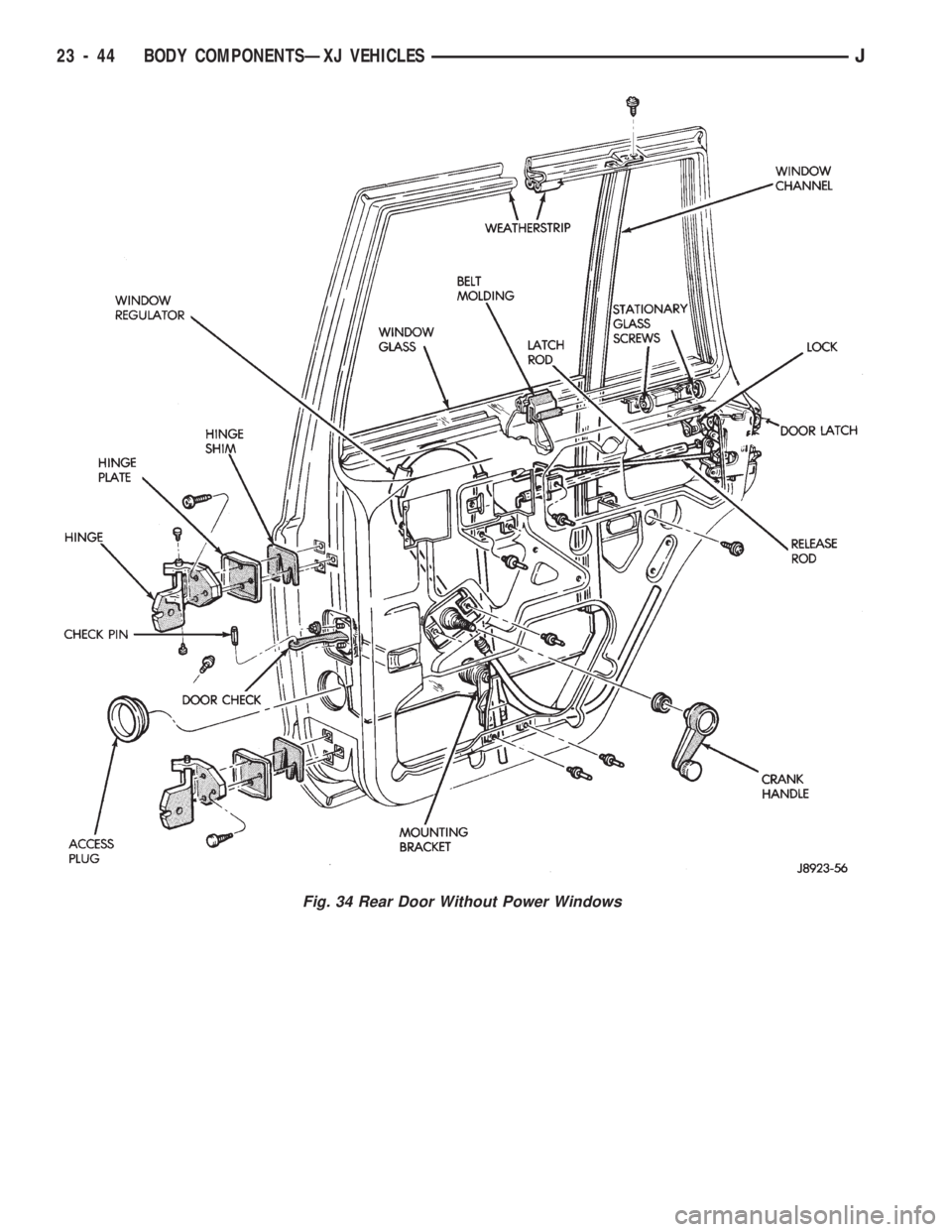

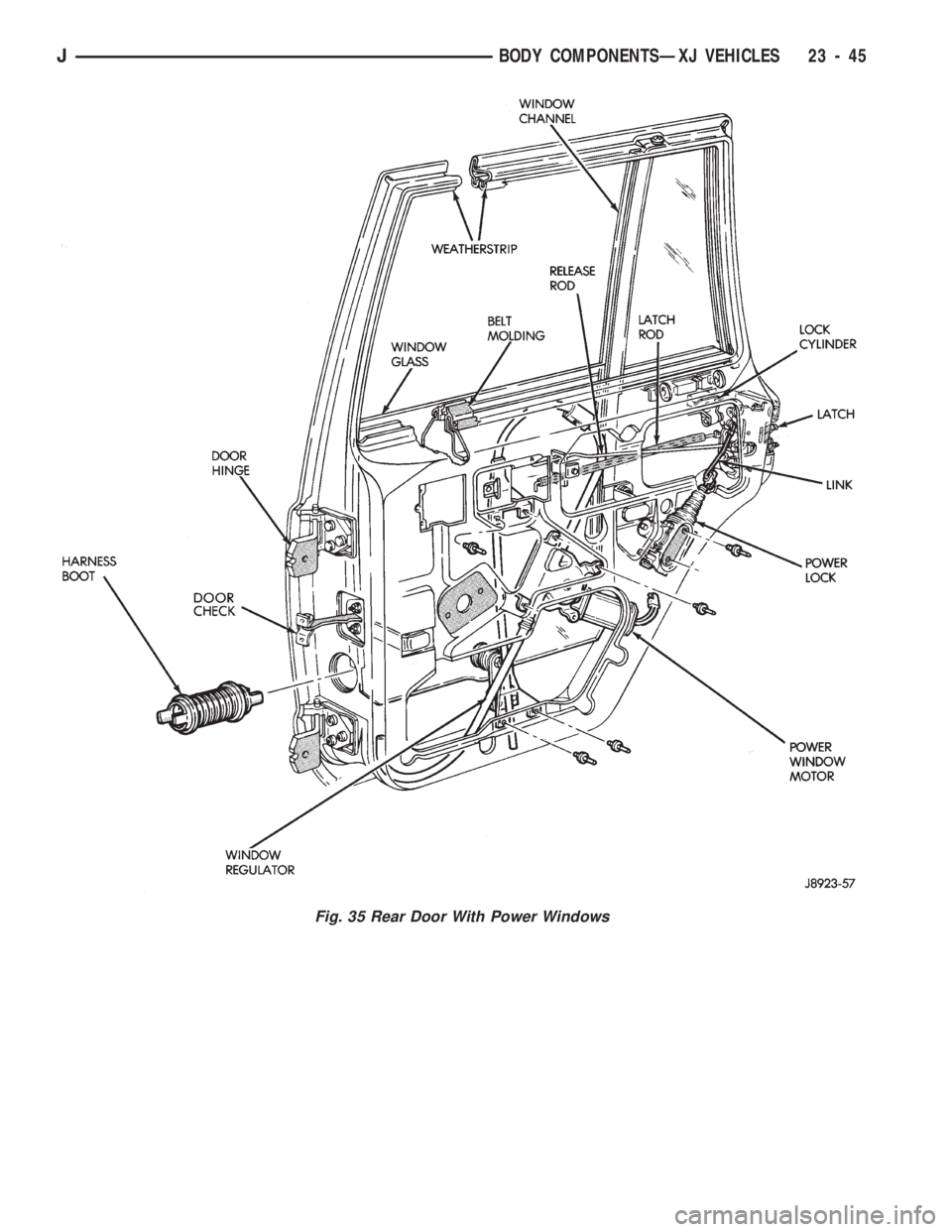

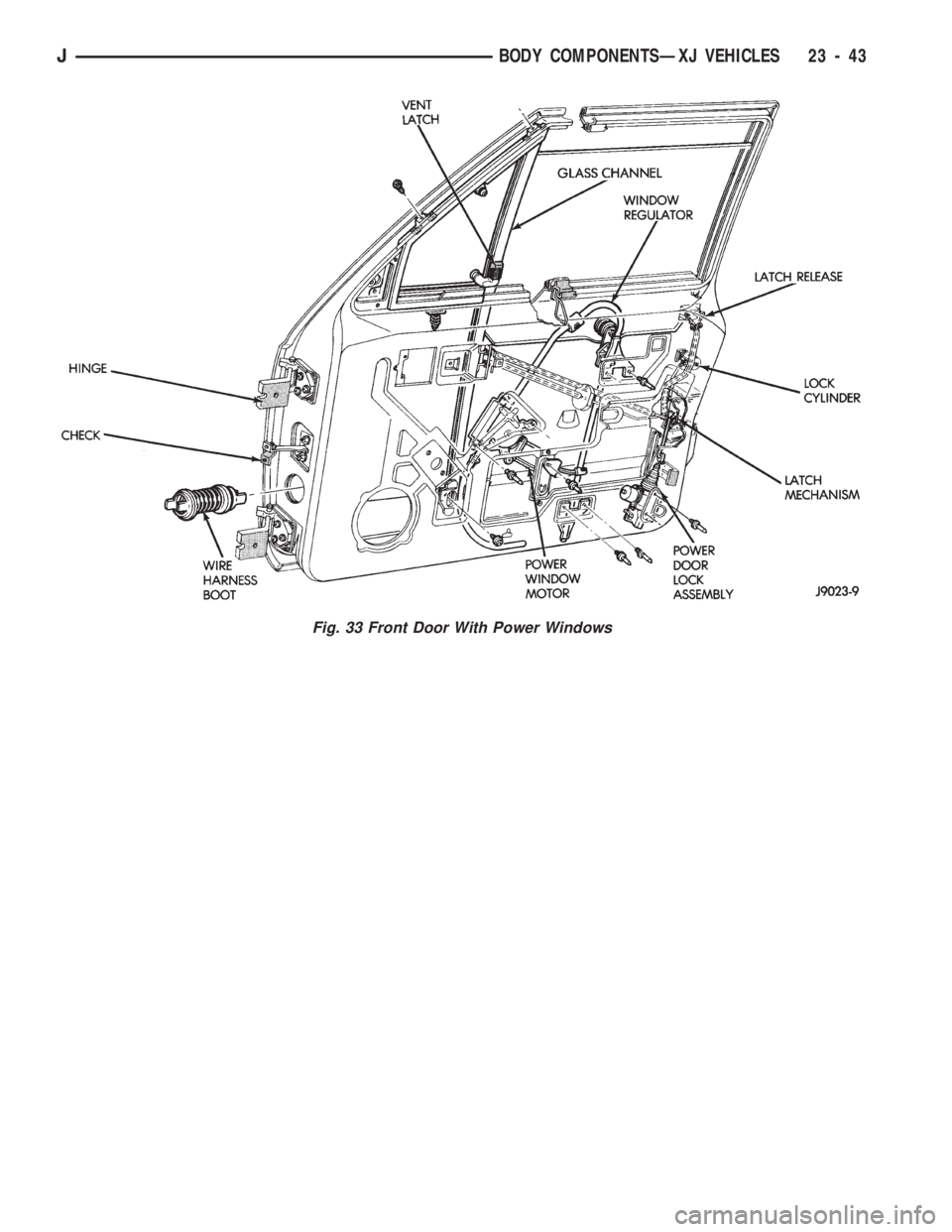

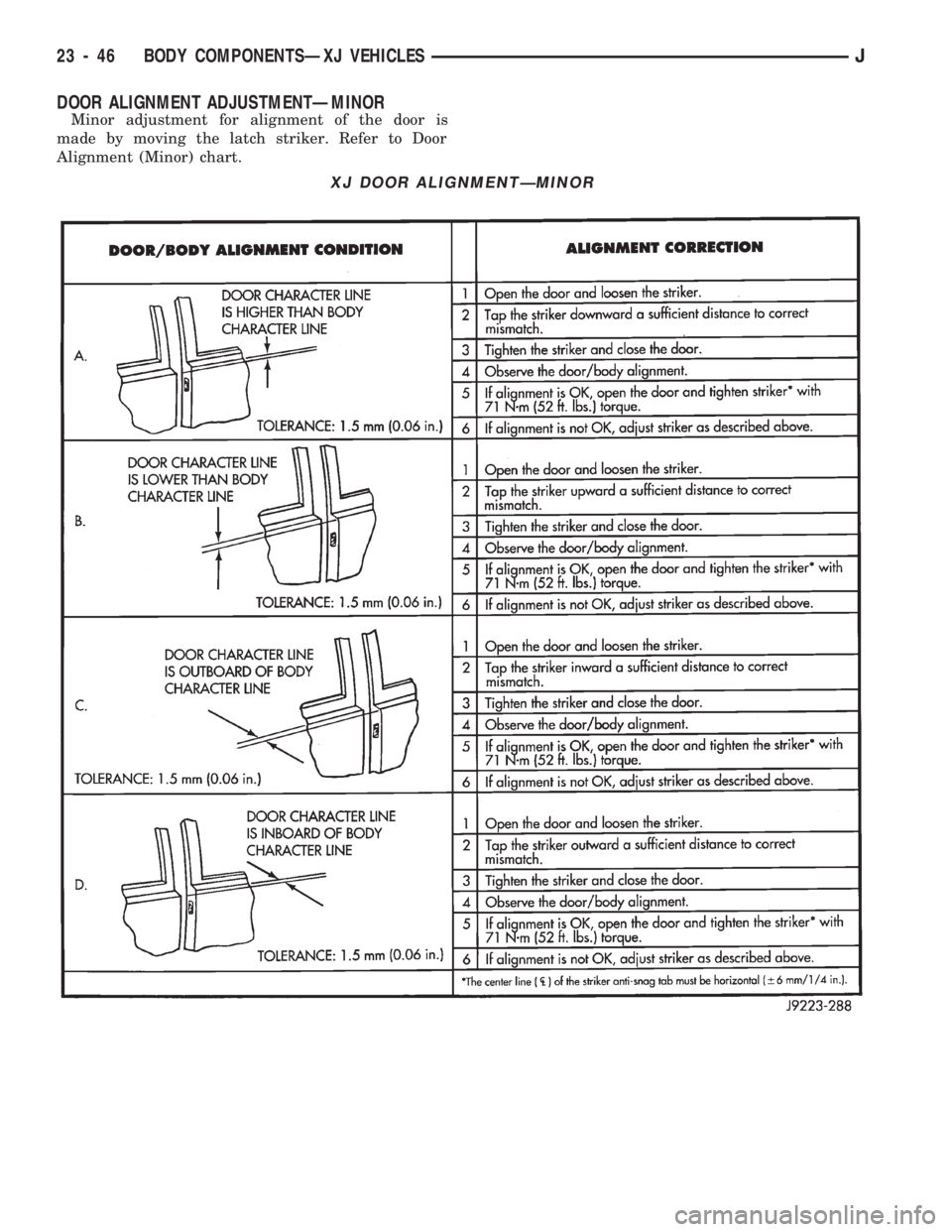

23 - 42 BODY COMPONENTSÐXJ VEHICLESJ
