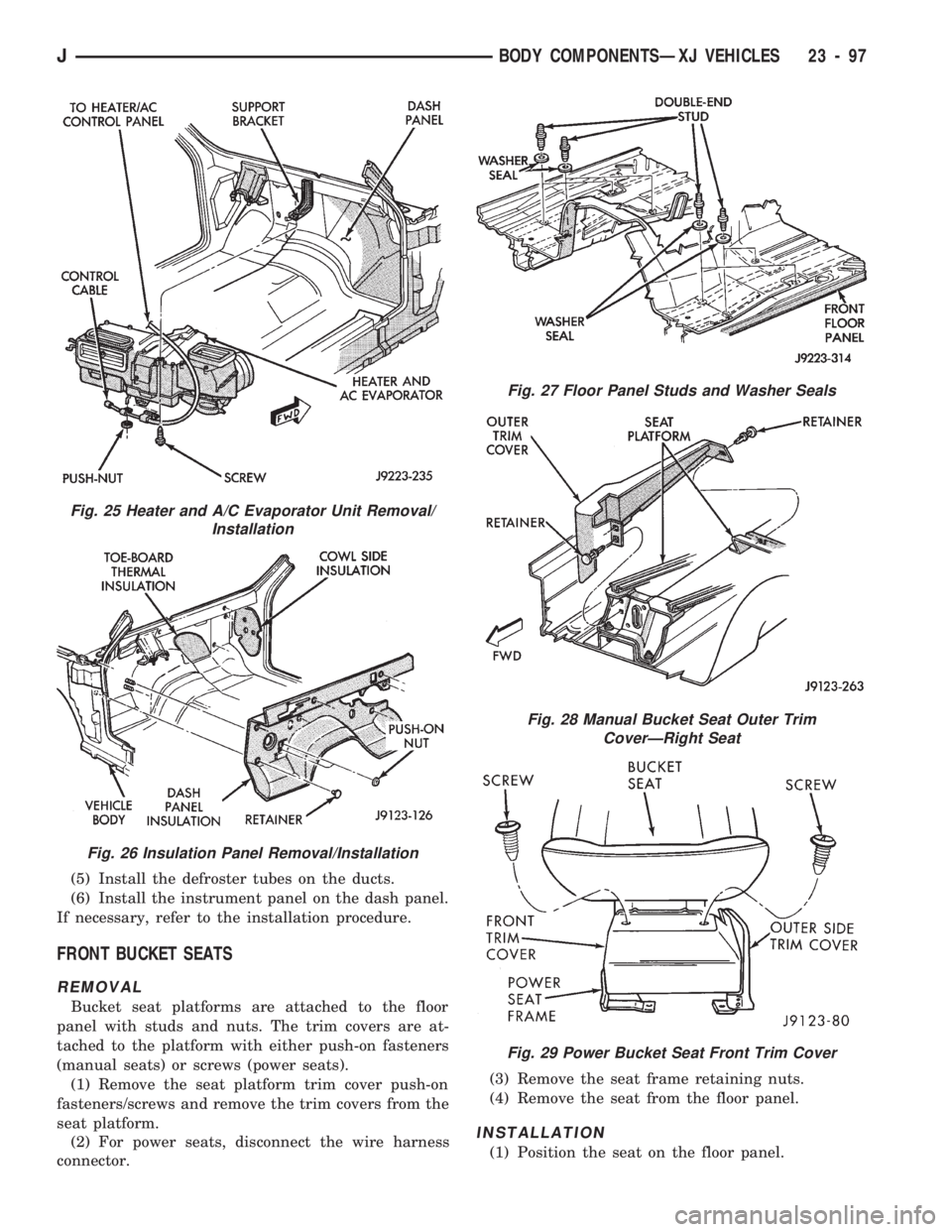

Fig. 26 Insulation Panel Removal/Installation
Fig. 27 Floor Panel Studs and Washer Seals
Fig. 28 Manual Bucket Seat Outer Trim
CoverÐRight Seat
Fig. 29 Power Bucket Seat Front Trim Cover
JBODY COMPONENTSÐXJ VEHICLES 23 - 97

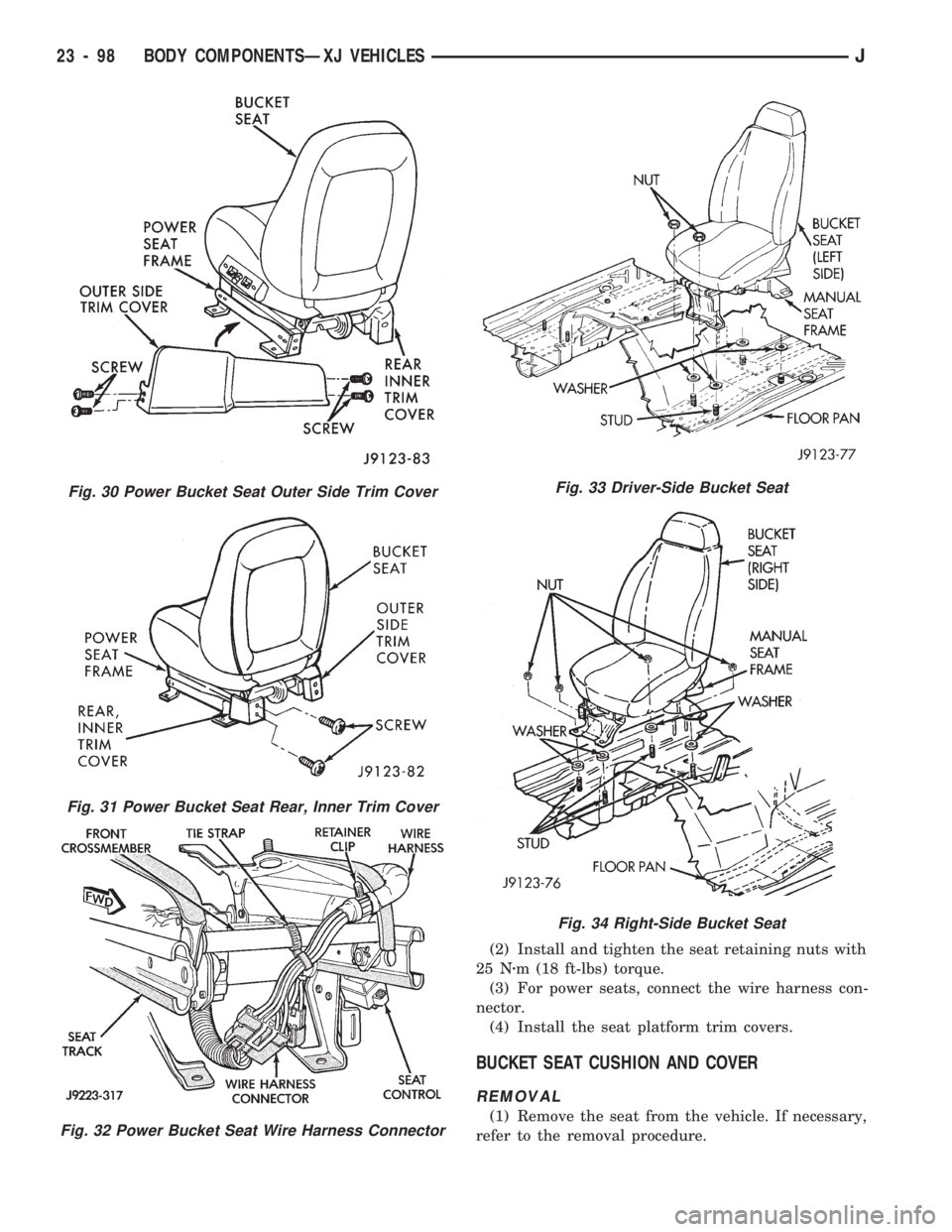

Fig. 31 Power Bucket Seat Rear, Inner Trim Cover
Fig. 32 Power Bucket Seat Wire Harness Connector
Fig. 33 Driver-Side Bucket Seat
Fig. 34 Right-Side Bucket Seat
23 - 98 BODY COMPONENTSÐXJ VEHICLESJ

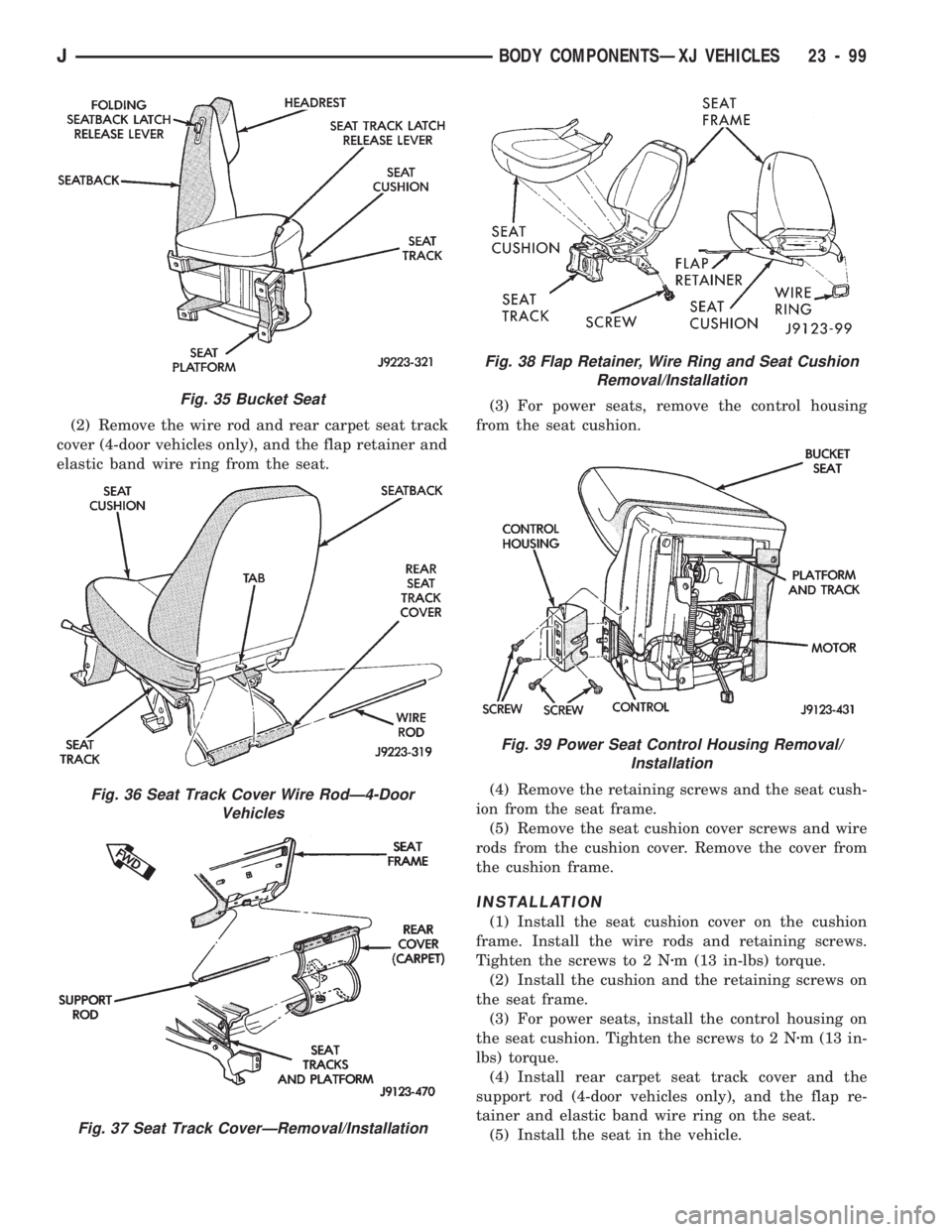

Fig. 36 Seat Track Cover Wire RodÐ4-Door
Vehicles
Fig. 37 Seat Track CoverÐRemoval/Installation
Fig. 38 Flap Retainer, Wire Ring and Seat Cushion
Removal/Installation
Fig. 39 Power Seat Control Housing Removal/
Installation
JBODY COMPONENTSÐXJ VEHICLES 23 - 99

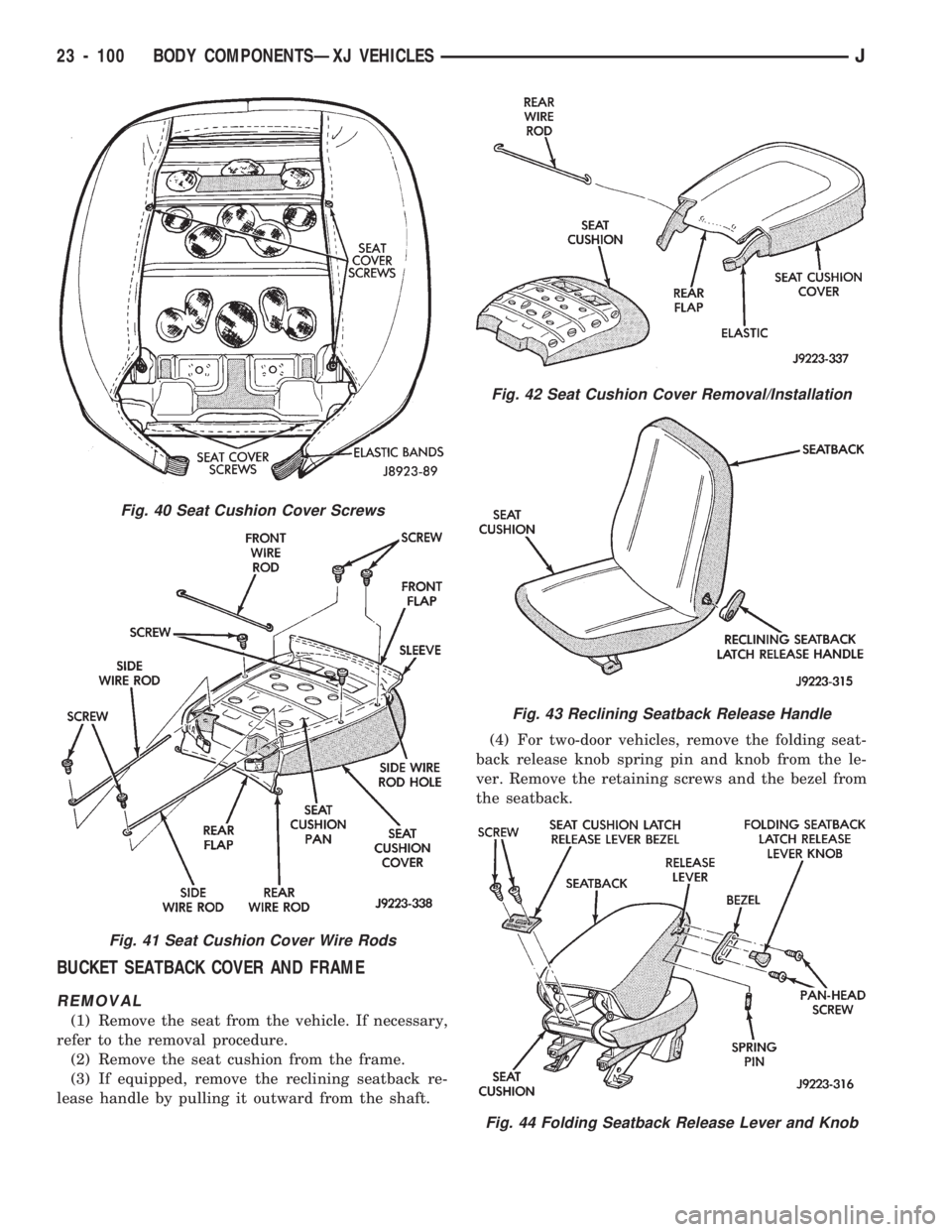

Fig. 41 Seat Cushion Cover Wire Rods
Fig. 42 Seat Cushion Cover Removal/Installation
Fig. 43 Reclining Seatback Release Handle
Fig. 44 Folding Seatback Release Lever and Knob
23 - 100 BODY COMPONENTSÐXJ VEHICLESJ

Fig. 46 Seatback Insert Removal/Installation
Fig. 47 Seatback Velcro Flap
Fig. 48 Seatback Cover Retainer Clips
Fig. 49 Power Seat Control
JBODY COMPONENTSÐXJ VEHICLES 23 - 101

Fig. 51 Power Seat Frame Removal/Installation
Fig. 52 Seatback Cover-To-Frame Wire Rod Installation
Fig. 53 Reclining Seatback Latch Cover Installation
23 - 102 BODY COMPONENTSÐXJ VEHICLESJ

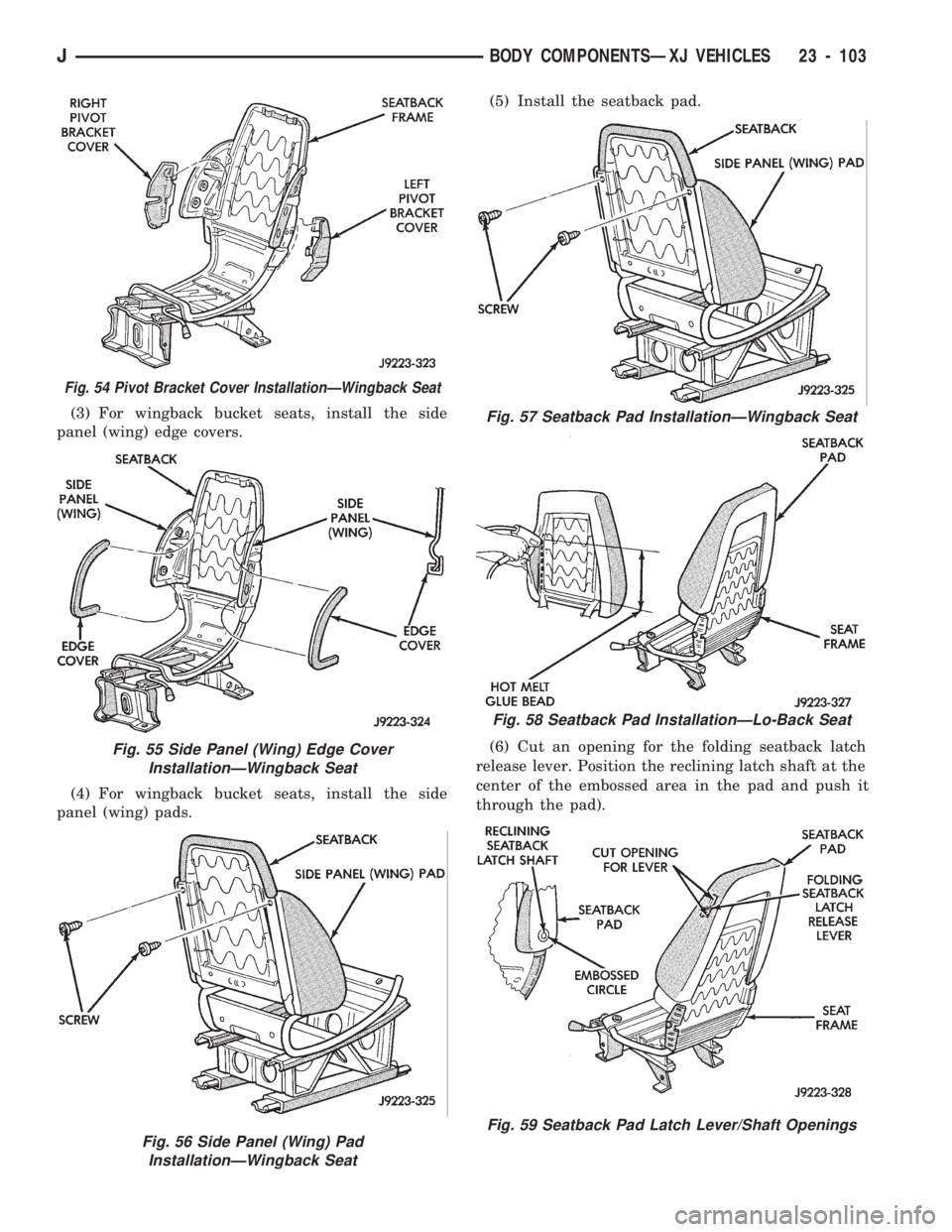

Fig. 54 Pivot Bracket Cover InstallationÐWingback Seat
Fig. 55 Side Panel (Wing) Edge Cover
InstallationÐWingback Seat
Fig. 57 Seatback Pad InstallationÐWingback Seat
Fig. 58 Seatback Pad InstallationÐLo-Back Seat
Fig. 59 Seatback Pad Latch Lever/Shaft Openings
JBODY COMPONENTSÐXJ VEHICLES 23 - 103

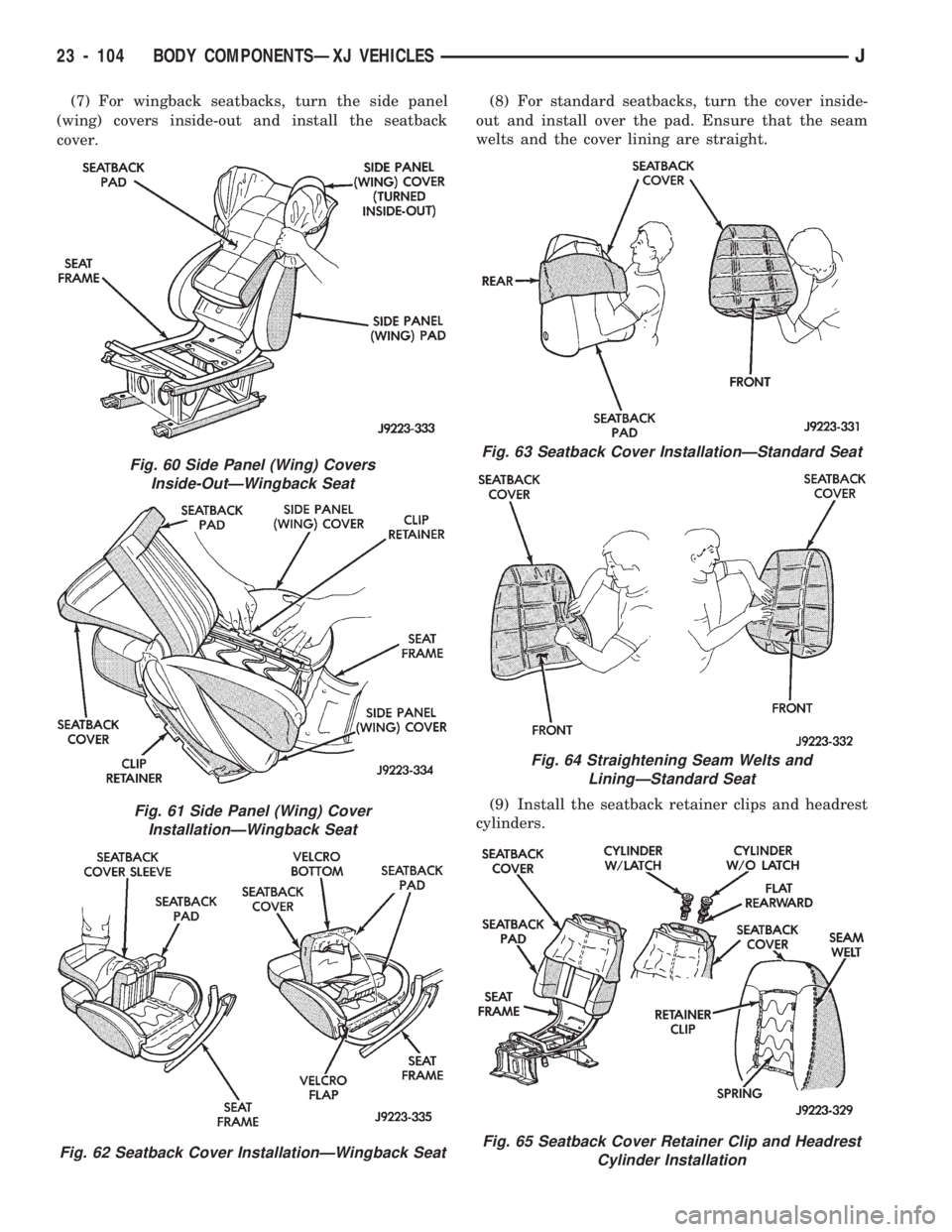

Fig. 61 Side Panel (Wing) Cover
InstallationÐWingback Seat
Fig. 62 Seatback Cover InstallationÐWingback Seat
Fig. 63 Seatback Cover InstallationÐStandard Seat
Fig. 64 Straightening Seam Welts and

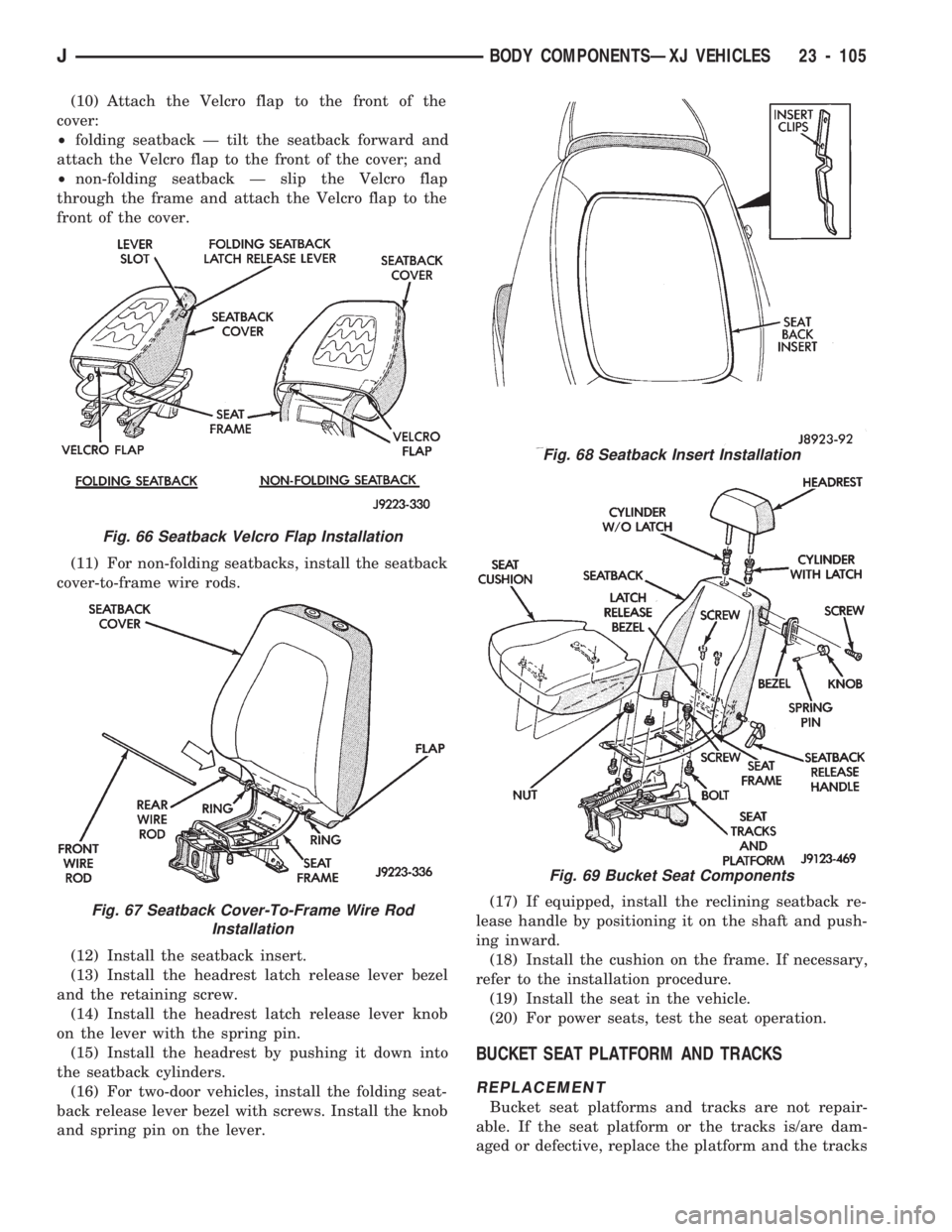

LiningÐStandard Seat
Fig. 65 Seatback Cover Retainer Clip and Headrest
Cylinder Installation
23 - 104 BODY COMPONENTSÐXJ VEHICLESJ

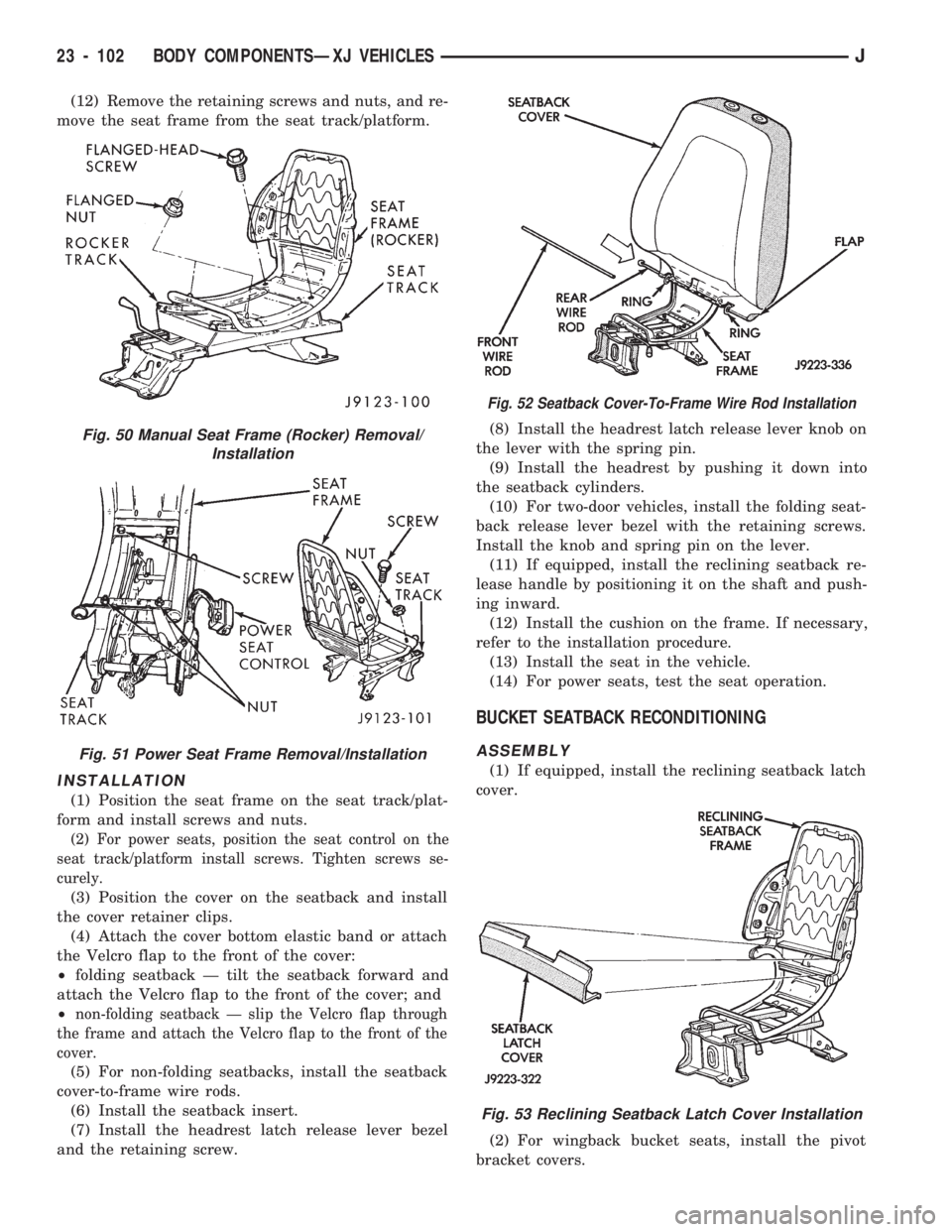

Fig. 67 Seatback Cover-To-Frame Wire Rod
Installation
Fig. 68 Seatback Insert Installation
Fig. 69 Bucket Seat Components
JBODY COMPONENTSÐXJ VEHICLES 23 - 105

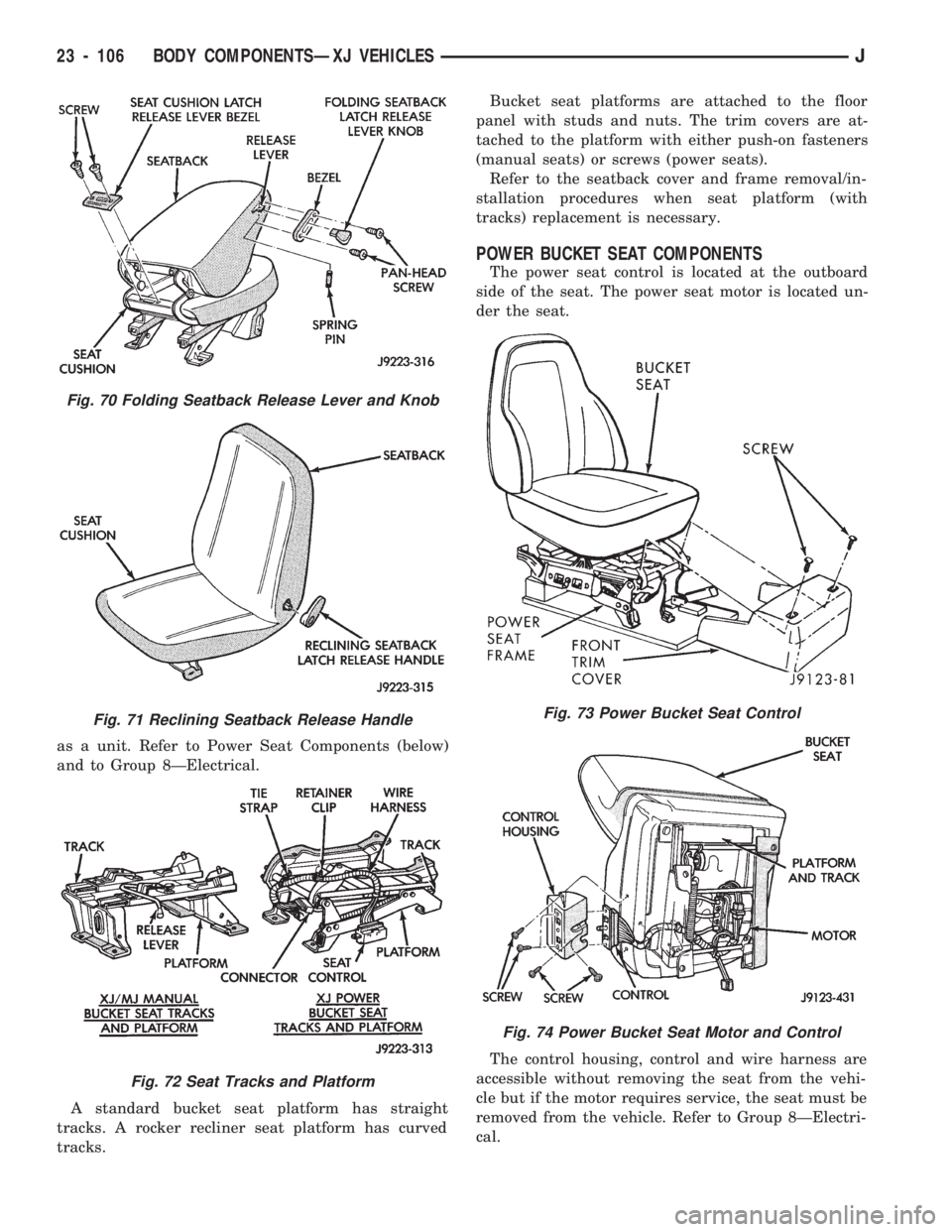

Fig. 71 Reclining Seatback Release Handle
Fig. 72 Seat Tracks and Platform
Fig. 73 Power Bucket Seat Control
Fig. 74 Power Bucket Seat Motor and Control
23 - 106 BODY COMPONENTSÐXJ VEHICLESJ
