Fig. 14 Masking Tape Location For Blackout Primer

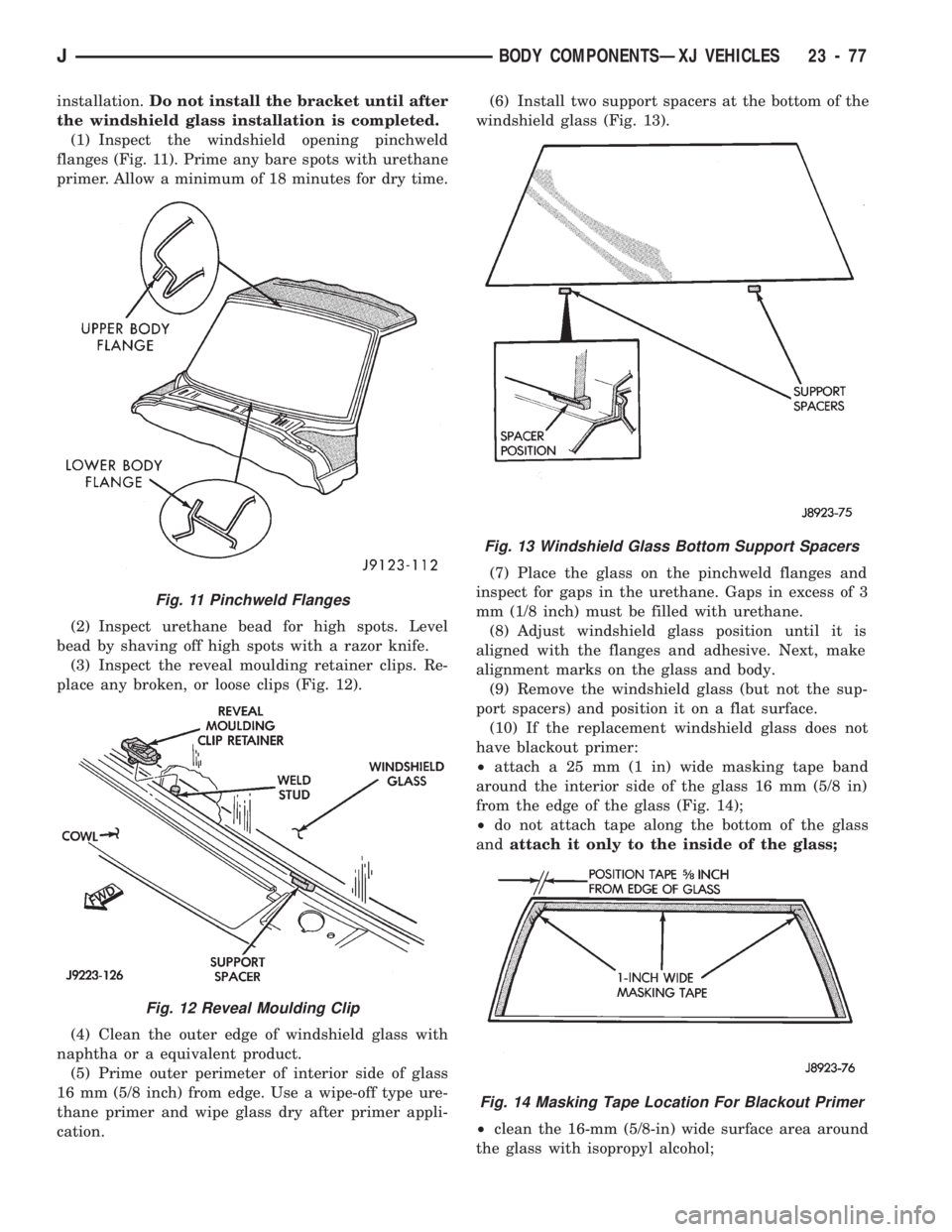

Fig. 11 Pinchweld Flanges
Fig. 12 Reveal Moulding Clip
JBODY COMPONENTSÐXJ VEHICLES 23 - 77

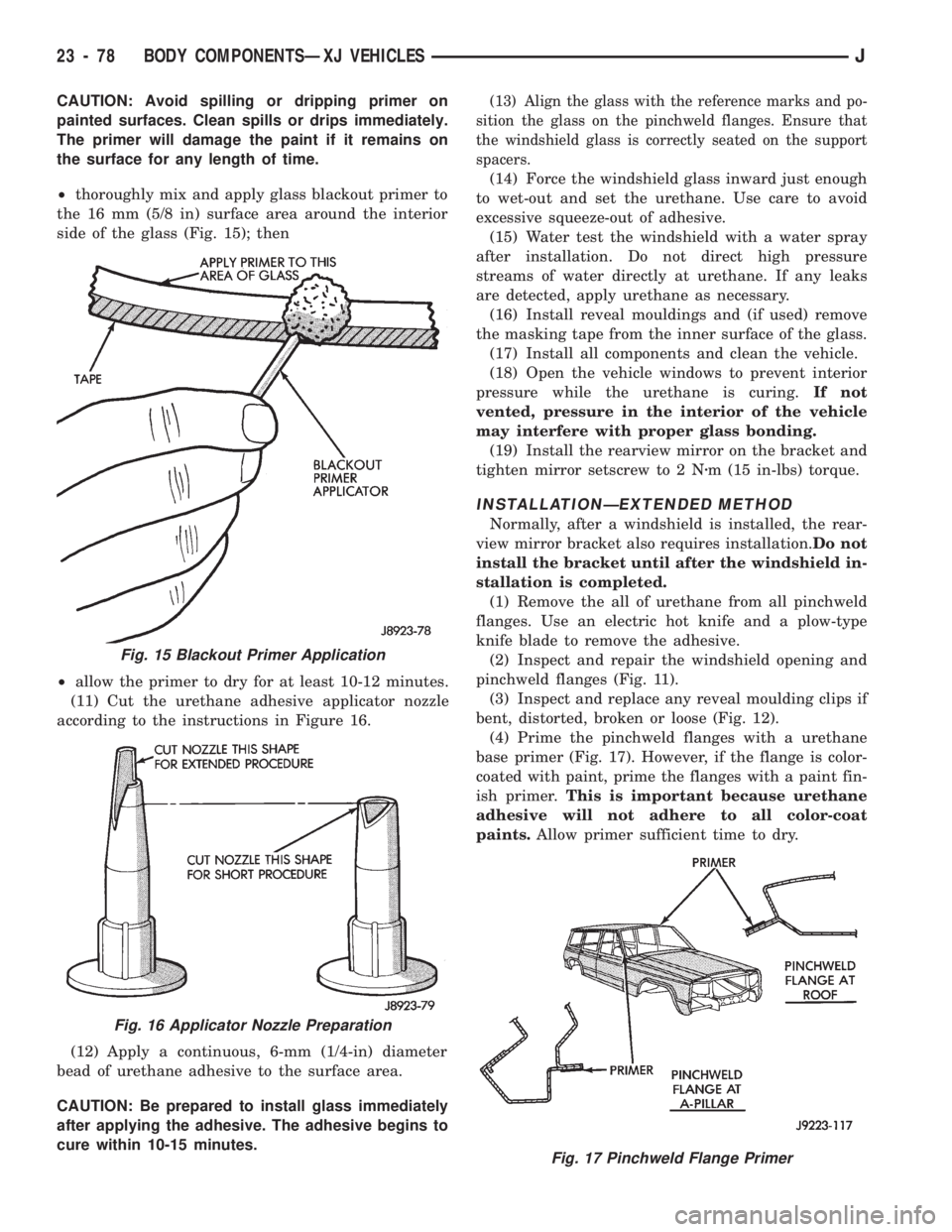

Fig. 16 Applicator Nozzle Preparation
Fig. 17 Pinchweld Flange Primer
23 - 78 BODY COMPONENTSÐXJ VEHICLESJ

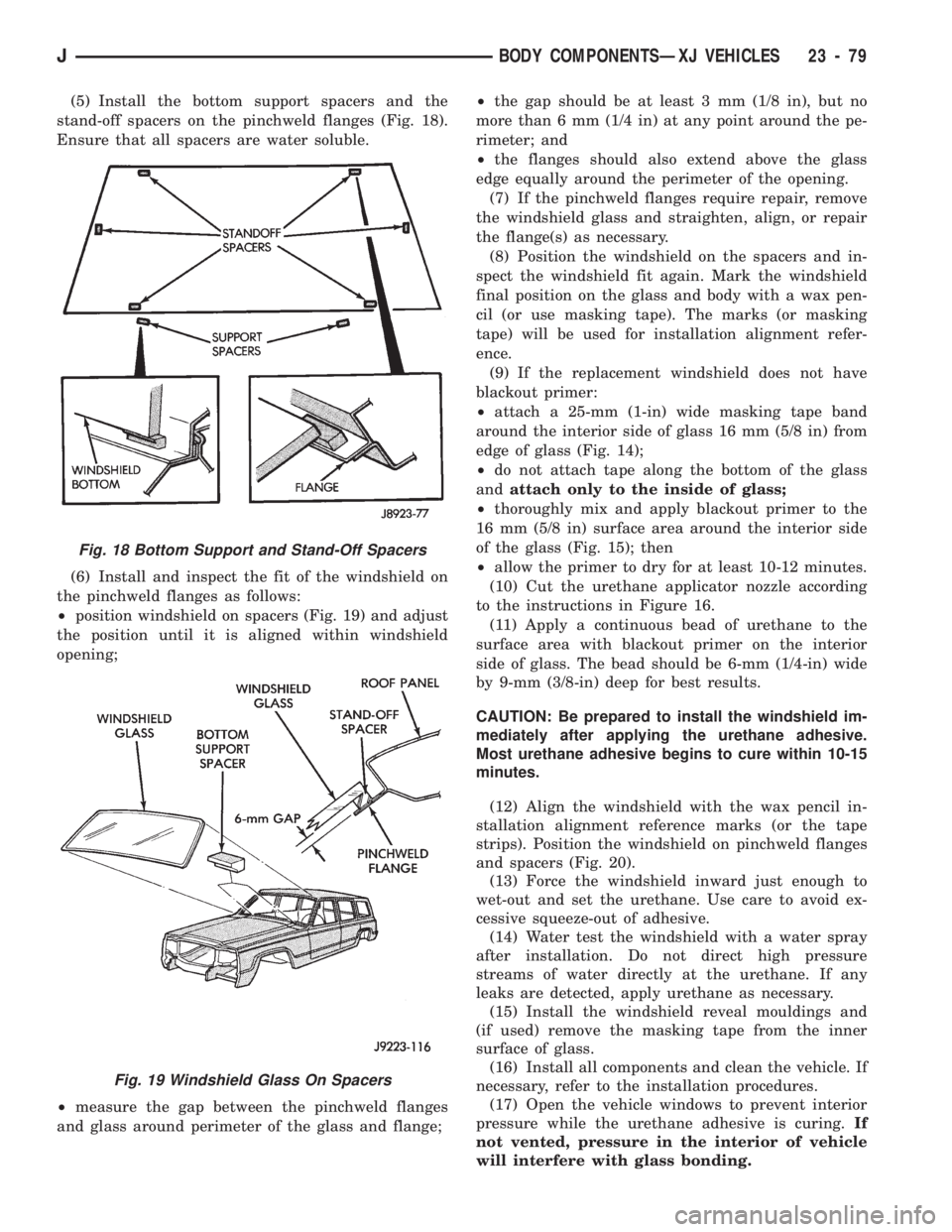

Fig. 19 Windshield Glass On Spacers
JBODY COMPONENTSÐXJ VEHICLES 23 - 79

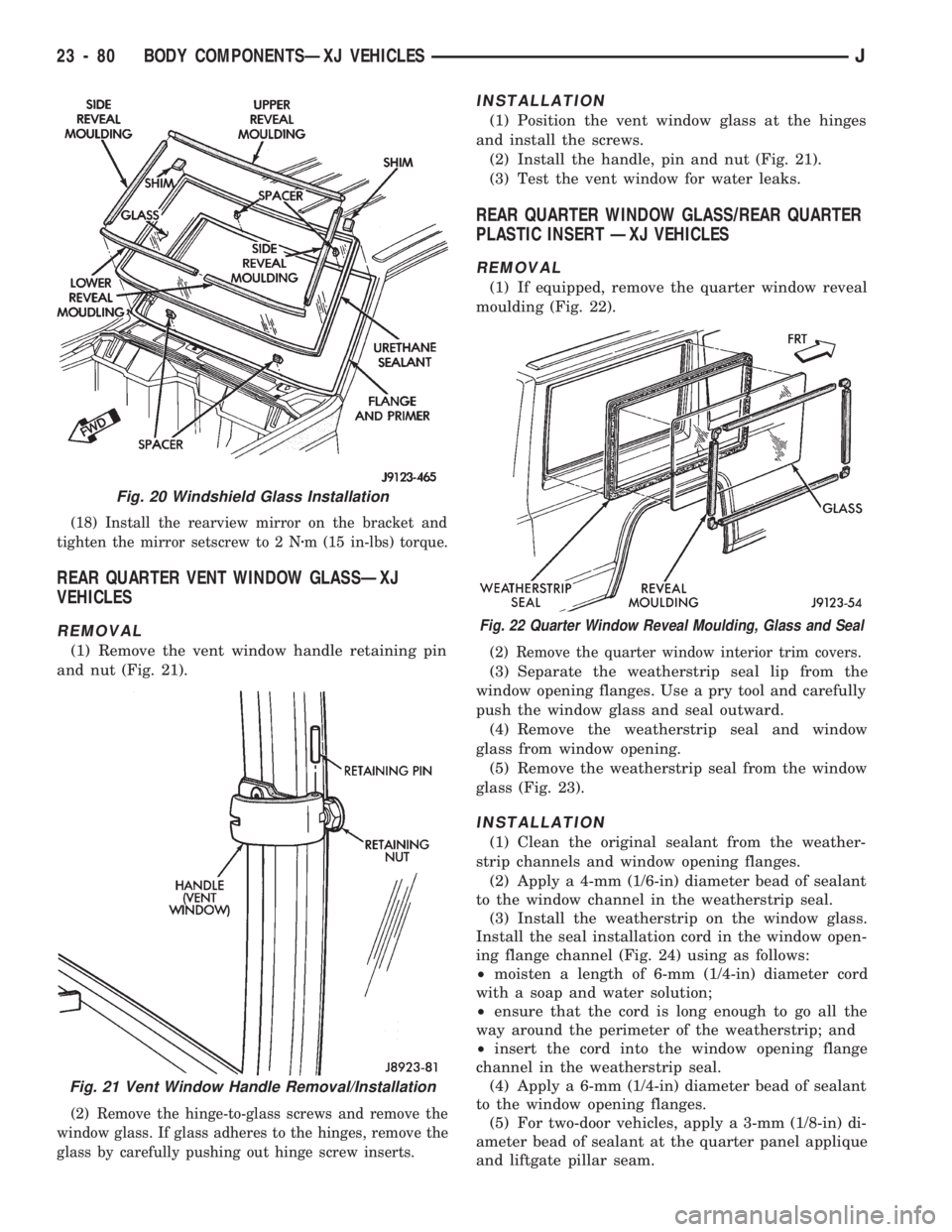

Fig. 21 Vent Window Handle Removal/Installation
Fig. 22 Quarter Window Reveal Moulding, Glass and Seal
23 - 80 BODY COMPONENTSÐXJ VEHICLESJ

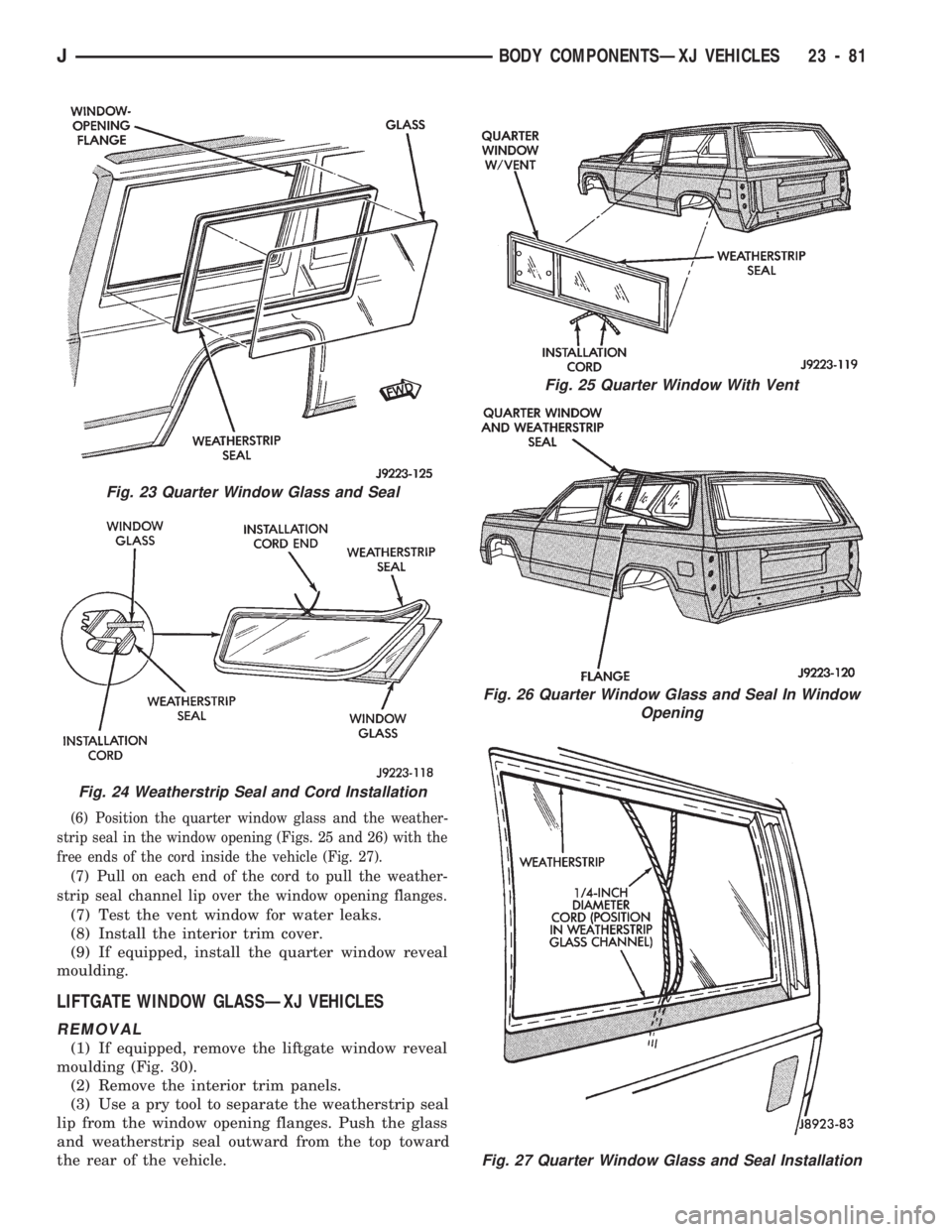

Fig. 25 Quarter Window With Vent
Fig. 26 Quarter Window Glass and Seal In Window
Opening
Fig. 27 Quarter Window Glass and Seal Installation
Fig. 24 Weatherstrip Seal and Cord Installation
JBODY COMPONENTSÐXJ VEHICLES 23 - 81

Fig. 30 Liftgate Window Glass Reveal Moulding, Glass and Seal
Fig. 28 Quarter Window Glass and Seal Installed
23 - 82 BODY COMPONENTSÐXJ VEHICLESJ

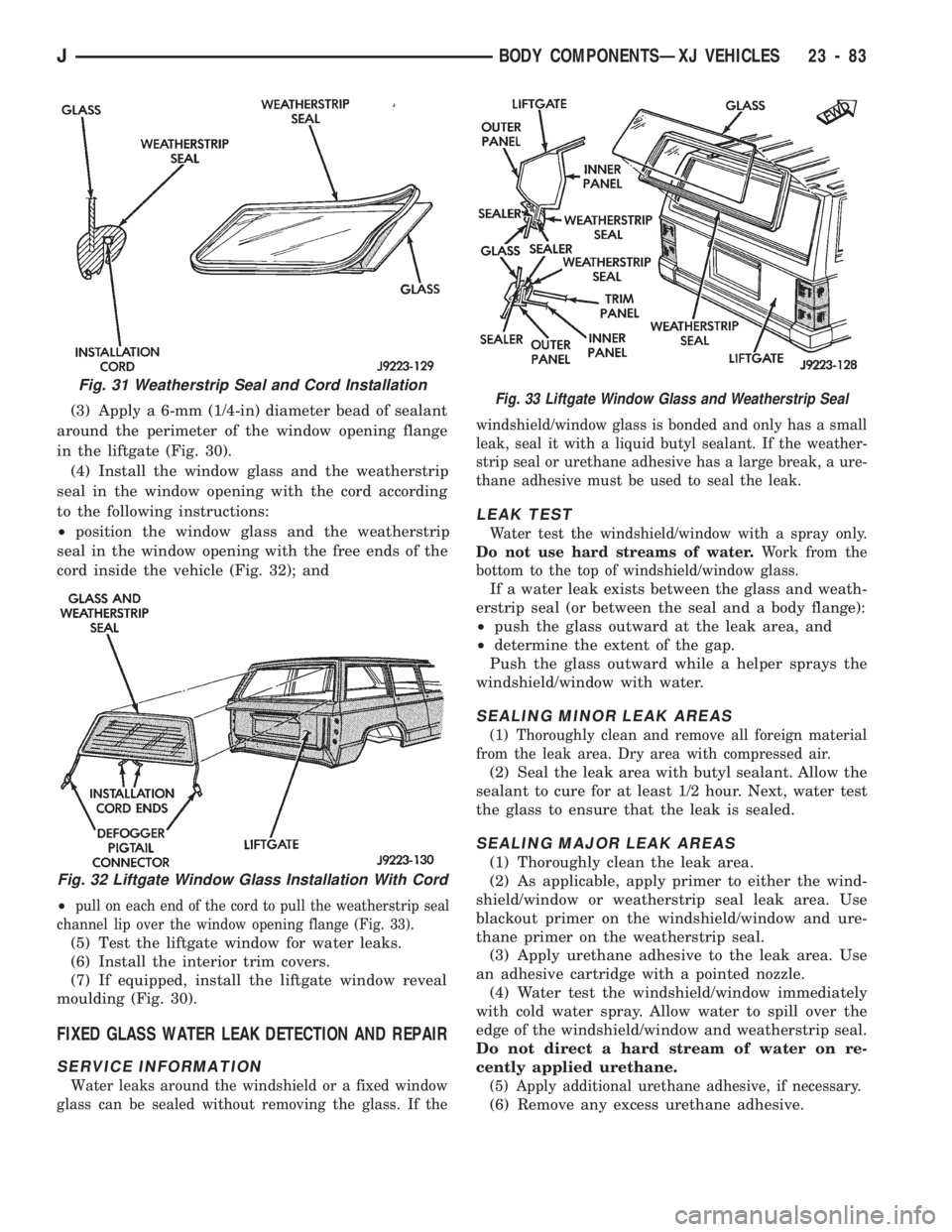

Fig. 32 Liftgate Window Glass Installation With Cord
Fig. 33 Liftgate Window Glass and Weatherstrip Seal
JBODY COMPONENTSÐXJ VEHICLES 23 - 83

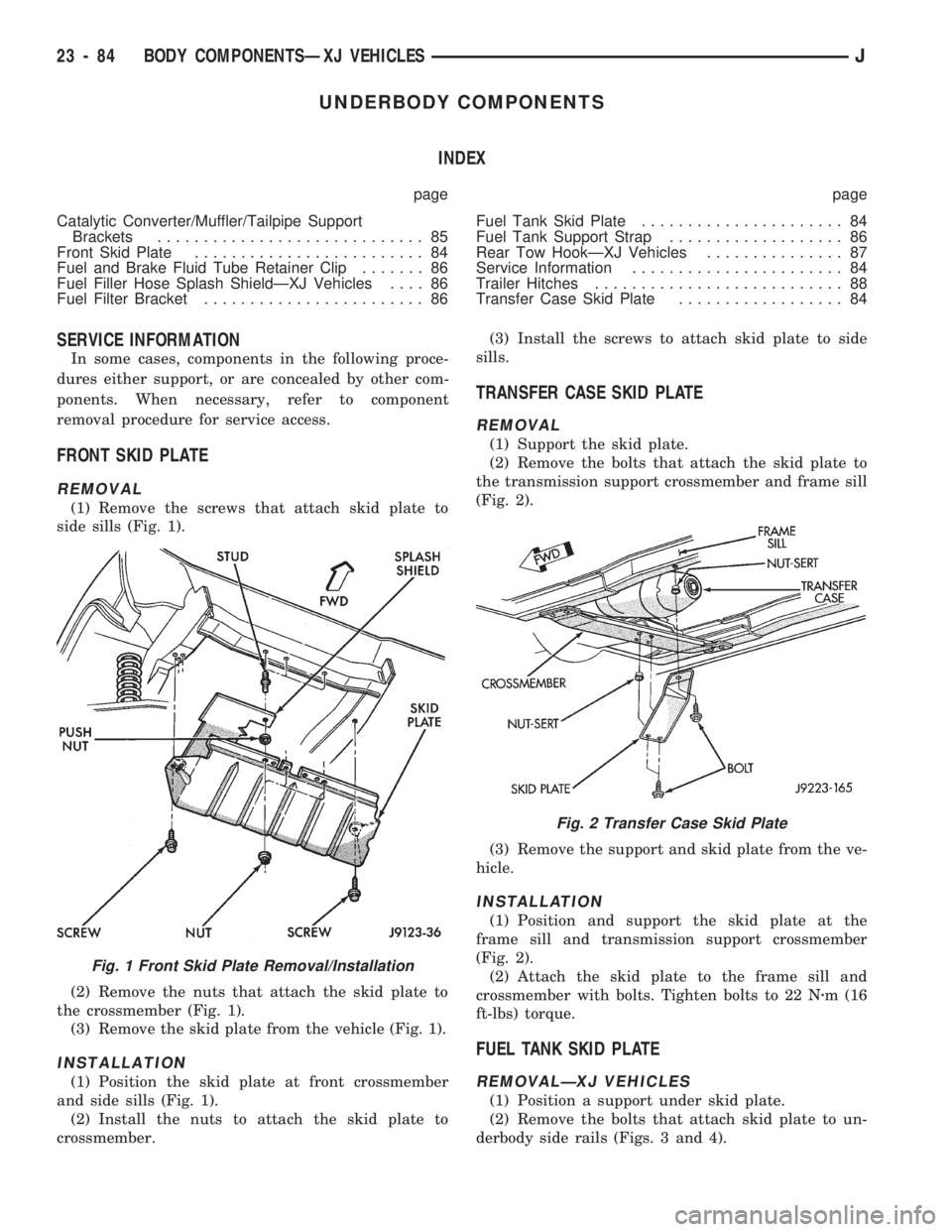

Fig. 2 Transfer Case Skid Plate
23 - 84 BODY COMPONENTSÐXJ VEHICLESJ

Fig. 2 Muffler/Tailpipe Support BracketÐXJ Vehicles
Fig. 3 Tailpipe Support BracketÐXJ Vehicles

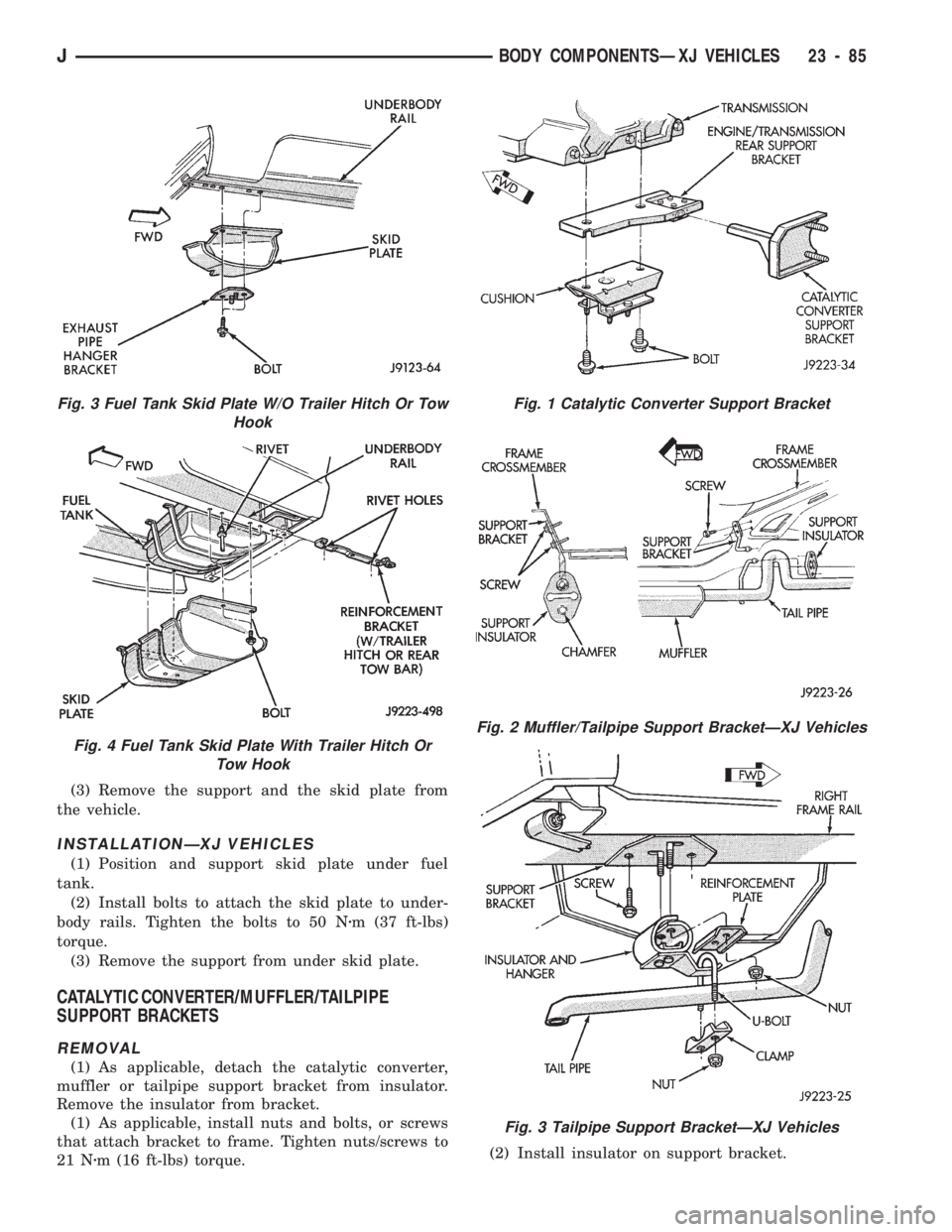

Fig. 3 Fuel Tank Skid Plate W/O Trailer Hitch Or Tow
Hook
Fig. 4 Fuel Tank Skid Plate With Trailer Hitch Or
Tow Hook
JBODY COMPONENTSÐXJ VEHICLES 23 - 85

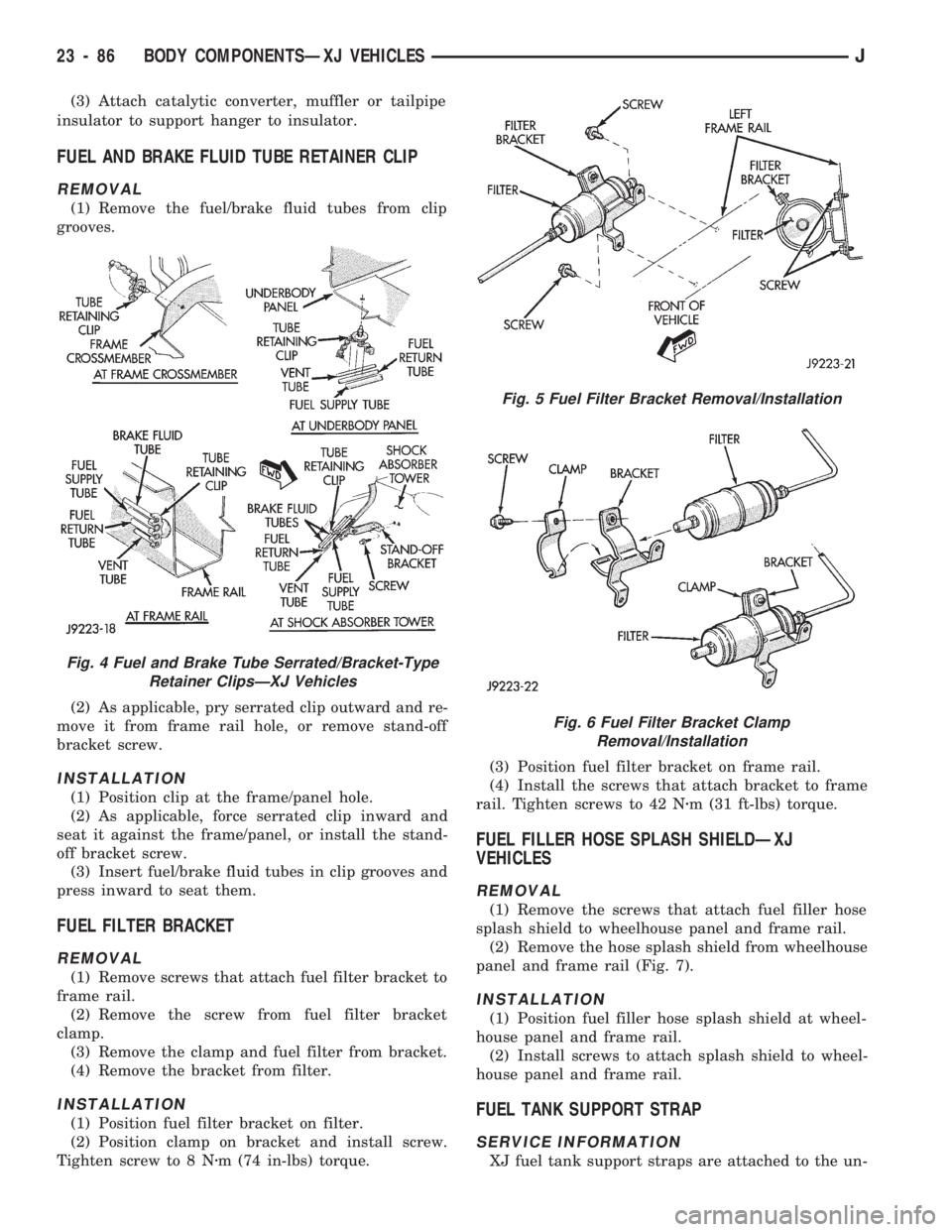

Fig. 5 Fuel Filter Bracket Removal/Installation
Fig. 6 Fuel Filter Bracket Clamp
Removal/Installation
23 - 86 BODY COMPONENTSÐXJ VEHICLESJ
