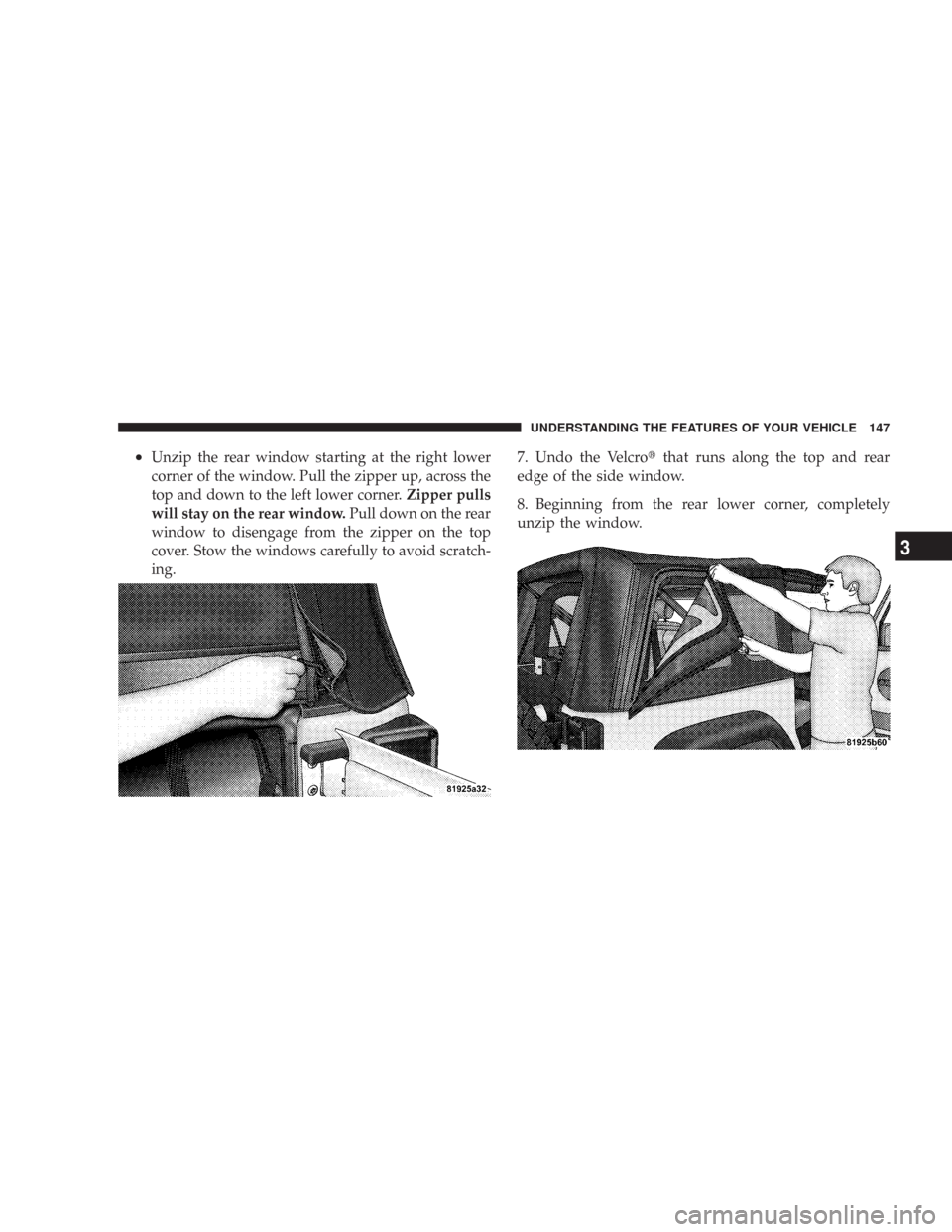

•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window.Pull down on the rear
window to disengage from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing.7. Undo the Velcrothat runs along the top and rear
edge of the side window.
8. Beginning from the rear lower corner, completely
unzip the window.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147
3

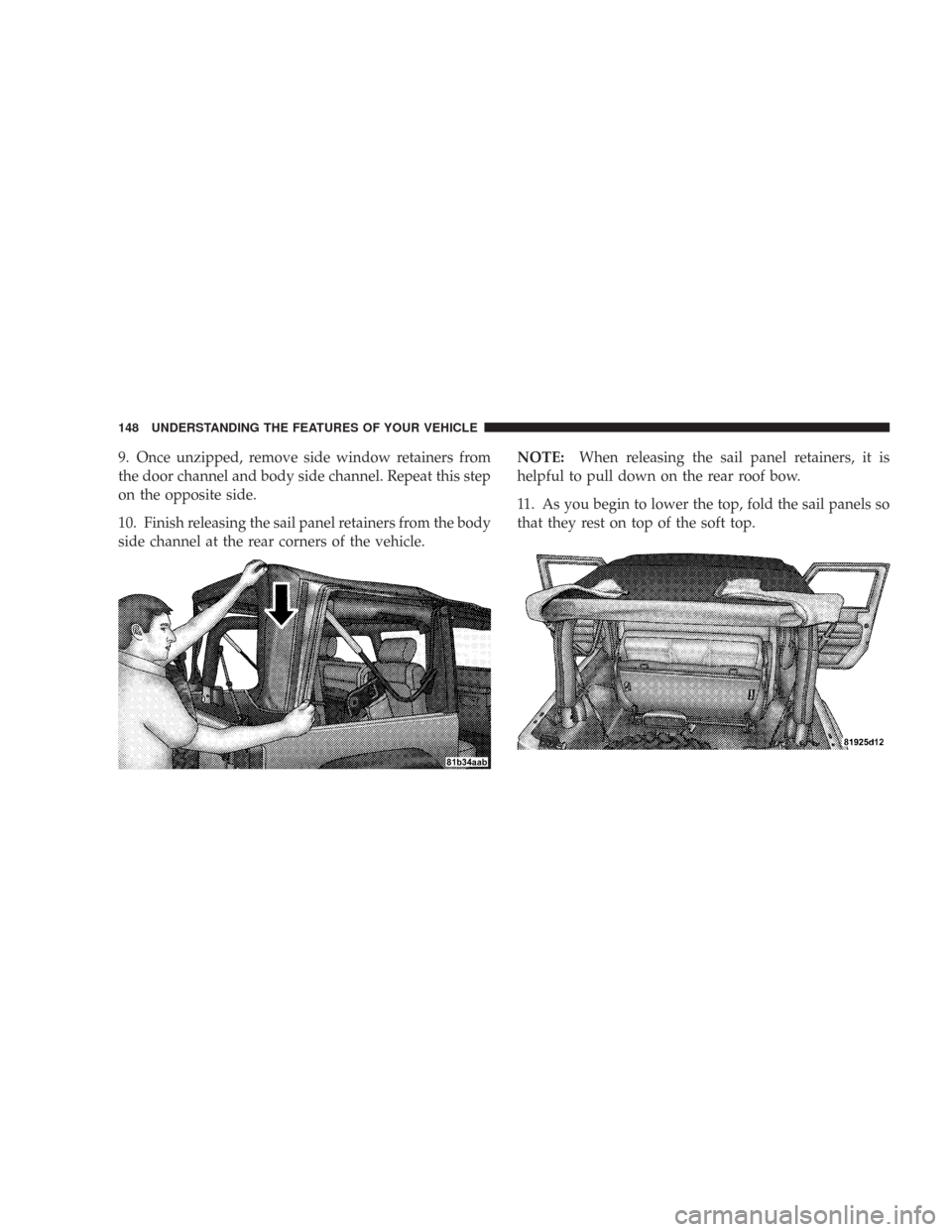

9. Once unzipped, remove side window retainers from
the door channel and body side channel. Repeat this step
on the opposite side.
10. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow.
11. As you begin to lower the top, fold the sail panels so
that they rest on top of the soft top.
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Putting Up The Soft Top
1 — Header Bow 6 — Body Side Retainer
2 — 2 Bow 7 — Quarter Window
3 — 3 Bow 8 — Check Strap
4 — Sail Panel 9 — Front Retainer — Quarter Window
5 — Plastic Retainer 10 — Bottom Retainer — Quarter WindowUNDERSTANDING THE FEATURES OF YOUR VEHICLE 151
3

7. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow.
8. Partially install the sail panel retainers into the body
side channel, leaving the last three (3) inches towards therear window loose (on both sides). Pulling down on the
rear roof bow (3 bow) will aid to reach the channel with
the retainers.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
3

9. To install the side windows, affix the window tempo-
rarily by attaching to the Velcroin the rear corner. Start
the zipper but close only about 1 inch (2.5 cm).
10. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated andproperly positioned on the door frame. Failure to do so
can result in wind and water leaks or damage to the
window.
156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

11. Continue closing the zipper only along the top edge
of the window.
12. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at thefront and working to the rear of the vehicle. Finish by
closing the zipper completely and attaching the Velcro
along the top and rear of the window. Repeat this step for
the opposite side.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157
3

13. Locate the black swing gate bar. Slide the swing gate
bar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down and
pointed outward to seal with the swing gate when closed.14. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and aligned
before zipping to prevent damage.
15. Run the zipper fully around to the right side of the
window.
158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

19. Close the header latches and return the sun visors to
their secured position.SUNRIDER — 4 DOOR MODELS
NOTE:If you are going to be driving faster than 40 mph
(64 km/h) with the Sunrider feature open, it is recom-
mended that you remove the rear window of the vehicle.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

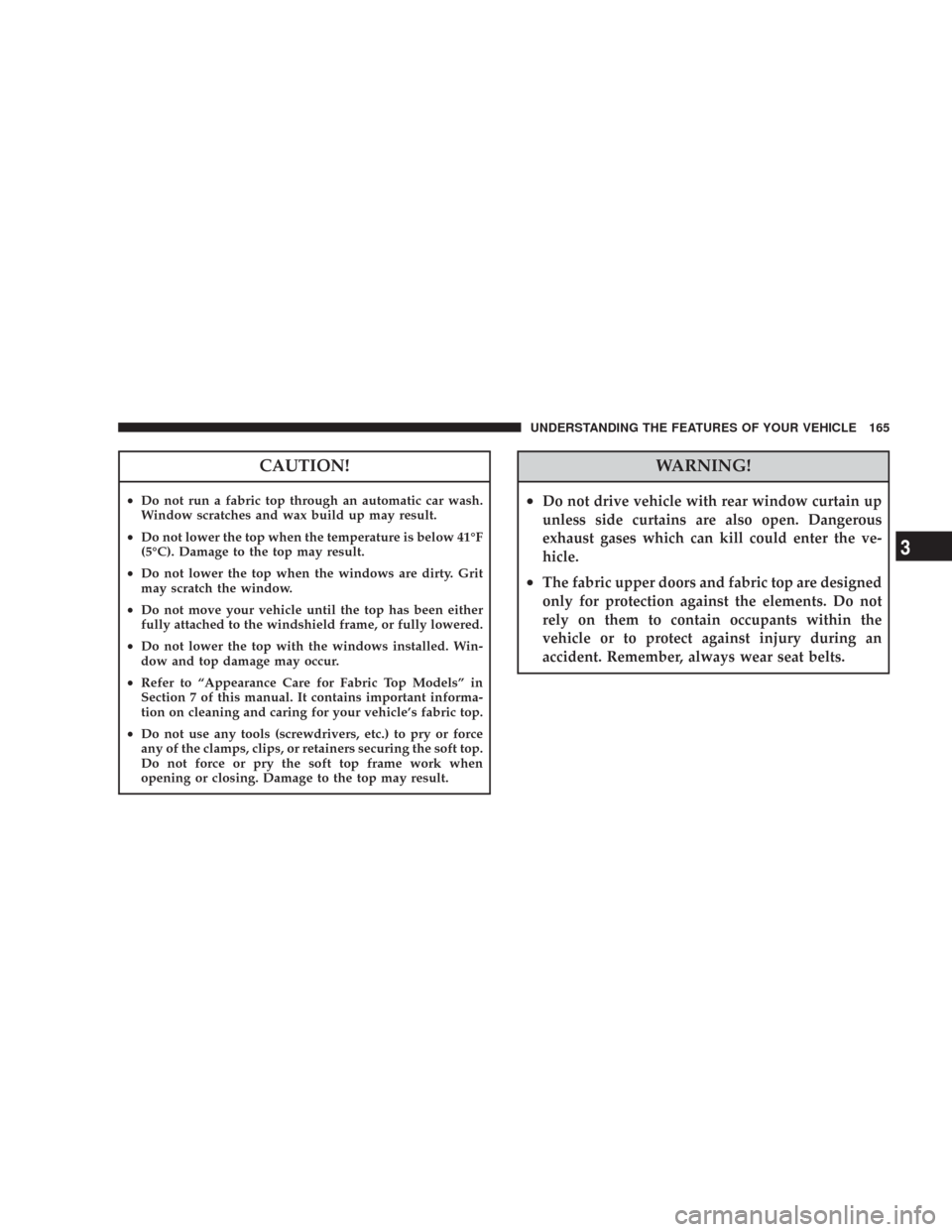

CAUTION!
•Do not run a fabric top through an automatic car wash.
Window scratches and wax build up may result.
•Do not lower the top when the temperature is below 41°F
(5°C). Damage to the top may result.
•Do not lower the top when the windows are dirty. Grit
may scratch the window.
•Do not move your vehicle until the top has been either
fully attached to the windshield frame, or fully lowered.
•Do not lower the top with the windows installed. Win-
dow and top damage may occur.
•Refer to “Appearance Care for Fabric Top Models” in
Section 7 of this manual. It contains important informa-
tion on cleaning and caring for your vehicle’s fabric top.
•Do not use any tools (screwdrivers, etc.) to pry or force
any of the clamps, clips, or retainers securing the soft top.
Do not force or pry the soft top frame work when
opening or closing. Damage to the top may result.
WARNING!
•Do not drive vehicle with rear window curtain up
unless side curtains are also open. Dangerous
exhaust gases which can kill could enter the ve-
hicle.
•The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the
vehicle or to protect against injury during an
accident. Remember, always wear seat belts.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
3

Folding Down The Soft Top
1 — Header Bow 6 — Body Side Retainer 11 — Plastic Retainer
2 — 2 Bow 7 — Quarter Window
3 — 3 Bow 8 — Check Strap
4 — 4 Bow 9 — Front Retainer — Quarter Window
5 — Sail Panel 10 — Bottom Retainer — Quarter Window 166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
