JEEP WRANGLER 2008 JK / 3.G Owners Manual

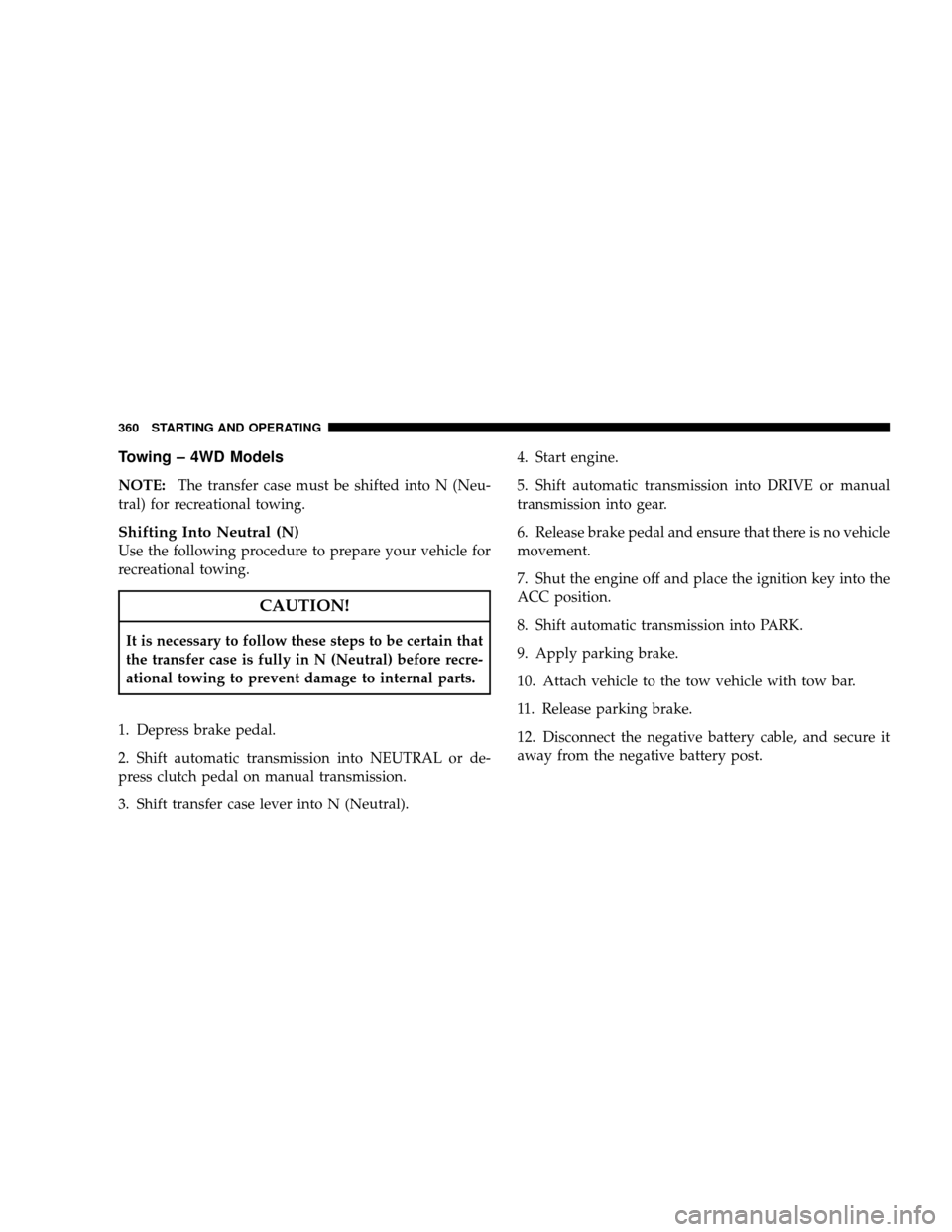

Towing – 4WD Models
NOTE:The transfer case must be shifted into N (Neu-
tral) for recreational towing.
Shifting Into Neutral (N)
Use the following procedure to prepare your vehicle for
recreational towing.
CAUTION!
It is necessary to follow these steps to be certain that
the transfer case is fully in N (Neutral) before recre-
ational towing to prevent damage to internal parts.
1. Depress brake pedal.
2. Shift automatic transmission into NEUTRAL or de-
press clutch pedal on manual transmission.
3. Shift transfer case lever into N (Neutral). 4. Start engine.
5. Shift automatic transmission into DRIVE or manual
transmission into gear.
6. Release brake pedal and ensure that there is no vehicle
movement.
7. Shut the engine off and place the ignition key into the
ACC position.
8. Shift automatic transmission into PARK.
9. Apply parking brake.
10. Attach vehicle to the tow vehicle with tow bar.
11. Release parking brake.
12. Disconnect the negative battery cable, and secure it
away from the negative battery post.
360 STARTING AND OPERATING

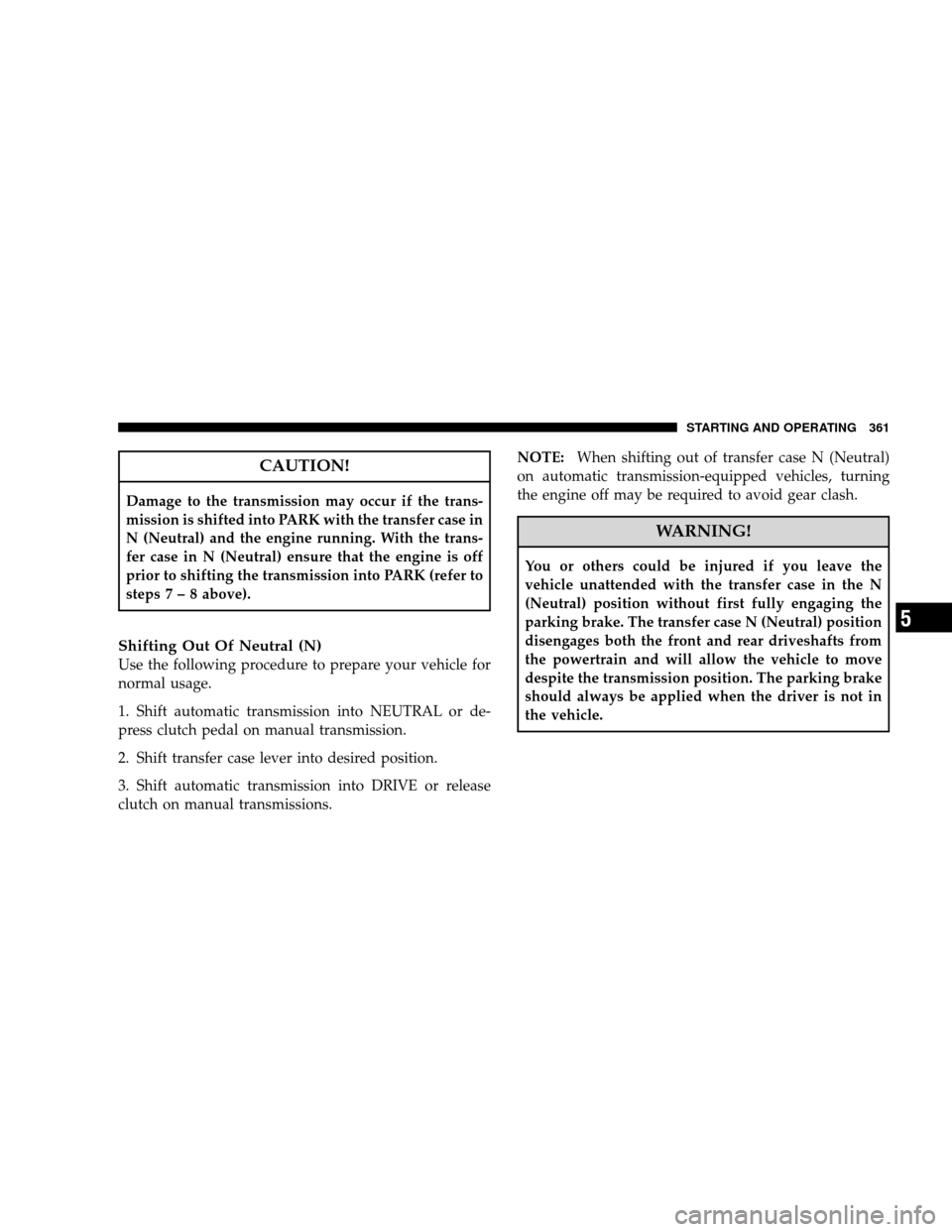

CAUTION!
Damage to the transmission may occur if the trans-
mission is shifted into PARK with the transfer case in
N (Neutral) and the engine running. With the trans-
fer case in N (Neutral) ensure that the engine is off
prior to shifting the transmission into PARK (refer to
steps7–8above).
Shifting Out Of Neutral (N)
Use the following procedure to prepare your vehicle for
normal usage.
1. Shift automatic transmission into NEUTRAL or de-
press clutch pedal on manual transmission.
2. Shift transfer case lever into desired position.
3. Shift automatic transmission into DRIVE or release
clutch on manual transmissions.NOTE:
When shifting out of transfer case N (Neutral)
on automatic transmission-equipped vehicles, turning
the engine off may be required to avoid gear clash.
WARNING!
You or others could be injured if you leave the
vehicle unattended with the transfer case in the N
(Neutral) position without first fully engaging the
parking brake. The transfer case N (Neutral) position
disengages both the front and rear driveshafts from
the powertrain and will allow the vehicle to move
despite the transmission position. The parking brake
should always be applied when the driver is not in
the vehicle.
STARTING AND OPERATING 361
5

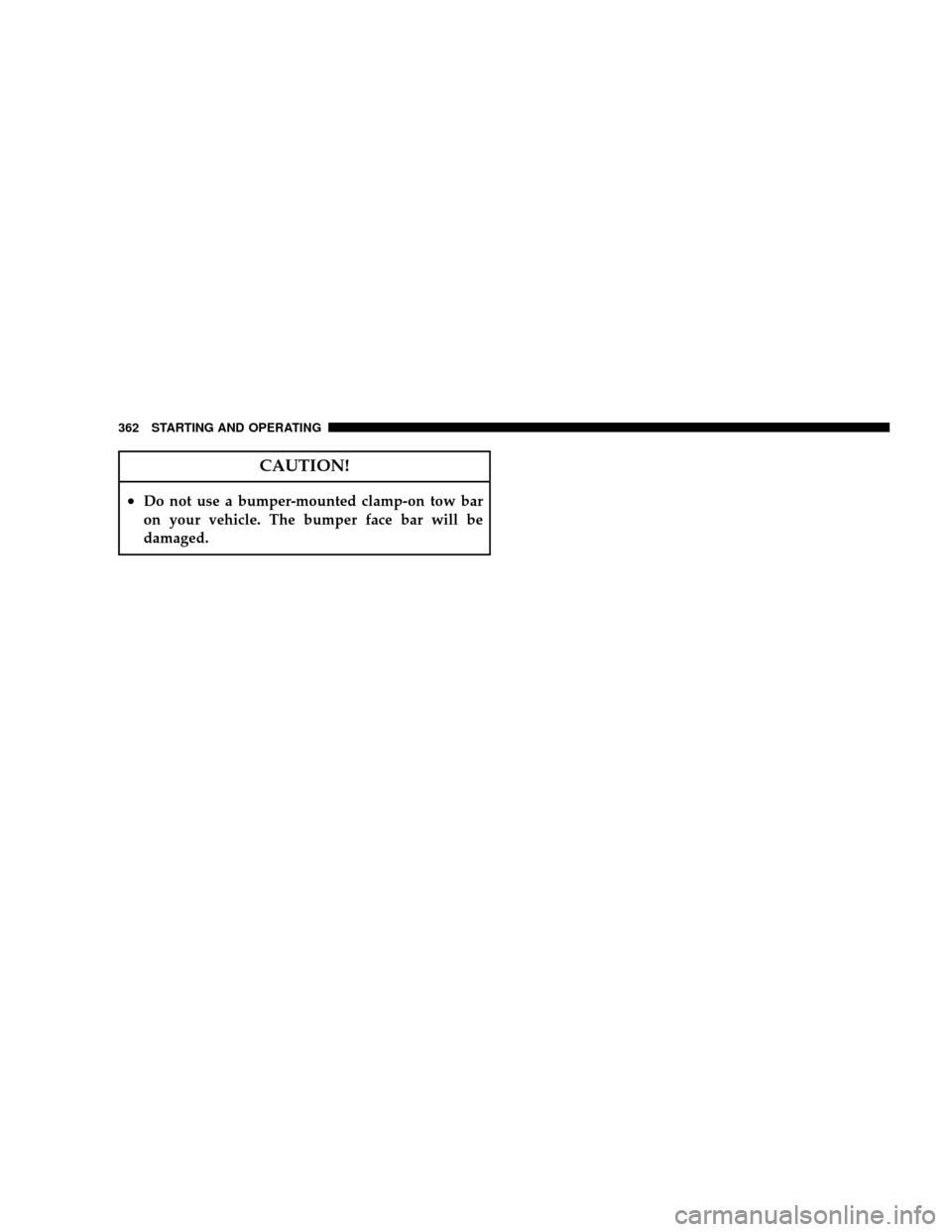

CAUTION!
•Do not use a bumper-mounted clamp-on tow bar
on your vehicle. The bumper face bar will be
damaged.
362 STARTING AND OPERATING

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flashers .................364
 If Your Engine Overheats .................365
 Jacking And Tire Changing ................366
▫ Jack Location ........................366
▫ Spare Tire Stowage ....................367 ▫
Preparations For Jacking ................367
▫ Jacking Instructions ....................368
 Jump Starting .........................371
 Emergency Tow Hooks — If Equipped ........374
 Towing A Disabled Vehicle ................374
6

HAZARD WARNING FLASHERS
Your vehicle’s hazard warning flasher is an emergency
warning system. When you activate it, all front and rear
directional signals will flash intermittently. Use it when
your vehicle is disabled on or near the road. It warns
other drivers to steer clear of you and your vehicle. This
is an emergency warning system, not to be used when the
vehicle is in motion.
To activate the warning flashers, press the switch on the
lower switch bank (below the climate controls). To turn
the warning flashers off, press the switch again.NOTE:With extended use, the flasher may wear down
your battery.
Hazard Warning Switch
364 WHAT TO DO IN EMERGENCIES

IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
•On the highways — Slow down.
•In city traffic — While stopped, shift transmission into
NEUTRAL, but do not increase engine idle speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition. If your air conditioner
is on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C
removes this heat. You can also turn the Temperature
Control to maximum heat, the Mode Control to floor, and
the Fan Control to High. This allows the heater core to act
as a supplement to the radiator and aids in removing heat
from the engine cooling system.
CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads HOT
(H), pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on HOT (H), and you hear continuous
chimes, turn the engine off immediately, and call for
service.
WHAT TO DO IN EMERGENCIES 365
6

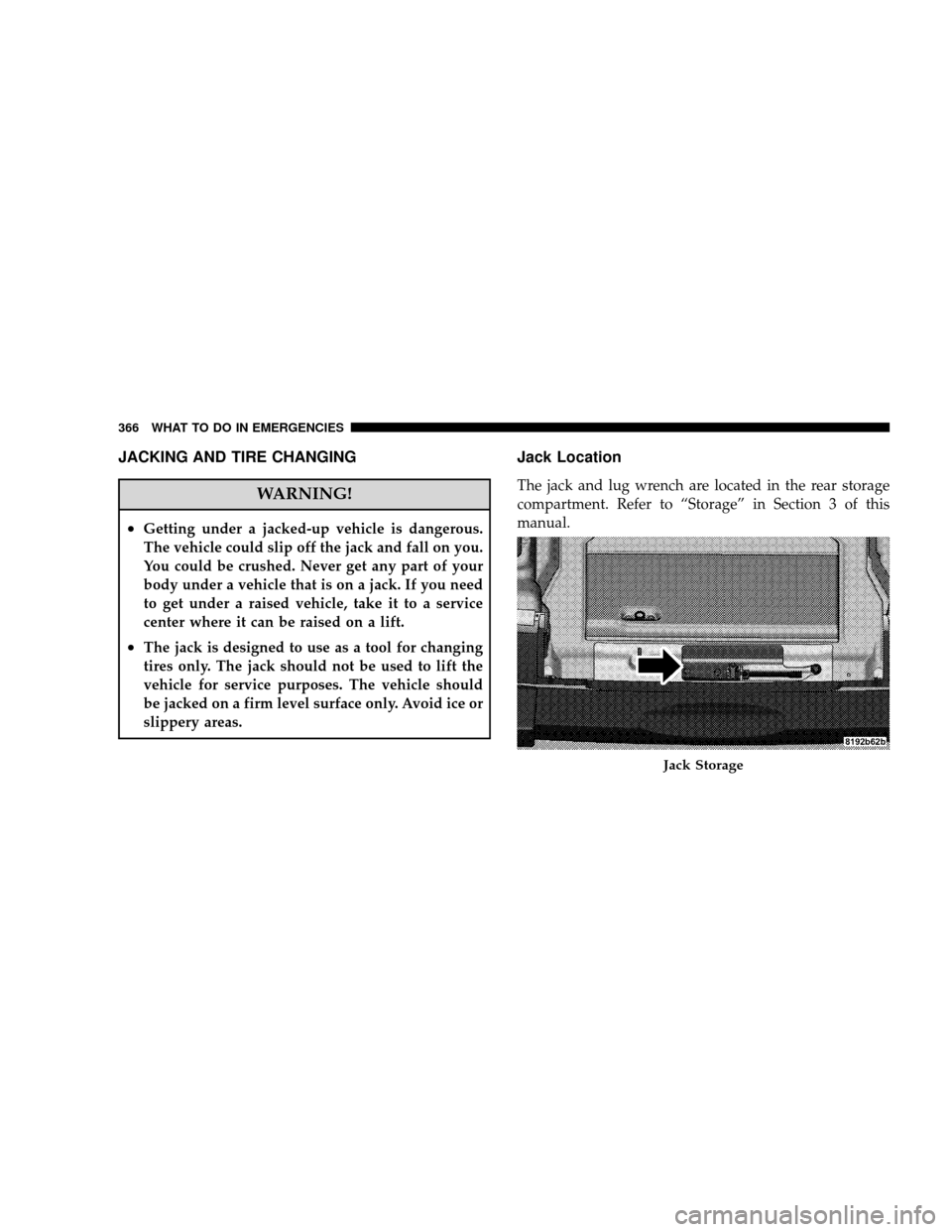

JACKING AND TIRE CHANGING
WARNING!
•Getting under a jacked-up vehicle is dangerous.
The vehicle could slip off the jack and fall on you.
You could be crushed. Never get any part of your
body under a vehicle that is on a jack. If you need
to get under a raised vehicle, take it to a service
center where it can be raised on a lift.
•The jack is designed to use as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should
be jacked on a firm level surface only. Avoid ice or
slippery areas.
Jack Location
The jack and lug wrench are located in the rear storage
compartment. Refer to “Storage” in Section 3 of this
manual.
Jack Storage
366 WHAT TO DO IN EMERGENCIES

Spare Tire Stowage
To remove the spare tire from the carrier, remove the tire
cover, if equipped, and remove the lug nuts with the lug
wrench turning them counterclockwise.
NOTE:If you have added aftermarket accessories to the
spare tire mounted carrier, it cannot exceed a gross
weight of 50 lbs (23 kg) including the weight of the spare
tire.
Preparations For Jacking
Park on a firm level surface, avoid ice or slippery areas,
set the parking brake and shift automatic transmission
into PARK, or manual transmission into REVERSE. Turn
OFF the ignition.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid being hit when operating the jack
or changing the wheel.
•Turn on the hazard warning flashers. Refer to “Hazard
Warning Flashers” in this section.
•Block both the front and rear
of the wheel diagonally oppo-
site of the jacking position.
For example, if changing the
right front tire, block the left
rear wheel.
•Passengers should not remain in the vehicle when the
vehicle is being jacked.
WHAT TO DO IN EMERGENCIES 367
6

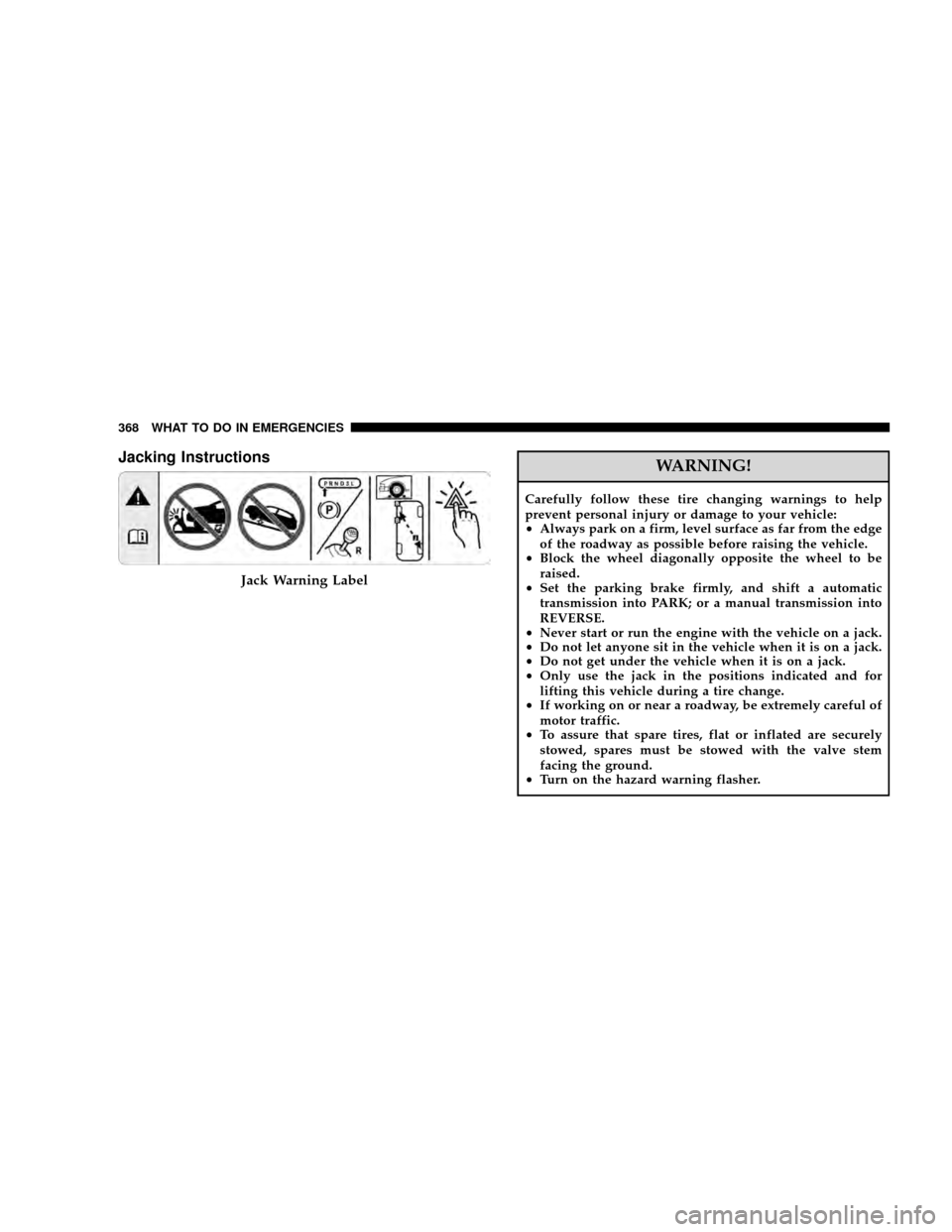

Jacking InstructionsWARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
•Always park on a firm, level surface as far from the edge
of the roadway as possible before raising the vehicle.
• Block the wheel diagonally opposite the wheel to be
raised.
• Set the parking brake firmly, and shift a automatic
transmission into PARK; or a manual transmission into
REVERSE.
• Never start or run the engine with the vehicle on a jack.
• Do not let anyone sit in the vehicle when it is on a jack.
• Do not get under the vehicle when it is on a jack.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely careful of
motor traffic.
• To assure that spare tires, flat or inflated are securely
stowed, spares must be stowed with the valve stem
facing the ground.
• Turn on the hazard warning flasher.
Jack Warning Label
368 WHAT TO DO IN EMERGENCIES

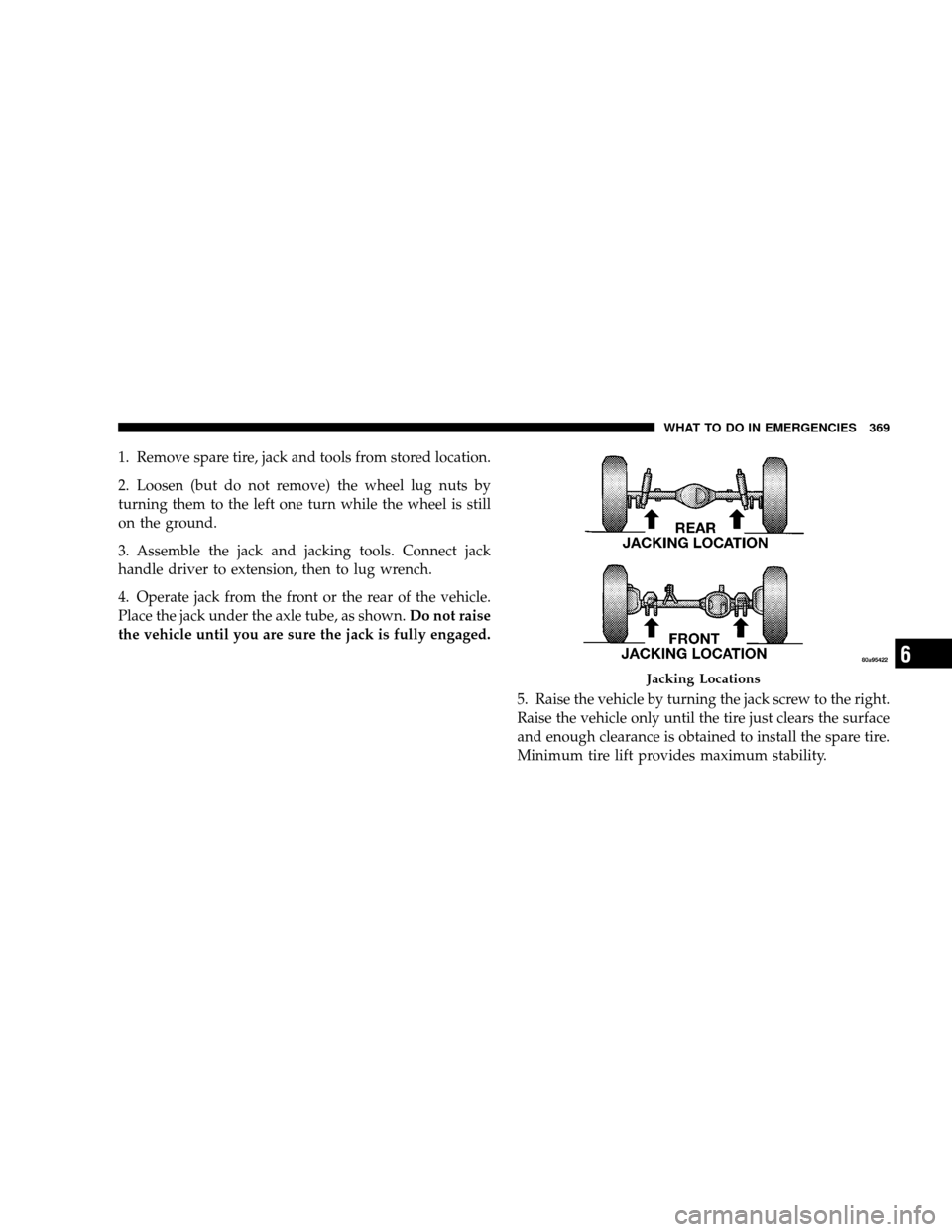

1. Remove spare tire, jack and tools from stored location.
2. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground.
3. Assemble the jack and jacking tools. Connect jack
handle driver to extension, then to lug wrench.
4. Operate jack from the front or the rear of the vehicle.
Place the jack under the axle tube, as shown.Do not raise
the vehicle until you are sure the jack is fully engaged.
5. Raise the vehicle by turning the jack screw to the right.
Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.
Jacking Locations
WHAT TO DO IN EMERGENCIES 369
6
