The Trailer Tow Package will include a 4–pin wiring
harness. Use a factory-approved trailer harness and
connector.
NOTE:Do not cut or splice wiring into the vehicles
wiring harness.
The electrical connections are all complete to the vehicle
but you must mate the harness to a trailer connector.
Refer to the following illustration.
Towing Tips
Before setting out on a trip, practice turning, stopping
and backing the trailer in an area away from heavy
traffic.
4 - Pin Connector
STARTING AND OPERATING 357
5

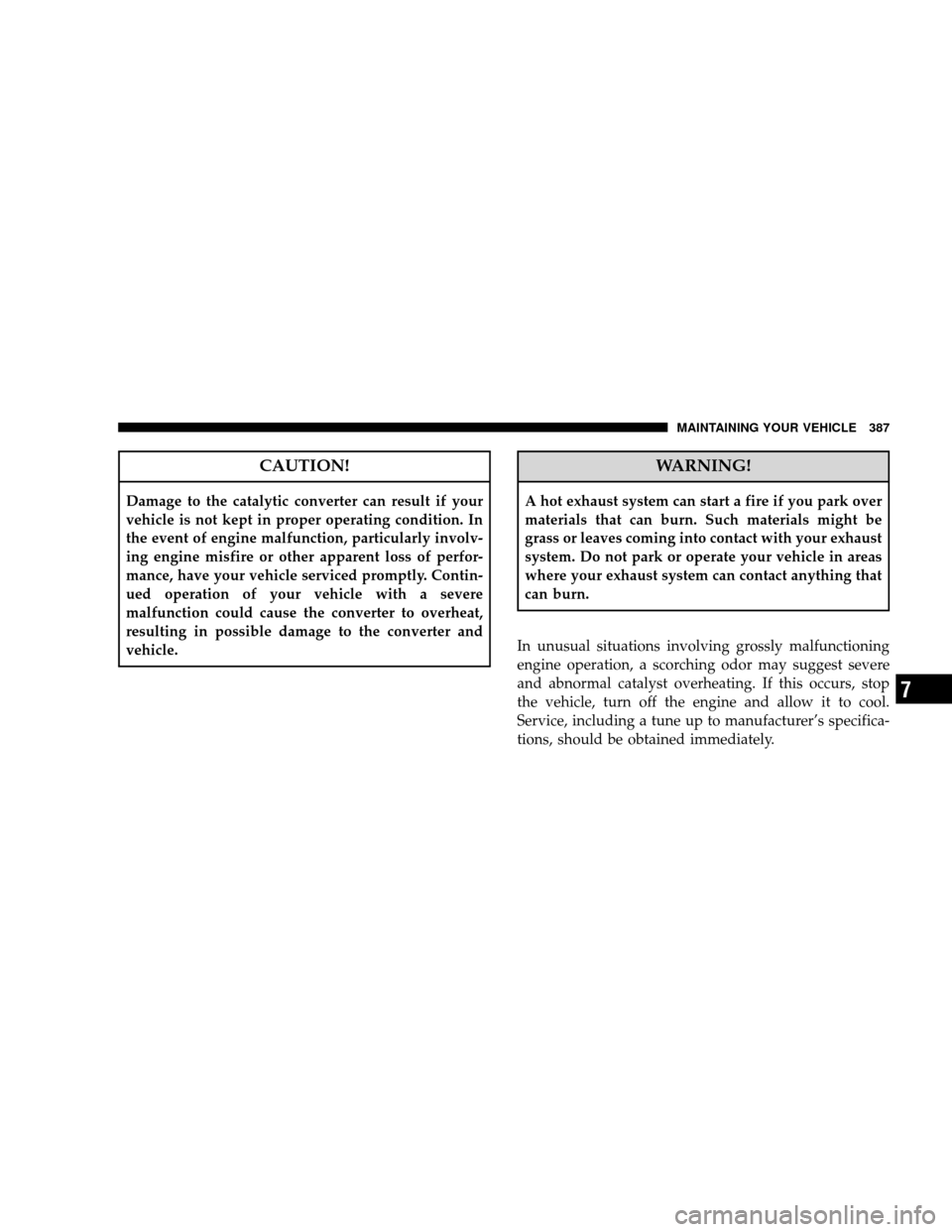

CAUTION!
Damage to the catalytic converter can result if your
vehicle is not kept in proper operating condition. In
the event of engine malfunction, particularly involv-
ing engine misfire or other apparent loss of perfor-
mance, have your vehicle serviced promptly. Contin-
ued operation of your vehicle with a severe
malfunction could cause the converter to overheat,
resulting in possible damage to the converter and
vehicle.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe
and abnormal catalyst overheating. If this occurs, stop
the vehicle, turn off the engine and allow it to cool.
Service, including a tune up to manufacturer’s specifica-
tions, should be obtained immediately.
MAINTAINING YOUR VEHICLE 387
7

NOTE:Use only manufacturer approved A/C System
Sealers, Stop Leak Products, Seal Conditioners, Compres-
sor Oil, and Refrigerants.
Refrigerant Recovery and Recycling
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency (EPA) and is an ozone-saving product.
However, the manufacturer recommends that air condi-
tioning service be performed by authorized dealers or
other service facilities using recovery and recycling
equipment.
Power Steering Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be
checked if a leak is suspected, abnormal noises are
apparent, and/or the system is not functioning as antici-
pated. Coordinate inspection efforts through an autho-
rized DaimlerChrysler Dealership.
WARNING!
Fluid level should be checked on a level surface with
the engine off to prevent injury from moving parts,
and to ensure accurate fluid level reading. Do not
overfill. Use only the manufacturer’s recommended
power steering fluid.
If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to Fluids, Lubricants, and Genuine Parts
in this section for correct fluid type.
NOTE: Upon initial start-up in cold weather, the power
steering pump may make noise for a short period of time.
This is due to the cold, thick fluid in the steering system.
This noise should be considered normal, and does not in
any way damage the steering system.
MAINTAINING YOUR VEHICLE 391
7

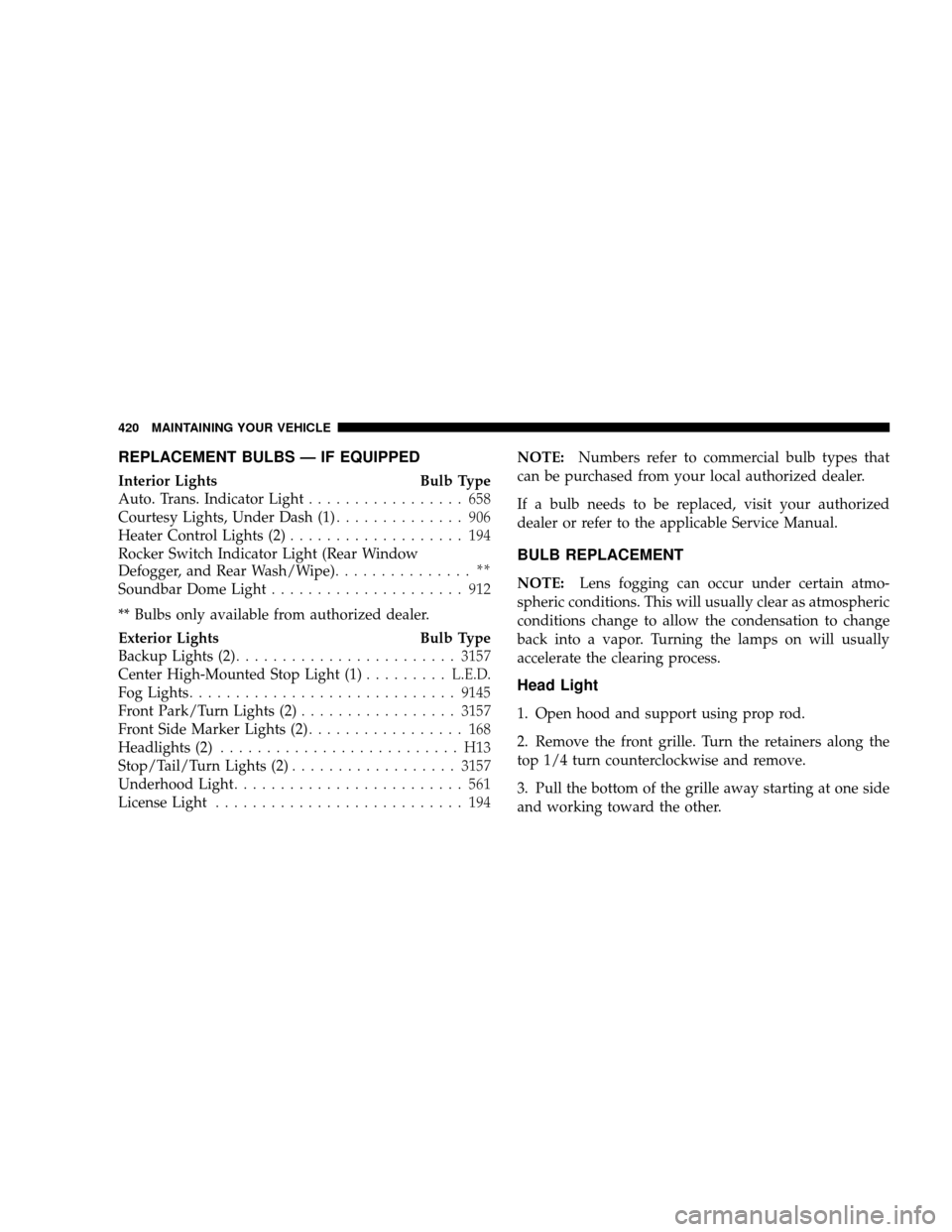

REPLACEMENT BULBS — IF EQUIPPED
Interior LightsBulb Type
Auto. Trans. Indicator Light ................. 658
Courtesy Lights, Under Dash (1) .............. 906
Heater Control Lights (2) ................... 194
Rocker Switch Indicator Light (Rear Window
Defogger, and Rear Wash/Wipe) ............... **
Soundbar Dome Light ..................... 912
** Bulbs only available from authorized dealer.
Exterior Lights Bulb Type
Backup Lights (2) ........................ 3157
Center High-Mounted Stop Light (1) .........L.E.D.
Fog Lights ............................. 9145
Front Park/Turn Lights (2) .................3157
Front Side Marker Lights (2) ................. 168
Headlights (2) .......................... H13
Stop/Tail/Turn Lights (2) ..................3157
Underhood Light ......................... 561
License Light ........................... 194 NOTE:
Numbers refer to commercial bulb types that
can be purchased from your local authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
NOTE: Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Head Light
1. Open hood and support using prop rod.
2. Remove the front grille. Turn the retainers along the
top 1/4 turn counterclockwise and remove.
3. Pull the bottom of the grille away starting at one side
and working toward the other.
420 MAINTAINING YOUR VEHICLE

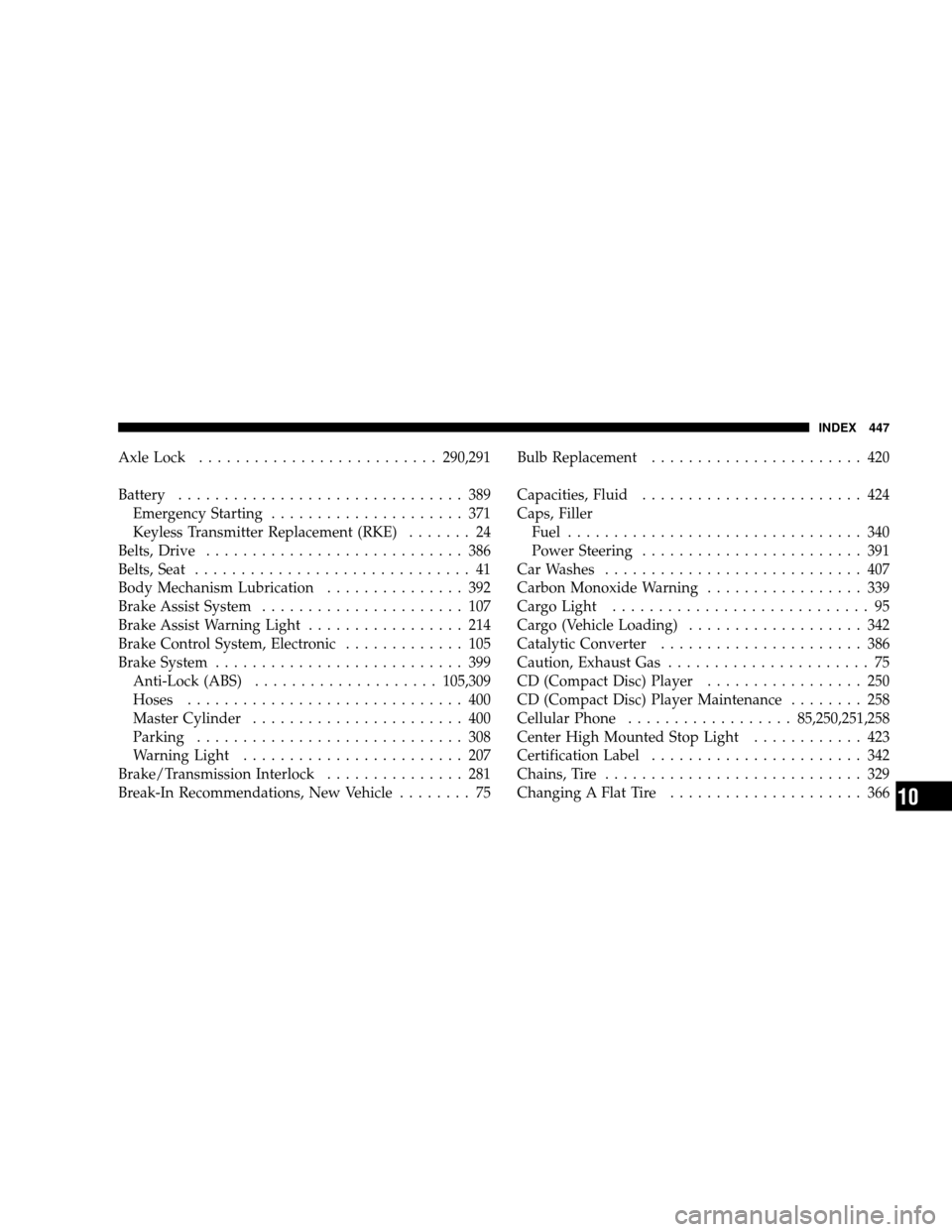

Axle Lock.......................... 290,291
Battery ............................... 389
Emergency Starting ..................... 371
Keyless Transmitter Replacement (RKE) ....... 24
Belts, Drive ............................ 386
Belts, Seat .............................. 41
Body Mechanism Lubrication ............... 392
Brake Assist System ...................... 107
Brake Assist Warning Light ................. 214
Brake Control System, Electronic ............. 105
Brake System ........................... 399
Anti-Lock (ABS) .................... 105,309
Hoses .............................. 400
Master Cylinder ....................... 400
Parking ............................. 308
Warning Light ........................ 207
Brake/Transmission Interlock ............... 281
Break-In Recommendations, New Vehicle ........ 75Bulb Replacement
....................... 420
Capacities, Fluid ........................ 424
Caps, Filler Fuel ................................ 340
Power Steering ........................ 391
Car Washes ............................ 407
Carbon Monoxide Warning ................. 339
Cargo Light ............................ 95
Cargo (Vehicle Loading) ................... 342
Catalytic Converter ...................... 386
Caution, Exhaust Gas ...................... 75
CD (Compact Disc) Player ................. 250
CD (Compact Disc) Player Maintenance ........ 258
Cellular Phone .................. 85,250,251,258
Center High Mounted Stop Light ............ 423
Certification Label ....................... 342
Chains, Tire ............................ 329
Changing A Flat Tire ..................... 366
INDEX 447
