zipper halves with fresh water and allow to dry. Aggres-
sively work the MOPARSoft Top Zipper Cleaner and
Lubricant into the zipper teeth. If a stuck zipper slide is
experienced, work the MOPAR Soft Top Zipper Cleaner
and Lubricant into the zipper slide. Several applications
may be required before the zipper comes free.
6. Never paste stickers, gummed labels or any tape to the
windows. Adhesives are hard to remove and may dam-
age the windows.
FUSES (TOTALLY INTEGRATED POWER
MODULE)

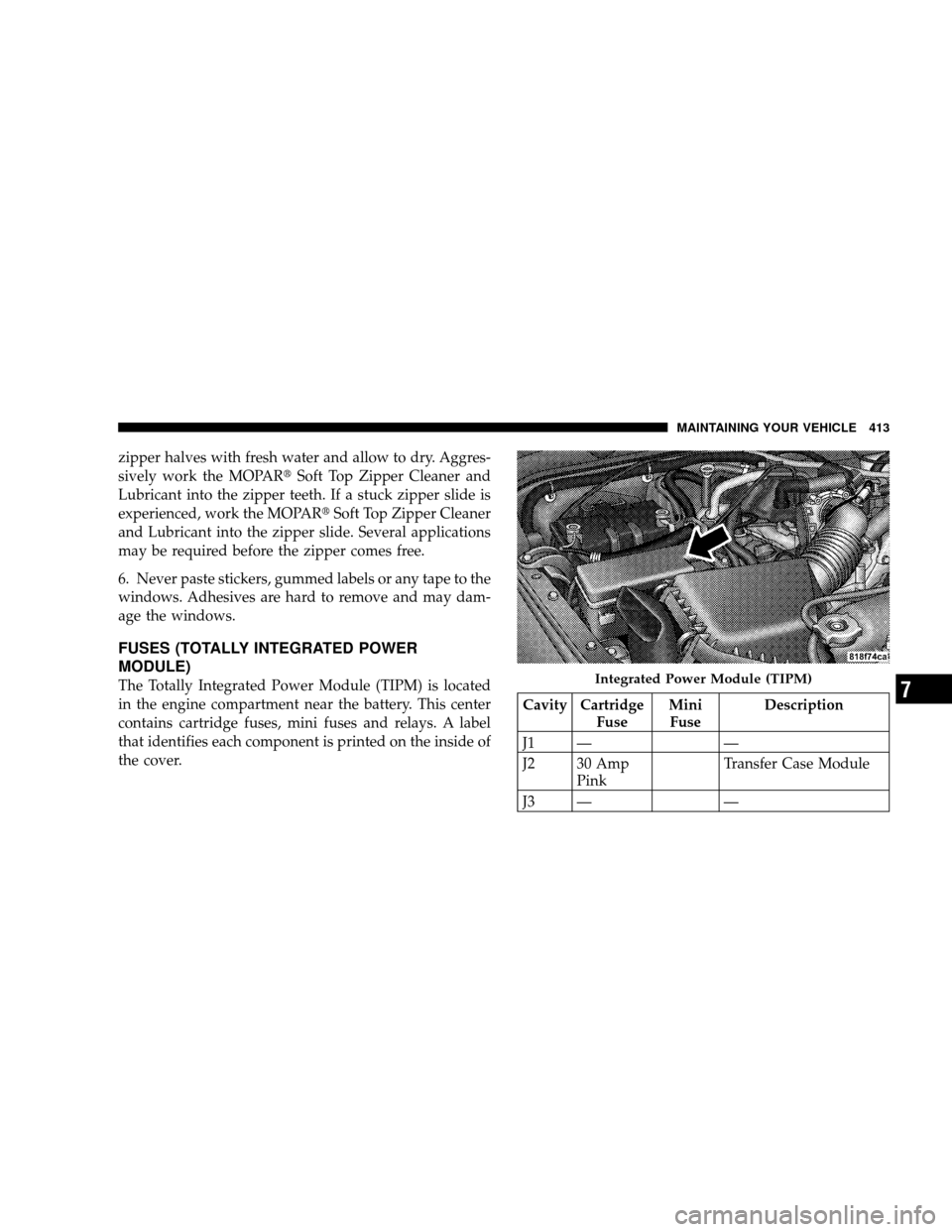

The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses, mini fuses and relays. A label
that identifies each component is printed on the inside of
the cover.
Cavity Cartridge FuseMini
Fuse Description
J1 — —
J2 30 Amp Pink Transfer Case Module
J3 — —
Integrated Power Module (TIPM)
MAINTAINING YOUR VEHICLE 413
7

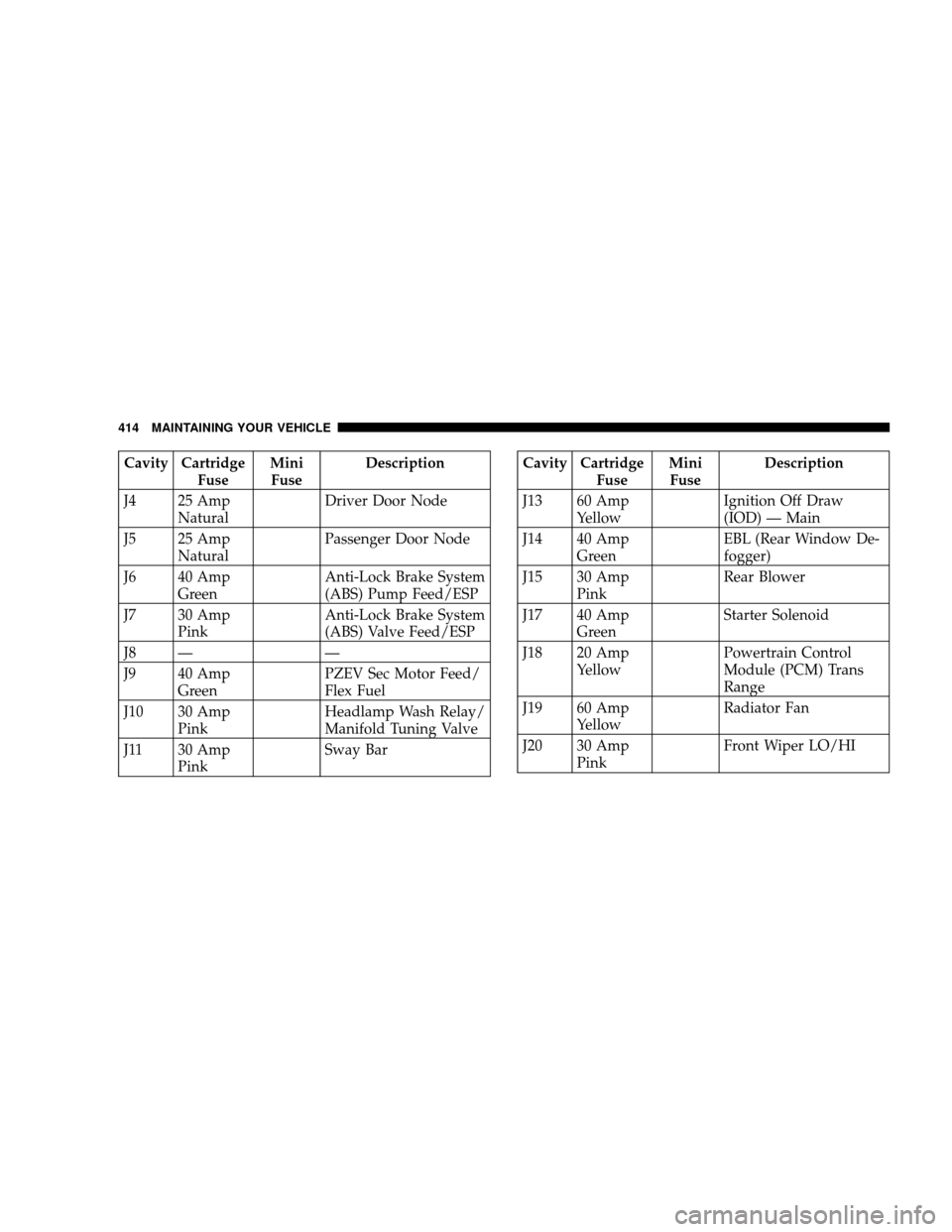

Cavity CartridgeFuseMini
Fuse Description
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake System
(ABS) Pump Feed/ESP
J7 30 Amp Pink Anti-Lock Brake System
(ABS) Valve Feed/ESP
J8 — —
J9 40 Amp Green PZEV Sec Motor Feed/
Flex Fuel
J10 30 Amp Pink Headlamp Wash Relay/
Manifold Tuning Valve
J11 30 Amp Pink Sway BarCavity Cartridge
FuseMini
Fuse Description
J13 60 Amp Yellow Ignition Off Draw
(IOD) — Main
J14 40 Amp Green EBL (Rear Window De-
fogger)
J15 30 Amp Pink Rear Blower
J17 40 Amp Green Starter Solenoid
J18 20 Amp Yellow Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
414 MAINTAINING YOUR VEHICLE

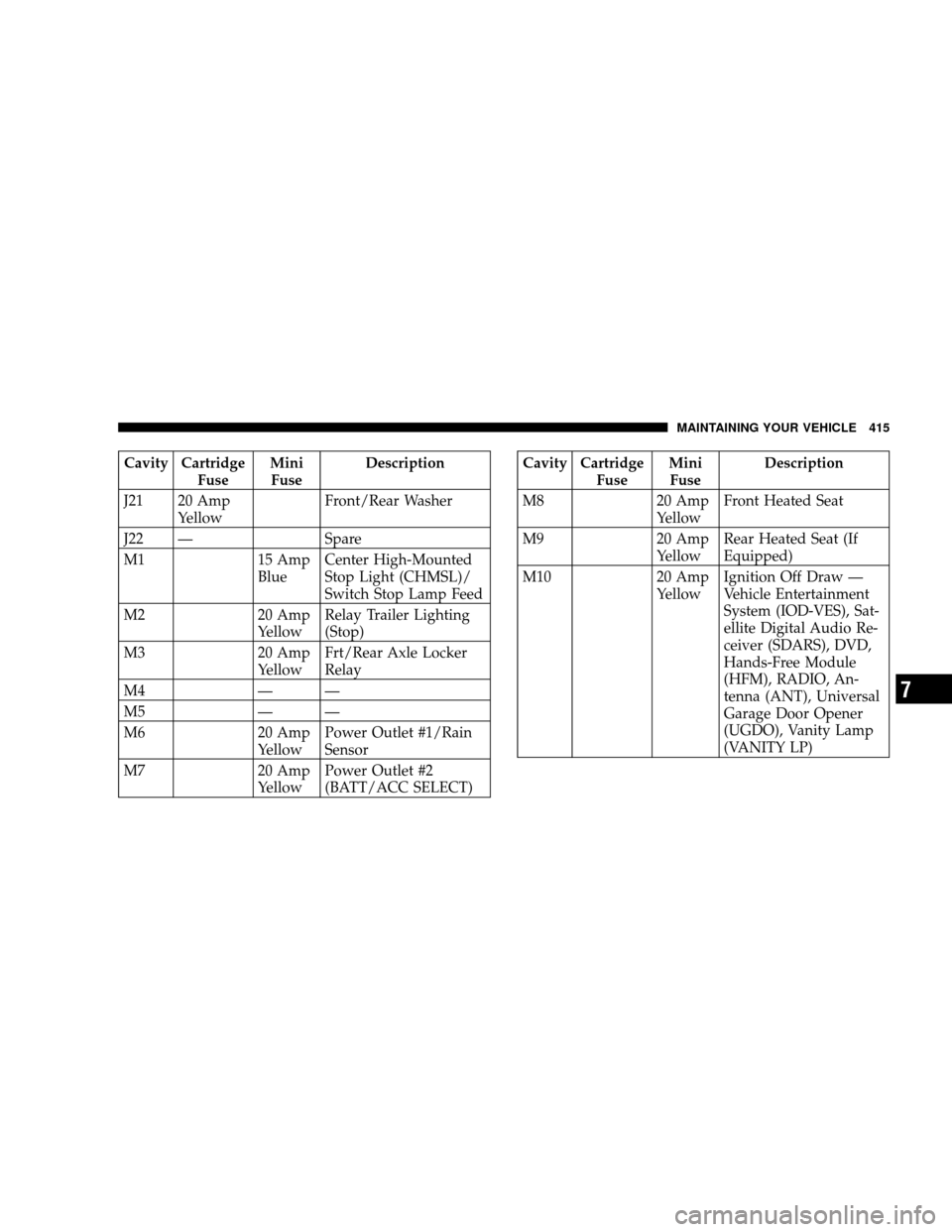

Cavity CartridgeFuseMini
Fuse Description
J21 20 Amp Yellow Front/Rear Washer
J22 — Spare
M1 15 Amp
Blue Center High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp Feed
M2 20 Amp
Yellow Relay Trailer Lighting
(Stop)
M3 20 Amp
Yellow Frt/Rear Axle Locker
Relay
M4 — —
M5 — —
M6 20 Amp
Yellow Power Outlet #1/Rain
Sensor
M7 20 Amp
Yellow Power Outlet #2
(BATT/ACC SELECT)Cavity Cartridge
FuseMini
Fuse Description
M8 20 Amp
Yellow Front Heated Seat
M9 20 Amp
Yellow Rear Heated Seat (If
Equipped)
M10 20 Amp
Yellow Ignition Off Draw —
Vehicle Entertainment
System (IOD-VES), Sat-
ellite Digital Audio Re-
ceiver (SDARS), DVD,
Hands-Free Module
(HFM), RADIO, An-
tenna (ANT), Universal
Garage Door Opener
(UGDO), Vanity Lamp
(VANITY LP)
MAINTAINING YOUR VEHICLE 415
7
