JEEP WRANGLER 2008 Owners Manual

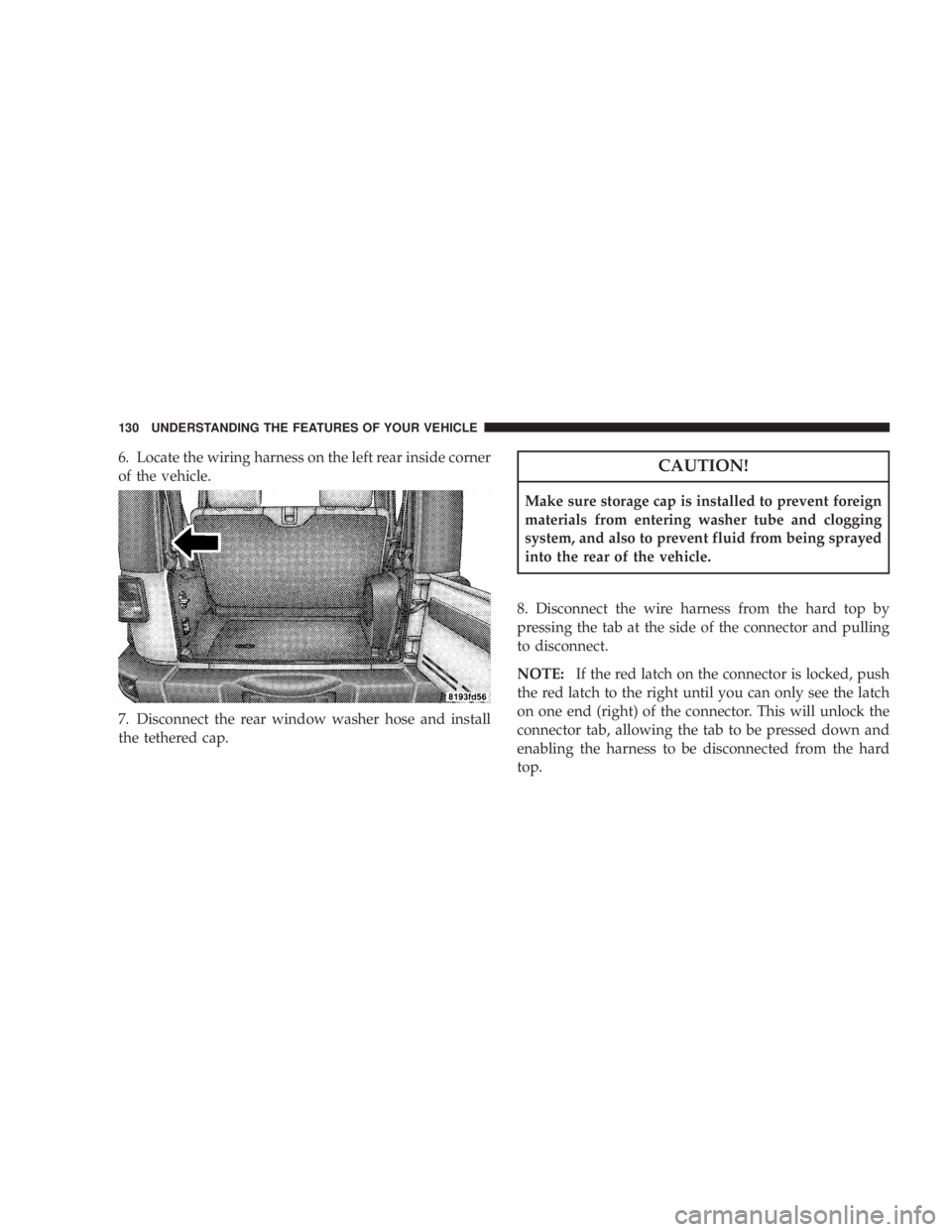

6. Locate the wiring harness on the left rear inside corner
of the vehicle.
7. Disconnect the rear window washer hose and install
the tethered cap.

3

DOOR FRAME

3

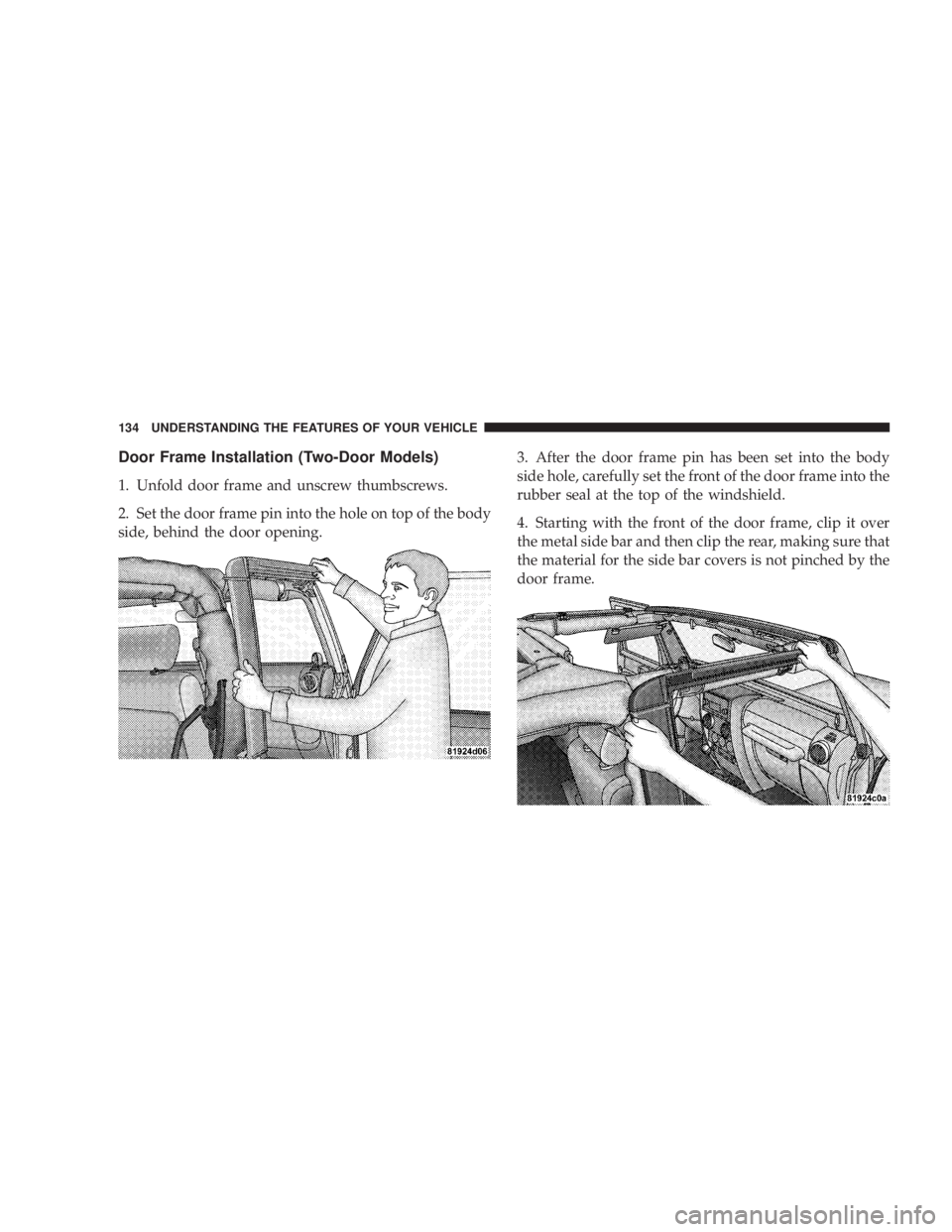

Door Frame Installation (Two-Door Models)
1. Unfold door frame and unscrew thumbscrews.
2. Set the door frame pin into the hole on top of the body
side, behind the door opening.3. After the door frame pin has been set into the body
side hole, carefully set the front of the door frame into the
rubber seal at the top of the windshield.
4. Starting with the front of the door frame, clip it over
the metal side bar and then clip the rear, making sure that
the material for the side bar covers is not pinched by the
door frame.

3

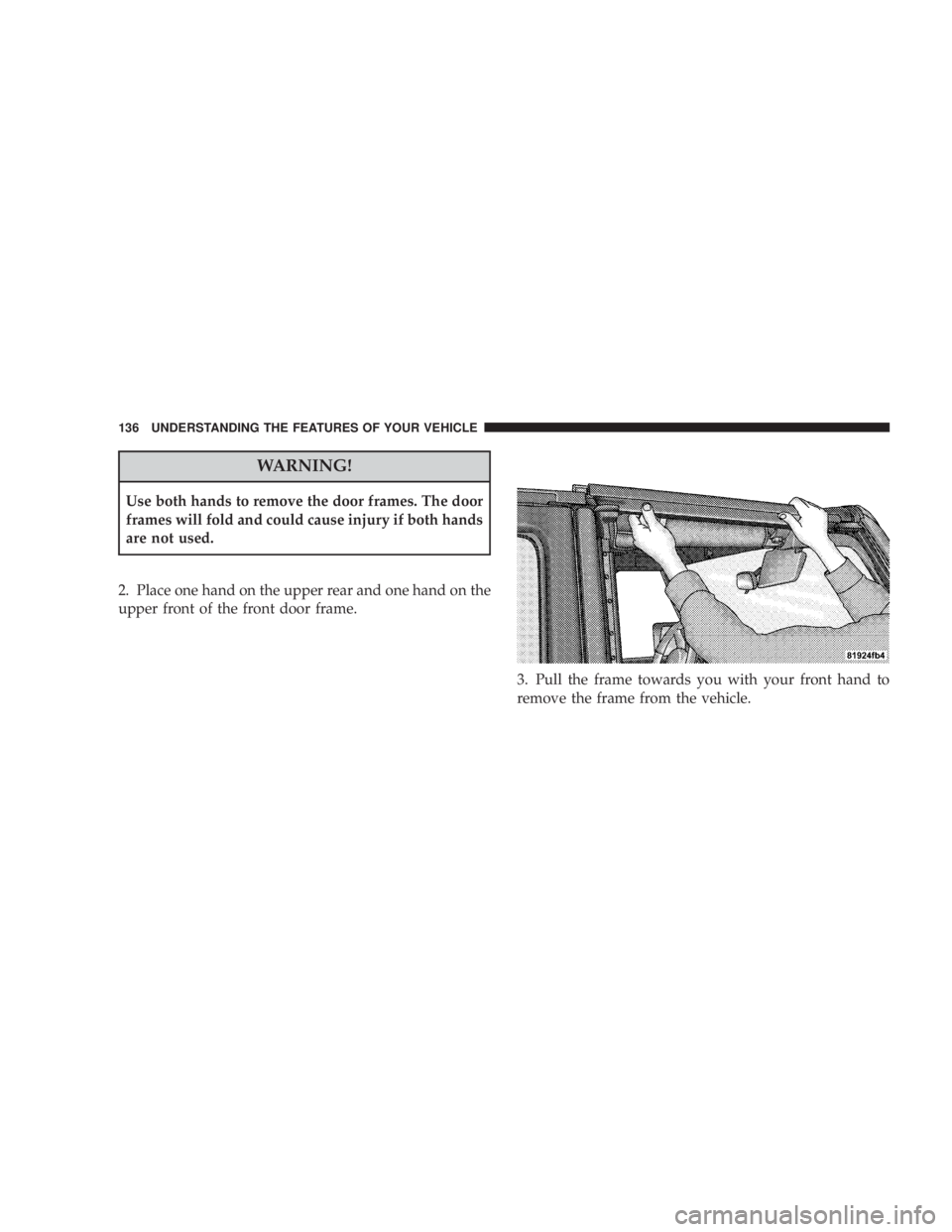

WARNING!
Use both hands to remove the door frames. The door
frames will fold and could cause injury if both hands
are not used.
2. Place one hand on the upper rear and one hand on the
upper front of the front door frame.
3. Pull the frame towards you with your front hand to
remove the frame from the vehicle.

3

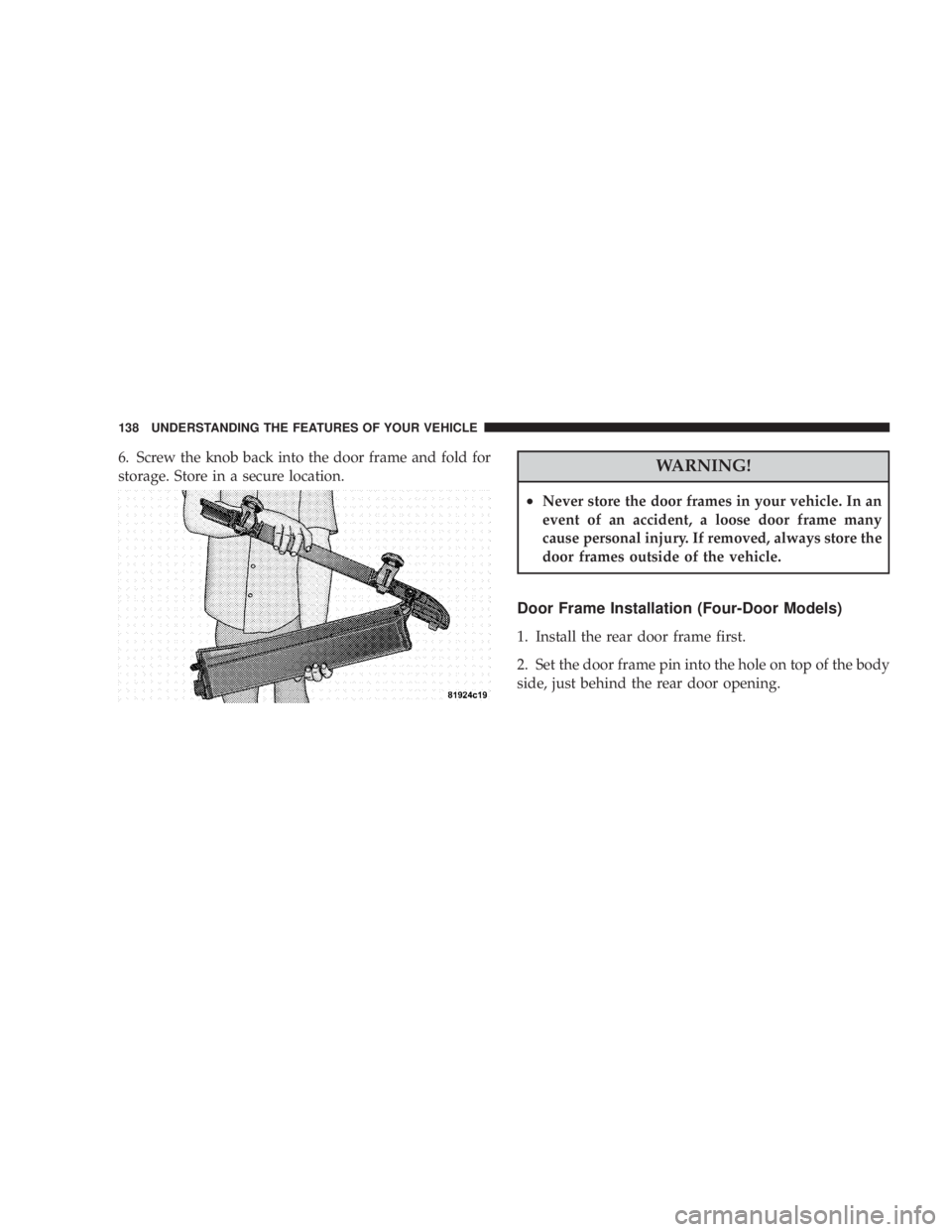

6. Screw the knob back into the door frame and fold for
storage. Store in a secure location.
