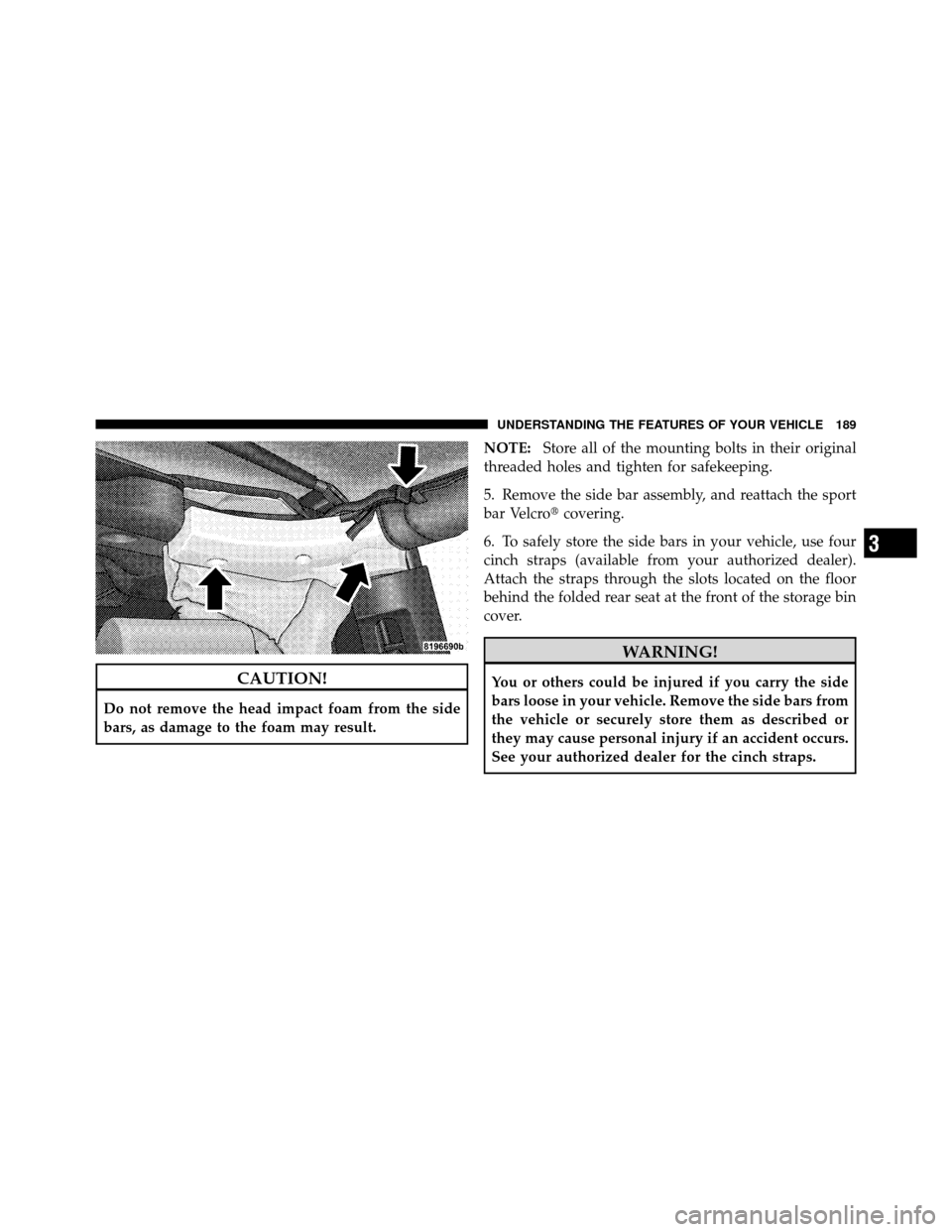

CAUTION!
Do not remove the head impact foam from the side
bars, as damage to the foam may result.NOTE:
Store all of the mounting bolts in their original
threaded holes and tighten for safekeeping.
5. Remove the side bar assembly, and reattach the sport
bar Velcro covering.
6. To safely store the side bars in your vehicle, use four
cinch straps (available from your authorized dealer).
Attach the straps through the slots located on the floor
behind the folded rear seat at the front of the storage bin
cover.
WARNING!
You or others could be injured if you carry the side
bars loose in your vehicle. Remove the side bars from
the vehicle or securely store them as described or
they may cause personal injury if an accident occurs.
See your authorized dealer for the cinch straps.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189

7. Remove the windshield wiper arms by first pulling
the wiper away from the windshield and out to the
“lock” position. Unsnap the wiper arm nut caps, and
remove the retaining nuts. Lift the wiper arms off and
store them in the center console or securely behind the
rear seat.
NOTE:It may be necessary to use a battery terminal
puller tool in order to separate the wiper arms from the
shaft after the nuts have been removed.
8. Remove the lower windshield plates by removing the
six black round-headed Torx head screws (using a #40
Torx head driver) on each side of the base of the
windshield. 9. Lower the windshield gently until it contacts the
rubber hood bumpers.
10. Secure the windshield by passing a cinch strap
through the footman hoop on the center of the hood and
on the center of the windshield frame. Tighten the strap
to secure the windshield in place.
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

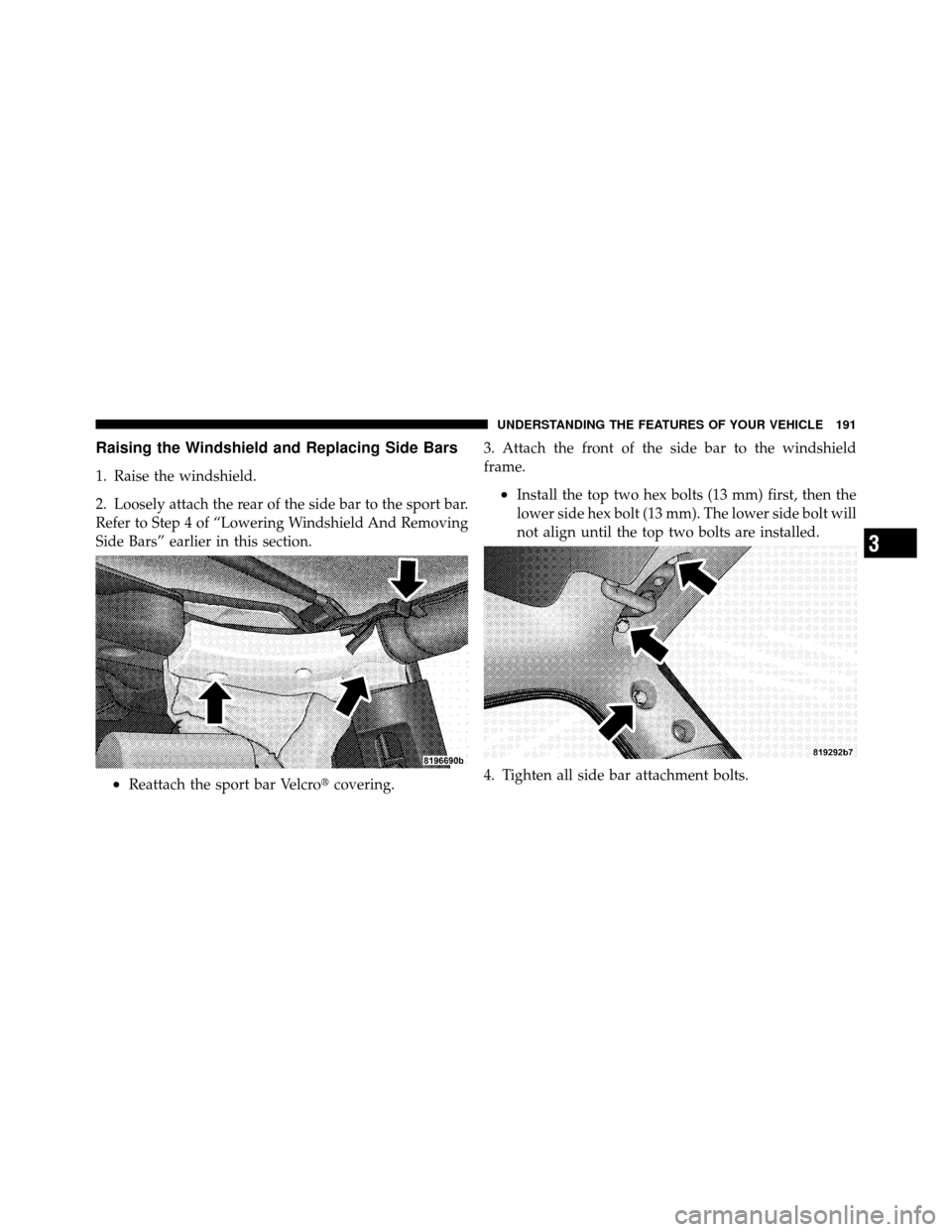

Raising the Windshield and Replacing Side Bars
1. Raise the windshield.
2. Loosely attach the rear of the side bar to the sport bar.
Refer to Step 4 of “Lowering Windshield And Removing
Side Bars” earlier in this section.
•Reattach the sport bar Velcrocovering.3. Attach the front of the side bar to the windshield
frame.
•Install the top two hex bolts (13 mm) first, then the
lower side hex bolt (13 mm). The lower side bolt will
not align until the top two bolts are installed.
4. Tighten all side bar attachment bolts.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

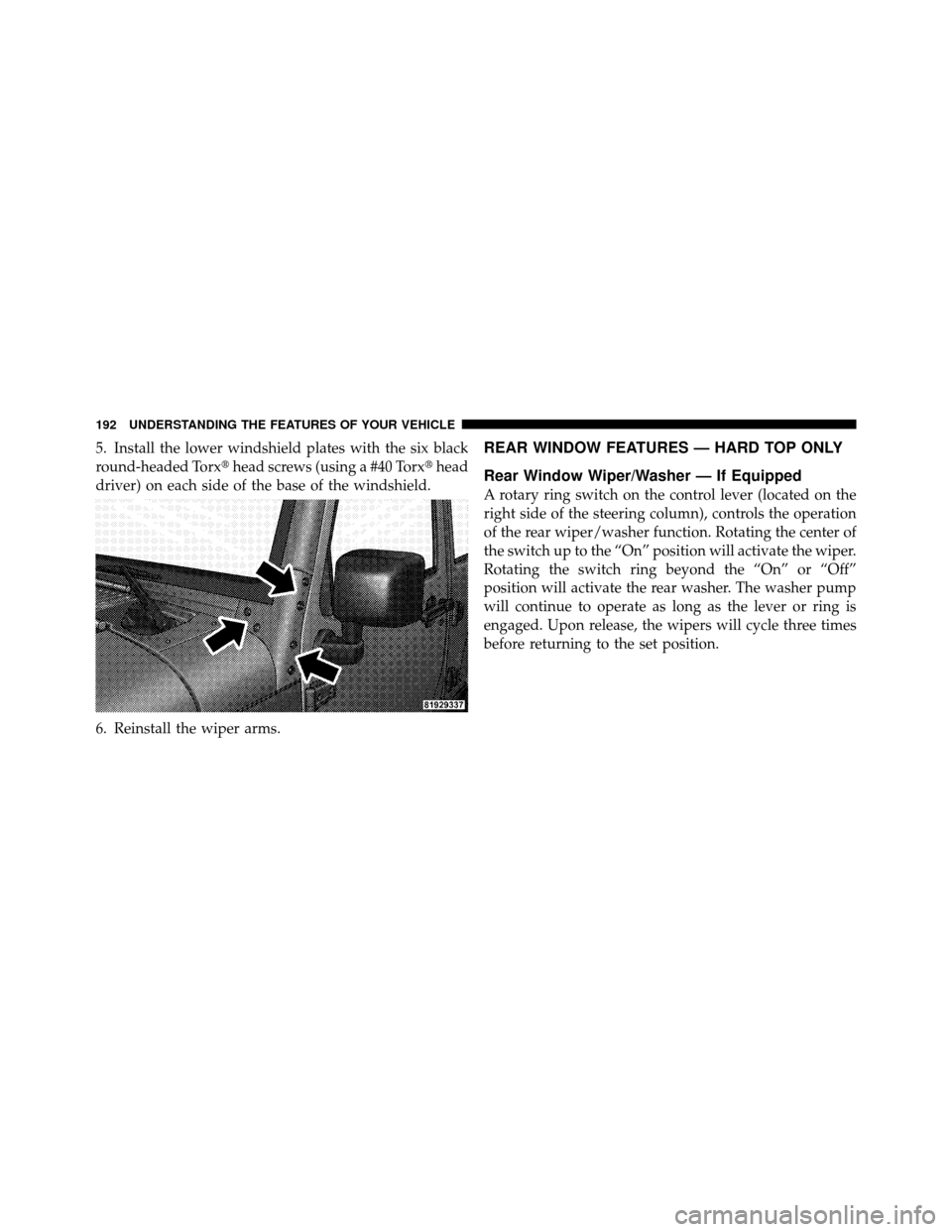

5. Install the lower windshield plates with the six black
round-headed Torxhead screws (using a #40 Torx head
driver) on each side of the base of the windshield.
6. Reinstall the wiper arms.REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary ring switch on the control lever (located on the
right side of the steering column), controls the operation
of the rear wiper/washer function. Rotating the center of
the switch up to the “On” position will activate the wiper.
Rotating the switch ring beyond the “On” or “Off”
position will activate the rear washer. The washer pump
will continue to operate as long as the lever or ring is
engaged. Upon release, the wipers will cycle three times
before returning to the set position.
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically returnto the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Window Defroster — If Equipped
The rear window defroster button is located on the
bottom right-side of the blower control knob.
Press this button to turn on the rear window defroster
and the heated outside mirrors (if equipped). An indica-
tor in the button will illuminate when the rear window
defroster is on. The rear window defroster automatically
turns off after approximately 10 minutes. For an addi-
tional five minutes of operation, press the button a
second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Windshield Wiper/Washer Switch
1 — Rear Wiper Position
2 — Rear Washer Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193

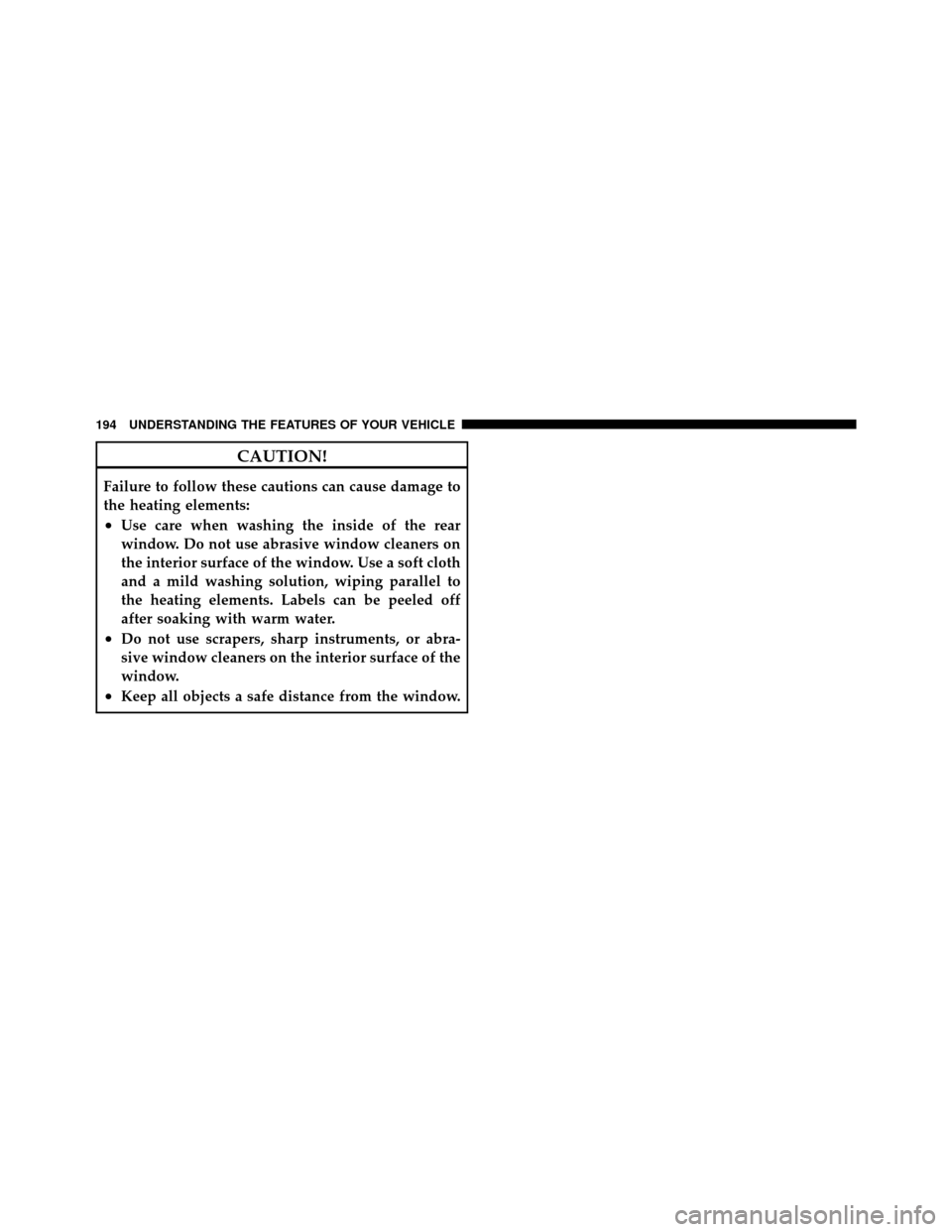

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL

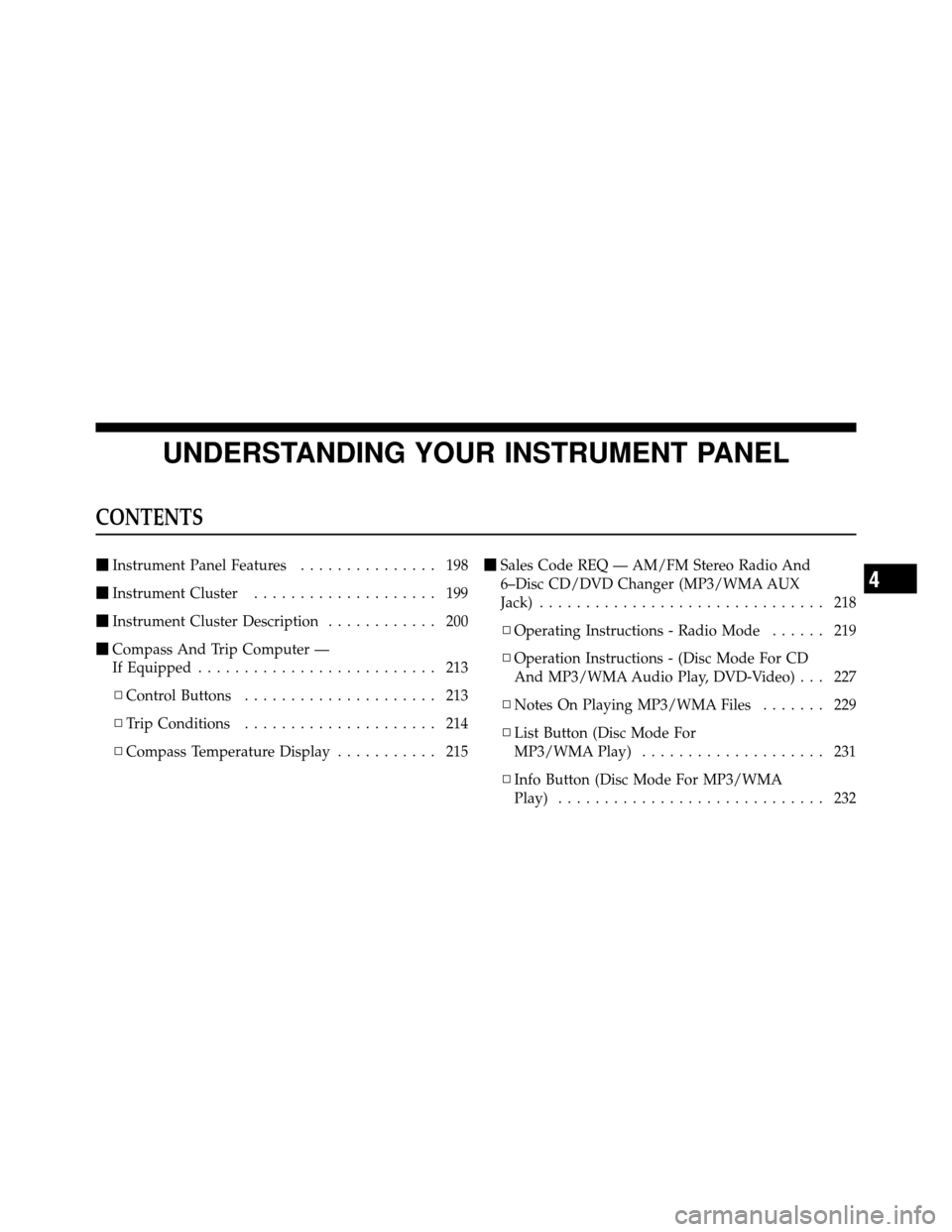

CONTENTS
Instrument Panel Features ............... 198
 Instrument Cluster .................... 199
 Instrument Cluster Description ............ 200
 Compass And Trip Computer —
If Equipped .......................... 213
▫ Control Buttons ..................... 213
▫ Trip Conditions ..................... 214
▫ Compass Temperature Display ........... 215
Sales Code REQ — AM/FM Stereo Radio And
6–Disc CD/DVD Changer (MP3/WMA AUX
Jack) ............................... 218
▫ Operating Instructions - Radio Mode ...... 219
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 227
▫ Notes On Playing MP3/WMA Files ....... 229
▫ List Button (Disc Mode For
MP3/WMA Play) .................... 231
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 232
4

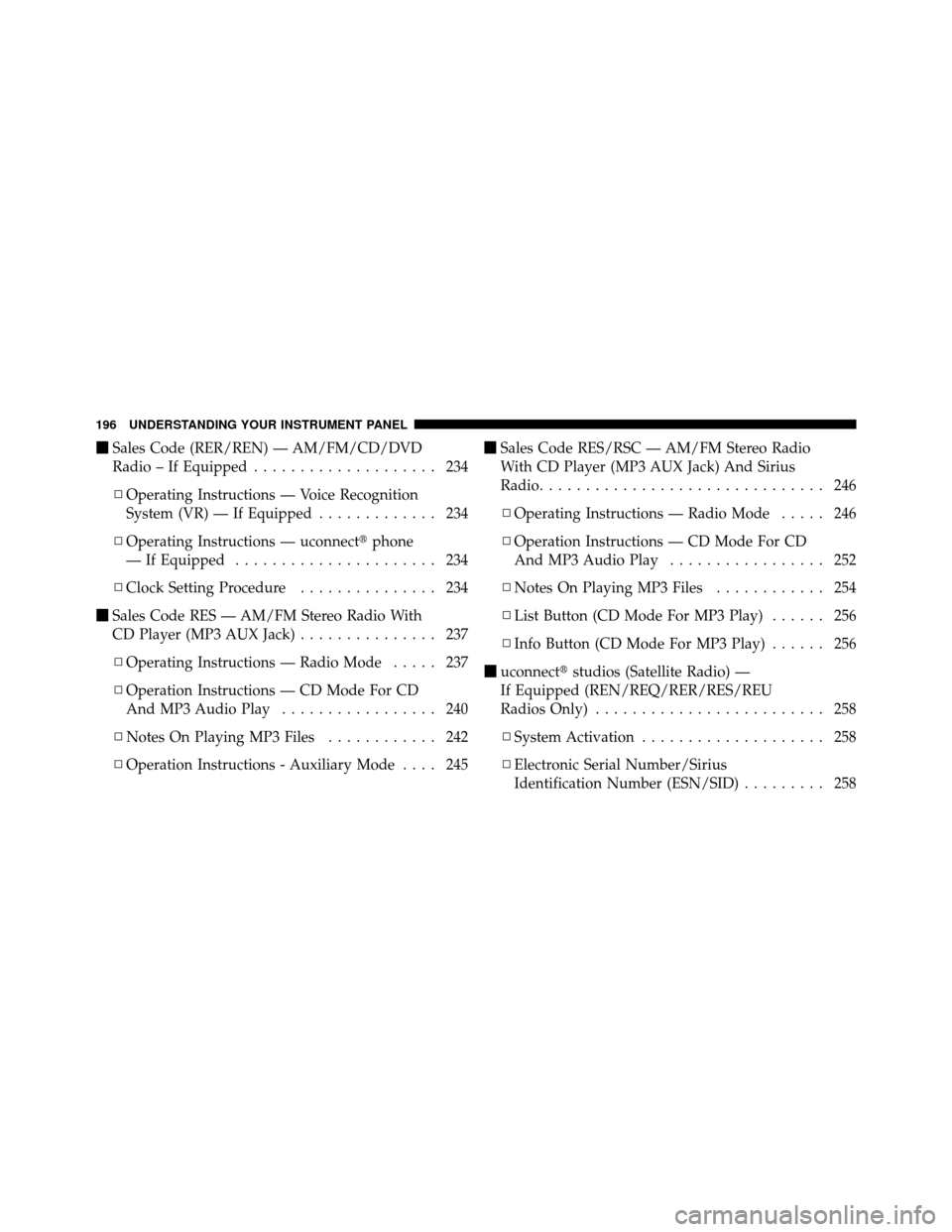

Sales Code (RER/REN) — AM/FM/CD/DVD
Radio – If Equipped .................... 234
▫ Operating Instructions — Voice Recognition
System (VR) — If Equipped ............. 234
▫ Operating Instructions — uconnect phone
— If Equipped ...................... 234
▫ Clock Setting Procedure ............... 234
 Sales Code RES — AM/FM Stereo Radio With
CD Player (MP3 AUX Jack)............... 237
▫ Operating Instructions — Radio Mode ..... 237
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 240
▫ Notes On Playing MP3 Files ............ 242
▫ Operation Instructions - Auxiliary Mode .... 245
Sales Code RES/RSC — AM/FM Stereo Radio
With CD Player (MP3 AUX Jack) And Sirius
Radio ............................... 246
▫ Operating Instructions — Radio Mode ..... 246
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 252
▫ Notes On Playing MP3 Files ............ 254
▫ List Button (CD Mode For MP3 Play) ...... 256
▫ Info Button (CD Mode For MP3 Play) ...... 256
 uconnect studios (Satellite Radio) —
If Equipped (REN/REQ/RER/RES/REU
Radios Only) ......................... 258
▫ System Activation .................... 258
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 258
196 UNDERSTANDING YOUR INSTRUMENT PANEL

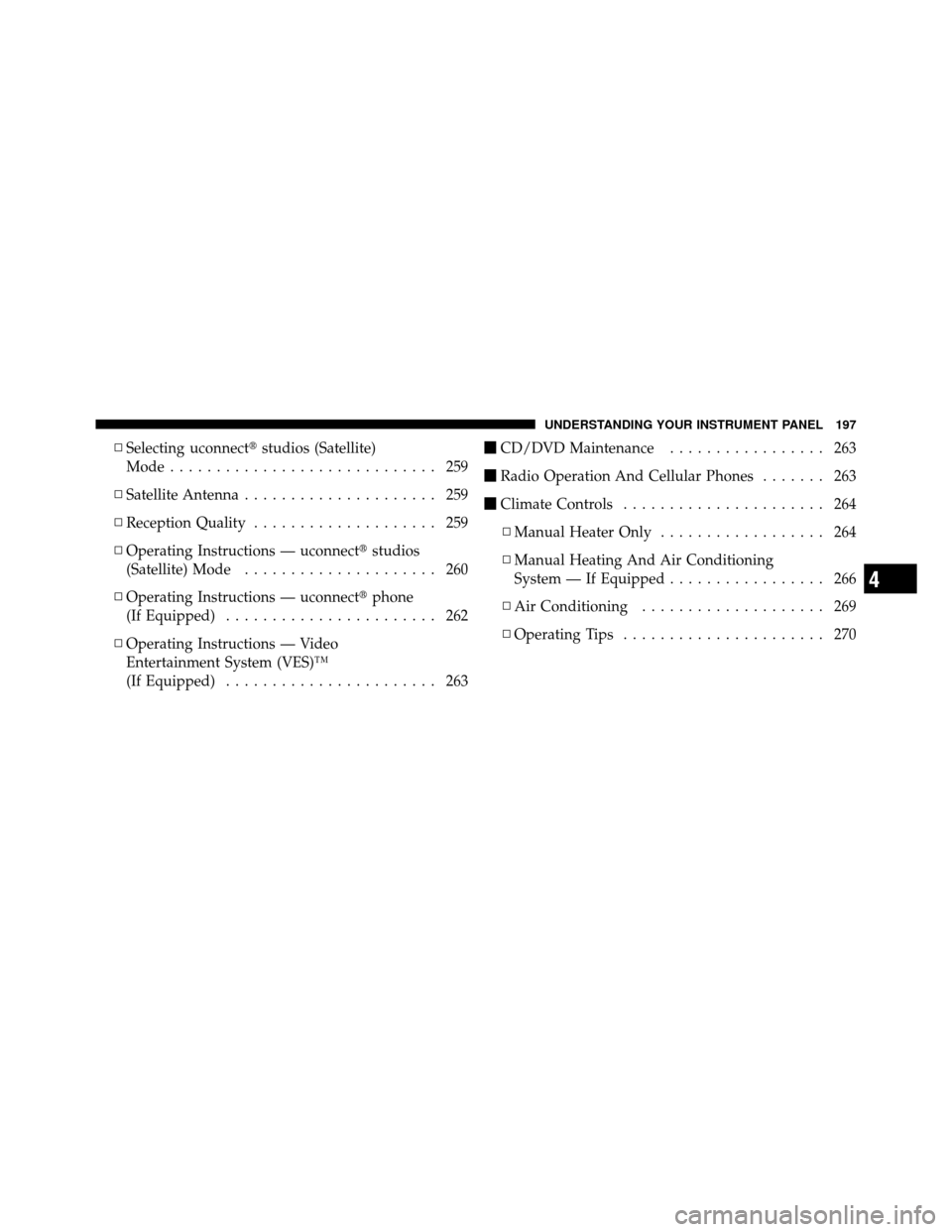

▫Selecting uconnect studios (Satellite)
Mode ............................. 259
▫ Satellite Antenna ..................... 259
▫ Reception Quality .................... 259
▫ Operating Instructions — uconnect studios
(Satellite) Mode ..................... 260
▫ Operating Instructions — uconnect phone
(If Equipped) ....................... 262
▫ Operating Instructions — Video
Entertainment System (VES)™
(If Equipped) ....................... 263
CD/DVD Maintenance ................. 263
 Radio Operation And Cellular Phones ....... 263
 Climate Controls ...................... 264
▫ Manual Heater Only .................. 264
▫ Manual Heating And Air Conditioning
System — If Equipped ................. 266
▫ Air Conditioning .................... 269
▫ Operating Tips ...................... 270
4
UNDERSTANDING YOUR INSTRUMENT PANEL 197

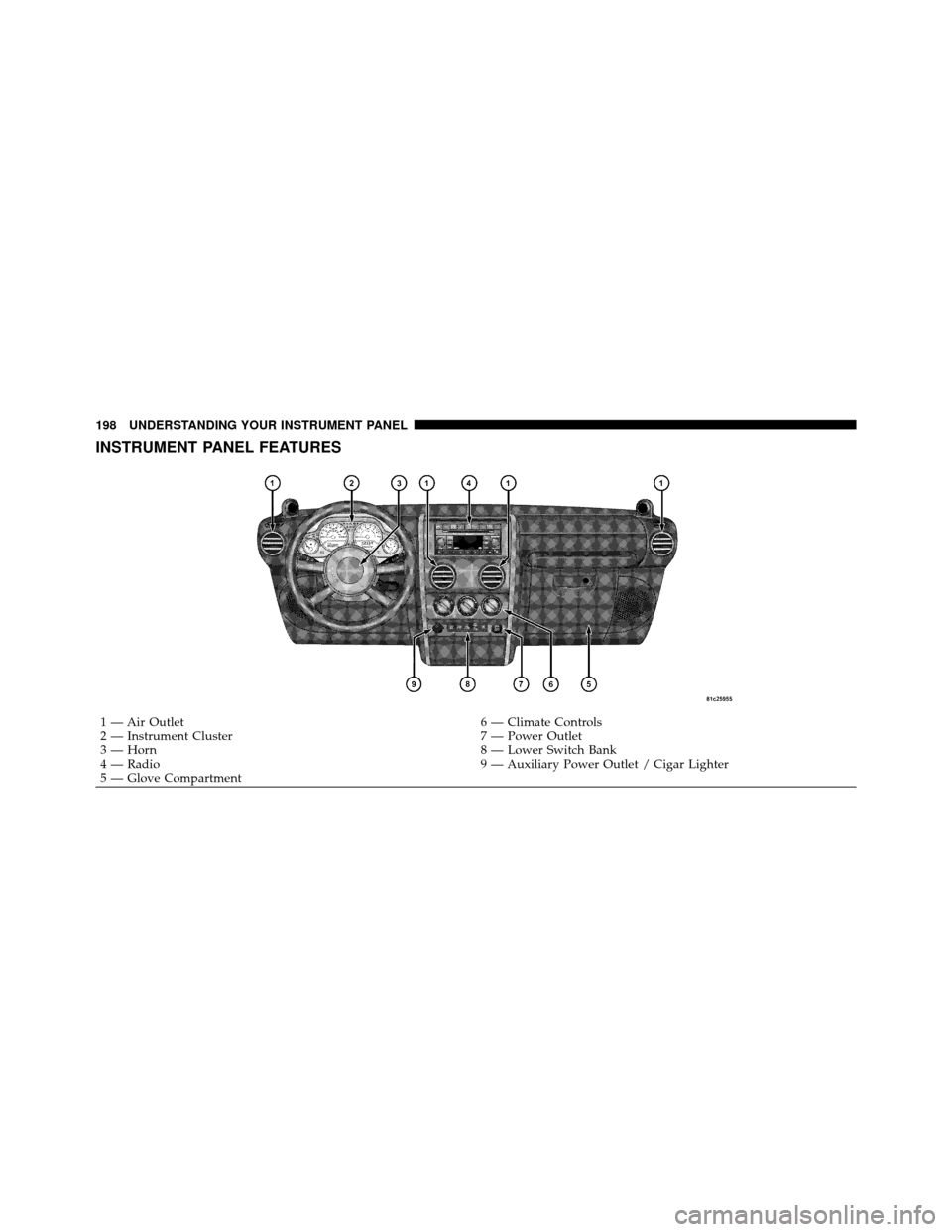

INSTRUMENT PANEL FEATURES
