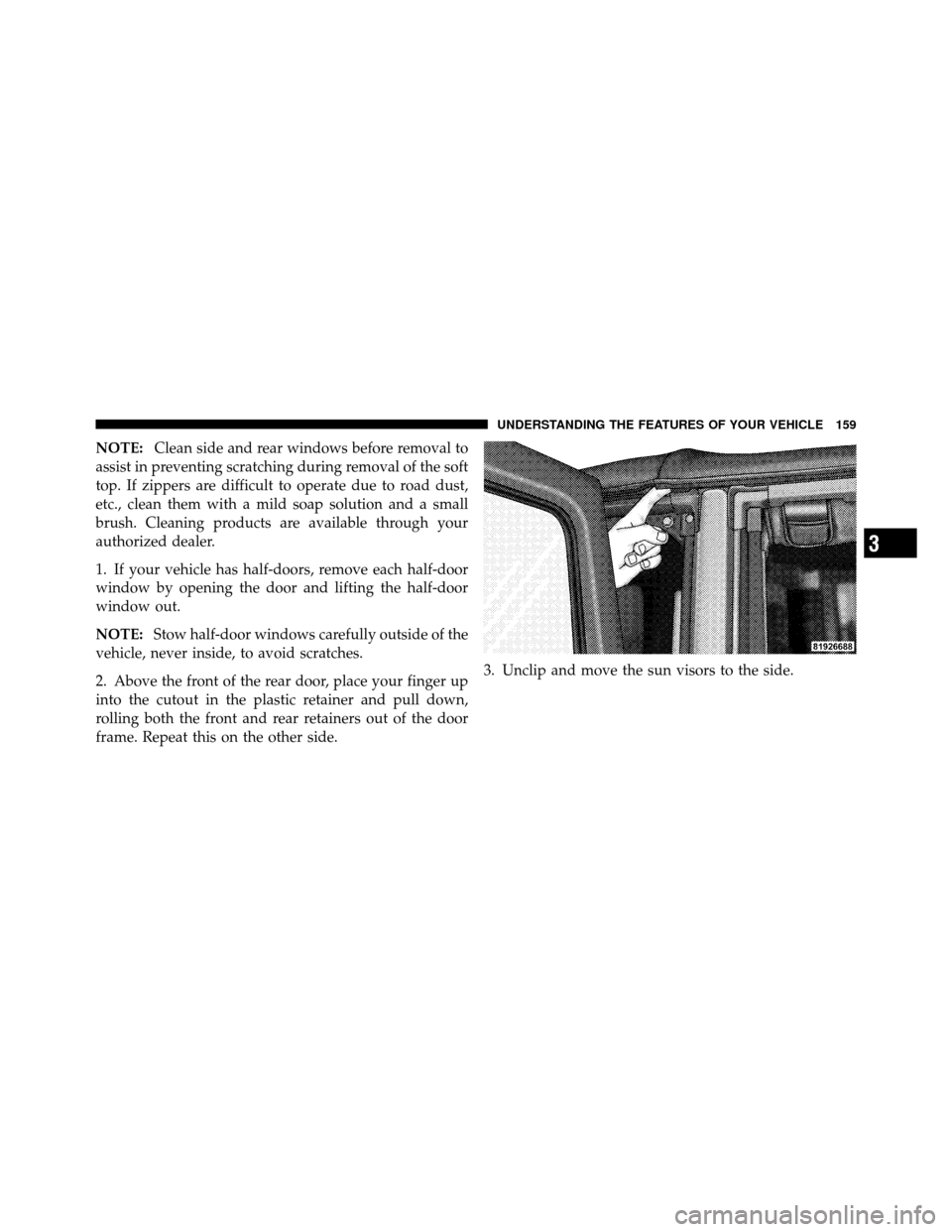

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half-doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE: Stow half-door windows carefully outside of the
vehicle, never inside, to avoid scratches.
2. Above the front of the rear door, place your finger up
into the cutout in the plastic retainer and pull down,
rolling both the front and rear retainers out of the door
frame. Repeat this on the other side. 3. Unclip and move the sun visors to the side.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

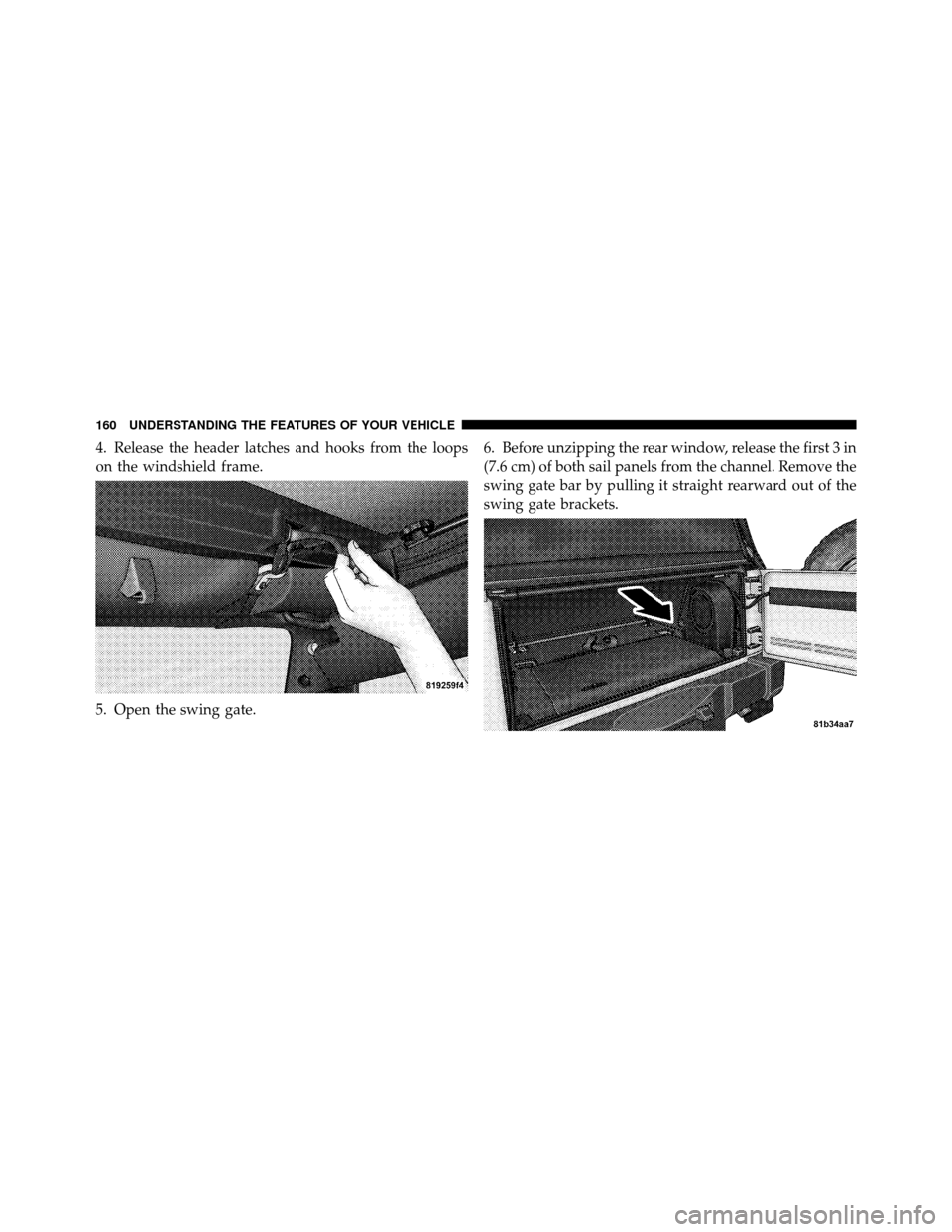

4. Release the header latches and hooks from the loops
on the windshield frame.
5. Open the swing gate.6. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

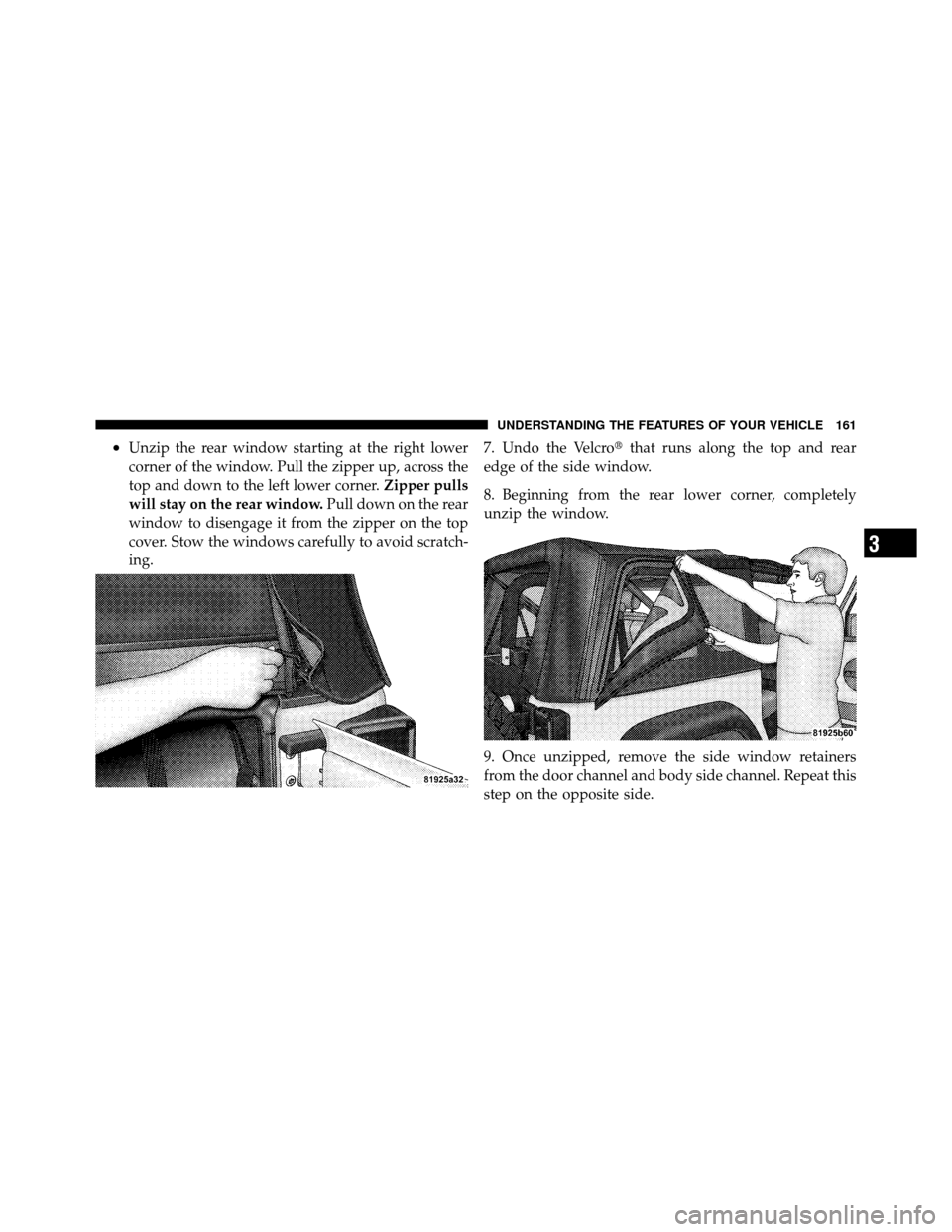

•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing. 7. Undo the Velcro
that runs along the top and rear
edge of the side window.
8. Beginning from the rear lower corner, completely
unzip the window.
9. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat this
step on the opposite side.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

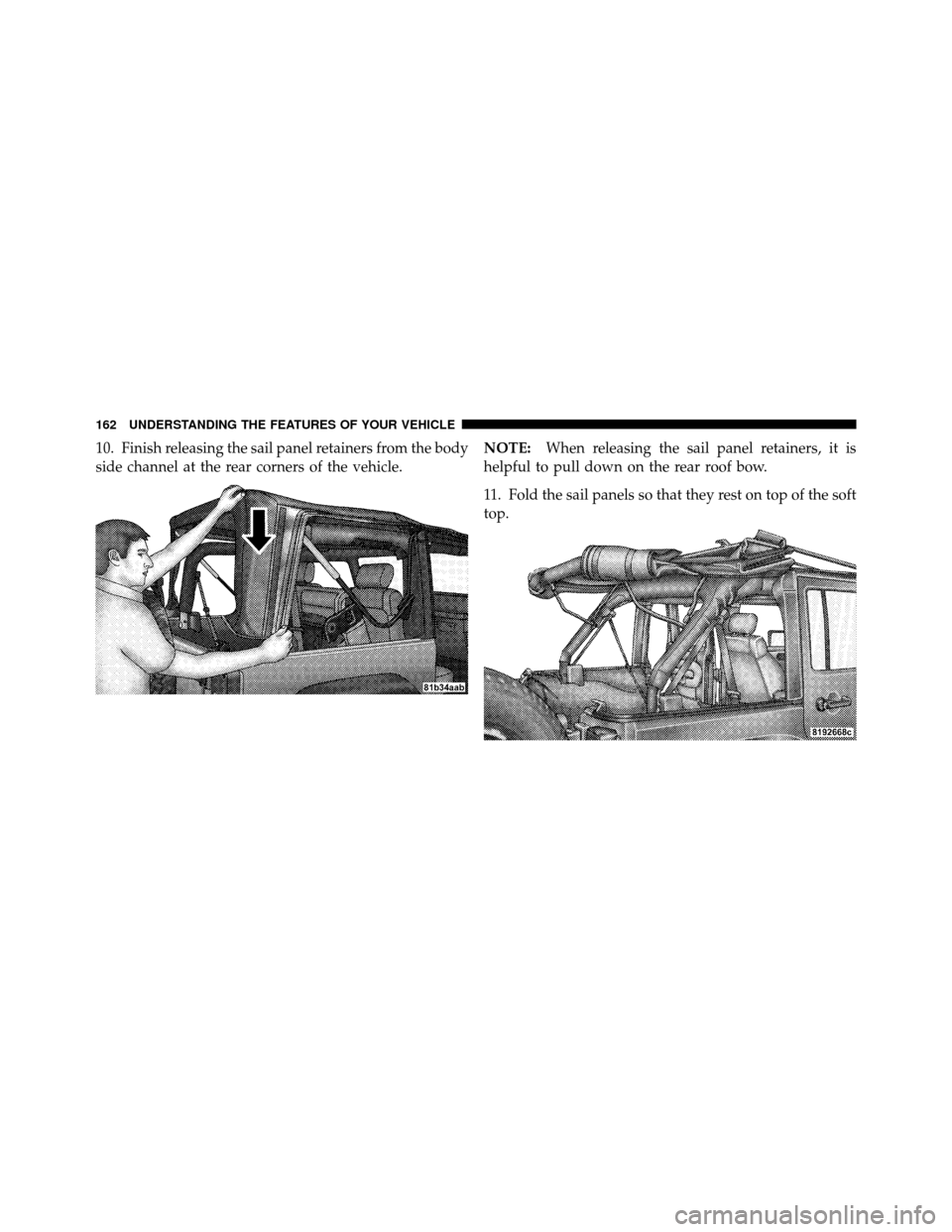

10. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.NOTE:
When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow.
11. Fold the sail panels so that they rest on top of the soft
top.
162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

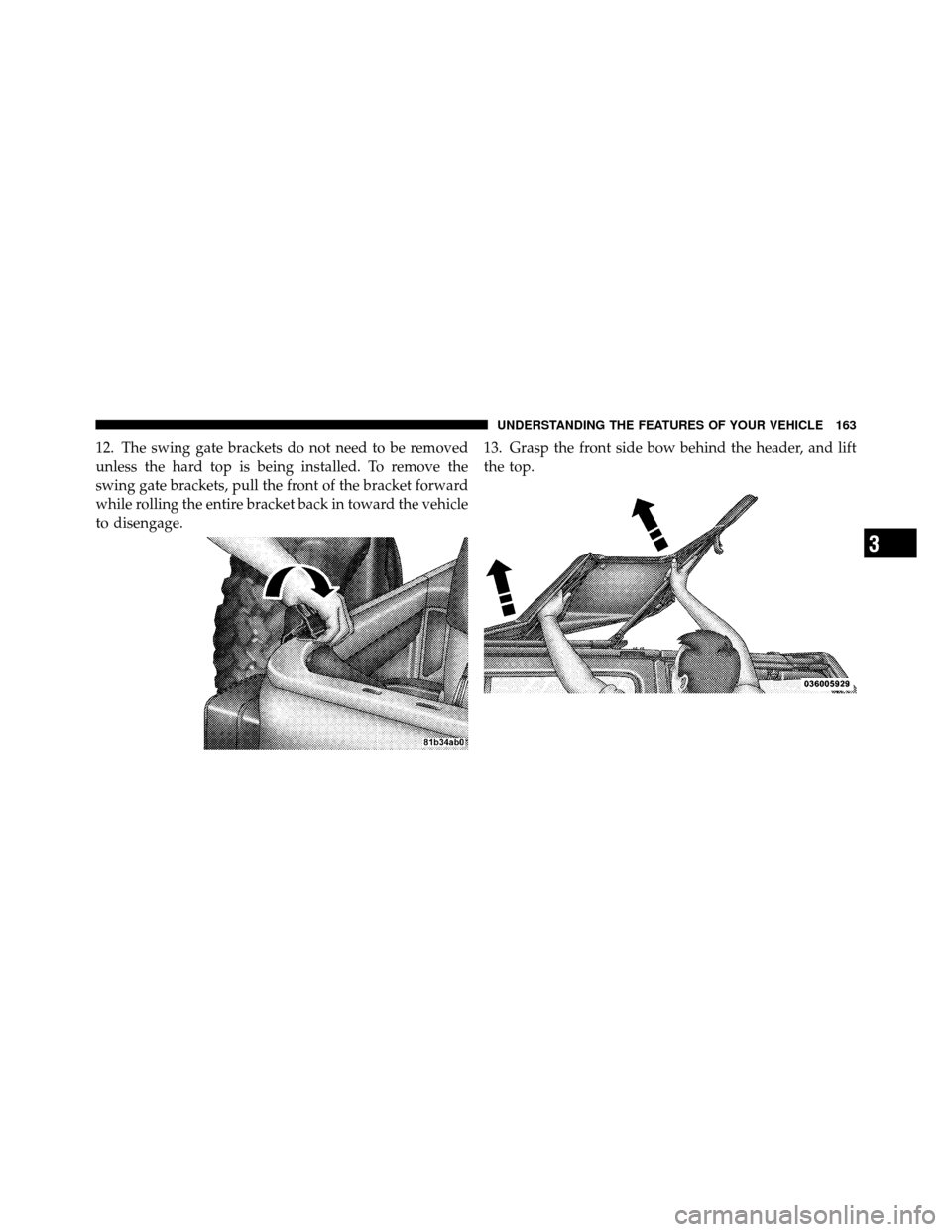

12. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in toward the vehicle
to disengage.13. Grasp the front side bow behind the header, and lift
the top.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

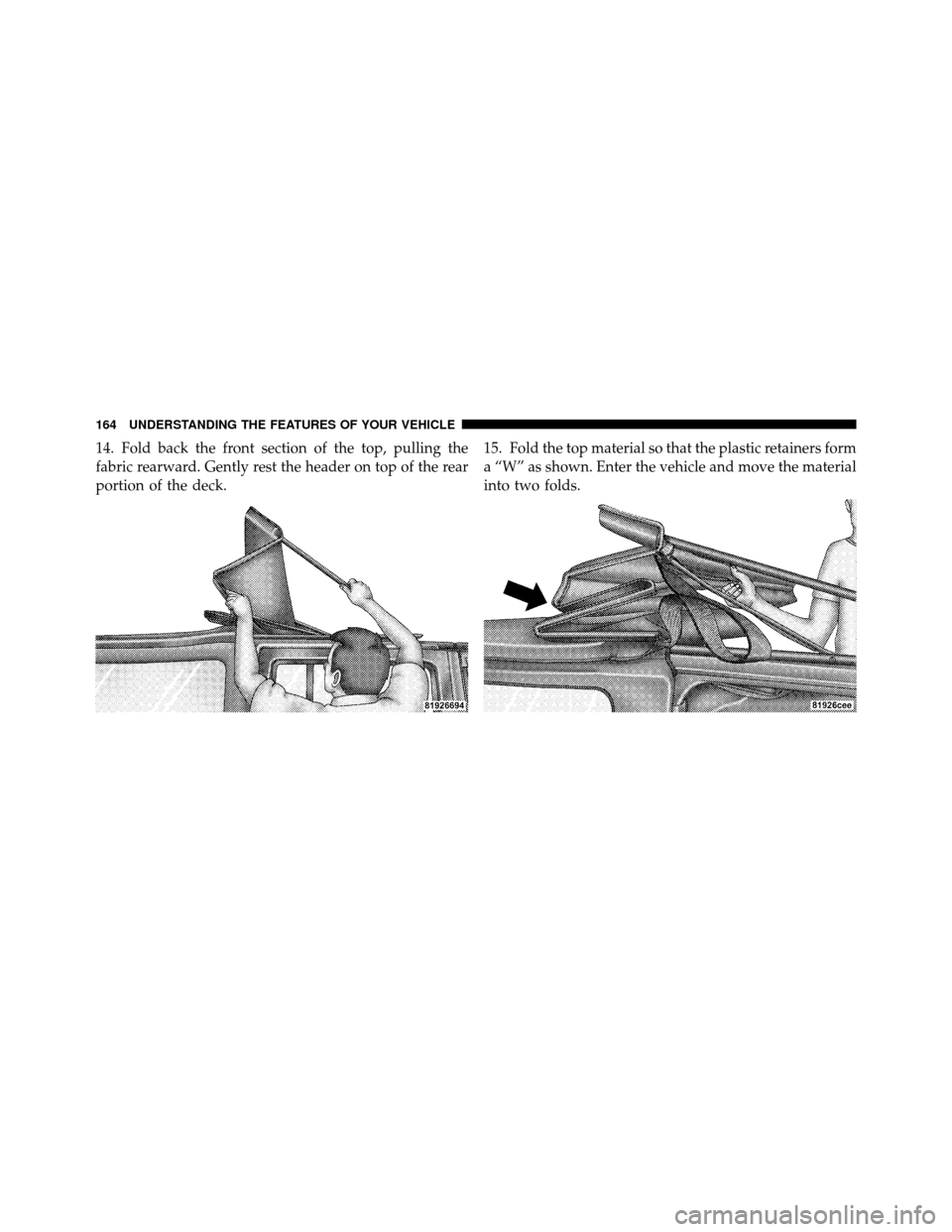

14. Fold back the front section of the top, pulling the
fabric rearward. Gently rest the header on top of the rear
portion of the deck.15. Fold the top material so that the plastic retainers form
a “W” as shown. Enter the vehicle and move the material
into two folds.
164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

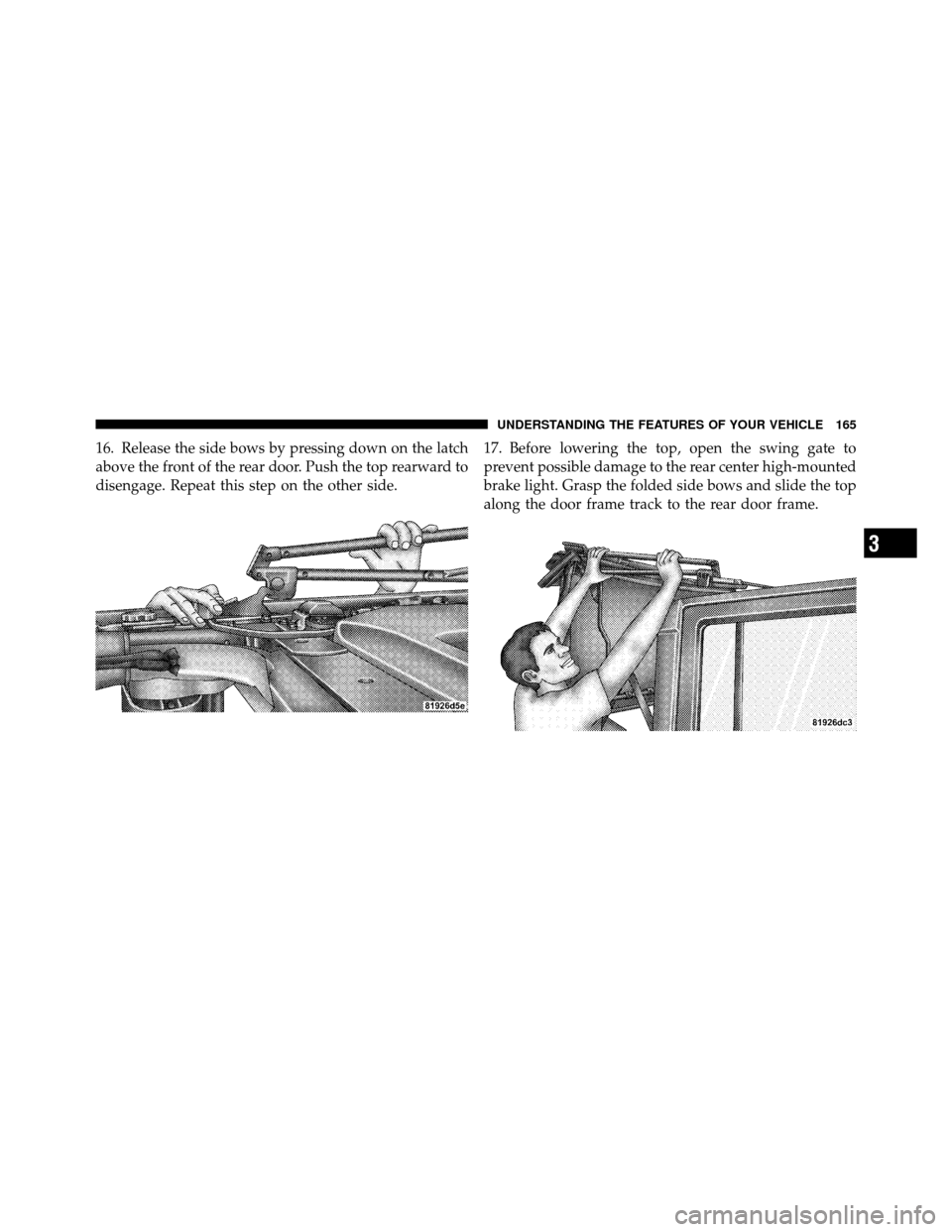

16. Release the side bows by pressing down on the latch
above the front of the rear door. Push the top rearward to
disengage. Repeat this step on the other side.17. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-mounted
brake light. Grasp the folded side bows and slide the top
along the door frame track to the rear door frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 165

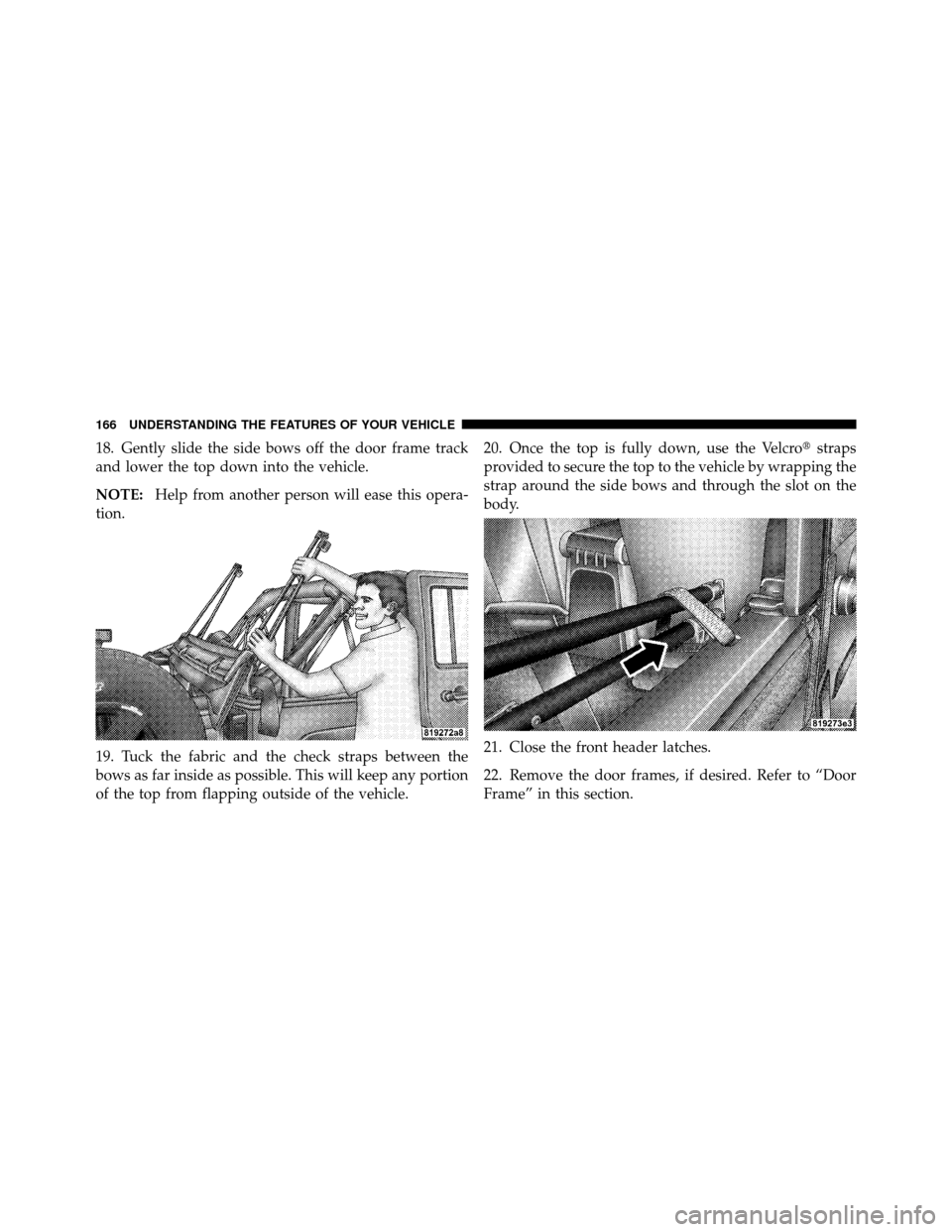

18. Gently slide the side bows off the door frame track
and lower the top down into the vehicle.
NOTE:Help from another person will ease this opera-
tion.
19. Tuck the fabric and the check straps between the
bows as far inside as possible. This will keep any portion
of the top from flapping outside of the vehicle. 20. Once the top is fully down, use the Velcro
straps
provided to secure the top to the vehicle by wrapping the
strap around the side bows and through the slot on the
body.
21. Close the front header latches.
22. Remove the door frames, if desired. Refer to “Door
Frame” in this section.
166 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

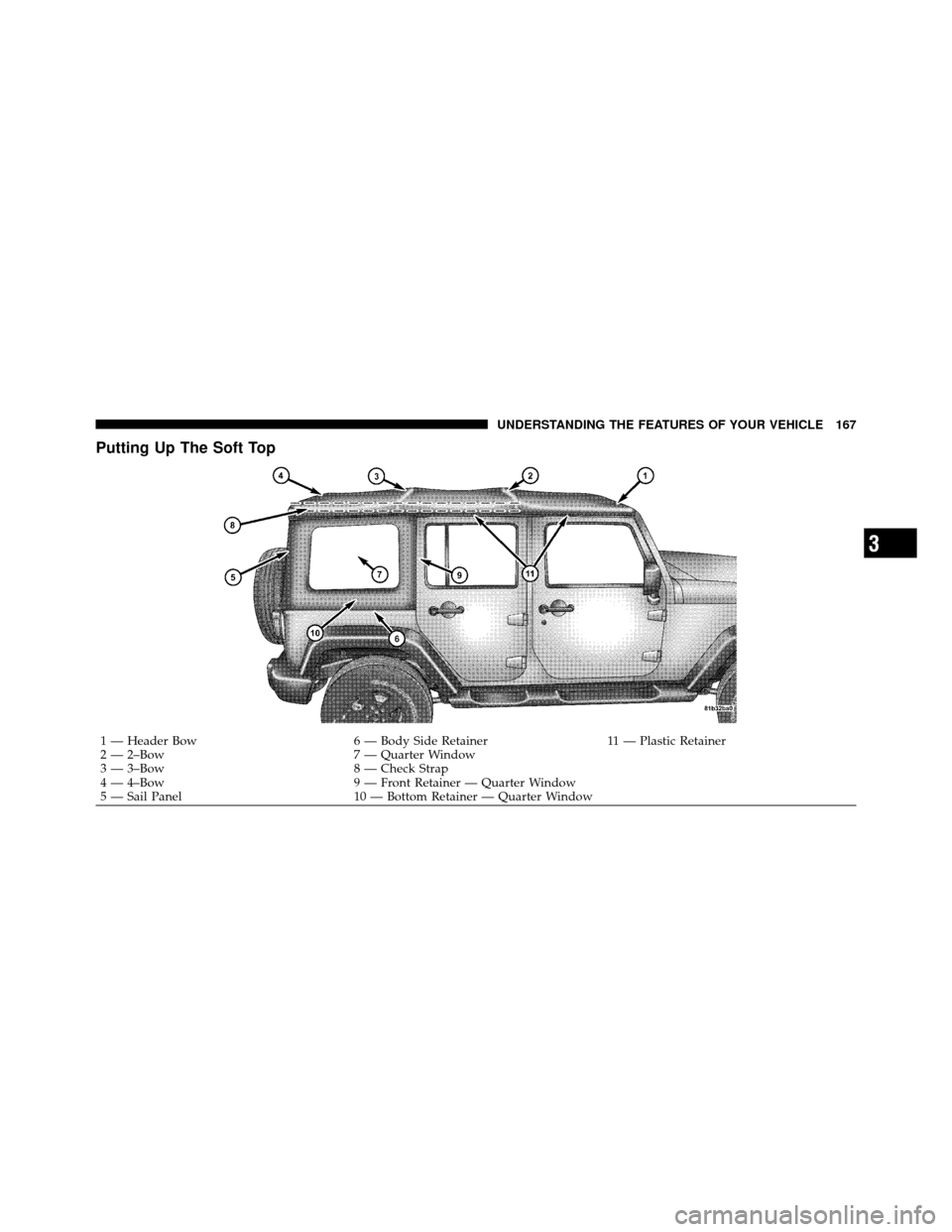

Putting Up The Soft Top
1 — Header Bow6 — Body Side Retainer11 — Plastic Retainer
2 — 2–Bow 7 — Quarter Window
3 — 3–Bow 8 — Check Strap
4 — 4–Bow 9 — Front Retainer — Quarter Window
5 — Sail Panel 10 — Bottom Retainer — Quarter Window
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 167

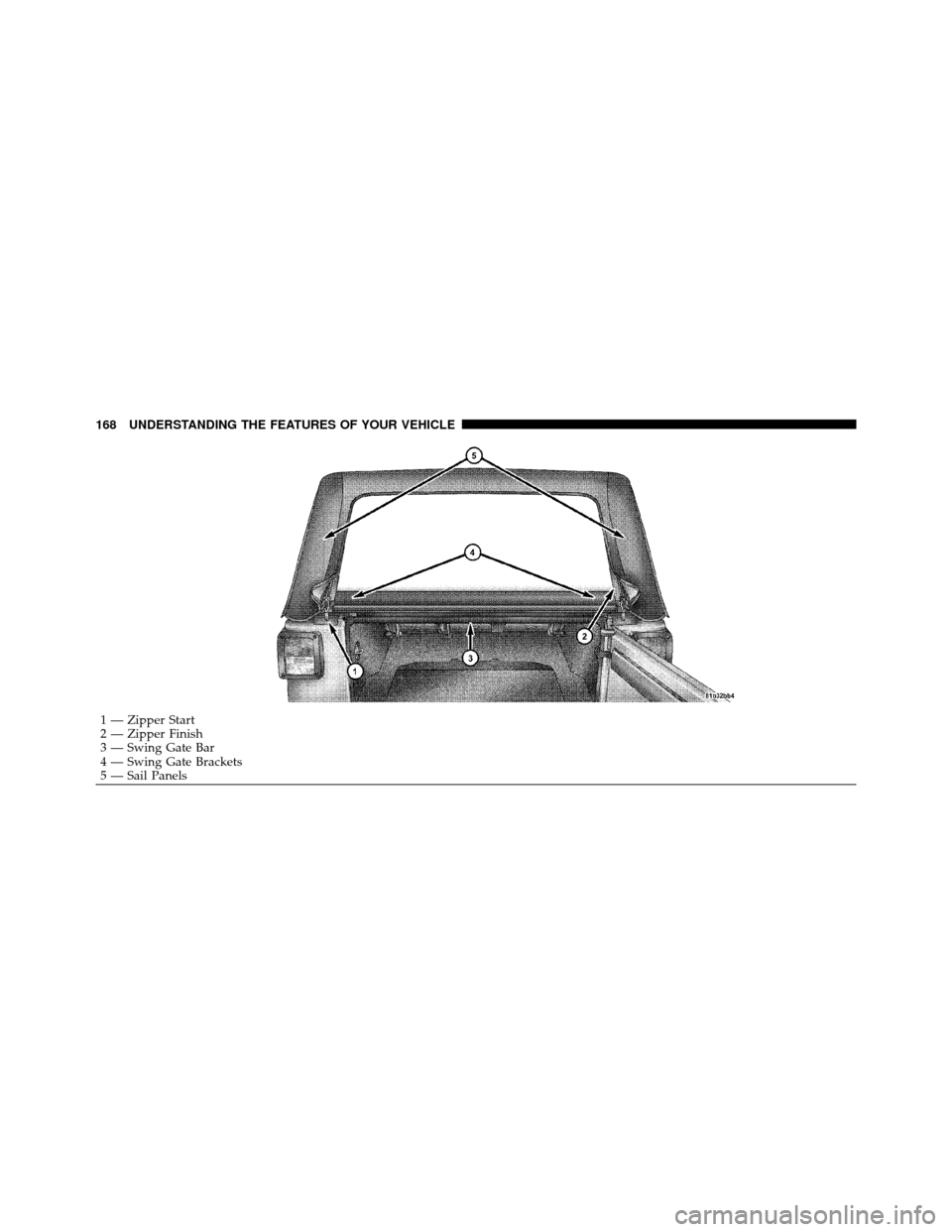

1 — Zipper Start
2 — Zipper Finish
3 — Swing Gate Bar
4 — Swing Gate Brackets
5 — Sail Panels
