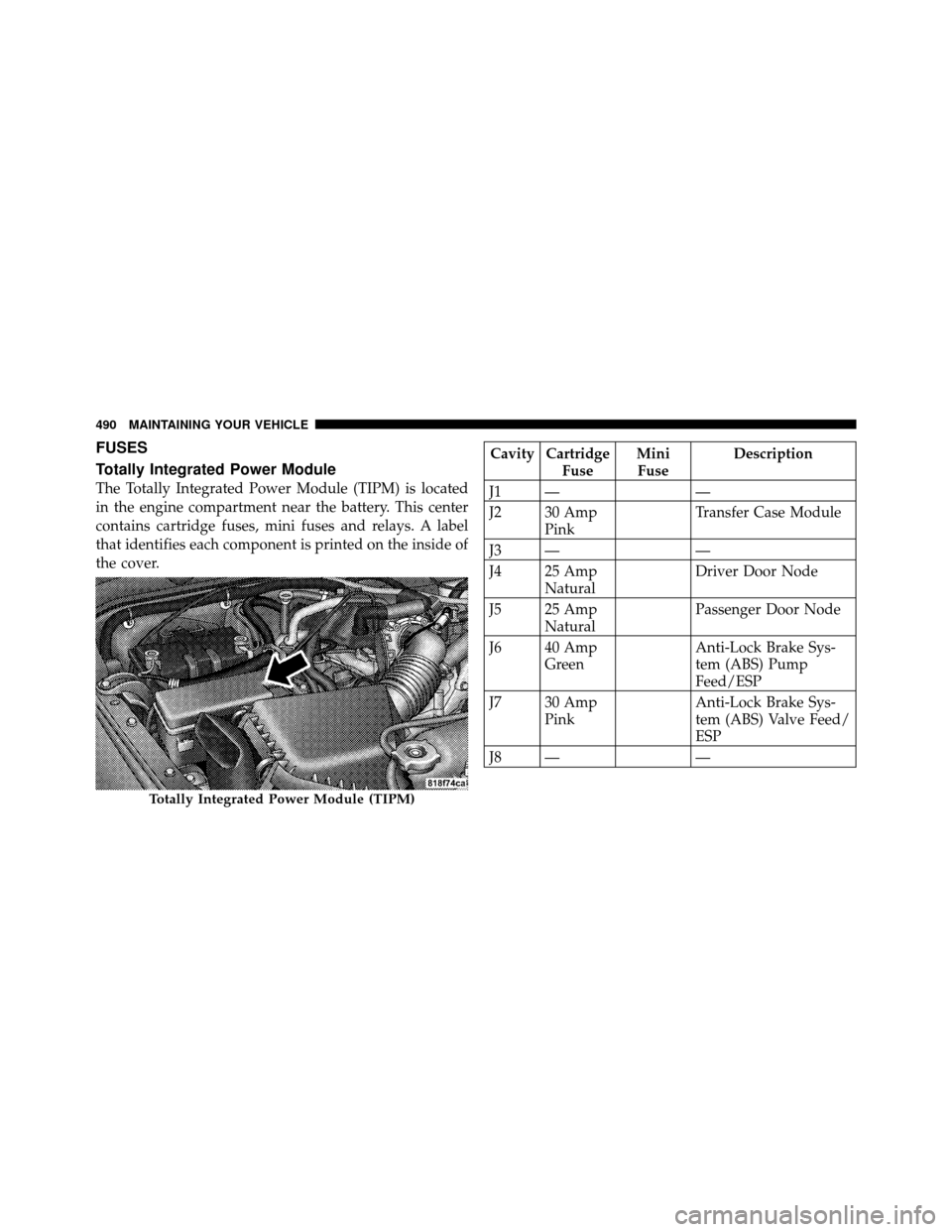

FUSES
Totally Integrated Power Module
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses, mini fuses and relays. A label
that identifies each component is printed on the inside of
the cover.
Cavity CartridgeFuse Mini
Fuse Description
J1 — —
J2 30 Amp Pink Transfer Case Module
J3 — —
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake Sys-
tem (ABS) Pump
Feed/ESP
J7 30 Amp Pink Anti-Lock Brake Sys-
tem (ABS) Valve Feed/
ESP
J8 — —
Totally Integrated Power Module (TIPM)
490 MAINTAINING YOUR VEHICLE

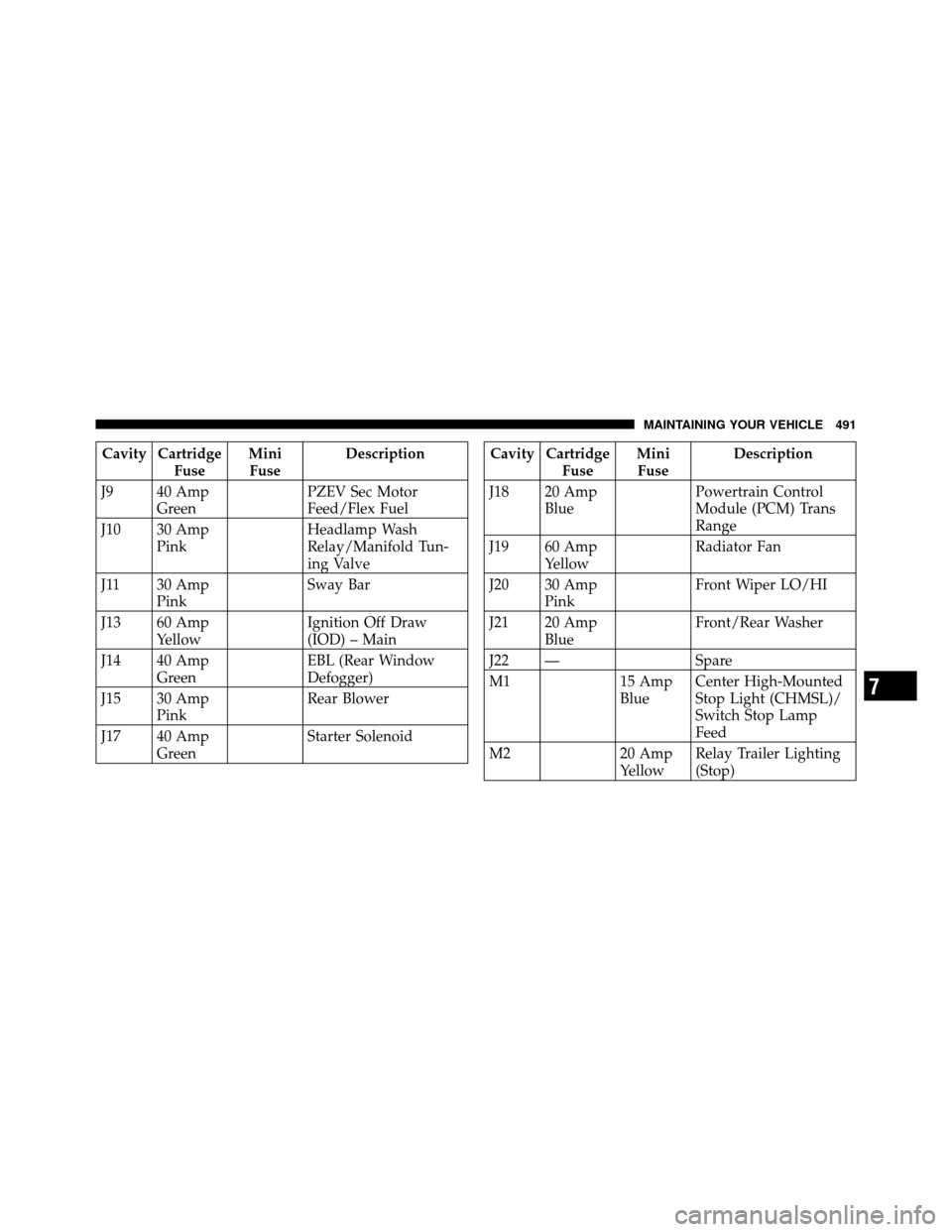

Cavity CartridgeFuse Mini
Fuse Description
J9 40 Amp Green PZEV Sec Motor
Feed/Flex Fuel
J10 30 Amp Pink Headlamp Wash
Relay/Manifold Tun-
ing Valve
J11 30 Amp Pink Sway Bar
J13 60 Amp Yellow Ignition Off Draw
(IOD) – Main
J14 40 Amp Green EBL (Rear Window
Defogger)
J15 30 Amp Pink Rear Blower
J17 40 Amp Green Starter SolenoidCavity Cartridge
Fuse Mini
Fuse Description
J18 20 Amp Blue Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
J21 20 Amp Blue Front/Rear Washer
J22 — Spare
M1 15 Amp
BlueCenter High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp
Feed
M2 20 Amp
YellowRelay Trailer Lighting
(Stop)
7
MAINTAINING YOUR VEHICLE 491

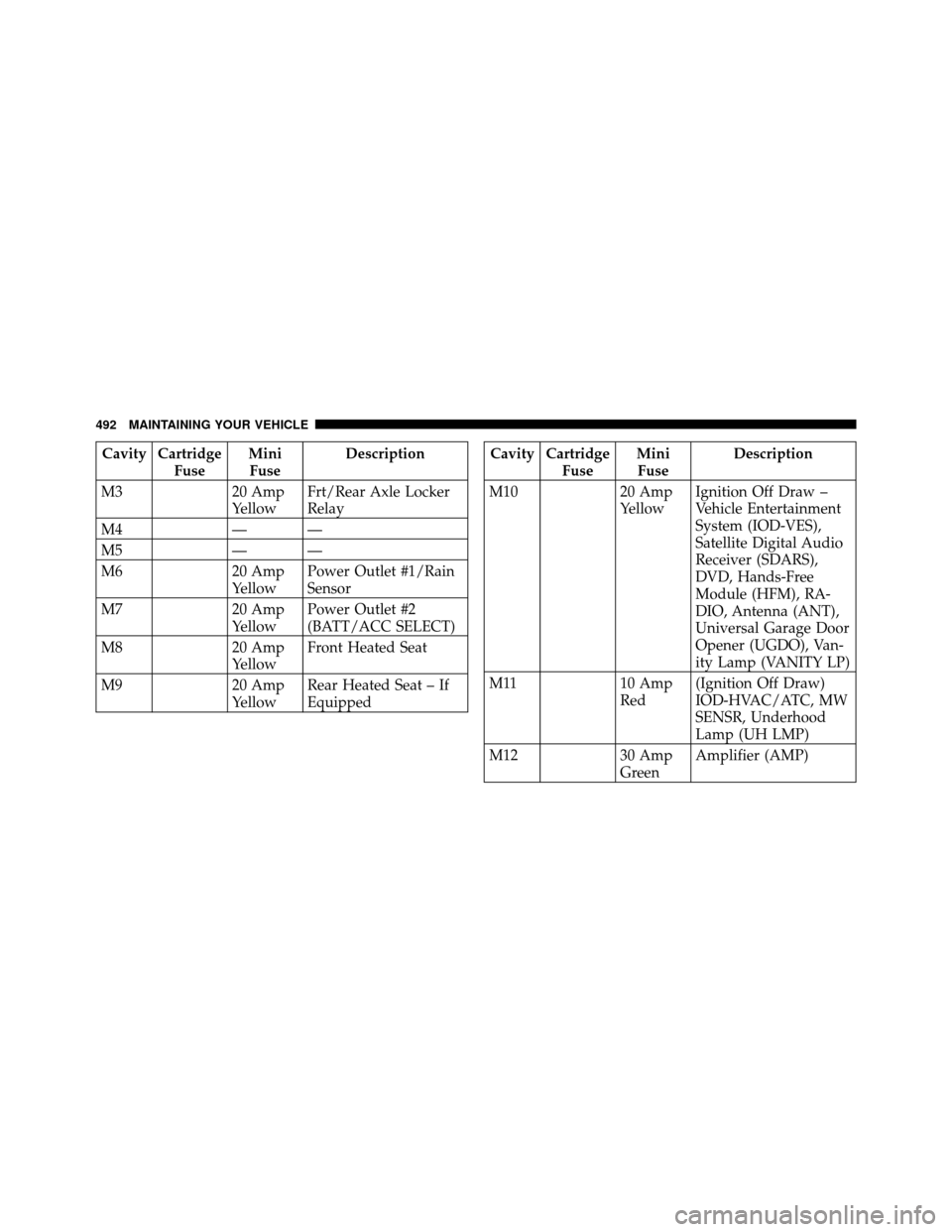

Cavity CartridgeFuse Mini
Fuse Description
M3 20 Amp
YellowFrt/Rear Axle Locker
Relay
M4 — —
M5 — —
M6 20 Amp
YellowPower Outlet #1/Rain
Sensor
M7 20 Amp
YellowPower Outlet #2
(BATT/ACC SELECT)
M8 20 Amp
YellowFront Heated Seat
M9 20 Amp
YellowRear Heated Seat – If
EquippedCavity Cartridge
Fuse Mini
Fuse Description
M10 20 Amp
YellowIgnition Off Draw –
Vehicle Entertainment
System (IOD-VES),
Satellite Digital Audio
Receiver (SDARS),
DVD, Hands-Free
Module (HFM), RA-
DIO, Antenna (ANT),
Universal Garage Door
Opener (UGDO), Van-
ity Lamp (VANITY LP)
M11 10 Amp
Red(Ignition Off Draw)
IOD-HVAC/ATC, MW
SENSR, Underhood
Lamp (UH LMP)
M12 30 Amp
GreenAmplifier (AMP)
492 MAINTAINING YOUR VEHICLE

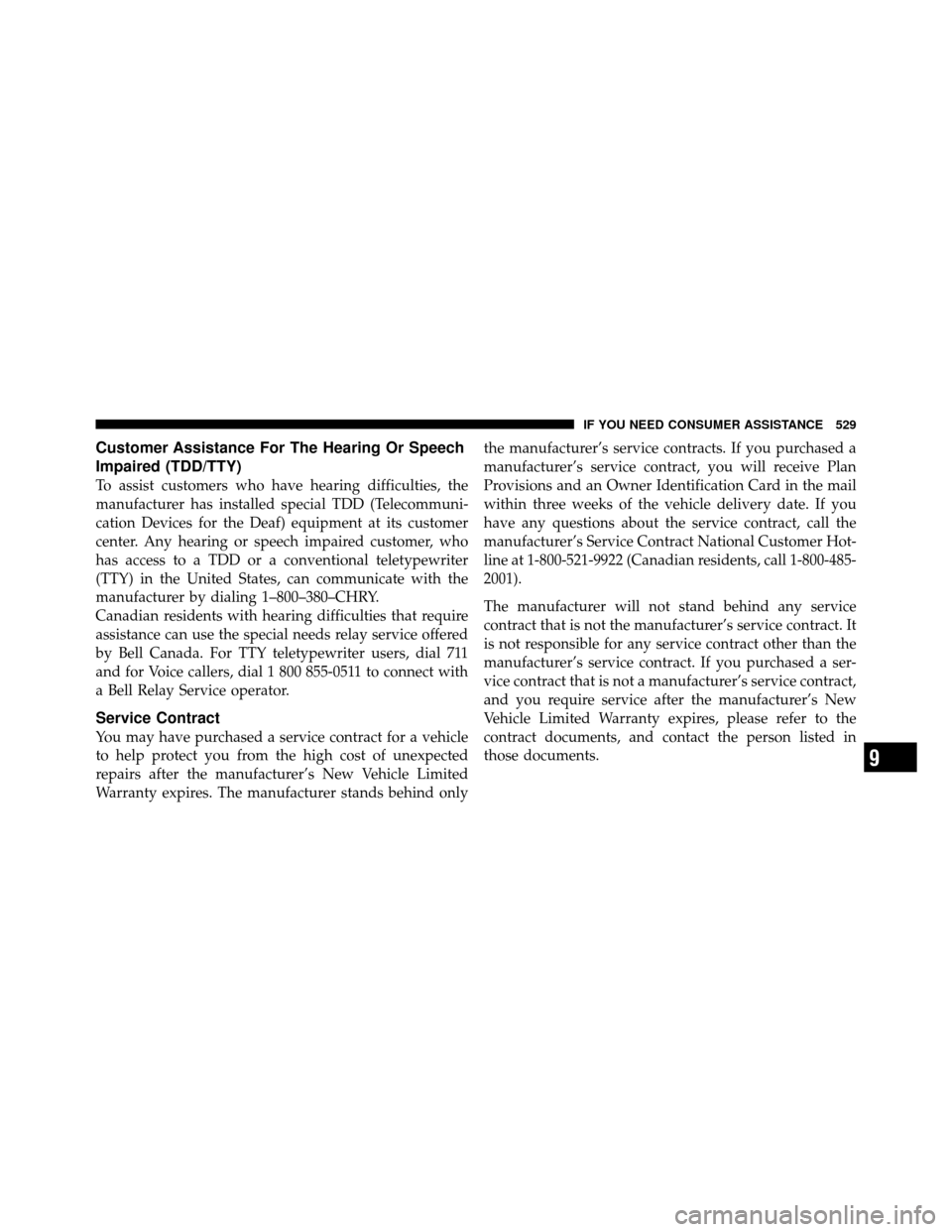

Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1–800–380–CHRY.
Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered
by Bell Canada. For TTY teletypewriter users, dial 711
and for Voice callers, dial 1 800 855-0511 to connect with
a Bell Relay Service operator.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind onlythe manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If you
have any questions about the service contract, call the
manufacturer’s Service Contract National Customer Hot-
line at 1-800-521-9922 (Canadian residents, call 1-800-485-
2001).
The manufacturer will not stand behind any service
contract that is not the manufacturer’s service contract. It
is not responsible for any service contract other than the
manufacturer’s service contract. If you purchased a ser-
vice contract that is not a manufacturer’s service contract,
and you require service after the manufacturer’s New
Vehicle Limited Warranty expires, please refer to the
contract documents, and contact the person listed in
those documents.
9
IF YOU NEED CONSUMER ASSISTANCE 529
