clock setting JEEP WRANGLER 2010 Owners Manual

▫Operating Instructions — Voice Command
System — If Equipped ................. 283
▫ Operating Instructions — Uconnect™ Phone
— If Equipped ...................... 283
▫ Clock Setting Procedure — RBZ Radio ..... 283
▫ Clock Setting Procedure — RER/REN
Radio ............................. 285
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 287
▫ Operating Instructions — Radio Mode ..... 287
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 290
▫ Notes On Playing MP3 Files ............ 292
▫ Operation Instructions - Auxiliary Mode .... 295
Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 295
▫ Operating Instructions — Radio Mode ..... 296
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 301
▫ Notes On Playing MP3 Files ............ 303
▫ List Button (CD Mode For MP3 Play) ...... 306
▫ Info Button (CD Mode For MP3 Play) ...... 306
▫ Uconnect™ Multimedia (Satellite Radio)
— If Equipped ...................... 307
 Uconnect™ Multimedia (Satellite Radio)
— If Equipped (REN/REQ/RER/RES/REU/
RBZ Radios Only) ...................... 311
▫ System Activation .................... 312
242 UNDERSTANDING YOUR INSTRUMENT PANEL

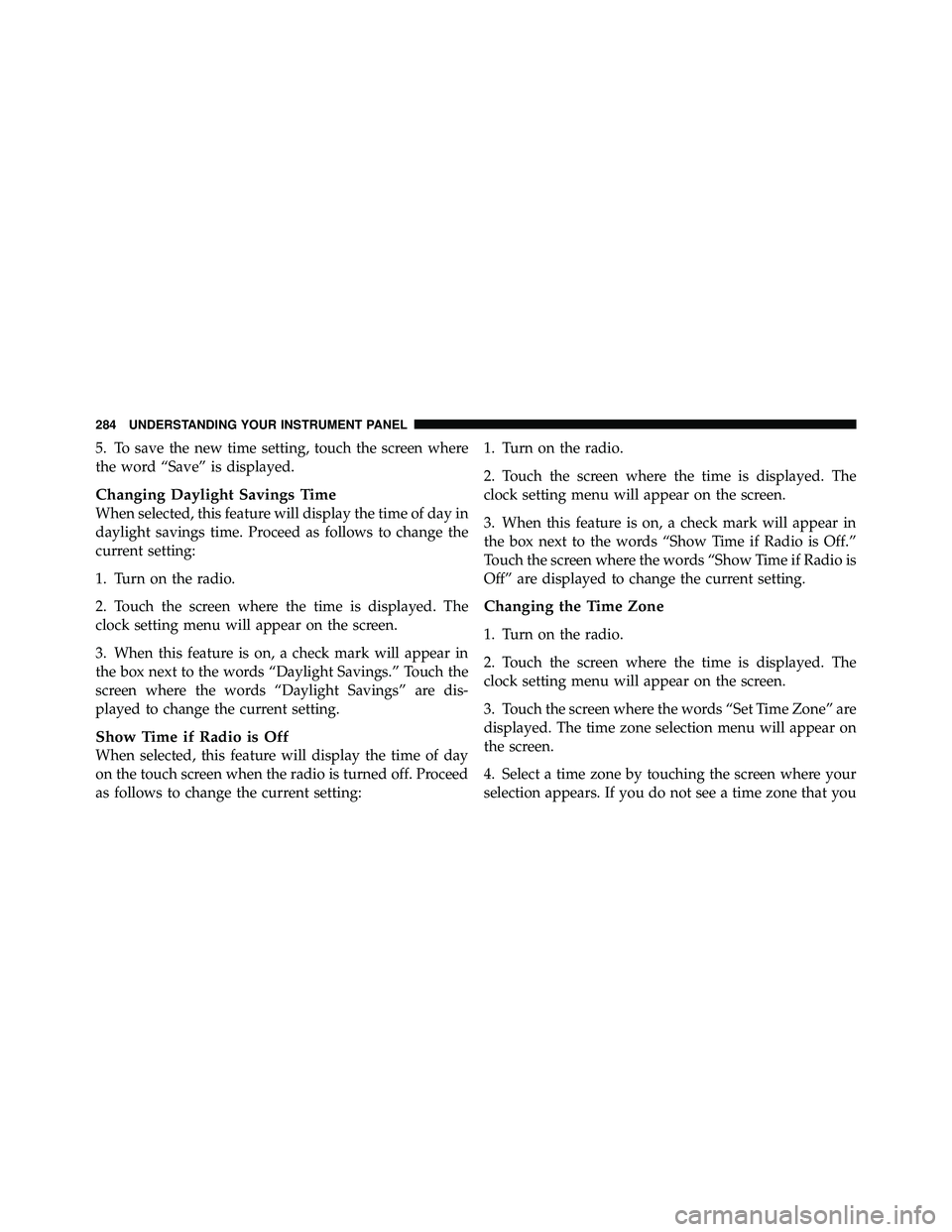

5. To save the new time setting, touch the screen where
the word “Save” is displayed.
Changing Daylight Savings Time
When selected, this feature will display the time of day in
daylight savings time. Proceed as follows to change the
current setting:
1. Turn on the radio.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. When this feature is on, a check mark will appear in
the box next to the words “Daylight Savings.” Touch the
screen where the words “Daylight Savings” are dis-
played to change the current setting.
Show Time if Radio is Off
When selected, this feature will display the time of day
on the touch screen when the radio is turned off. Proceed
as follows to change the current setting:1. Turn on the radio.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. When this feature is on, a check mark will appear in
the box next to the words “Show Time if Radio is Off.”
Touch the screen where the words “Show Time if Radio is
Off” are displayed to change the current setting.
Changing the Time Zone
1. Turn on the radio.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. Touch the screen where the words “Set Time Zone” are
displayed. The time zone selection menu will appear on
the screen.
4. Select a time zone by touching the screen where your
selection appears. If you do not see a time zone that you
284 UNDERSTANDING YOUR INSTRUMENT PANEL

2. Touch the screen where “User Clock” is displayed, the
clock setting menu will appear on the screen.
3. When this feature is on, a check mark will appear in
the box next to the words “Daylight Savings.” Touch the
screen where the words “Daylight Savings” are dis-
played to change the current setting.
Show Time if Radio is Off
When selected, this feature will display the time of day
on the touch screen when the radio is turned off. Proceed
as follows to change the current setting:
1. Turn on the radio.
2. Touch the screen where the time is displayed.
3. Touch the screen where “User Clock” is displayed, the
clock setting menu will appear on the screen.
4. When this feature is on, a check mark will appear in
the box next to the words “Show Time if Radio is Off.”Touch the screen where the words “Show Time if Radio is
Off” are displayed to change the current setting.
Changing the Time Zone
1. Turn on the radio.
2. Touch the screen where the time is displayed.
3. Touch the screen where “User Clock” is displayed, the
clock setting menu will appear on the screen.
4. Touch the screen where the words “Set Time Zone” are
displayed. The time zone selection menu will appear on
the screen.
5. Select a time zone by touching the screen where your
selection appears. If you do not see a time zone that you
want to select, touch the screen where the word “Page” is
displayed to view additional time zones in the menu.
6. Touch the screen where the word “Save” is displayed.
286 UNDERSTANDING YOUR INSTRUMENT PANEL

SEEK Buttons
Press and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Press the right switch
to seek up and the left switch to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding either button will bypass
stations without stopping, until you release it.
TIME Button
Press the TIME button to alternate display of the time
and radio frequency.
Clock Setting Procedure
1. Press and hold the TIME button until the hours blink.
2. Adjust the hours by turning the right side TUNE/
SCROLL control knob.
3. After adjusting the hours, press the right side TUNE/
SCROLL control knob to set the minutes. The minutes
will begin to blink.4. Adjust the minutes using the right side TUNE/
SCROLL control knob. Press the TUNE/SCROLL control
knob to save time change.
5. To exit, press any button/knob, or wait five seconds.
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.
TUNE Control
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the frequency.
Setting the Tone, Balance, and Fade
Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to
the right or left to increase or decrease the bass tones.
288 UNDERSTANDING YOUR INSTRUMENT PANEL

INFO Button
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.
TUNE Control
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the frequency.
Setting the Tone, Balance, and Fade
Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to
the right or left to increase or decrease the bass tones.Push the rotary TUNE/SCROLL control knob a second
time and MID will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
mid-range tones.
Push the rotary TUNE/SCROLL control knob a third
time and TREBLE will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
treble tones.
Push the rotary TUNE/SCROLL control knob a fourth
time and BALANCE will display. Turn the TUNE/
SCROLL control knob to the right or left to adjust the
sound level from the right or left side speakers.
Push the rotary TUNE/SCROLL control knob a fifth time
and FADE will display. Turn the TUNE/SCROLL control
knob to the left or right to adjust the sound level between
the front and rear speakers.
298 UNDERSTANDING YOUR INSTRUMENT PANEL

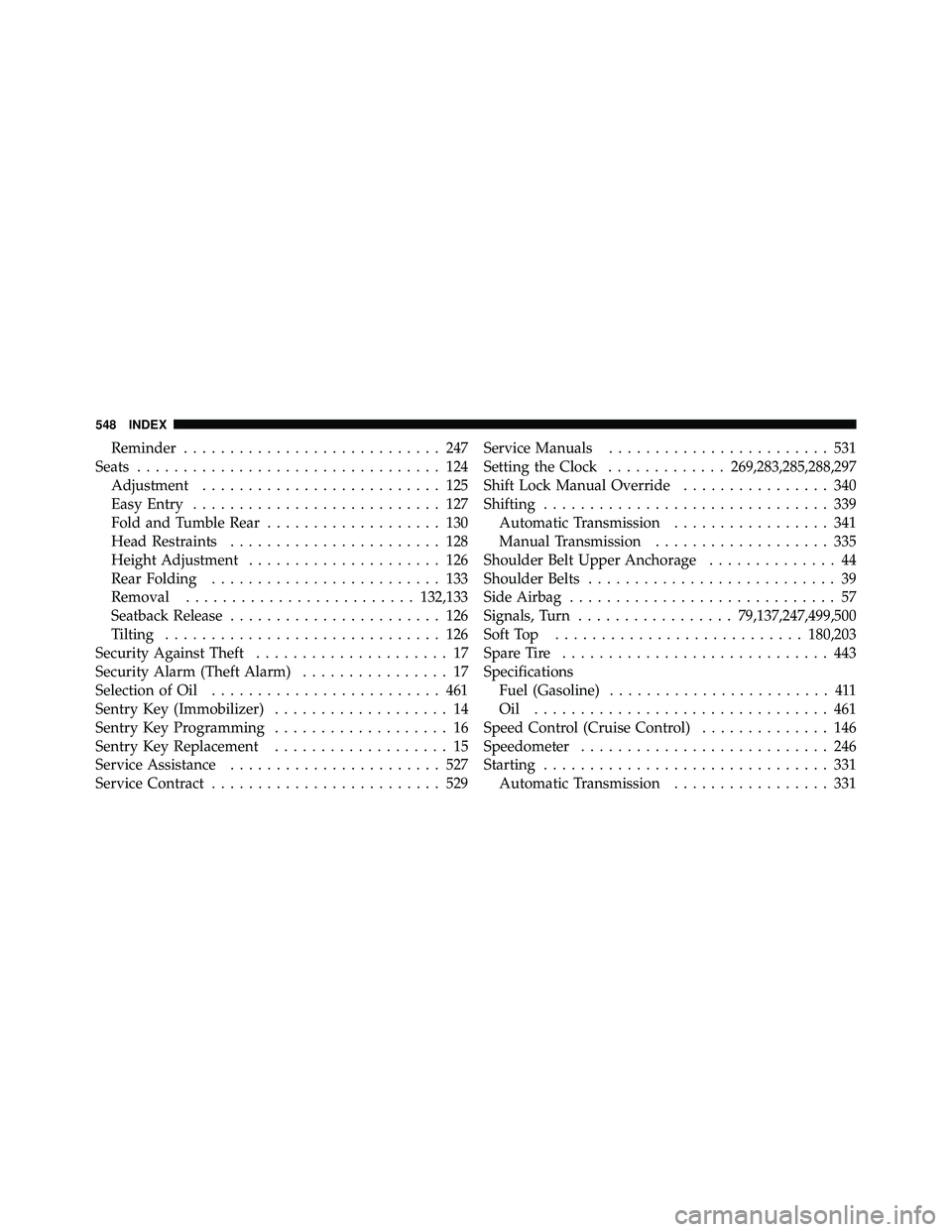

Reminder............................ 247
Seats ................................. 124
Adjustment .......................... 125
Easy Entry ........................... 127
Fold and Tumble Rear ................... 130
Head Restraints ....................... 128
Height Adjustment ..................... 126
Rear Folding ......................... 133
Removal ......................... 132,133
Seatback Release ....................... 126
Tilting .............................. 126
Security Against Theft ..................... 17
Security Alarm (Theft Alarm) ................ 17
Selection of Oil ......................... 461
Sentry Key (Immobilizer) ................... 14
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 15
Service Assistance ....................... 527
Service Contract ......................... 529 Service Manuals
........................ 531
Setting the Clock .............269,283,285,288,297
Shift Lock Manual Override ................ 340
Shifting ............................... 339
Automatic Transmission ................. 341
Manual Transmission ................... 335
Shoulder Belt Upper Anchorage .............. 44
Shoulder Belts ........................... 39
Side Airbag ............................. 57
Signals, Turn ................. 79,137,247,499,500
Soft Top ........................... 180,203
Spare Tire ............................. 443
Specifications Fuel (Gasoline) ........................ 411
Oil ................................ 461
Speed Control (Cruise Control) .............. 146
Speedometer ........................... 246
Starting ............................... 331
Automatic Transmission ................. 331
548 INDEX
