engine coolant JEEP WRANGLER 2010 Owners Manual

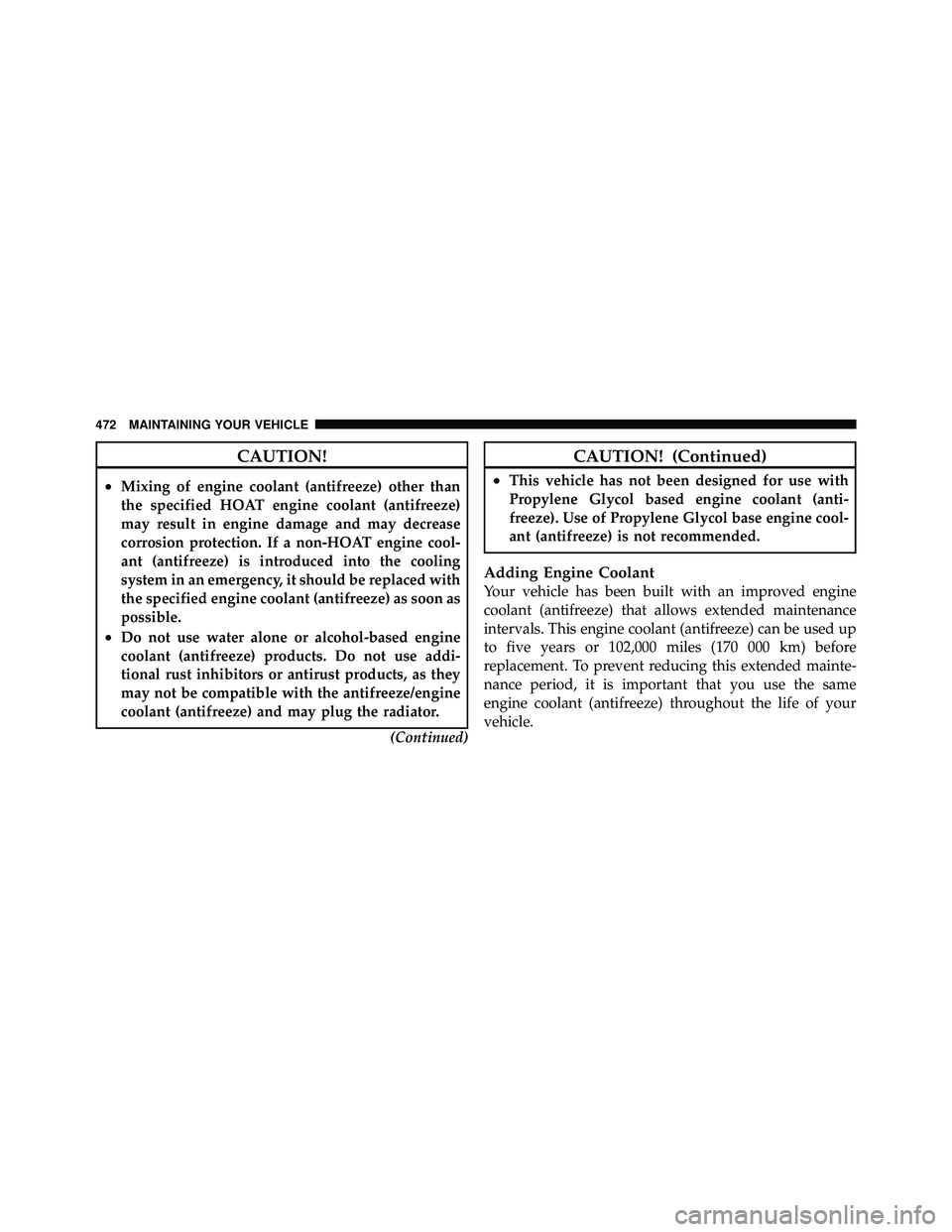

CAUTION!
•Mixing of engine coolant (antifreeze) other than
the specified HOAT engine coolant (antifreeze)
may result in engine damage and may decrease
corrosion protection. If a non-HOAT engine cool-
ant (antifreeze) is introduced into the cooling
system in an emergency, it should be replaced with
the specified engine coolant (antifreeze) as soon as
possible.
•Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use addi-
tional rust inhibitors or antirust products, as they
may not be compatible with the antifreeze/engine
coolant (antifreeze) and may plug the radiator.(Continued)

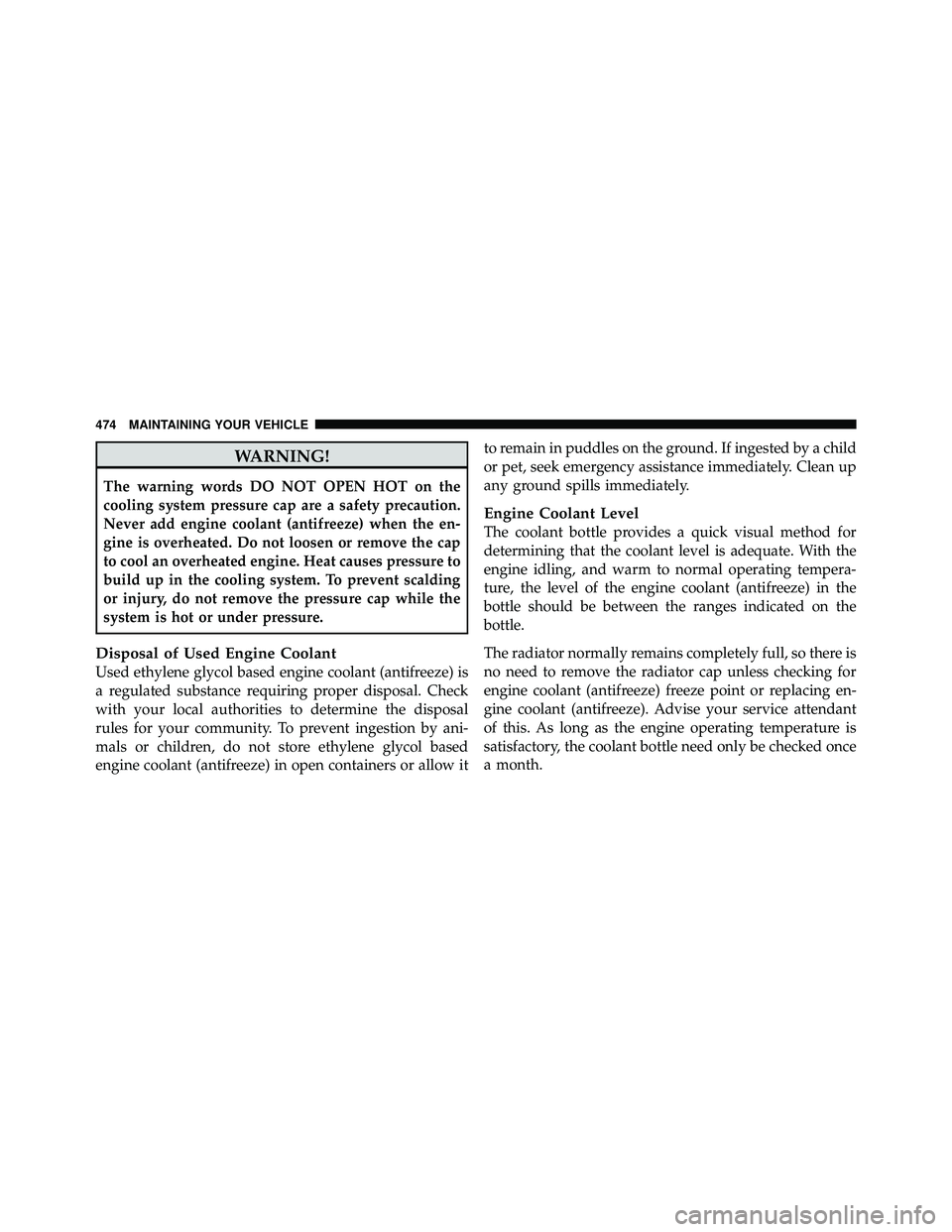

WARNING!
The warning words DO NOT OPEN HOT on the
cooling system pressure cap are a safety precaution.
Never add engine coolant (antifreeze) when the en-
gine is overheated. Do not loosen or remove the cap
to cool an overheated engine. Heat causes pressure to
build up in the cooling system. To prevent scalding
or injury, do not remove the pressure cap while the
system is hot or under pressure.
Disposal of Used Engine Coolant
Used ethylene glycol based engine coolant (antifreeze) is
a regulated substance requiring proper disposal. Check
with your local authorities to determine the disposal
rules for your community. To prevent ingestion by ani-
mals or children, do not store ethylene glycol based
engine coolant (antifreeze) in open containers or allow itto remain in puddles on the ground. If ingested by a child
or pet, seek emergency assistance immediately. Clean up
any ground spills immediately.
Engine Coolant Level
The coolant bottle provides a quick visual method for
determining that the coolant level is adequate. With the
engine idling, and warm to normal operating tempera-
ture, the level of the engine coolant (antifreeze) in the
bottle should be between the ranges indicated on the
bottle.
The radiator normally remains completely full, so there is
no need to remove the radiator cap unless checking for
engine coolant (antifreeze) freeze point or replacing en-
gine coolant (antifreeze). Advise your service attendant
of this. As long as the engine operating temperature is
satisfactory, the coolant bottle need only be checked once
a month.
474 MAINTAINING YOUR VEHICLE

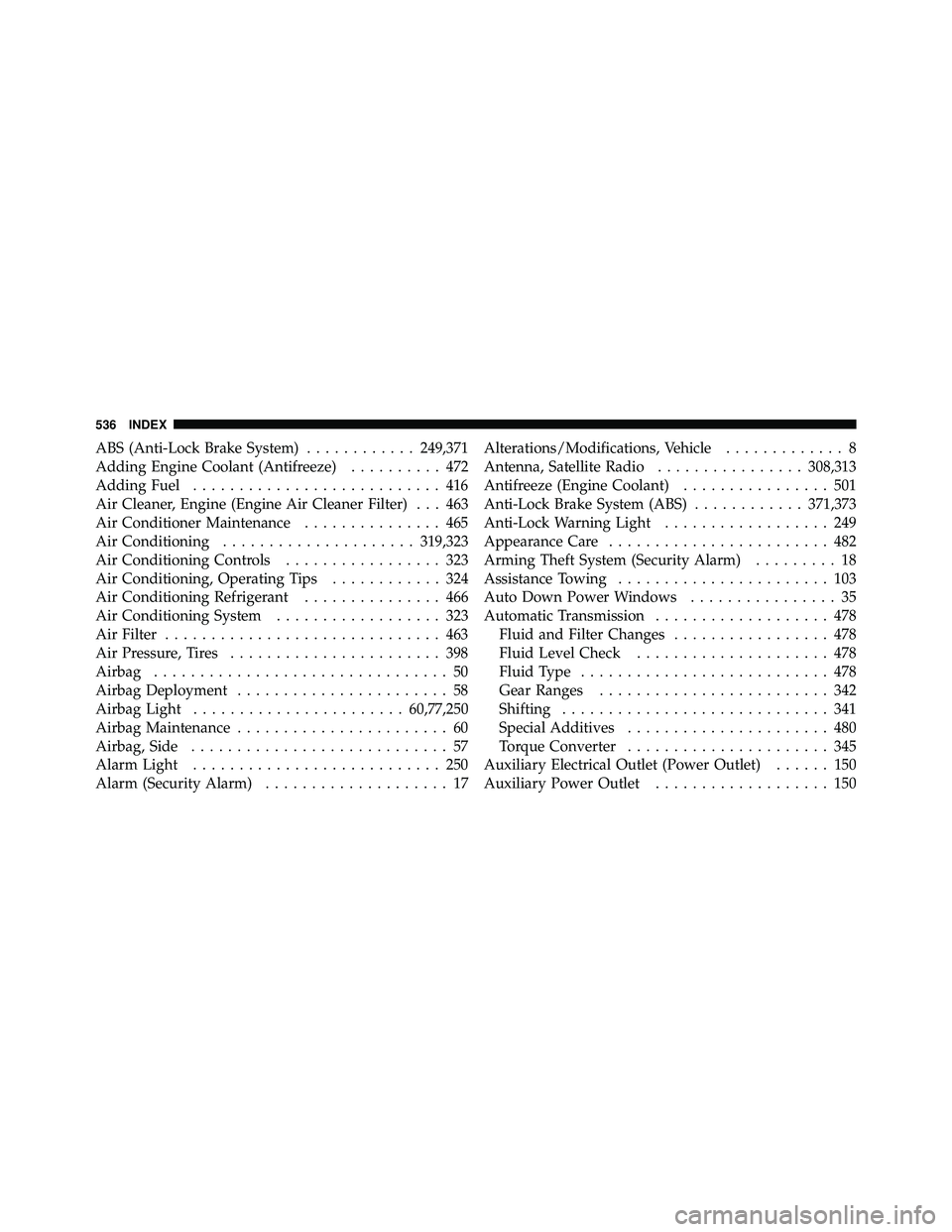

ABS (Anti-Lock Brake System)............249,371
Adding Engine Coolant (Antifreeze) .......... 472
Adding Fuel ........................... 416
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 463
Air Conditioner Maintenance ............... 465
Air Conditioning ..................... 319,323
Air Conditioning Controls ................. 323
Air Conditioning, Operating Tips ............ 324
Air Conditioning Refrigerant ............... 466
Air Conditioning System .................. 323
Air Filter .............................. 463
Air Pressure, Tires ....................... 398
Airbag ................................ 50
Airbag Deployment ....................... 58
Airbag Light ....................... 60,77,250
Airbag Maintenance ....................... 60
Airbag, Side ............................ 57
Alarm Light ........................... 250
Alarm (Security Alarm) .................... 17 Alterations/Modifications, Vehicle
............. 8
Antenna, Satellite Radio ................308,313
Antifreeze (Engine Coolant) ................ 501
Anti-Lock Brake System (ABS) ............371,373
Anti-Lock Warning Light .................. 249
Appearance Care ........................ 482
Arming Theft System (Security Alarm) ......... 18
Assistance Towing ....................... 103
Auto Down Power Windows ................ 35
Automatic Transmission ................... 478
Fluid and Filter Changes ................. 478
Fluid Level Check ..................... 478
Fluid Type ........................... 478
Gear Ranges ......................... 342
Shifting ............................. 341
Special Additives ...................... 480
Torque Converter ...................... 345
Auxiliary Electrical Outlet (Power Outlet) ...... 150
Auxiliary Power Outlet ................... 150
536 INDEX

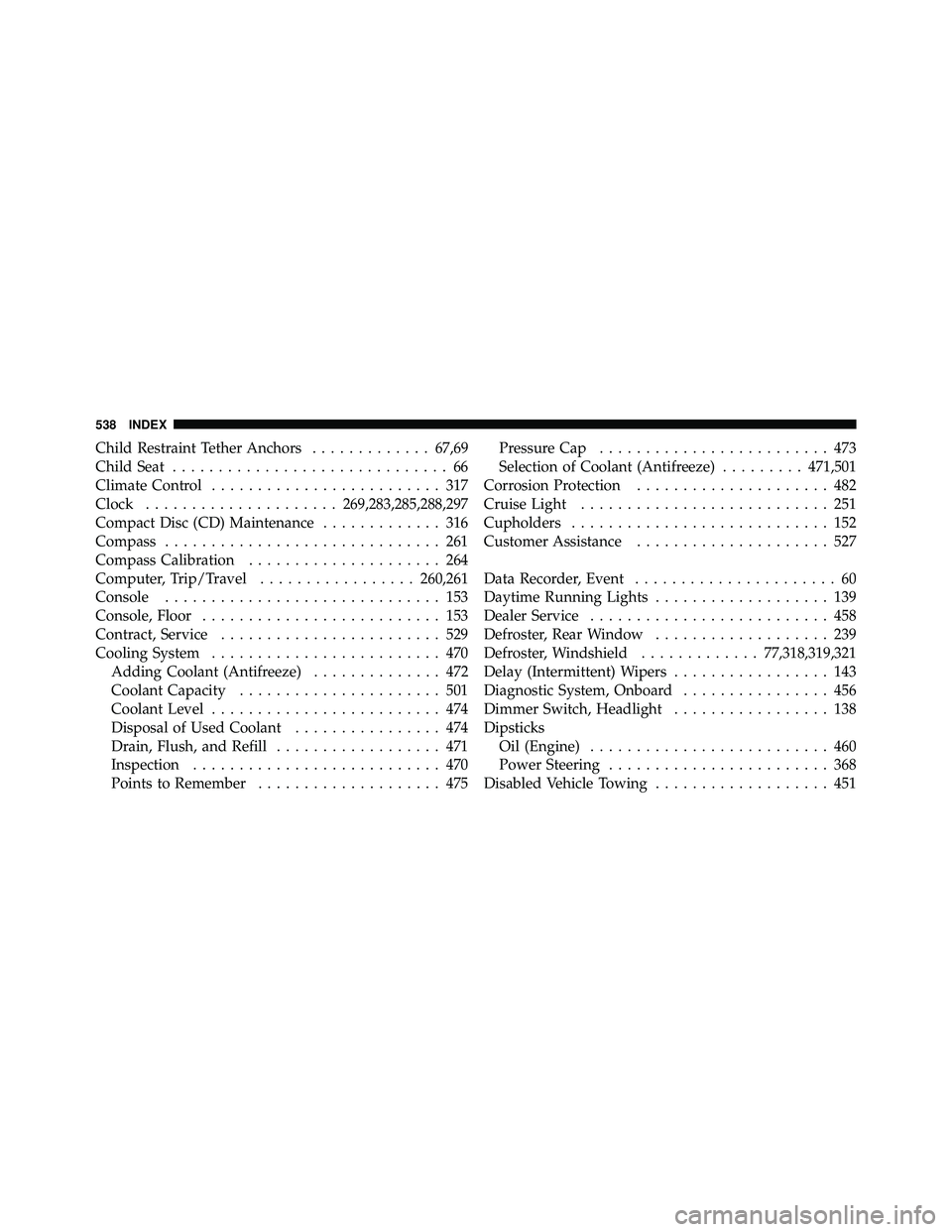

Child Restraint Tether Anchors.............67,69
Child Seat .............................. 66
Climate Control ......................... 317
Clock ..................... 269,283,285,288,297
Compact Disc (CD) Maintenance ............. 316
Compass .............................. 261
Compass Calibration ..................... 264
Computer, Trip/Travel .................260,261
Console .............................. 153
Console, Floor .......................... 153
Contract, Service ........................ 529
Cooling System ......................... 470
Adding Coolant (Antifreeze) .............. 472
Coolant Capacity ...................... 501
Coolant Level ......................... 474
Disposal of Used Coolant ................ 474
Drain, Flush, and Refill .................. 471
Inspection ........................... 470
Points to Remember .................... 475 Pressure Cap
......................... 473
Selection of Coolant (Antifreeze) .........471,501
Corrosion Protection ..................... 482
Cruise Light ........................... 251
Cupholders ............................ 152
Customer Assistance ..................... 527
Data Recorder, Event ...................... 60
Daytime Running Lights ................... 139
Dealer Service .......................... 458
Defroster, Rear Window ................... 239
Defroster, Windshield .............77,318,319,321
Delay (Intermittent) Wipers ................. 143
Diagnostic System, Onboard ................ 456
Dimmer Switch, Headlight ................. 138
Dipsticks Oil (Engine) .......................... 460
Power Steering ........................ 368
Disabled Vehicle Towing ................... 451
538 INDEX
