JEEP WRANGLER 2011 JK / 3.G Owners Manual

WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89

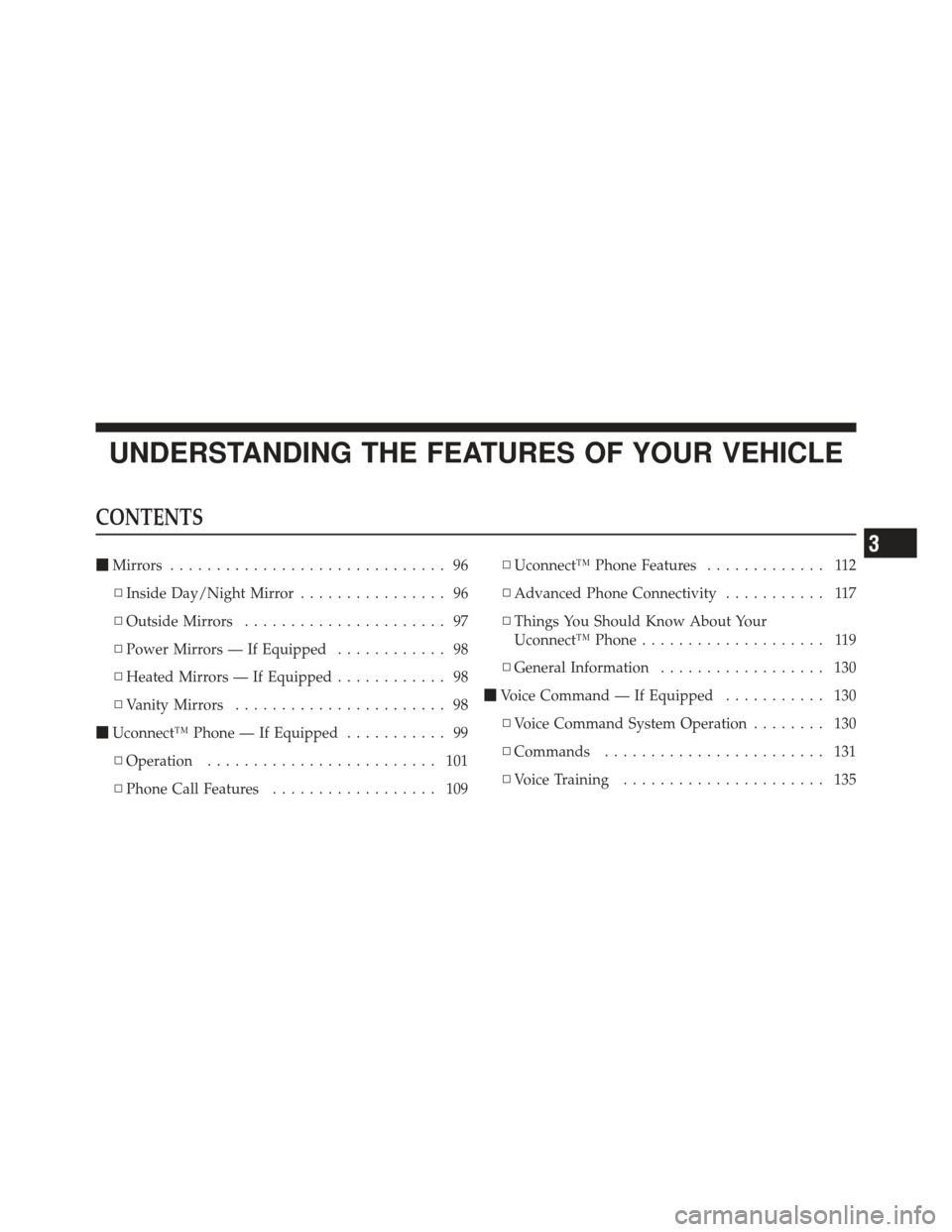

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors .............................. 96
▫ Inside Day/Night Mirror ................ 96
▫ Outside Mirrors ...................... 97
▫ Power Mirrors — If Equipped ............ 98
▫ Heated Mirrors — If Equipped ............ 98
▫ Vanity Mirrors ....................... 98
 Uconnect™ Phone — If Equipped ........... 99
▫ Operation ......................... 101
▫ Phone Call Features .................. 109 ▫
Uconnect™ Phone Features ............. 112
▫ Advanced Phone Connectivity ........... 117
▫ Things You Should Know About Your
Uconnect™ Phone .................... 119
▫ General Information .................. 130
 Voice Command — If Equipped ........... 130
▫ Voice Command System Operation ........ 130
▫ Commands ........................ 131
▫ Voice Training ...................... 135
3

Seats .............................. 135
▫ Front Seat Adjustment ................. 135
▫ Manual Seat Height Adjustment —
If Equipped ........................ 136
▫ Front Seatback Recline ................. 137
▫ Front Passenger Easy Entry Seat —
Two-Door Models .................... 138
▫ Tip n’ Slide Seats — Two-Door Models ..... 139
▫ Heated Seats — If Equipped ............ 141
▫ Head Restraints ..................... 142
▫ Fold And Tumble Rear Seat —
Two-Door Models .................... 144
▫ Removing The Rear Seat —
Two-Door Models .................... 145 ▫
Replacing The Rear Seat —
Two-Door Models .................... 146
▫ 60/40 Split Folding Rear Seat —
Four-Door Models .................... 146
 To Open And Close The Hood ............ 148
 Lights ............................. 149
▫ Multifunction Lever .................. 149
▫ Headlights And Parking Lights .......... 150
▫ Automatic Headlights — If Equipped ...... 150
▫ Turn Signals ........................ 151
▫ Lane Change Assist ................... 152
▫ Lights-On Reminder .................. 152
▫ High/Low Beam Switch ............... 152
▫ Flash-To-Pass ....................... 152
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Front Fog Lights ..................... 152
▫ Instrument Panel Dimmer .............. 153
▫ Daytime Running Lights — If Equipped .... 153
▫ Interior Lights ...................... 154
 Windshield Wipers And Washers .......... 155
▫ Windshield Wiper Operation ............ 156
▫ Intermittent Wiper System .............. 156
▫ Windshield Washers .................. 157
▫ Mist Feature ........................ 158
 Tilt Steering Column ................... 158
 Electronic Speed Control — If Equipped ..... 159
▫ To Activate ......................... 160
▫ To Set A Desired Speed ................ 161 ▫
To Deactivate ....................... 161
▫ To Resume Speed .................... 161
▫ To Vary The Speed Setting .............. 161
▫ To Accelerate For Passing .............. 162
 Electrical Power Outlet ................. 162
 Power Inverter — If Equipped ............ 166
 Cupholders .......................... 168
▫ Front Cupholders .................... 168
▫ Rear Cupholders ..................... 168
 Storage ............................. 169
▫ Console Storage Compartment ........... 169
▫ Rear Storage Compartment ............. 169
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

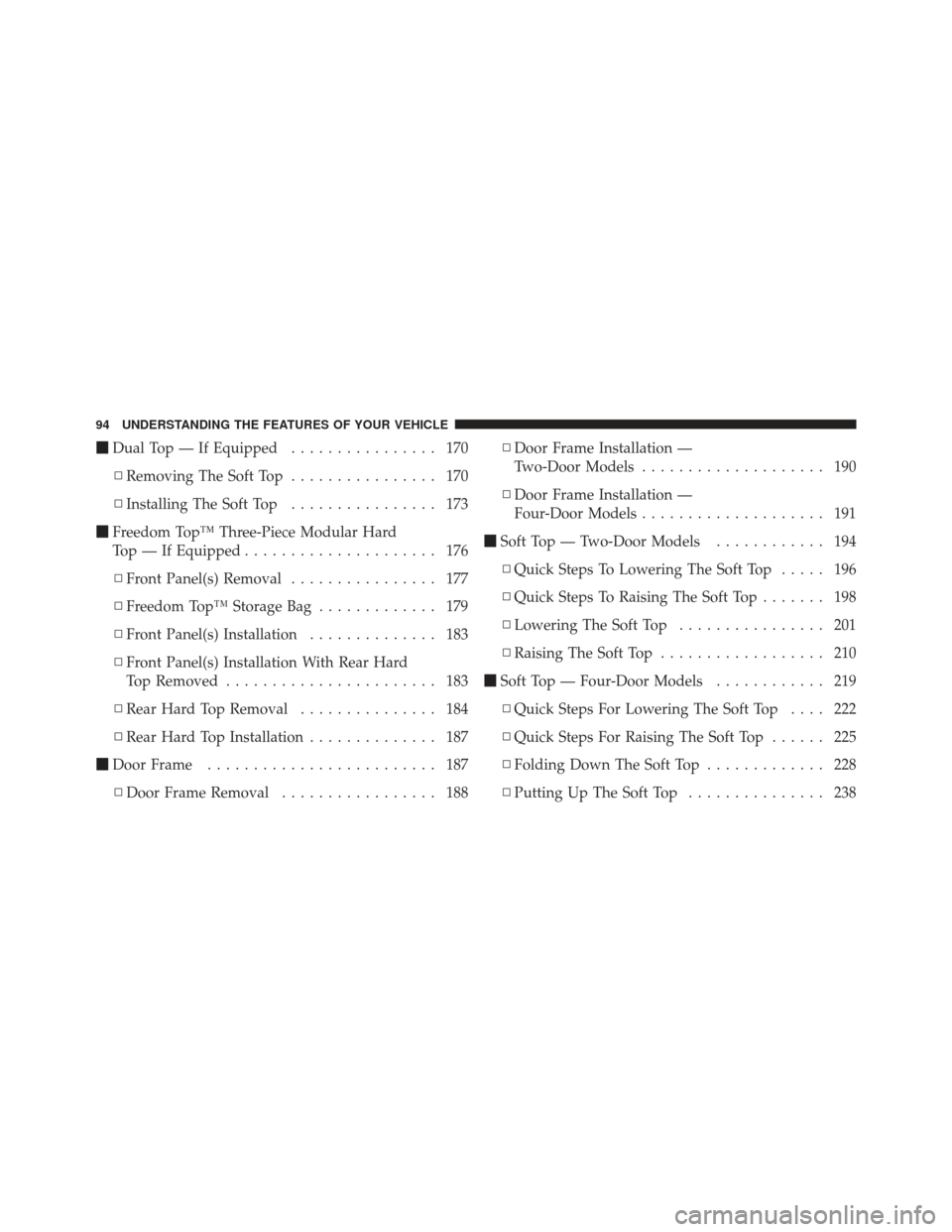

Dual Top — If Equipped ................ 170
▫ Removing The Soft Top ................ 170
▫ Installing The Soft Top ................ 173
 Freedom Top™ Three-Piece Modular Hard
Top — If Equipped ..................... 176
▫ Front Panel(s) Removal ................ 177
▫ Freedom Top™ Storage Bag ............. 179
▫ Front Panel(s) Installation .............. 183
▫ Front Panel(s) Installation With Rear Hard
Top Removed ....................... 183
▫ Rear Hard Top Removal ............... 184
▫ Rear Hard Top Installation .............. 187
 Door Frame ......................... 187
▫ Door Frame Removal ................. 188 ▫
Door Frame Installation —
Two-Door Models .................... 190
▫ Door Frame Installation —
Four-Door Models .................... 191
 Soft Top — Two-Door Models ............ 194
▫ Quick Steps To Lowering The Soft Top ..... 196
▫ Quick Steps To Raising The Soft Top ....... 198
▫ Lowering The Soft Top ................ 201
▫ Raising The Soft Top .................. 210
 Soft Top — Four-Door Models ............ 219
▫ Quick Steps For Lowering The Soft Top .... 222
▫ Quick Steps For Raising The Soft Top ...... 225
▫ Folding Down The Soft Top ............. 228
▫ Putting Up The Soft Top ............... 238
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

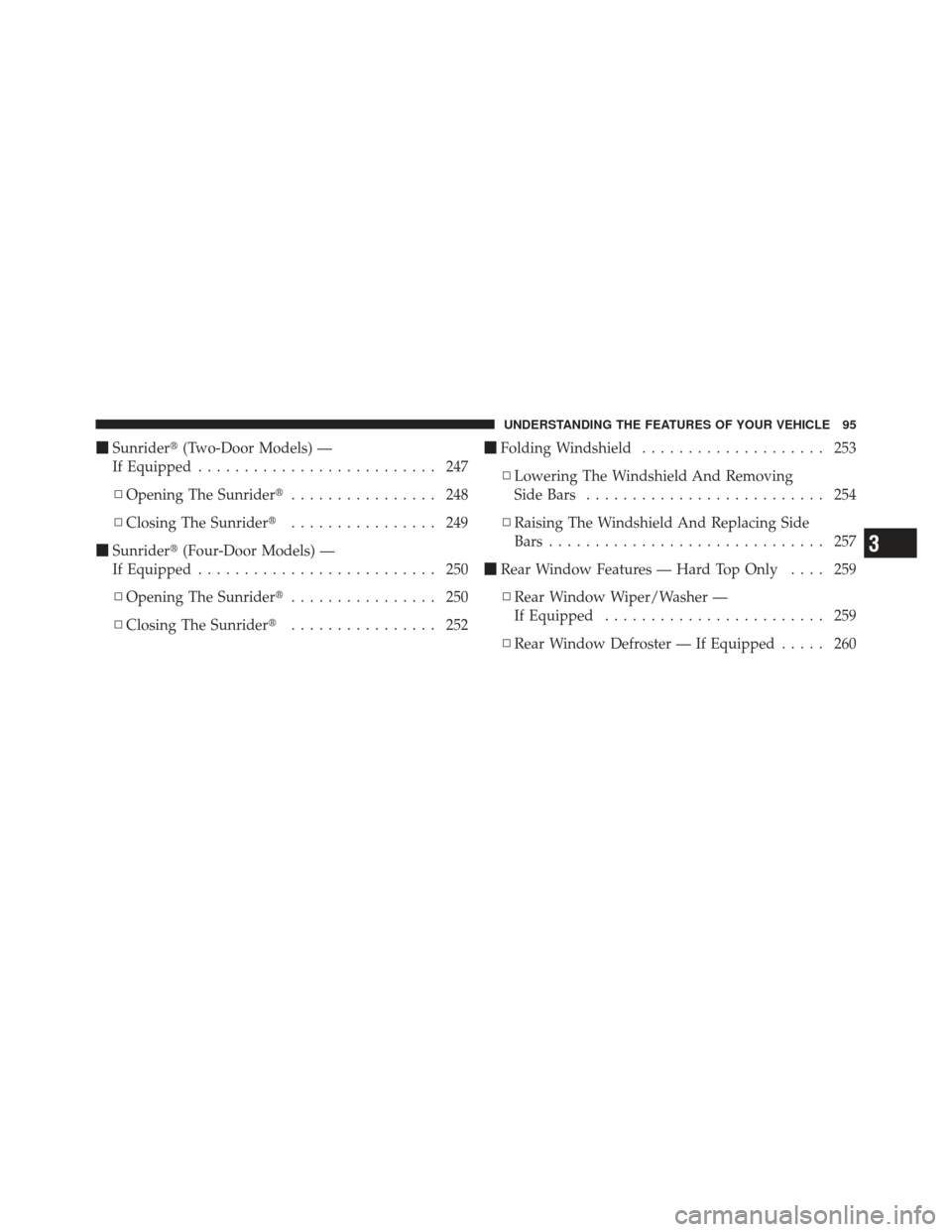

Sunrider (Two-Door Models) —
If Equipped .......................... 247
▫ Opening The Sunrider ................ 248
▫ Closing The Sunrider ................ 249
 Sunrider (Four-Door Models) —
If Equipped .......................... 250
▫ Opening The Sunrider ................ 250
▫ Closing The Sunrider ................ 252
Folding Windshield .................... 253
▫ Lowering The Windshield And Removing
Side Bars .......................... 254
▫ Raising The Windshield And Replacing Side
Bars .............................. 257
 Rear Window Features — Hard Top Only .... 259
▫ Rear Window Wiper/Washer —
If Equipped ........................ 259
▫ Rear Window Defroster — If Equipped ..... 260
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical adjustment of the mirror. The mirror should be
adjusted to center on the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Adjusting Rearview Mirror
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.
Outside Rearview Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

Power Mirrors — If Equipped
The power mirror switch is located on the center of the
instrument panel, below the climate controls. A rotary
knob selects the left mirror, right mirror or off position.After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the center off
position to guard against accidentally moving a mirror
position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This feature
is activated whenever you turn on the rear window
defroster. Refer to “Rear Window Features” in “Under-
standing The Features Of Your Vehicle” for further
information.
Vanity Mirrors
Vanity mirrors are located on the sun visors. To use the
mirrors, rotate the sun visor down and swing the mirror
cover upward.
Power Mirror Switch
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
